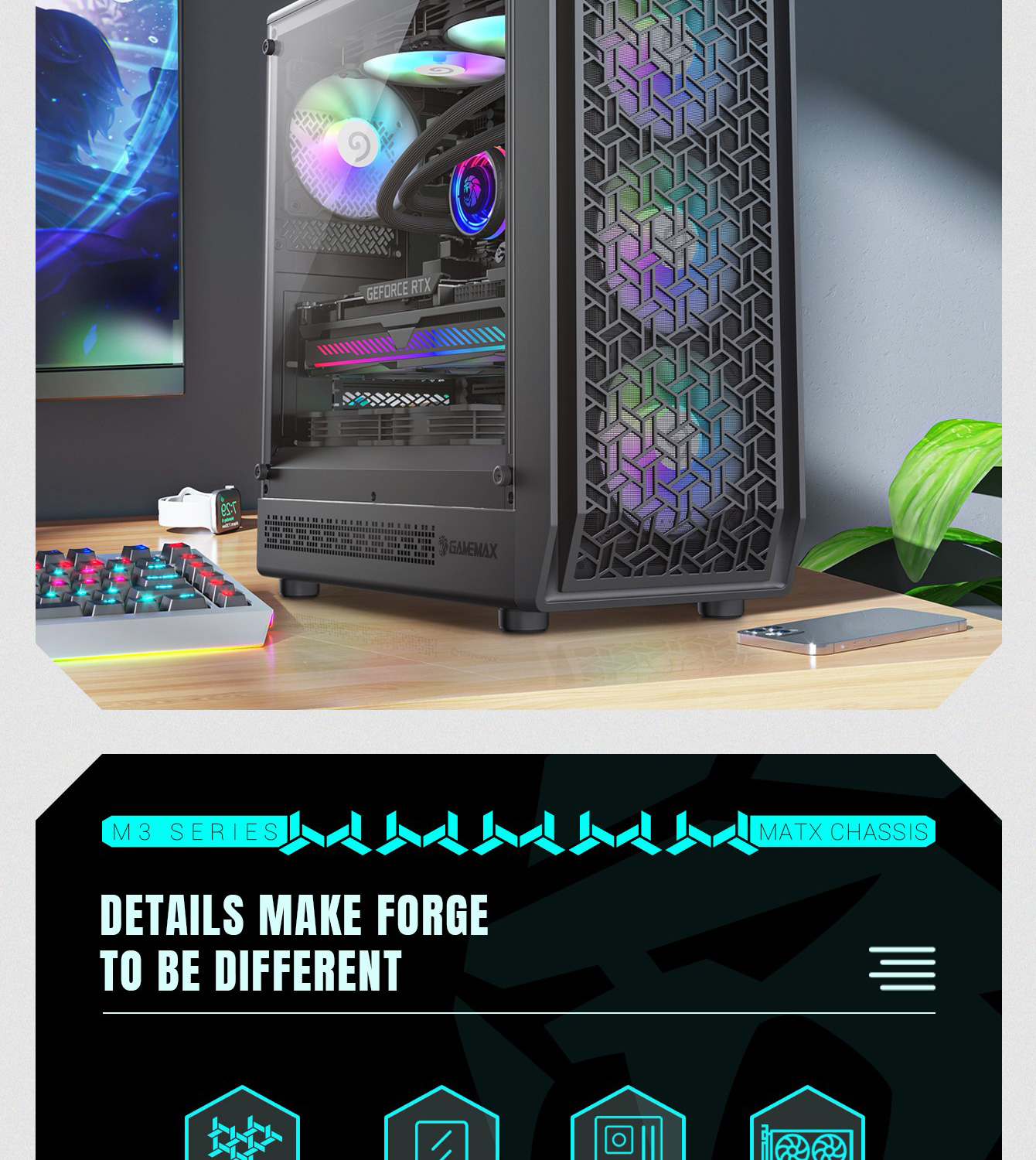

Forge MB Premium Micro ATX PC Case by GameMax - has a unique airflow path allowing for a wide range of compatibility and plenty of cooling options

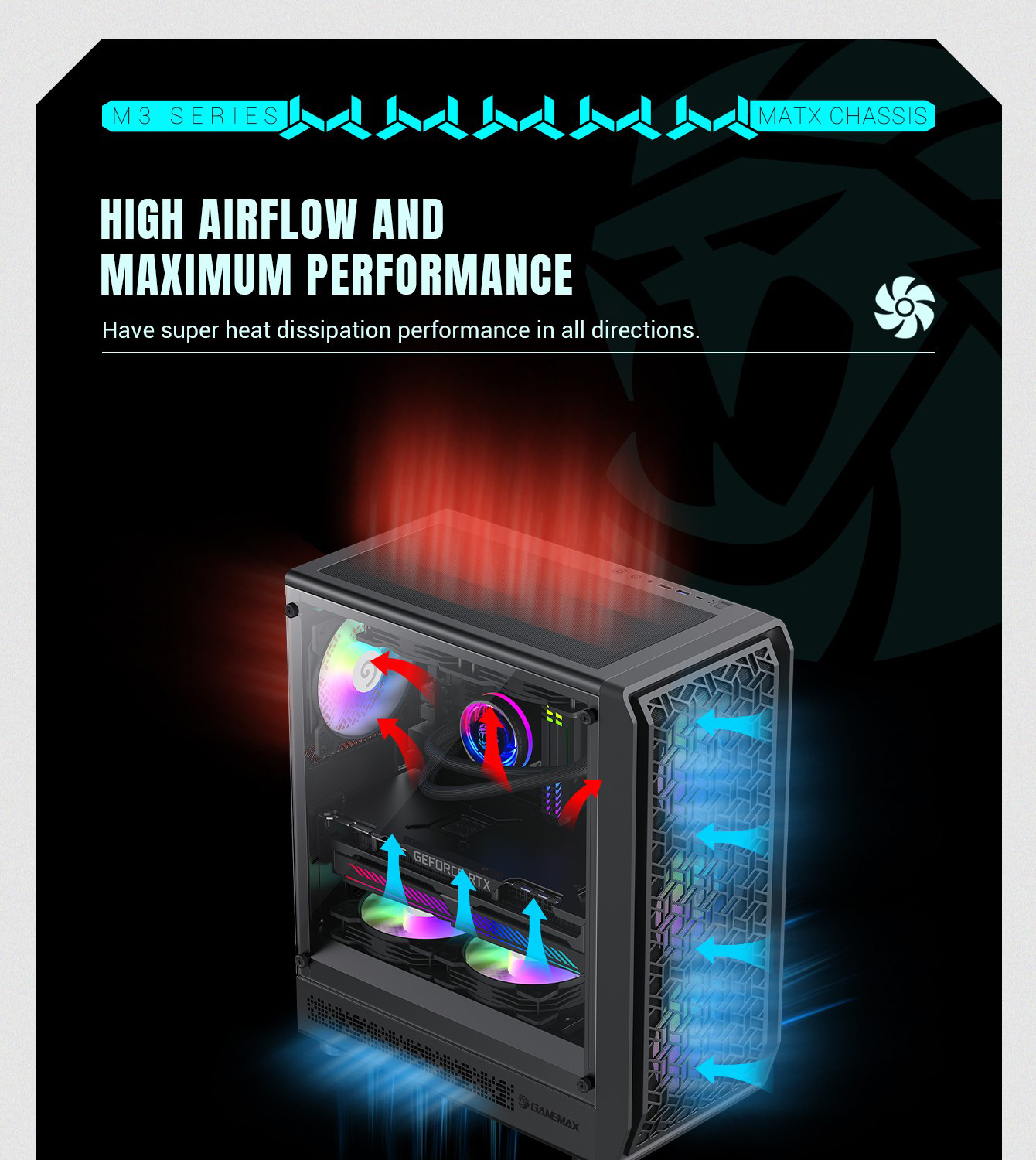

• Optimized Cooling:Supports up to 3x120mm fans (front) and 1x120mm fan (rear), with options for larger fans and water cooling radiators for maximum cooling performance.
• Flexible Storage:Offers versatile storage configurations, including options for up to 3x3.5 HDDs and 5x2.5 SSDs, catering to various storage needs.
• Modern Connectivity:Features USB 3.0 and Type-C ports for fast data transfer and future-proof connectivity, plus a combo audio jack for convenient audio.
• Stylish Design:Showcases your build with a tempered glass side panel, enhancing the overall aesthetics of your gaming setup.
• Compact & Compatible:Fits M-ATX and ITX motherboards in a compact mini tower form factor, supporting VGA cards up to 330mm in length for powerful gaming performance.
| Form Factor (Midi, Mini,Full) | Mini Tower | |
| Chassis | SPCC :0.4mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | M-ATX、ITX | |
| Front Panel | ABS | |
| Top Panel | metal cover | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||
| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | / |
| 3.5" | / | |

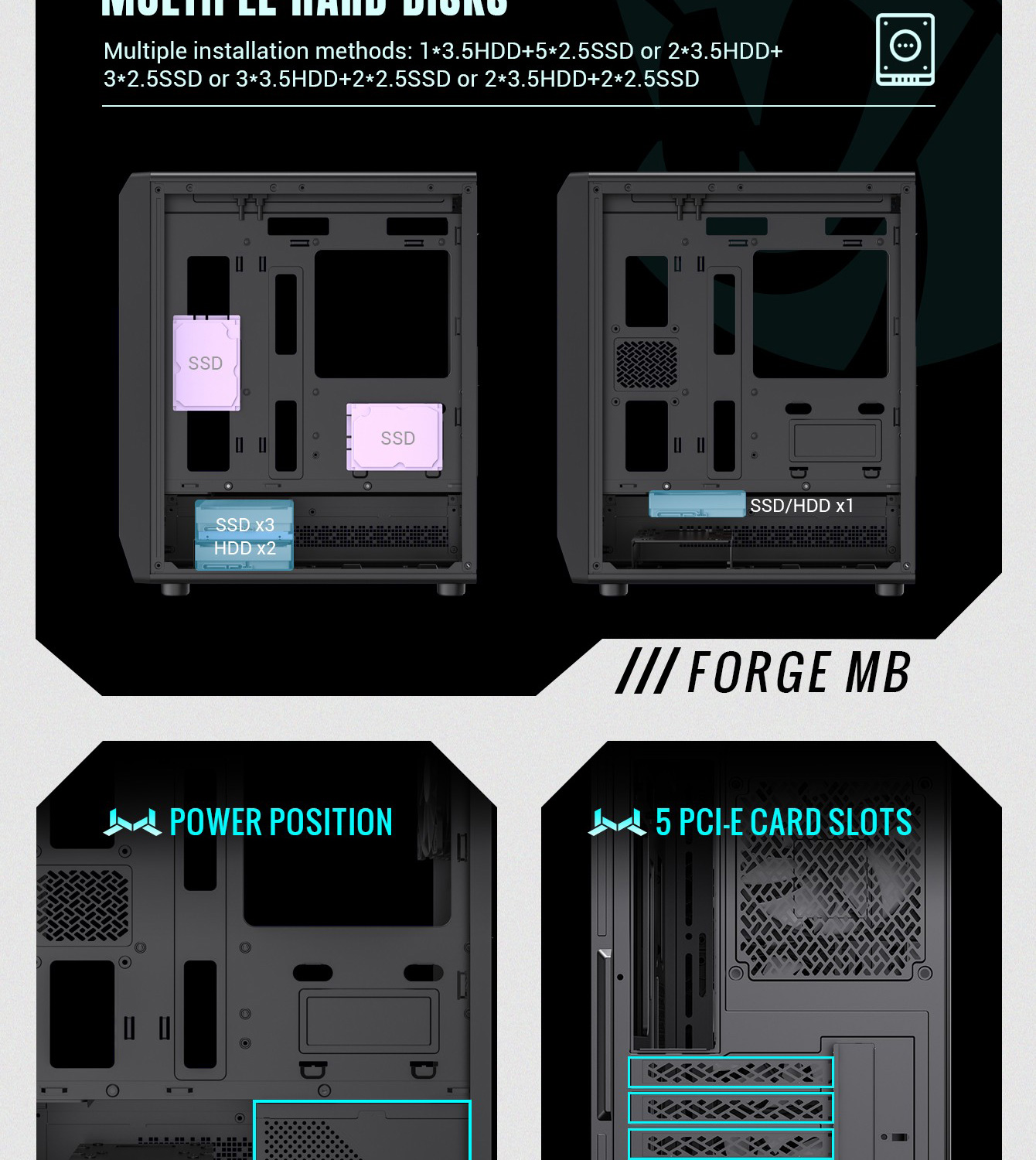

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD |
| 2.5" (SSD) | ||
| I/O | Buttons | *2 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) | *1 | |
| HD Audio Support | Combo Audio(CTIA)*1 | |
| Type C | *1(2.0 or GEN1 or GEN2) | |
| P-Lock | *1 | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |

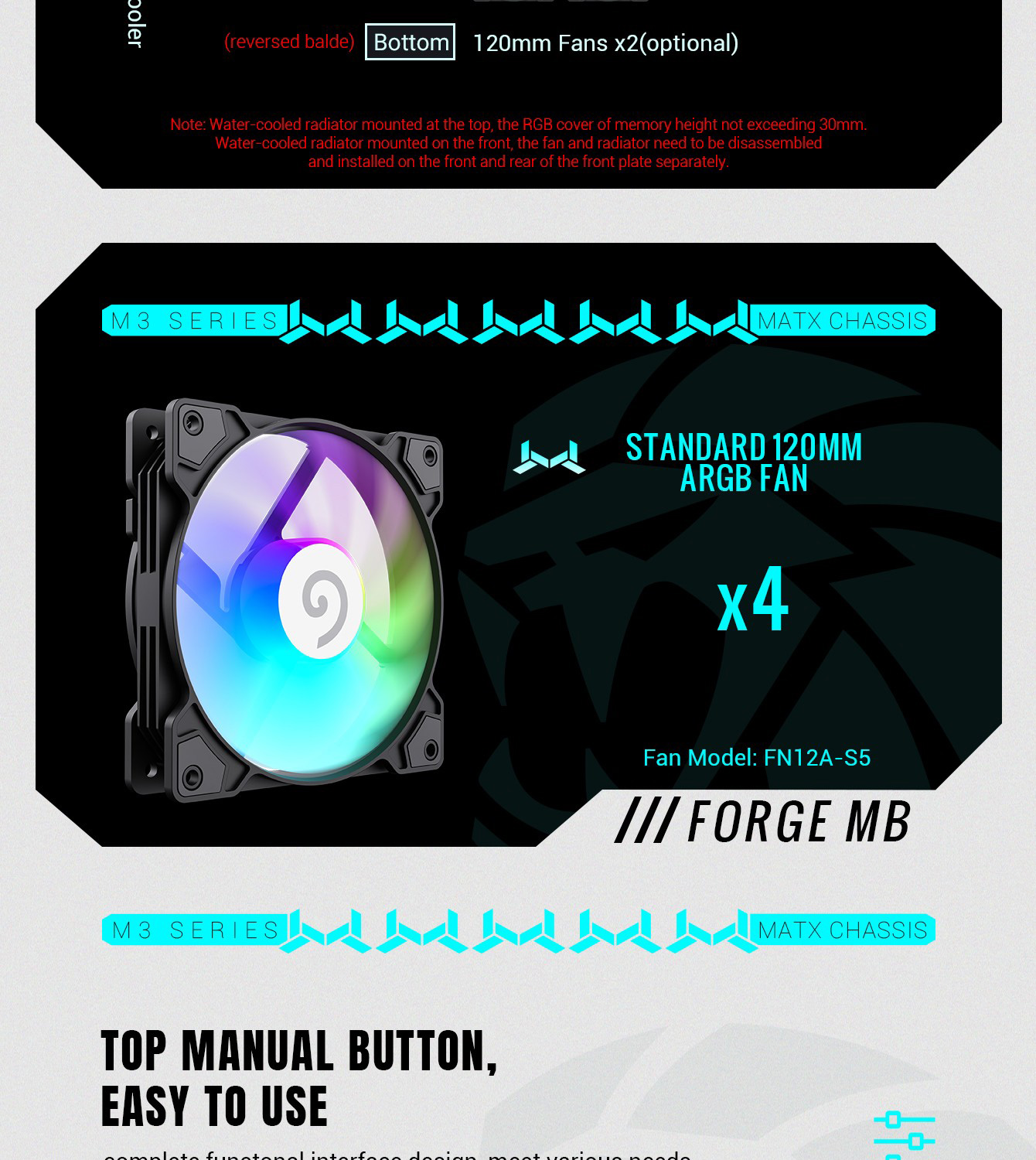

| Cooling Fan Support | Front | 3x120mm |
| Top | / | |
| Rear | 1x120mm | |
| Left Side | / | |
| PSU Cover | / | |
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm,360mm |
| Top | 120mm, 140mm,240mm | |
| Rear | 120mm | |

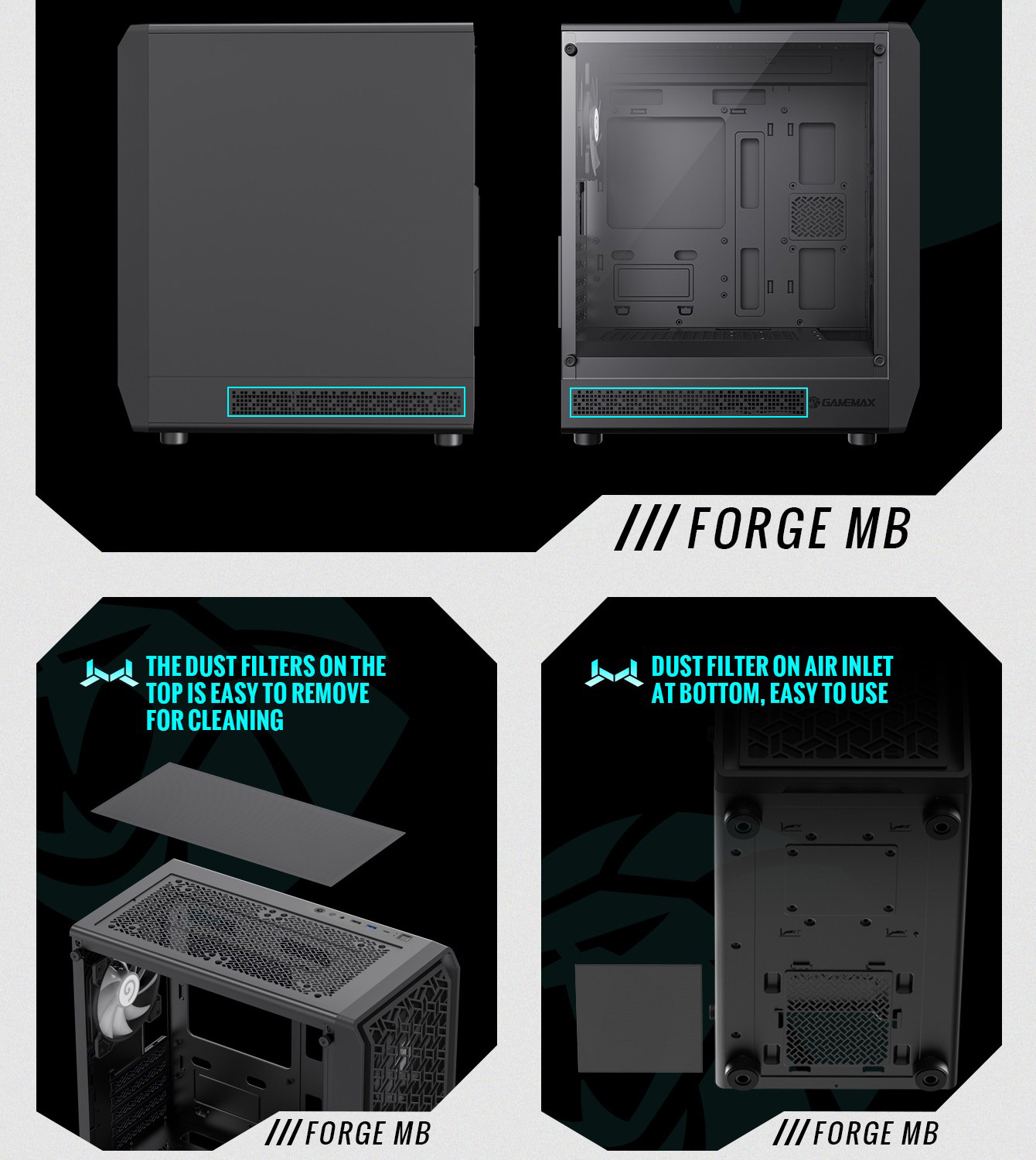

| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *5 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)340*(W)200*(H)436mm |
| Full Case (inc Fascia) | (L)386*(W)205*(H)449mm | |
| Carton | (L)486*(W)255*(H)433mm | |
| Net Weight (Kg) | 3.3kgs | |
| Gross Weight (Kg) | 4.1kgs | |

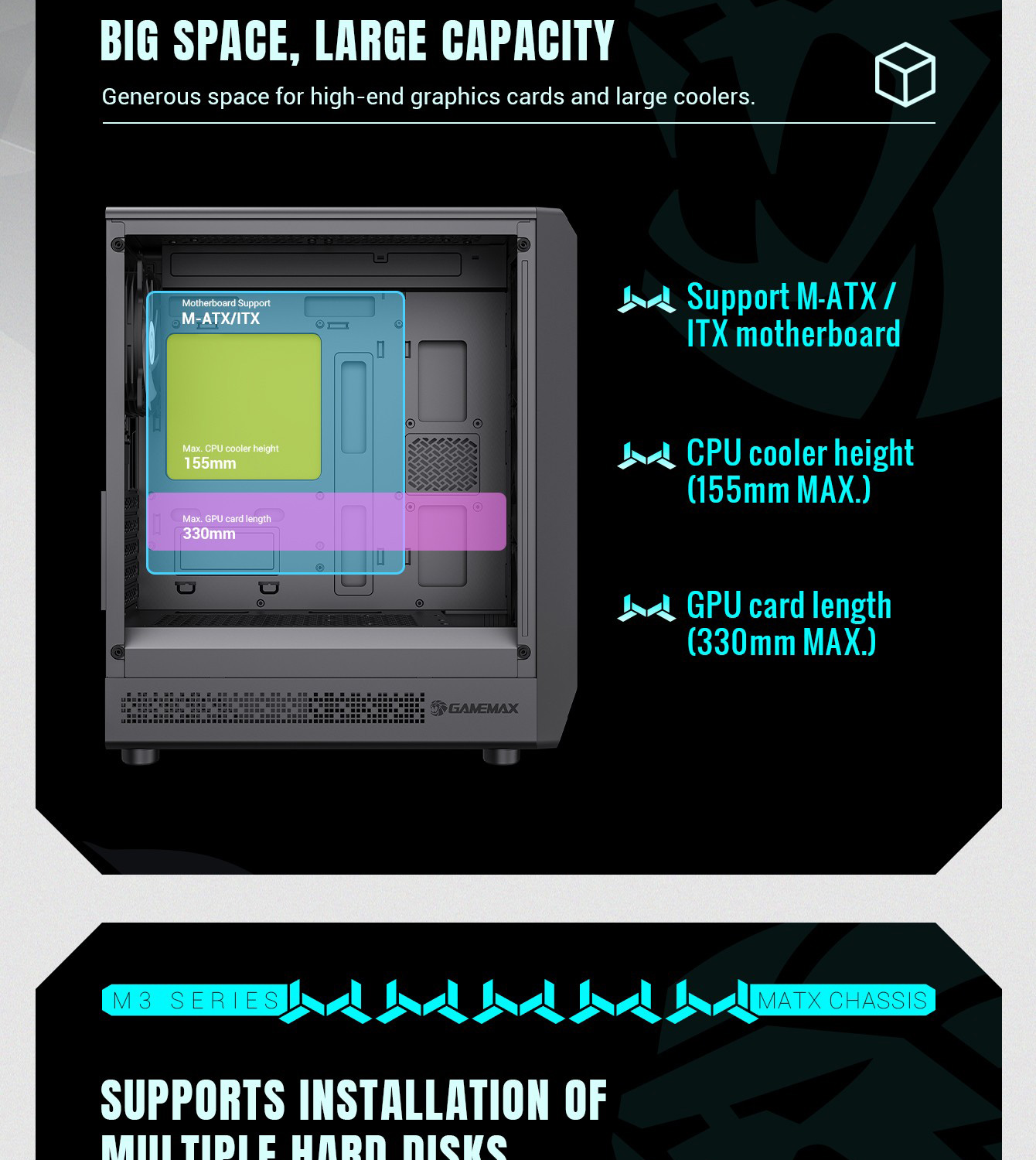

| VGA Card Length | up to 330mm | |
| CPU Cooler Height | 155mm | |
| PSU Length | up to 160mm | |
| Cable Management Depth | 19mm | |
