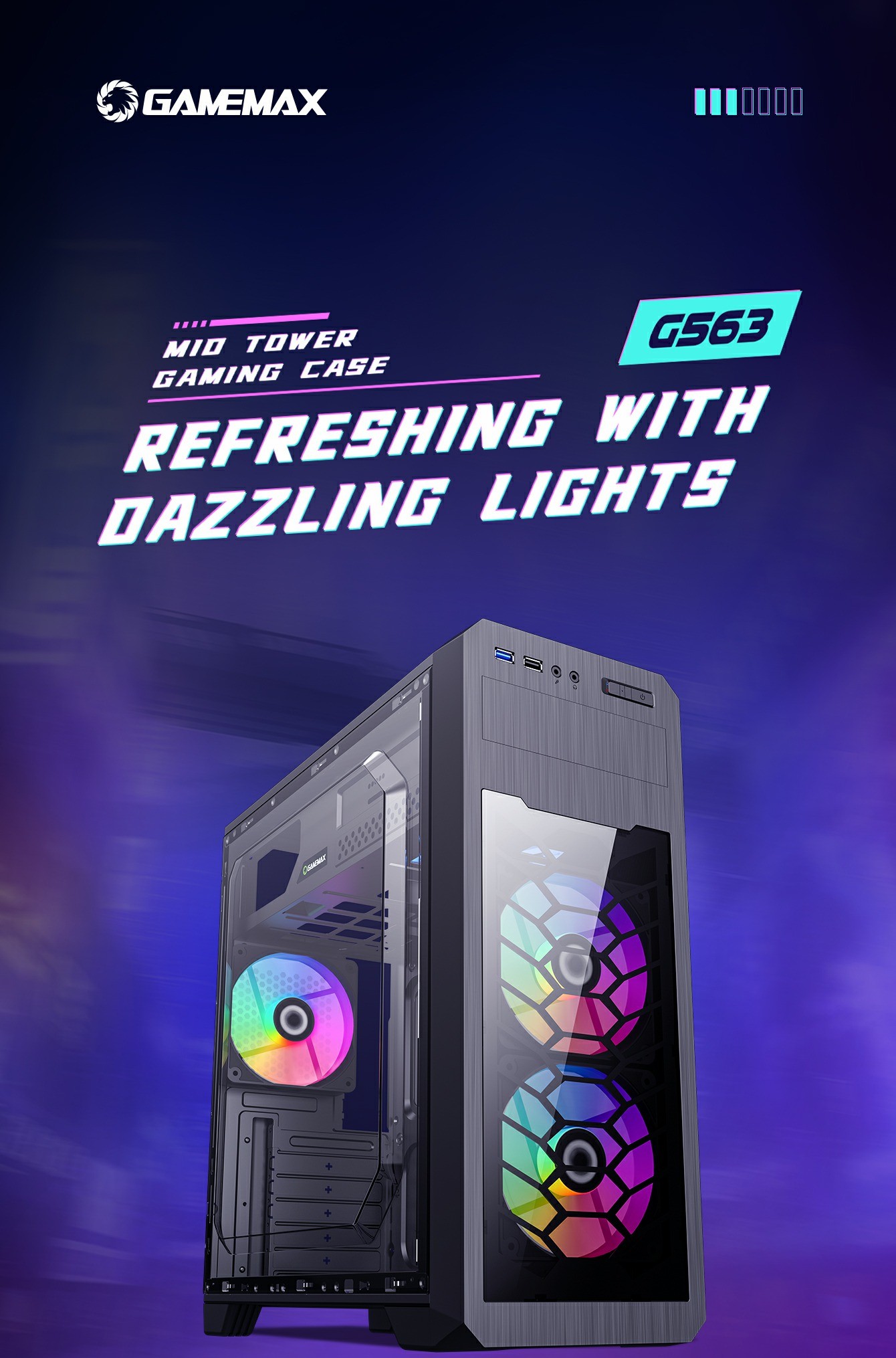

GameMax new Eco Gaming mid-tower with USB3.0 high-speed transfer, and see trough transparent front and side frameless Acrylic window

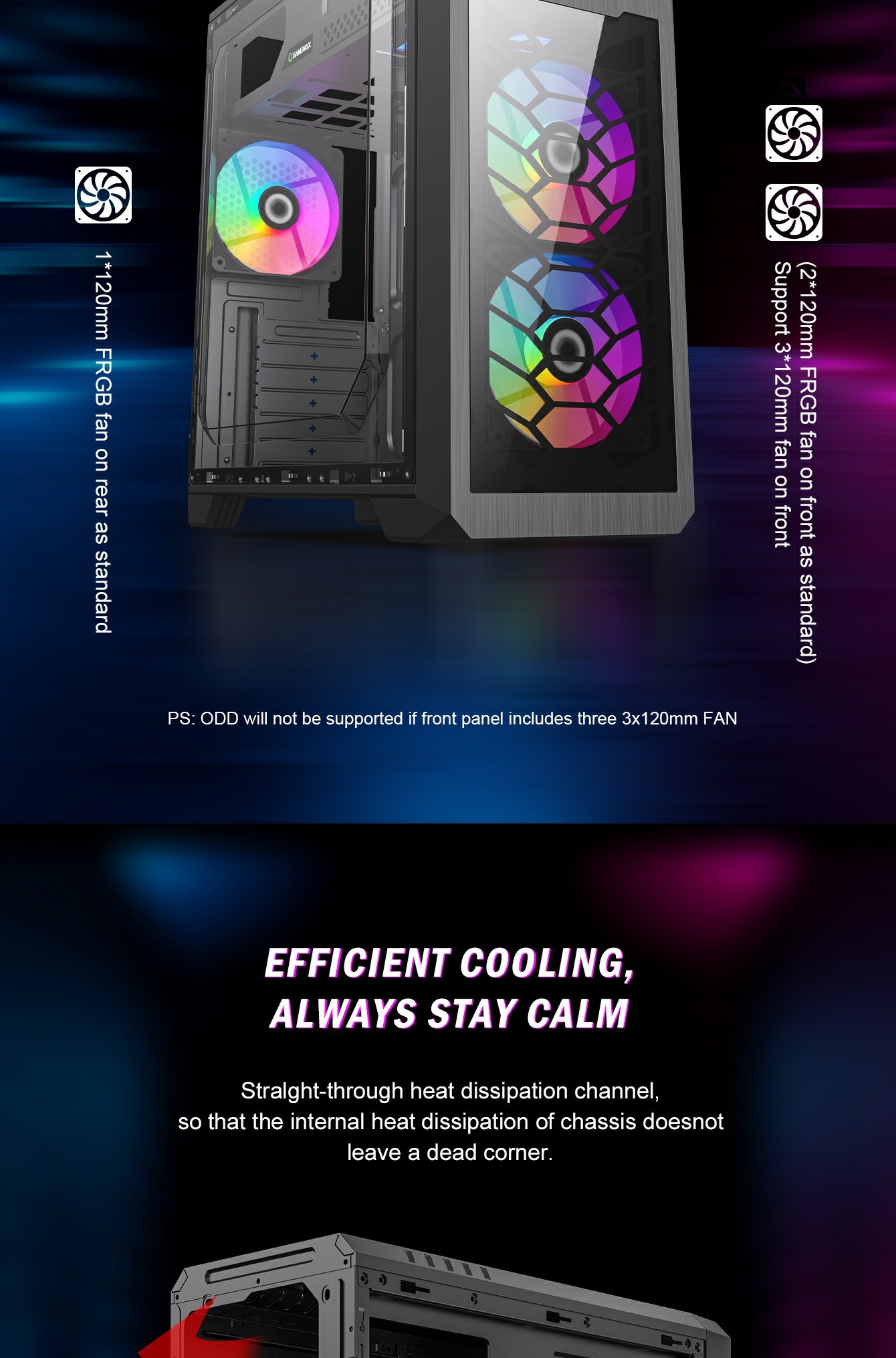

• G563 model included 3x FRGB fan (fixed RGB colors fan)pre-installed, for best cooling airflow and get nice blue lighting for gaming factor

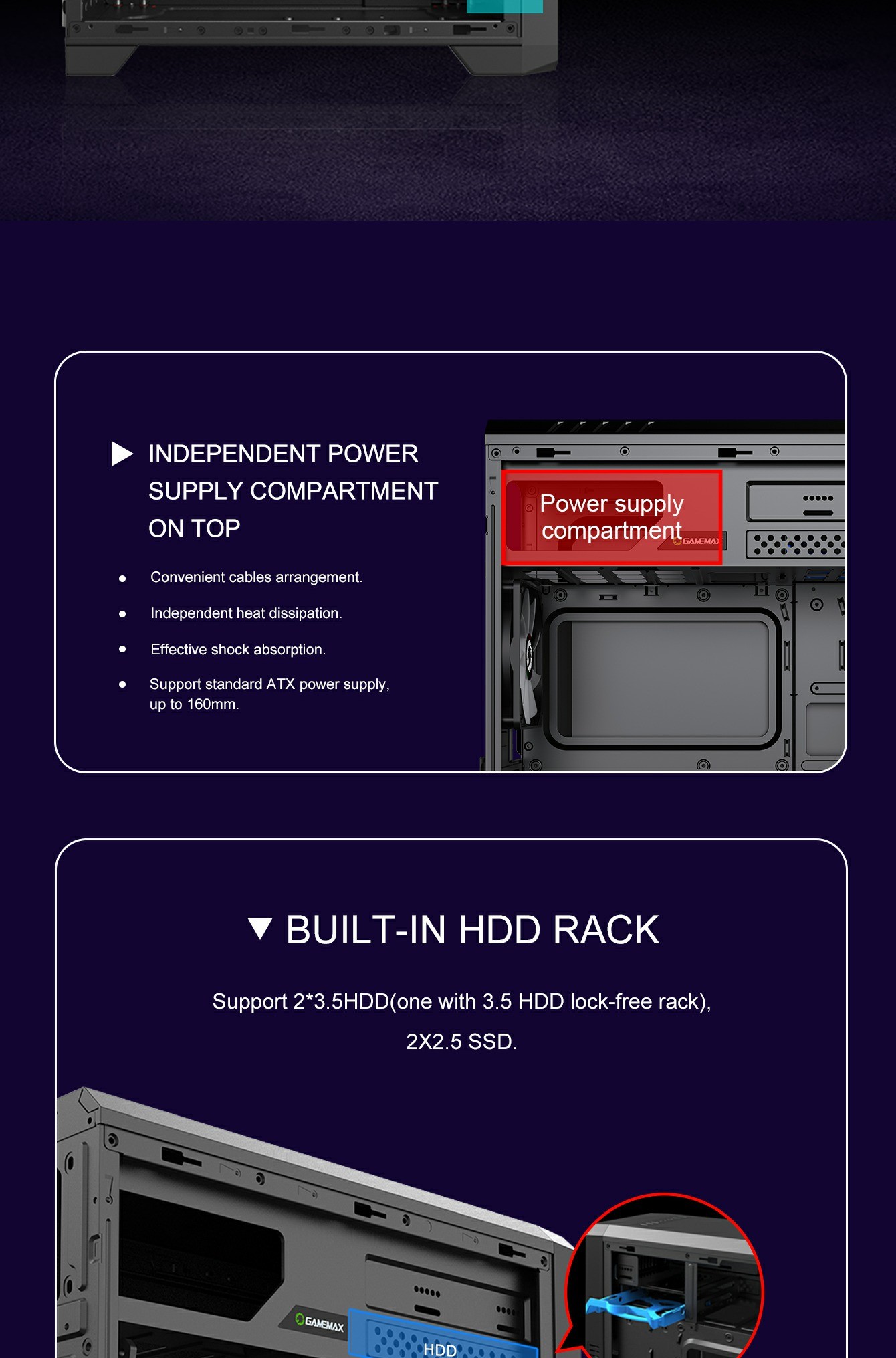

• The tool-less HDD cage which easy for the user for install HDD and hand screw for maintaining gaming system components quickly, Specifically, there is top covered PSU cage, which makes PSU hidden looking and all cables in backlit management, to get clean inside once PC assembled.
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX,Micro, Mini ITX | |
| Chassis | SPCC 0.5mm, Black painting interior | |

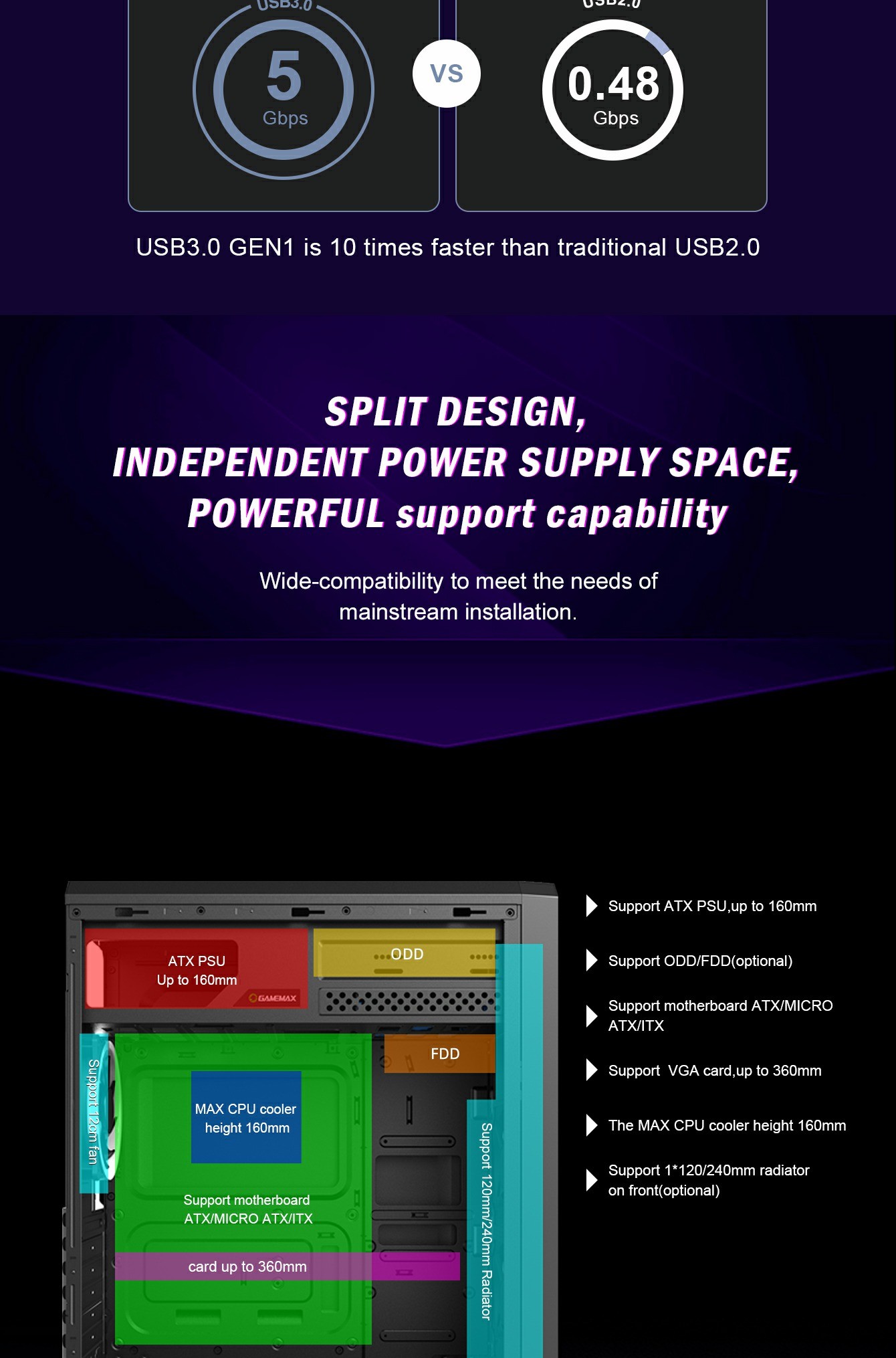

| PSU Form Factor | TOP/ATX | |
| M/B Form Factor | ATX、M-ATX、ITX | |
| Front Panel | Acrylic | |
| Top Panel | metal cover | |
| Branding | Box | GAMEMAX |
| Unit | 1 | |
| (Unit) Position | Original | |

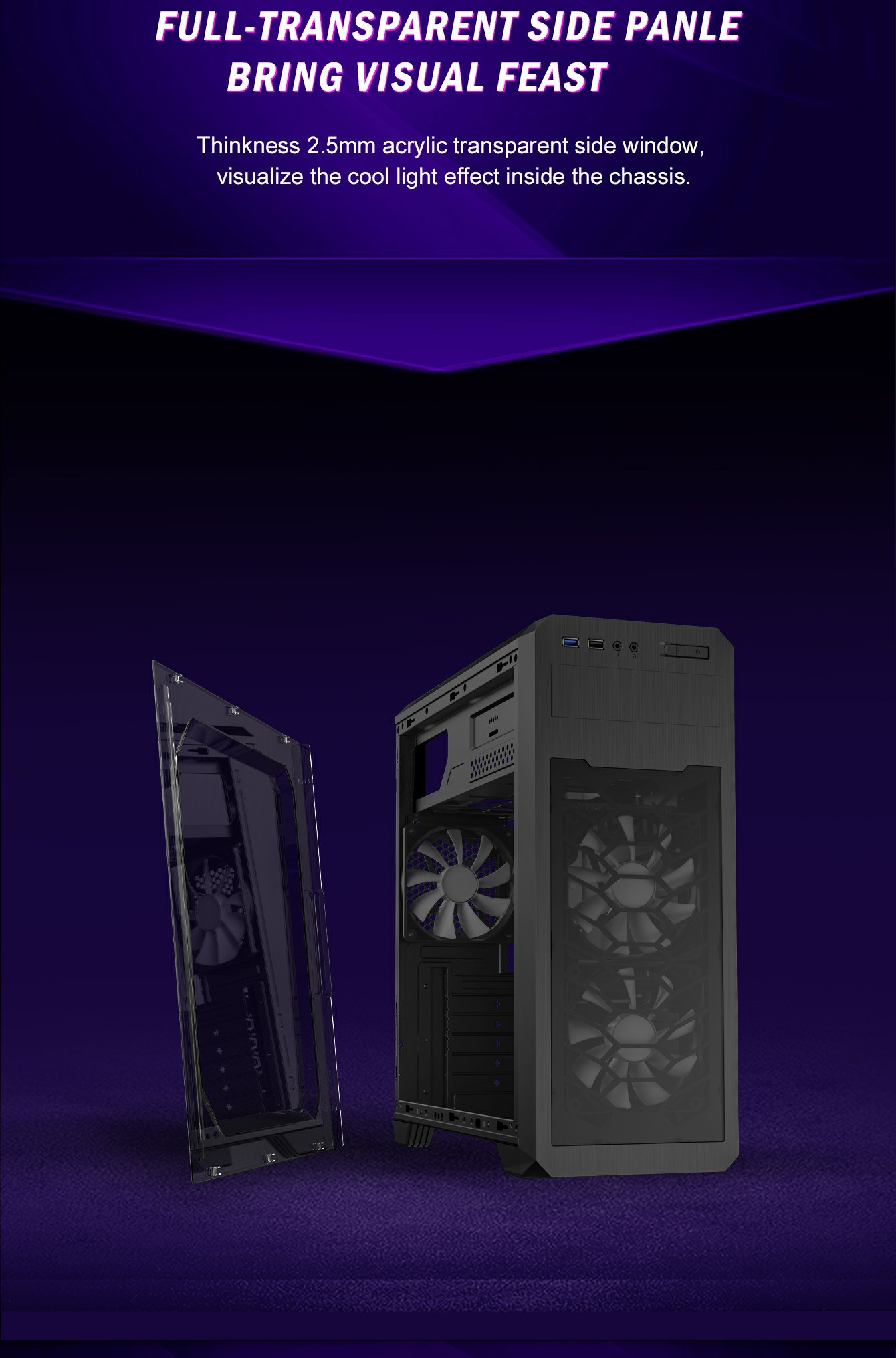

| Side Panel | Left | Frameless Full Transparent panel |
| Right | Metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *1 |
| 3.5" | *0 | |

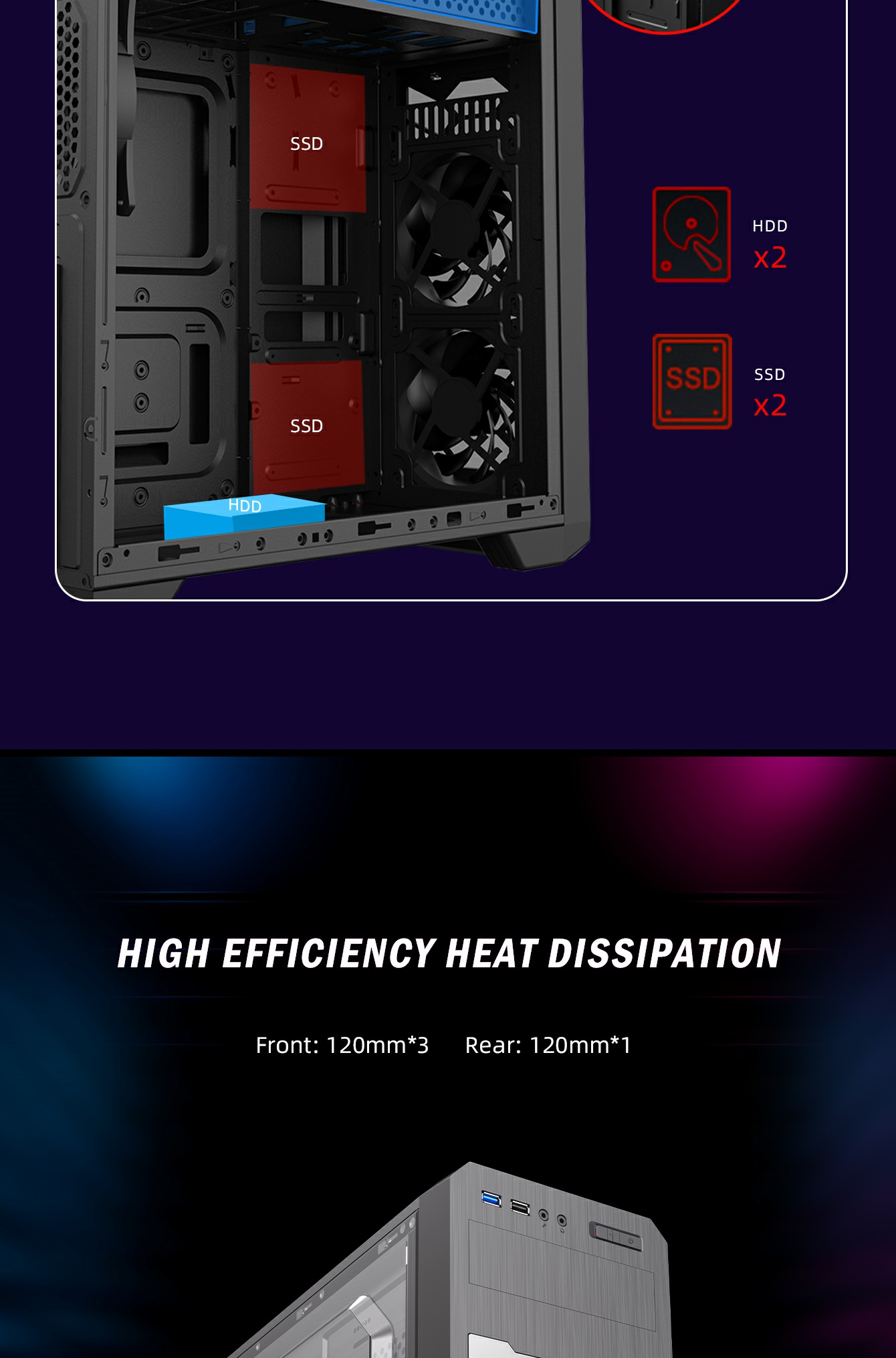

| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |

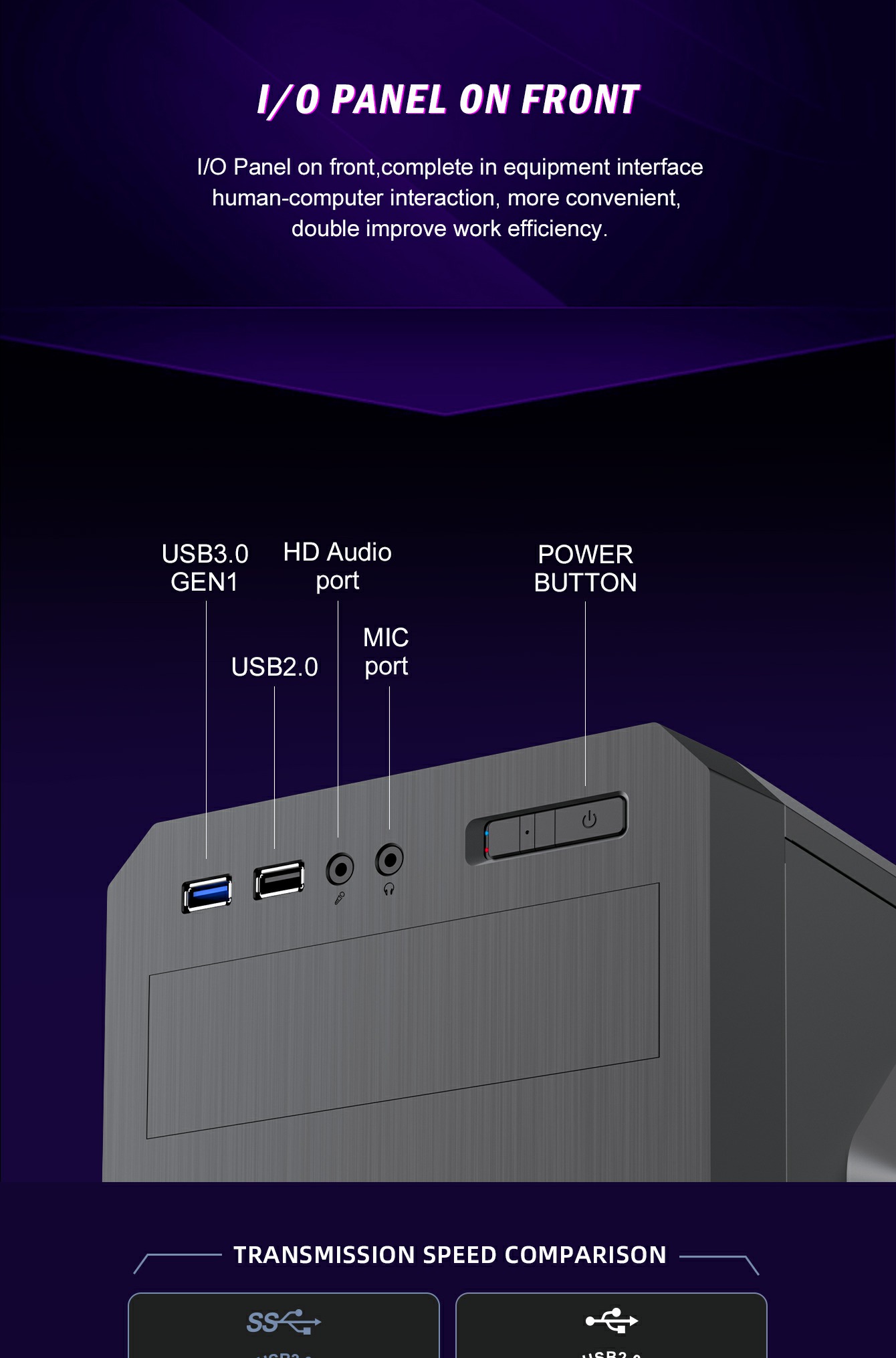

| I/O | Buttons | *2 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *0 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| Fan Controller | *0 | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |
| Cooling Fan Support | Front | 2x120mm (Fan optional) |
| Top | 0 | |
| Rear | 1x120mm (Fan optional) | |
| Left Side | 0 | |
| PSU Cover | 0 | |
| Water Cooling Support (Radiator Size) | Front | Water cooling 240mm*1 |
| Top | / | |
| Rear | Water cooling 120mm*1 | |
| Dust Cover | *1 For PSU | |
| Slots | *7 | |
| Carton Logo | GAMEMAX | |

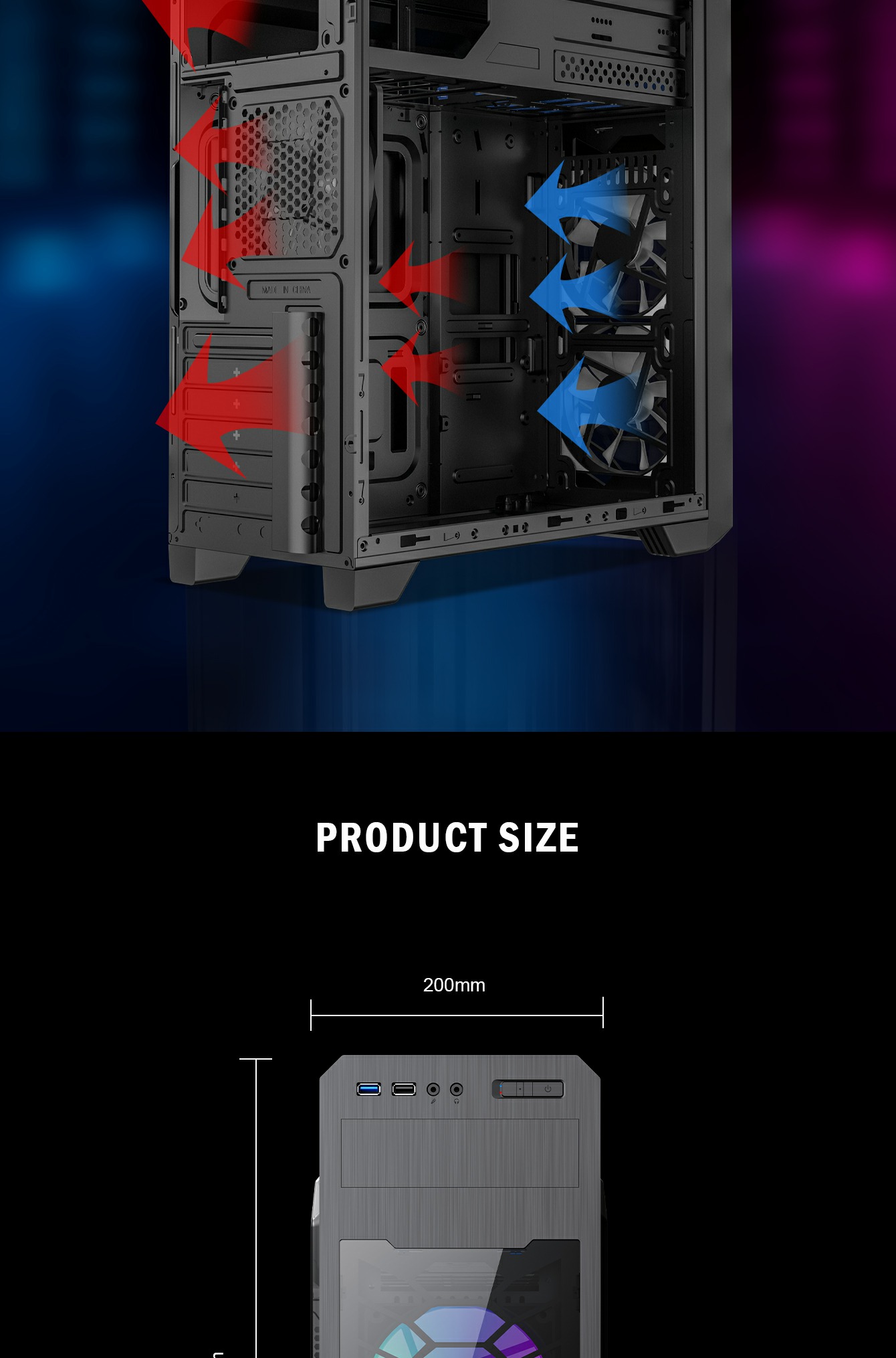

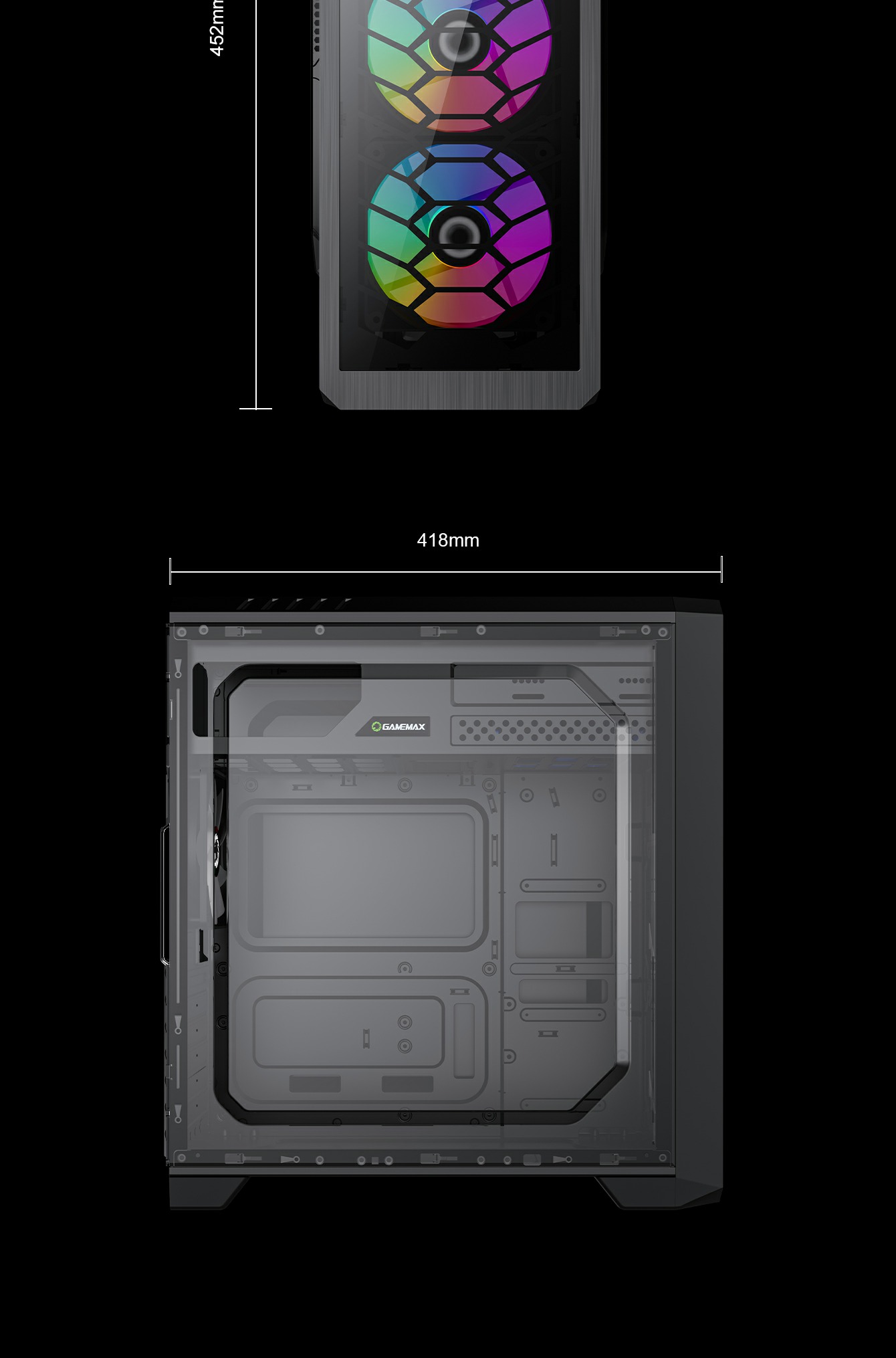

| Dimensions | Chassis | (L)370*(W)180*(H)427mm |
| Full Case (inc Fascia) | (L)418*(W)200*（H)452mm | |
| Carton | (L)494*(W)236*（H)468mm | |
| Net Weight (Kg) | 4.0kgs | |
| Gross Weight (Kg) | 4.8kgs | |
| VGA Card Length | 360mm | |
| CPU Cooler Height | 156mm | |
| Cable Management Depth | 23mm | |
| PSU | Included | *0 |
| Wattage | / | |
| 80Plus Category | / | |
| Rail Outputs | / | |
| MOQ | TBD | |
| Q'ty | 40HQ:1208pcs 40GP:1112pcs 20GP:556pcs With pallet(1M*1.2M*1.2M，40pcs/Pallet ):40HQ:1050pcs; 40GP:840pcs; 20GP:400pcs | |
