GMX-12ARGB-L
GameMax Infinity multi-ARGB fan GMX-12ARGB-L, with Inner and Outer light, and center with infinity depth light effects.

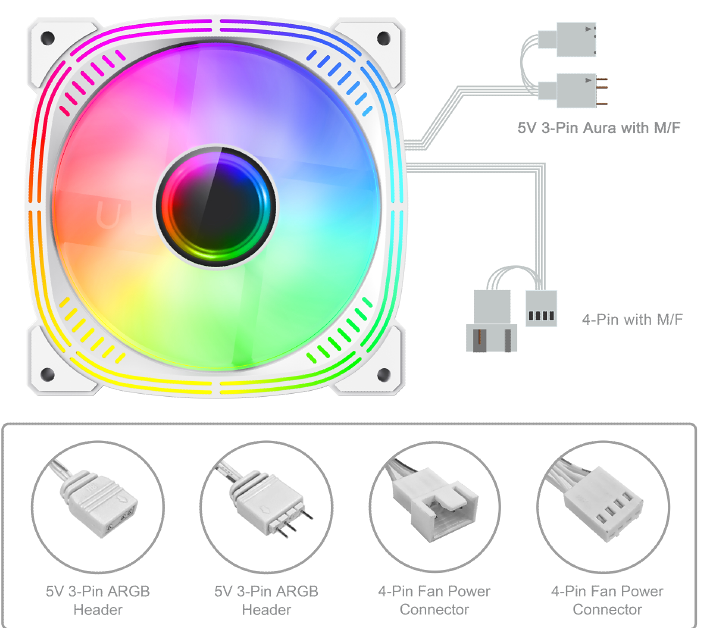

PWM 4pin link to motherboard Chassis fan socket, for auto speed control, and with additional 4pin male connector for linking more fans in Series connection.
ARGB 3pin Male/Female connector, supports standard addressable RGB leds ,Asus Aura and it can extend to link more fans via the series connection.
Anti-noise design by optimized fan blade and there are rubber gaskets on the fan corner
- Cooling Item： Cooling Fan
- Light Mode： Rainbow ARGB

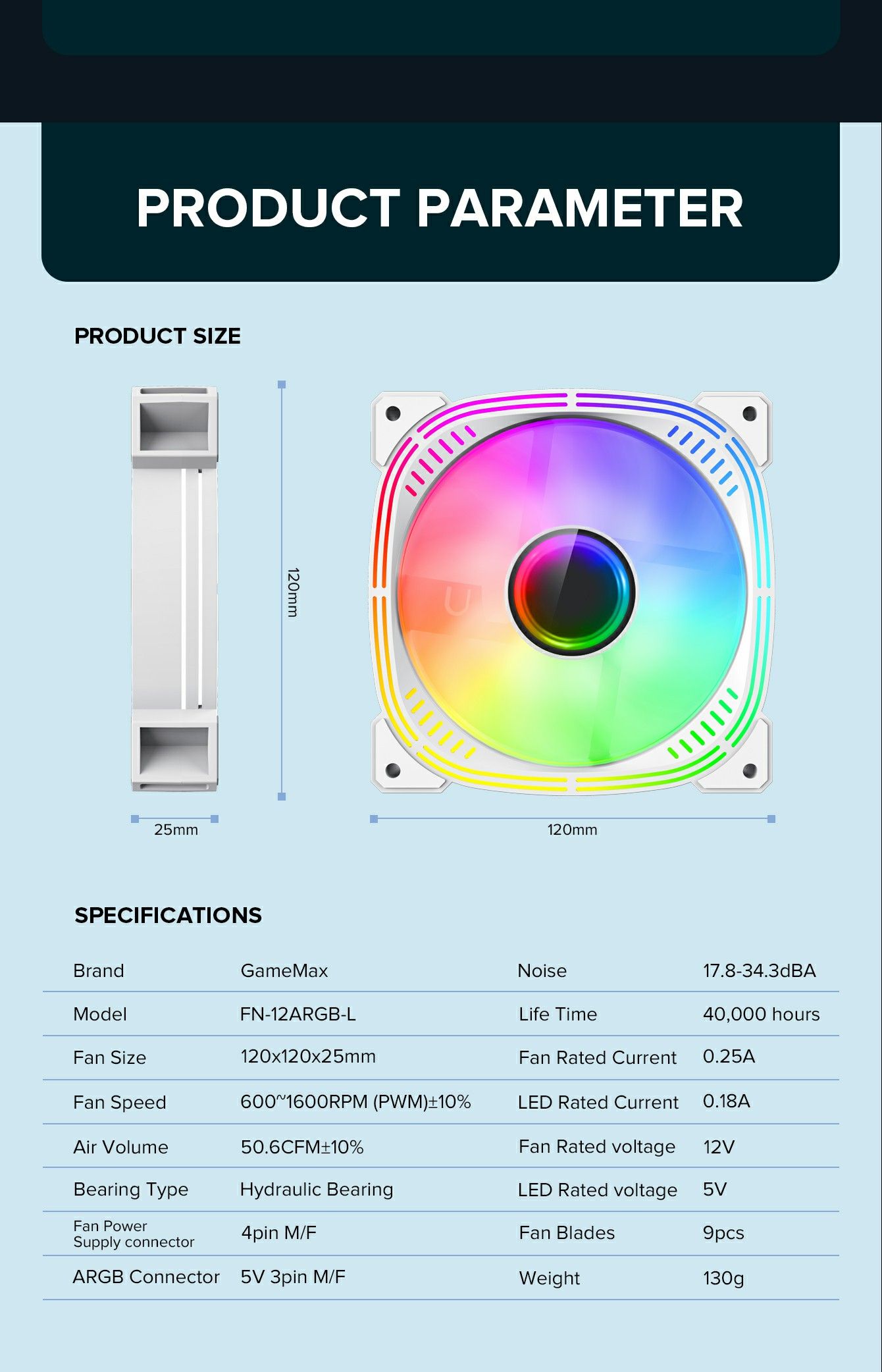

Specification:
| Fan Dimension | 120X120X25mm |
| Weight | 130g |
| Material | PBT, PC |
| Fan Blade Quantity | 9pcs |
| LED Qty | Inner 8 pcs, Outer 16 pcs |
| Rated Voltage | DC12V(FAN)/DC5V(LED) |
| Rated current | 0.25A(FAN)0.18A(LED) |
| Air Flow | 50.6CFM士10% |
| Air Pressure | 17.8-34.3dBA |
| Fan Speed | 600~1600RPM (PWM)±10% |
| Connector | 4-Pin PWM with M/F |
| ARGB Connector | 3pin Aura with M/F |
| Bearing Type | Hydraulic Bearing |
| Life | 40000h |
| MOQ | 1020PCS |
| Package Contents | Gift Box |
| Package Dimensions | 465*300*270mm |
| QTY | 60pcs |
| Net Weight | 0.16kg |
| Gross Weight | 0.18kg |
| Specification | |
| Size: | 120x120x25mm |
| Rated voltage-Fan | 12V |
| Rated voltage-RGB LED | 5V |
| Rated current-Fan | 0.25A |
| Rated current-RGB LED | 0.5A(Max.) |
| Rotating speed | 1200+-10% RPM |
| Air volume | 36.8CFM |
| Static pressure | 2.18mm |
| Noise Level | 24.6 DBA |
| Connector | 3+4pin morex+ARGB 3pin M/F header |
| Heart | SS02 |
| Frame Technology | AAO |
| Patent No.: | 201830703598X |
