RGB1050 PRO WH

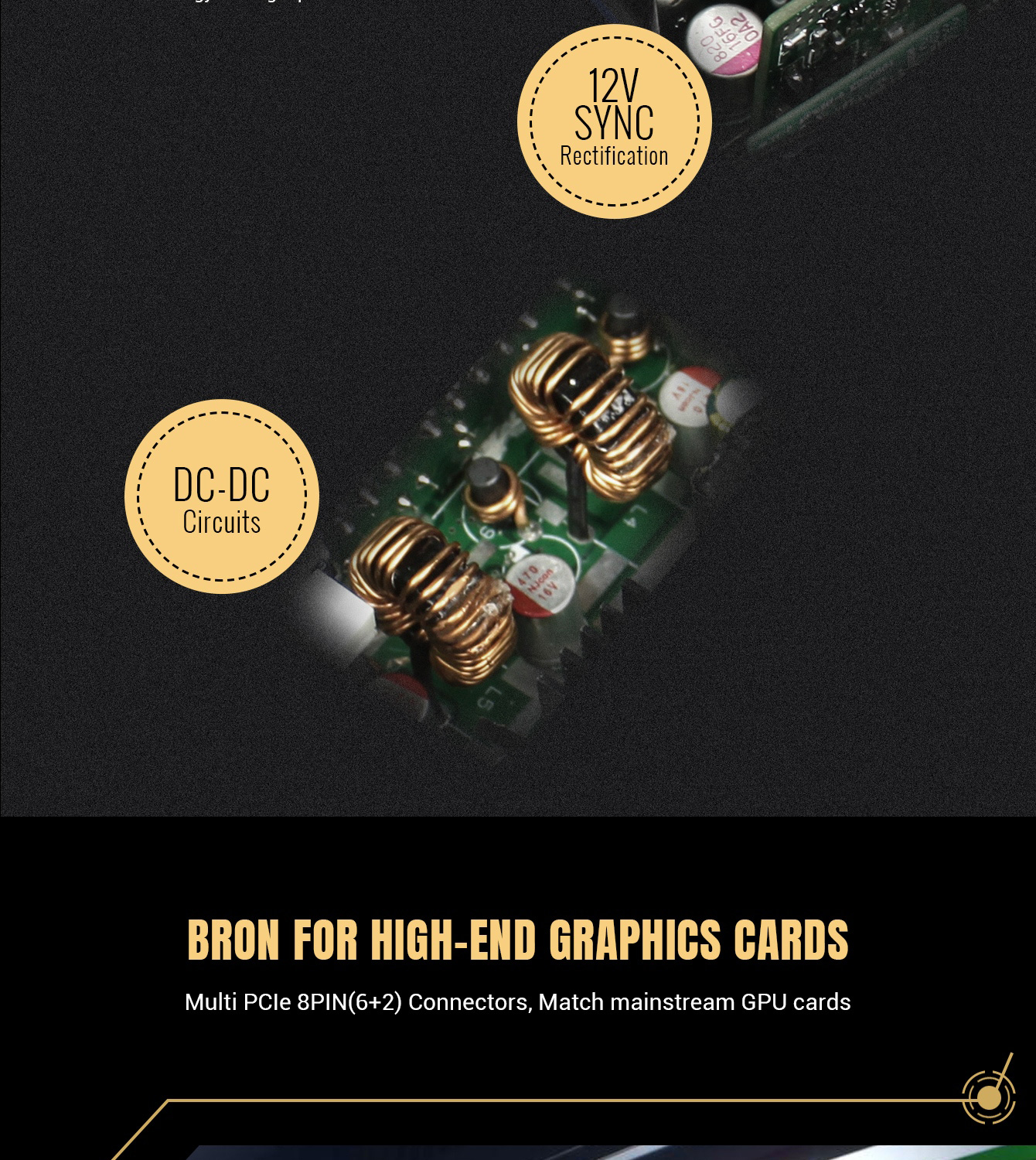

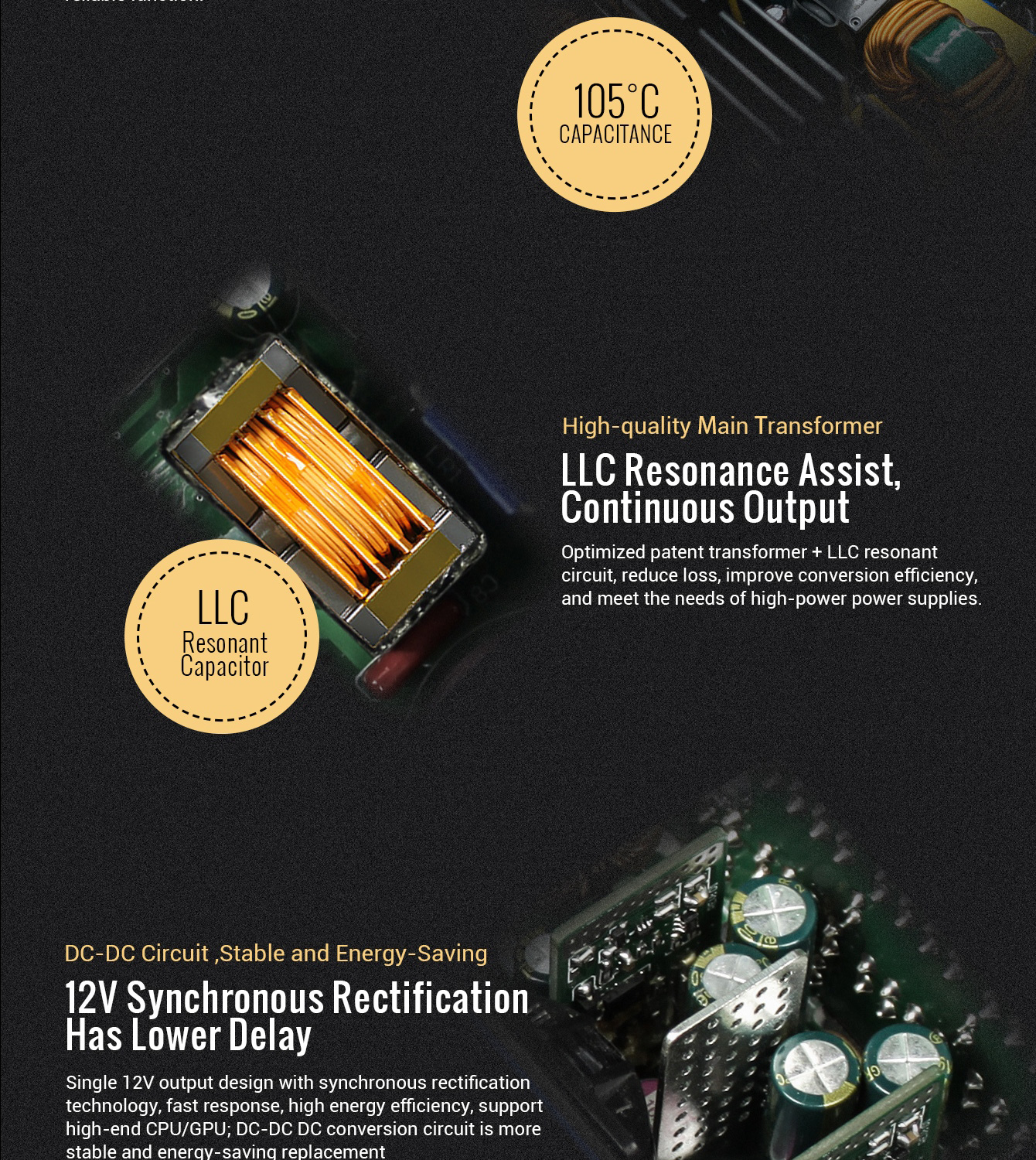

GameMax RGB-1050 PRO WHITE Fully Modular 80+ Gold Certified, LLC+DC-DC design for Powerful single +12V rail helps ensure a stable and reliable supply to other PC components
With 140mm ARGB fan helps deliver brighter and stunning light effect and supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities
80 Plus Gold Certified: RGB-1050 PRO uses the main Japan Capacitor with 90% efficiency or higher under typical loads
Lower power consumption, less noise, and cooler temperatures.RGB Light Mode: 25 smart RGB lighting modes with memory function, press the RGB controller switch to choose the color mode you like single color mode, breathing lights mode, and color mix mode.
Full Modular: Free-Cable Design, Farewell to messy cables!
The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.

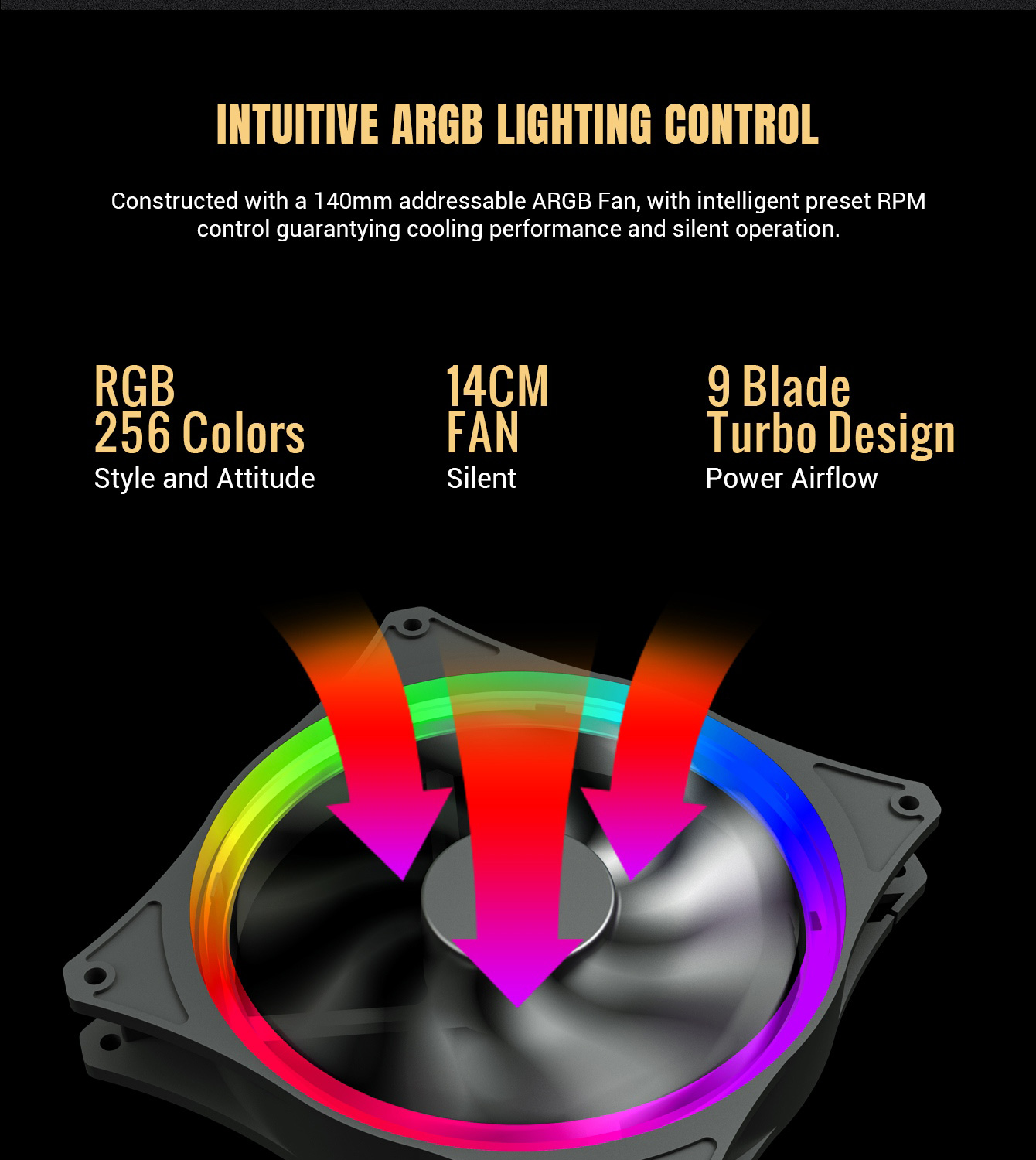

Ultra-quiet fan: The 140mm ultraquiet fan keeps your power supply quiet while maintaining good heat dissipation.
Output and Protection: Powerful single +12V rails offer stable DC output and support high-end graphic cards and PC systems

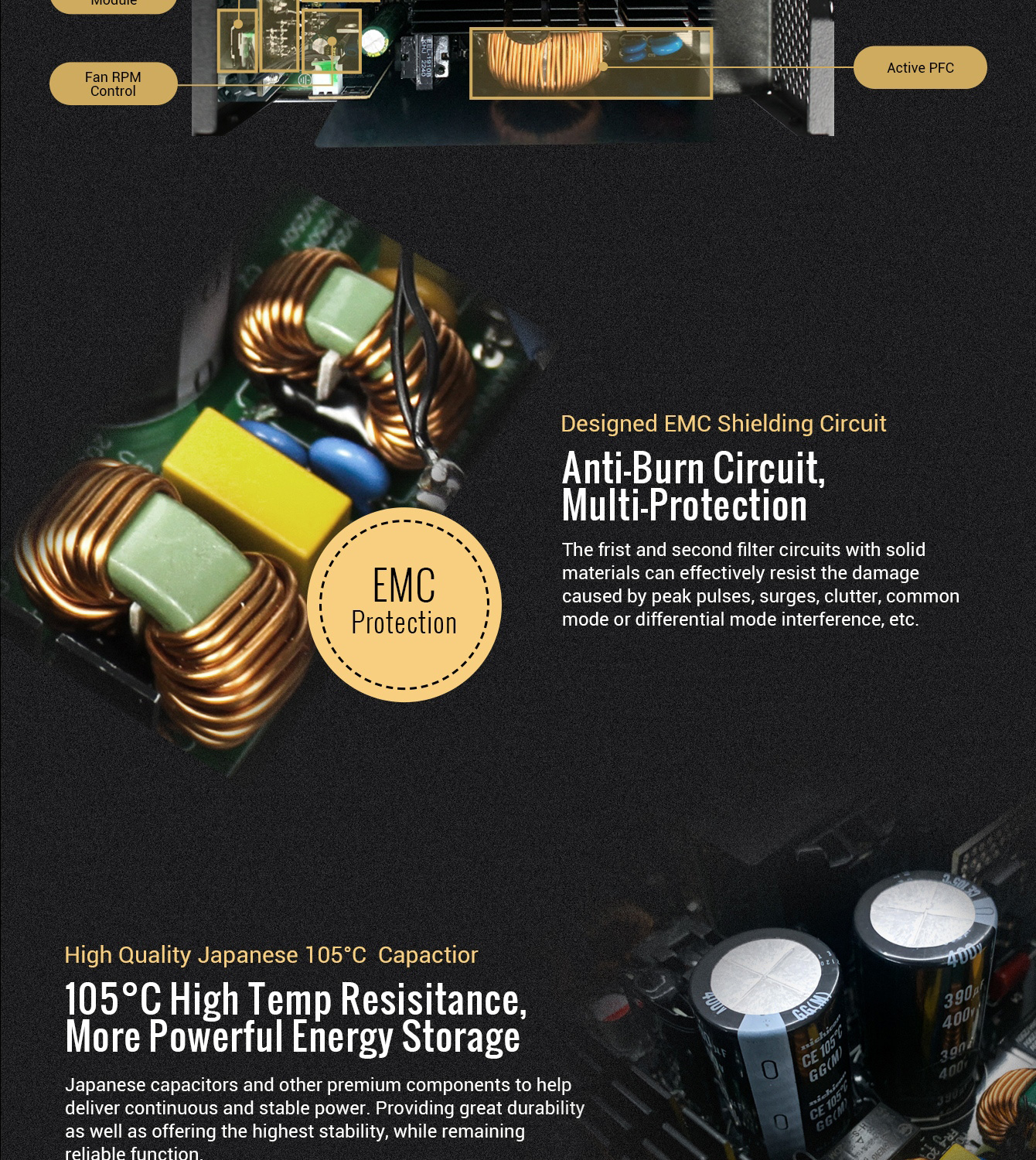

Excellent capacitors offer stability, durability, and reliability, OPP/OVP/UVP/SCP/OCP/SIP electrical protection is included.


Product Technical Specifications

80PLUS?CetificateGOLD
Form FactorPower SupplyIntel ATX 12 V

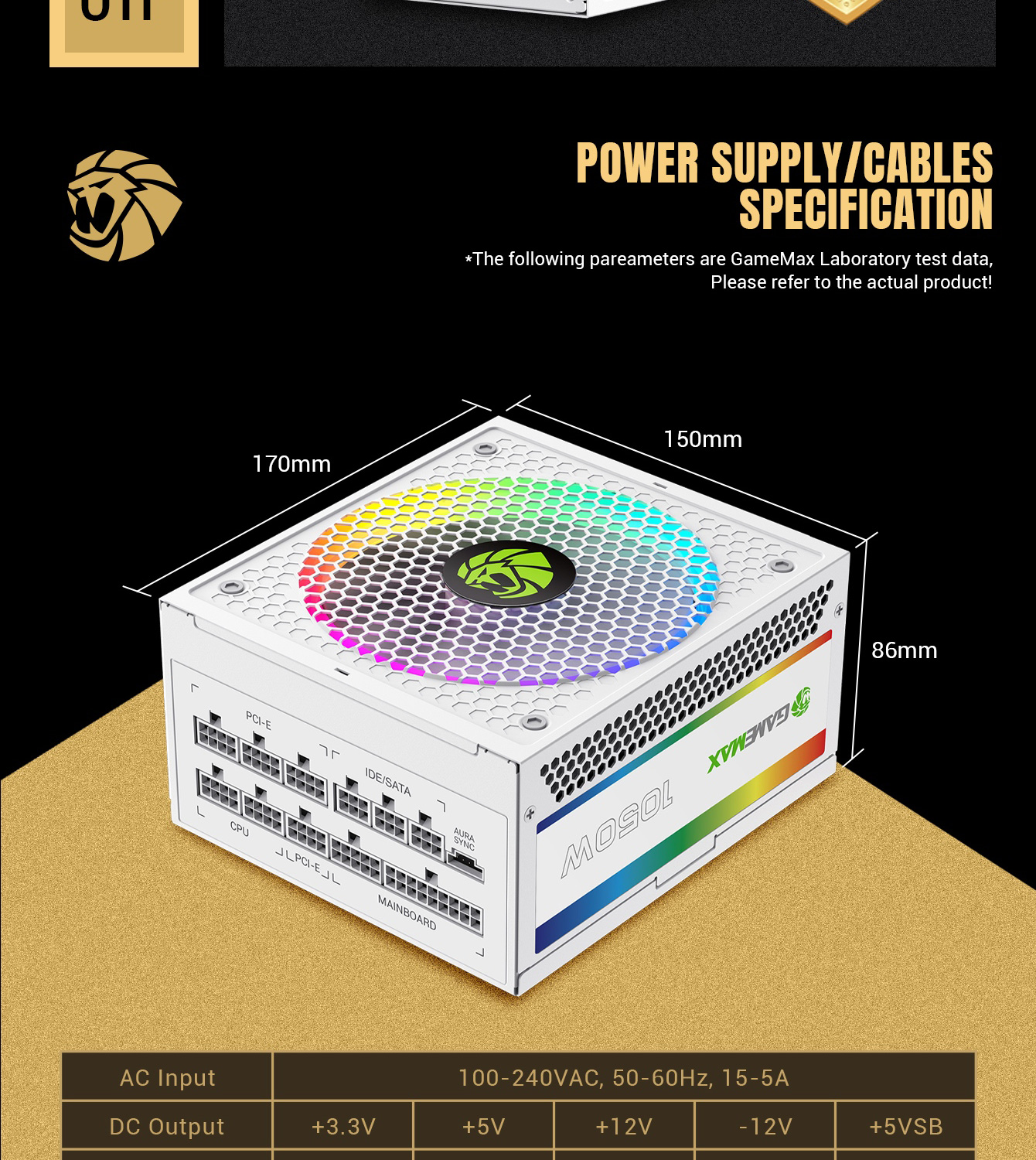

Dimensions
170 mm (L) x 150 mm (W) x 86 mm (H)
Fan InformationFan Size140mm with ARGB LEDs
Fan ControlTemperature control
Fan BearingHydraulic Bearing
Life Expectancy50,000 hours

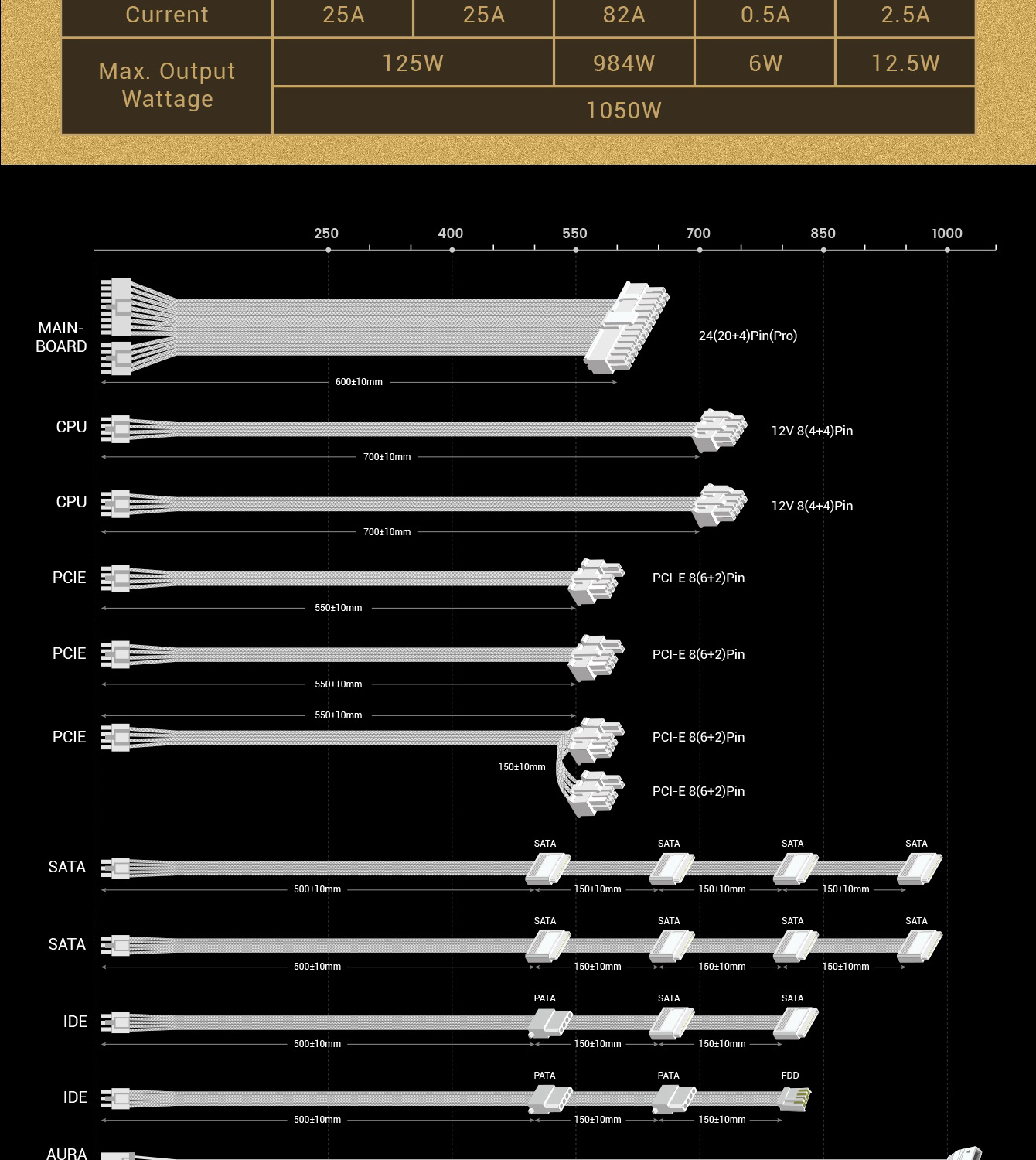

Cable InformationModularityFully Modular
Cable typeFlat White cables
Electrical FeaturesOperating Temperature0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF100,000 Hours (@ 25 °C, Excl. fan)
AC InputFull Range

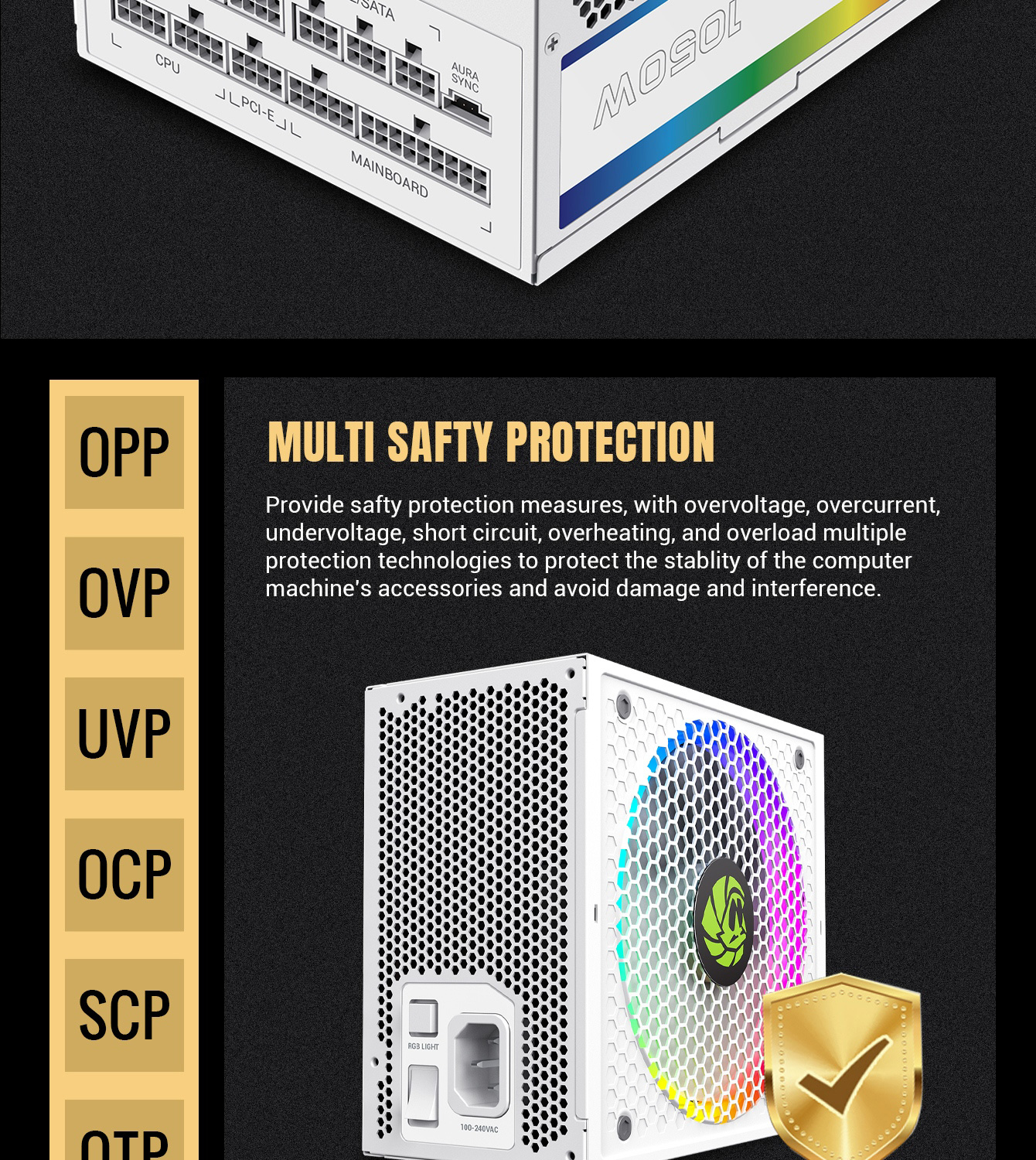

ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety CeritificateSafety and EMCcTUVus, TUV, CB, CCC, EAC, CE
EnvironmentalComplianceRoHS

RGB Modes Operation Instructions:

Key FunctionRGB LED Status
Turn On, Entry last ModeKeep the Save memory mode
Press RGB SwitchSelect RGB light mode
Press and Hold in 3secOFF the RGB LED light
Press the Switch againWhite light flashes once and Entry in o the last mode
Press Longer Don't releaseEntry Self-Test mode(All led White Light
Release after Press longerExit Self-Test mode, Entry Last memory mode
Aura SYNC

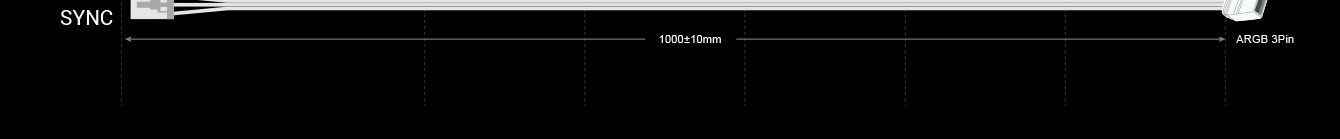

Access external ARGB HUB or 5V 3pin signal from motherboard
