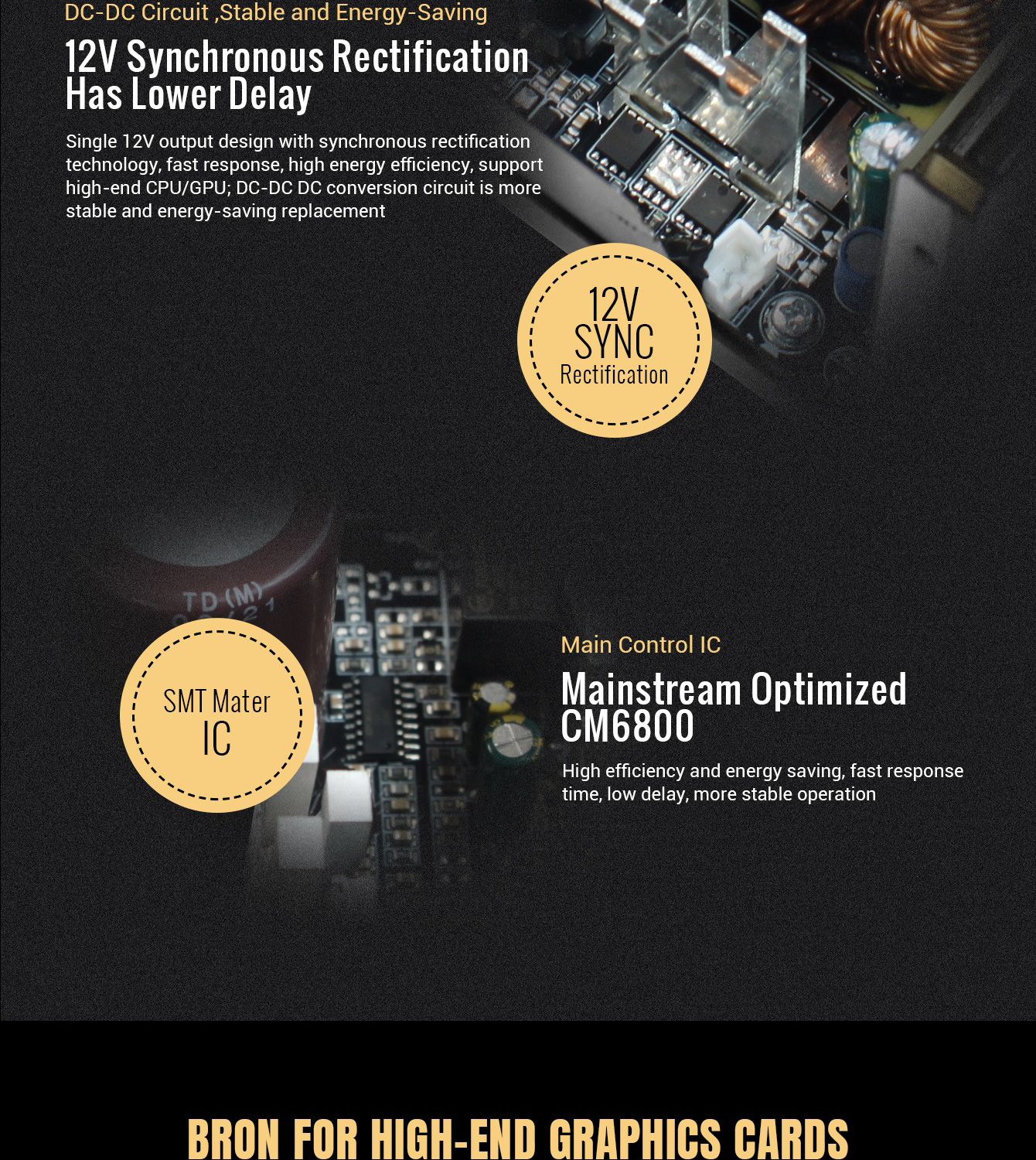

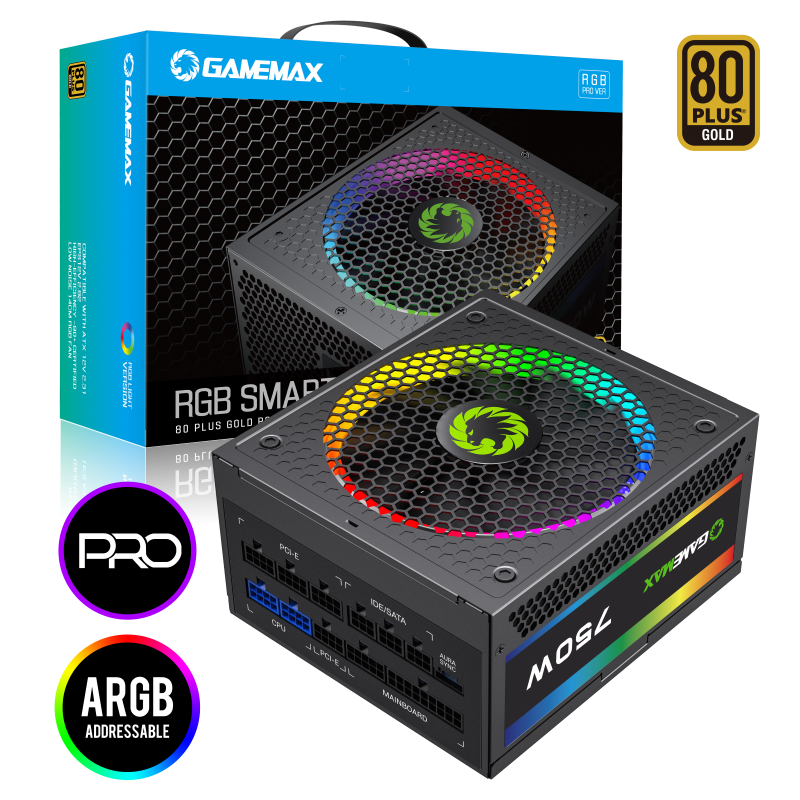

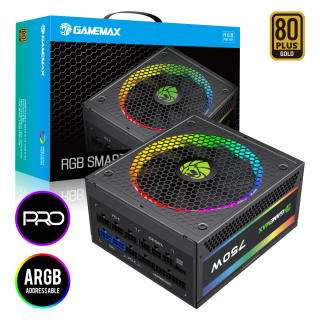

GameMax RGB-750 PRO Fully Modular 80+ Gold Certified,12V SYNC Rectification design for Powerful single +12V rail helps ensure a stable and reliable supply to other PC components

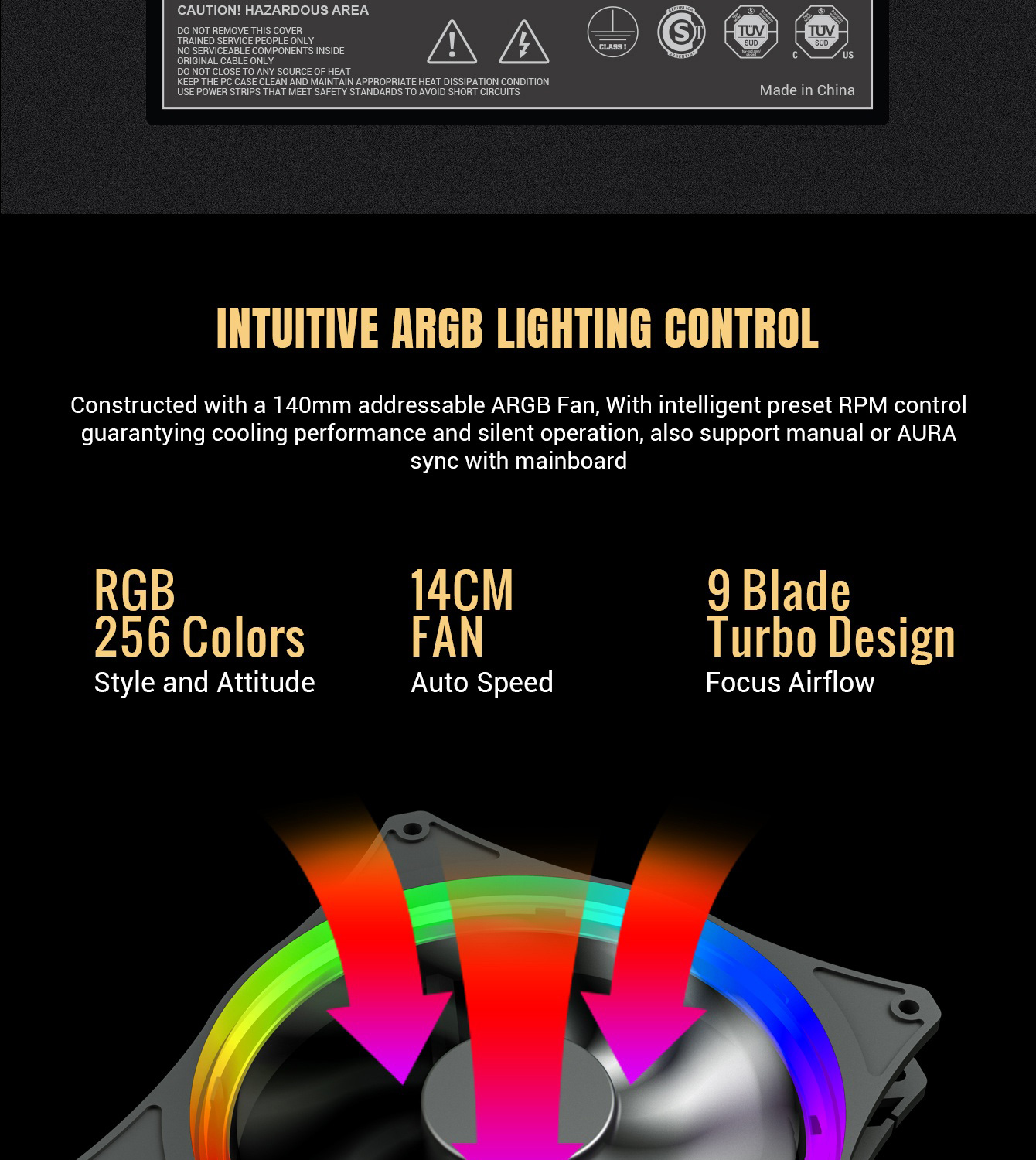

• With 140mm ARGB fan helps deliver brighter and stunning light effect and supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities.
• 80 Plus Gold Certified: RGB-850 PRO uses the main Japan Capacitor with 90% efficiency or higher under typical loads
• Lower power consumption, less noise, and cooler temperatures.RGB Light Mode: 25 smart RGB lighting modes with memory function, press the RGB controller switch to choose the color mode you like single color mode, breathing lights mode, and color mix mode.

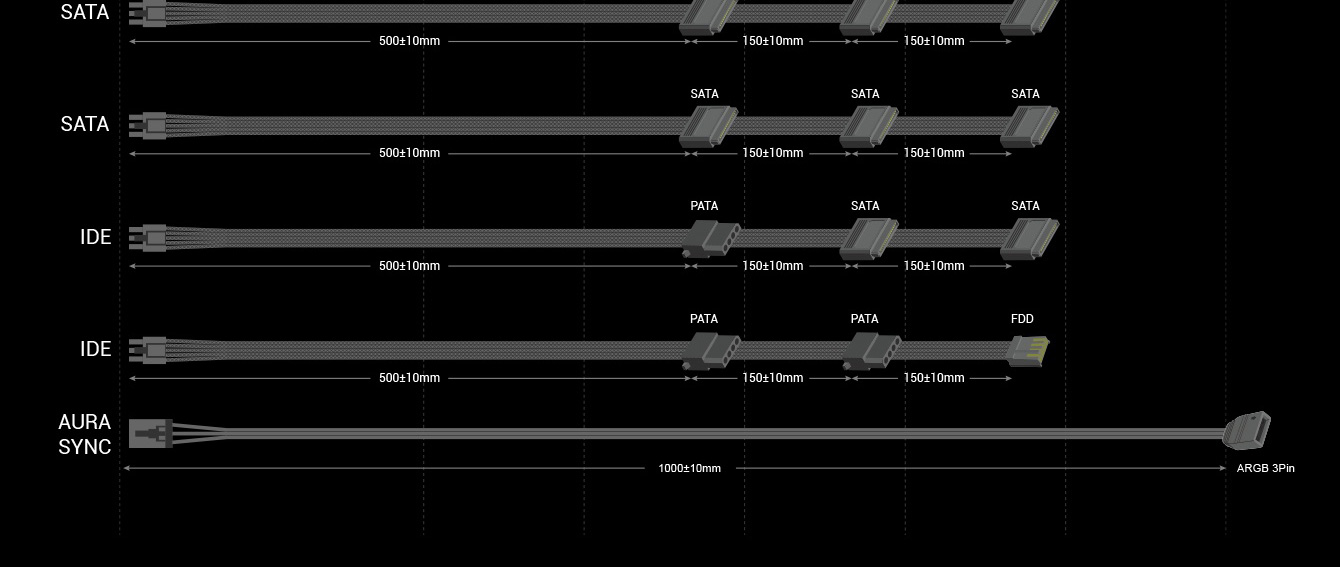

• Full Modular: 100% Free-Cable Internal PCB Design, Farewell to messy cables!
• The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality.
• Ultra-quiet fan: The 140mm ultraquiet fan keeps your power supply quiet while maintaining good heat dissipation.
• Output and Protection: Powerful single +12V rails offer stable DC output and support high-end graphic cards and PC systems
• Excellent capacitors offer stability, durability, and reliability, OPP/OVP/UVP/SCP/OCP/SIP electrical protection included.

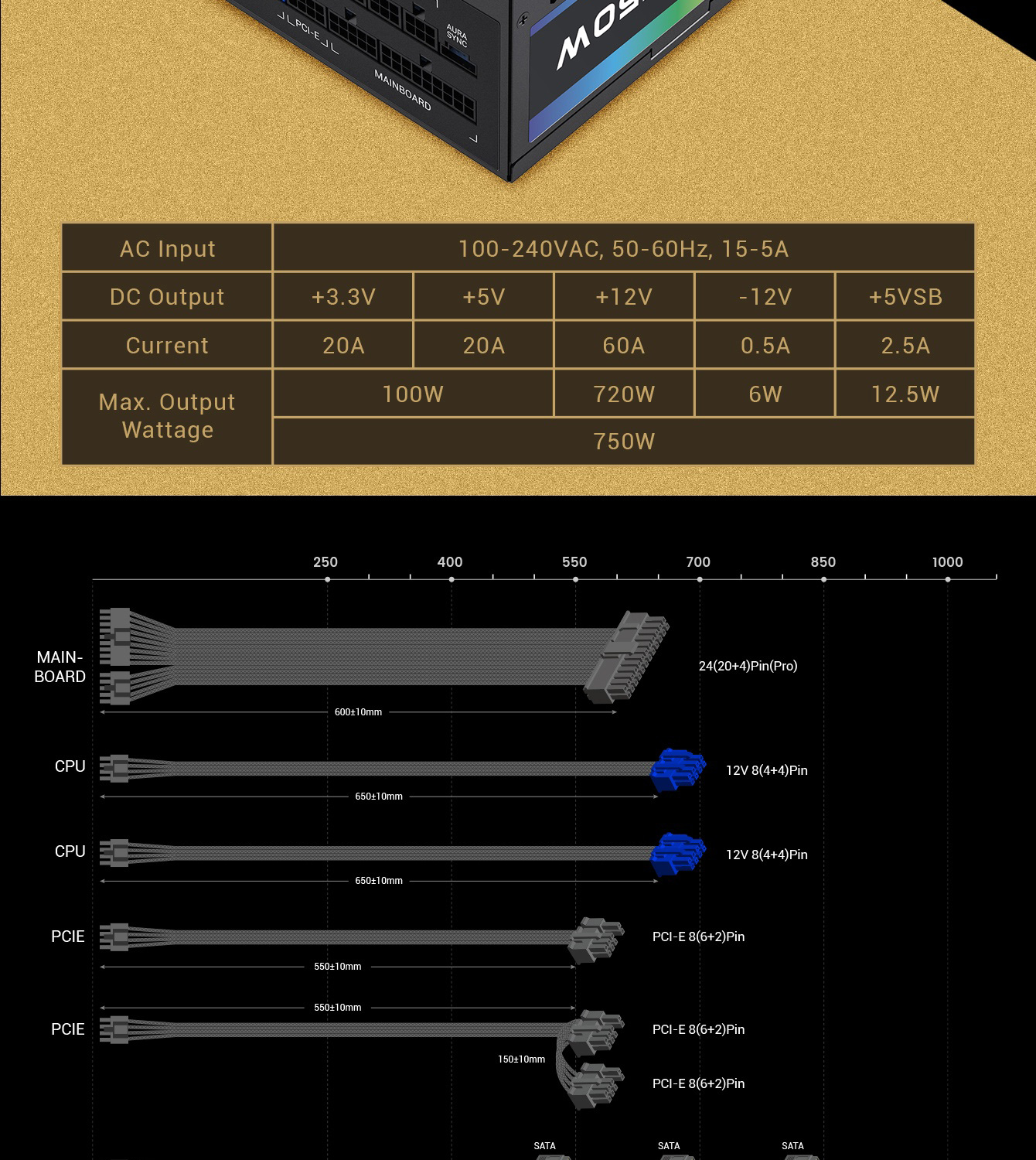

Product Technical Specifications
80PLUS® | Cetificate | GOLD | |
Power Supply | Intel ATX 12 V | ||

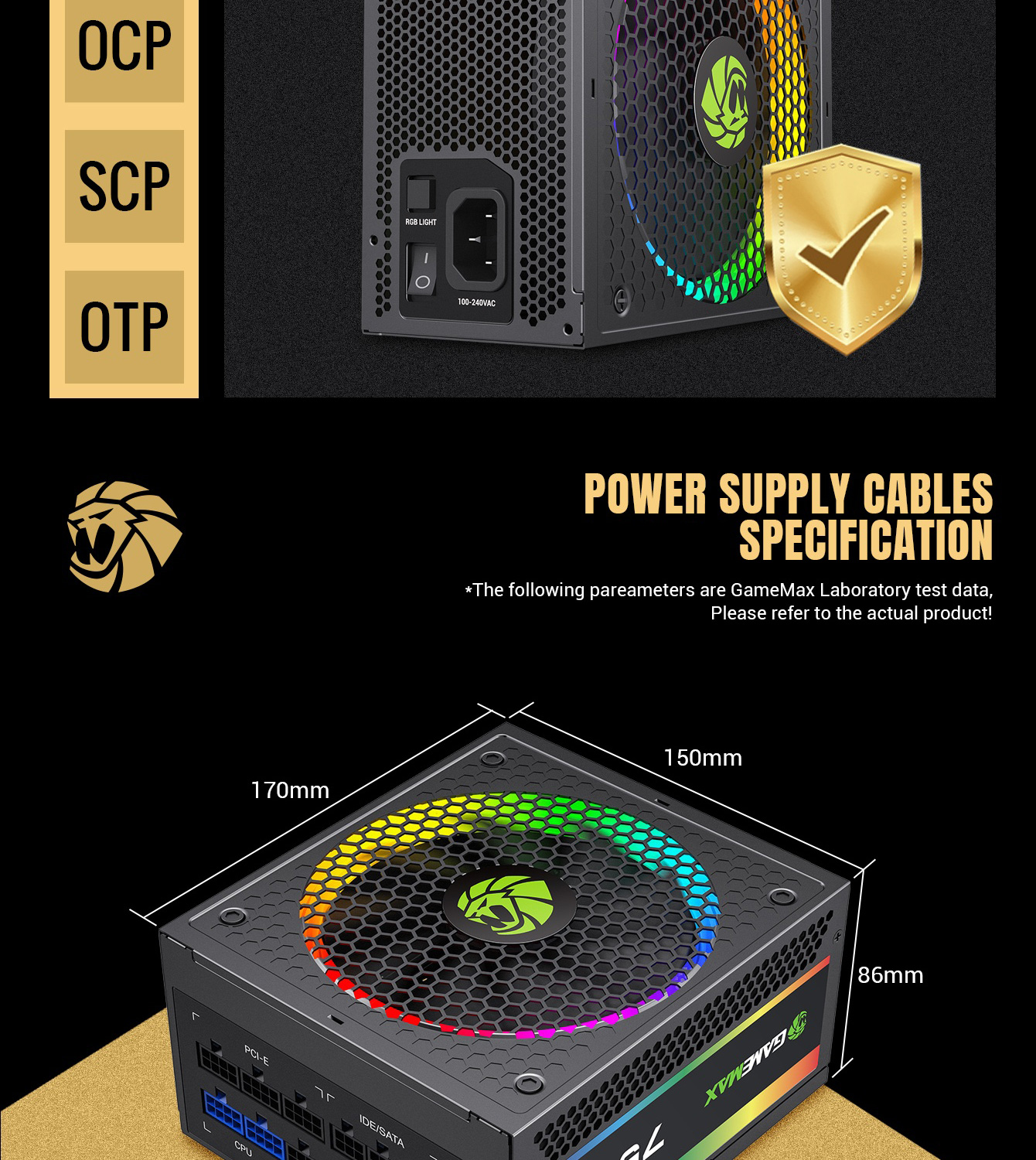

Dimensions | 170 mm (L) x 150 mm (W) x 86 mm (H) | ||
Fan Size | 140mm with ARGB LEDs | ||
Fan Control | Temperature control | ||
Fluid Dynamic Bearing | |||
Life Expectancy | 50,000 hours | ||
Modularity | Fully Modular | ||
Cable type | Flat black cables | ||
Operating Temperature | MTBF | 100,000 Hours (@ 25 °C, Excl. fan) | |
Full Range | |||
Protection | OPP, OVP, UVP, OCP, OTP, SCP | ||
Safety and EMC | cTUVus, TUV, CB, CCC, EAC, CE | ||
Environmental | Compliance | RoHS |

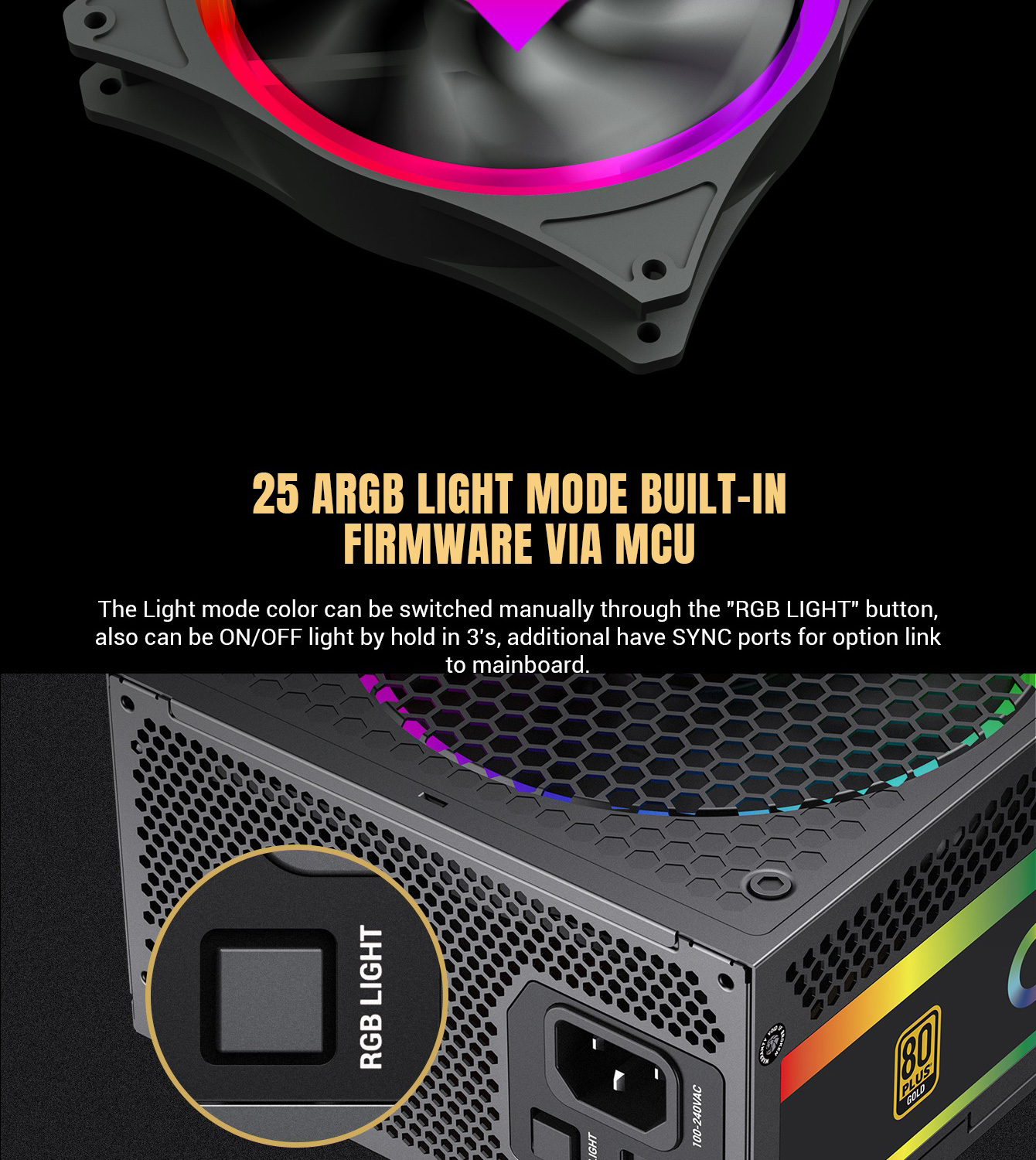

RGB Modes Operation Instructions:
Key Function | RGB LED Status |
Keep the Save memory mode | |
Press RGB Switch | Select RGB light mode |
OFF the RGB LED light | |
Press the Switch again | White light flashes once and Entry in o the last mode |
Entry Self-Test mode(All led White Light) | |
Release after Press longer | Exit Self-Test mode, Entry Last memory mode |

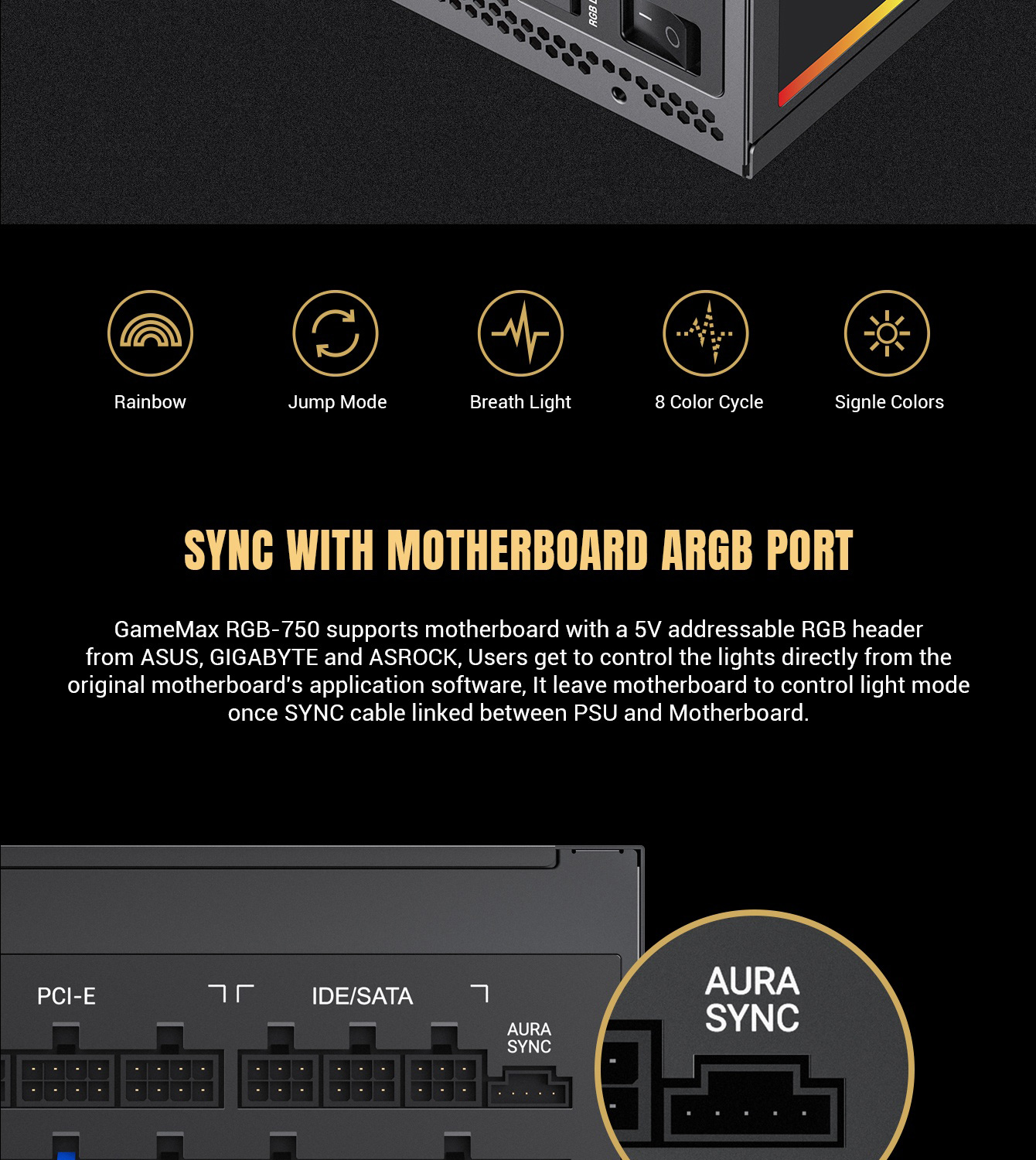

Access external ARGB HUB or 5V 3pin signal from motherboard |
