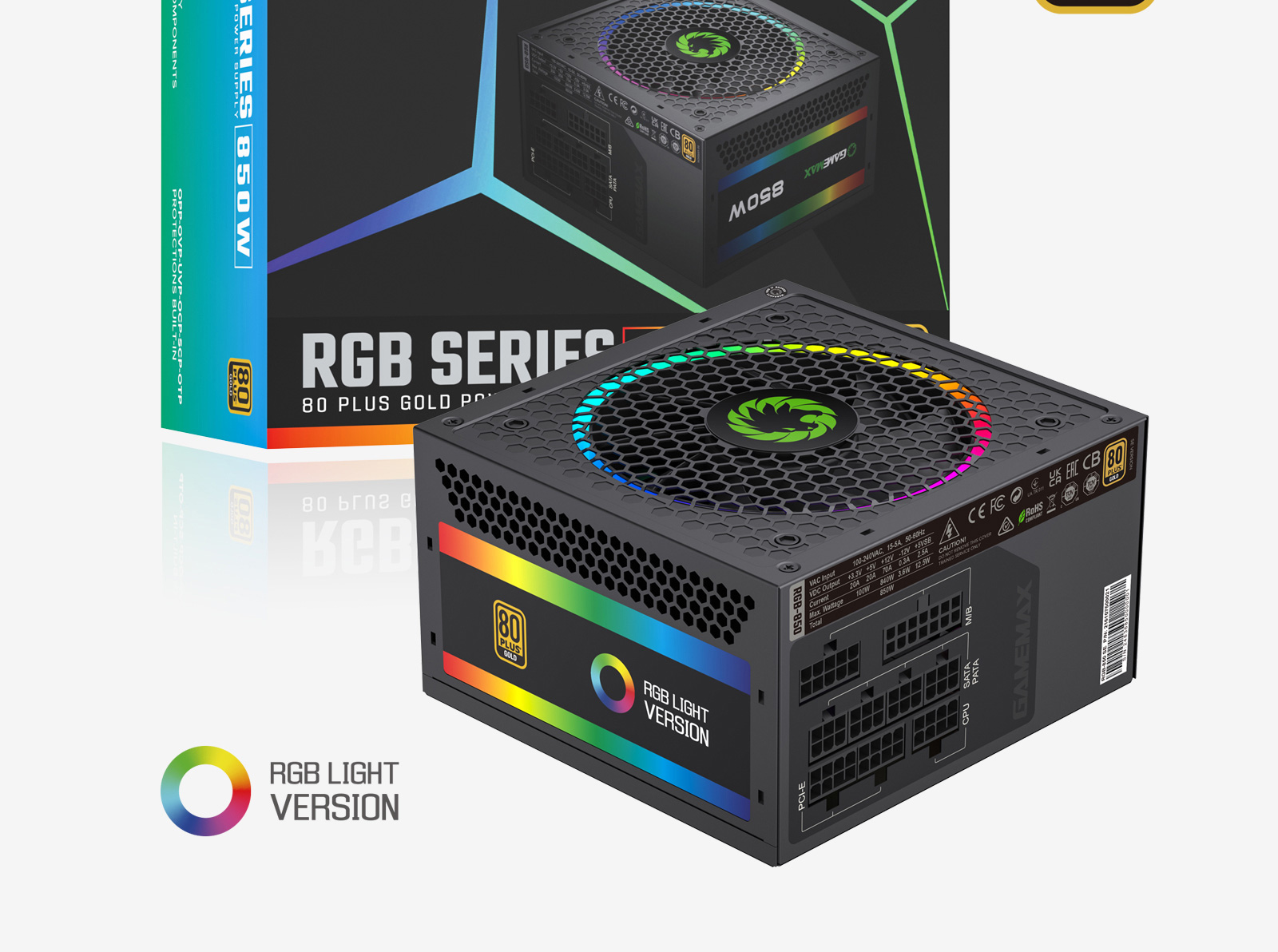

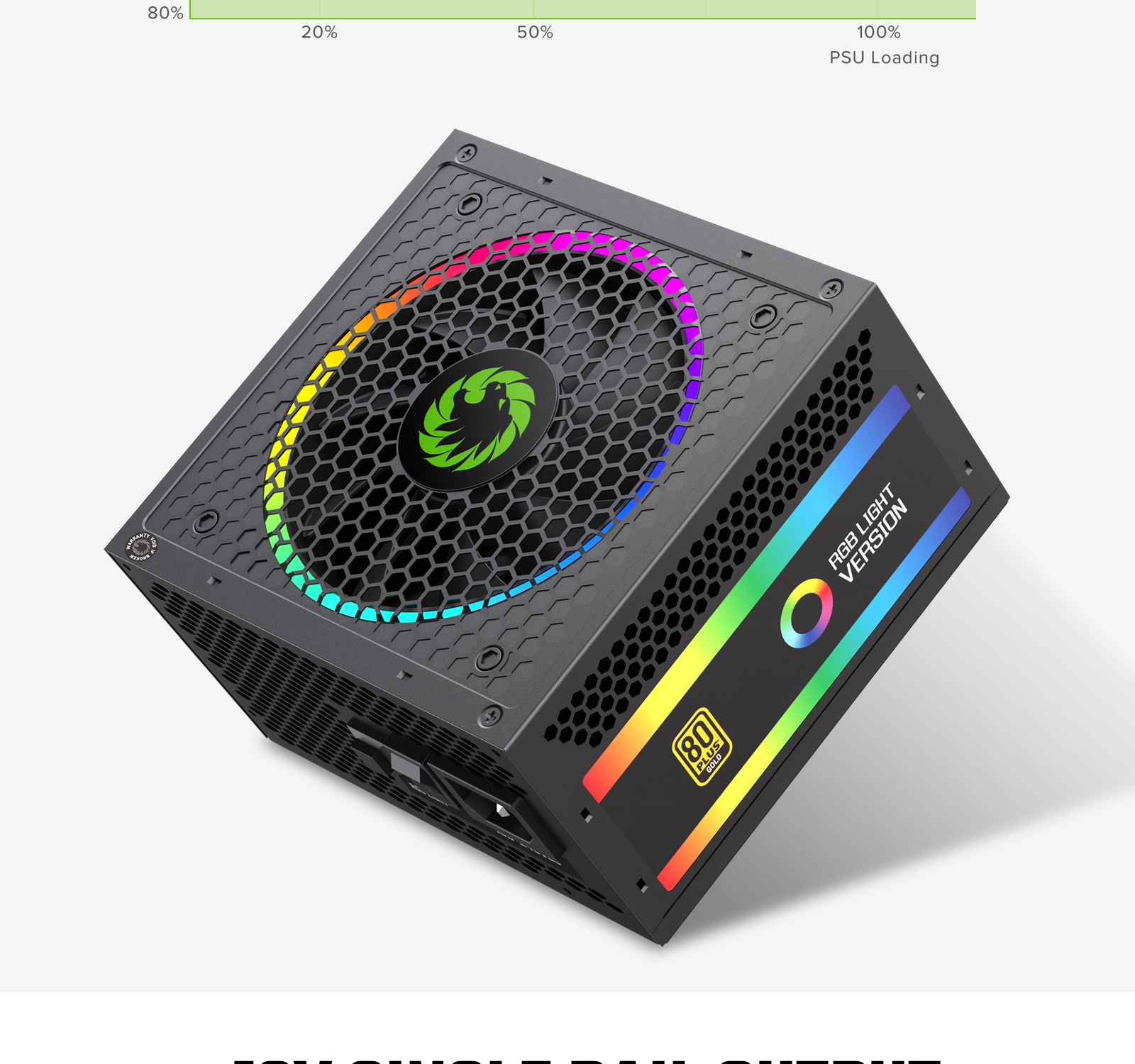

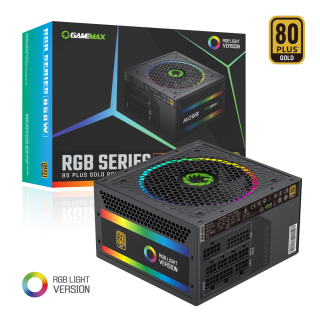

GameMax RGB Series 850W Power Supply 80 Plus Gold Certified Efficiency:

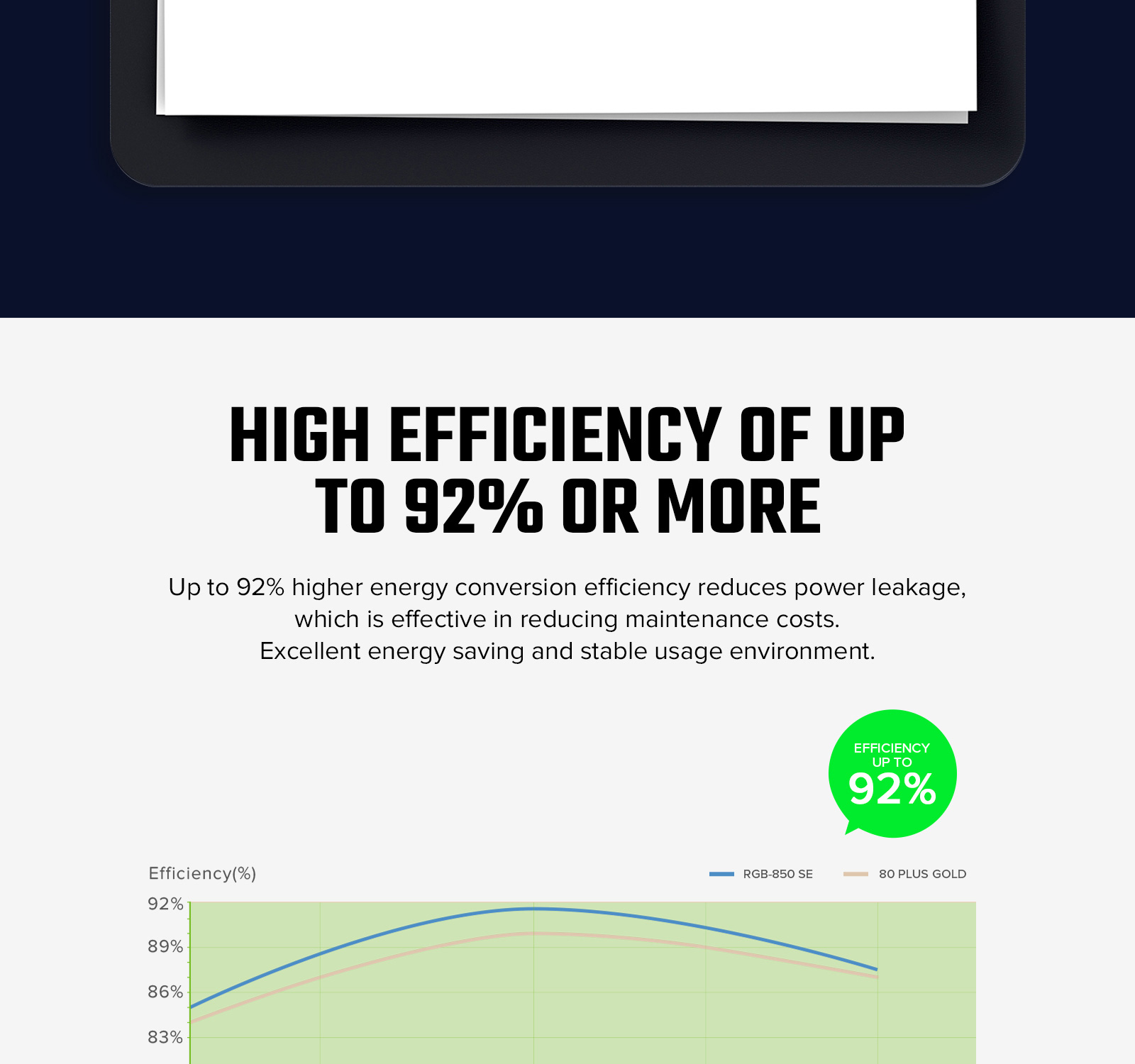

• 80 Plus Gold Certified Efficiency: Achieves up to 92% energy efficiency, reducing power waste and ensuring stable, reliable performance.

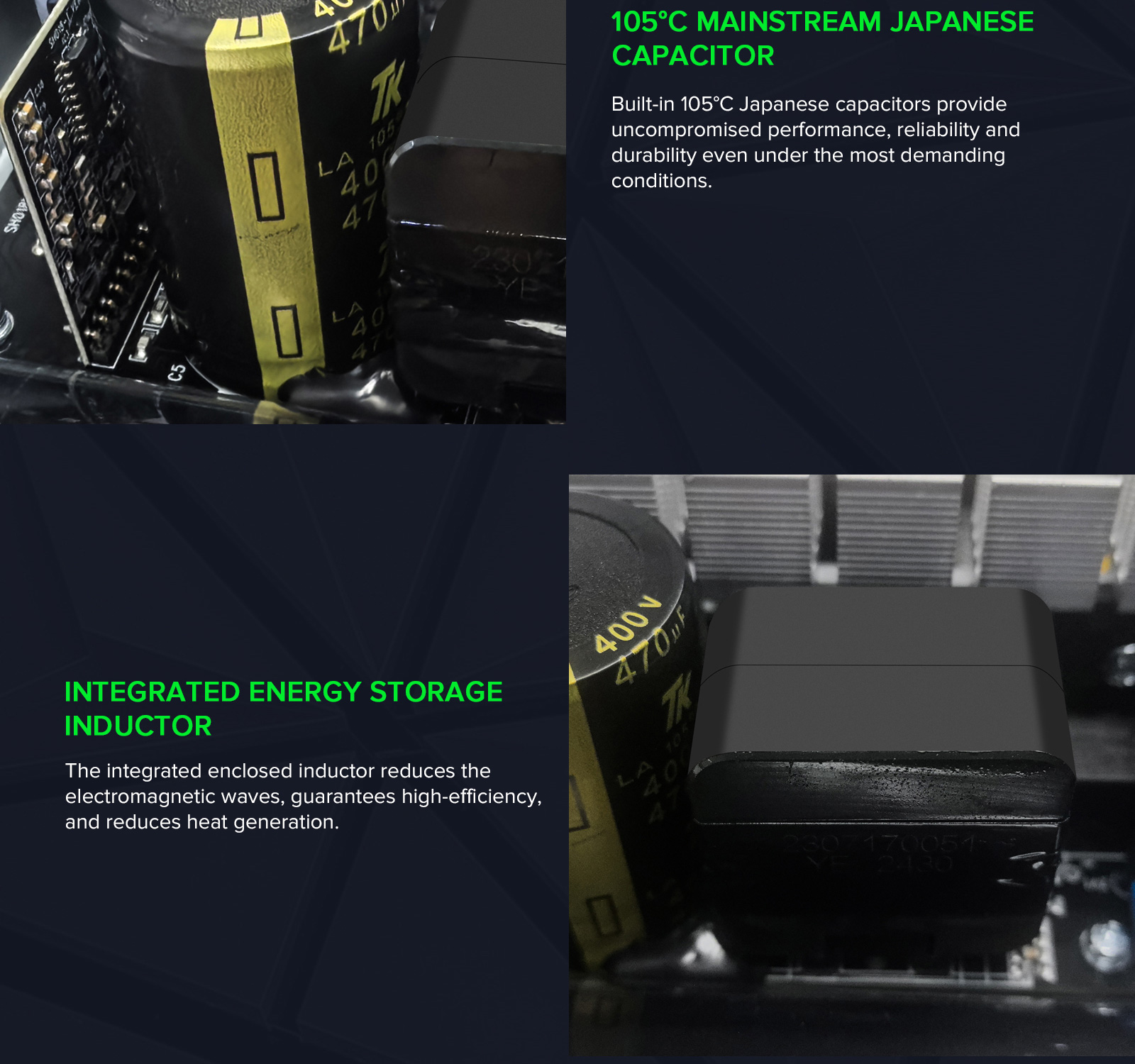

• High-Quality Japanese Capacitors: Equipped with 105°C-rated Japanese capacitors for enhanced durability and consistent power delivery.
• +12V Single Rail Design: Provides stable power distribution, perfect for high-performance CPUs and GPUs, ensuring system stability even under heavy loads.

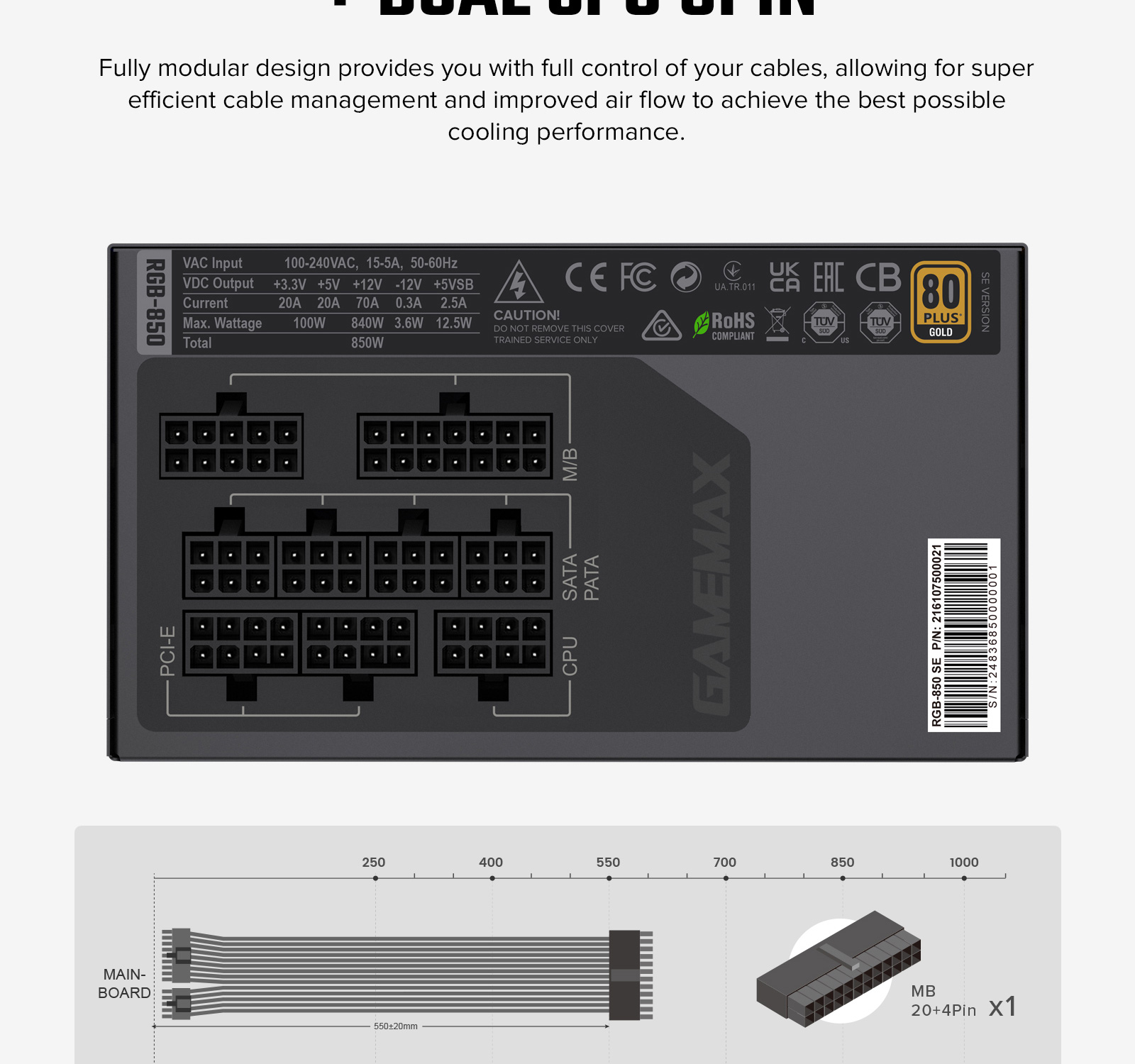

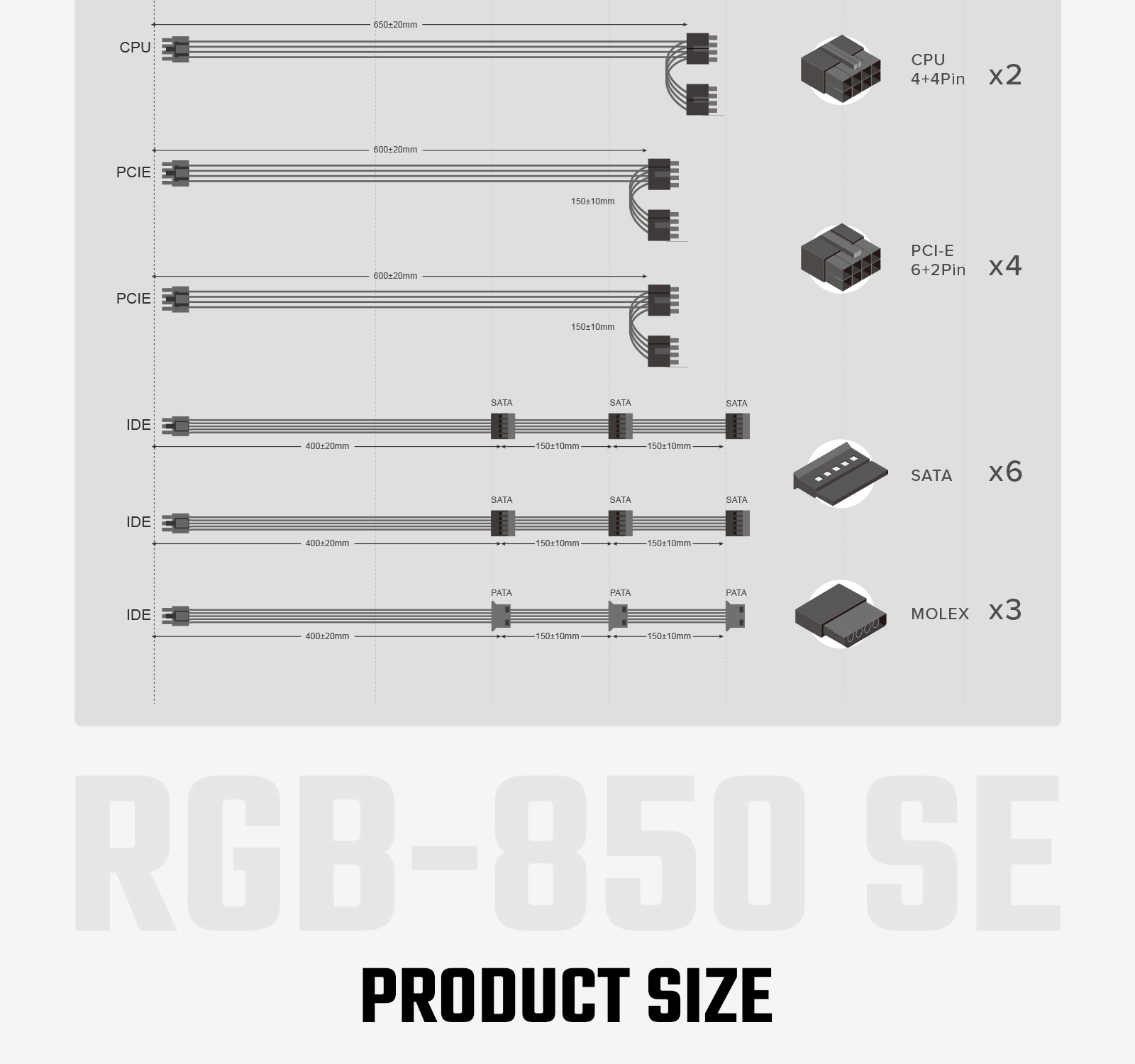

• Fully Modular and Flat Cable Design: Allows for efficient cable management, improving airflow and cooling performance within your case.
• ARGB Lighting with 25 Modes: Features a built-in 120mm ARGB fan with customizable lighting modes, adding a vibrant, personalized touch to your build.
Product Technical Specifications
| 80PLUS | Cetificate | GOLD |
| Form Factor | Power Supply | Intel ATX 12 V 2.53 |
| Dimensions | 165 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 140mm with ARGB LEDs |
| Fan Control | Temperature control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Embossed cables | |
| Electrical Features | Operating Temperature | 0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF | 100,000 Hours (@ 25 °C, Excl. fan) | |
| AC Input | 100-240V | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP,OLP | |
| Safety Ceritificate | Safety and EMC | cTUVus, TUV, CB, CCC, EAC, CE |
| Environmental | Compliance | RoHS |
RGB Modes Operation Instructions:
| Key Function | RGB LED Status |
| Turn On, Entry last Mode | Keep the Save memory mode |
| Press RGB Switch | Select RGB light mode |
| Press and Hold in 3sec | OFF the RGB LED light |
| Press the Switch again | White light flashes once and Entry in o the last mode |
| Press Longer Don't release | Entry Self-Test mode(All led White Light |
| Release after Press longer | Exit Self-Test mode, Entry Last memory mode |
| ARGB SYNC | Access external ARGB HUB or 5V 3pin signal from motherboard |
