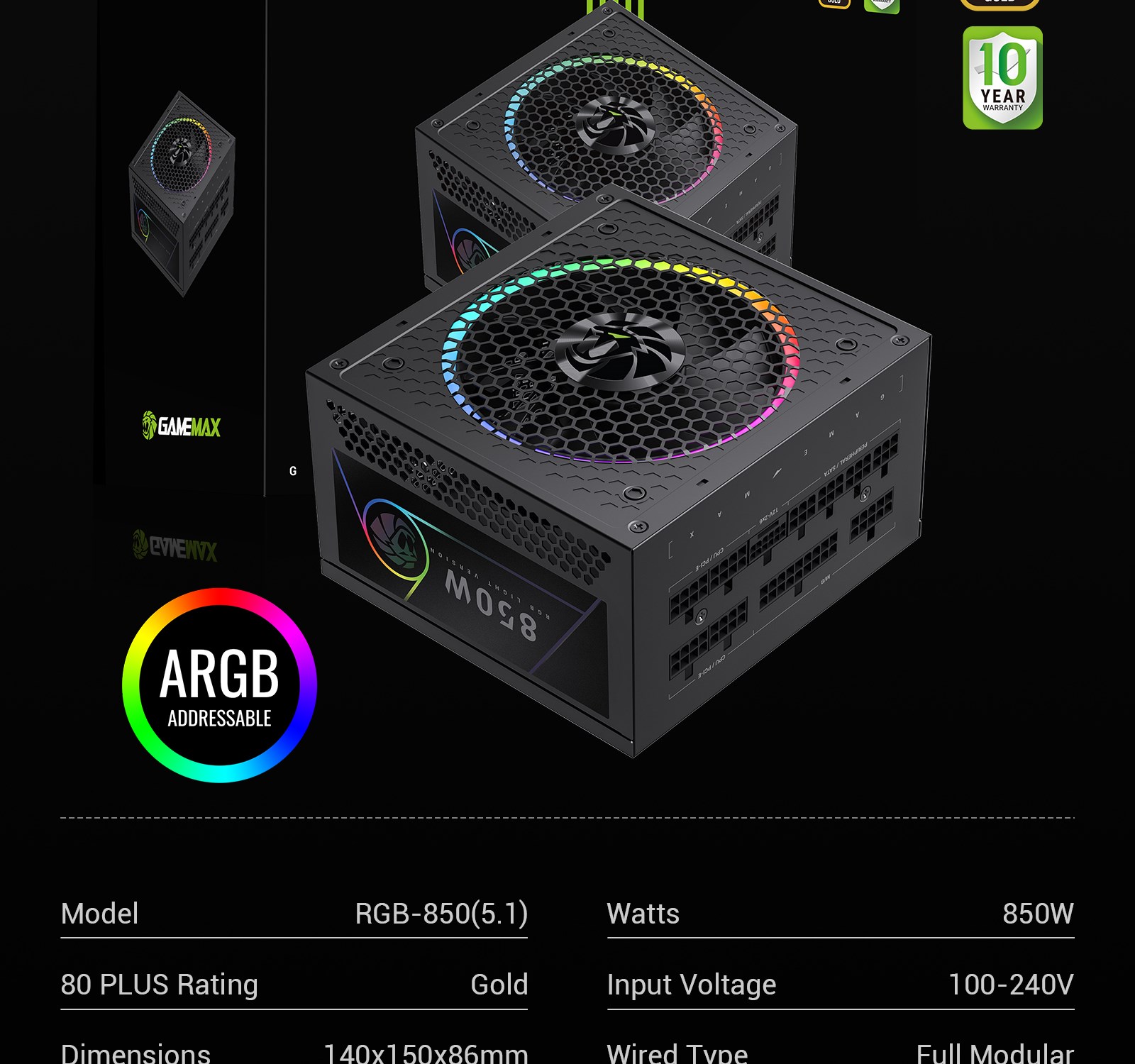

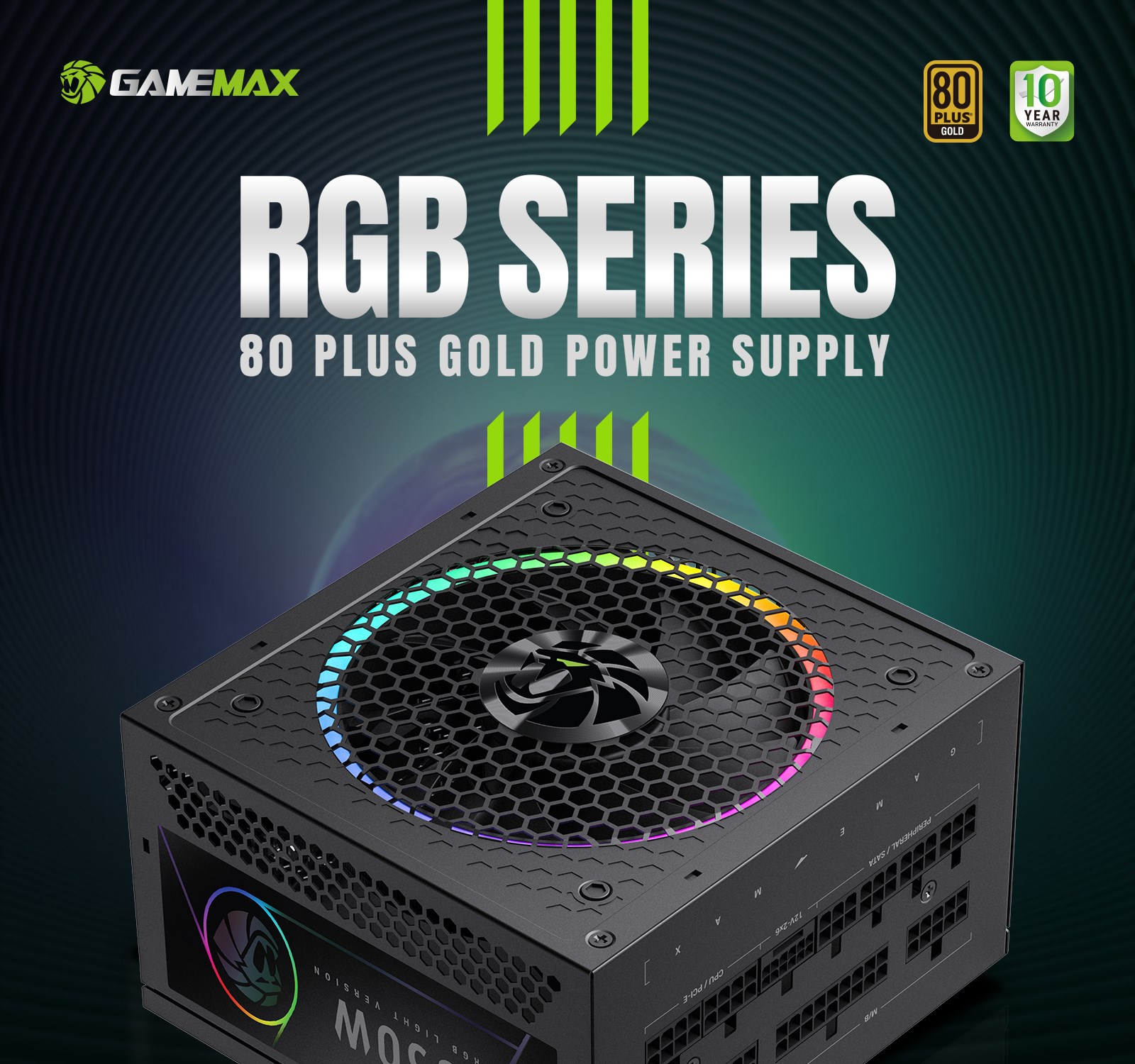

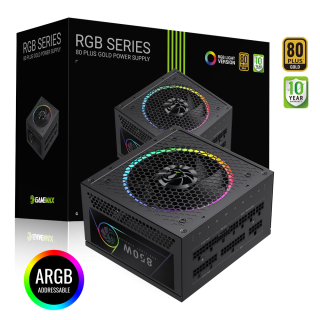

GameMax RGB 850W Fully Modular Power Supply, 80+ Gold, ATX 3.1, Native PCIe 5.1 12V-2x6, 120mm ARGB Fan, Japanese Capacitors

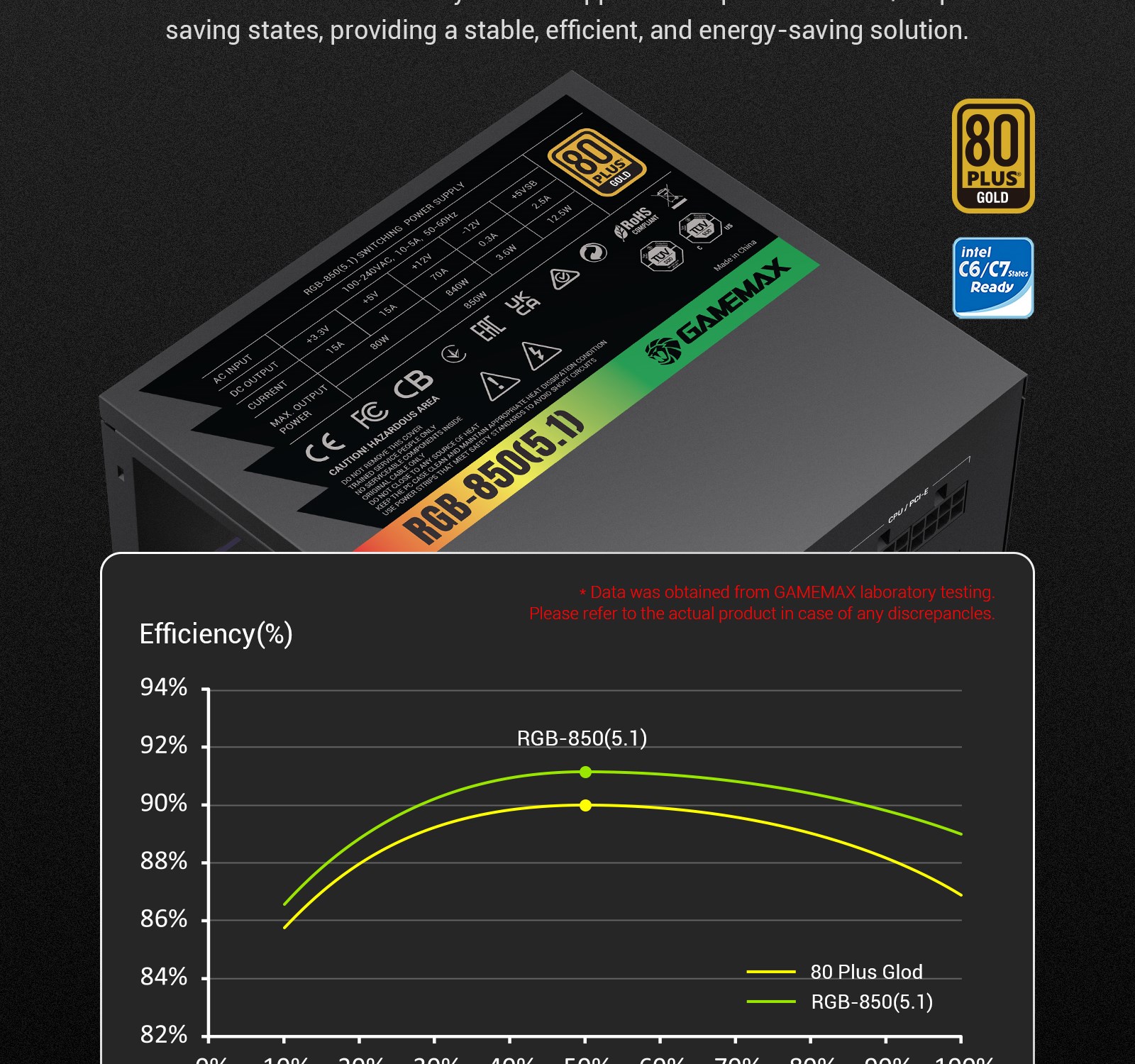

• 80+ Gold Certified Efficiency: Achieves 90% efficiency or higher under typical loads, lowering power consumption, heat, and fan noise.

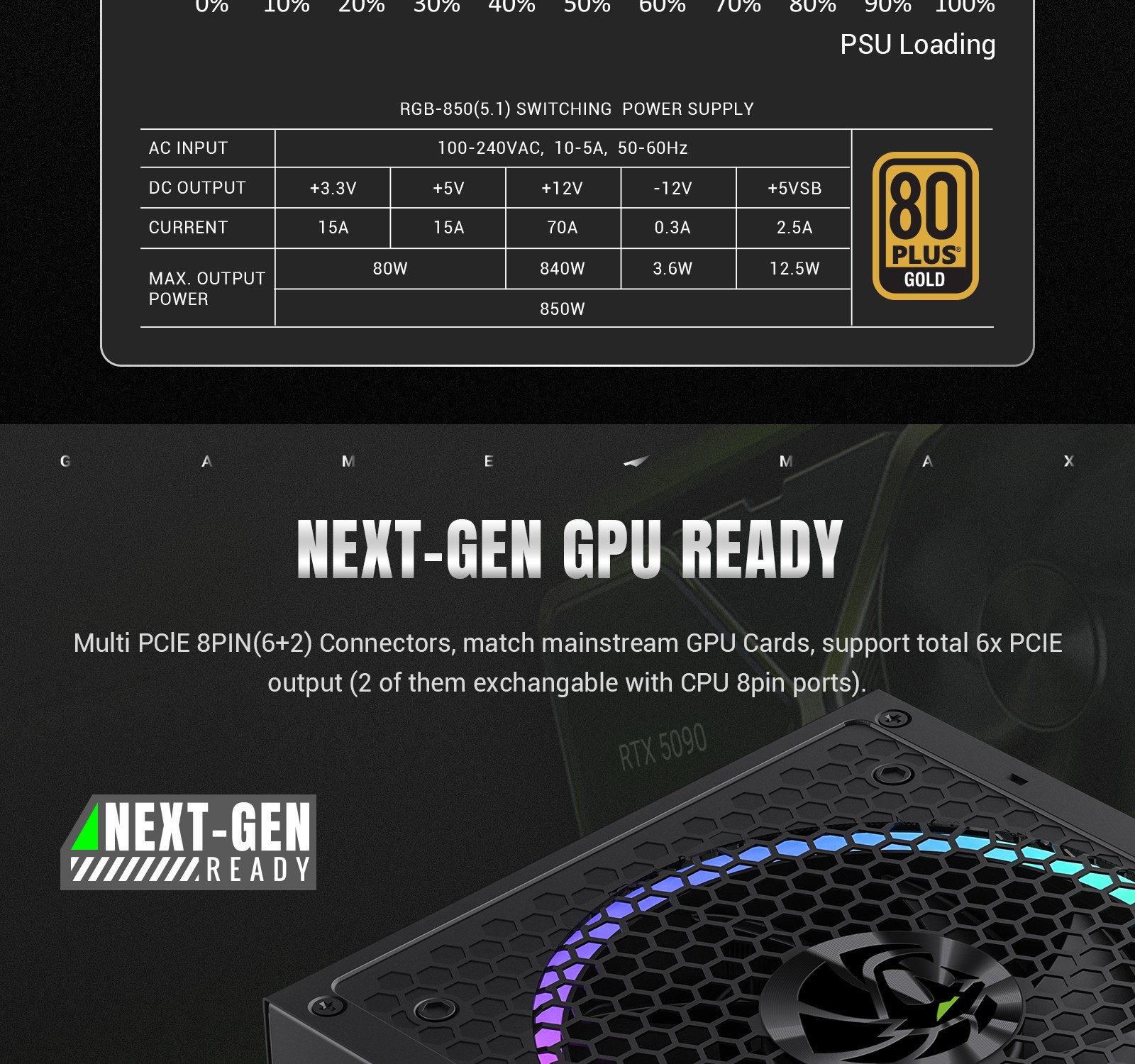

• Native PCIe 5.1 (12V-2x6): Built-in 600W connector directly powers RTX 50-series and next-generation GPUs without an adapter.
• ATX 3.1 & Intel C6/C7 Ready: Latest ATX 12V 3.1 standard with a strong single +12V rail and deep sleep support.

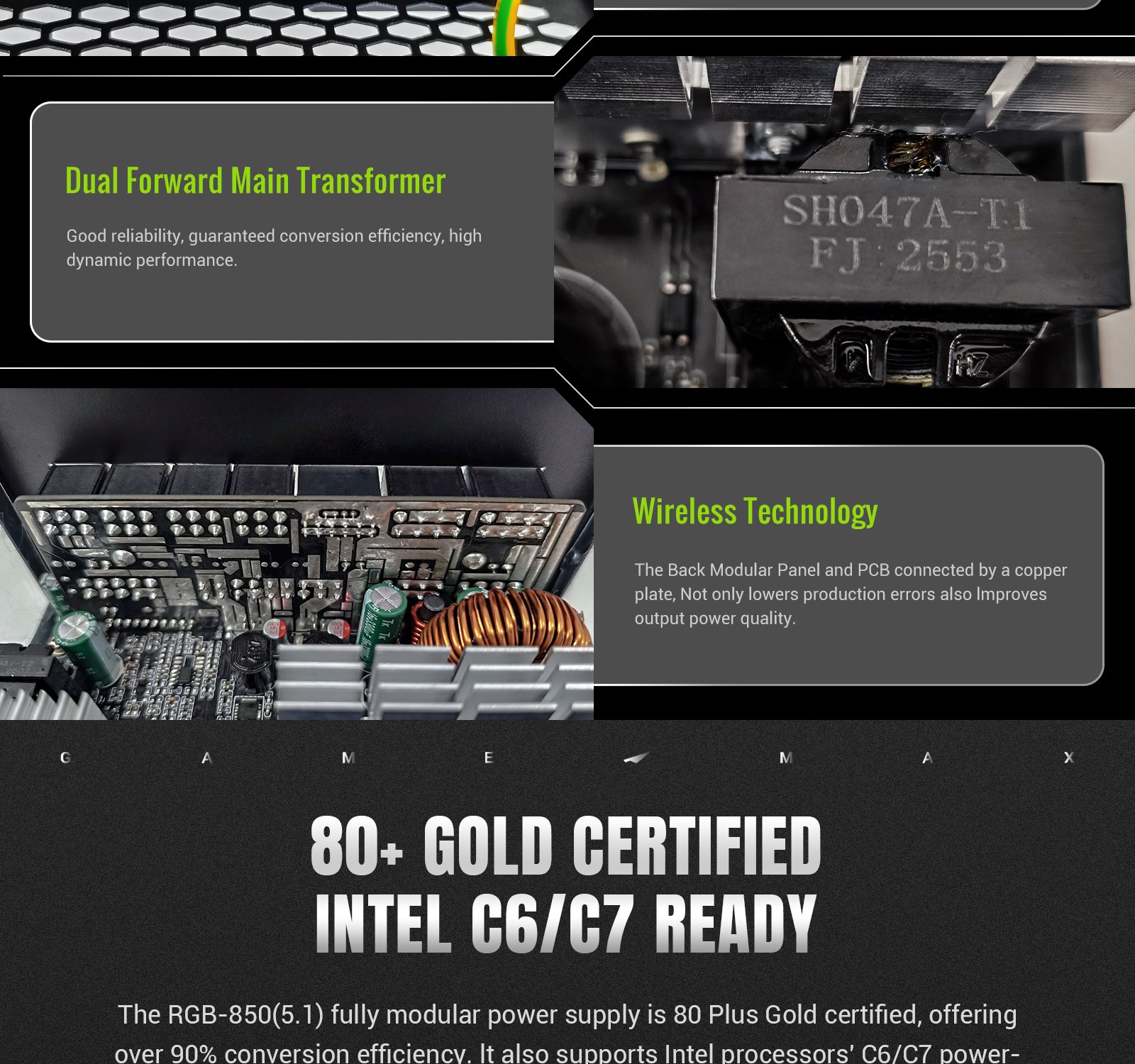

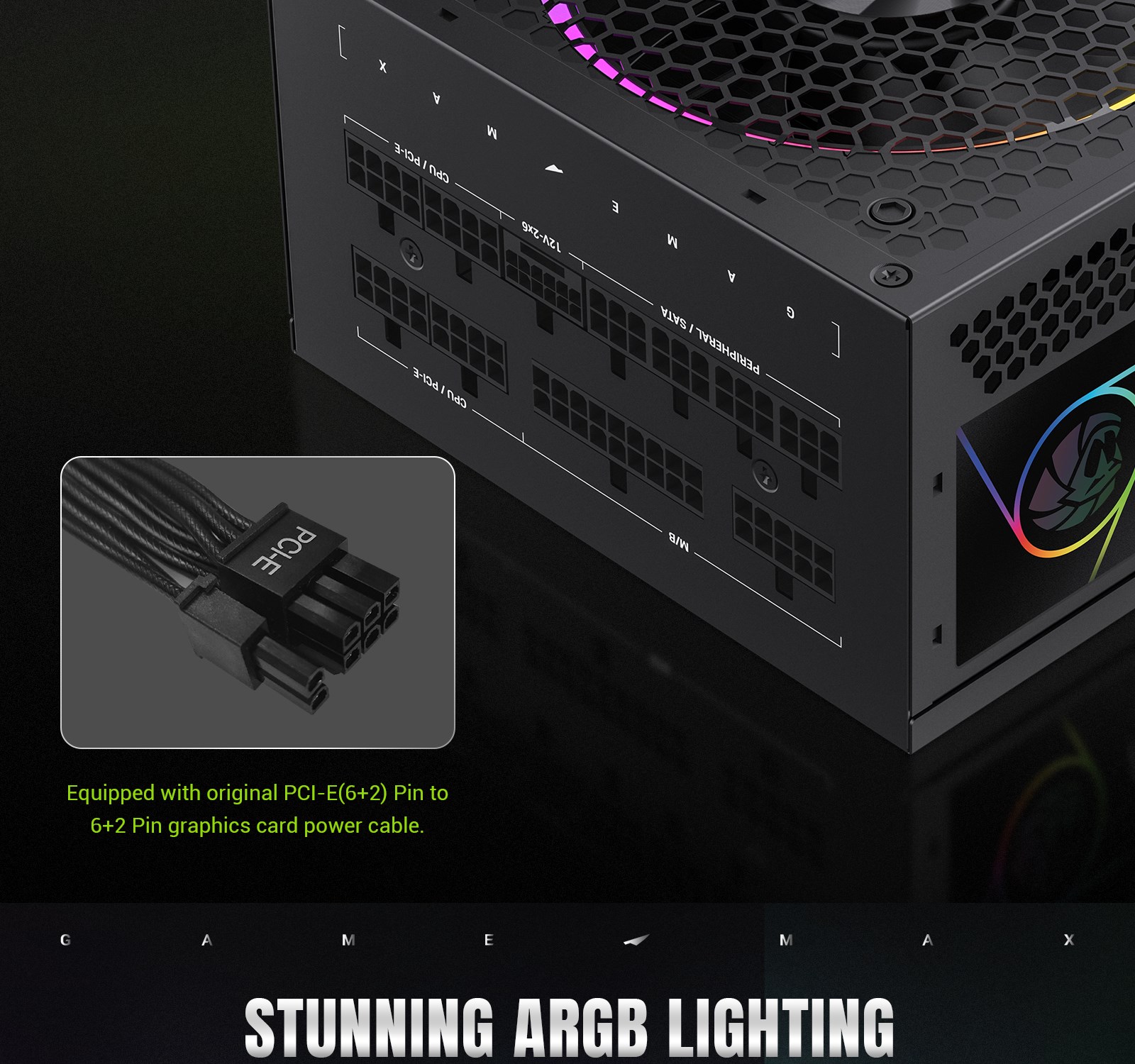

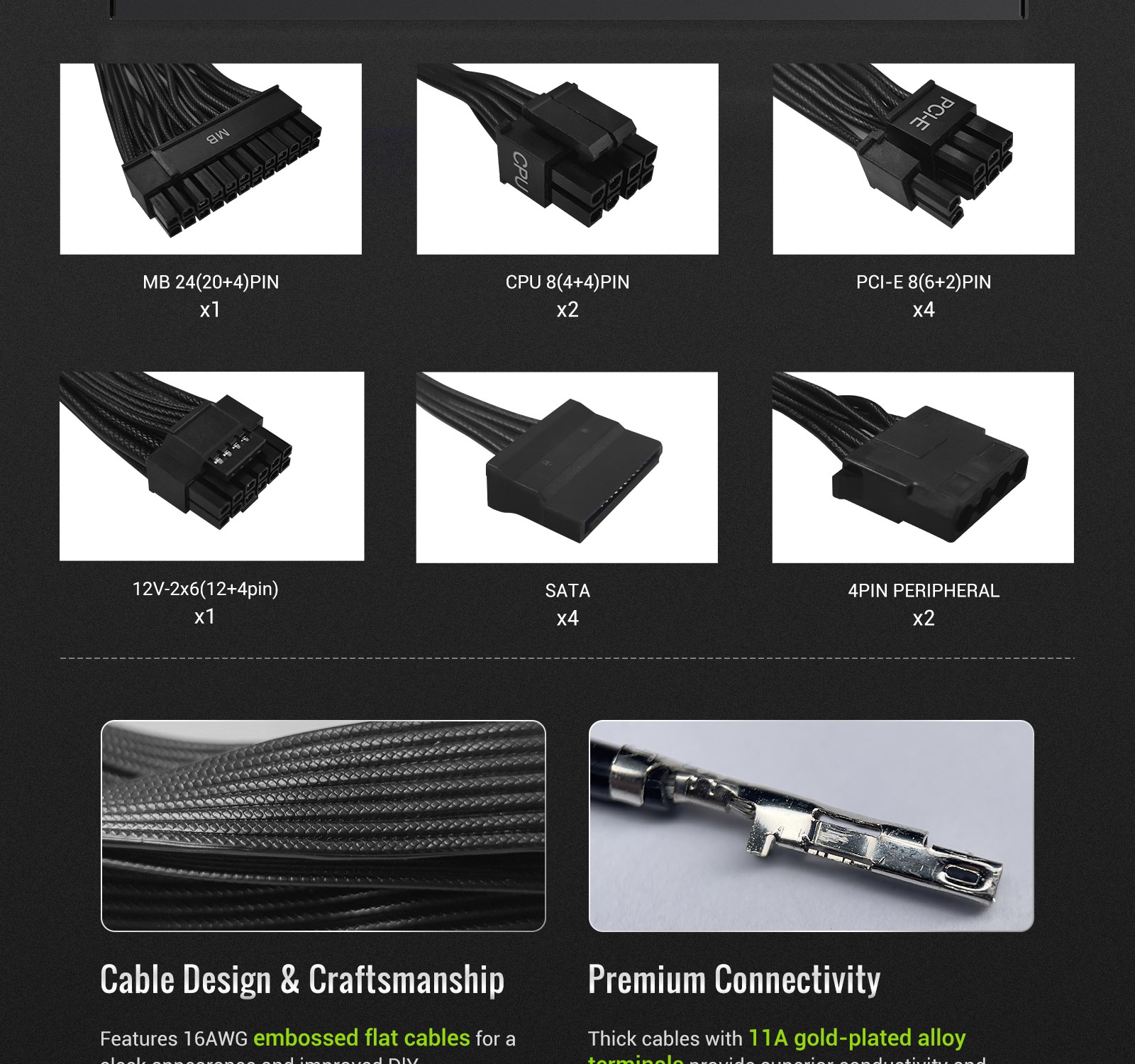

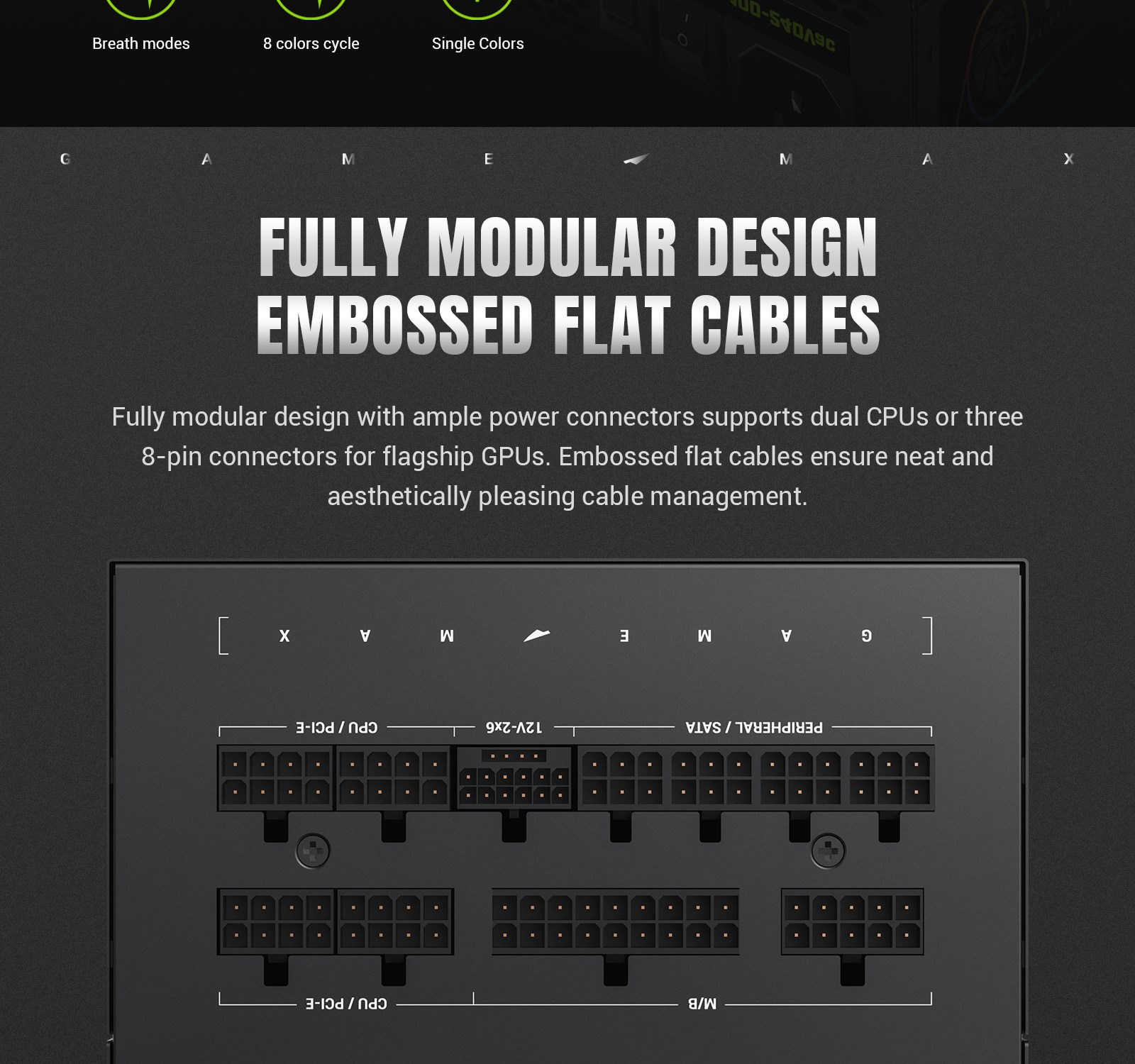

• Fully Modular with Braided Cables: Copper-plate wireless internal PCB layout cuts cable clutter and improves airflow.

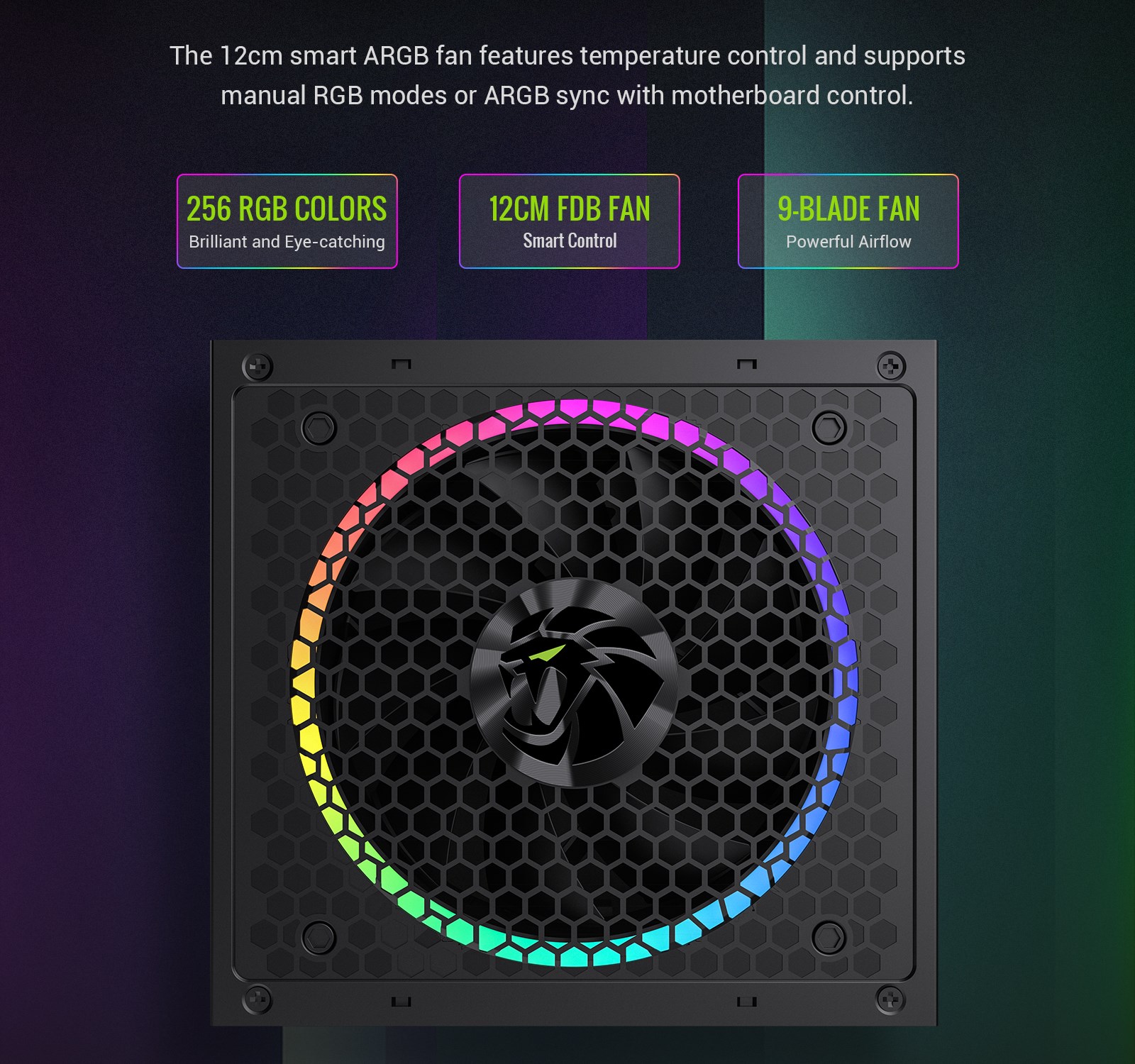

• 120mm FDB Fan with ECO Mode: Fluid dynamic bearing fan runs at zero RPM under low load for near-silent operation.

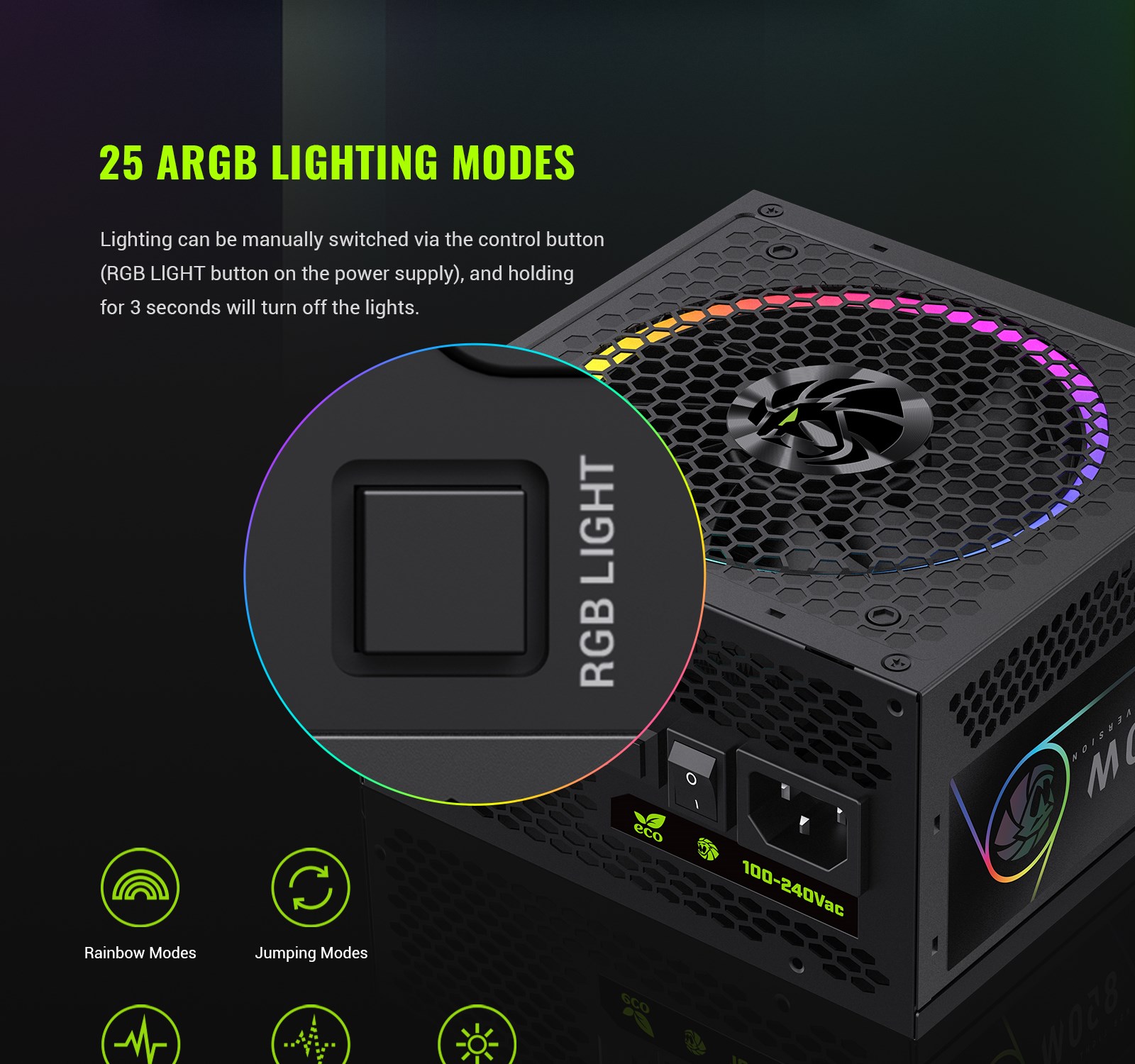

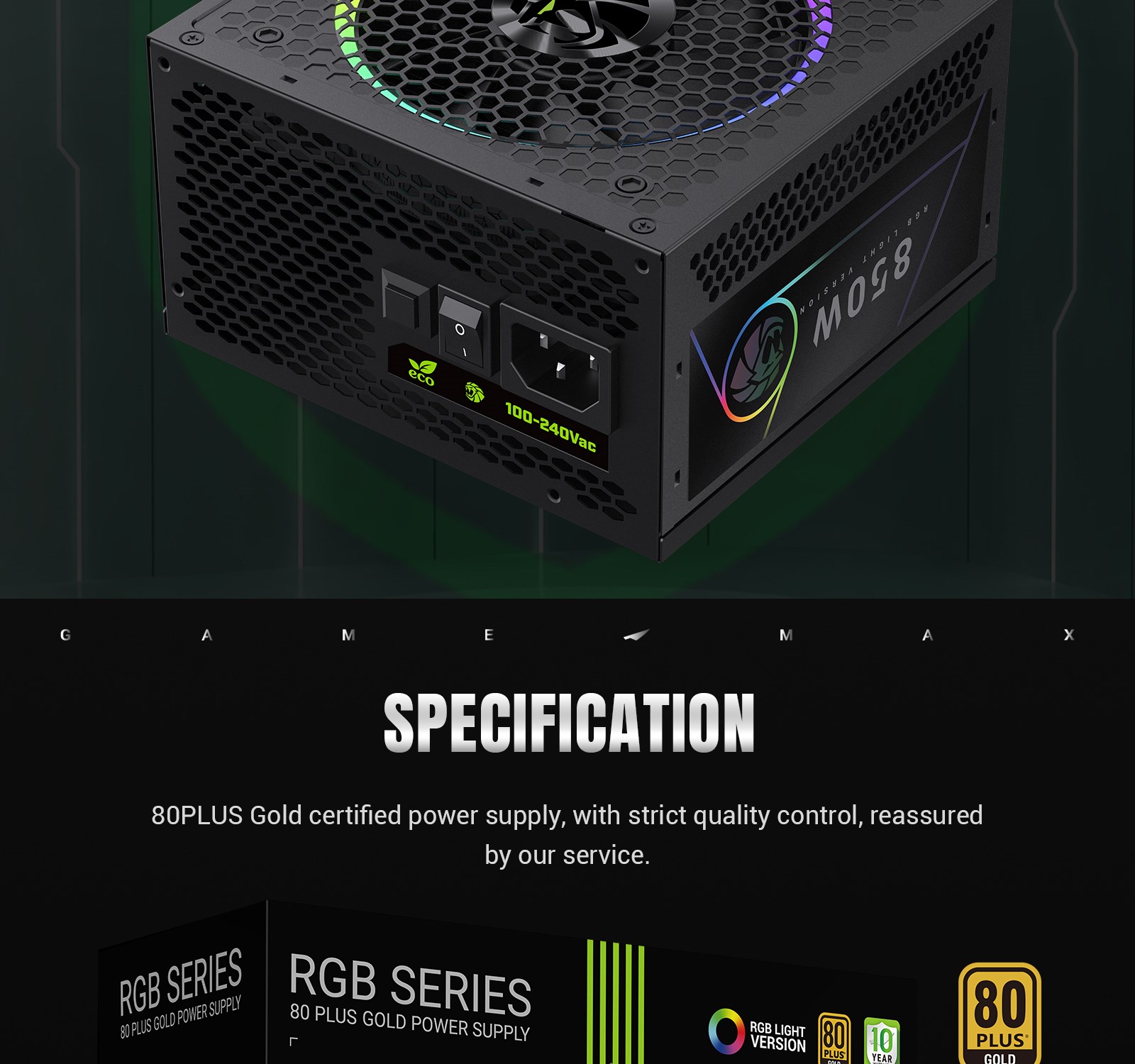

• 25 ARGB Lighting Modes: On-board RGB button cycles 25 lighting effects; hold 3 seconds to turn the LEDs off.

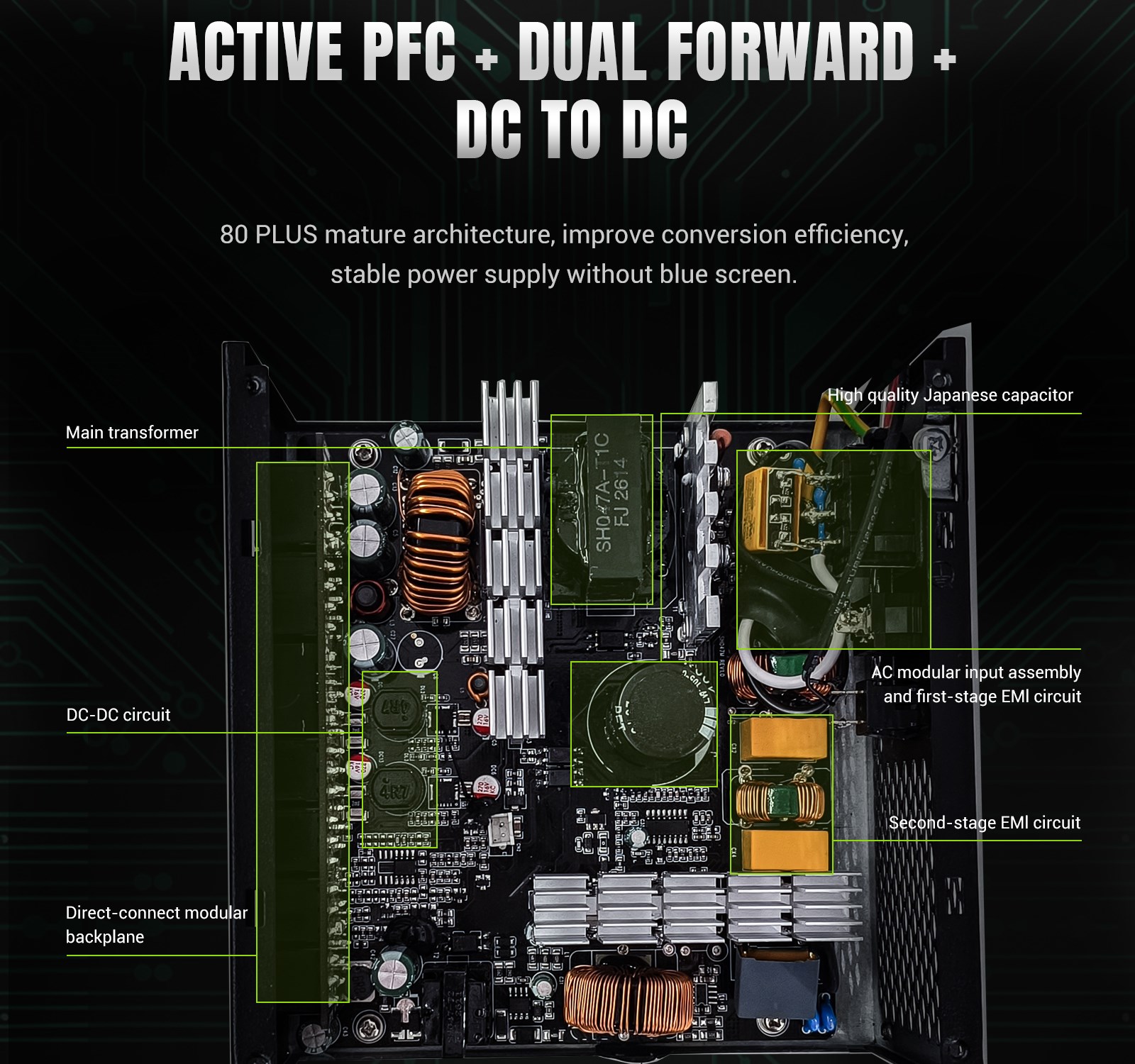

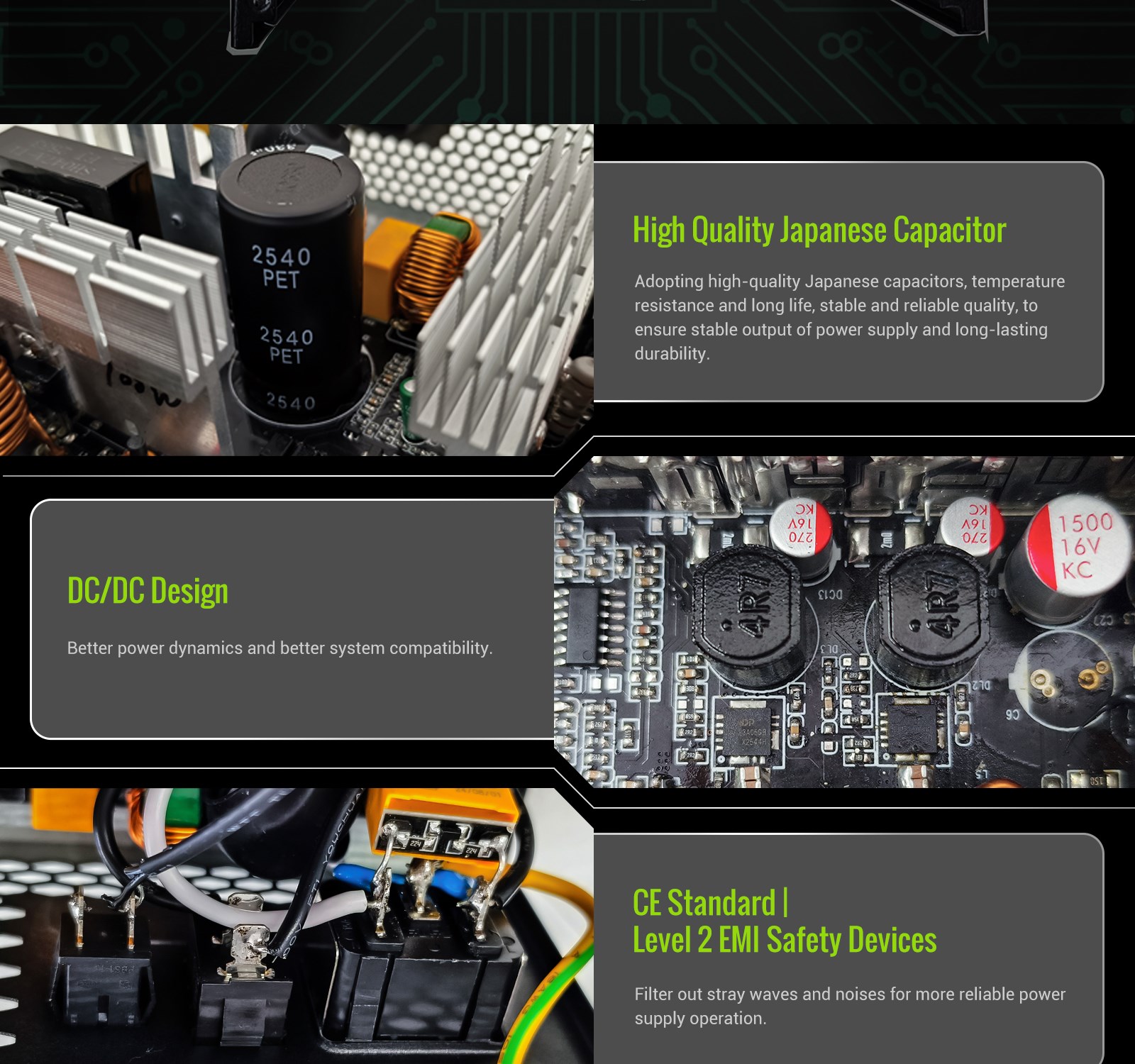

• 105°C Japanese Capacitors & Full Protection: DC-DC design with OVP/OCP/SCP/UVP/OTP/OPP/OLP/SIP/NLP, backed by a 10-year warranty.

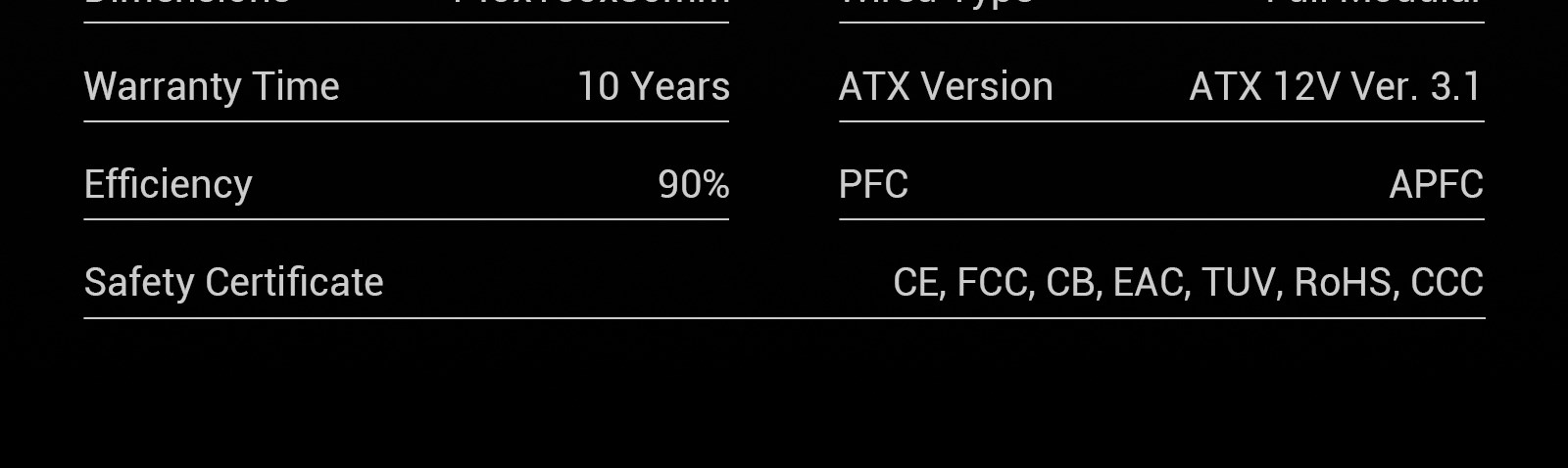

| 80PLUS | Cetificate | GOLD |
| Form Factor | Power Supply | Intel ATX 12 V 3.1 |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120mm with ARGB LEDs |
| Fan Control | Temperature control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours | |

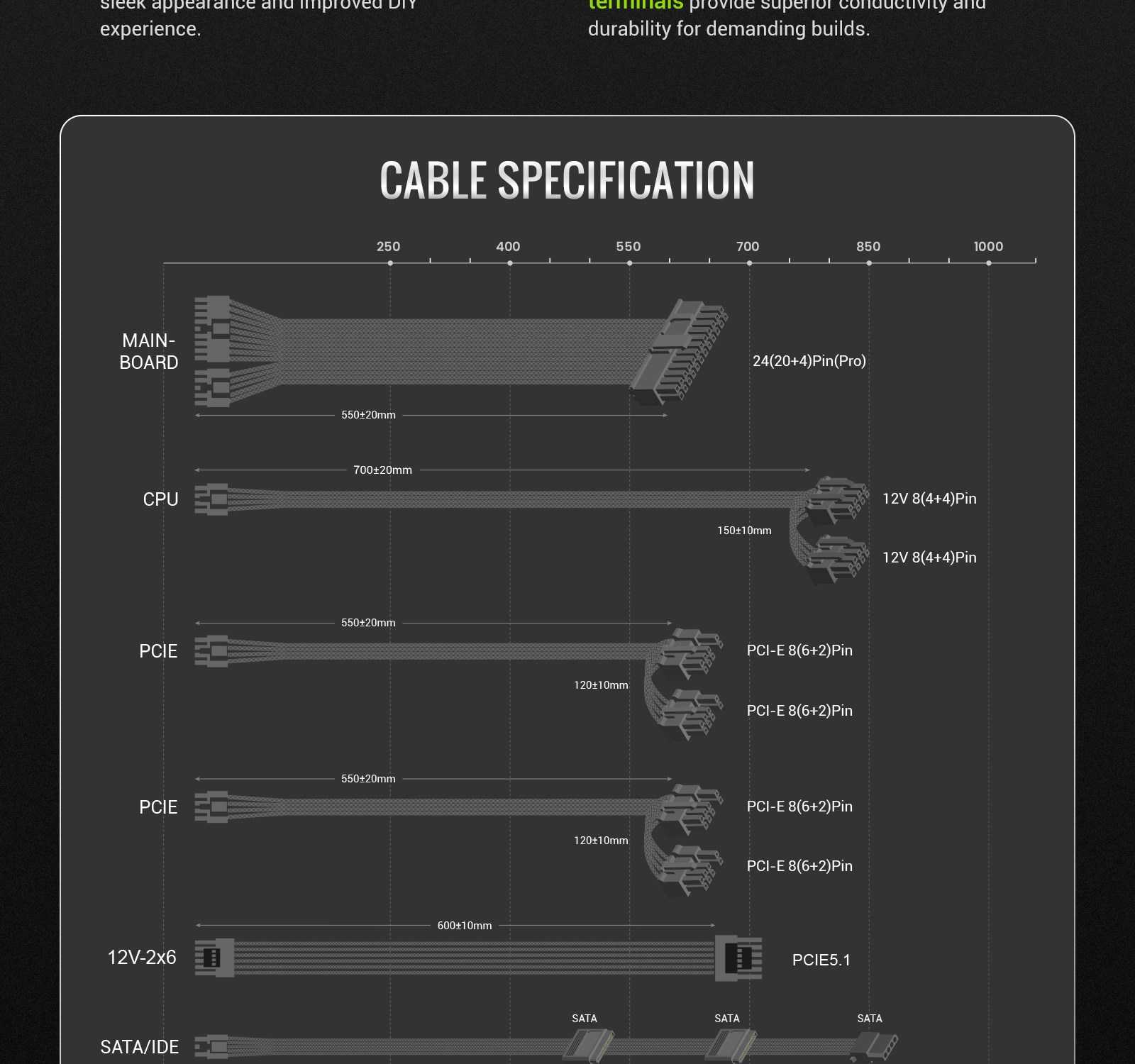

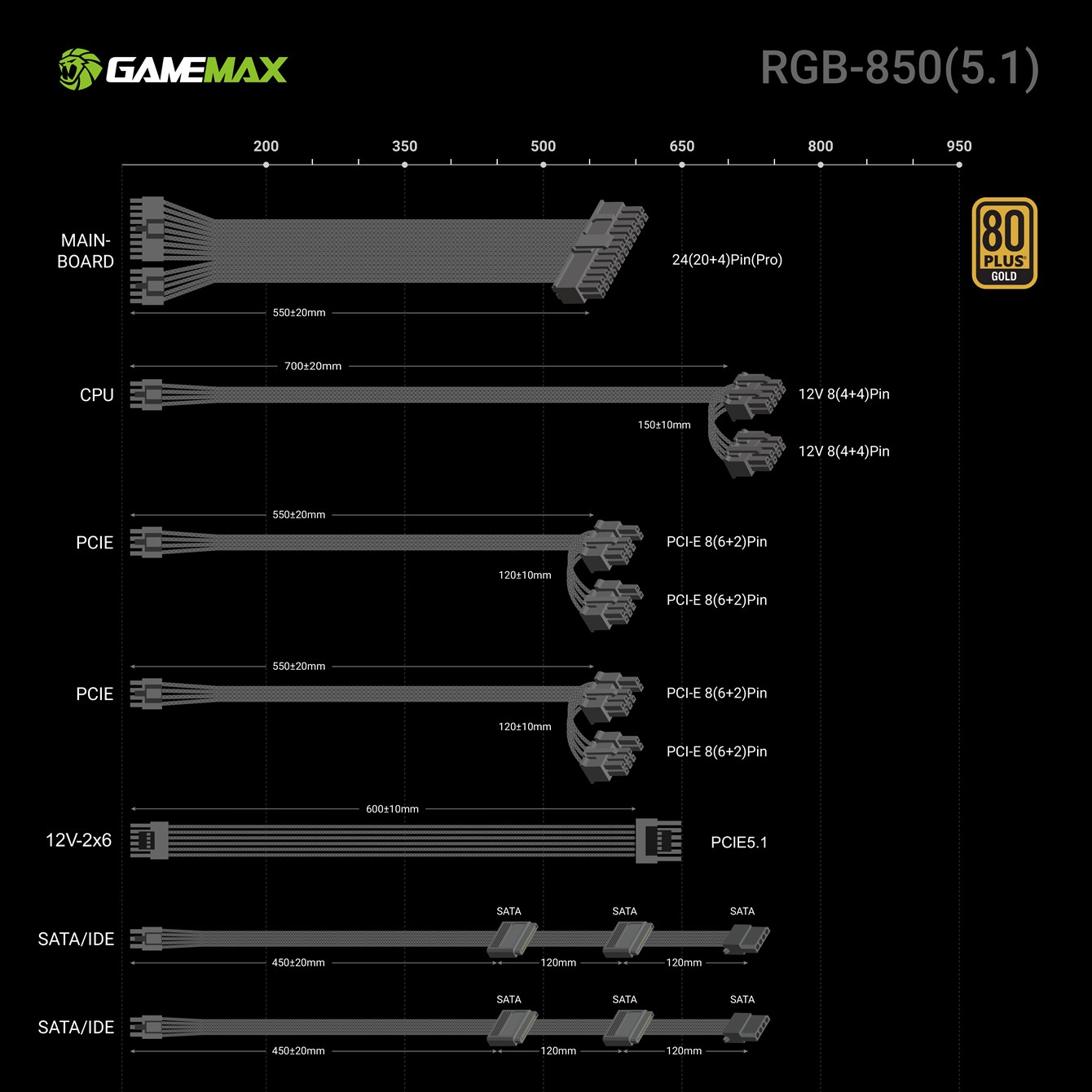

| Cable Information | Modularity | Fully Modular |
| Cable type | Embossed cables | |
| Electrical Features | Operating Temperature | 0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF | 100,000 Hours (@ 25 °C, Excl. fan) | |
| AC Input | 110-240V | |
| Protection | OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO | |
| Safety Ceritificate | Safety and EMC | cTUVus, TUV, CB, CCC, EAC, CE |
| Environmental | Compliance | RoHS |
