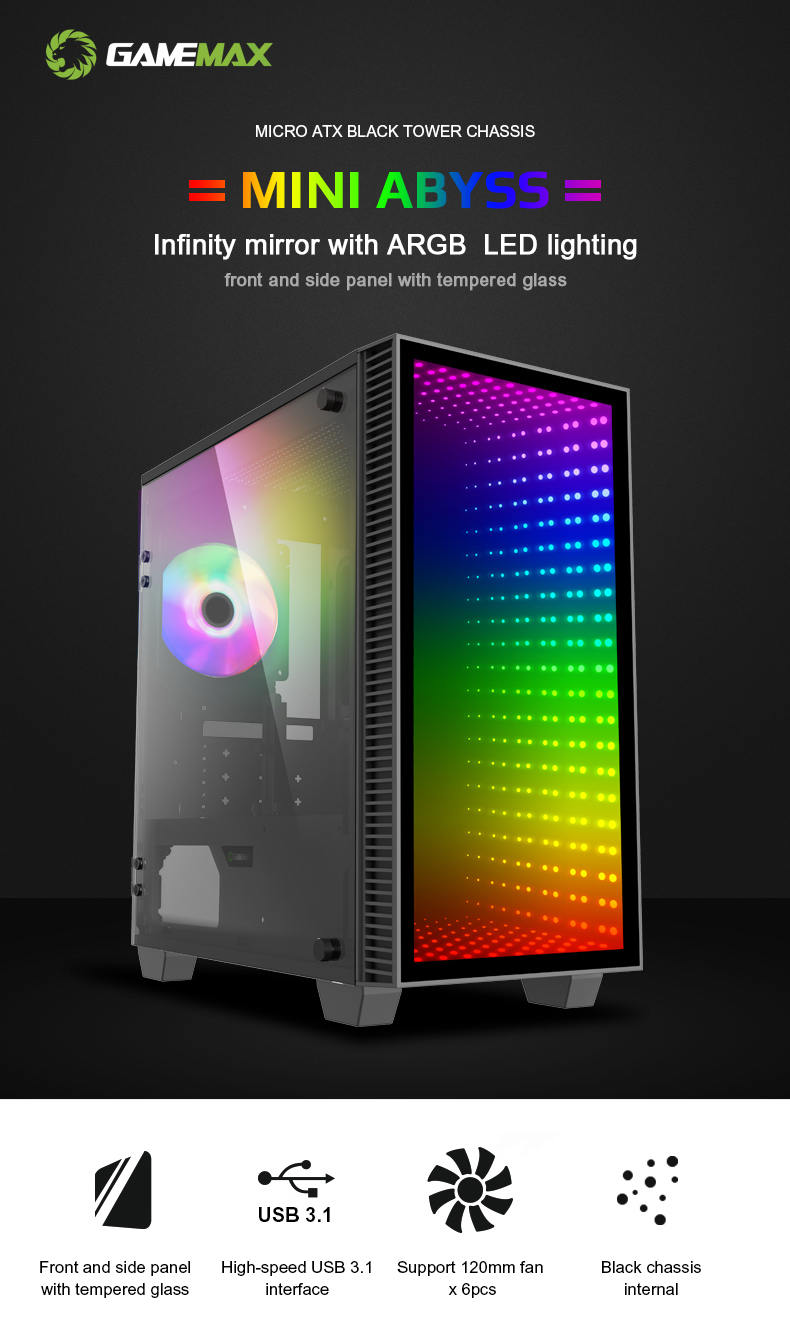

MINI Abyss H608

GameMax - предлагает высокопроизводительные игровые аксессуары,Компьютерный корпус, источники питания, охладители, клавиатуры, мыши и становится надежным брендом во всем мире!

GAMEMAX_MINI-ABYSS-H608详情页EN_01.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_02.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_03.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_04.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_05.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_06.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_07.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_08.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_09.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_10.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_11.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_12.jpgGAMEMAX_MINI-ABYSS-H608详情页EN_13.jpg

Form Factor (Midi, Micro, Mini ITX, Full)Micro-ATX, Mini ITX
ChassisSPCC 0.6mm, Black painting interior
PSU Form FactorBottom/ATX

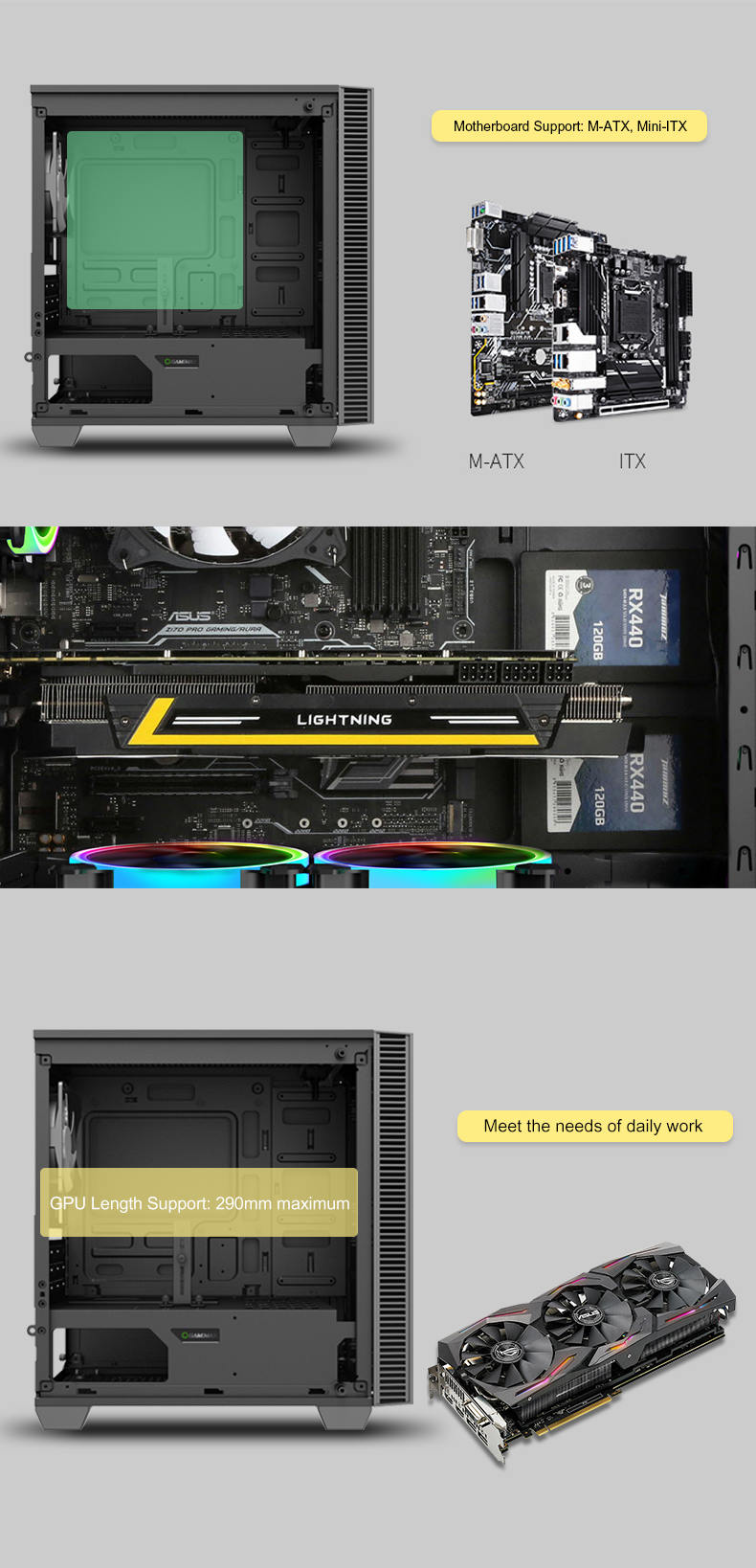

M/B Form FactorM-ATX、ITX
Front PanelABS,Tempered Glass
Top Panelmetal cover
BrandingBoxGameMax
Unit1

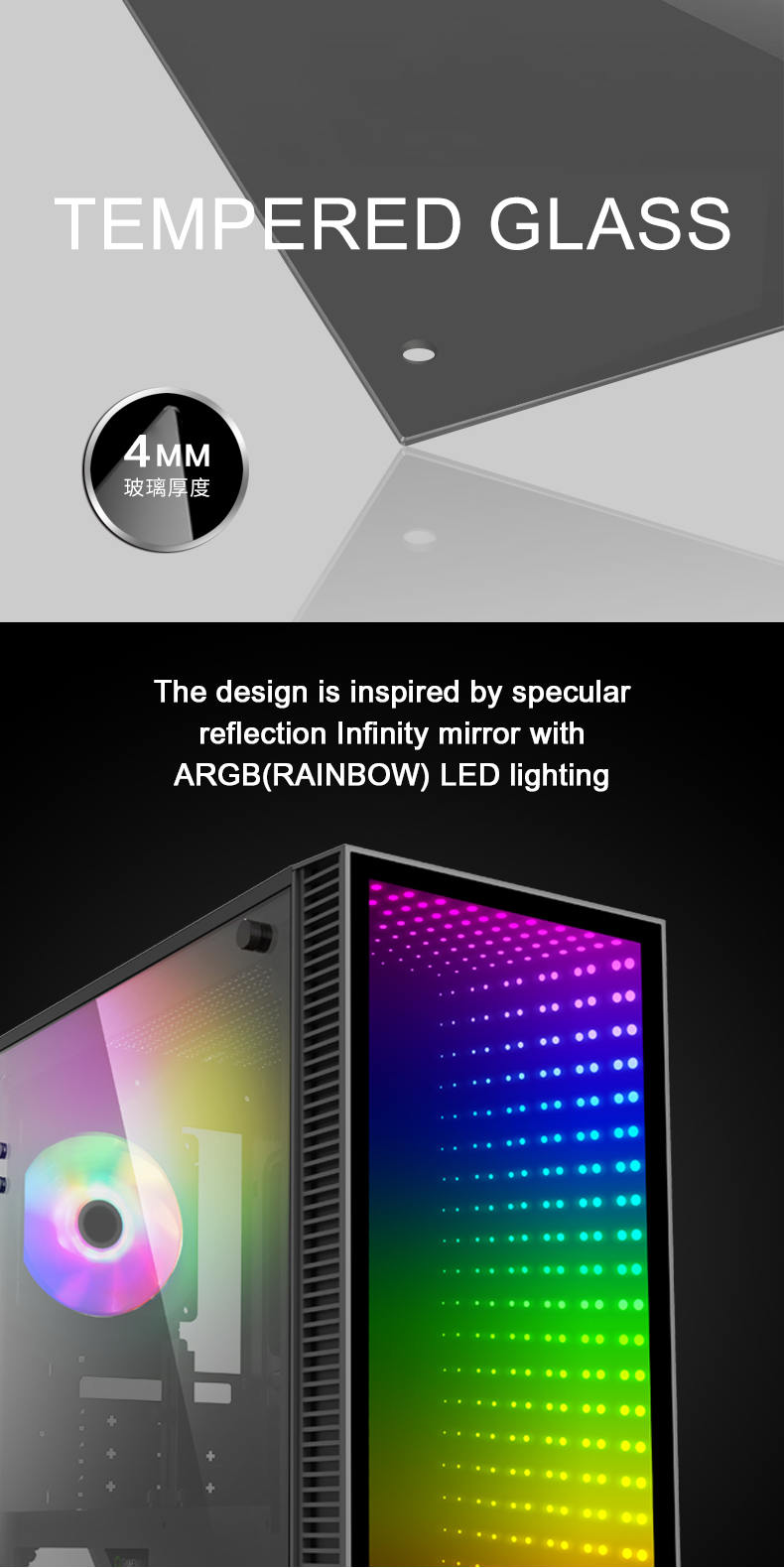

Side PanelLeftTempered Glass
RightMetal cover
External Drive Bay(s)5.25" (ODD)*0
3.5"*0
Internal Drive Bay(s)3.5" (HDD)*2
2.5" (SSD)*2
I/OButtons*4
USB3.0(USB3.1 GEN1) Port(s)*2
HD Audio Support*1

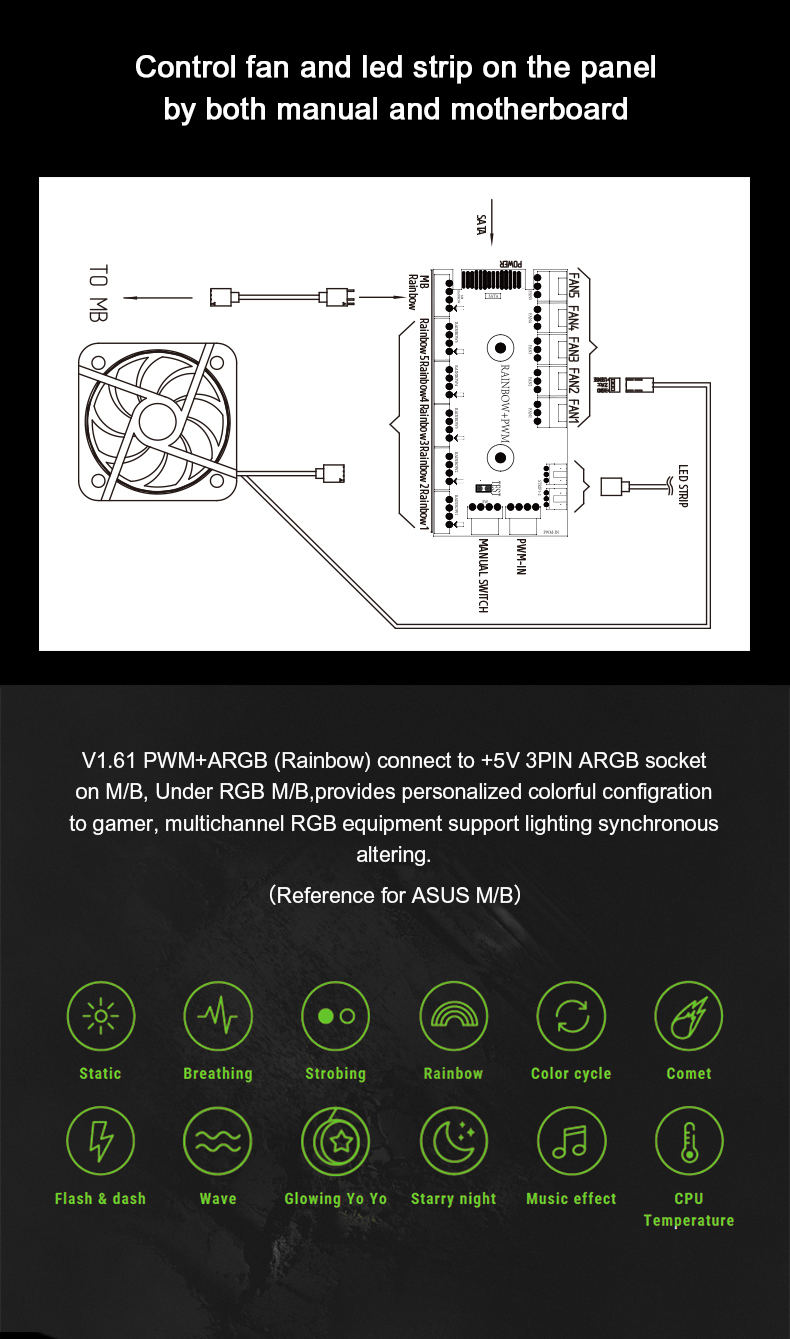

Fan Controller*1  PWM

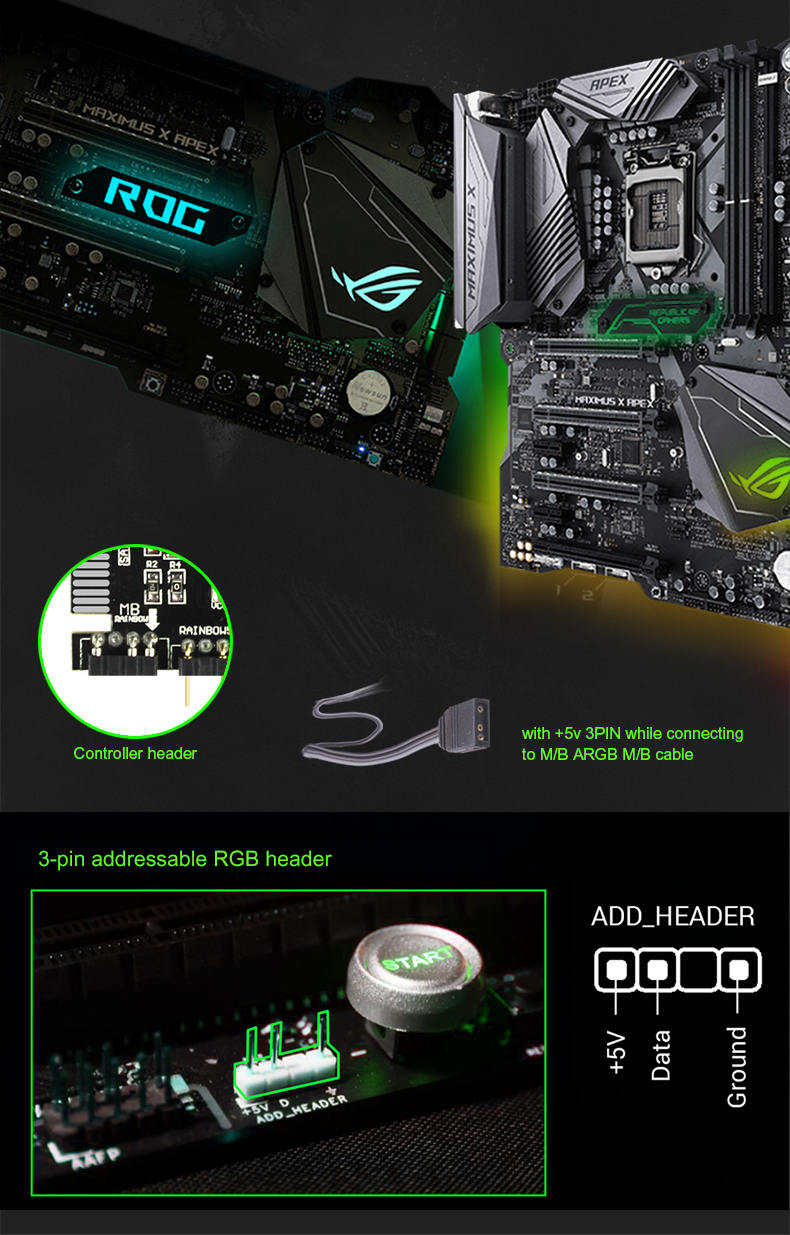

RGB Controller*1  Rainbow Controller (ARGB)
Controller max. fans*5
RGB Controller max. LED strips*2

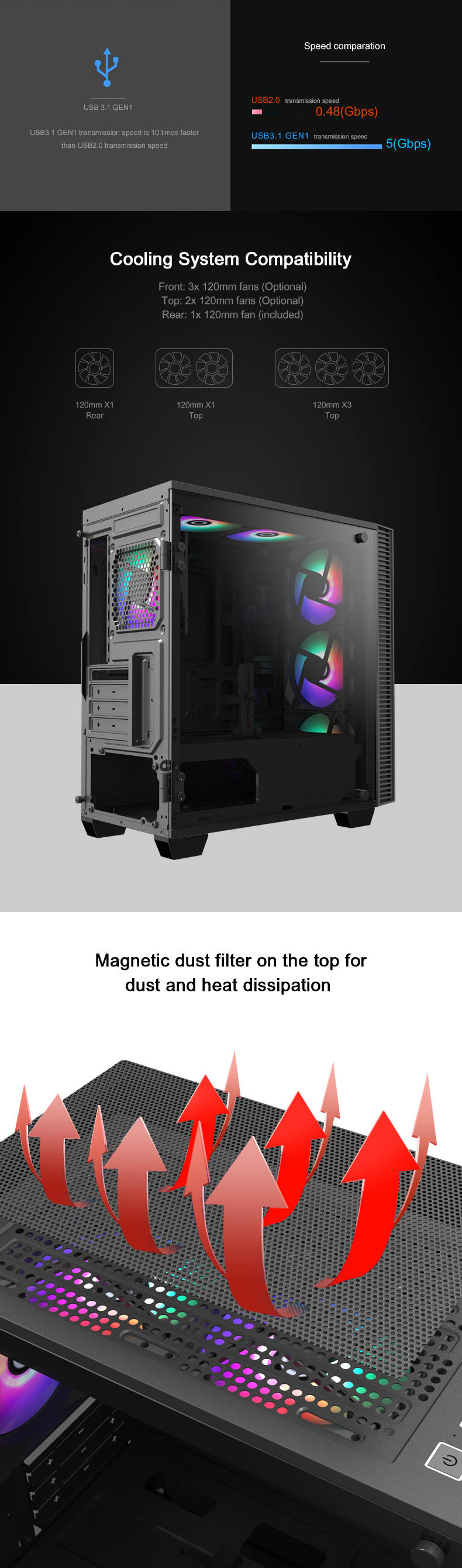

Cooling Fan  SupportFront3x120mm(Fan optional)
Top2x120mm(Fan optional)
Rear1x120mm (Included) (FN-12Rainbow-M)

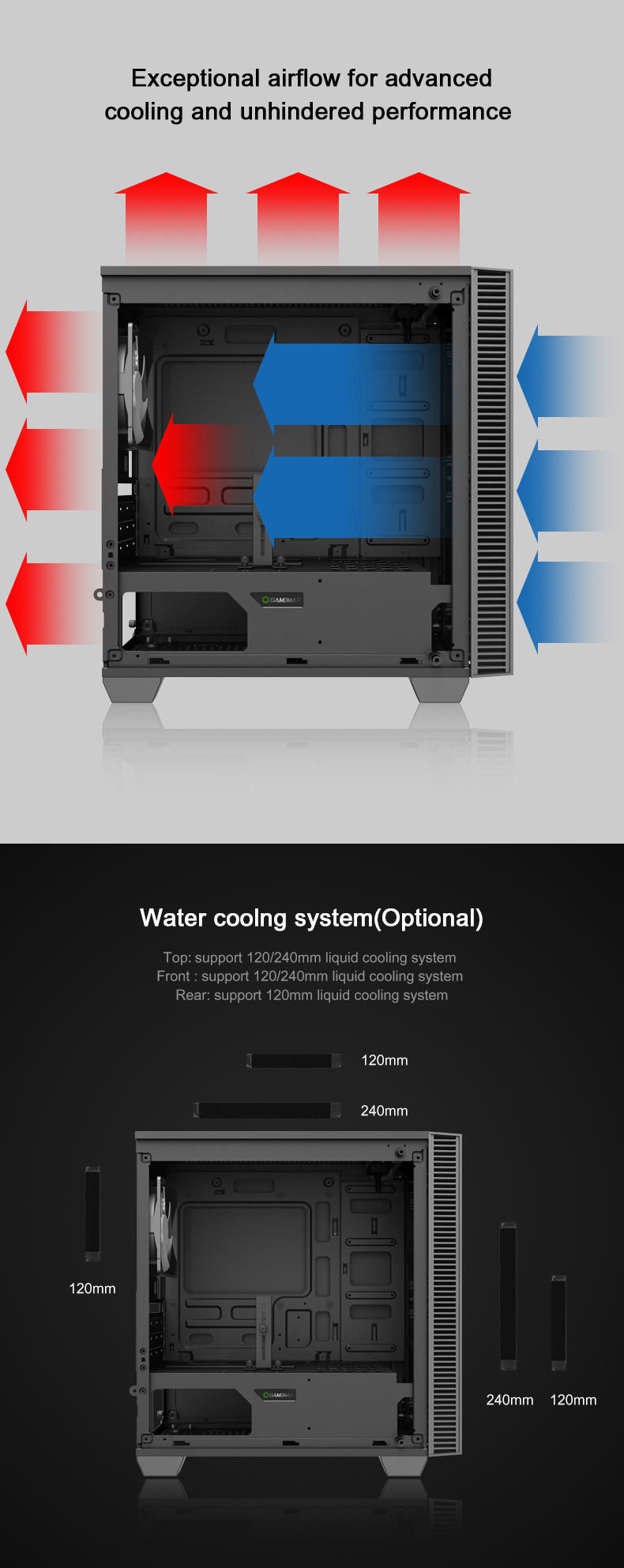

Water Cooling Support
(Radiator Size)
Front120mm*1, 240mm*1
Top120mm*1, 240mm*1
Rear120mm*1

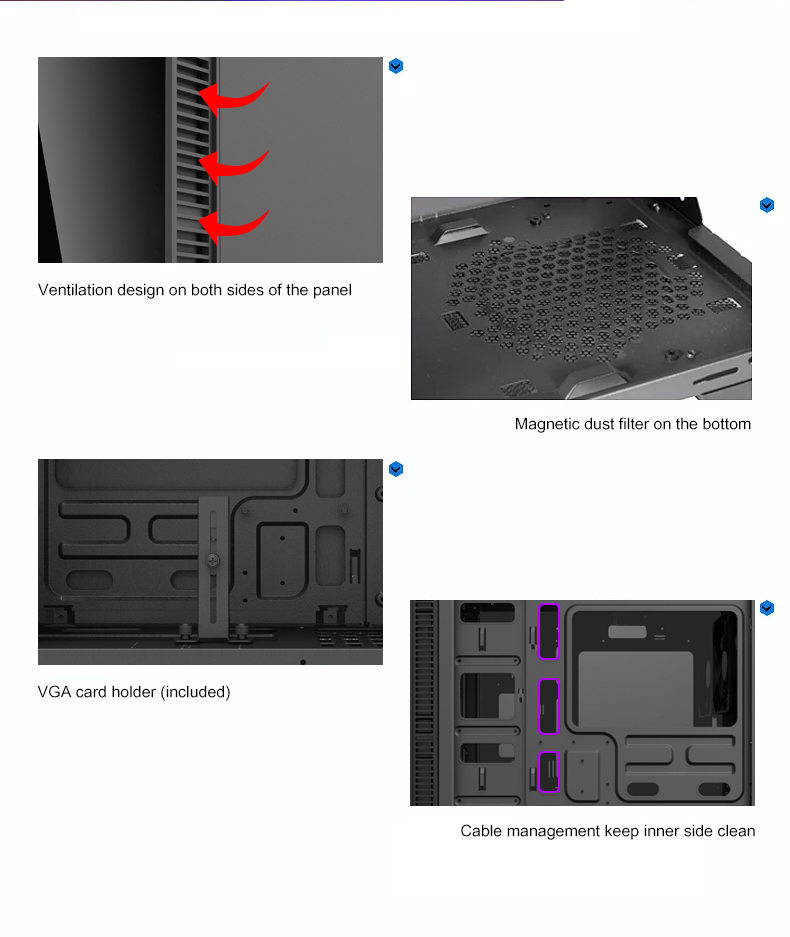

Dust CoverBottom and top cover with dust filter
Slots*4
Carton LogoGAMEMAX

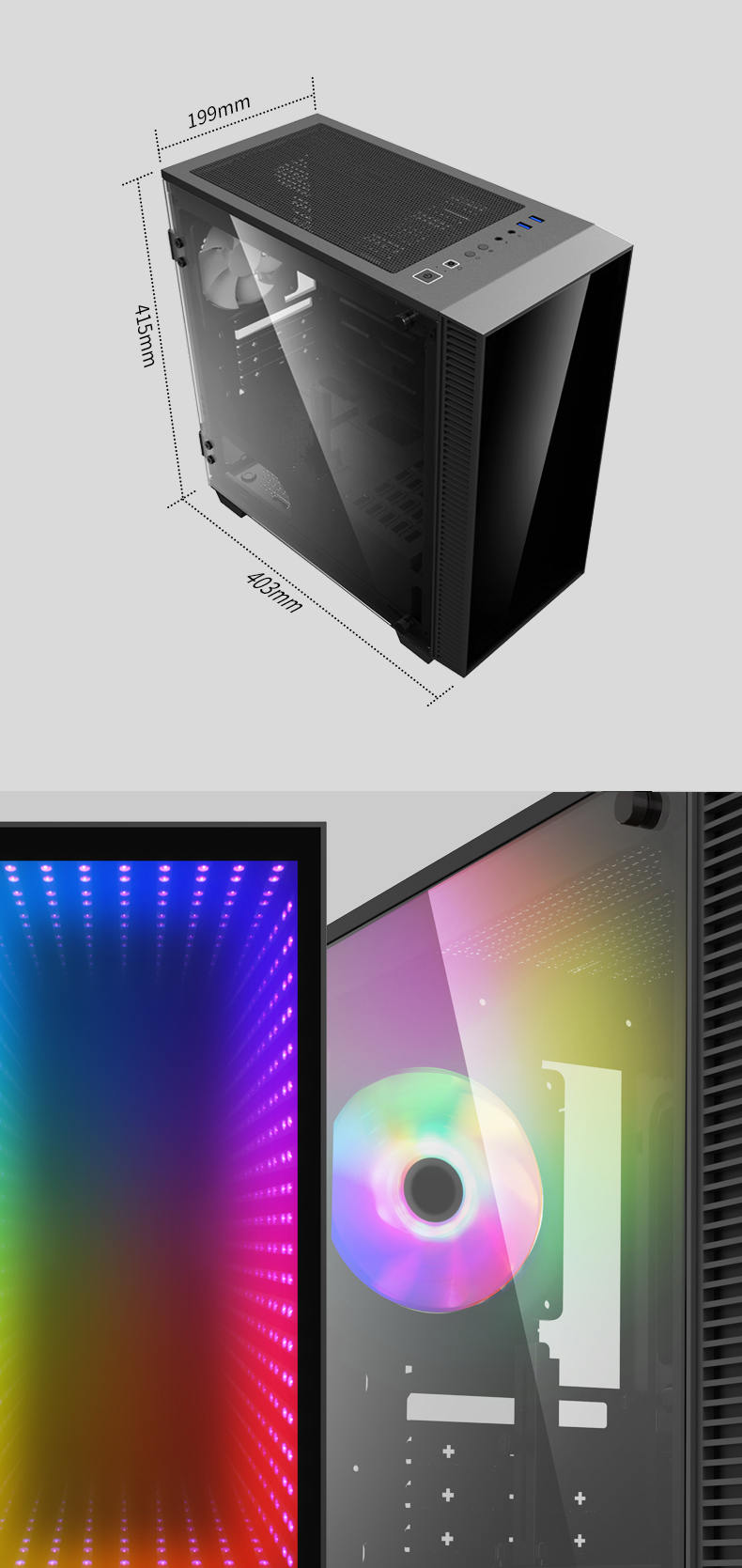

DimensionsChassis(L)350*(W)194*(H)390mm
Full Case (inc Fascia)(L)403*(W)194*(H)415mm
Carton(L)493*(W)287*(H)487mm
Net Weight (Kg)3.6 kgs
Gross Weight (Kg)4.4 kgs
VGA Card Length340mm
CPU Cooler Height155mm
Cable Management Depth19mm
PSUIncluded*0
Q'ty 40HQ:960pcs  40GP:800pcs  20GP:400pcs
