The GameMax VP series power supply offers “Value and Performance” scheme

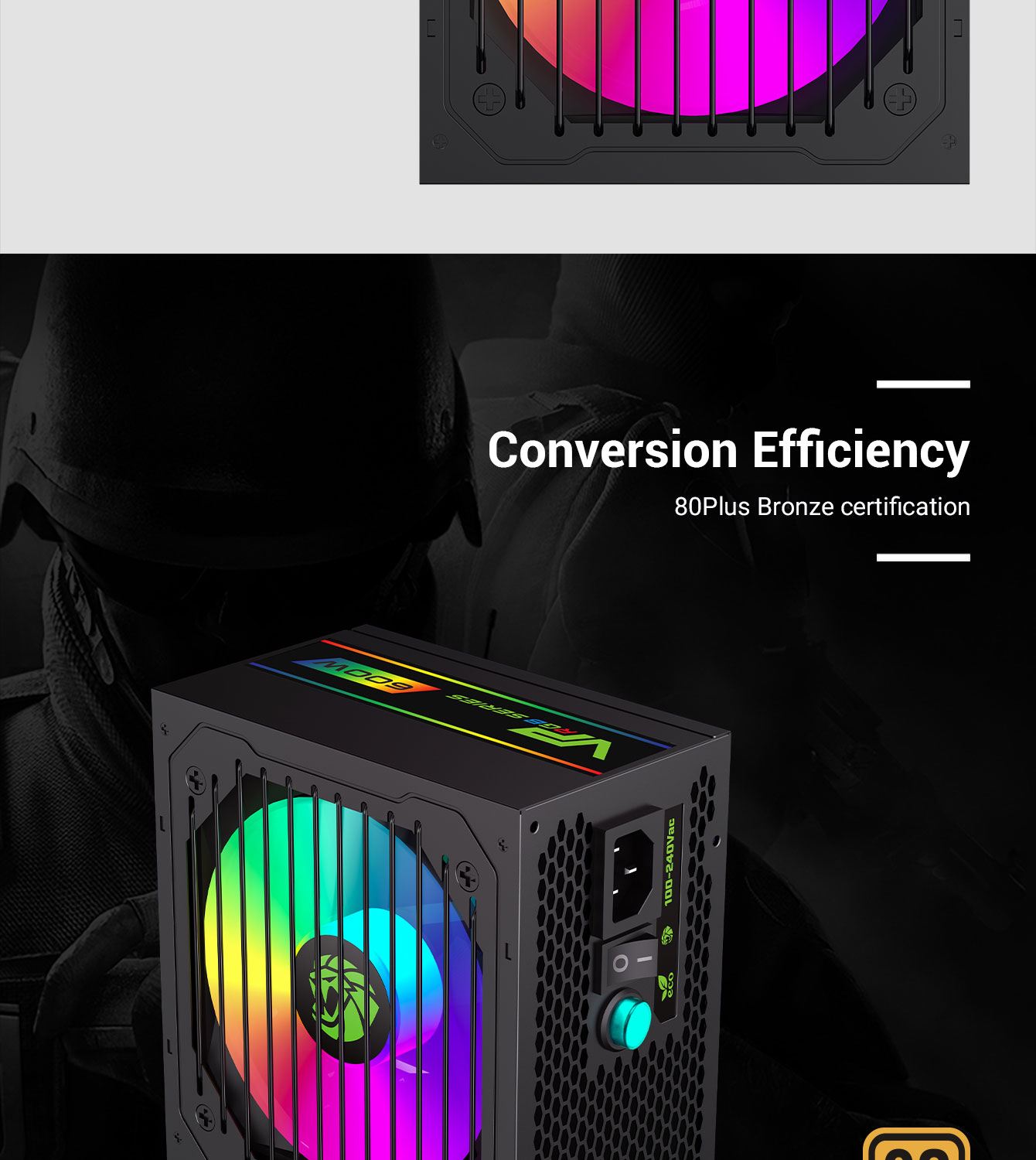

• 80Plus ready for support high efficiency required, also it is continuing a popular for computer builds.
• GameMax VP RGB Range have great features that make it a good choice for people who are looking for an efficient and reliable, good value power supply
• The most suitable cost/performance ratio is the best choice for system builder.

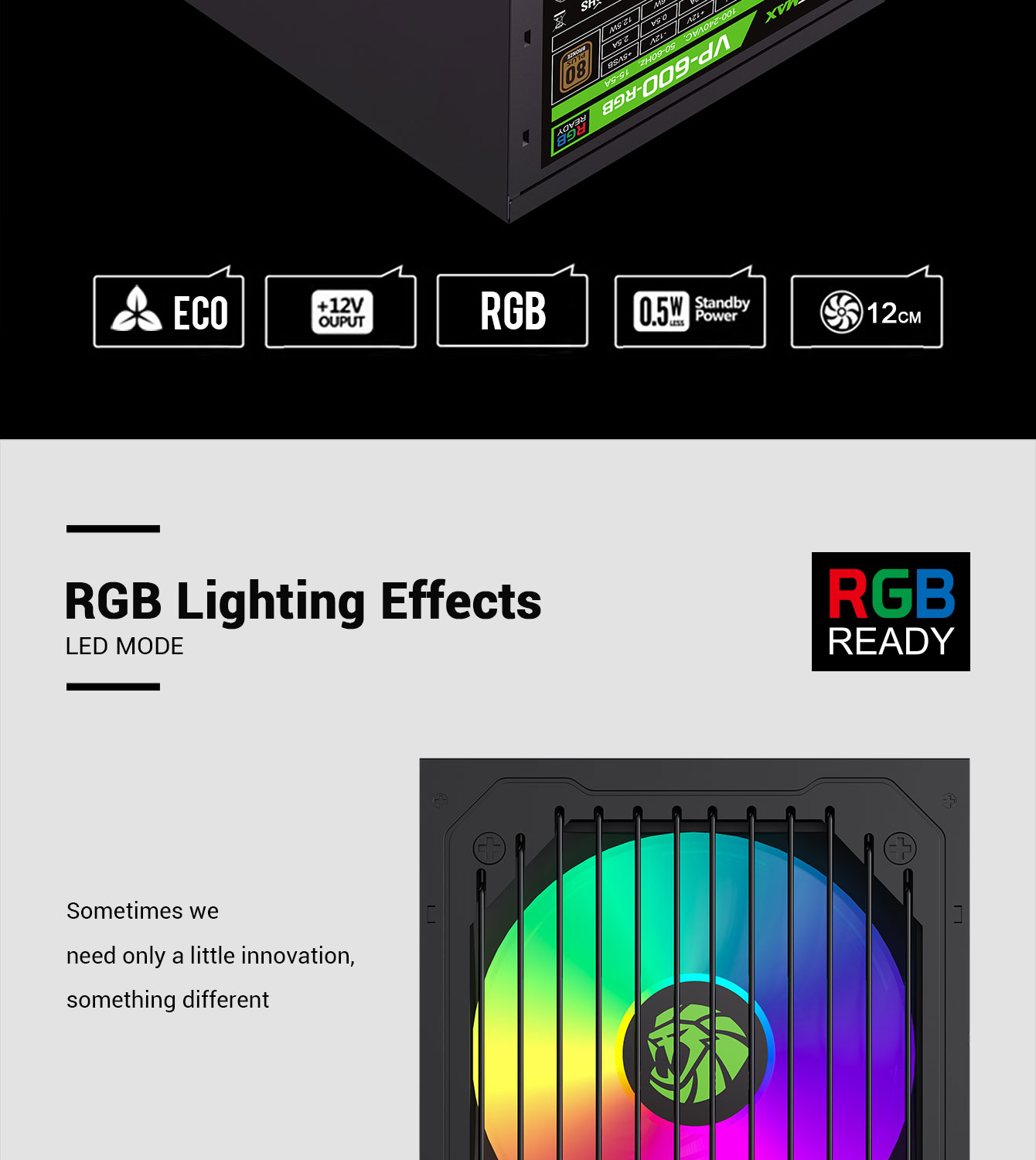

• RGB LED Lighting to power your system with style
• Bring your system to life with build-in unique lighting effects that without additional controlled used.

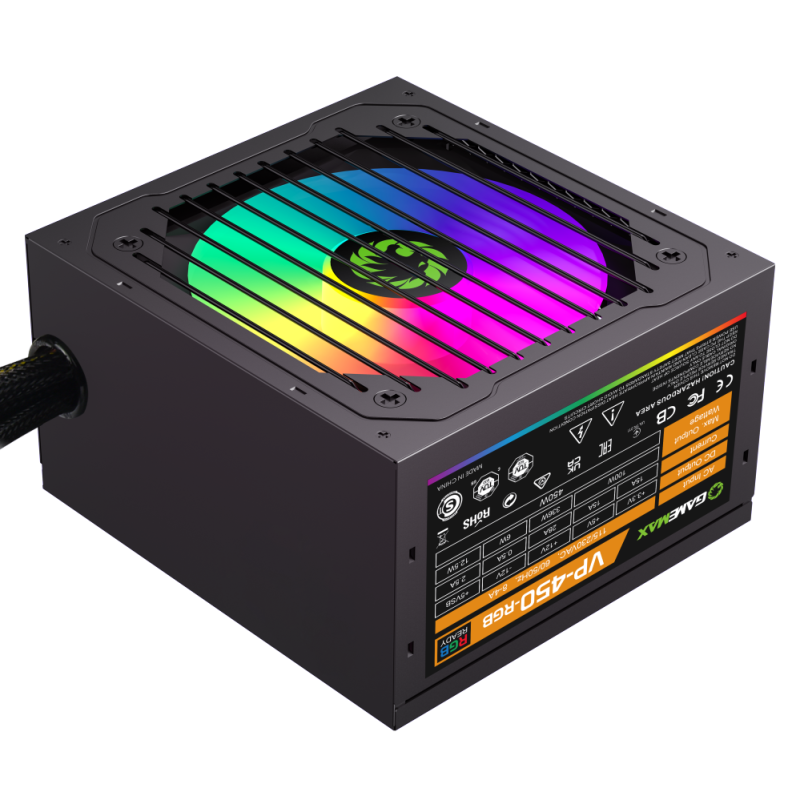

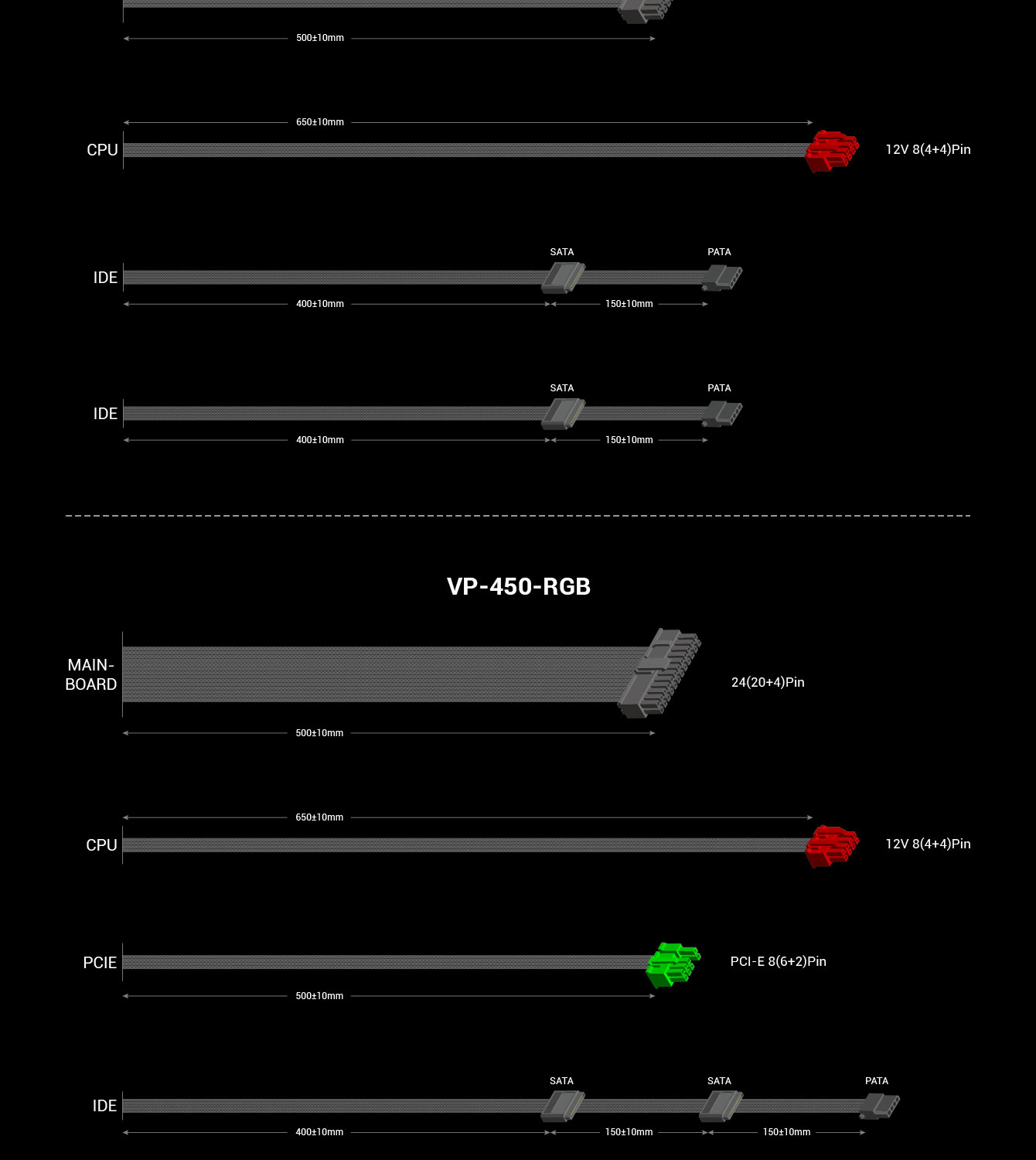

VP-450-RGB
| Technical Specifications | ||
| 80PLUS | None | |
| Efficiency Level | >75% | |
| Noise Level | Zero (ECO-ON),<32dBA (at 100% load) | |
| Form Factor | Intel ATX 12 V 2.31 | |
| Dimensions | 140 mm (W) x 150 mm (L) x 86 mm (H) | |

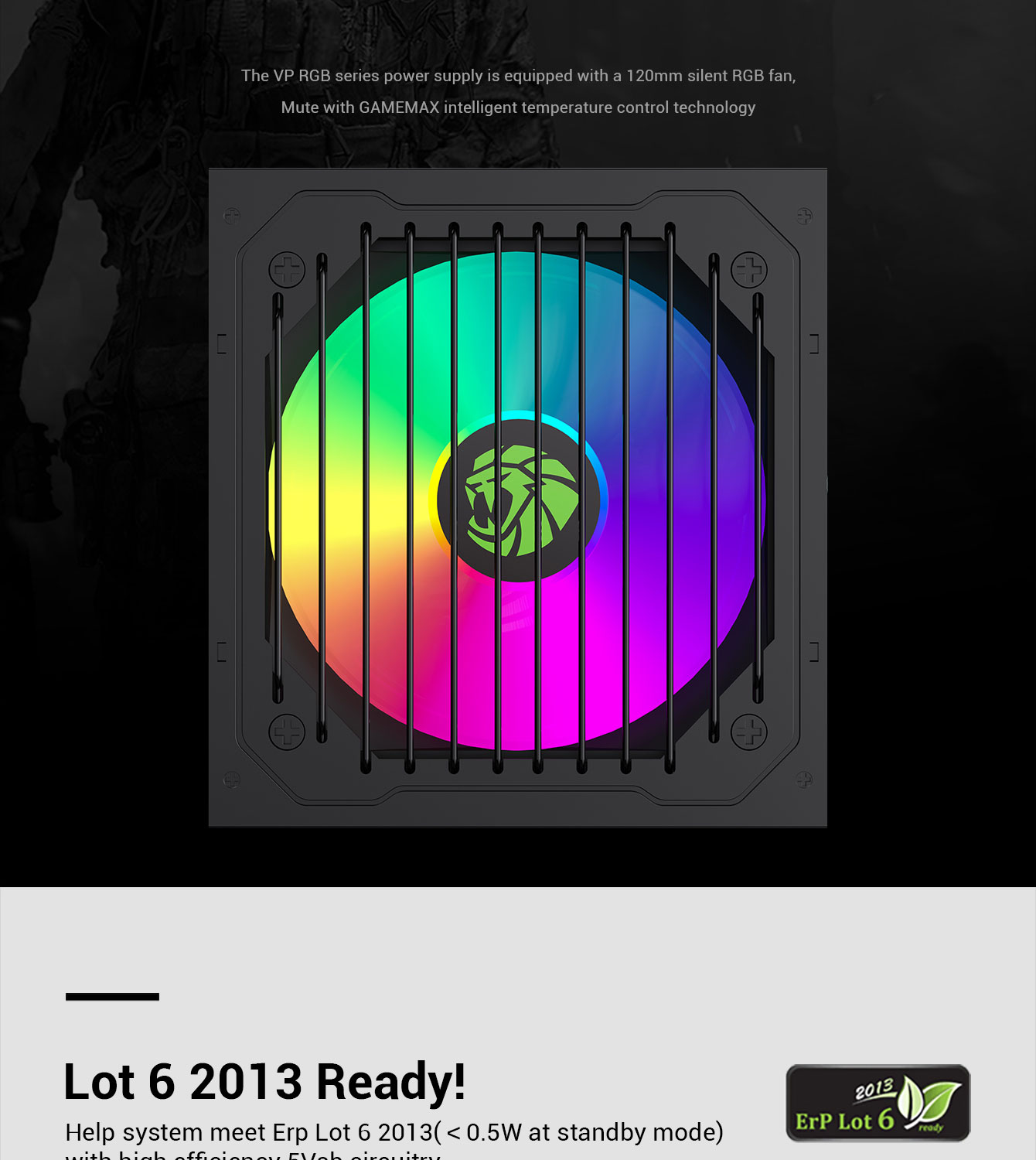

| Fan Information | Fan Size | 120 mm |

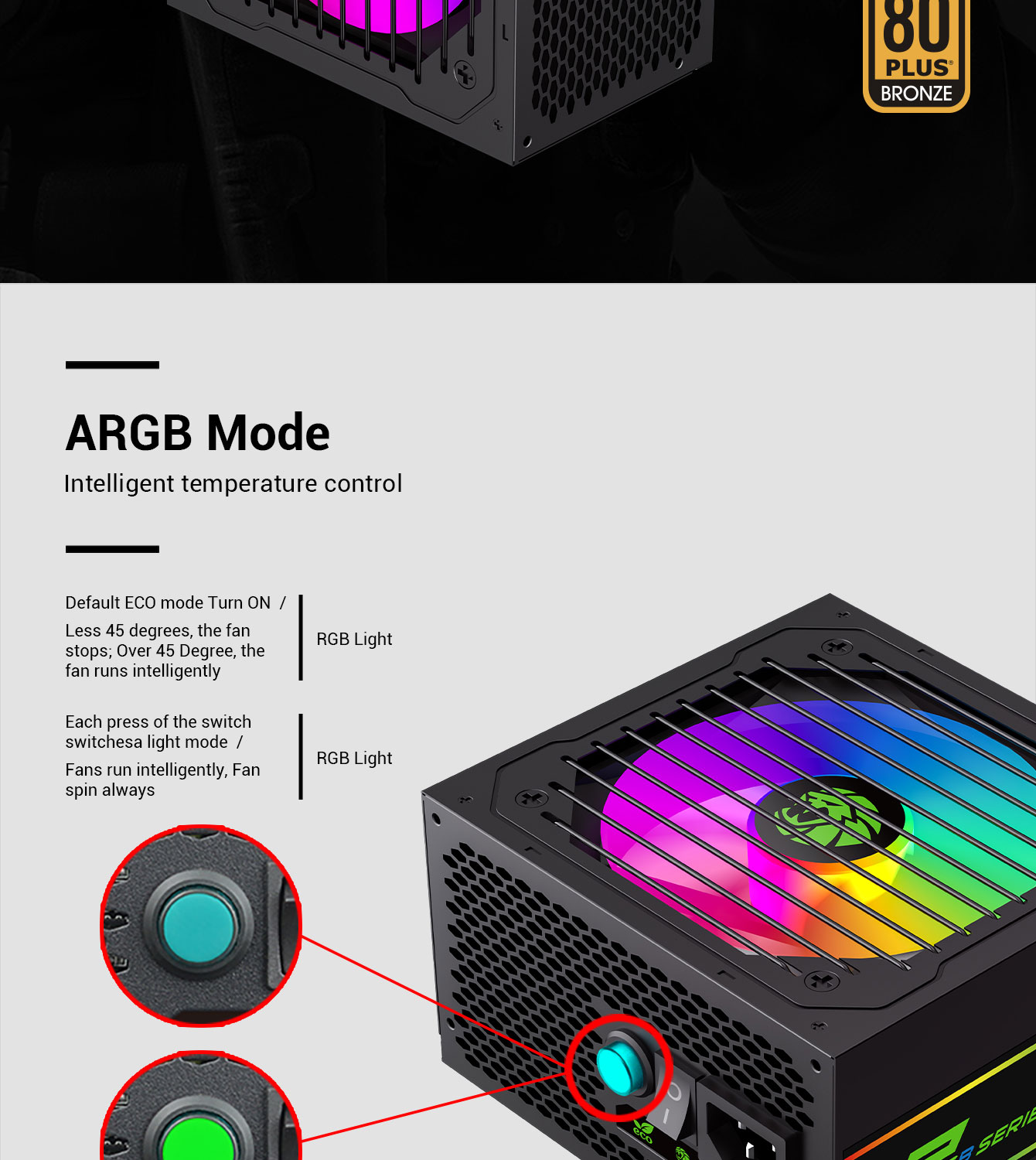

| Fan Control | ECO-ON/OFF | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |

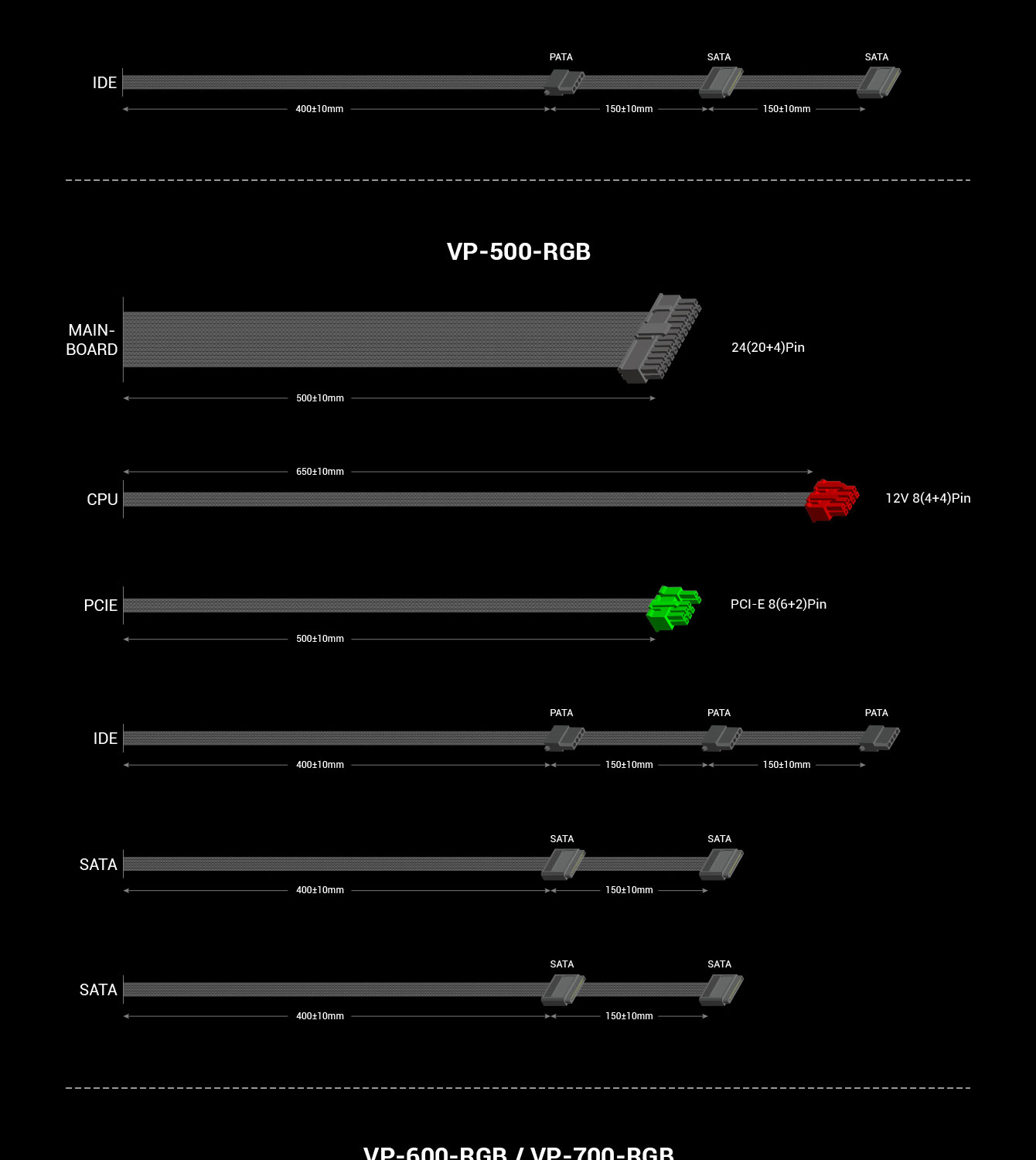

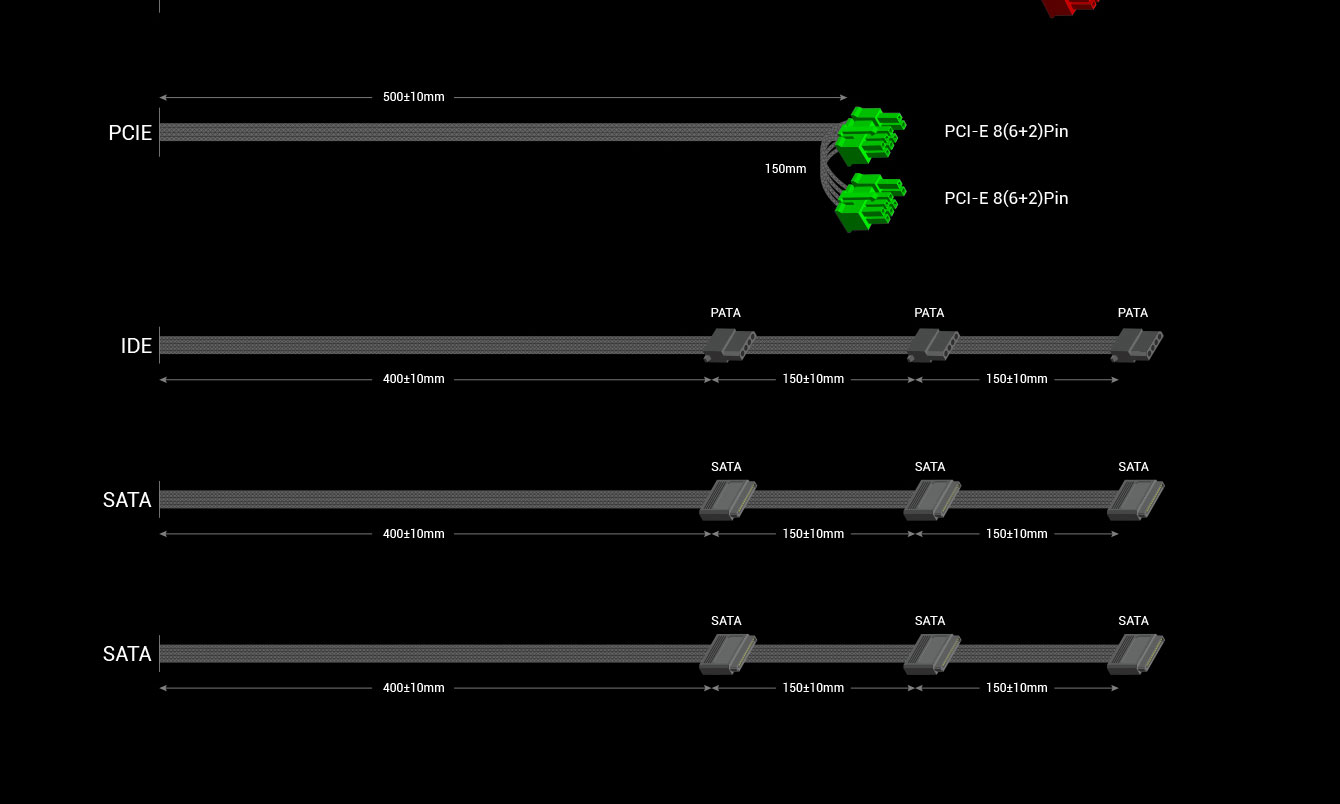

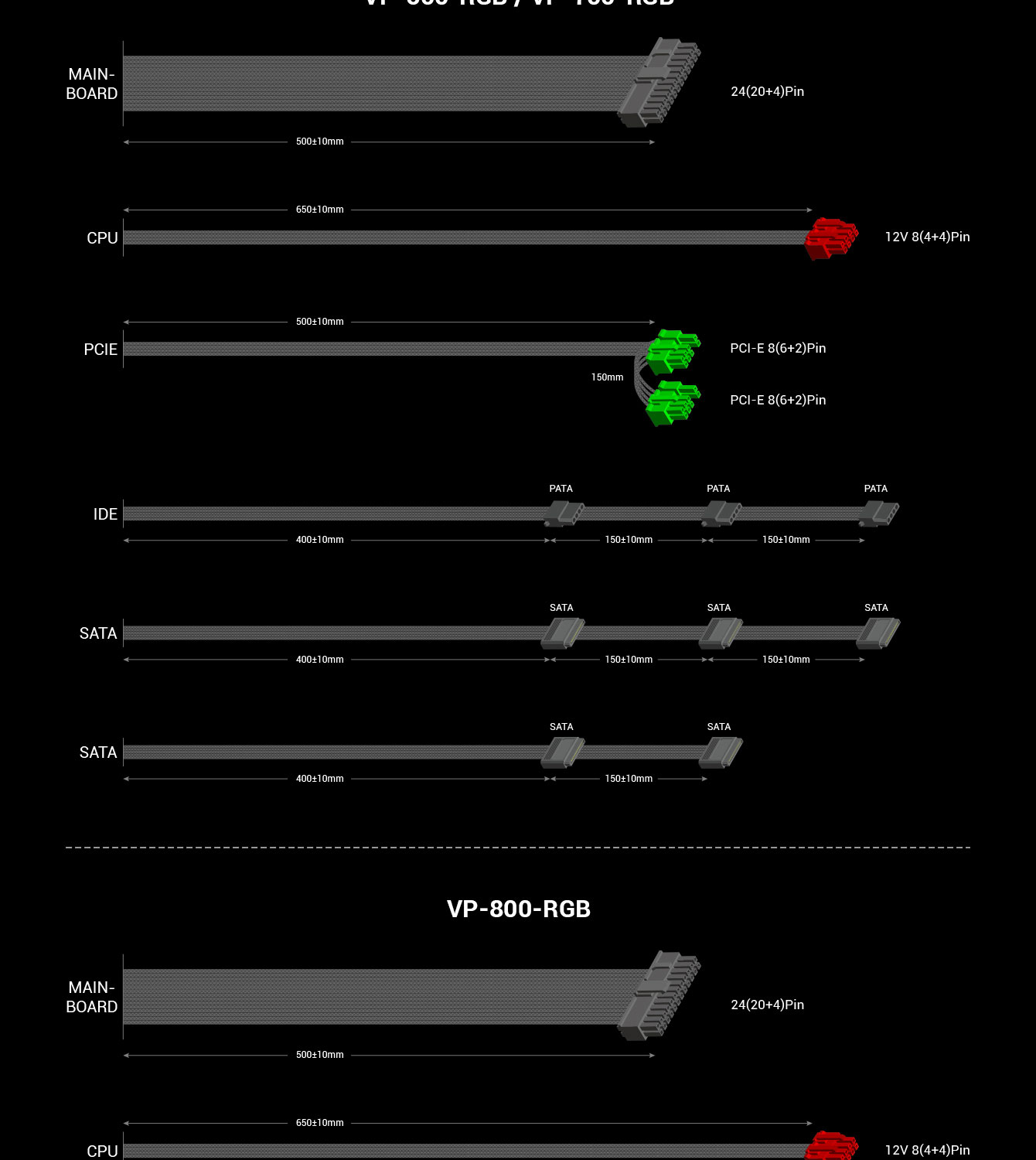

| Cable Information | Modularity | Wired Cabling |
| Cable type | Black tube shield along with colors CPU and PCIe connecor | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | AC input (110 or 230Vac) by switch | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP, SIP | |
| Safety and Environmental | Safety and EMC | CB, CCC,CE |
| Environmental Compliance | RoHS, WEEE, ErP Lot 6 | |

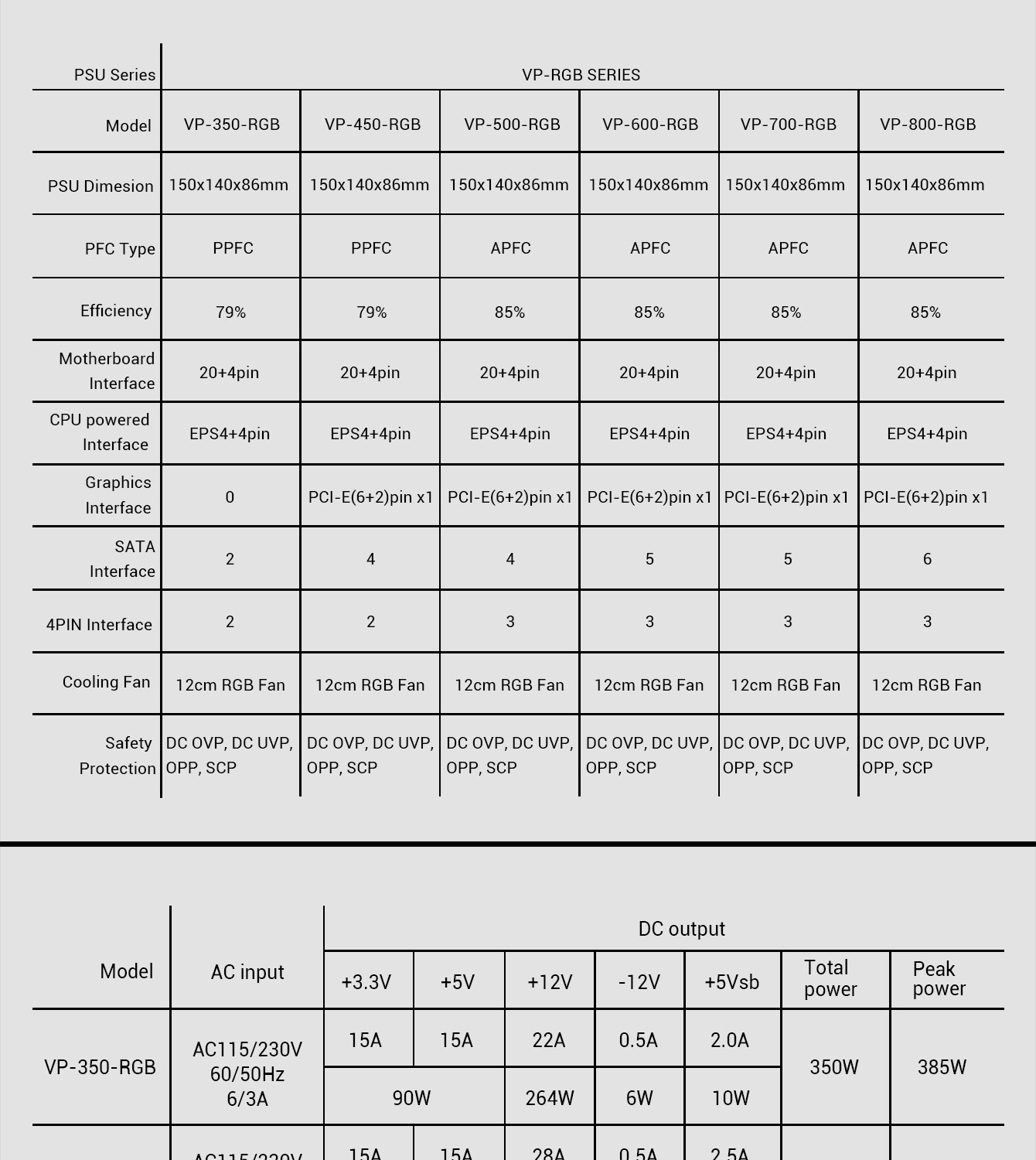

PSU SPECIFICATION
| AC INPUT: AC 110/230V 60/50Hz 8-4A | |||||
| DC Voltage | +3.3V | +5V | +12V | -12V | +5VSB |
| Output | 15A | 15A | 28A | 0.5A | 2.5A |
| Watt | 100W | 336W | 6W | 12.5W | |
| Max Output | 450W | ||||
