The GameMax VP series power supply offers performance and incredible value
• 80Plus ready to support high efficiency required, also it is continuing a popular for computer builds.
• GameMax VP RGB Range has great features that make it a good choice for people who are looking for an efficient and reliable, good-value power supply
• The most suitable cost-performance ratio is the best choice for a system builder.
• RGB LED Lighting to power your system with style
• Bring your system to life with built-in unique lighting effects that are without additional controlled use.

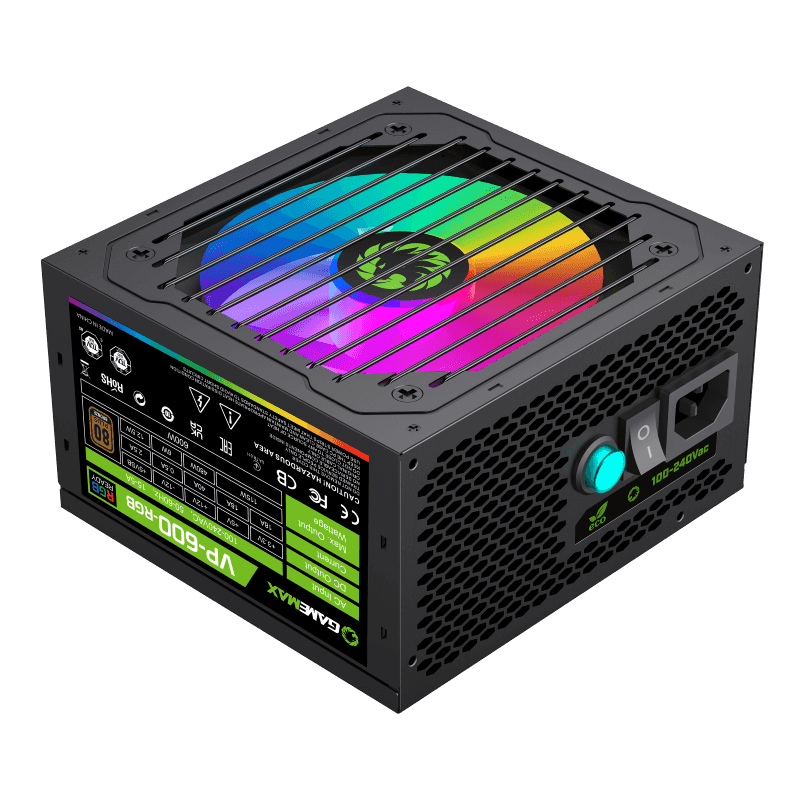

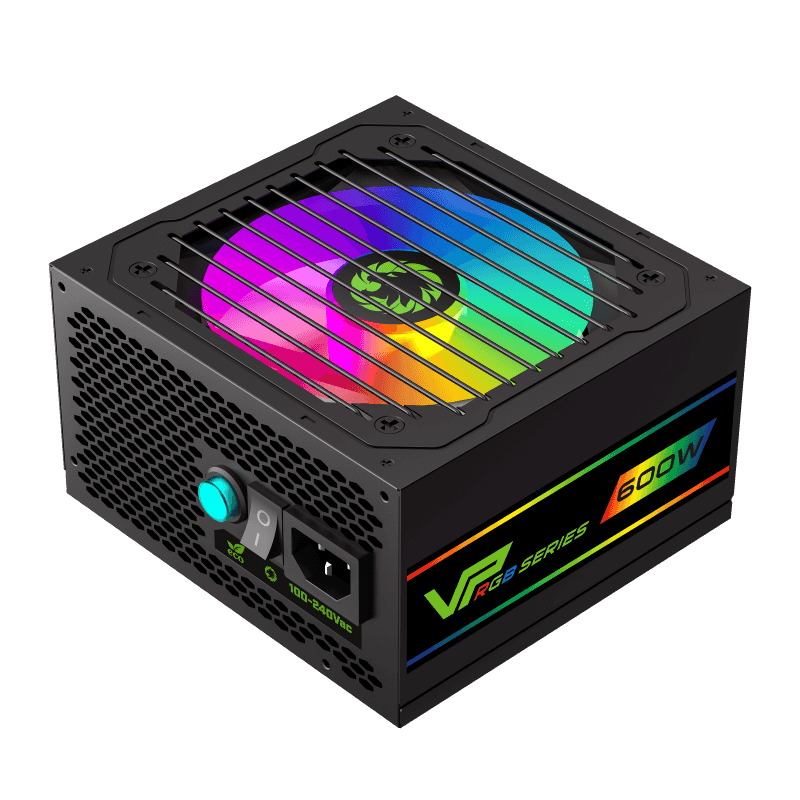

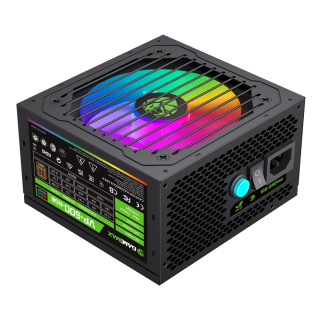

VP-600-RGB
Technical Specifications | ||
80PLUS? | APFC 80+ Plus Compliant | |
Efficiency Level | 80+ Bronze | |
Noise Level | Zero (ECO-ON),<32dba> | |
Form Factor | Intel ATX 12 V 2.31 | |
Dimensions | 140 mm (W) x 150 mm (L) x 86 mm (H) | |
Fan Information | Fan Size | 120 mm |
Fan Control | ECO-ON/OFF | |
Fan Bearing | Fluid Dynamic Bearing | |
Life Expectancy | 50,000 hours at 40 ??C, 15 % - 65 % RH | |
Cable Information | Modularity | Wired Cabling |
Cable type | Black tube shield along with colors CPU and PCIe connecor | |
Electrical Features | Operating Temperature | 0 - 50 ??C (derating from 100 % to 80 % from 40 ??C to 50 ??C) |
MTBF @ 25 ??C, excl. fan | 100,000 hours | |
AC Input | Full Range AC input (100-240Vac) | |
Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
Safety and Environmental | Safety and EMC | CB, CCC,CE |
Environmental Compliance | RoHS, WEEE, ErP Lot 6 |
PSU SPECIFICATION
AC INPUT: AC 100-240V 50-60Hz 9-4.5A | |||||
DC Voltage | +3.3V | +5V | +12V | -12V | +5VSB |
Output | 18A | 18A | 40A | 0.5A | 2.5A |
Watt | 100W | 480W | 6W | 12.5 W | |
Max Output | 600W |
Motherboard 20+4pin (500mm) | 1 | |
12V CPU EPS(4+4)(600mm) | 1 | |
PCIe 6+2PIN(s)(400mm) | 2 | |
SATA(s) | 5 | |
Molex 4pin(s) | 3 |
