The GameMax VP Modular RGB series power supply is crafted for quality, performance, and incredible value saving energy through its high efficiency of up to 85% efficiency
• The VP series utilizes active PFC and provides efficiency during max and low loadsmdash;living up to the performance standards that we are known for.
• GameMax VP RGB Range has great features that make it a good choice for people who are looking for an efficient and reliable, good-value power supply
• The most suitable cost-performance ratio is the best choice for a system builder.

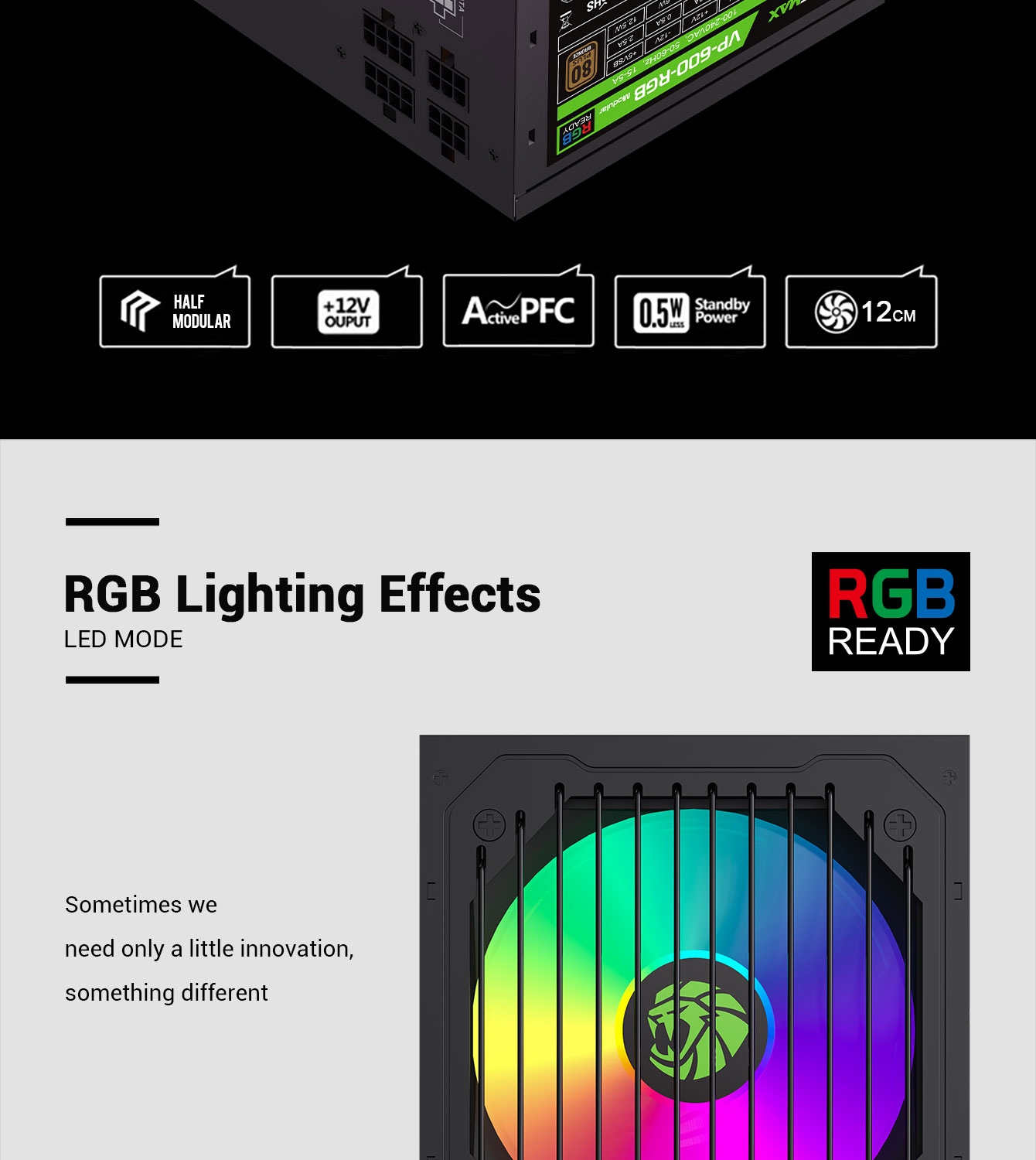

• RGB LED Lighting to power your system with style
• Bring your system to life with built-in unique lighting effects that are without additional controlled use.Show your different gaming style power!

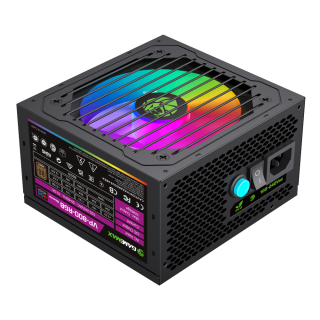

VP-800-M-RGB

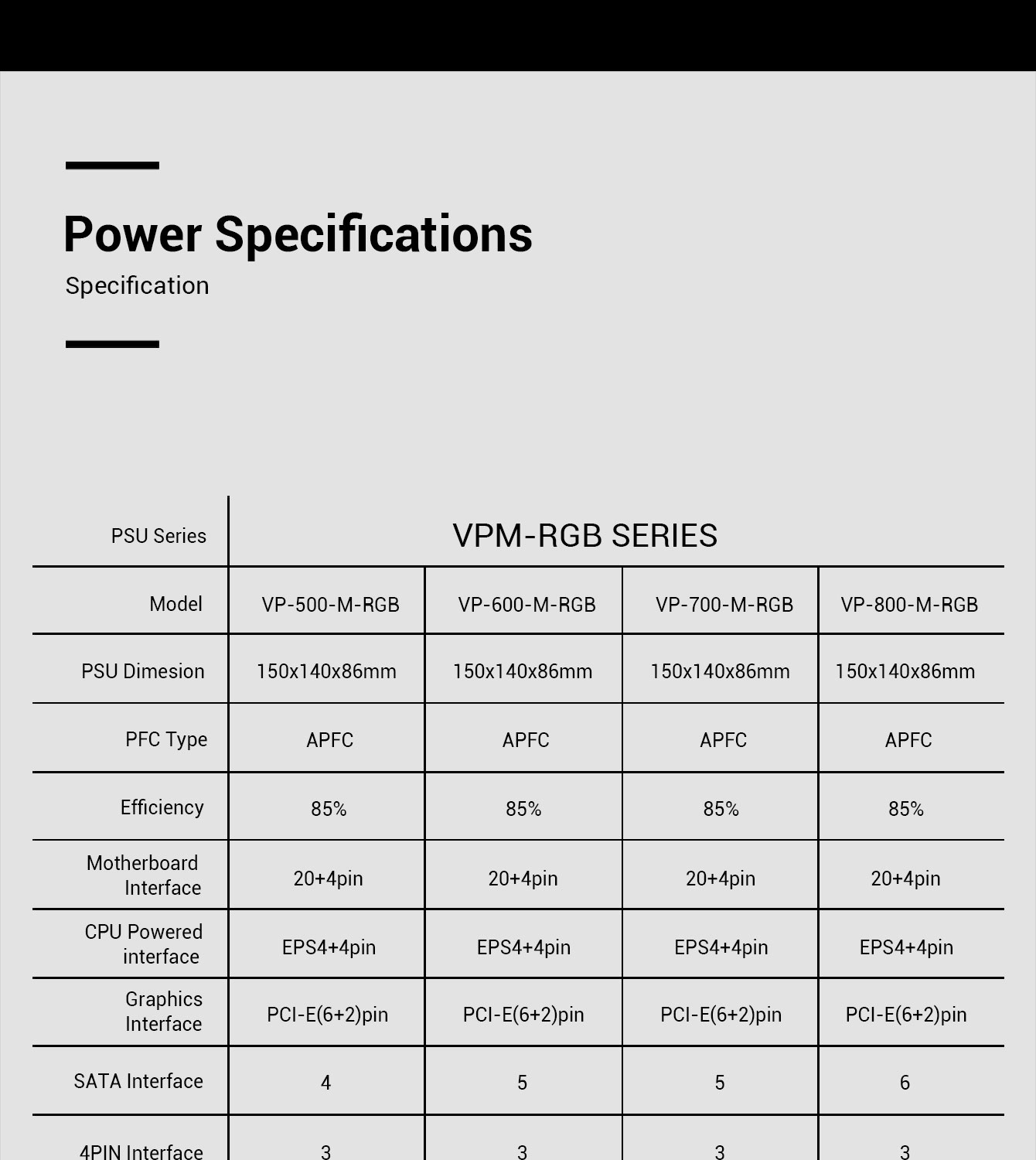

| Technical Specifications | ||
| 80PLUS | APFC 80+ Plus Compliant | |
| Efficiency Level | 80+ Bronze | |
| Noise Level | Zero (ECO-ON),<32dba> | |
| Form Factor | Intel ATX 12 V 2.31 | |
| Dimensions | 140 mm (W) x 150 mm (L) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |

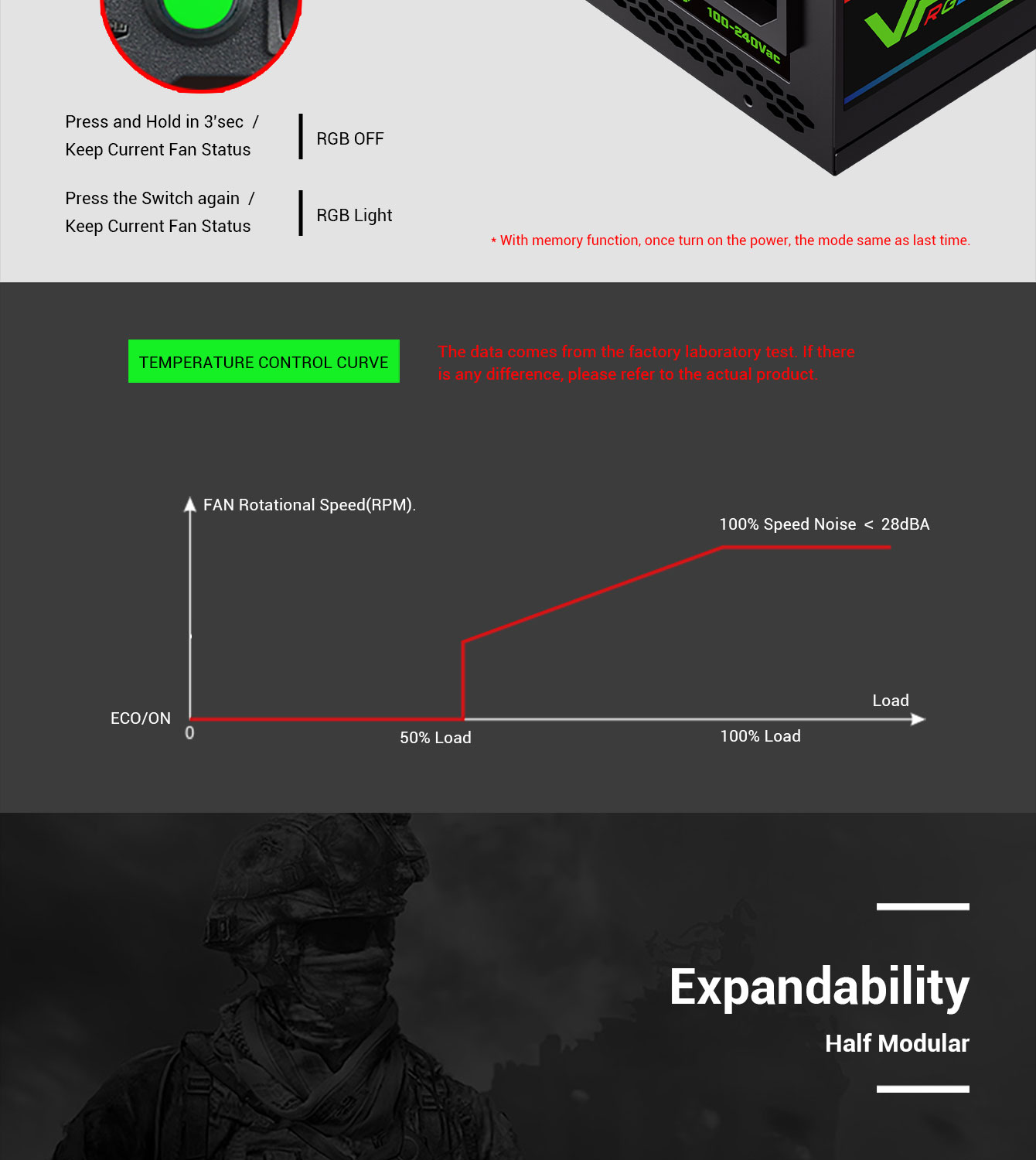

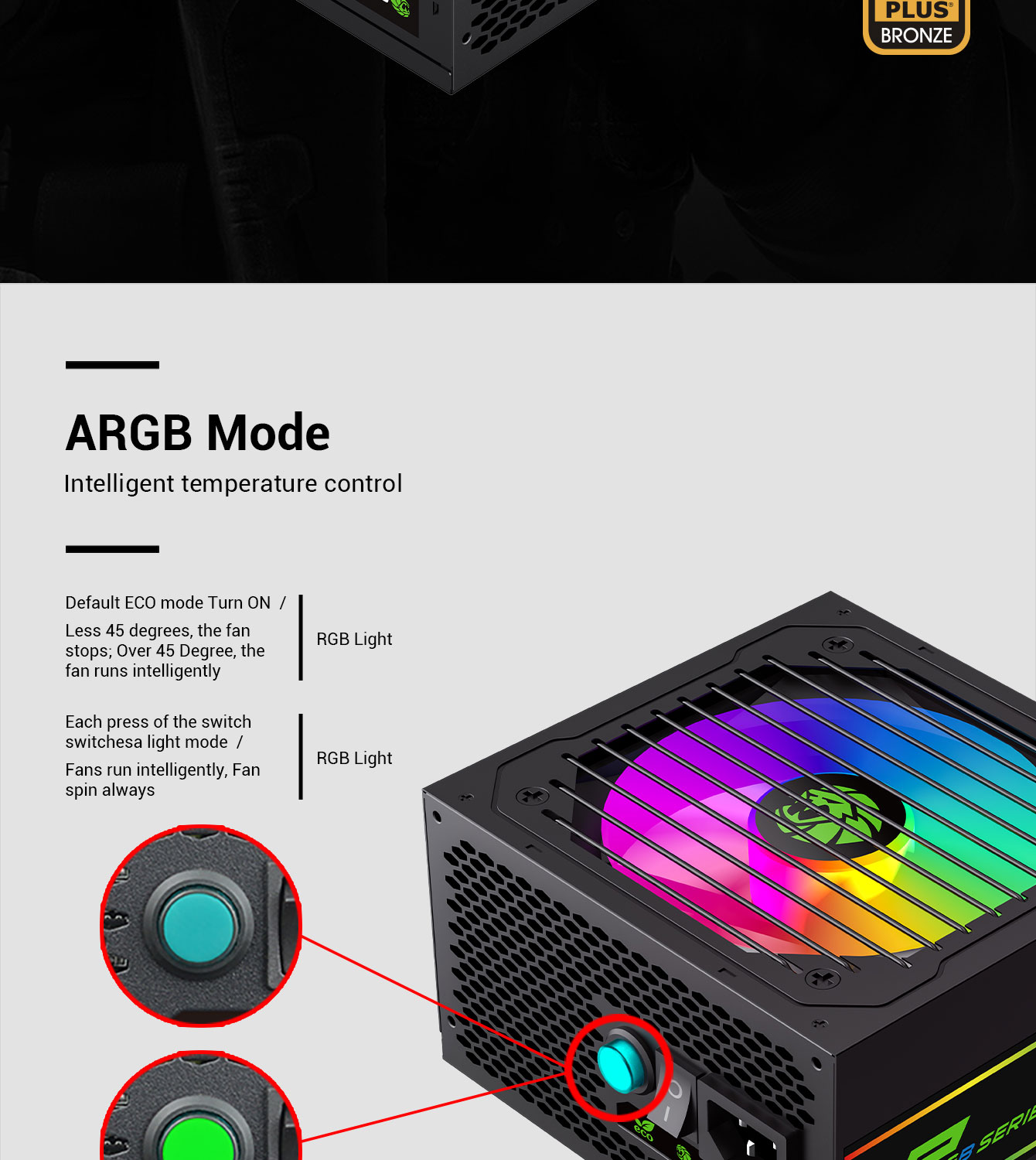

| Fan Control | ECO-ON/OFF | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 ??C, 15 % - 65 % RH | |

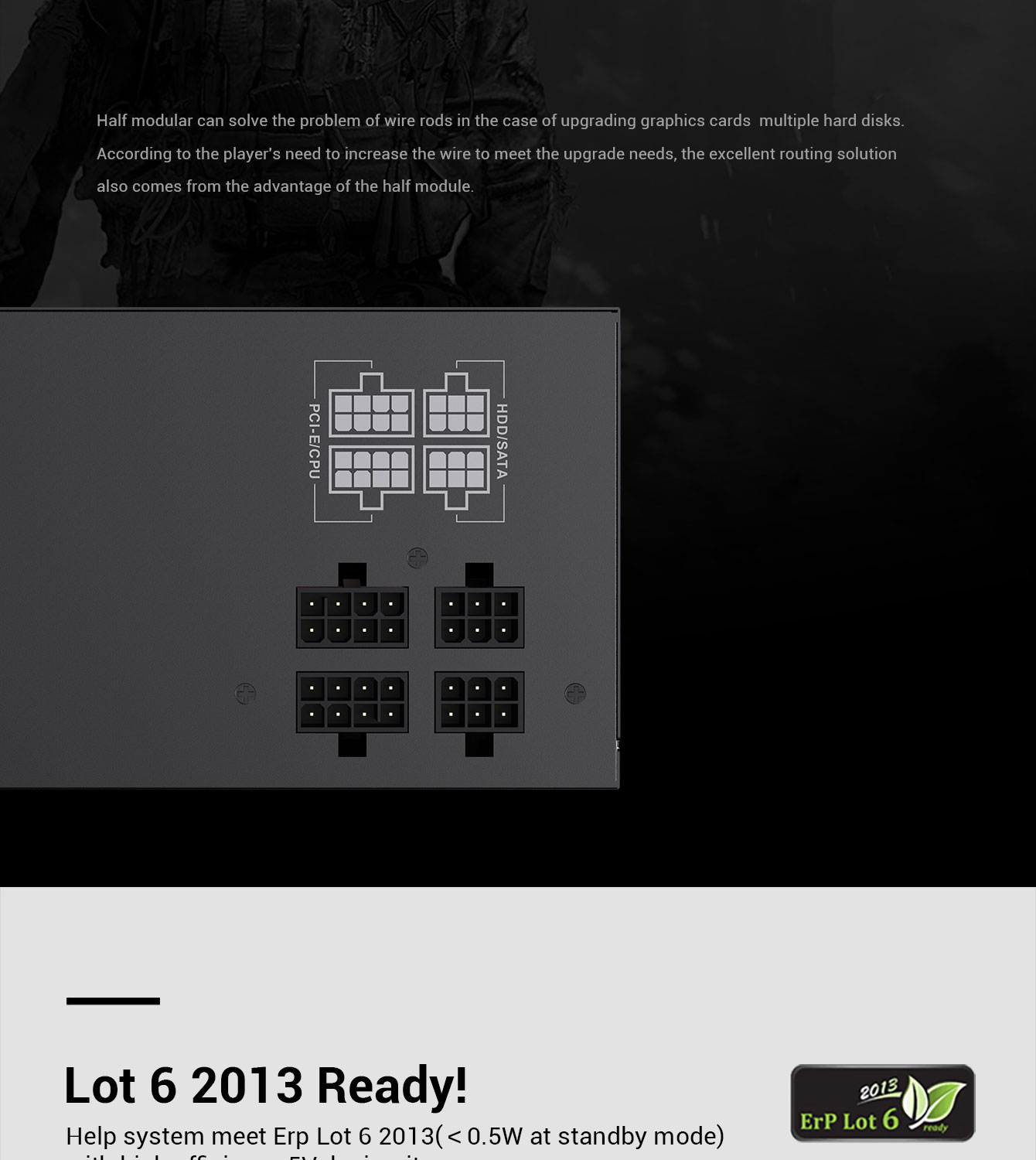

| Cable Information | Modularity | Wired Cabling |
| Cable type | Black tube shield along with colors CPU and PCIe connecor | |
| Electrical Features | Operating Temperature | 0 - 50 ??C (derating from 100 % to 80 % from 40 ??C to 50 ??C) |
| MTBF @ 25 ??C, excl. fan | 100,000 hours | |

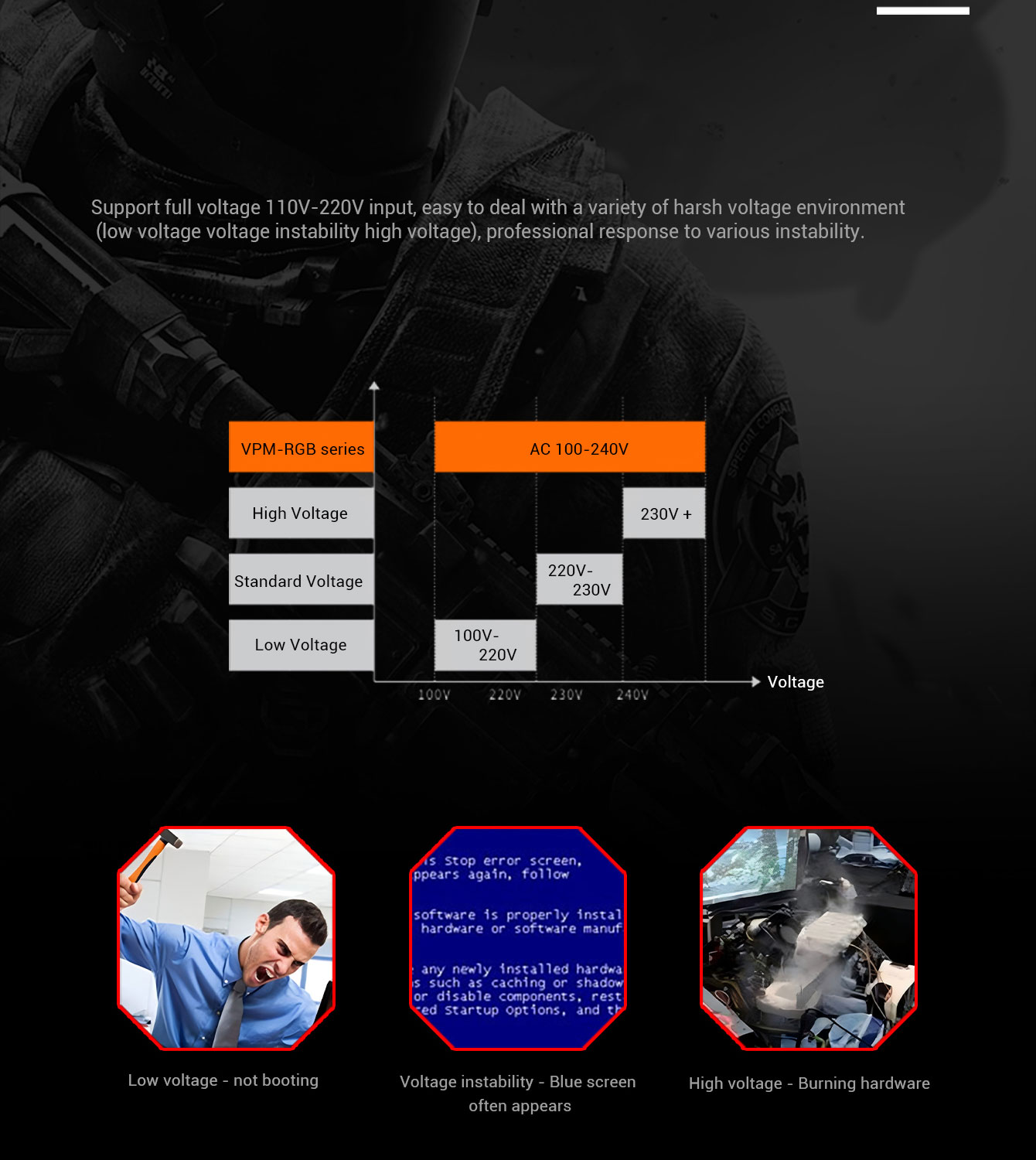

| AC Input | Full Range AC input (100-240Vac) | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP, SIP | |
| Safety and Environmental | Safety and EMC | CB, CCC,CE |
| Environmental Compliance | RoHS, WEEE, ErP Lot 6 | |

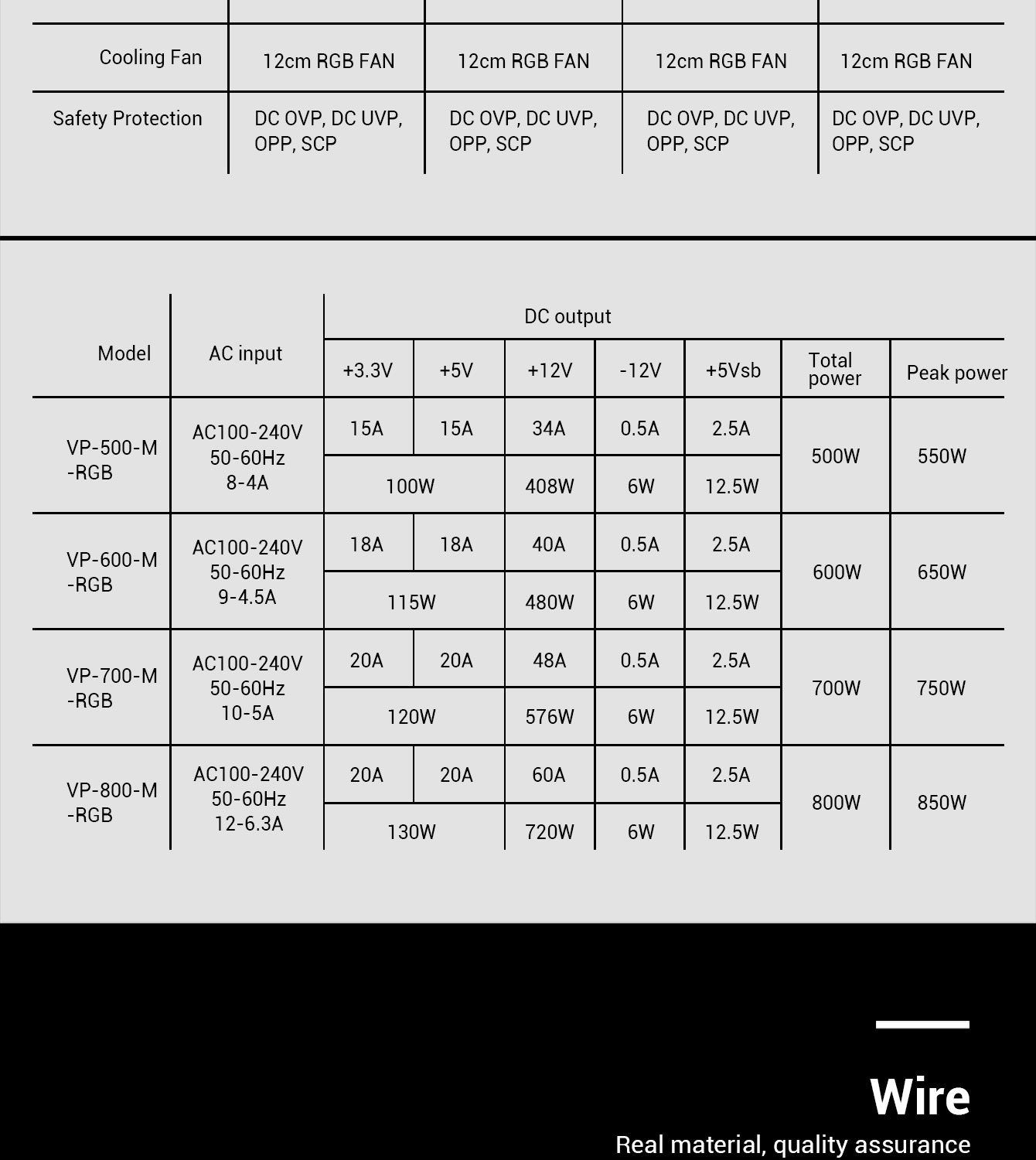

PSU SPECIFICATION
| AC INPUT: AC 100-240V 50-60Hz 12-6.3A | |||||
| DC Voltage | +3.3V | +5V | +12V | -12V | +5VSB |
| Output | 20A | 20A | 60A | 0.5A | 2.5A |
| Watt | 130W | 720W | 6W | 12.5 W | |
| Max Output | 800W | ||||

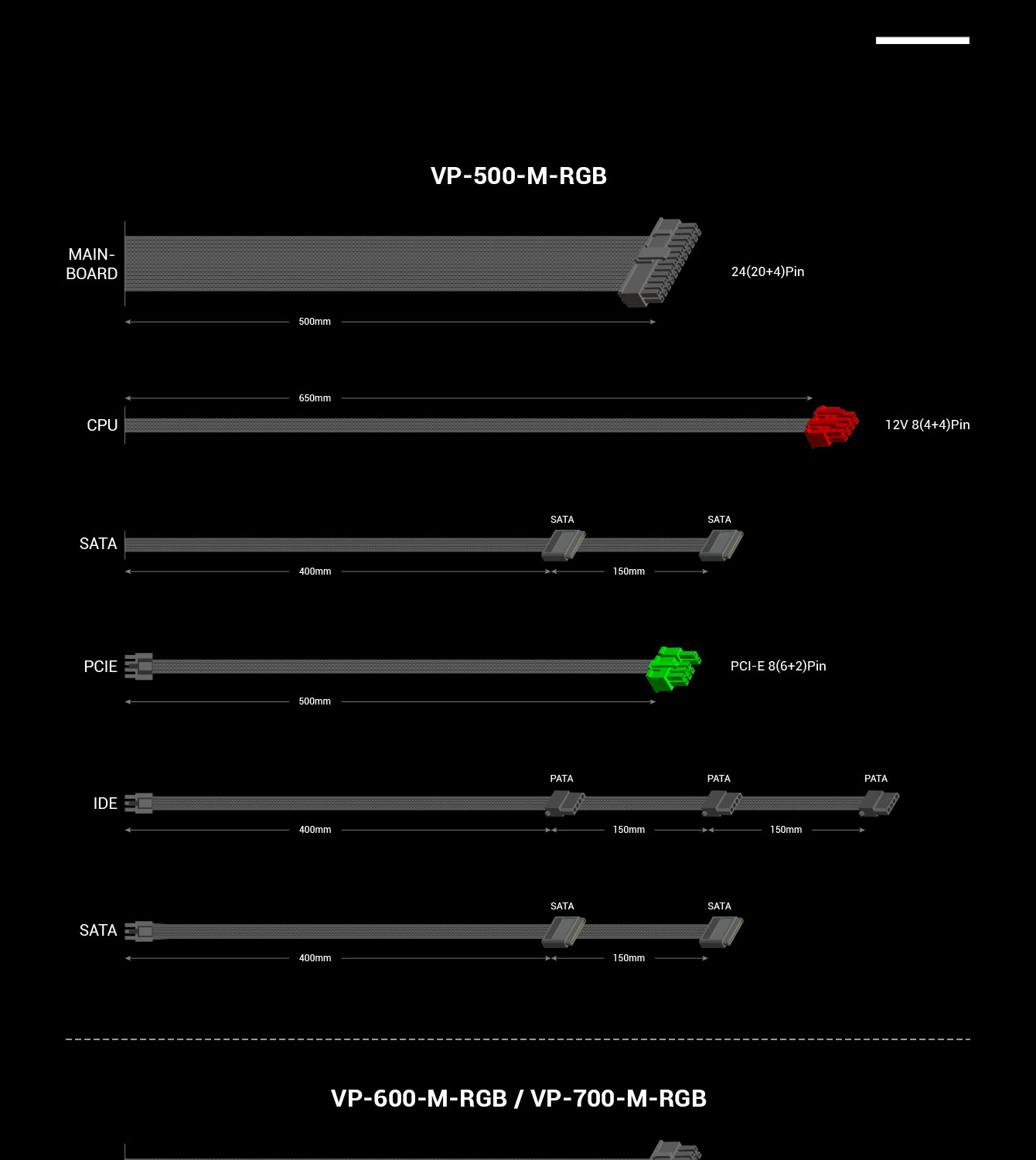

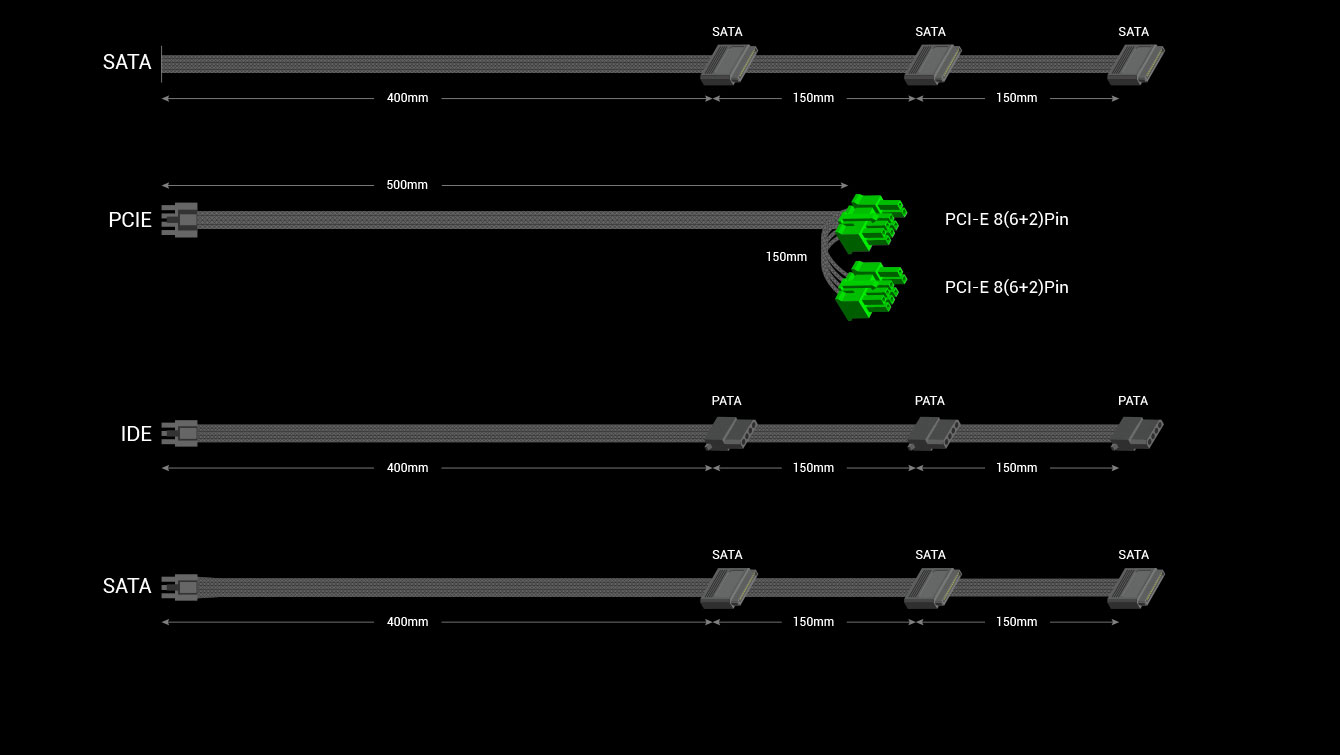

 | Motherboard 20+4pin (500mm) | 1 |
 | 12V CPU EPS(4+4)(600mm) | 1 |
 | PCIe 6+2PIN(s)(400mm) | 2 |
 | SATA(s) | 6 |
 | Molex 4pin(s) | 3 |
