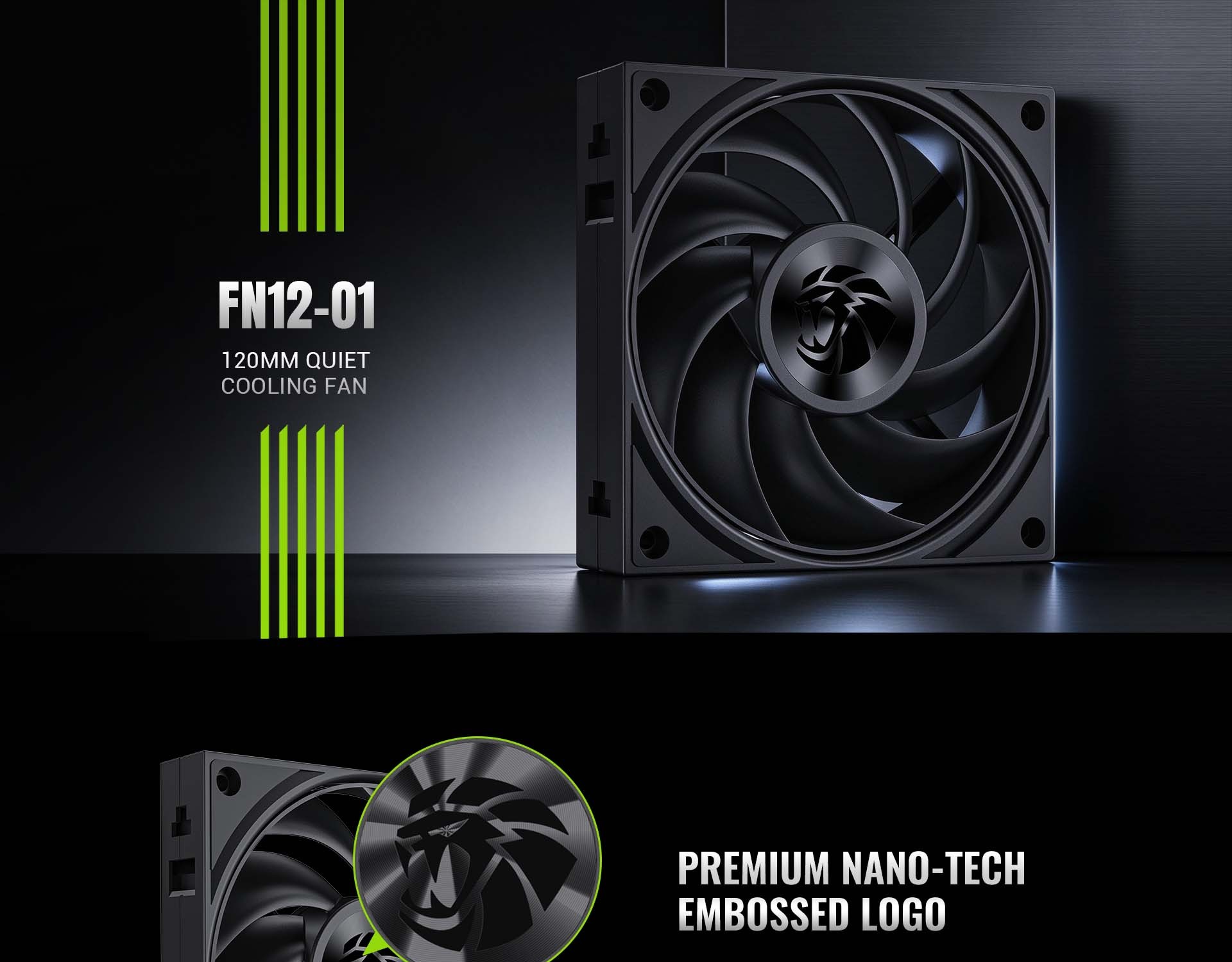

FN12-O1 120mm 4Pin PWM Quiet Cooling Fan, Hydraulic Bearing 700-1400RPM 12V DC Fan
• 4-Pin PWM fan with 700–1400 RPM adjustable speed, 5–13.8V wide voltage and 5V startup.

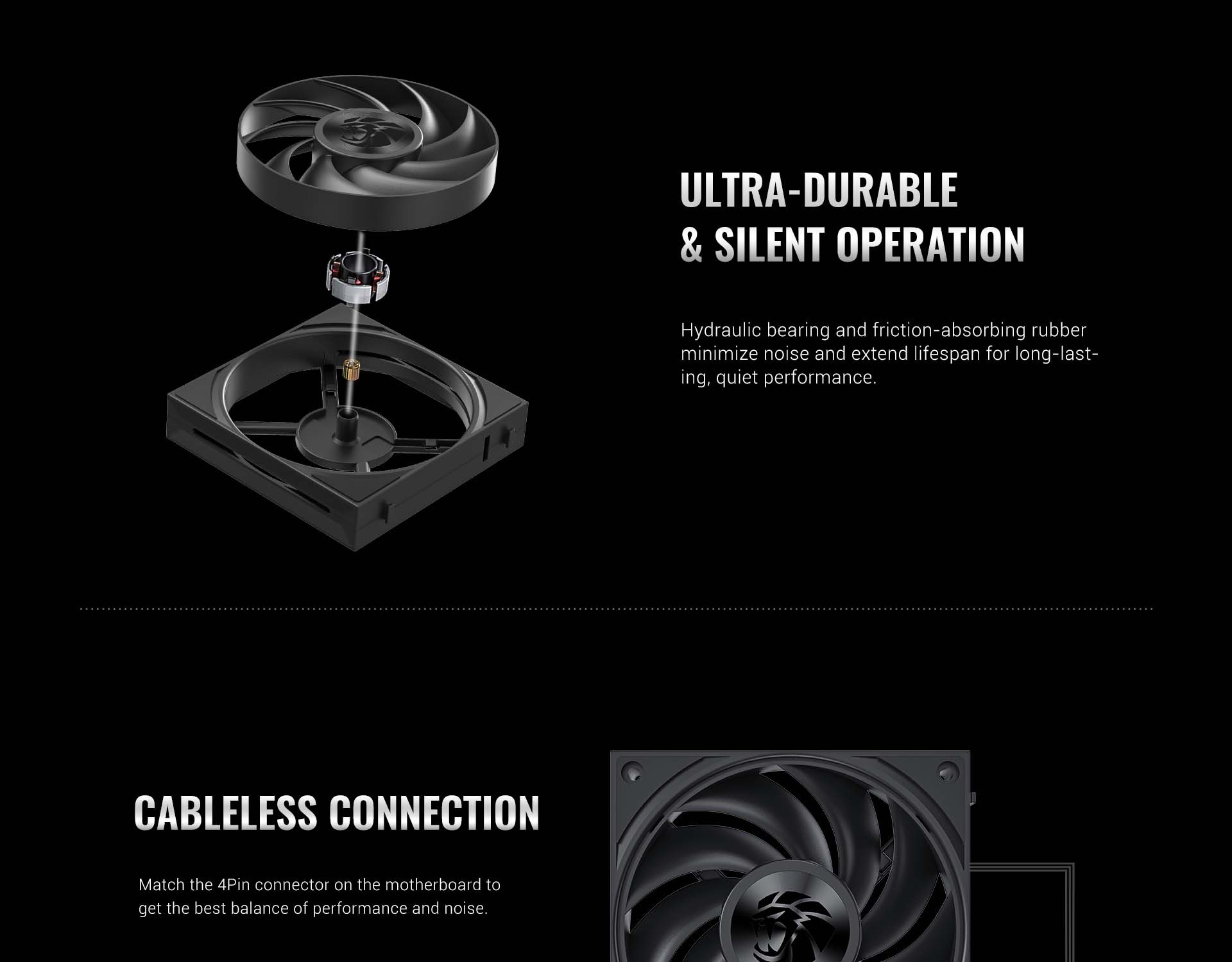

• Hydraulic bearing delivers 30,000-hour MTBF for stable, long-lasting continuous operation.

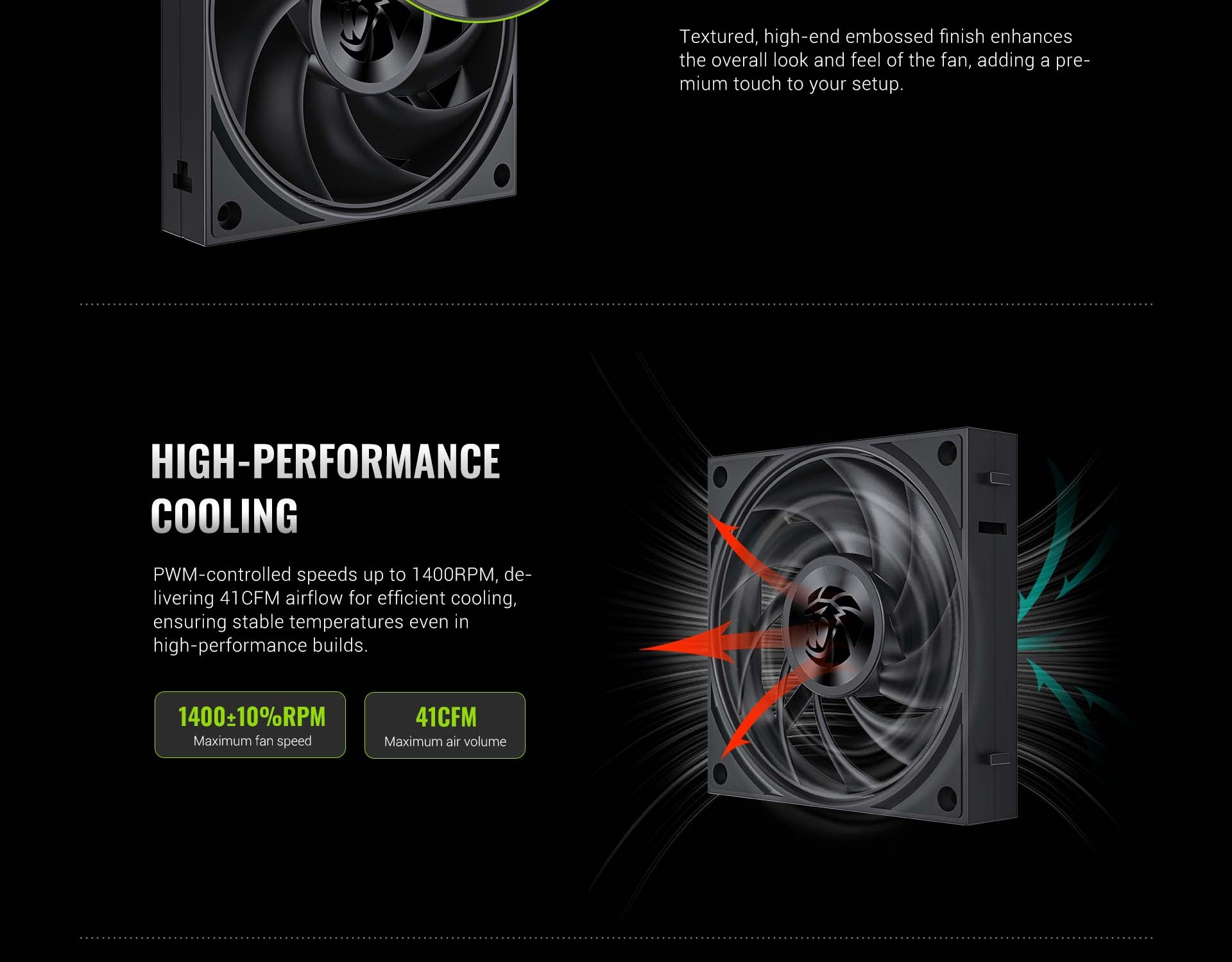

• 9 CD-pattern blades provide 41CFM airflow and 1.83mm H₂O static pressure for efficient cooling.
• Low noise design with maximum 30dB(A), balancing cooling power and quiet performance.

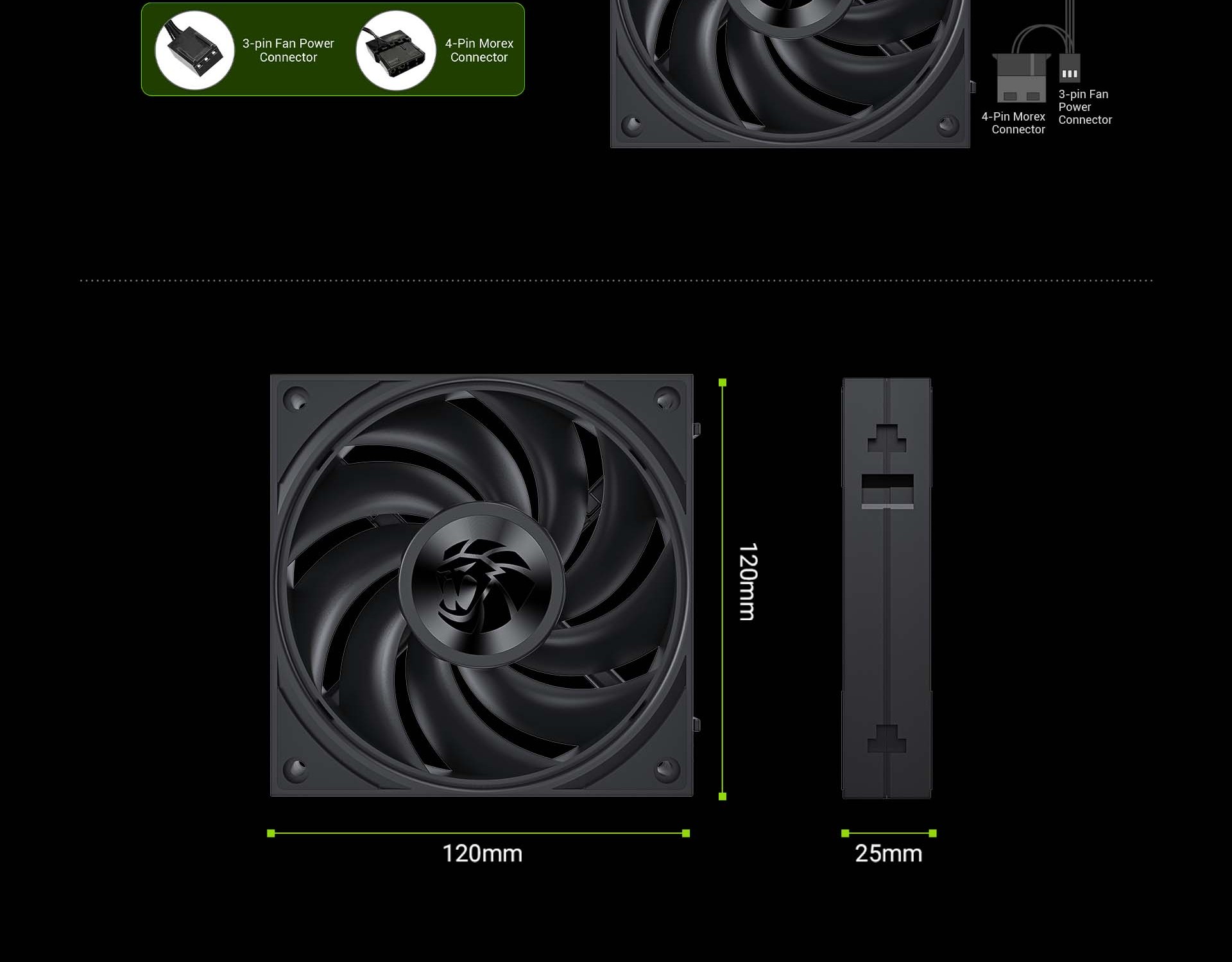

• Standard 120×120×25mm size, 500mm 4pin M/F cable & screws, fits PC and industrial cooling.
| FAN Specifications | FN12-O1 |
| Dimensions: | 120 x 120 x 25mm |
| Fan Frame Colour: | Black |
| Fan Blades / Colour: | 9 / Black Fan Blade Shaft Core CD Pattern Decorative Plate |
| LED Qty / Type: | / |
| Bearing Type: | Hydraulic Bearing |
| Fan Speed: | 700~1400 rpm ± 10% |
| Max. Air Flow : | 41CFM |
| Max. Static Air Pressure: | 1.83mm - H2O |
| Noise Level (max.): | 30db(A) |
| Cable Length : | 4pin(M/F) PWM Power), 500mm |
| Accessories: | Screws |
| Connectors: | 4pin(M/F) PWM Power |
| Rated Voltage: | 12V |
| Rated Current (max.): | 0.15A (Max. 0.18A) |
| Rated Input Power: | 1.8W (Max. 2.16W) |
| Voltage range: | 5-13.8V |
| Start Voltage: | 5V |
| M.T.B.F.: | 30,000 hrs |
