GM-ONE FRGB

Features and Benefits Advance cooling system – 3x Pre-fixed 12cm fan
Extra space behind motherboard tray for easy cable management
Supports up to 380 mm extra long cards for high performance users
Top USB 3.0 ports - Super Speed transferring rate
Washable air filter for PSU and front fan intake to keep the system clean
Tool-less 5.25 and HDD bays
CPU cutout for easy CPU installation
Easy access to the front and the top bezel for easy system maintenance
Extra large feet to increase system stability

Form Factor (Midi, Micro, Mini ITX, Full)ATX,Micro, Mini ITX
ChassisSPCC  0.5mm .  Black painting interior
PSU Form FactorBottom/ATX
M/B Form FactorATXM-ATXITX
Front PanelElegant matte finish
BrandingBox1CTN
Unit1PC
(Unit) Position/
Side PanelLeftTransprant window
Rightmetal cover
External Drive Bay(s)5.25" (ODD)*1
3.5"*1
Internal Drive Bay(s)3.5" (HDD)*4
2.5" (SSD)*1
I/OButtons*2
USB2.0 Port(s)*2
USB3.0 Port(s)*1
HD Audio Support*1
RGB Controller*0
Controller max. fans*3
RGB Controller max. LED strips*0
Remote (IR or RF)*0
Cooling Fan  SupportFront2x120mm FRGB Fan (included)
Rear1x120mm Black Fan  (included)
Water Cooling Support
(Radiator Size)
Front/
Rear120mm*1
Dust CoverFront,Bottom with dust filter
Slots*7
Carton LogoGAMEMAX
DimensionsChassis(L)410*(W)185*(H)412mm
Full Case (inc Fascia)(L)445*(W)185*H)412mm
Carton(L)508*(W)248*H)530mm
Net Weight (Kg)5.5kgs
Gross Weight (Kg)6.5kgs
VGA Card Length380mm
CPU Cooler Height158mm



High airflow, industrial good looks, and an easy to use, modern layout.

GM-ONE Manual.pdf

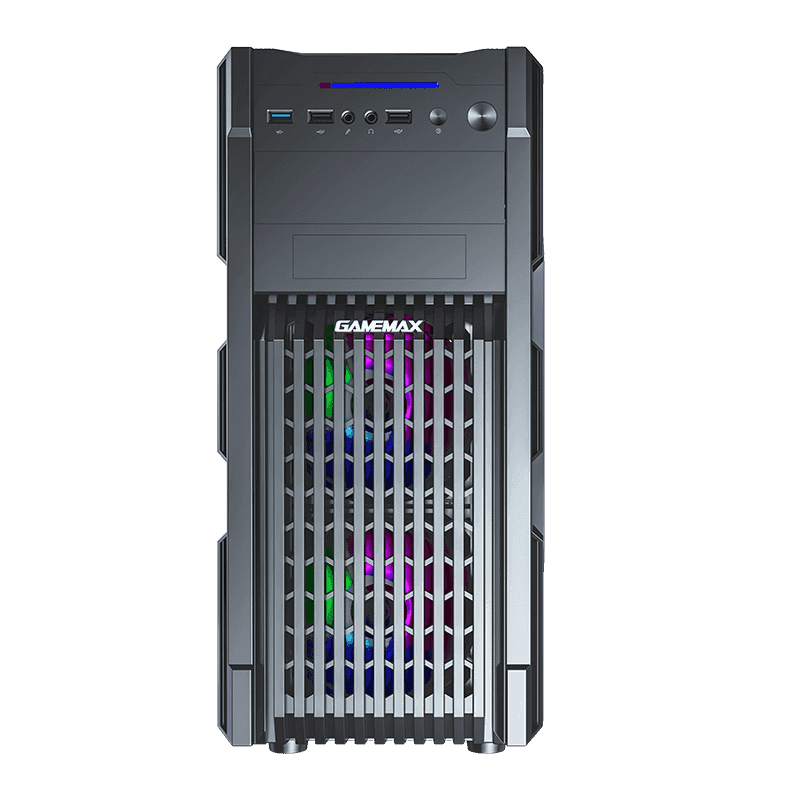

LED front intake fan, with room for more

The 120mm front intake fan is bathed in soft LED lighting, and it’s oriented to draw cool air directly across your graphics cards. And if you want even more ventilation, you can add a second 120mm fan.


Multiple drive bays
In addition to the two standard 5.25” optical drive bays, there are four 3.5” hard drive bays and two 2.5” solid-state drive bays
