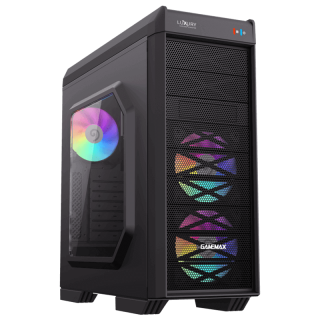

Luxury G501X

The affordable GameMax Luxury G501x is a mid-tower PC chassis combining plenty of useful features with stylish design and effective cooling
While the mesh front panel remains clean and simple looking the top is packed with features like two fan speed controllers, an SD XC card reader, 3,5 /2,5 HDD docking station as well a USB 3.0 port ready for high-speed transfer.
The roomy interior allows for installing up to 380mm long graphics cards, big CPU coolers up to 158mm high as well as plenty of expansion options for hard drives, two 5,25 up to three 3,5
Enhanced cable management options allow for a clean-looking system and better airflow while built-in filters make the interior dust-proof.
For efficient airflow, the GameMax G501X is included three 120mm FRGB fans while two optional ones can be mounted on the top of the case
Speed is adjustable using two integrated, Two-position fan controllers
And since it comes at an amazing price point the Luxury G501x offers true value for budget gaming systems or versatile workstations.

Case Specifications
Form Factor:Midi Tower
Motherboard Support:ATX, Micro ATX, Mini ITX
PSU Support:Standard ATX
PSU Location:Bottom
Gaming Case:Yes
Water Cooling:Water Cooling Ready!

Supported Radiator Size: 240mm

Supported Radiator Positions: Top
Body Material:0.5mm SPCC
Front Bezel Material:Plastic+Mesh
Side Panel:Window
Internal Cable Management Depth:25mm
External Bays:2 x 5.25  External

1 x 3.5  External
Internal Bays:4 x 3.5  Internal

1 x 2.5 Internal
Expansion Slots:7 x Full Size
Cooling Front:2 x 120mm FRGB Fans (Included)
Cooling Top:1 x 120mm FRGB Fan (Optional)
Cooling Rear:

1 x 120mm Cooling Fan (Included)

Cooling Side:None
Cooling Bottom:
Fan Controllers:2 Fan Controllers
IO Ports:Build-in Card-Reader(SD/MMC/MS)

HDD Docking (SATA) On top

2 x USB 3.0

1 x USB 2.0

1 x HD Audio

1 x Microphone
GPU Max Length:380mm
CPU Cooler Maximum Height:158mm
Front Bezel Colour:Mesh Steel
Body Colour:Black
PSU Included:No


General Specifications
Manufacturer Part Number:G501X
EAN Number:505549240513x
Has Mains Plug:No
Colour:Black
What's In The Box:Case

Screw Pack
Unit (Product) Dimensions (mm):205mm x 473mm x 458mm (W x H x D)
Packaging Dimensions (mm):248mm x 528mm x 518mm (W x H x D)
Net Weight (KGs):5.5 KGs
Gross Weight (KGs):6.5 KGs


Mid-tower cases sometimes aren't wide or long enough for some of the best add-in components out there, but the new chassis from IT company  doesn't have that problem, and it's not because of removable drive bays.

The option to remove some or all of the 3.5-inch drive bays in a desktop enclosure has become very popular over the past few years, as it lets you install super-long video boards even in mid-tower or smaller enclosures.

The GameMax Pure Black G501x doesn't go about things that way, however. It's as if  GameMax acknowledged that there was little chance of customers actually equipping six or seven / eight bays with storage drives, so it didn't bother creating so many.

Thus, there are “only” four 3.5-inch bays, and they're located on the bottom front of the chassis. Above it, where a removable drive cage would normally be, there is just a gap, with the three 5.25-inch external drive bays right above it.

It is that gap that allows enough room for video boards up to 400 mm in length (15.78 inches), as the photo/diagram in the gallery below will show you.

Needless to say, the 3.5-inch drive bays can be used for 2.5-inch drives. In fact, each of the 3.5-inch bays converts in o two 2.5-inch ones. And not only that, but there are two dedicated 2.5-inch bays as well.

It's a lot like the 5.25-inch bays can turn in o external 3.5-inch bays. Useless if you intend to populate them with optical drives or (water) cooling equipment, but good if you do intend to install more than four standard HDDs for some reason.

Then, there's the front panel, which has two USB 3.0 ports (you'll have to connect the wires to the headers on whatever motherboard you purchase), HD audio jacks, and an SDXC card reader.

Moreover, since the I/O panel is on the top of the chassis, GameMax took the liberty of installing an HDD dock as well (good for both 3.5-inch and 2.5-inch storage units). Finally, there are a pair of front 120 mm intake fans, two 120 mm top exhaust fans, and a 120 mm spinner at the back (also for exhaust).

Everything is held together by an all-black frame measuring 473 x 452 x 198 mm / 18.62 x 17.79 x 7.79 inches and made of SECC steel and ABS plastic. Sadly, the price and availability of theGameMax G501x  have not been disclosed.
