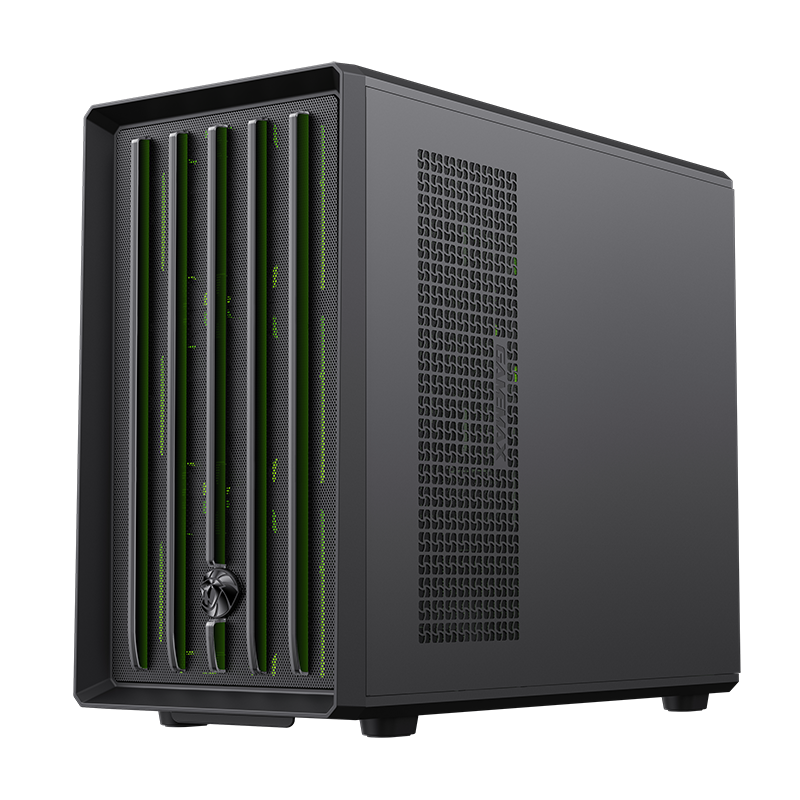

• GAMEMAX's all-new design language features a lion's claw front panel and exclusive GAMEMAX ventilation holes on the side panels.

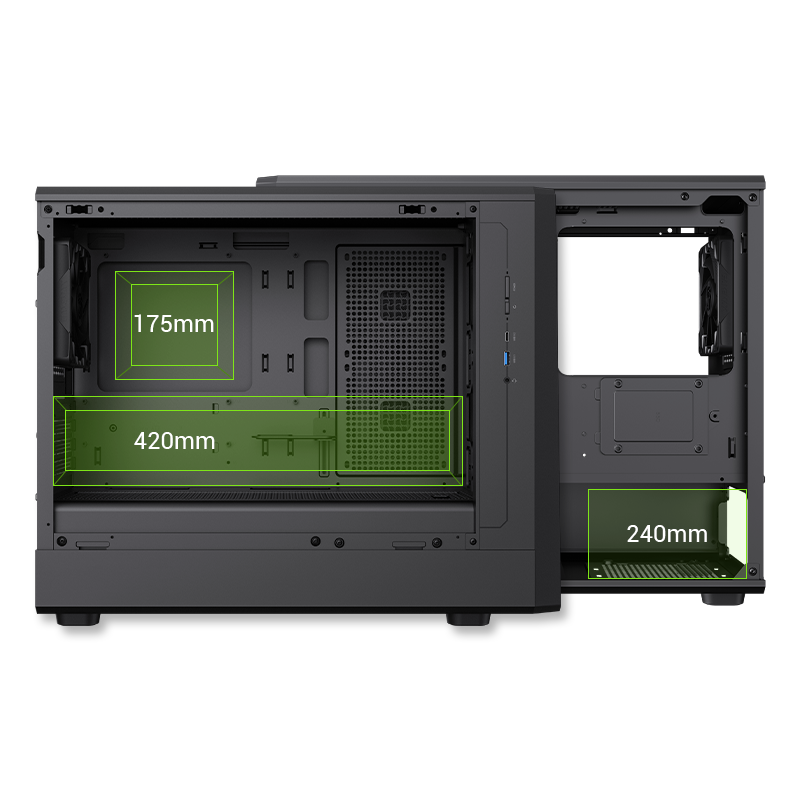

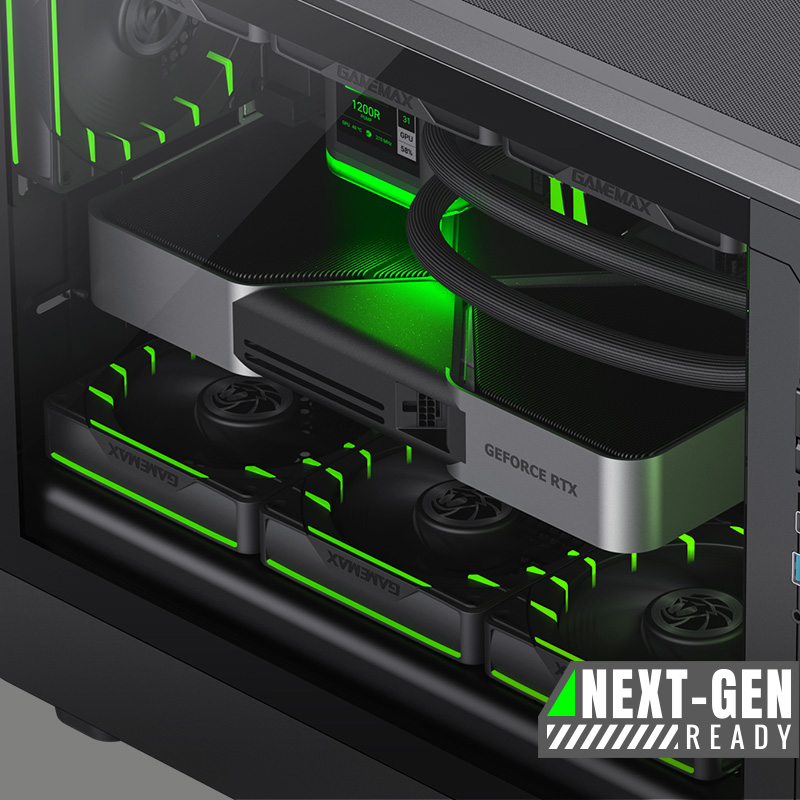

• Exceptional Hardware Support – Compatible with M-ATX motherboards, 420mm GPUs (ready for Nvidia 50 Series), 240mm ATX PSUs, 175mm air coolers, and 360mm radiators for ultimate versatility.

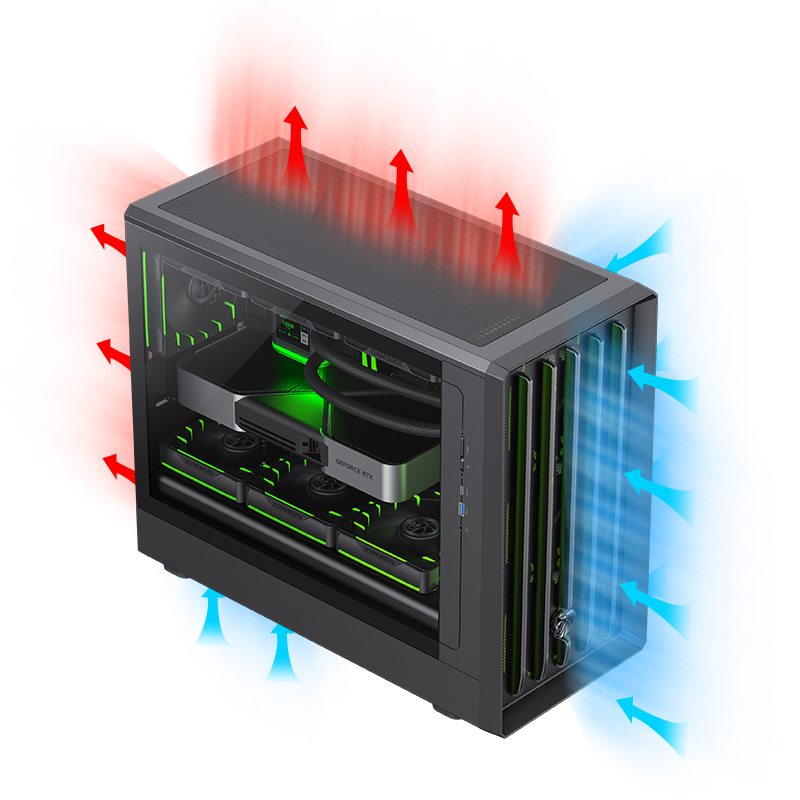

• Powerful cooling performance with front MESH steel mesh and vertical airflow design.
• Comprehensive Cooling Options – Supports up to 12x 120mm fans, including 4 pre-installed 120mm ARGB/PWM fans and an ARGB/PWM controller for optimal airflow and stunning lighting effects.
• Modern I/O Panel – Equipped with a TYPE-C Gen 2 port and USB 3.0 for high-speed connectivity and future-ready functionality.

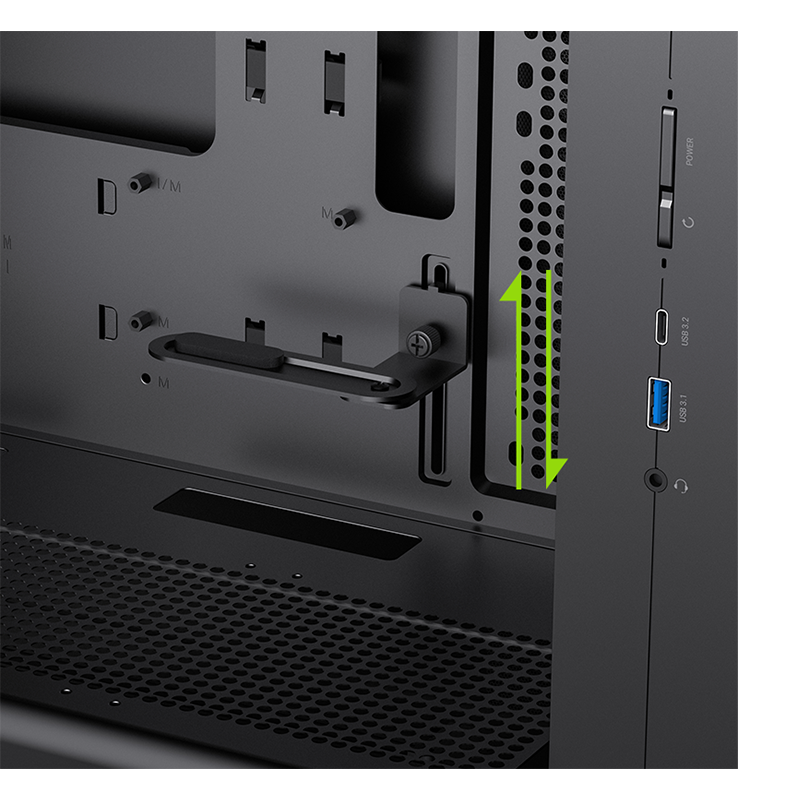

• Standard adjustable-height graphics card support bracket to protect the GPU.
Form Factor: | M-ATX | |
Chassis: | SPCC :0.5mm | |
PSU Form Factor | Bottom/ATX | |
M/B Form Factor: | M-ATX、ITX | |
Front Panel: | Plastic + Mesh | |
Top Panel: | Metal | |

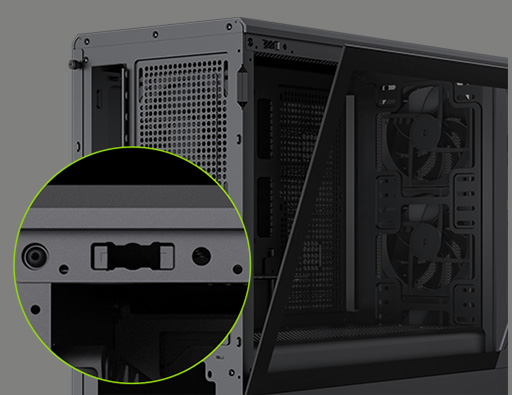

Side Panel: | Left: | Tempered Glass (Tool-free) |
Right: | Metal cover | |
External Drive Bay(s): | 5.25”(ODD): | *0 |
3.5”: | *0 | |

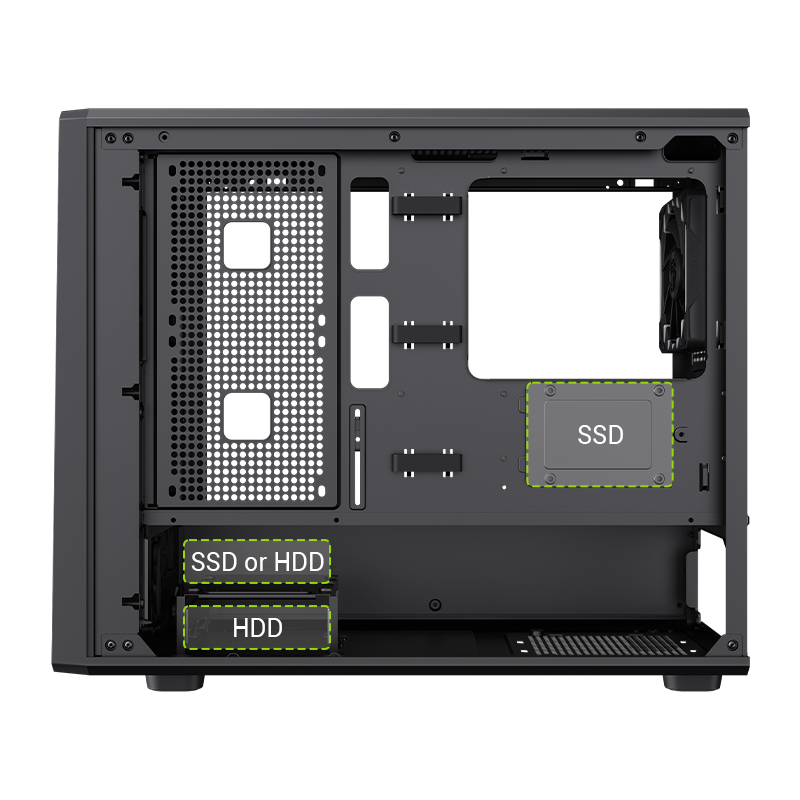

Internal Drive Bay(s): | 3.5" (HDD): | *Up to 2 |
2.5" (SSD): | *Up to 2 | |
2*3.5HDD+1*2.5SSD or 1*3.5HDD+2*2.5SSD | ||
I/O: | Buttons: | *2 (POEWR, RESET or LED MODL) |
USB 2.0 Port(s): | *0 | |
USB 3.0 Port(s): | *1 | |
Type C Port(s): | *1(TYPE-C GEN2) | |
Audio Support: | *1(Combo AUDIO) | |
Card Reader (Support): | *0 | |
P-Lock： | *0 | |
RGB Controller： | V5.0 ARGB PWM HUB | |
Controller Max Fans: | *6 | |
RGB Controller max. LED strips： | *6 | |
Remote (IR or RF)： | *RF | |

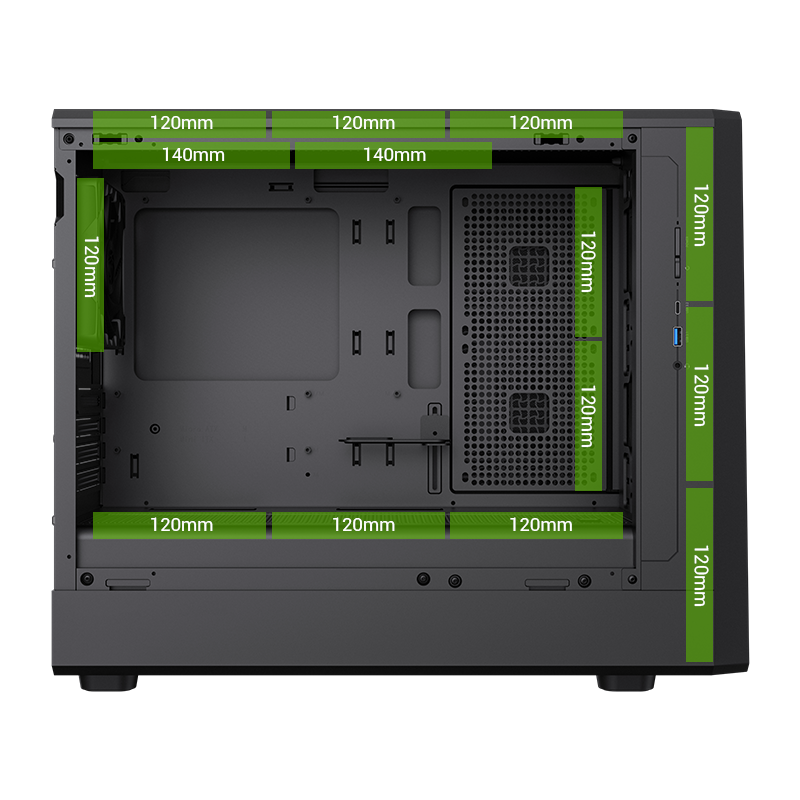

Cooling Fan Support: | Front: | 3x120mm (Tornado-T12 ARGB) |
Top: | 3x120mm ,2x140mm (Fan optional) | |
Rear: | 1x120mm (Tornado-T12 ARGB) | |
Bottom: | *0 | |
M/B Cover： | *2x120mm (Fan optional) | |
PSU Cover： | *3x120mm (Fan optional) | |

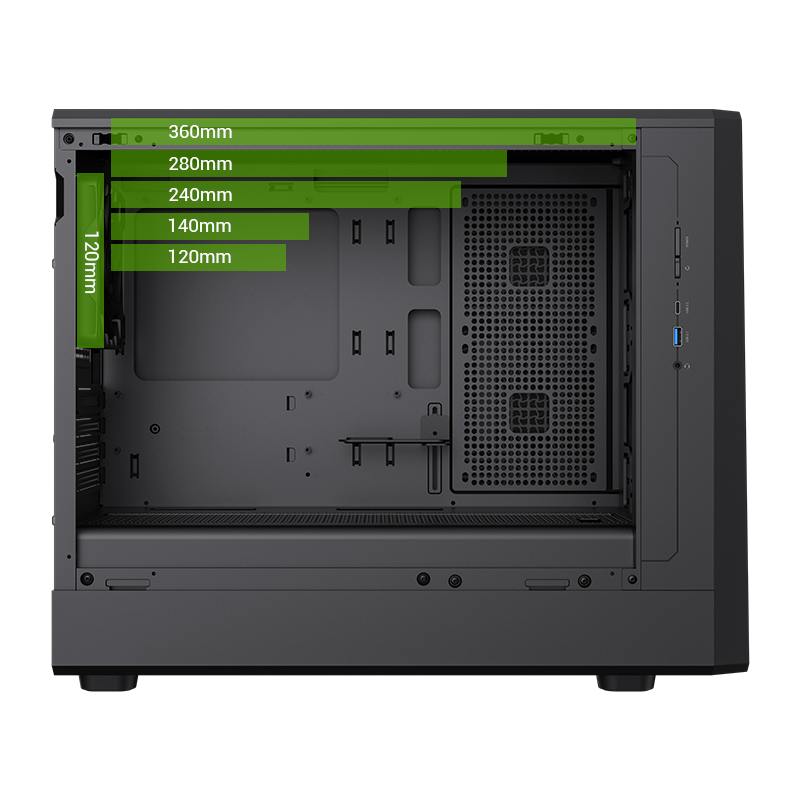

Water Cooling Support (Radiator Size): | Front: | *0 |
Top: | 120mm, 140mm,240mm,280mm,360mm | |
Rear: | 120mm | |
M/B Cover： | *0 | |

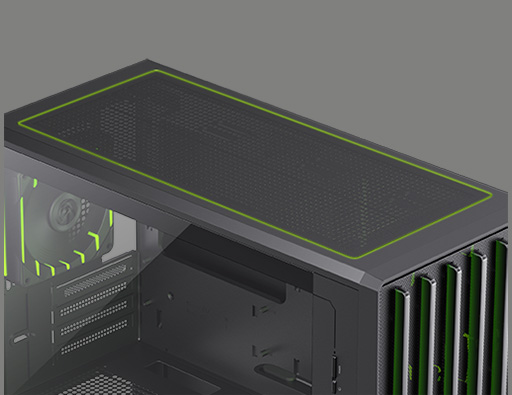

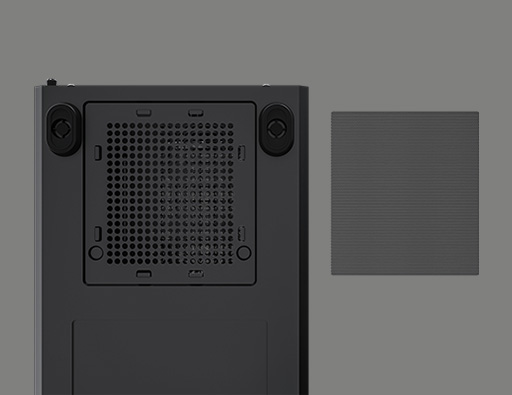

Dust Cover: | Dust mesh on the bottom and top | |

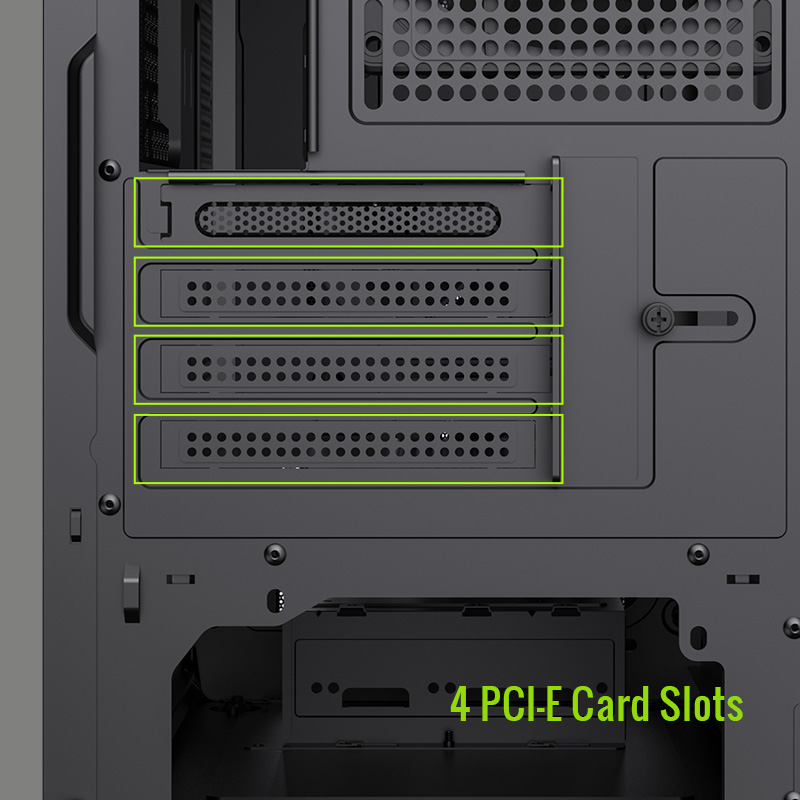

Slots: | *4 | |
Carton & Logo: | GAMEMAX | |
Dimensions: | Chassis: | (L)458*(W)220*(H)395mm |
Full Case (Inc Fascia): | (L)483*(W)220*(H)408mm | |
Carton: | (L)452*(W)277*(H)551mm | |
Net Weight(kg): | 8.4 | |
Gross Weight(kg): | 9.4 | |
