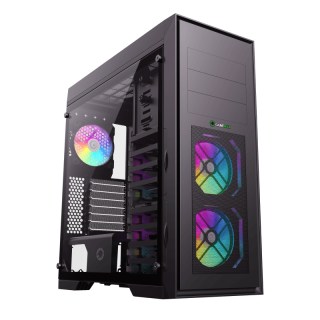

GameMax Master TG Full Tower gaming PC Case,With tempered glass side , is a full tower chassis, Supports a 360-liquid cooler, Pre-installed 3x12cm AF-12X FRGB fans for air intake, and exhaust hot air to provide maximum cooling for your system in the best
• The Master case also supports an E-ATX(272*305) size motherboard and important that it can install a total of 10 x HDD/SSDs to easily set the PCrsquo storage in Raid 3 or Raid 5 (Redundant Arrays of Independent Drives)
• The silent base design for increased user experience, by 2-Channel Fan speed controller via the top button control at ldquo;FAST-STOP-SLOWrdquo;
• And Master has various IO ports located on the top, HD Audio, 2 x USB 2.0 2 x USB 3.0, To give the user easy access
• Wide field of view, Showing splendidness, Side panel with a side transparent window, making internal in everything in a glance
• Ventilating and Breathability, a set of better methods to keep dust-proof, For Master, wind tunnel of the front panel and bottom panel both with pull-out dust-proof, to make clean conveniently
• Master M905 is an outstanding design with Rolled edges chassis to ensure safety and with a total of 10 tool-free HDD tray easy to assemble, Supports 430mm GPU card length and 165mm height of CPU Air cooler
• It is suitable for building high-performance Gaming systems, PC servers workstations!
| Form Factor (Midi, Micro, Mini ITX, Full) | Full Tower | |
| Chassis | SPCC 0.8mm, Black painting interior | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | EATX(272*305mm), ATX、M-ATX、ITX | |
| Front Panel | Elegant matte finish with mesh | |
| Top Panel | With mesh for better heat disspation | |
| Branding | Box | GAMEMAX |
| Unit | 1 | |
| Side Panel | Left | Big window side panel |
| Right | Metal | |
| External Drive Bay(s) | 5.25" (ODD) | *3 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *8 |
| 2.5" (SSD) | *10 (Exchangeable) | |
| I/O SPEC | Buttons | *2 |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *2 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| Fan Controller | *2 | |
| RGB Controller | *0 | |
| Controller max. fans | *6 | |
| RGB controller | *0 | |
| Cooling Fan Support | Front | 2x12cm AF-12x FRGB Fans (Included) |
| Top | None | |
| Rear | 1x12cm AF-12x FRGB Fan (Included) | |
| Bottom | 1*12cm (Fan Optional) | |
| Left Side | 0 | |
| PSU Cover | *1 | |
| Water Cooling Support (Radiator Size) | Front | Support 240/360mm water cooling |
| Top | Support 240/360mm water cooling | |
| Rear | Support 120mm water cooling | |
| Dust filter | Bottom cover with dust filter (2*pieces) | |
| Slots | *8 | |
| Carton Logo | GAMEMAX | |
| Dimensions | Chassis | (L)470*(W)210*(H)465mm |
| Full Case (inc Fascia) | (L)520*(W)212*(H)488mm | |
| Carton | (L)540*(W)286*(H)597mm | |
| VGA Card Length | 420mm | |
| CPU Cooler Height | 170mm | |
| Cable Management Depth | 25mm | |
| Weight | Net Weight (Kg) | 8.7 kgs |
| Gross Weight (Kg) | 9.8 kgs | |
GAMEMAX
Master M905 Manual DownLoad:
GAMEMAX Master M905 Manual.pdf
