Dragon Knight

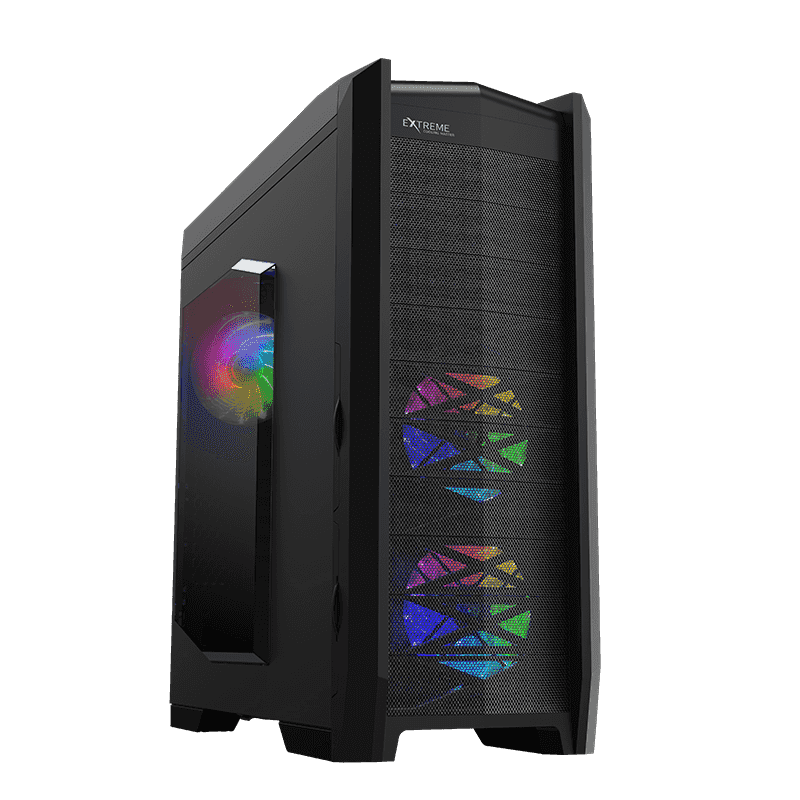

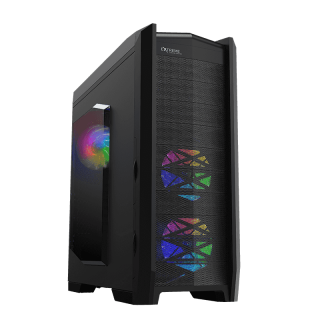

GameMax Dragon knight Full tower ARGB Gaming case, With fully mesh front bays by high air-flow intakes
Superspace design compatible with All ATX/MATX/ITX/E-ATX(305*272mm) mainboardFront,Top, and bottom by unique dust filter parts, to make a clean PC system, also can be mounted up to 420mm graphics card
Various IO ports included 2*USB2.0 and 2*USB3.0 and HD-Audio ports, additional Build-in Card-Reader on top panel
Top with HDD docking function, Easy copy or expand your data transfer
Multiple 3 Channel Fan Controller system,LOW/STOP/HIGH,and ARGB Fan LED lighting controlled
BOTTOM-LOAD PSU design, Bays with Tool-less Button
Easy cable management, and total support to 10HDDs for matching record video PC station job
BOTTOM-LOAD PSU design with cover protection
Expansion slot: 8 for easy install 4 x GPU cards
Made by 0.8mm thickness steel for the stability of your PC system

Form Factor (Midi, Micro, Mini ITX, Full)Full Tower
ChassisSPCC 0.8mm, Black painting interior
PSU Form FactorBottom/ATX
M/B Form FactorATX/M-ATX/Mini-ITX/E-ATX(305*272mm)
Front PanelMesh for better heat disspation
Top PanelMesh for better heat disspation with easily accessible dust filter
BrandingBoxGAMEMAX
Unit1
Side PanelLeftMetal panel with acrylic window
RightMetal
External Drive Bay(s)5.25" (ODD)*2 x with tooless screw
3.5"*1 (Optional)
Internal Drive Bay(s)3.5" (HDD)*8
2.5" (SSD)*2
I/O SPECButtons*3
USB2.0 Port(s)*2
USB3.0 Port(s)*2
USB3.1 Port(s)*0
HD Audio Support*1
Card Reader (Support)*1
Fan Controller*3x Channel (Fast-Stop-Slow)
ARGB Controller*1x Controller (Rainbow+PWM V1.7)(Incl.)
Controller max. fans*5
Cooling Fan  SupportFront2x12cm FN-12RAINBOW-M  (Incl.)
Top2x12cm FN-12RAINBOW-M  (Incl.)
Rear1x12cm FN-12RAINBOW-M  (Incl.)
BottomNone
Left Side0
PSU Cover*1
Water Cooling Support
(Radiator Size)
Front120/240mm(Support)
Top120/240mm(Support)
Rear120mm(Support)
Dust filterFront, top and bottom panel with dust filter
Slots*8
Carton LogoGAMEMAX
DimensionsChassisL470*W210*H465 mm
Full Case (inc Fascia)L522*W212*H534mm
CartonL592*W286*H597
GPU Card Length420mm
CPU Cooler Height170mm
Cable Management Depth20mm
WeightNet Weight (Kg)9.7kgs
Gross Weight (Kg)10.7kgs
