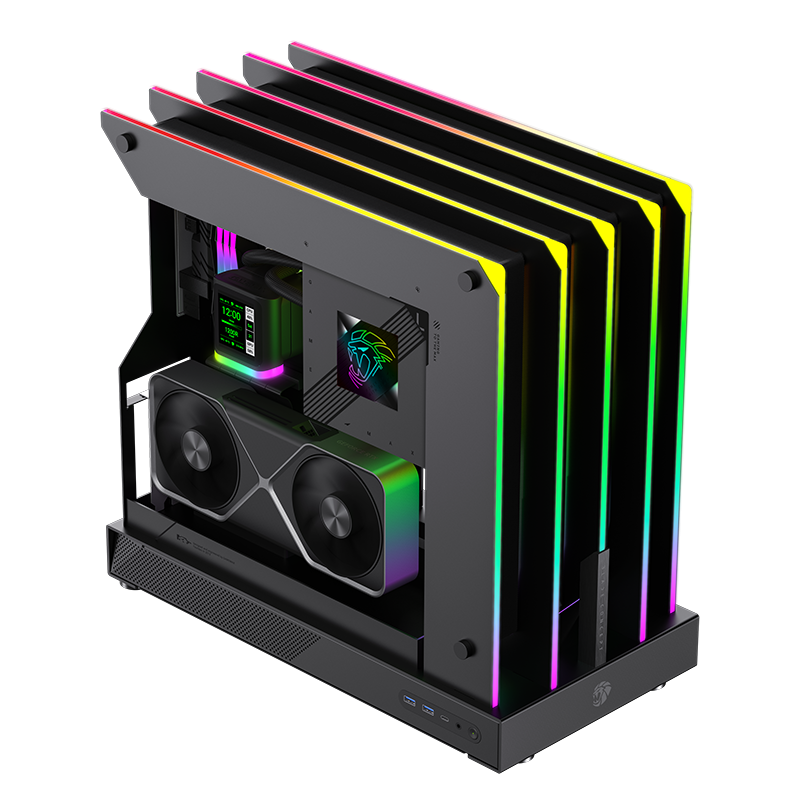

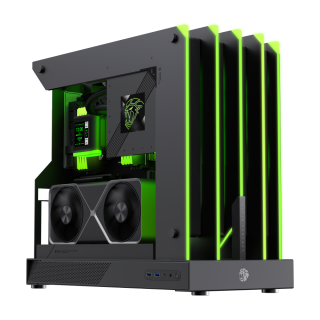

BLADE CONCEPT

Limited MOD edition fusing industrial aesthetics with bold gaming design to give your build a distinctive edge.

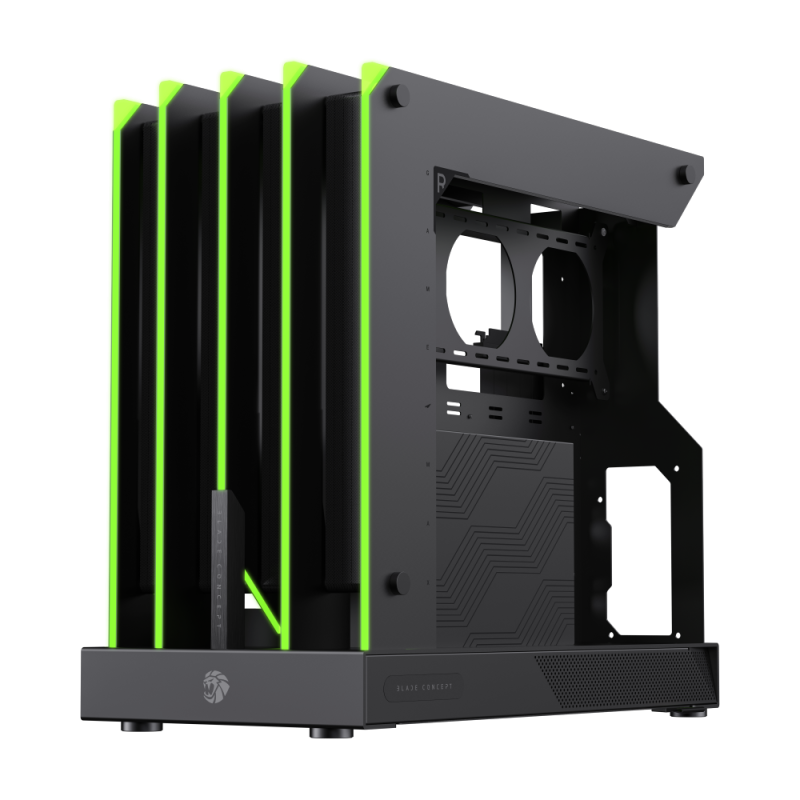

Open-Air design ensures maximum airflow and zero blind spots, brilliantly showcasing your build from every angle.

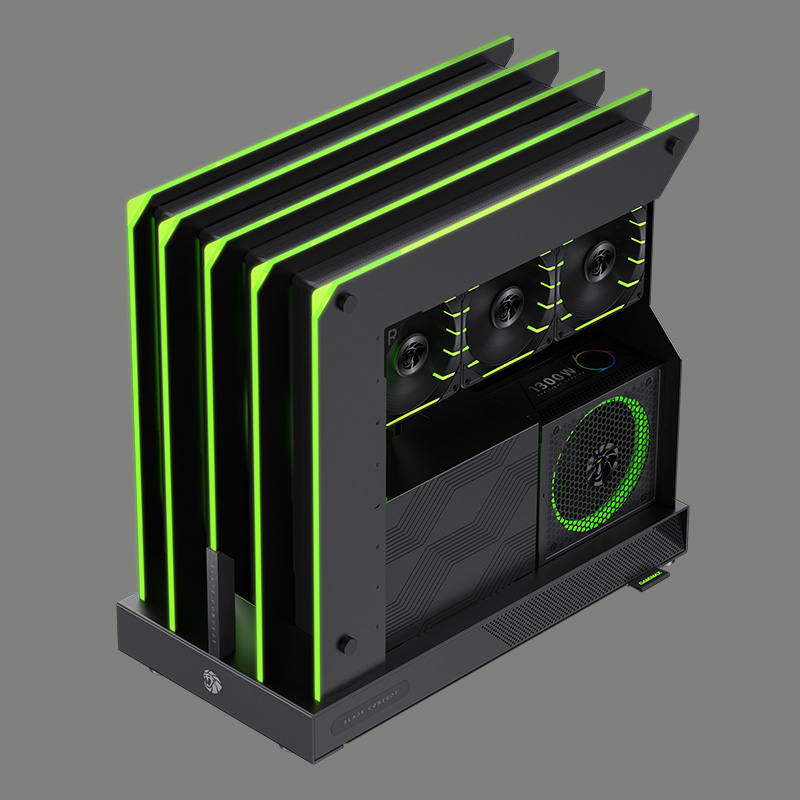

Claw-style RGB lighting featuring dynamic, claw mark-inspired illumination that accentuates every angle with an aggressive vibe.

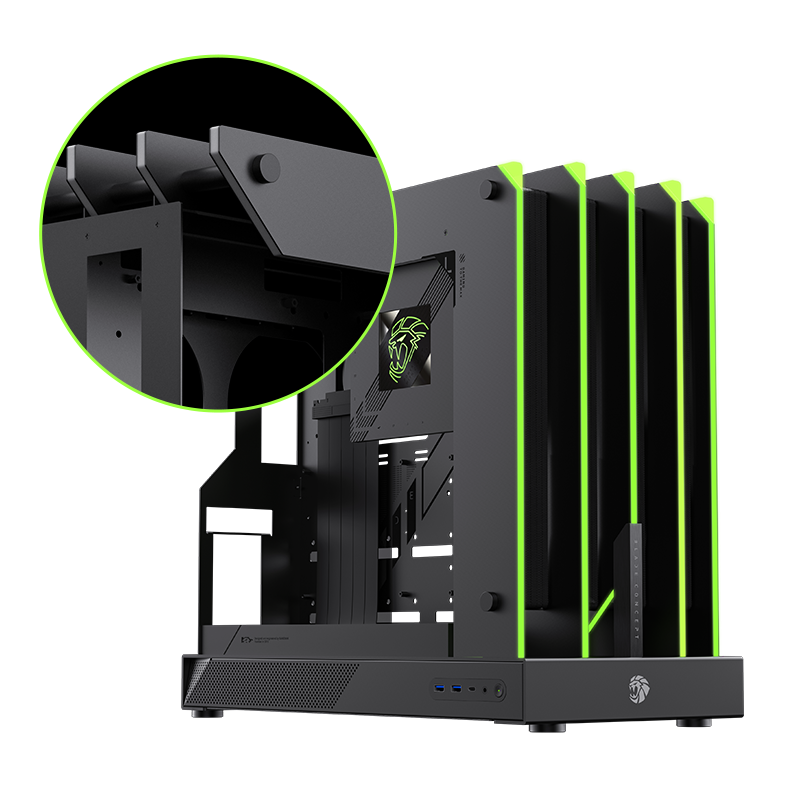

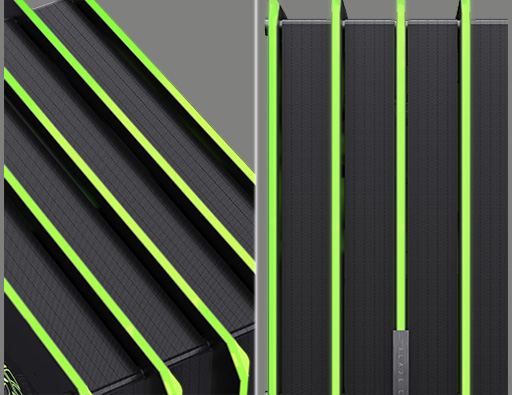

A case engineered with all-metal CNC precision processing, laser cutting, and high-precision molding for a stunning, refined quality.

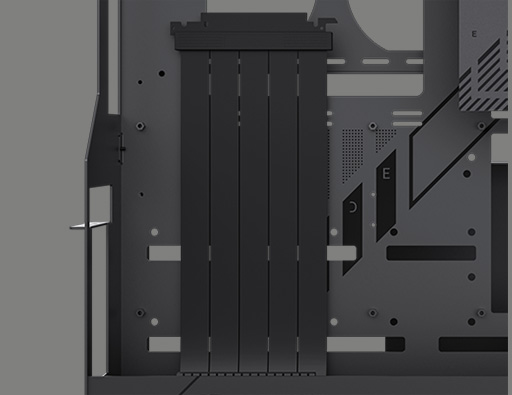

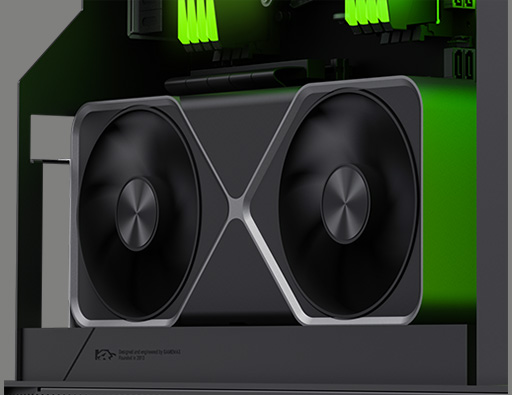

NV50 series GPU ready, supporting vertical GPU mounting with an included PCIe 4.0 riser cable for versatile setups.
Designed for optimal cooling, this layout maximizes airflow, reduces extra fan dependency, and minimizes noise, ensuring peak performance without compromise.

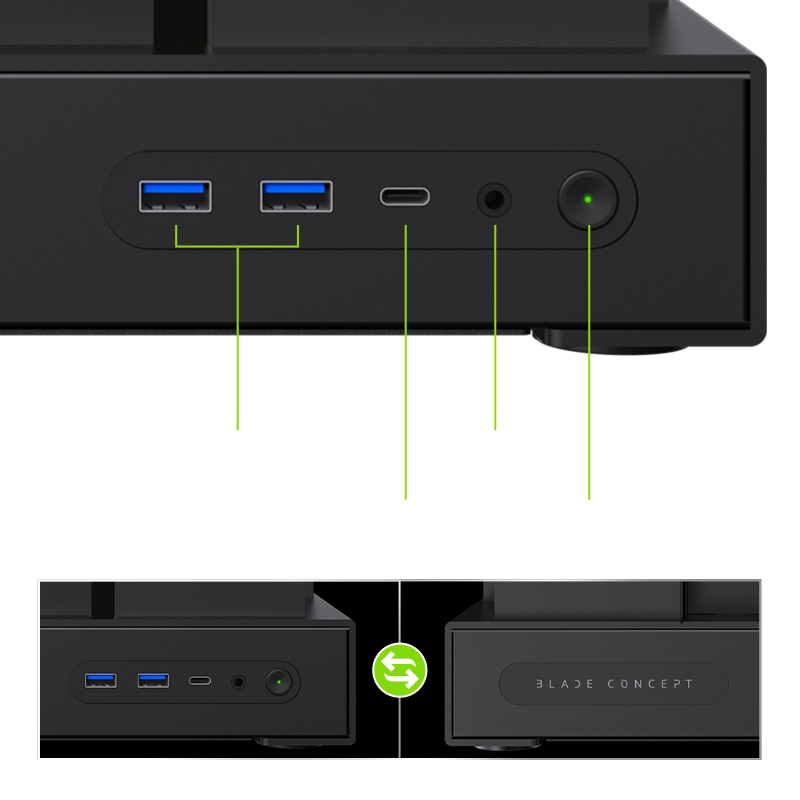

Modern I/O Panel with 2x USB 3.1 and 1x Type-C (Gen2), featuring a symmetrical, swappable design for enhanced

BLADE CONCEPT

ATX GAMING CASE

TECH SPECS:

Form Factor:

ITX

Chassis:

SPCC:1.0-3.0mm

PSU Form Factor

ATX

M/B Form Factor:

ATX

Front Panel:

N/A

Top Panel:

N/A

Side Panel:

Left:

Metal

Right:

Metal

External Drive Bay(s):

5.25”(ODD):

*0

3.5”:

*0

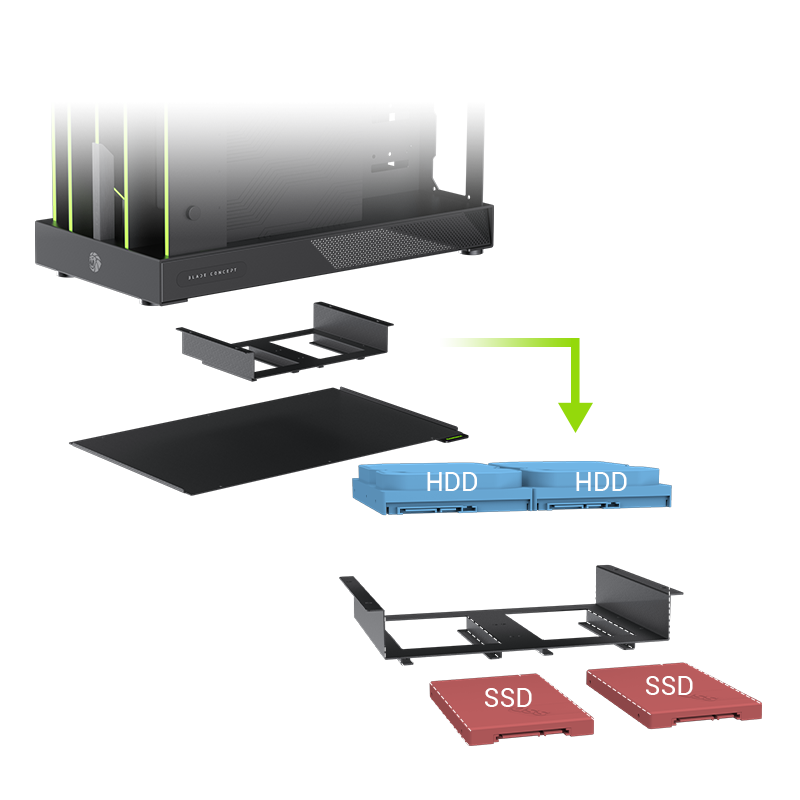

Internal Drive Bay(s):

3.5" (HDD):

*2

2.5" (SSD):

*2

I/O:

Buttons:

*1

USB 2.0 Port(s):

*0

USB 3.0 Port(s):

*2

Type C Port(s):

*1 (Gen2)

Audio Support:

*1

Card Reader (Support):

*0

P-Lock:

*0

RGB Controller:

*1 (GMX V4.0 ARGB/PWM HUB)

Controller Max Fans:

*9

RGB Controller max. LED strips:

*9

Remote (IR or RF):

*1

Cooling Fan Support:

Front:

*0

Top:

*0

Rear:

*0

Bottom:

*0

M/B Cover:

*0

PSU Cover:

*0

Water Cooling Support

(Radiator Size):

Front:

*0

Top:

*0

Rear:

*0

M/B Cover:

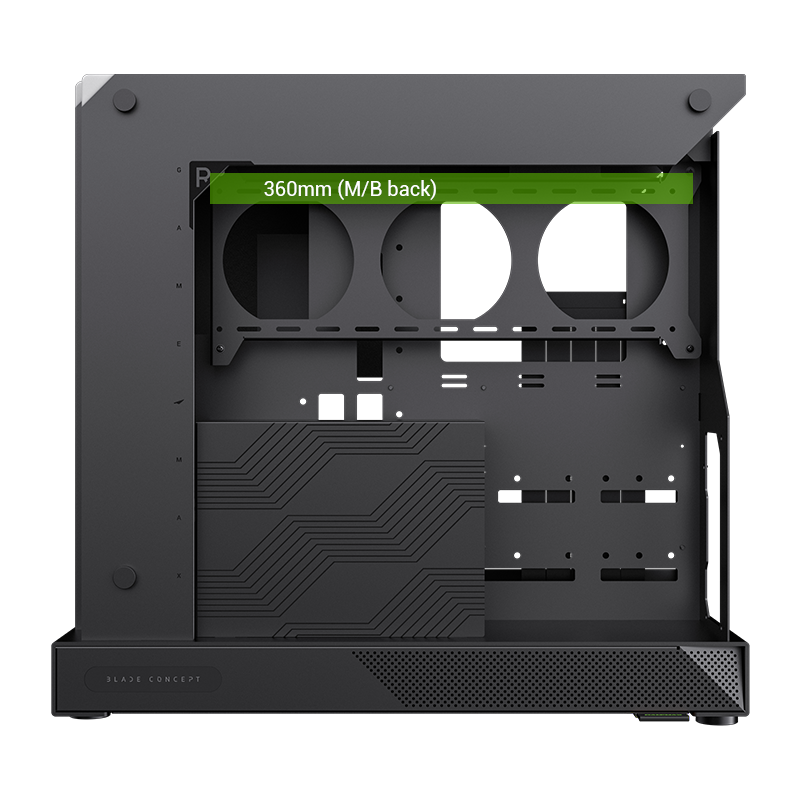

*360MM (M/B back)

Dust Cover:

/

Slots:

*3 (Vertical - mounted graphics card)

Carton & Logo:

GAMEMAX

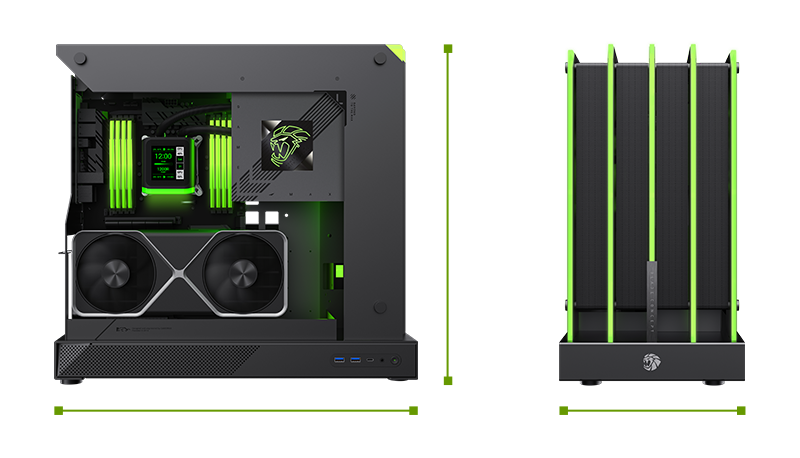

Dimensions:

Chassis:

(L)498*(W)254*(H)463mm

Full Case (Inc Fascia):

(L)498*(W)254*(H)470mm

Carton:


Net Weight(kg):


Gross Weight(kg):

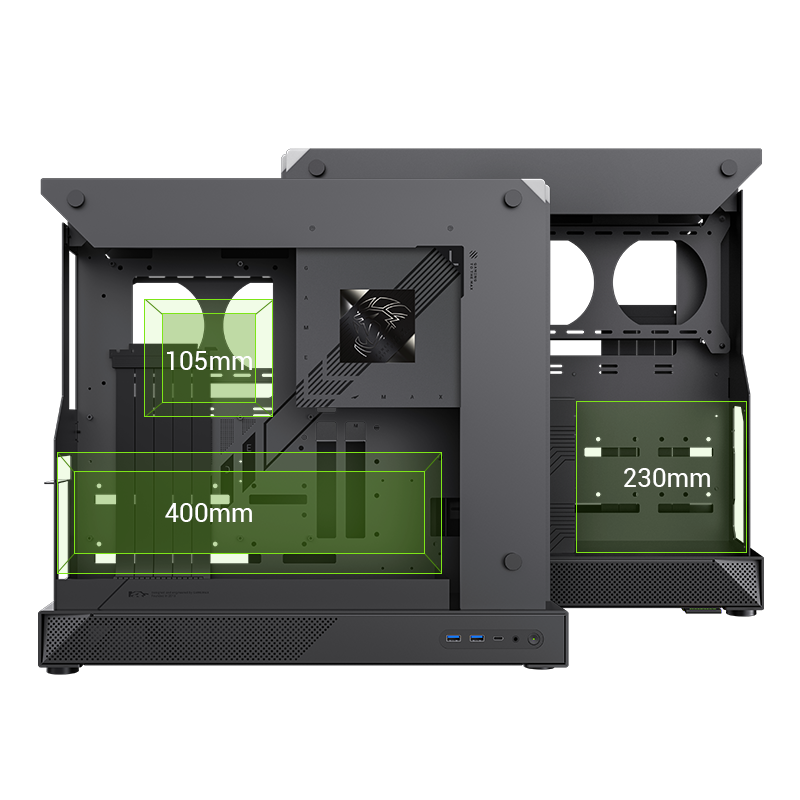

VGA Support:

400mm

CPU Cooler Height:

105mm

SPS Length:

230MM
