Abyss TR

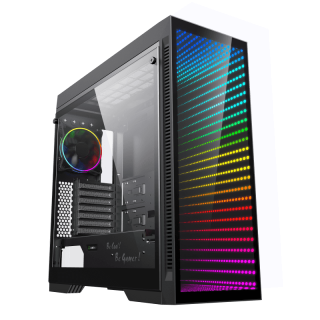

The GameMax Abyss-TR LED-Full Tower gaming PC Case. Upgraded new edition with an infinity mirror with Rainbow LED lighting(addressable) on the front and a tempered glass front panel and side panel.
The most important adjustment feature is directly in the eye with an intelligent integrated infinity mirror at the front.
This optical illusion is created by a glass front, consisting of an outer one-way mirror, which partially reflects light on its inner side and is partially transparent to the exterior, and a fully reflecting mirror inside, placed parallel behind it.
The light emitted by an Addressable Rainbow LED strip arranged in the gap around the walls is thus reflected back and forth between the two mirrors, whereby, with each reflection, a part of the light penetrates visibly outwards and ultimately produces the visual effect.
The principle corresponds to the mirrors in police interrogations frequently shown in crime series and films and AURA SYNC ready!

ITEMS (Abyss-TR /MFG. M908-TR)SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full)EATX(272*305mm), ATX,Micro, Mini ITX
ChassisSteel Thickness 0.8mm Mixed, Black internal
PSU Form FactorBottom/ATX
M/B Form FactorEATXATXM-ATXITX
Front PanelTempered Glass,ABS
Top PanelABS,Mesh
BrandingBoxGameMax
Unit1
(Unit) PositionStandard
Side PanelLeftTempered Glass
RightMetal cover
External Drive Bay(s)5.25" (ODD)*0
3.5"*0
Internal Drive Bay(s)3.5" (HDD)*3
2.5" (SSD)*4
I/OButtons*3
USB2.0 Port(s)*2
USB3.1 Gen1(USB3.0) Port(s)*2
HD Audio Support*1
Card Reader (Support)*0
Fan Controller*2  (Top Fan Controllers)
RGB Controller*1  (Rainbow V1.7)
Controller max. fans*5
RGB Controller max. LED strips*2
Remote (IR or RF)*0
Cooling Fan  SupportFront3x120mm(Fan optional)
Top3x120mm ,2x140mm (Fan optional)
Rear1x120mm (1x ARGB Rainbow Fan Included)
Water Cooling Support(Radiator Size)Front120mm*1,240mm*1,360mm*1
Top120mm*1, 240mm*1,140mm*1,280mm*1,360mm*1
Rear120mm*1
Dust CoverBottom  and top cover with dust filter
Slots*7
Carton LogoGAMEMAX
DimensionsChassis(L)470*(W)210*(H)465mm
Full Case (inc Fascia)(L)512*(W)212*H)526mm
Carton(L)579*(W)286*H)597mm
Net Weight (Kg)11kgs
Gross Weight (Kg)12.5kgs
VGA Card Length455mm(Max)
CPU Cooler Height170mm
Cable Management Depth20mm
PSUIncluded*0
Wattage/
80Plus Category/
Rail Outputs/
Q'ty40HQ: 730pcs    40GP:620pcs    20GP:300pcs
