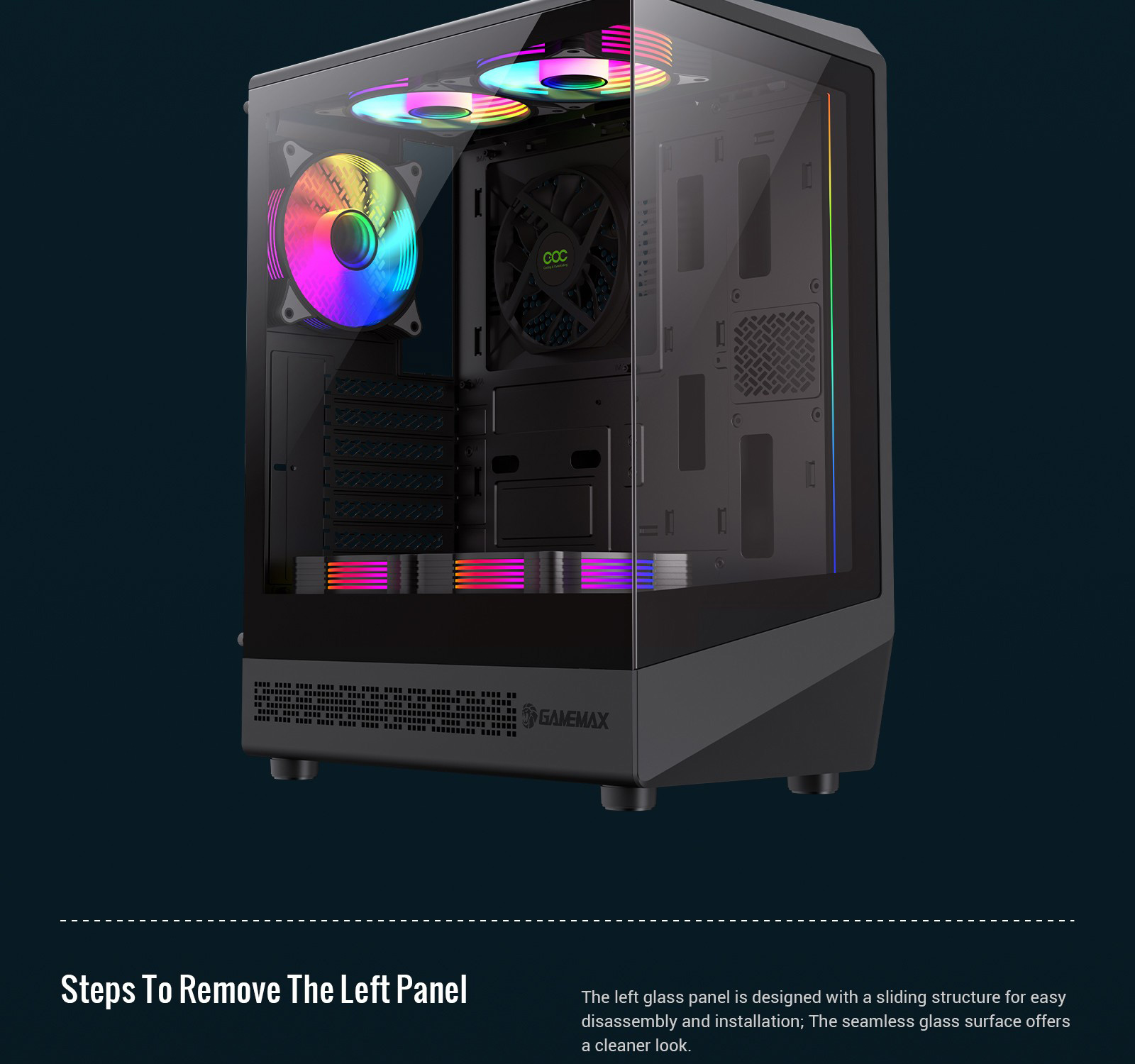

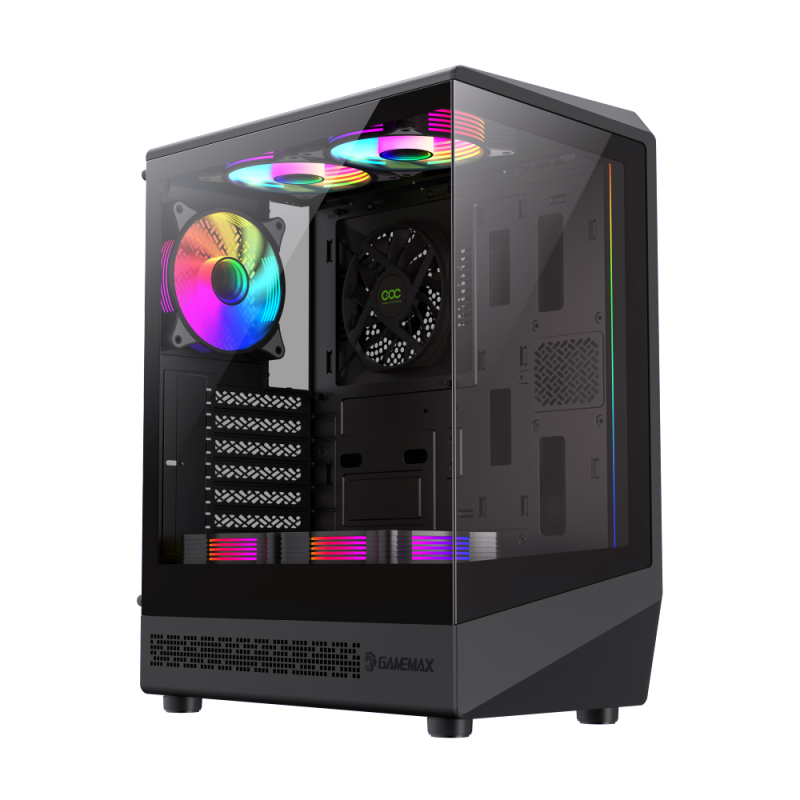

The Vista COC AB ATX Mid-Tower Gaming Case features a 262° panoramic view, patented COC cooling, 5 ARGB fans, and a sleek design with a modular layout for flexible builds.

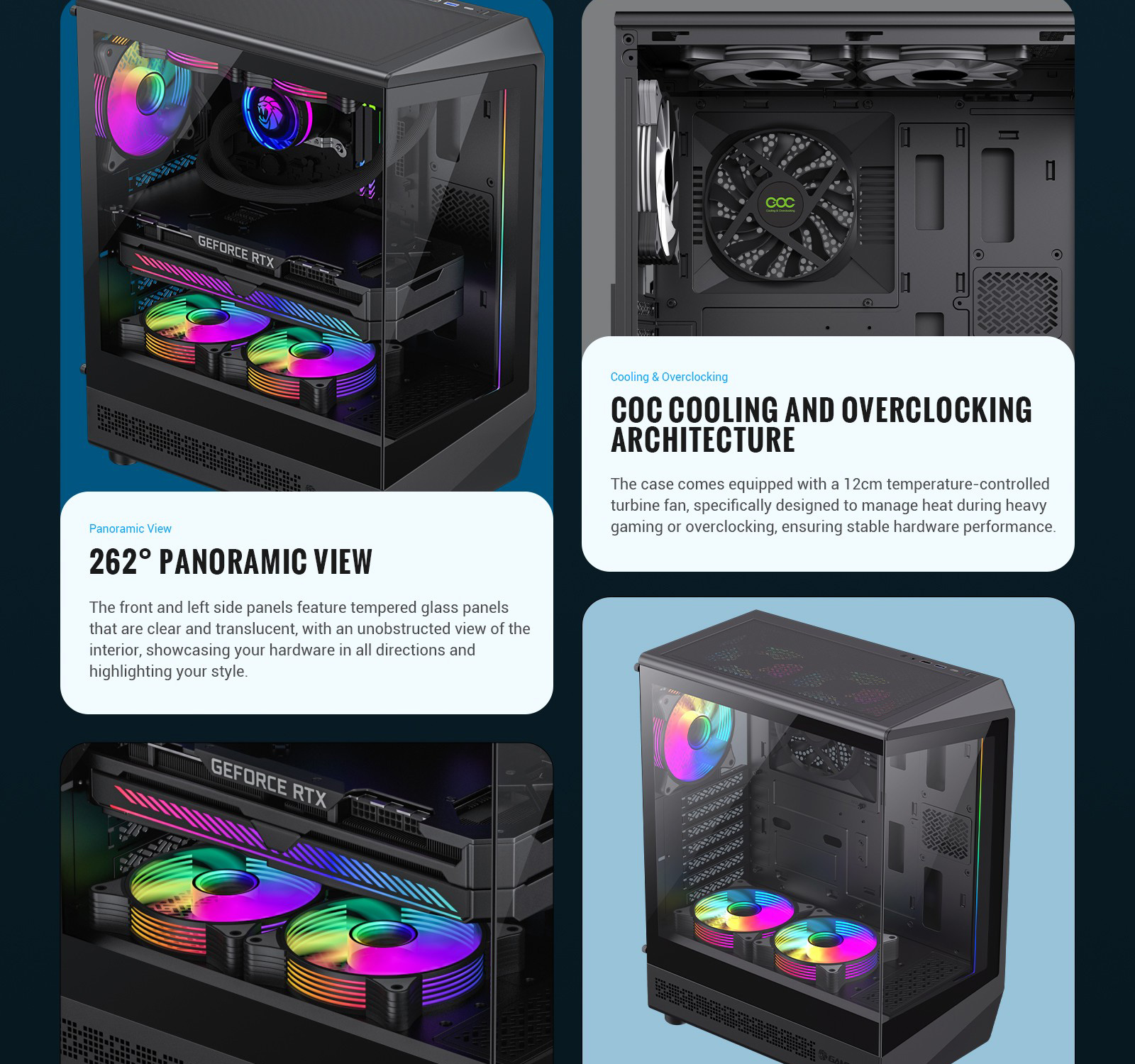

• 262° Panoramic View: High-transparency tempered glass panels showcase hardware from multiple angles.

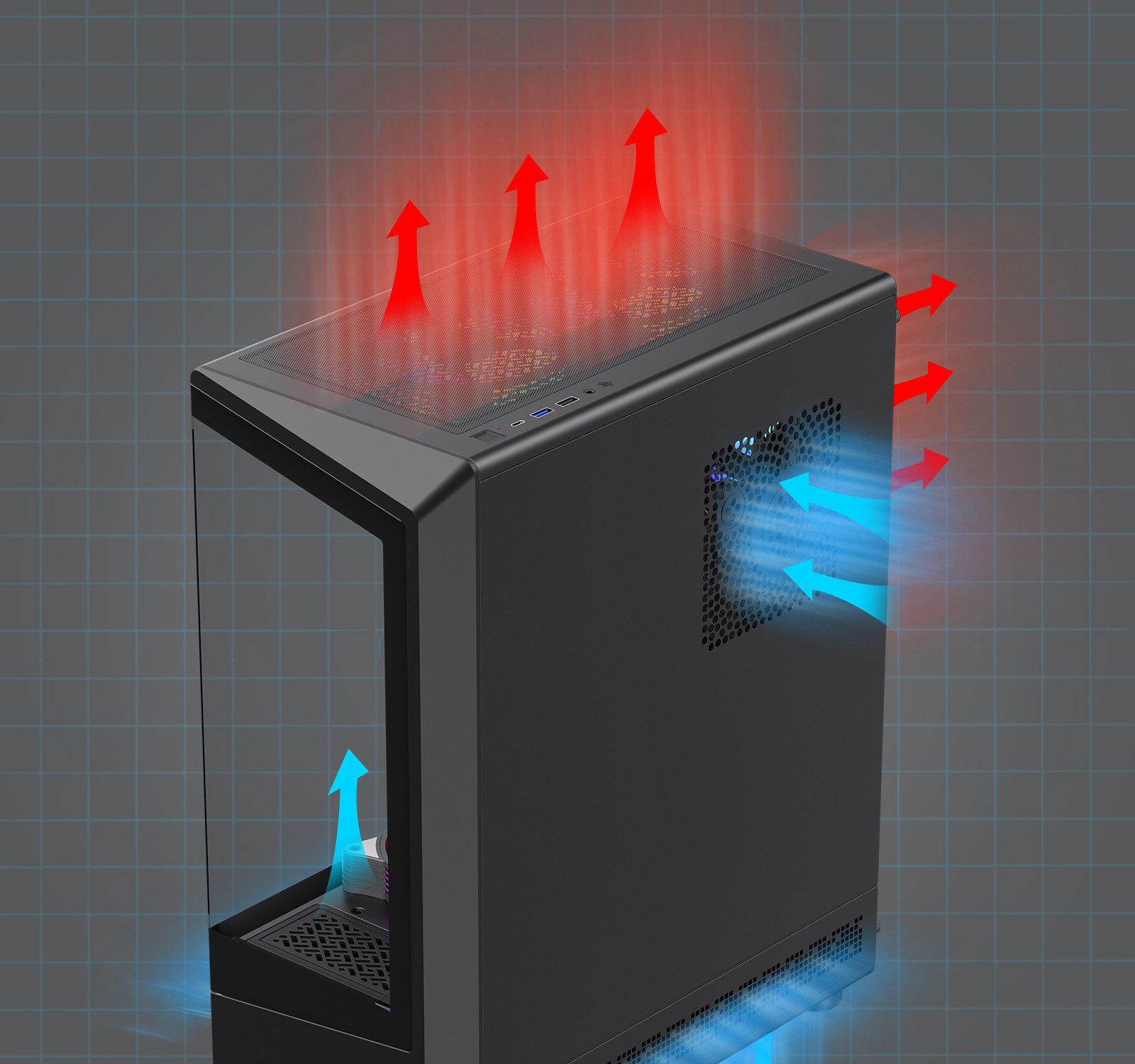

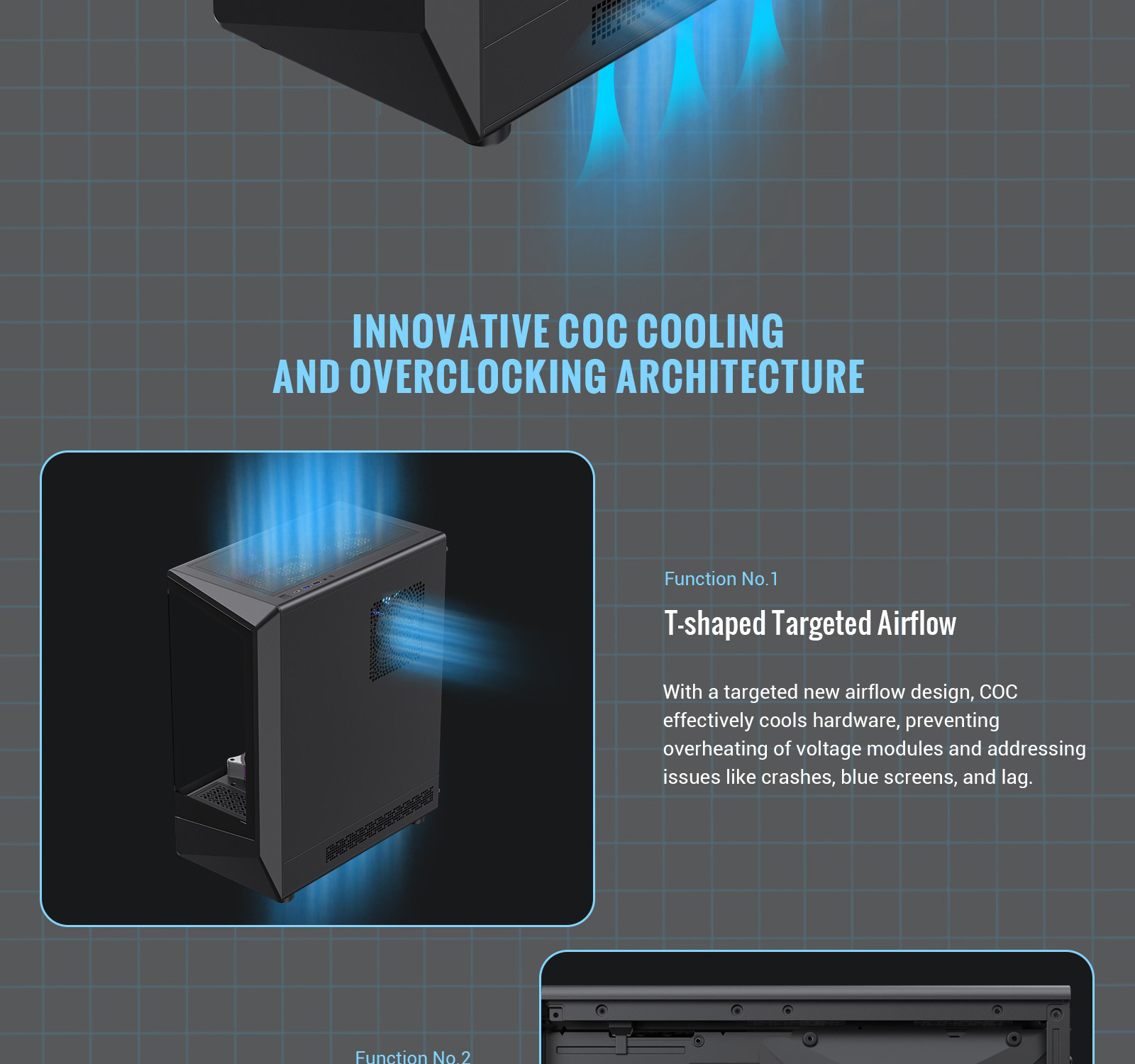

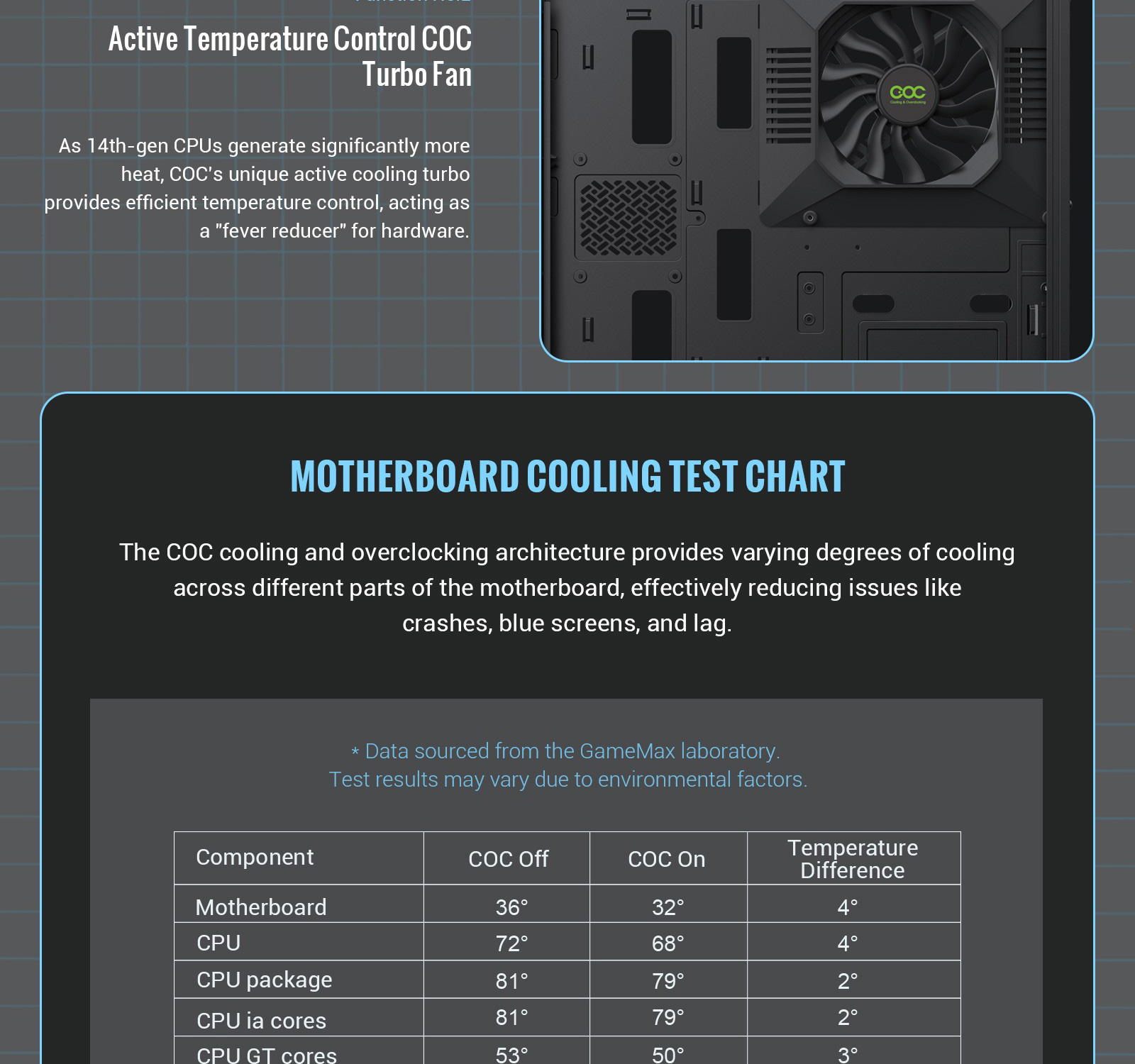

• Patented COC Cooling: 12cm temperature-controlled fan ensures stability during intense gaming and overclocking.

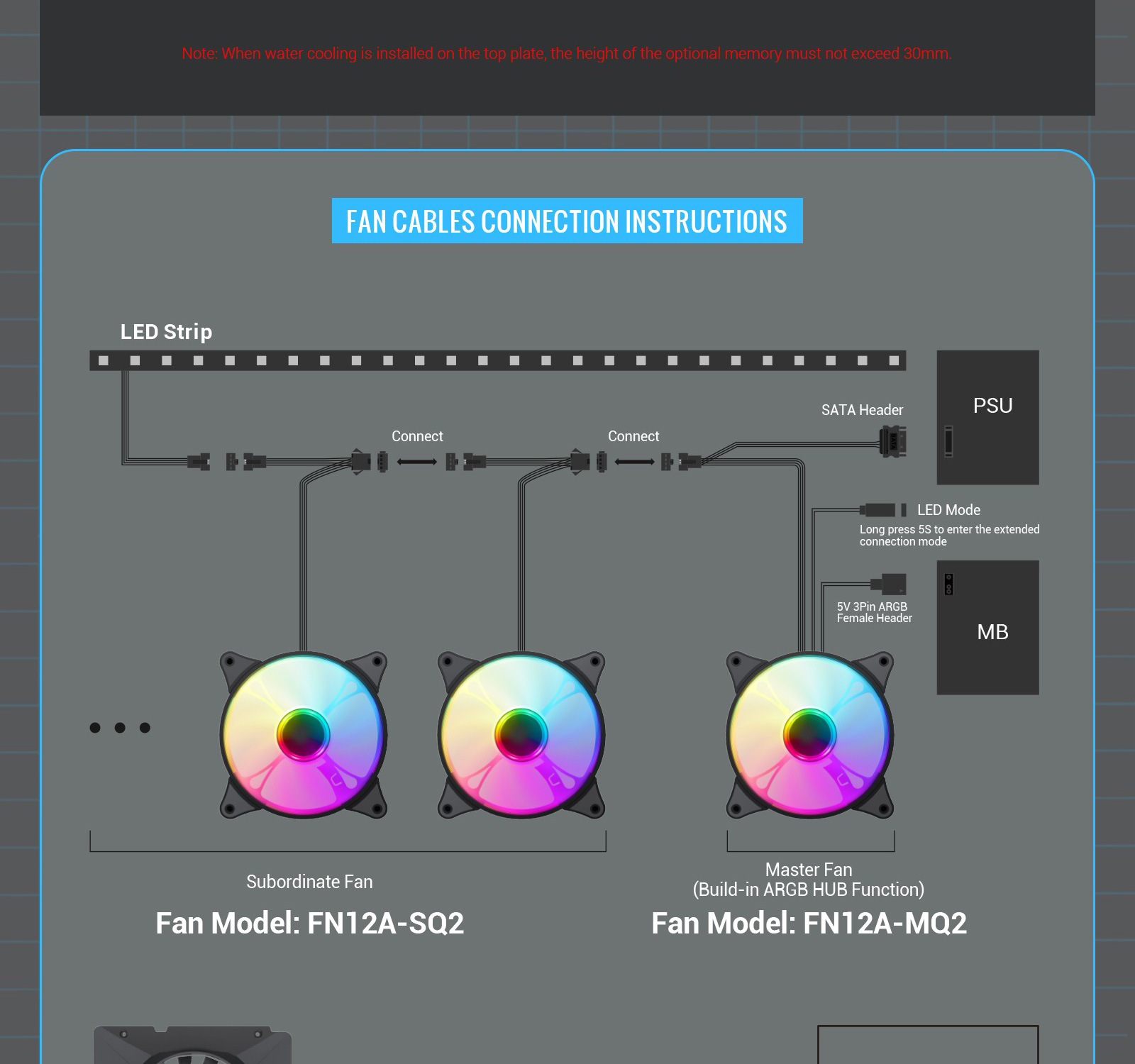

• 5 ARGB Fans: Infinite loop lighting for a captivating visual effect.

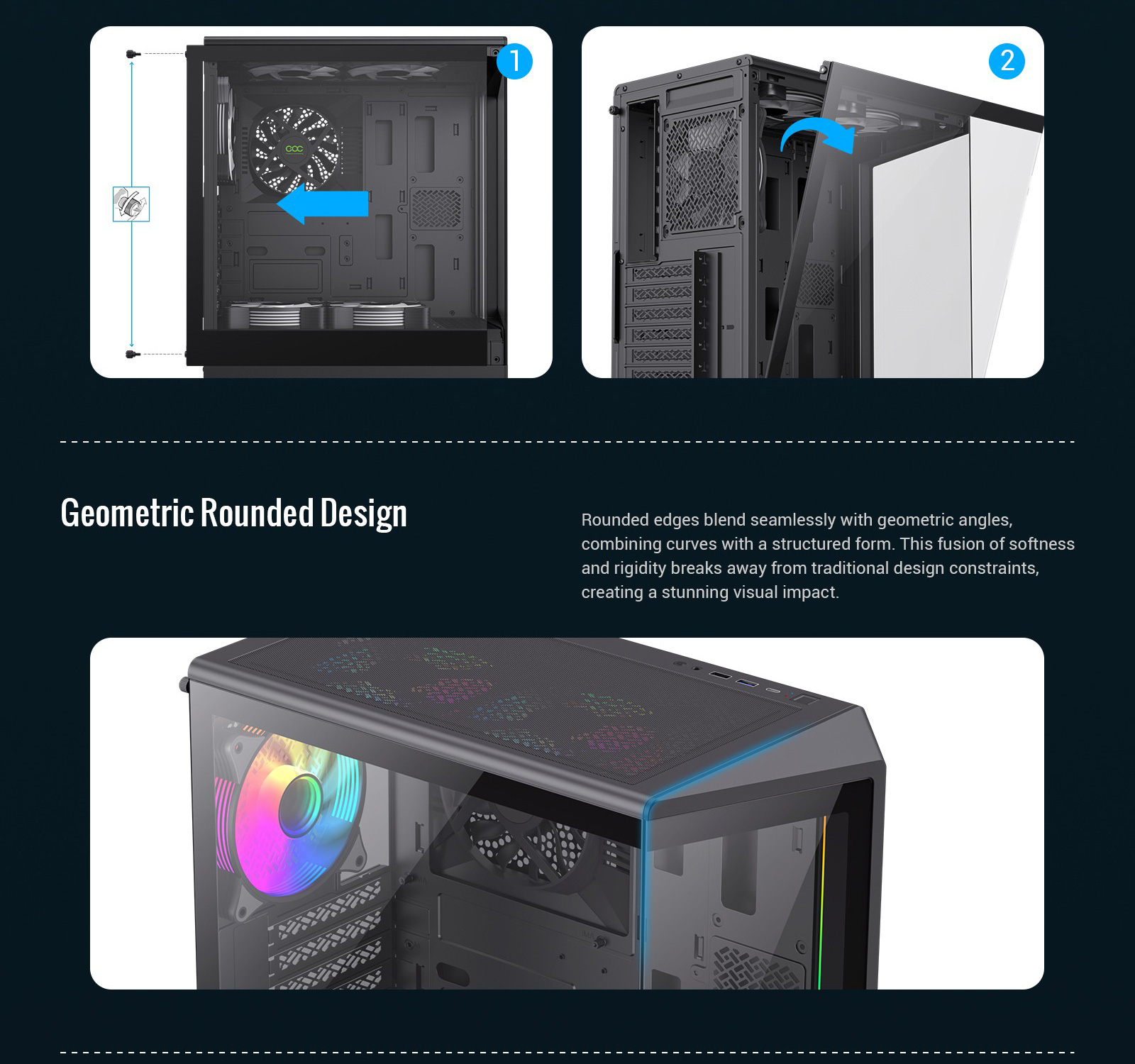

• Elegant Design: Minimalist geometric design with RGB accents.

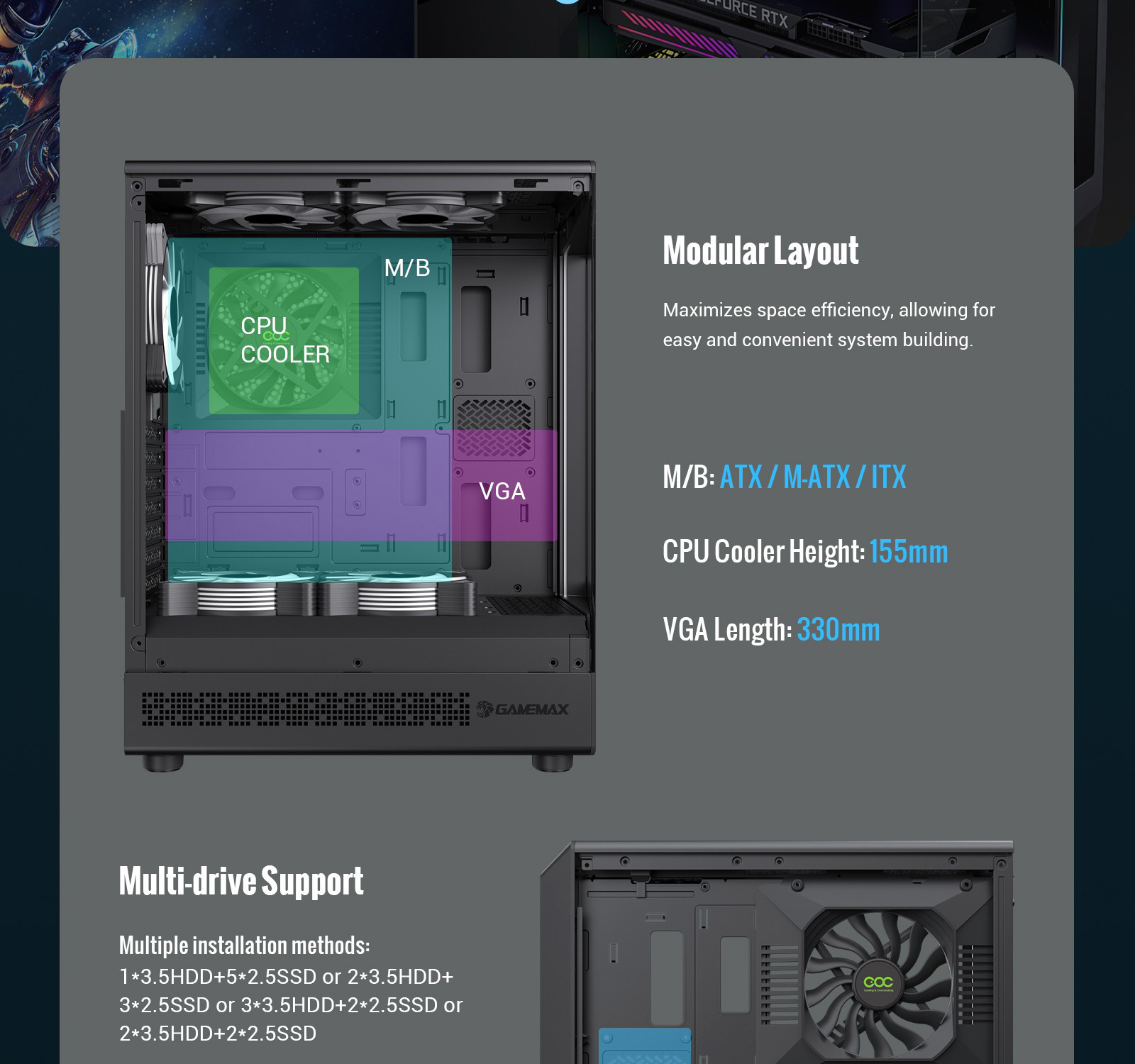

• Modular Layout: Supports ATX/M-ATX/ITX, 155mm CPU coolers, 330mm GPUs, and versatile HDD/SSD configurations.
| Form Factor | Mid Tower | |
| Chassis Material | SPCC 0.4mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | ATX、M-ATX、ITX | |
| Front Panel | Tempered Glass | |
| Top Panel | Metal Cover | |
| Side Panel | Left | Tempered Glass |
| Right | Metal Cover | |
| External Drive Bay(s) | 5.25" (ODD) | N/A |
| 3.5" | N/A | |

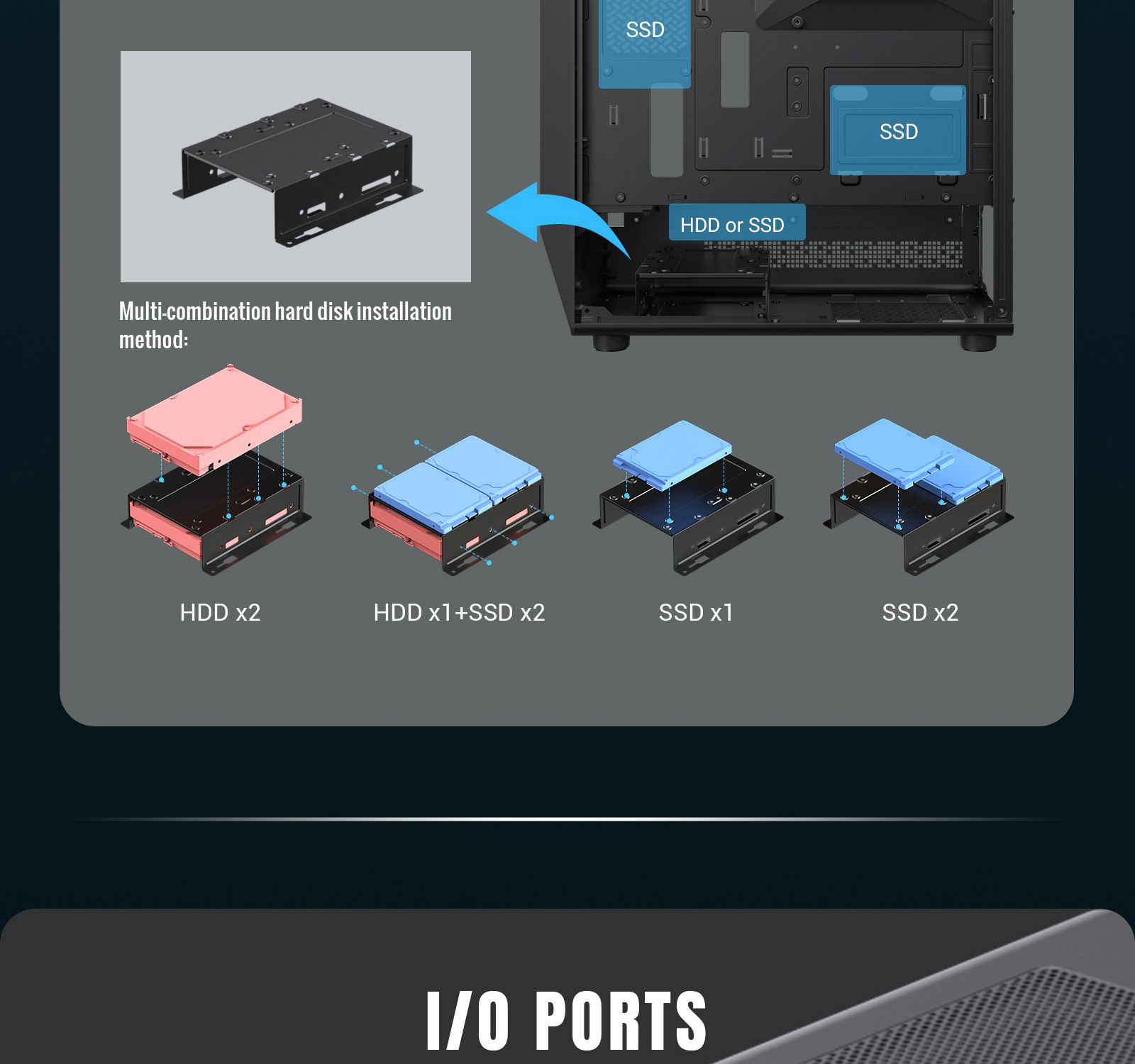

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD |
| 2.5" (SSD) | ||

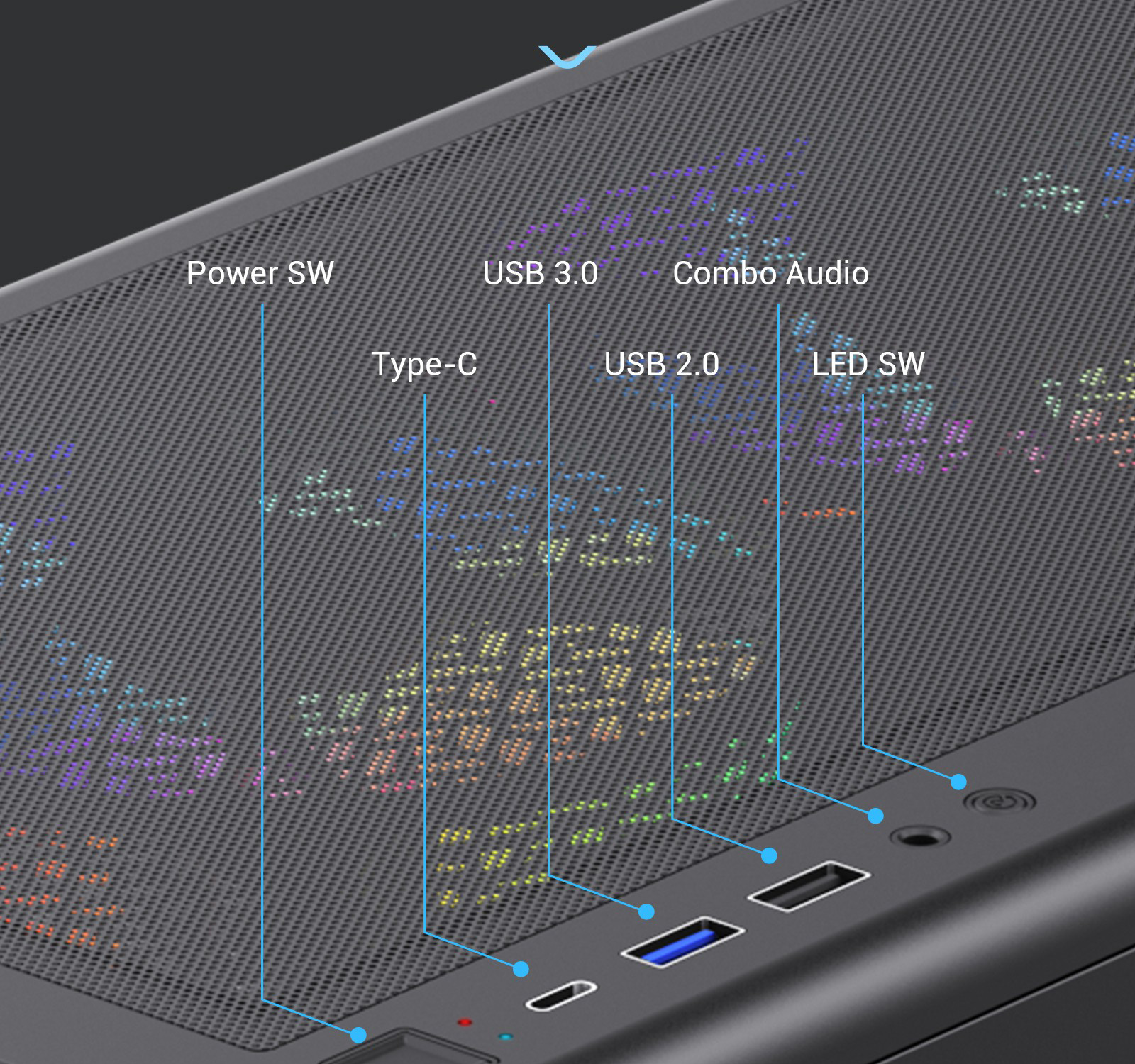

| I/O | Buttons | *2 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) | *1 | |
| Combo Audio Support | *1(CTIA) | |
| Type C | *1 | |
| P-Lock | N/A | |

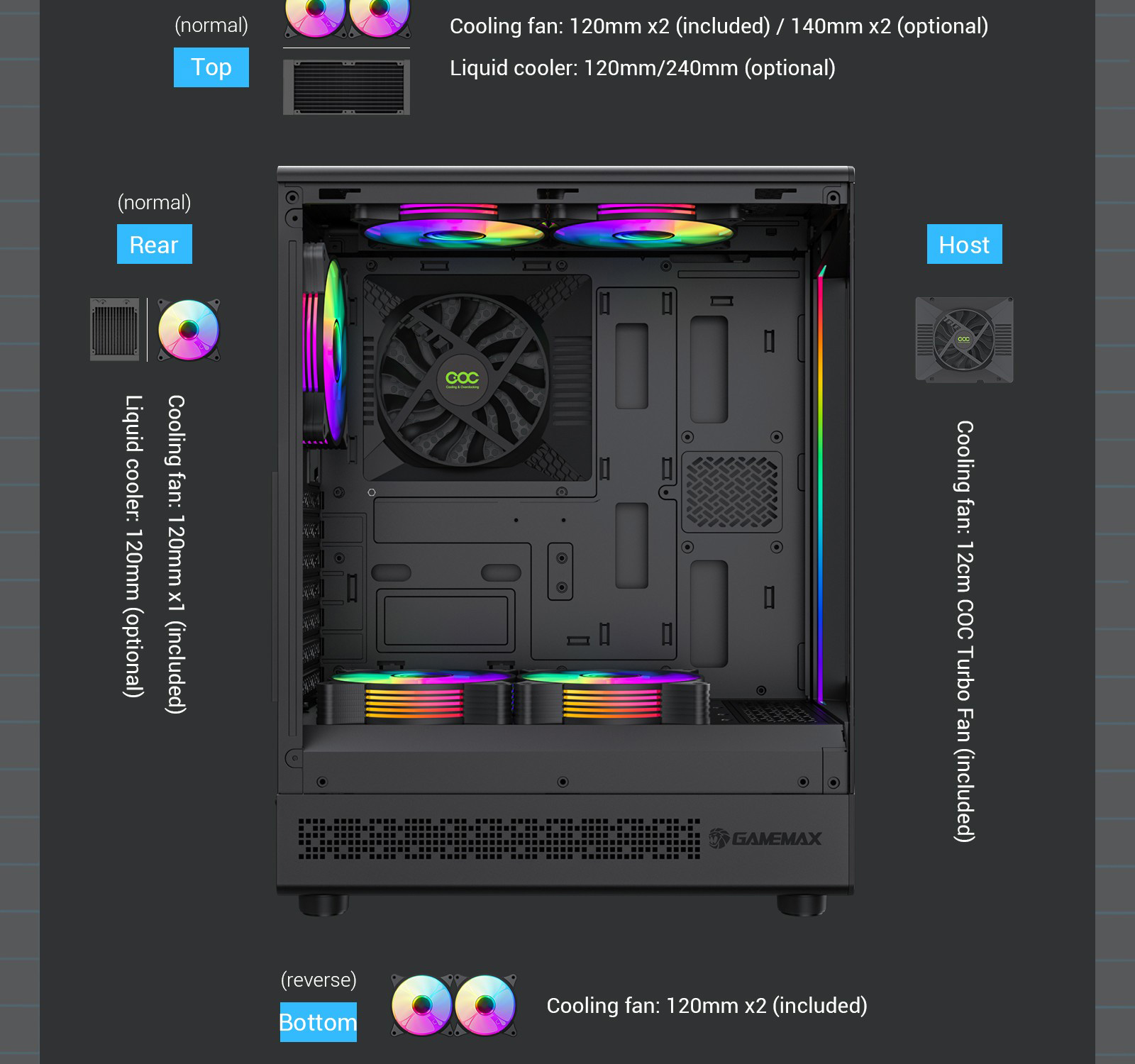

| Cooling Fan Support | Front | N/A |
| Top | 2x120mm (included),2x140mm (Fan Optional) | |
| Rear | 1x120mm (included) | |

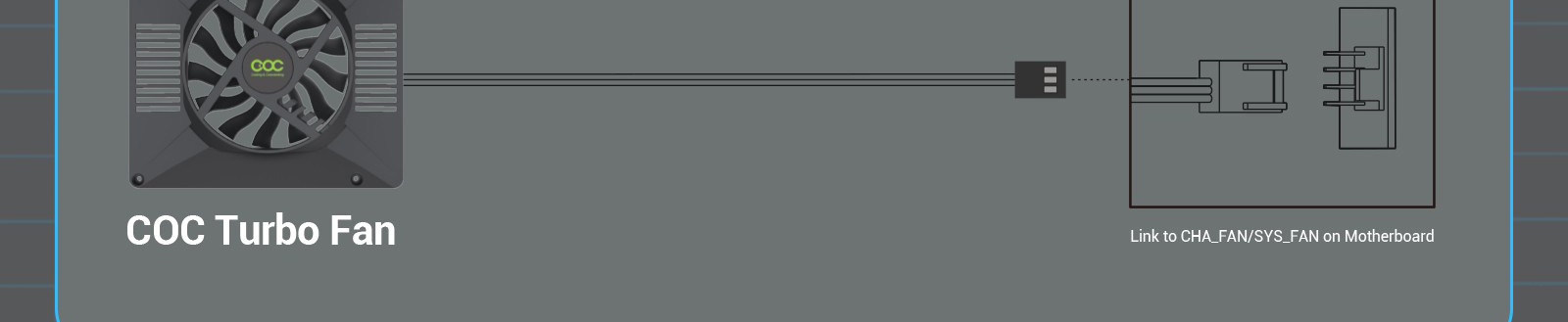

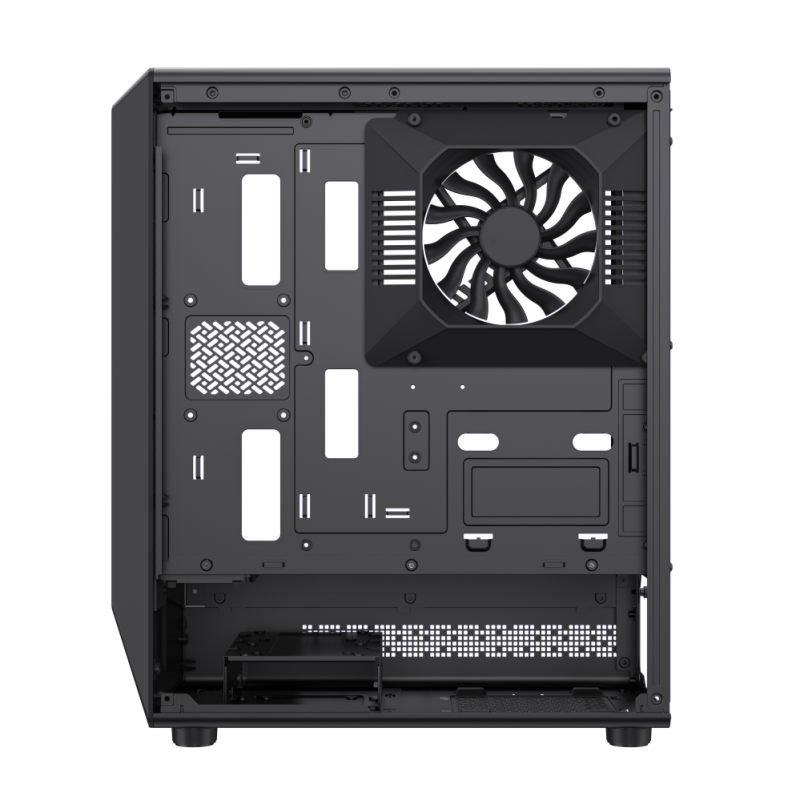

| M/B Plate | 1x120mm COC Turbo Fan(included) | |
| PSU Cover | 2x120mm (included) | |
| Water Cooling Support (Radiator Size) | Front | N/A |
| Top | 120mm, 240mm | |
| Rear | 120mm*1 | |

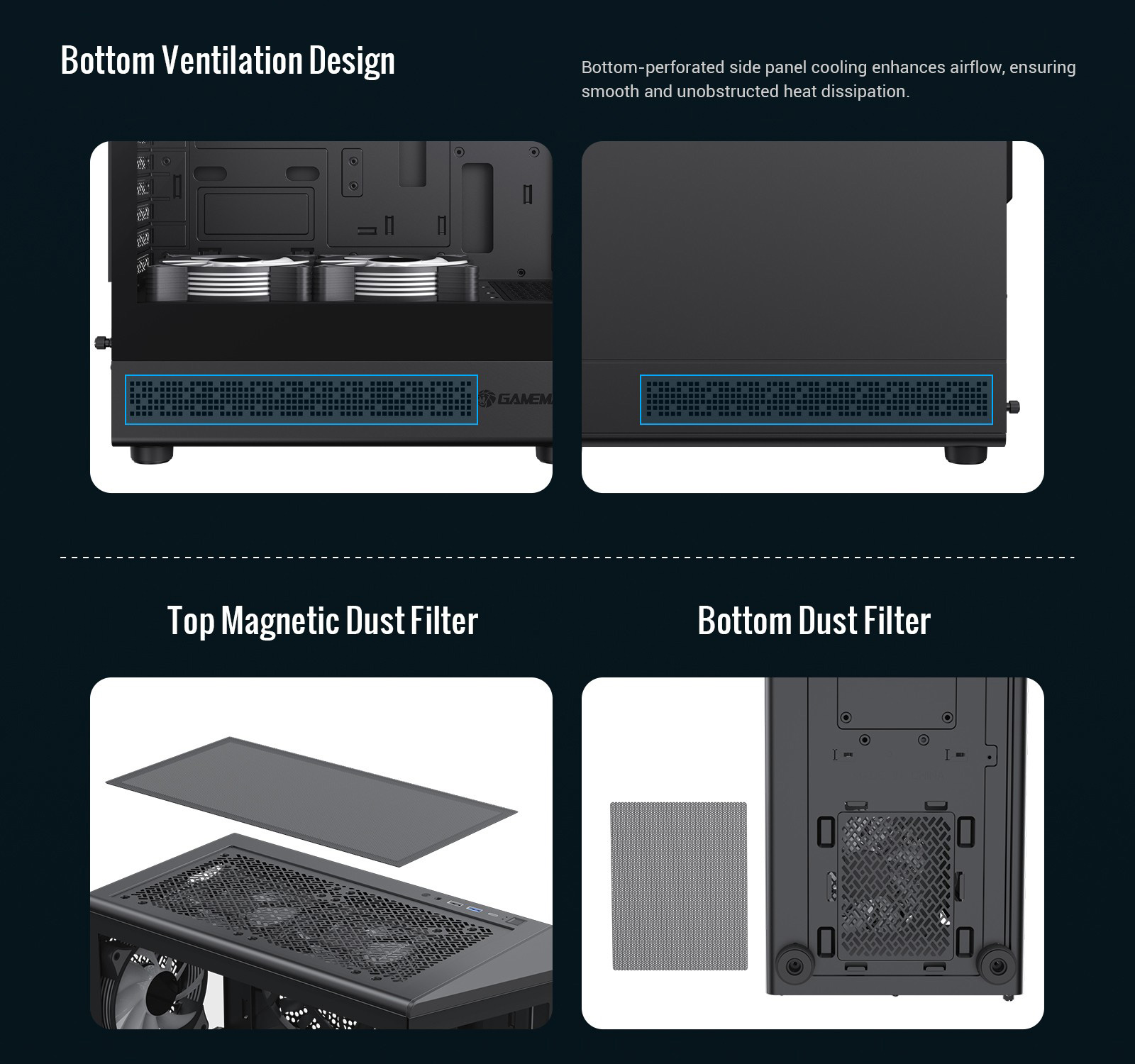

| Dust Cover | Bottom,Front and Top Cover With Dust Filter | |

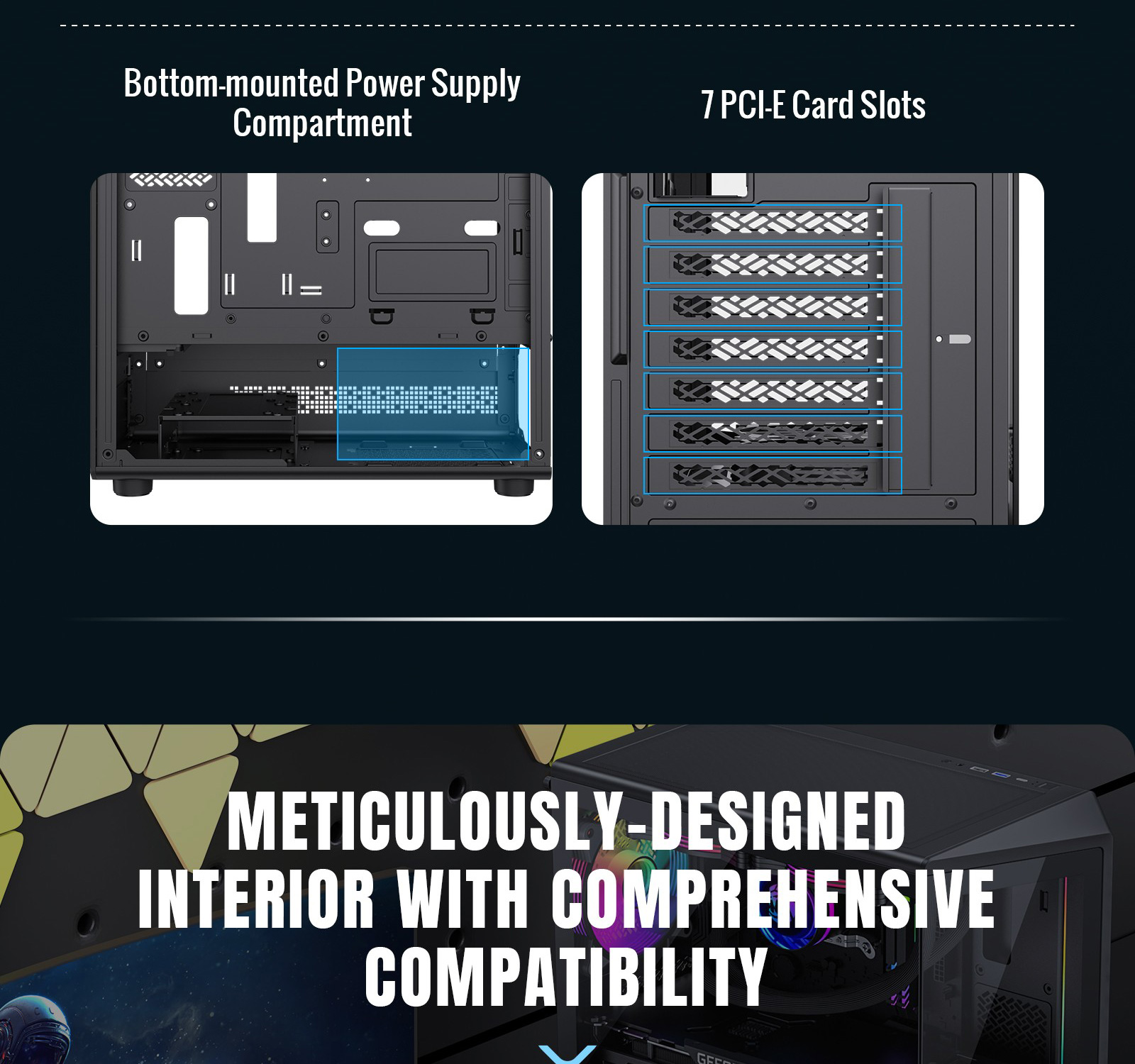

| Slots | *7 | |
| Carton & Logo | GAMEMAX | |

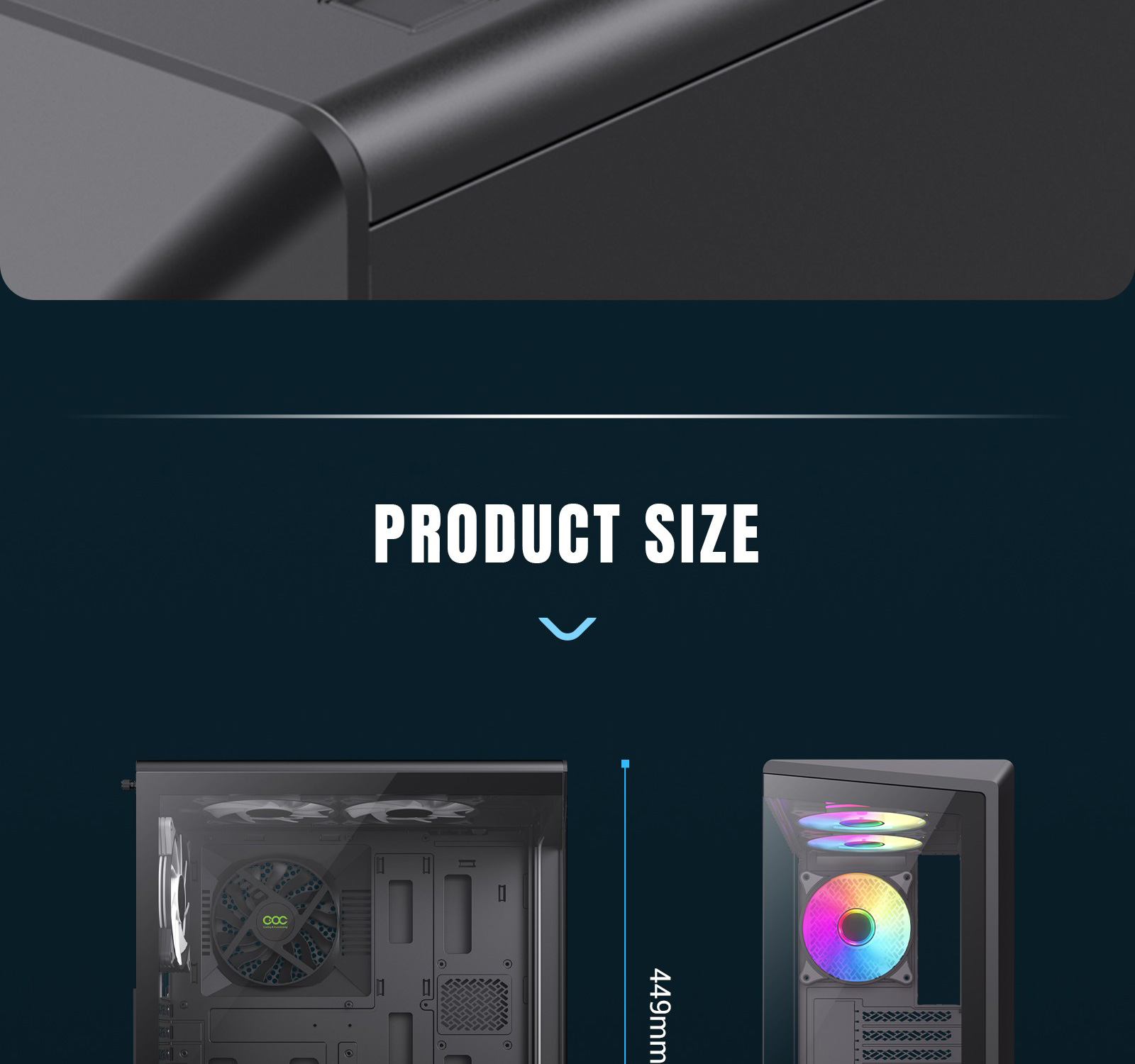

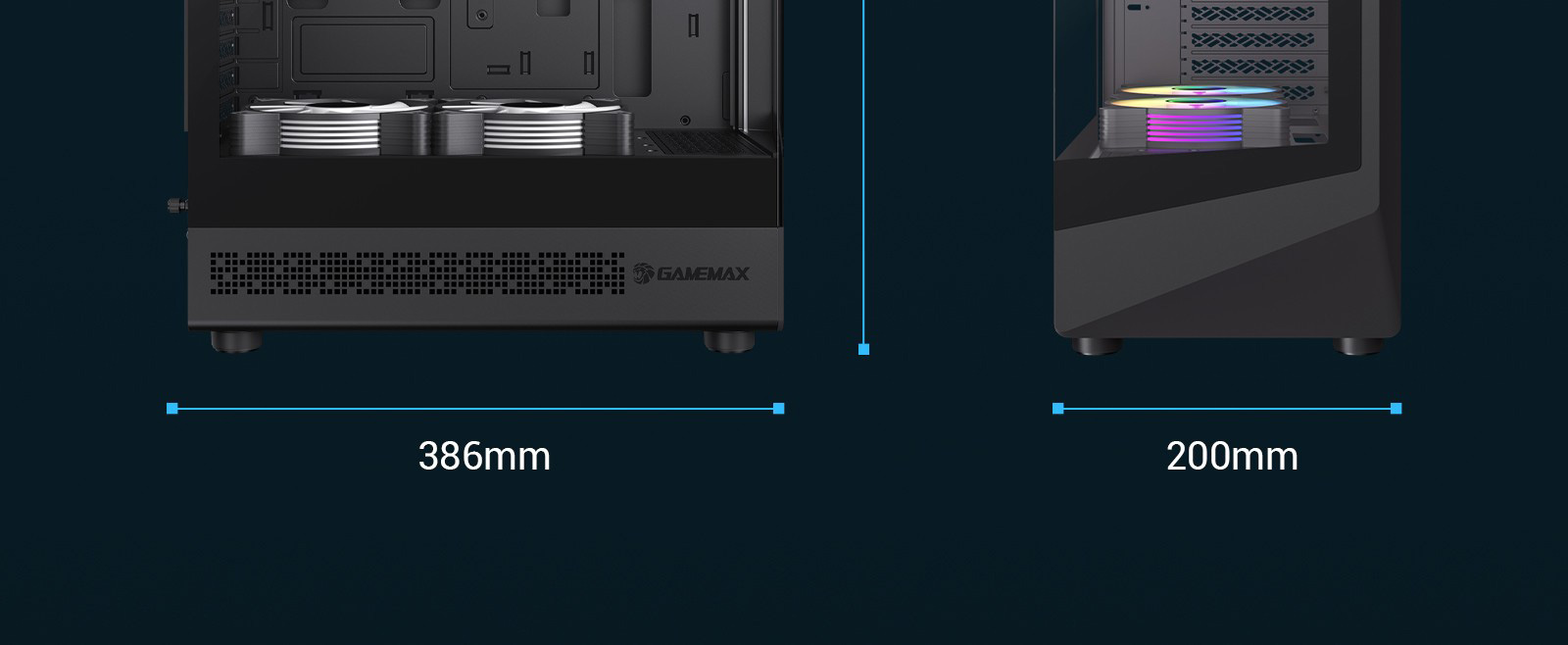

| Dimensions | Chassis | (L)340*(W)200*(H)436mm |
| Full Case (inc Fascia) | (L)386*(W)205*(H)449mm | |
| Carton | (L)486*(W)255*(H)433mm | |
| Net Weight (Kg) | 4.55kgs | |
| Gross Weight (Kg) | 5.0kgs | |
| VGA Card Length | Up to 330mm | |
| CPU Cooler Height | Up to 155mm | |
| PSU Length | Up to 160mm | |
| Cable Management Depth | 19mm | |
