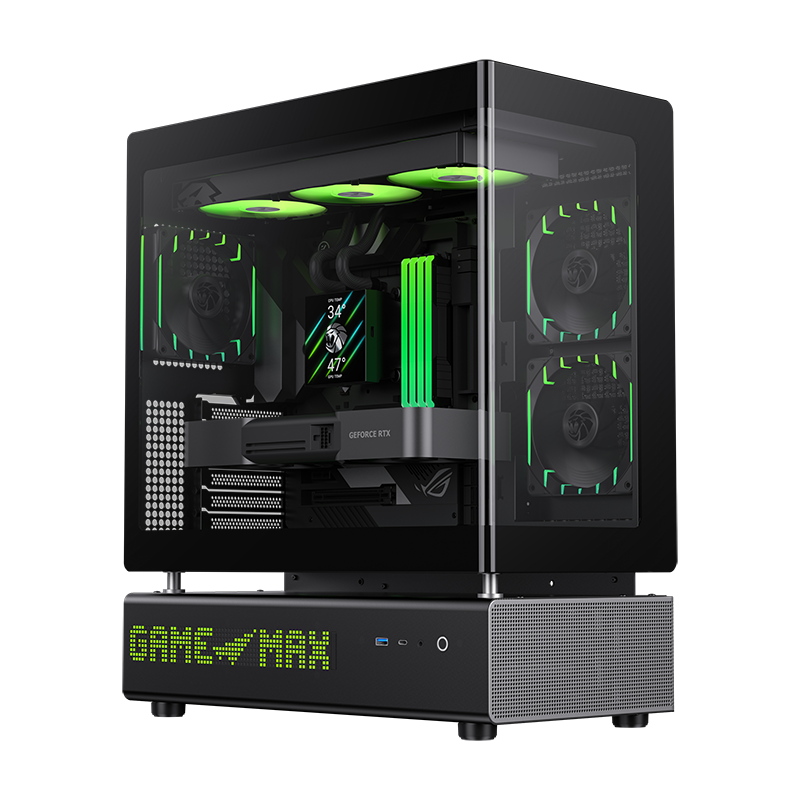

GAMEMAX N90 Modular Dual-Chamber PC Case with 512-LED Display, 270° Curved Glass & BTF Support.

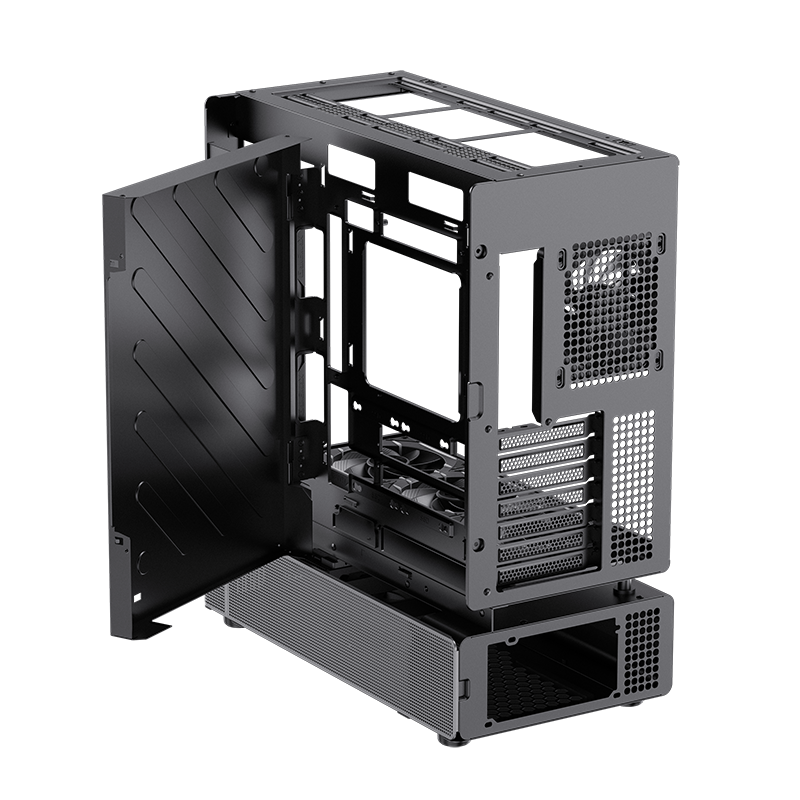

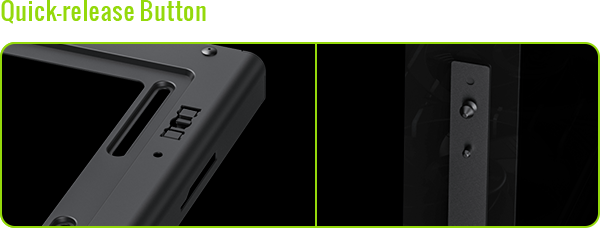

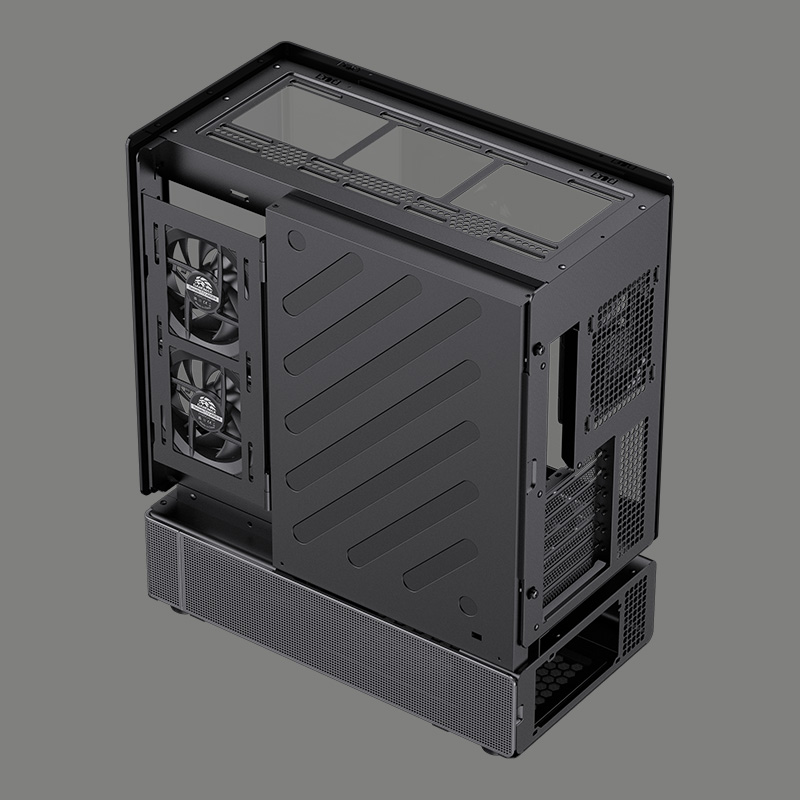

• Modular Dual-Chamber Design: Features an innovative split-type floating structure and tool-free quick-release panels, greatly improving assembly efficiency

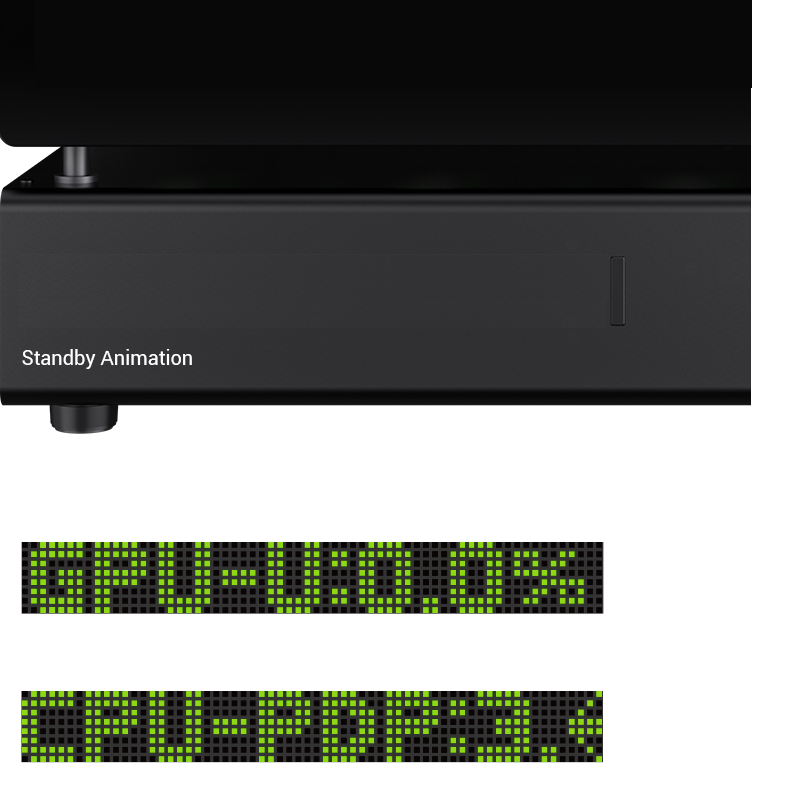

• 512-LED Dot Matrix Display: Equipped with a built-in front-panel screen, supporting system information display and DIY custom visual effects

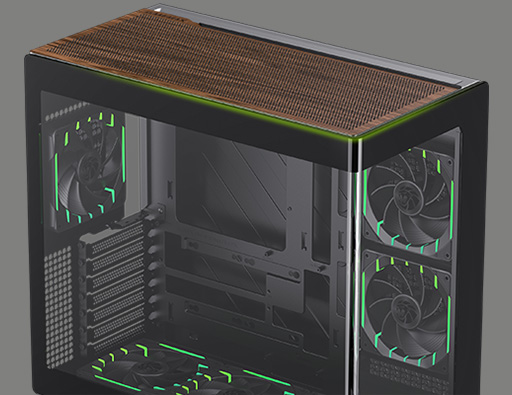

• 270° Panoramic Curved Glass Panel: One-piece molded tempered glass wraps around the front and sides, paired with a high-transparency explosion-proof film, balancing safety and visual uniformity

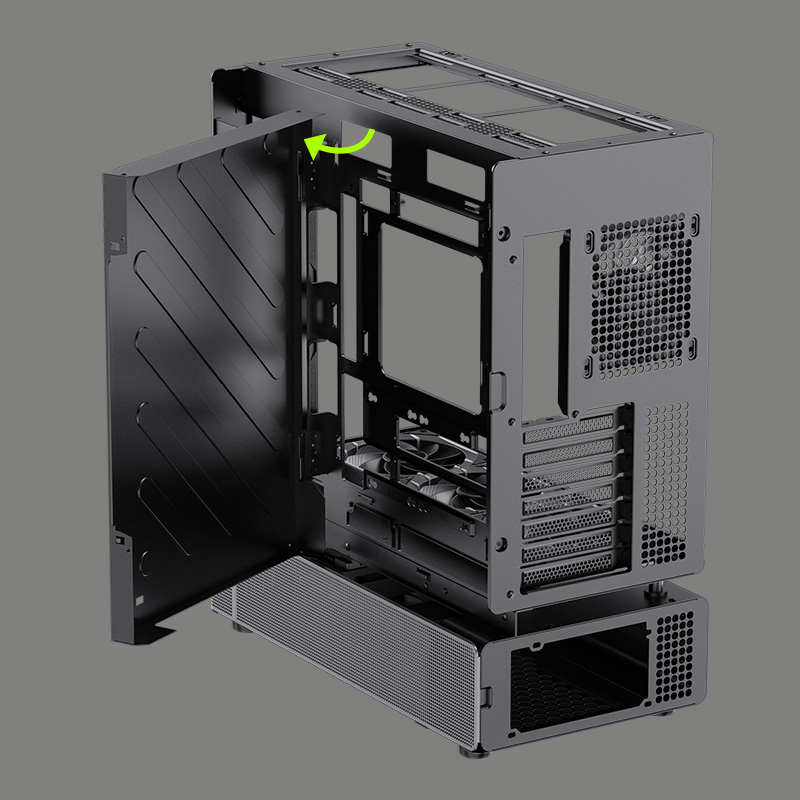

• Dedicated Support for BTF Motherboards: Compatible with the latest BTF motherboards, with cables hidden behind the tray to achieve a clean, wire-free internal layout

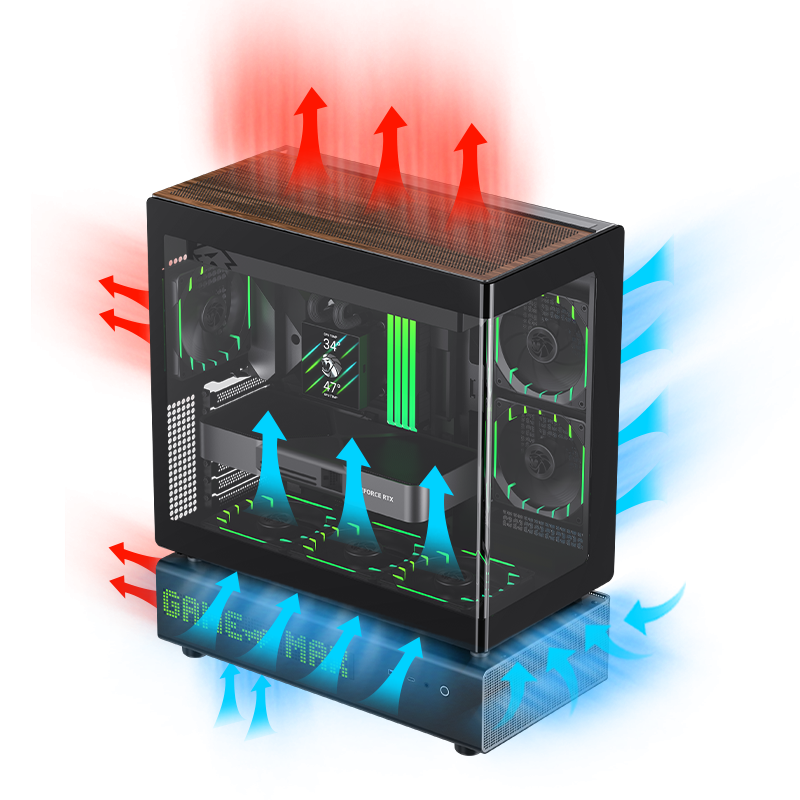

• 270° Advanced Cooling Layout: Combines side-mounted fan positions, split-chamber cooling, and custom ventilation zones; comes pre-installed with 6 ARGB PWM fans
Form Factor: | MID TOWER | ||
Chassis: | SPCC 0.8mm | ||
PSU Form Factor: | Bottom/ATX | ||
M/B Form Factor: | ATX、M-ATX、ITX (Support BTF) | ||
Front Panel: | Curved Tempered Glass | ||

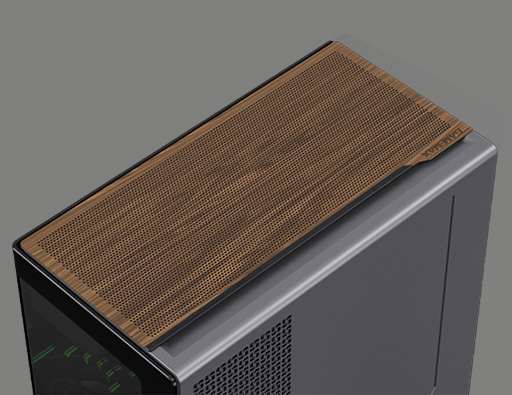

Top Panel: | Mesh，wood grain decoration | ||
Side Panel: | Left: | And the front panel curved tempered Glass | |
Right: | Metal | ||
External Drive Bay(s): | 5.25”(ODD): | *0 | |
3.5”: | *0 | ||

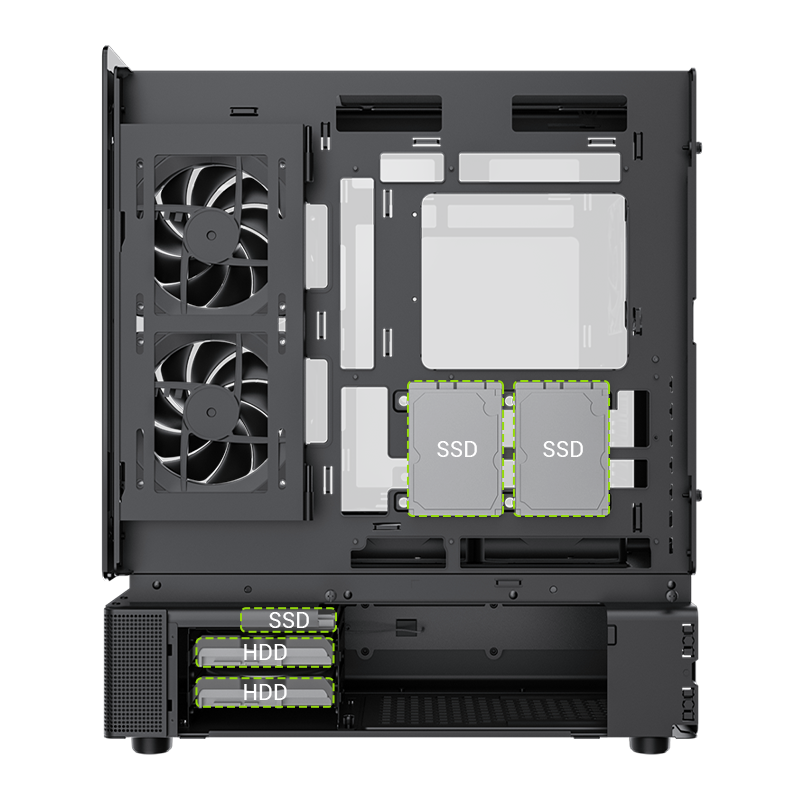

Internal Drive Bay(s): | 3.5" (HDD): | *2(Compatible 2.5SSD) | |
2.5" (SSD): | *2 | ||

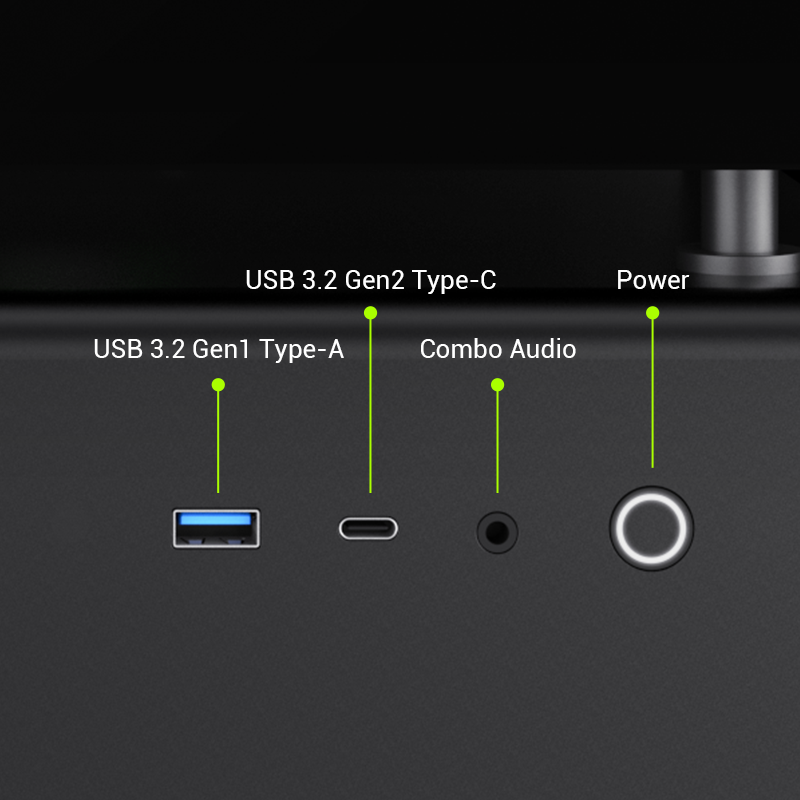

I/O: | Buttons: | *1 | |
USB 2.0 Port(s): | *0 | ||
USB 3.0 Port(s): | *1 | ||
Type C Port(s): | *1 (Gen2) | ||
Audio Support: | *1 Combo Audio | ||
RGB Controller: | *1 (V4.10-24AS CONTROLLER + Remote) | ||
LED SW | *0 | ||
Controller Max Fans: | *10 | ||

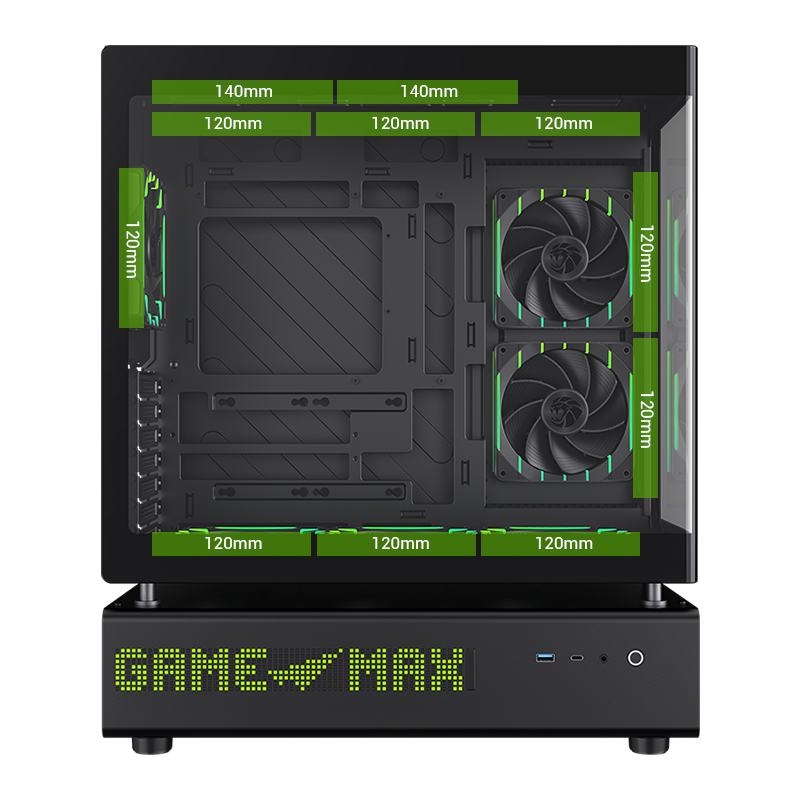

Cooling Fan Support: | Front: | *0 | |
Top: | 3x120mm,2x140mm(Optional) | ||
Rear: | 1x120mm(Tornado T12 ARGB) | ||
M/B: | 2x120mm(Tornado T12 ARGB-R) | ||
Bottom: | 3x120mm(Tornado T12 ARGB-R) | ||

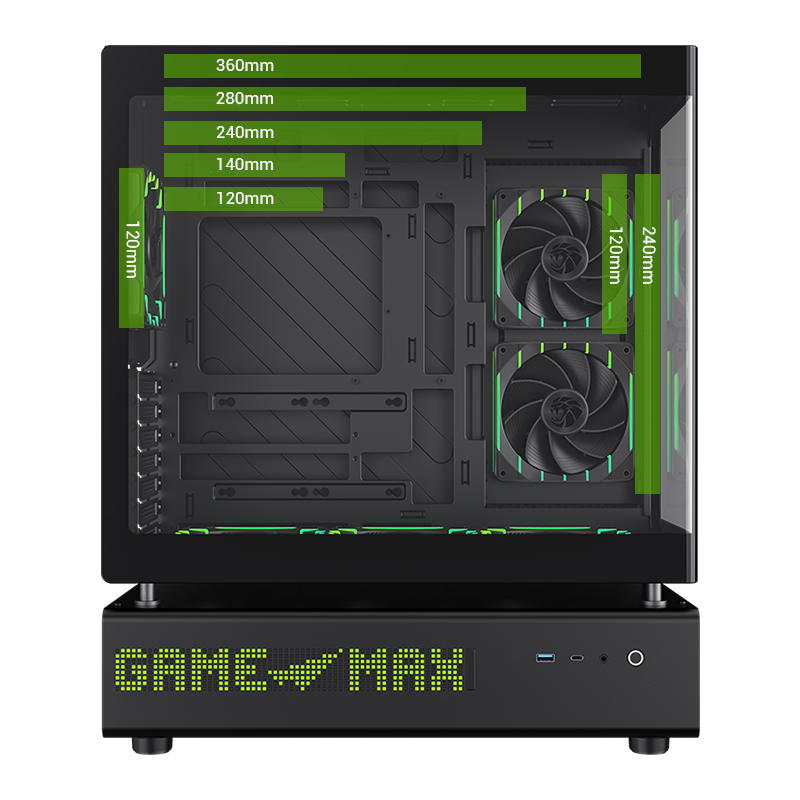

Radiator Support: | Front: | N/A | |
Top: | 120mm,140mm,240mm,280mm,360mm | ||
M/B | 120mm,240mm | ||
Rear: | 120mm | ||
Dust Cover: | Bottom with dust filter, top mesh | ||

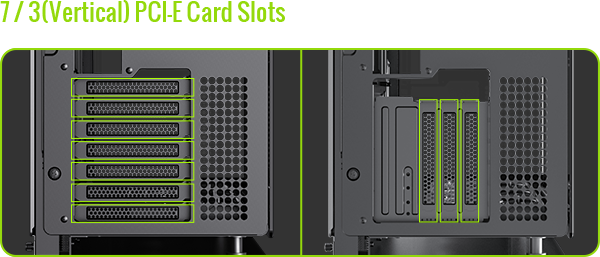

Slots: | *7 | ||

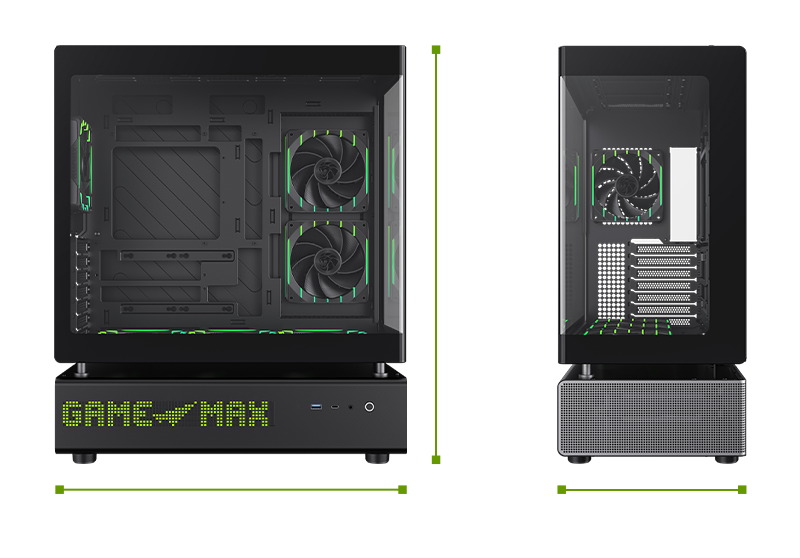

Dimensions: | Chassis: | (L)439*(W)235*(H)511mm | |
Full Case (Inc Fascia): | (L)439*(W)240.5*(H)530mm | ||
Carton: | (L)512*(W)310*(H)601mm | ||
Net Weight(kg): | 12.95 | ||
Gross Weight(kg): | 14.55 | ||
VGA Support: | up to 415mm | ||
CPU Cooler Height: | 175mm | ||
Cable Management Depth: | 32mm | ||
PSU: | Not included | ||
Display screen | 512 LEDs array | ||
