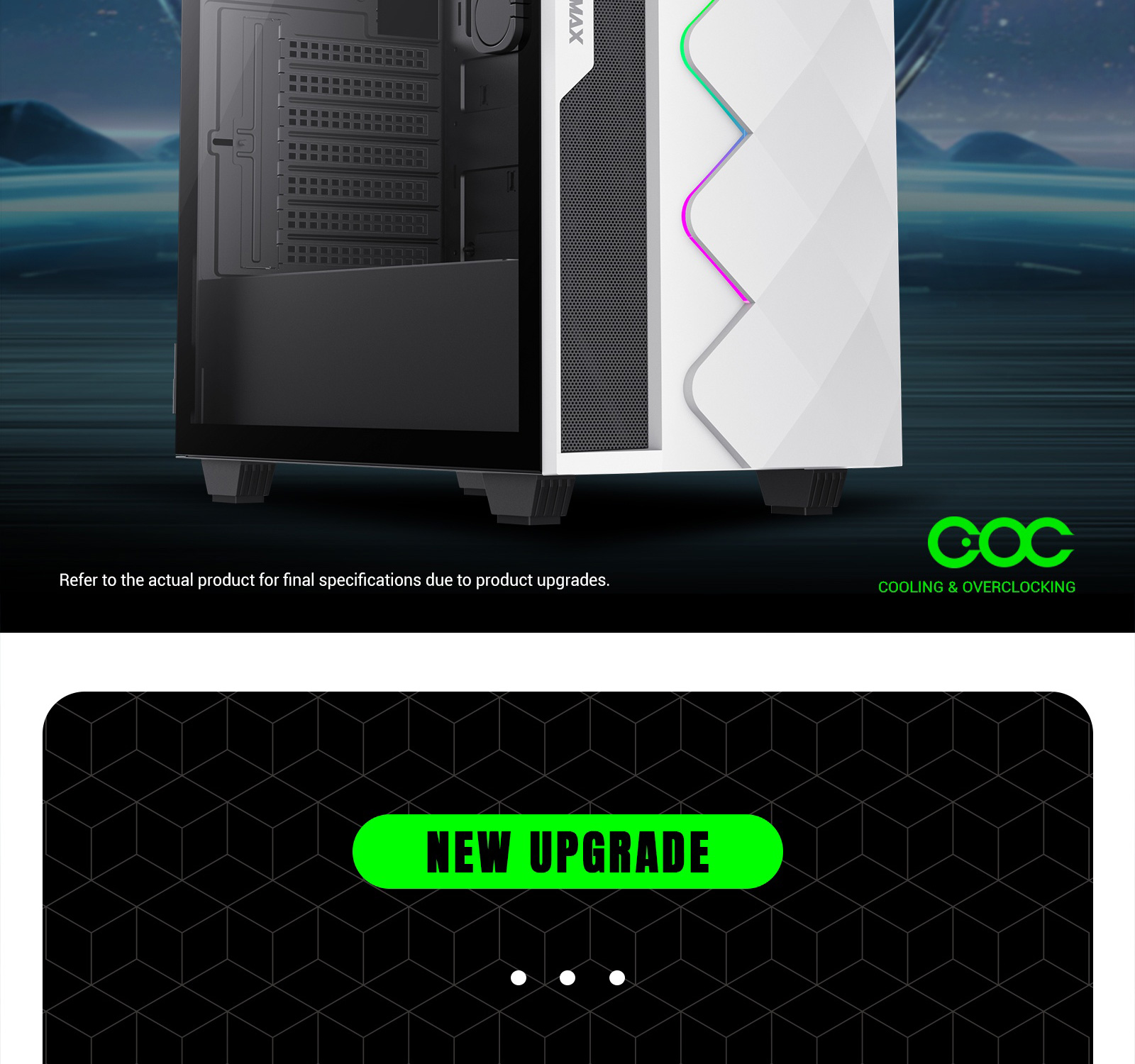

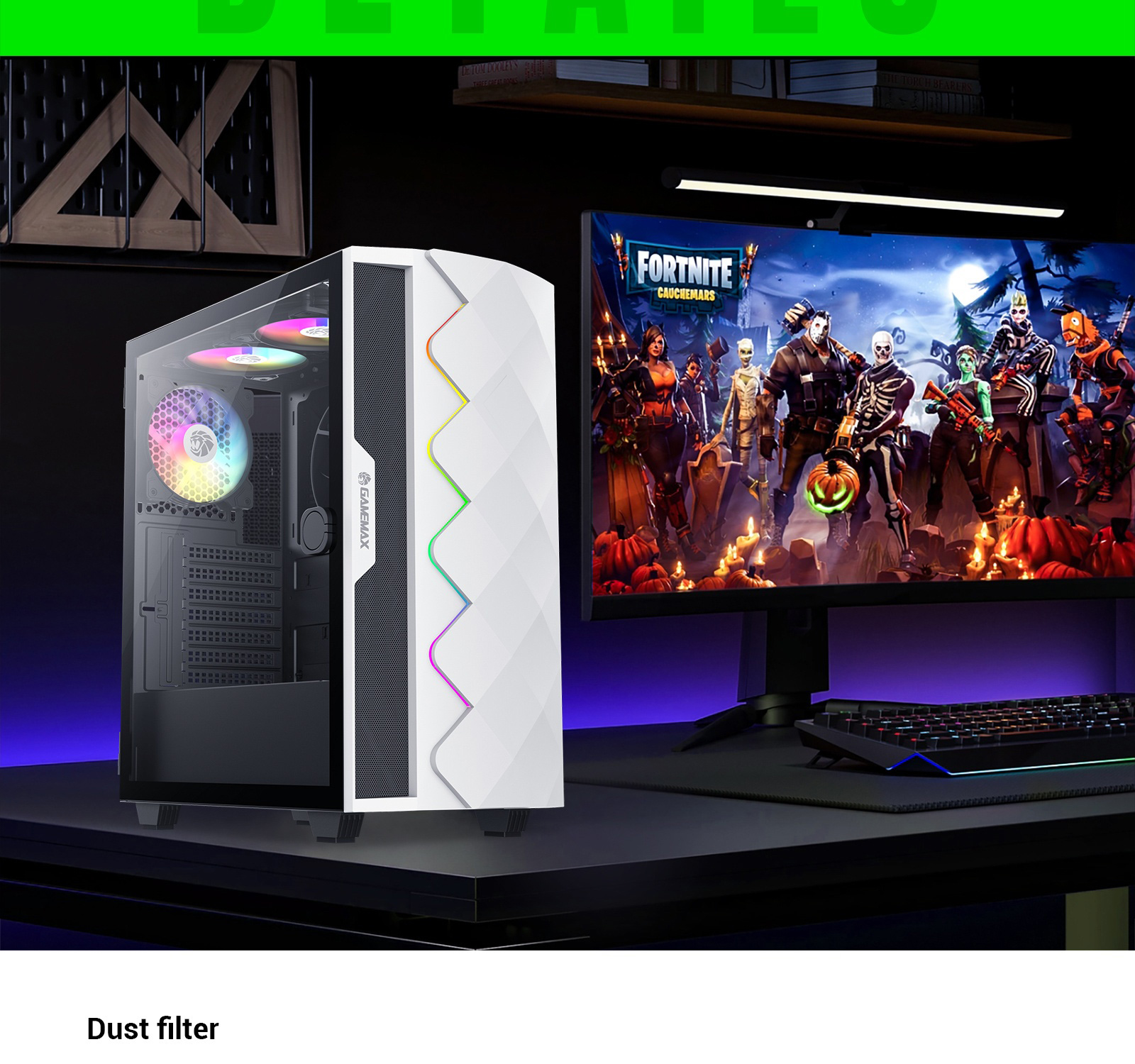

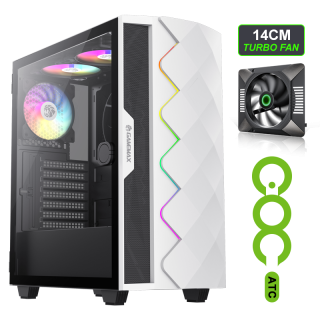

GameMax Diamond CP White Mid-Tower PC gaming case, designed for easy builds and a premium aesthetic, delivering high-end features at a great value.

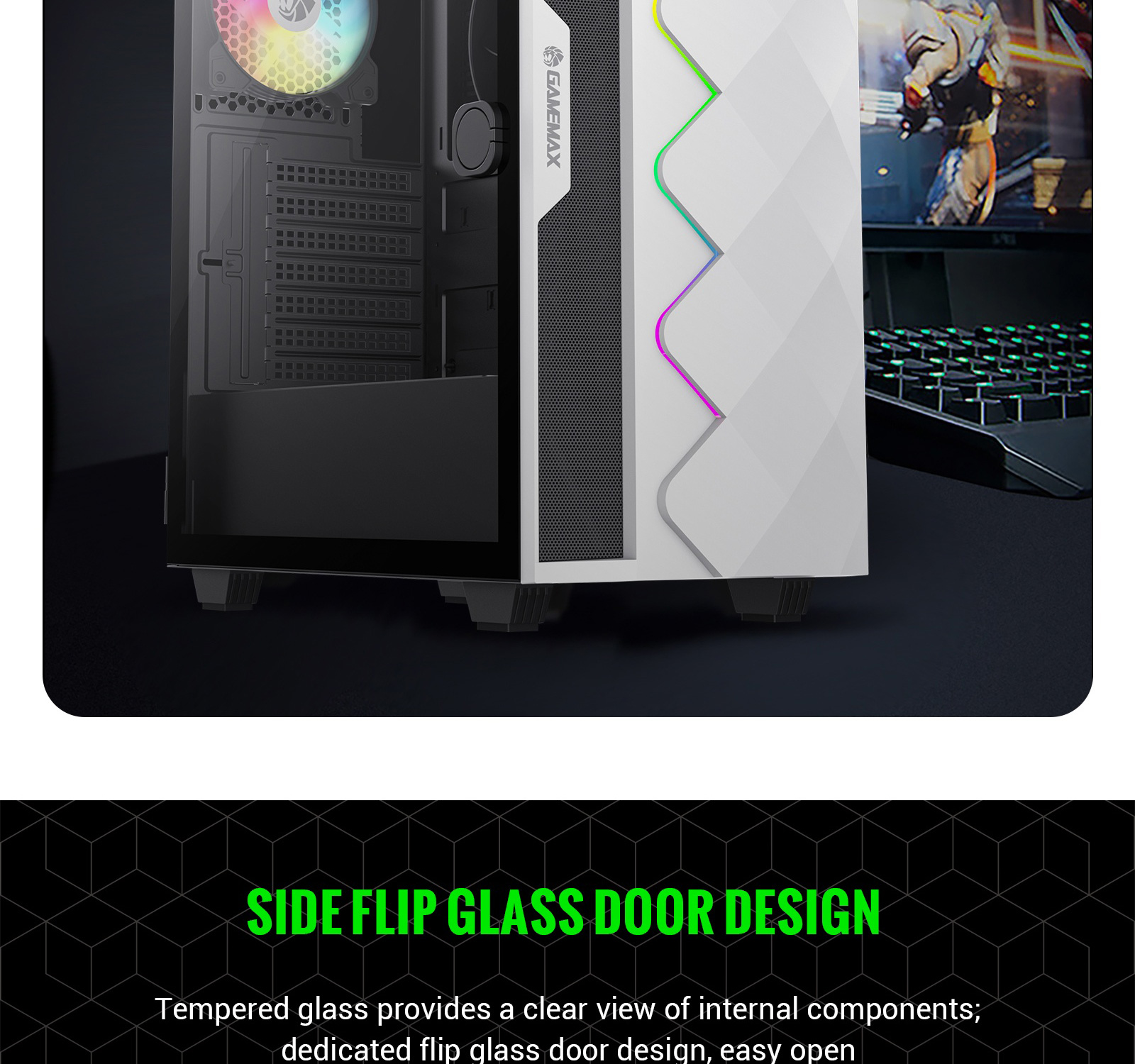

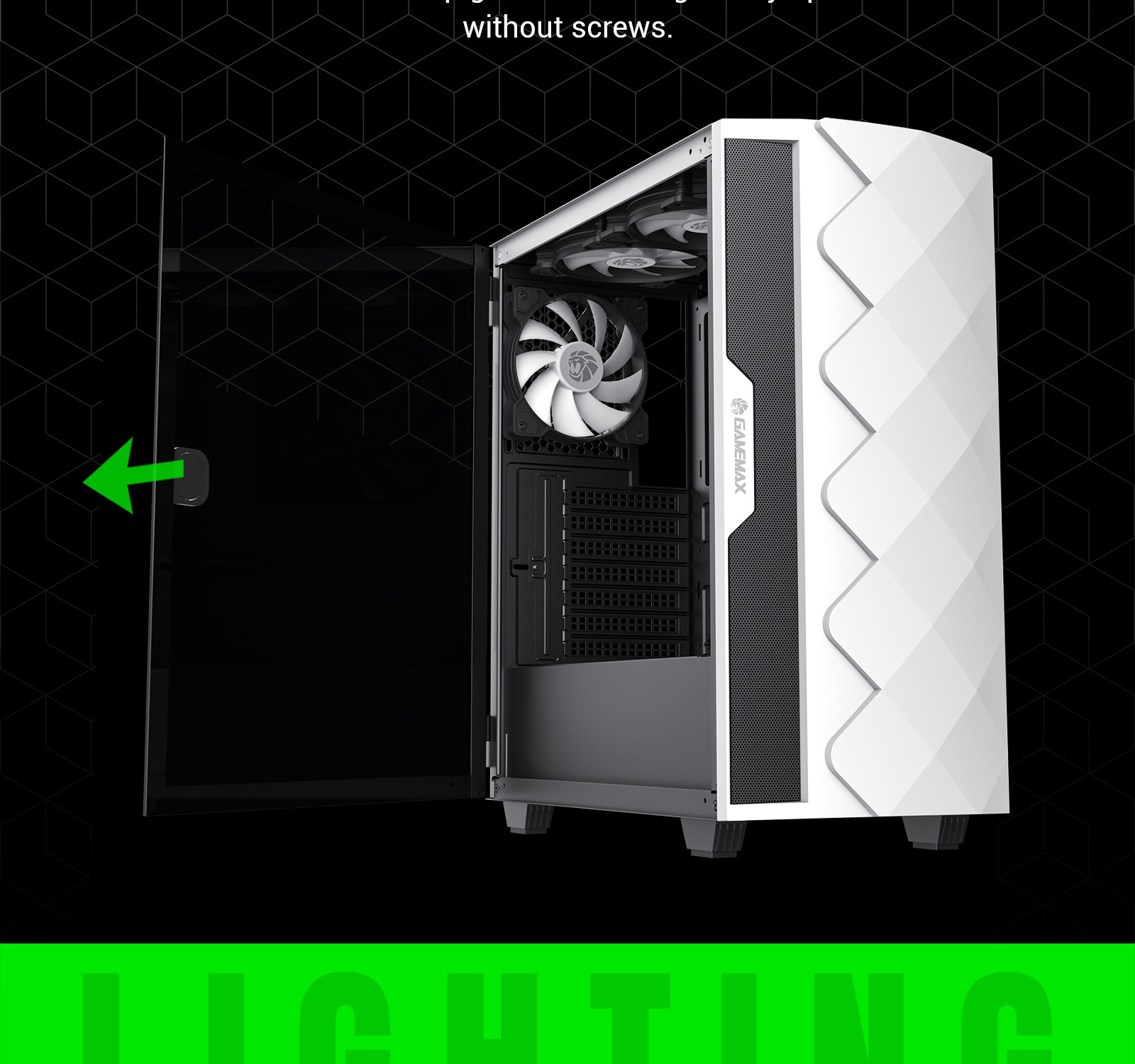

• Sliding Door Design: Easy open/close

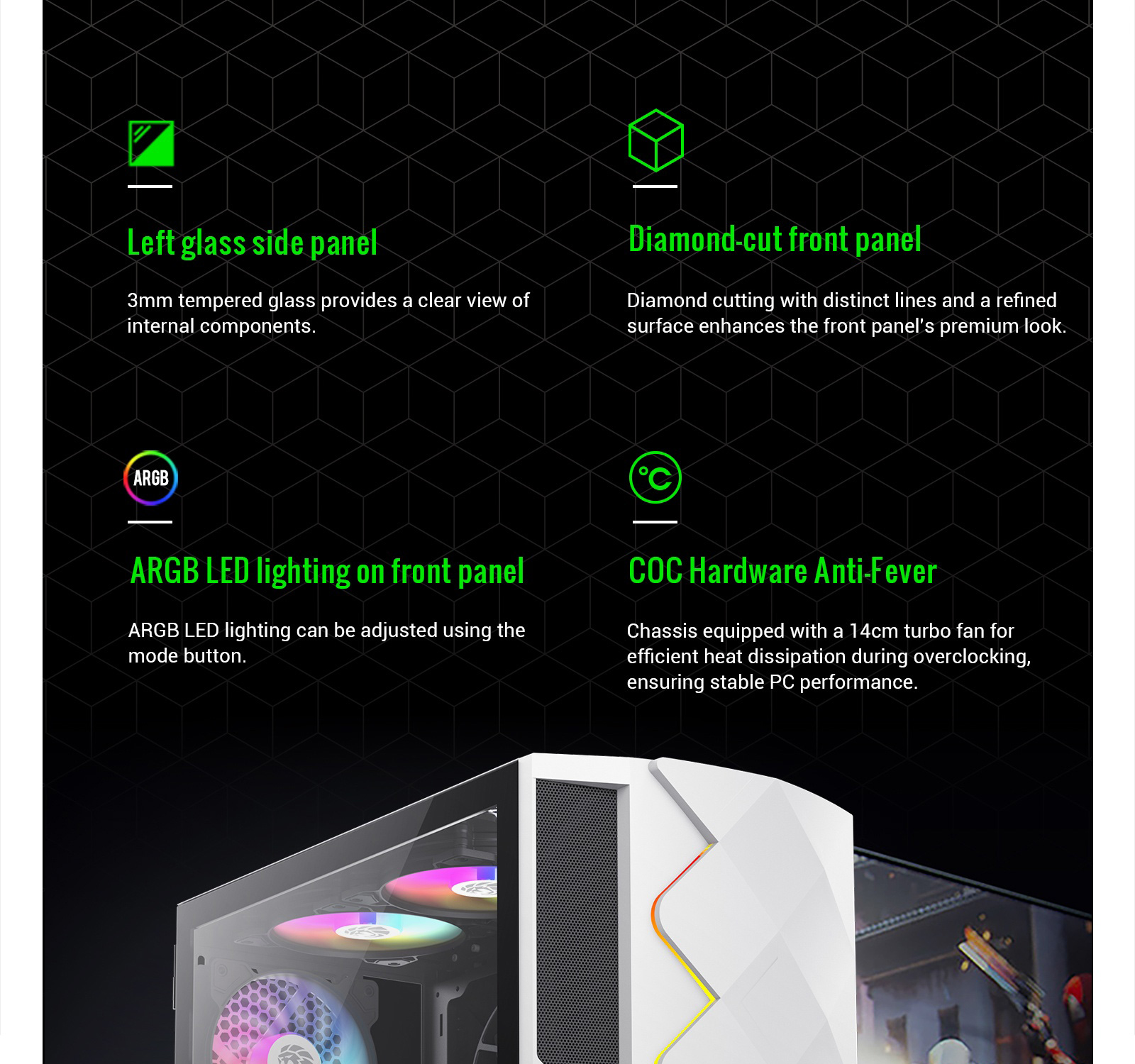

• Premium Aesthetic: Diamond-cut effect and inlaid spectrum LED strip for stylish RGB lighting.

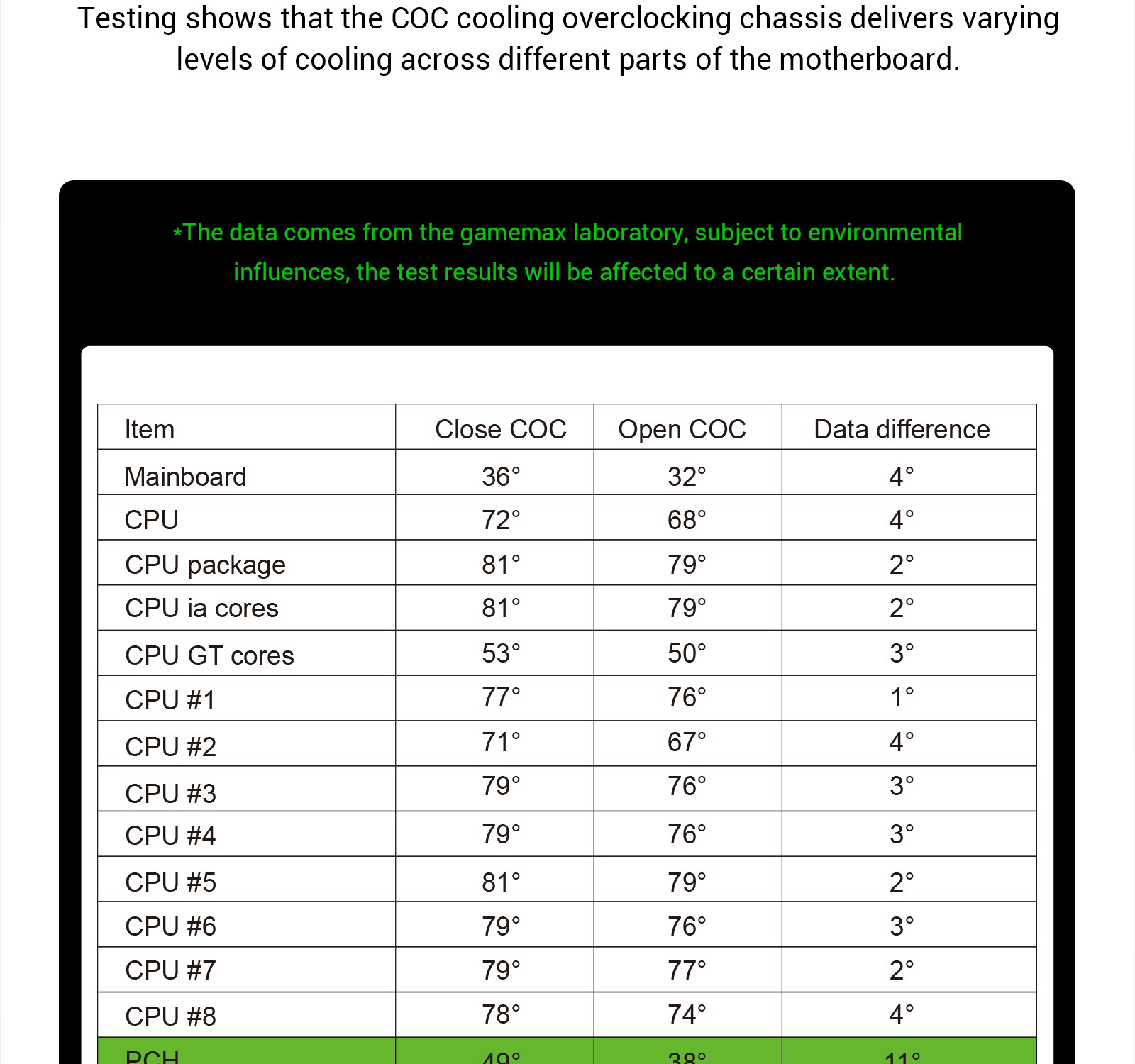

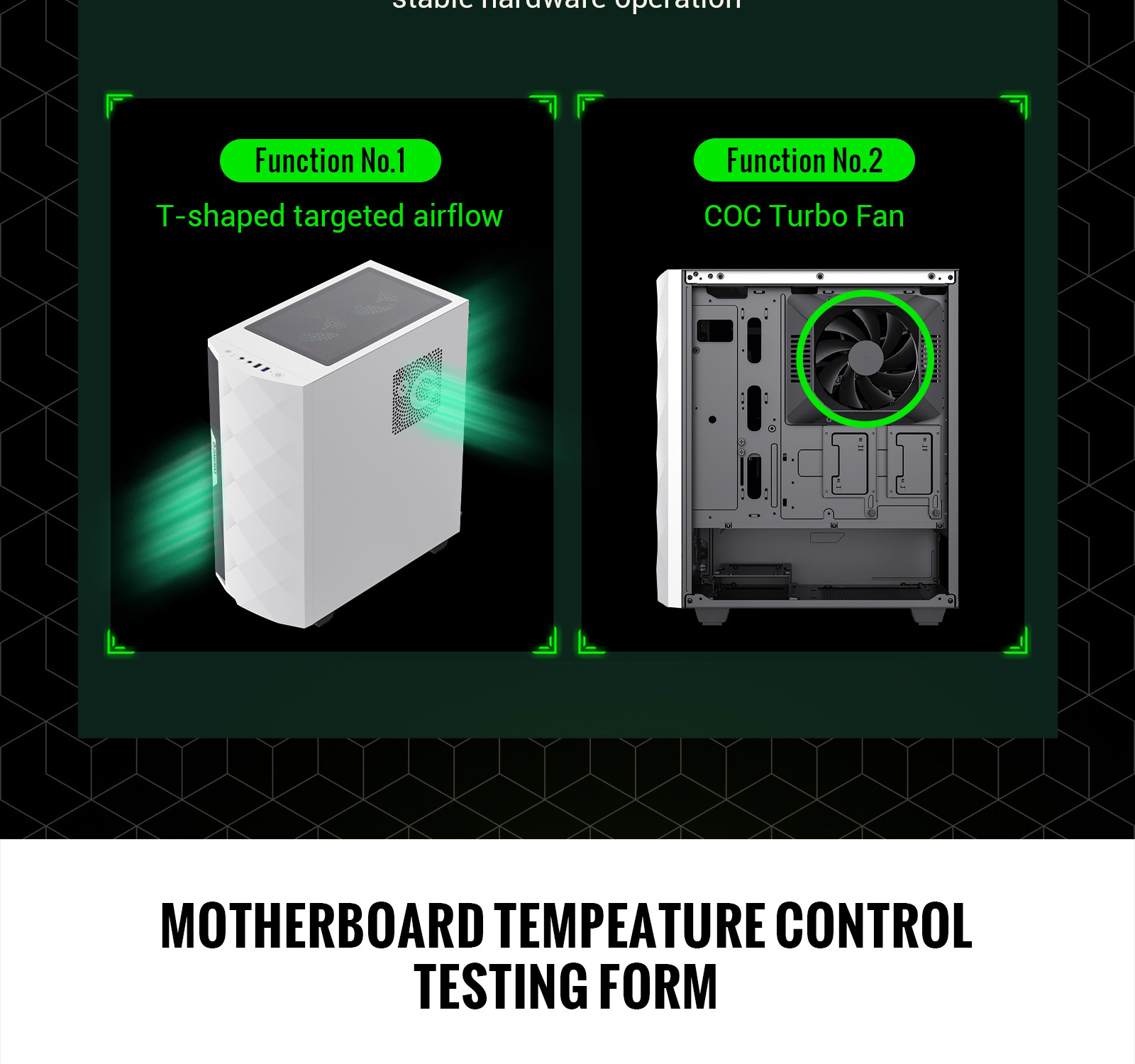

• COC Cooling: Active Turbo Fan with T-Shaped Air Intake ensures direct motherboard cooling and better heat dissipation.

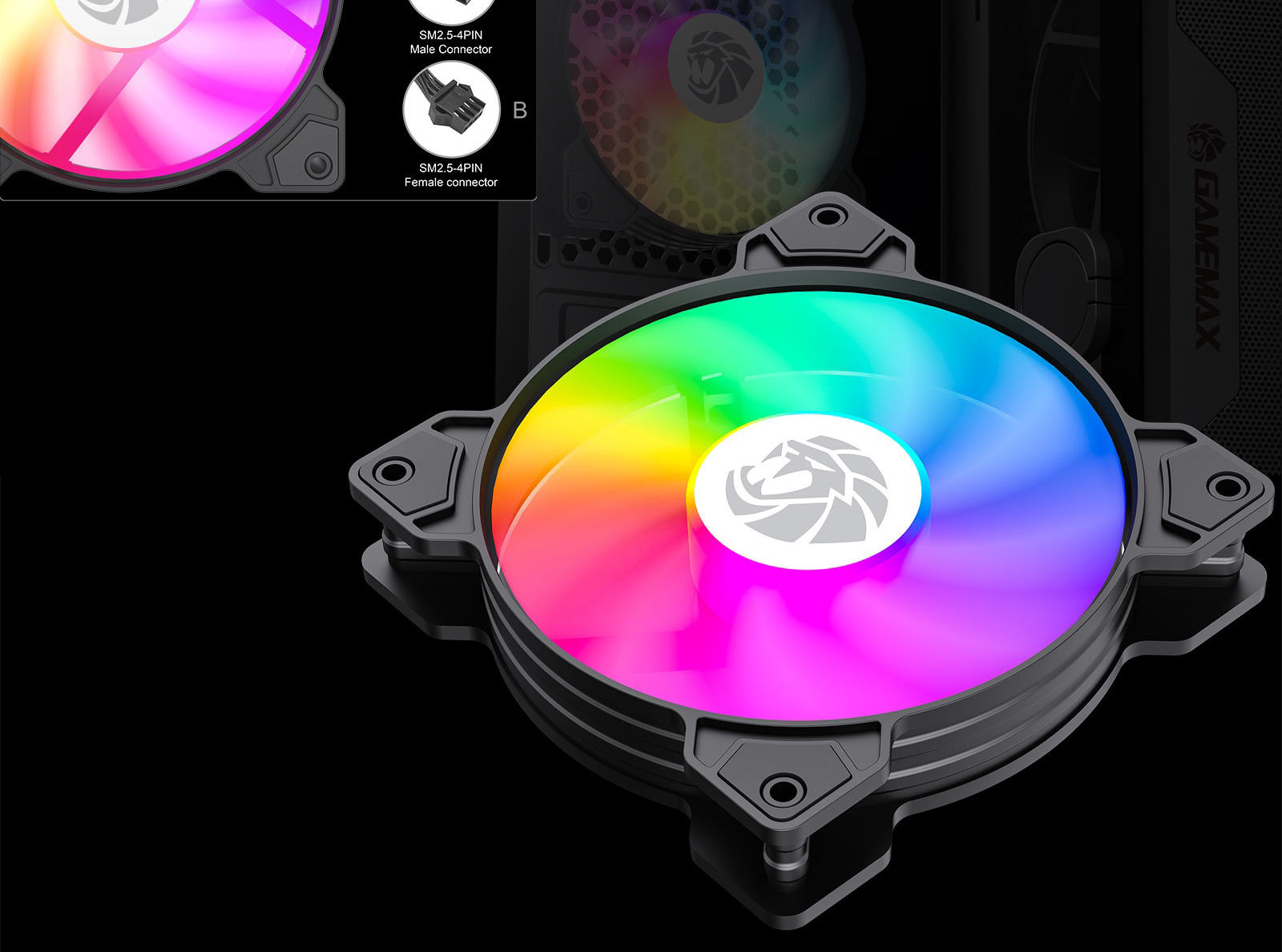

• Fan and RGB Support: Supports up to 5 fans with a 3-pin ARGB header for easy control via built-in firmware.
• Versatile features: Full-length PSU shroud, separated HDD bays, and excellent cable management for style and performance.
| Factory #Diamond CP | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi ATX Tower | |
| Chassis | SPCC : 0.5mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | ATX、M-ATX、ITX | |
| Front Panel | ABS | |
| Top Panel | metal cover | |
| Branding | Box | GameMax standard |
| Unit | 1 | |
| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |
| I/O CONFIG | Buttons | *2 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) USB3.1 GEN1 | *1 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| P-Lock | *0 | |
| RGB Controller | *1 Build-in Master FAN | |
| Controller max. fans | ||
| RGB Controller max. LED strips | ||

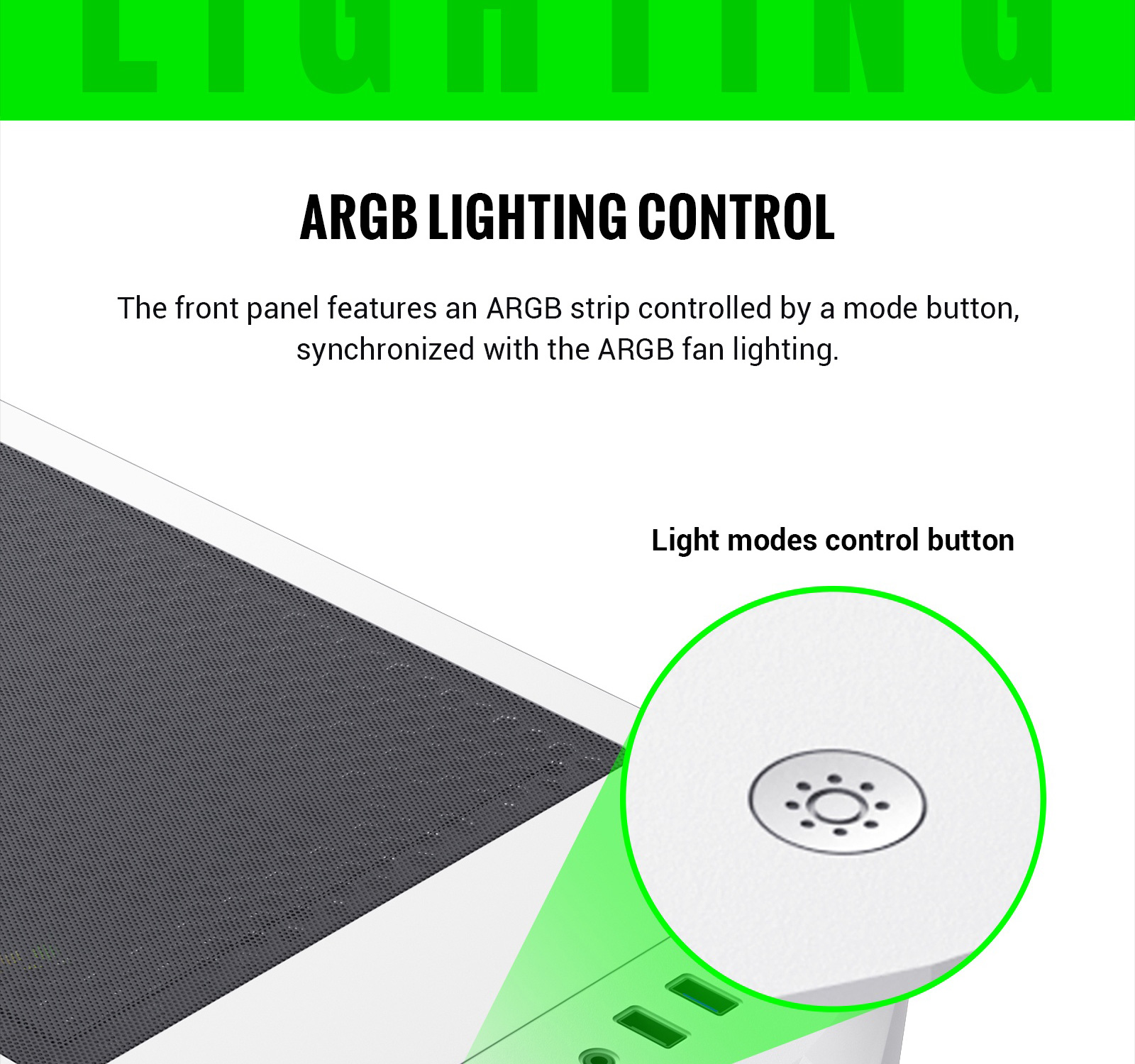

| Remote (IR or RF) | *Top RGB switch | |
| Cooling Fan Support | Front | 3x120mm,2x140mm(Fan optional) |
| Top | 2x120mm(ARGB Fan Included),2x140mm (Fan optional) | |
| Rear | 1x120mm (ARGB Fan Included) | |

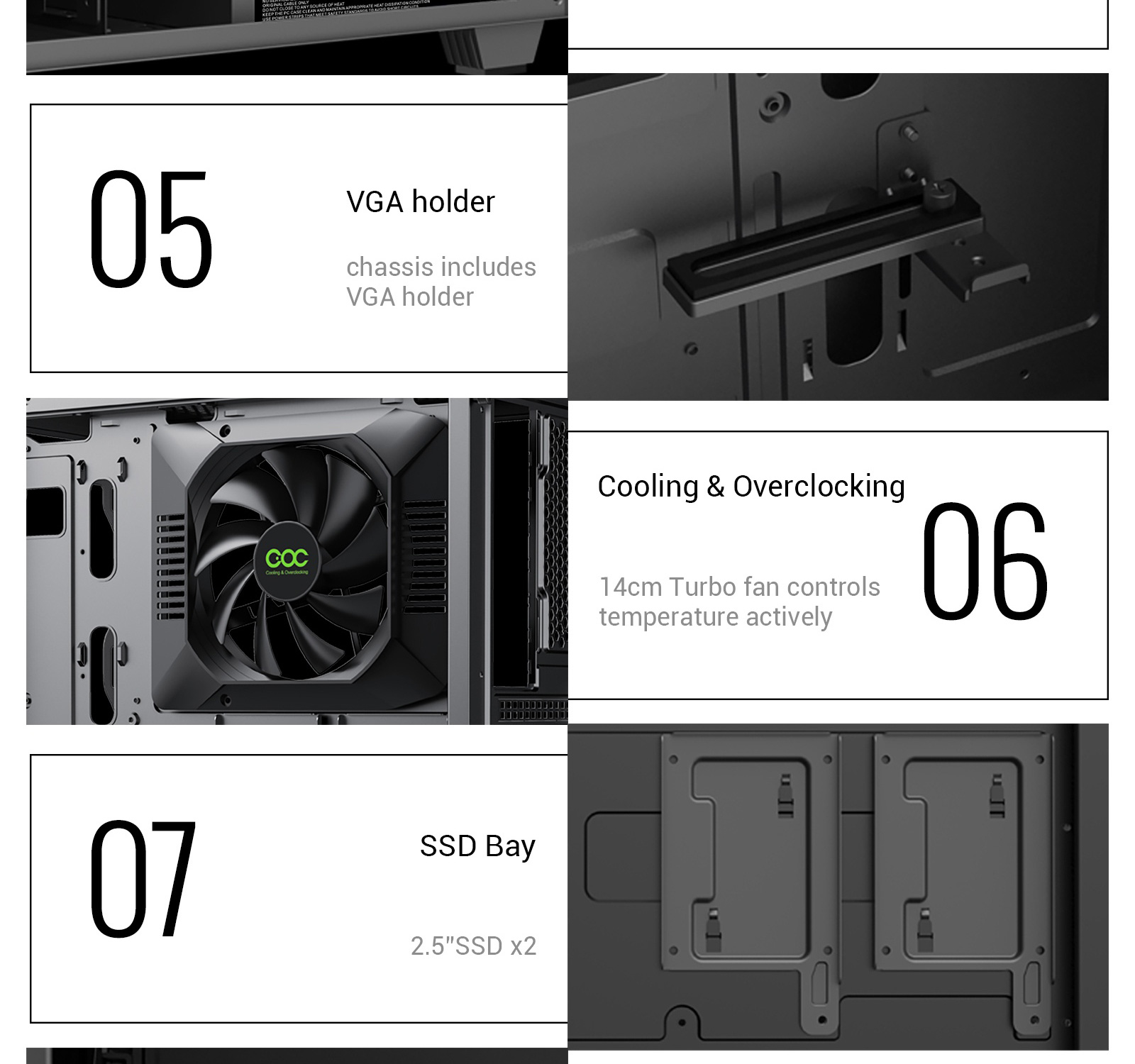

| MB Plate | 1x 140mm Turbo Fan (Included) | |
| PSU Cover | 2x120mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm |
| Top | 120mm, 240mm | |
| Rear | 120mm*1 | |
| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *7 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)360*(W)210*(H)440mm |
| Full Case (inc Fascia) | (L)421*(W)210*（H)460mm | |
| Carton | (L)*(W)*（H)mm | |
| Net Weight (Kg) | 4.4kgs | |
| Gross Weight (Kg) | 5.3kgs | |
| VGA Card Length | up to 340mm | |
| CPU Cooler Height | 170mm | |
| Cable Management Depth | 22mm | |
