In ITX cases, mini PCs, or compact builds, motherboard space is extremely limited, making traditional tower coolers impractical due to height restrictions. Low profile CPU coolers are designed to address this, typically standing under 60mm tall (some as low as 47mm). They balance cooling efficiency with space compatibility, becoming essential for small-form-factor builds. These coolers often use or short-tower designs, paired with 92mm to 120mm fans, and support mainstream Intel (e.g., LGA 1700/1151) and AMD (e.g., AM4/AM5) platforms.
Space-Friendly Design: Standing at 1/3 to 1/2 the height of traditional tower coolers, they fit seamlessly into ITX/Mini-ITX cases (usually with ≤70mm height limits), avoiding conflicts with RAM, GPUs, or case panels.
Wide Platform Compatibility: Supports all major CPU sockets, including Intel LGA 1700 (13th/14th Gen Core), LGA 1151 (6th-9th Gen Core), and AMD AM4/AM5 (Ryzen 3000-7000 Series), eliminating compatibility worries.
Balance of Silence and Performance: Equipped with low-speed PWM fans (e.g., 92mm hydraulic bearings) producing 25-35dB noise, they use Direct Touch heatpipe technology or dense fin arrays for efficiency. Some models handle up to 150W+ TDP.
RGB Lighting Options: ARGB/FRGB synchronization is available (e.g., GameMax Ice Blade ARGB with dual-ring infinity mirror lighting) for personalized builds.
Height Limits:
Ultra-Low Profile: ≤50mm (e.g., GameMax Ice Surface BK, 47mm tall, ideal for Mini PCs).
Mainstream Low Profile: 50-70mm (supports 120mm fans for balanced airflow and height, like Ice Blade FRGB).
Cooling Performance:
Heatpipes: 4 heatpipes (supports 150-200W TDP) outperform 2-3 heatpipes (suitable for 65-100W low-power CPUs).
Fin Design: Dense fins paired with optimized fan pressure maximize surface area.
Fan Sizes:
92mm Fans: For extreme compactness, offering 40-60 CFM airflow.
120mm Fans: Popular choice with 80-100 CFM (e.g., Gamma 300’s "large bowl" fan enhances air convection).
RGB and Control:
Supports 5V 3Pin ARGB or 12V 4Pin RGB, syncing with motherboards (ASUS Aura Sync, MSI Mystic Light) for modes like rainbow or breathing effects.
| Platform | Recommended Models | Key Specs |
|---|---|---|
| Intel LGA 1700 (13th/14th Gen Core) | GameMax Ice Surface BK | 47mm height, 4 heatpipes, 92mm fan, ITX-ready |
| AMD AM4/AM5 (Ryzen 3000-7000 Series) | Sigma 520 Digital BK | Dual-tower design, 4 heatpipes, ARGB, 220W TDP support |
| Intel LGA 1151 (6th-9th Gen Core) | Ice Blade FRGB | 120mm fan, fixed RGB, compatible with legacy platforms |
| General Compact Builds | Gamma 90 Dark/BK | 150W TDP support, blacked-out design, 4 heatpipes |
Flagship (Performance + Aesthetics):
GameMax Sigma 550 Infinity BK (5 heatpipes, 220W TDP, ARGB infinity mirror, 65mm height)
Noctua NH-L12S (Dual-tower 120mm fan, iconic silent design, supports LGA 1700/AM5)
Mainstream (Best Value):
GameMax Ice Blade ARGB (4 heatpipes, 120mm dual-ring ARGB fan, 58mm height, multi-platform)
DeepCool Gammaxx L240 (Downflow design, 120mm fan, RGB sync, ideal for entry-level builds)
Miniature (Extreme Compactness):
GameMax Ice Surface BK (47mm ultra-low, 92mm fan, ITX-exclusive, silent non-RGB)
ID-Cooling IS-40X (4 heatpipes, 54mm height, supports LGA 1700/AM4)
Case Height Limit: Measure the CPU area height in your case (typically 45-70mm for ITX) and leave 5-10mm clearance.
CPU Power Match: Choose 4 heatpipes + 92mm fan for i5/R5 (65-100W); opt for 5 heatpipes + 120mm fan for i7/R7 (120-200W, e.g., Sigma 550 Infinity BK for 220W TDP).
Lighting Needs: Pick ARGB models for customization (e.g., Gamma 600 dual-fan sync) or non-RGB for silence (e.g., Ice Wind all-black design).
Low profile CPU coolers debunk the myth that "small cases can’t cool well," achieving balance in space, performance, and aesthetics through smart design. Whether building an HTPC, mini office PC, or a 高颜值 ITX gaming rig, choosing the right cooler (like GameMax Ice Surface BK’s ultra-slim profile or Sigma 540 ARGB’s high efficiency) ensures both practicality and style. By matching platform needs, case space, and budget, even small builds can deliver big performance.

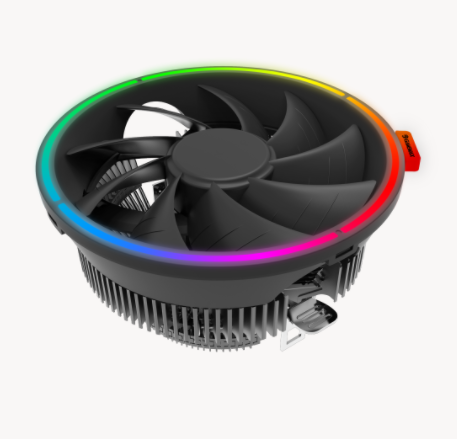

Gamma 200 RGB CPU Cooler. UNIQUE DESIGN. Top-Flow Air CPU Cooler
• DIRECT-TOUCH STYLE COPPER BOTTOM
• Intel and AMD platform are both supported
• 4PIN PWM Fan
• Rainbow ARGB light effect

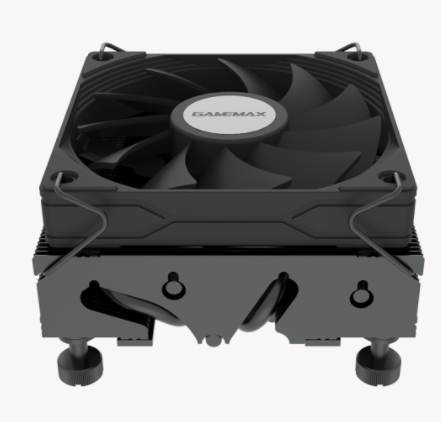

GameMax Ice Surface CPU Air Cooler, Super perfermance half profile height for Mini PC and ITX PC system ,4 Heat-Pipes, 92mm Hydraulic Bearing CPU Fan, Fins Bending, 4-pin CPU Cooler, for Intel LGA1851/1700/1200/115X, and AMD AM4
• 【47mm Height,CPU Air Cooler】Ice Surface CPU Air Cooler is armed with 116 pieces of penetrate-design fins, and high-level metal fasteners
• 【4 Copper Heat-pipes】The 4x6mm Pure copper and vacuum heat-pipes of this CPU Cooler for can directly connect to the CPU
• Thus, the heat can be transferred to the fins quickly without any obstacles
• And it adopts 116 inserted fins, the heat pipes and fins can be closely connected, the heat conduction system is easy to work
• 【Removable PWM Fans】This CPU Fan is safe and easy to maintain with the removable fan fasteners that made of metal materials for avoiding the possibility of damage in transit
• The soft fan blades combined with each other, bringing to the bright sense of beauty
• 【Fins Bending Technology】The fins of this CPU Cooler adopt the bending technology that contributes to the good ventilation and heat conduction ability between the fins
Gamma 300 CPU air cooler provides excellent performance featuring a 120mm big bowl fan for higher air pressure, and unique top-down Accelerated Cooling design to dissipate heat for the CPU, memory, and the motherboard
• The Gamma300 is for enthusiasts and gamers to push their systems to the limit
• Exceptional cooling performance is a must to keep it running stable and at max speeds
• The Gamma 300 is also stylishly design to match the precision engineered components in your build
• It even comes with a rainbow ARGB fans and controller for you to change the your lighting without limitations, and it apply with AURA 3pin header for sync
• Gamm300 Rainbow has 5pcs Direct Contact Heatpipes to provide the best in thermal performance.A base engineered to minimize CPU contact gaps provides excellent heat conduction.
