PWM ARGB case fan GAMEMAX

In the realm of high-performance PC building, cooling and aesthetics have become inseparable demands. The integration of PWM (Pulse Width Modulation) technology and ARGB (Addressable RGB Lighting) has transformed case fans from mere "cooling guardians" into "lighting designers" for desktop aesthetics. This article takes GameMax's PWM ARGB case fans as a benchmark to decode how technological innovation achieves dual upgrades in cooling efficiency and lighting artistry.

1. PWM and ARGB: The Technical Fusion of Function and Aesthetics

1.1 PWM Smart Speed Control: The Core Engine of Dynamic Cooling

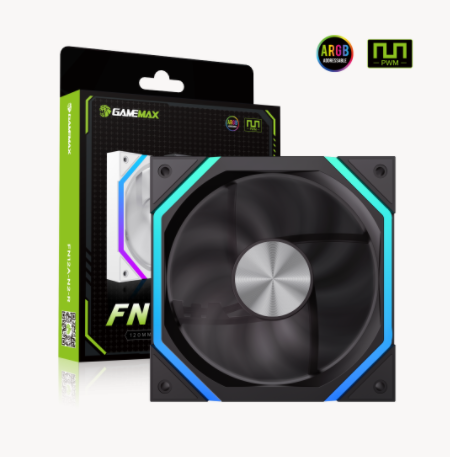

PWM technology adjusts fan speed automatically via motherboard temperature signals. For example, the GameMax Tornado T12 ARGB-R supports a high speed of 2200RPM with PWM temperature control—when the CPU temperature rises, the fan accelerates to peak speed for rapid heat dissipation, while it drops to low speed during low-load periods, keeping noise below 33.7dB(A) (as seen in the hydraulic bearing design of the FN12A-N2-R model). This "demand-driven allocation" cooling logic avoids the noise issues of traditional fans while extending hardware lifespan.

1.2 ARGB Lighting: The Visual Revolution from Monochrome to Chromatic Fantasy

GameMax fans prioritize "immersive lighting experiences" in their ARGB design. The Tornado T12 series, for instance, features 24 ARGB LEDs creating a unique "claw mark" light effect, supporting motherboard-synced color adjustment for dynamic modes like flowing water, gradient, and breathing. The Dual Ring Infinity BK fan goes further with an outer quad-ring light and central infinity mirror effect, crafting a three-dimensional light hierarchy. With a 5V 3pin ARGB interface, it easily synchronizes with motherboards and water cooling heads for cohesive lighting.

2. Analysis of GameMax PWM ARGB Fan Flagship Models

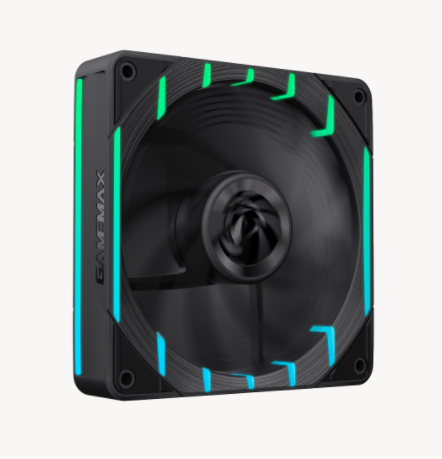

2.1 Performance Beast: Tornado T12 ARGB-R

• Cooling Core: 2200RPM high speed with PWM temperature control, delivering 1.98mm H2O air pressure, ideal for CPU coolers or direct GPU cooling;

• Lighting Highlights: 24-LED claw mark effect supports motherboard programming, infusing e-sports chassis with a combat-ready aura.

2.2 Silent Paragon: FN12A-S5 ARGB

• Silent Design: Hydraulic bearing paired with 800~1600±10% RPM smart speed control, noise as low as 25dB(A), perfect for silent builds;

• Lighting Features: Frosted ARGB fan blades diffuse light softly, avoiding glare for a gentle chromatic effect.

2.3 Innovative Installation: FN12A-S8I-R Reverse Fan

• Functional Innovation: Reverse blades designed for power supply chambers or bottom intake, optimizing internal airflow;

• Lighting Sync: Supports daisy chain connection—3 fans can be controlled via a single ARGB port.

2.4 Bundle Excellence: DRH400 Four-Fan Kit

• One-Stop Solution: Includes 4x120mm dual-ring ARGB fans and V4.0 ARGB hub with wireless remote color adjustment;

• Cooling Matrix: Combined airflow of 38.6CFM, paired with hydraulic bearings for high-load cooling and low-noise operation.

3. Core Considerations for Purchasing PWM ARGB Fans

3.1 Size and Compatibility

• 120mm and 140mm are mainstream sizes; match them with chassis mounting positions (e.g., the GameMax GMX-14WFBK-PWM is a 140mm model with 43CFM airflow);

• Note thickness compatibility—standard fans are 25mm, while slim models require special confirmation.

3.2 Cooling Performance Parameters

• Air Pressure vs. Airflow: High-pressure fans (e.g., GMX-12-DBB's "bowl design") excel at penetrating heatsinks, while high-airflow fans suit overall chassis ventilation;

• Speed Range: PWM fans with 600~1600 RPM adjustability balance silence and intensive cooling.

3.3 Lighting and Sync Solutions

• ARGB Interface: Ensure motherboard supports 5V 3pin ARGB, or choose models with built-in hubs (e.g., FN12A-M6I expands to 9 fans);

• Lighting Design: Infinity mirrors, dual-ring effects, and frosted blades enhance visual depth.

3.4 Bearings and Durability

• Hydraulic bearings (e.g., FN12A-S2I) offer low noise and long life, ideal for silent setups;

• Rifle bearings (e.g., Dual Ring Infinity BK) provide stability for long-term high-speed operation.

4. Installation and Optimization Tips

4.1 Airflow Path Planning

• Front fans as intakes, rear and top fans as exhausts to form a "front intake-rear exhaust" vertical airflow path;

• Install reverse fans (e.g., FN12A-S8I-R) at the power supply chamber bottom for independent PSU cooling.

4.2 Lighting Sync Setup

• Configure ARGB modes via motherboard BIOS or software (e.g., ASUS Aura Sync, MSI Mystic Light);

• For multi-fan kits, use a hub for unified power supply to avoid overloading motherboard ports.

4.3 Noise Control Essentials

• High-speed fans benefit from rubber anti-vibration pads (e.g., FN12A-C8I-B's standard kit) to reduce resonance noise;

• Set temperature-speed curves in BIOS to prevent frequent fan 启停 (on-off cycles).

5. Conclusion: When Cooling Becomes Artistic Expression

The evolution of PWM ARGB case fans marks a shift in PC building from "function-first" to "experience-above-all". GameMax delivers full-scene solutions—from basic cooling to personalized lighting—through hydraulic bearing silent technology, innovative ARGB designs, and modular kits. Whether for an extreme-performance e-sports rig or a desktop aesthetic focused on ambiance, choosing fans with both PWM smart speed control and ARGB lighting transforms the chassis into a dual showcase of hardware power and personal style.
