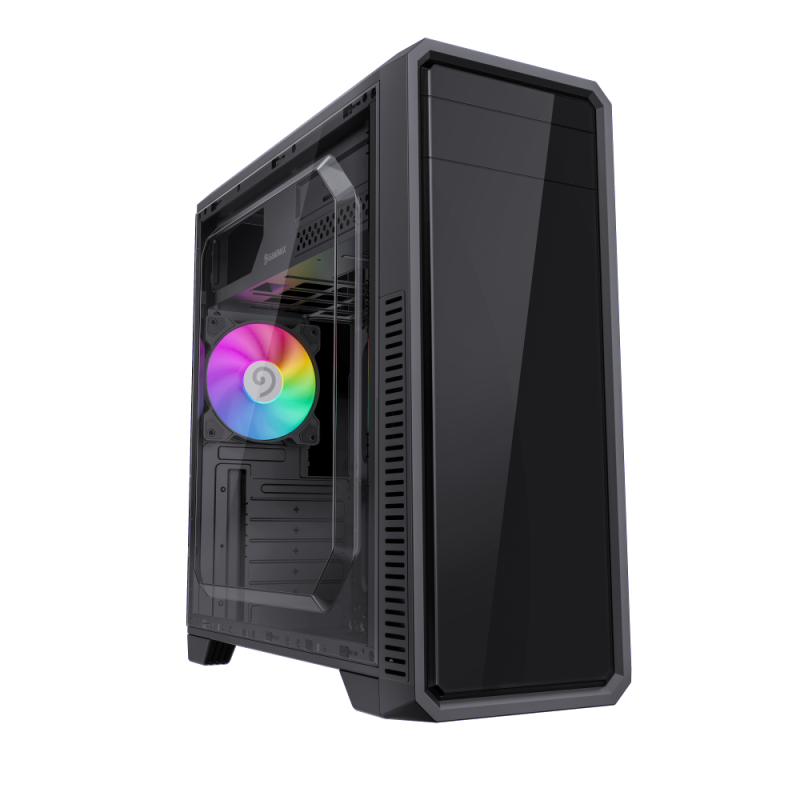

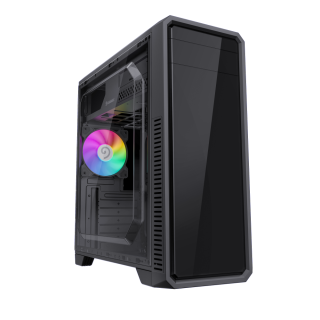

GameMax G561E-BK chassis, Upgraded 2023 version, 0.5mm Case in black, Black Chassis with top PSU traditional design, Easy install and make integrate airflow.

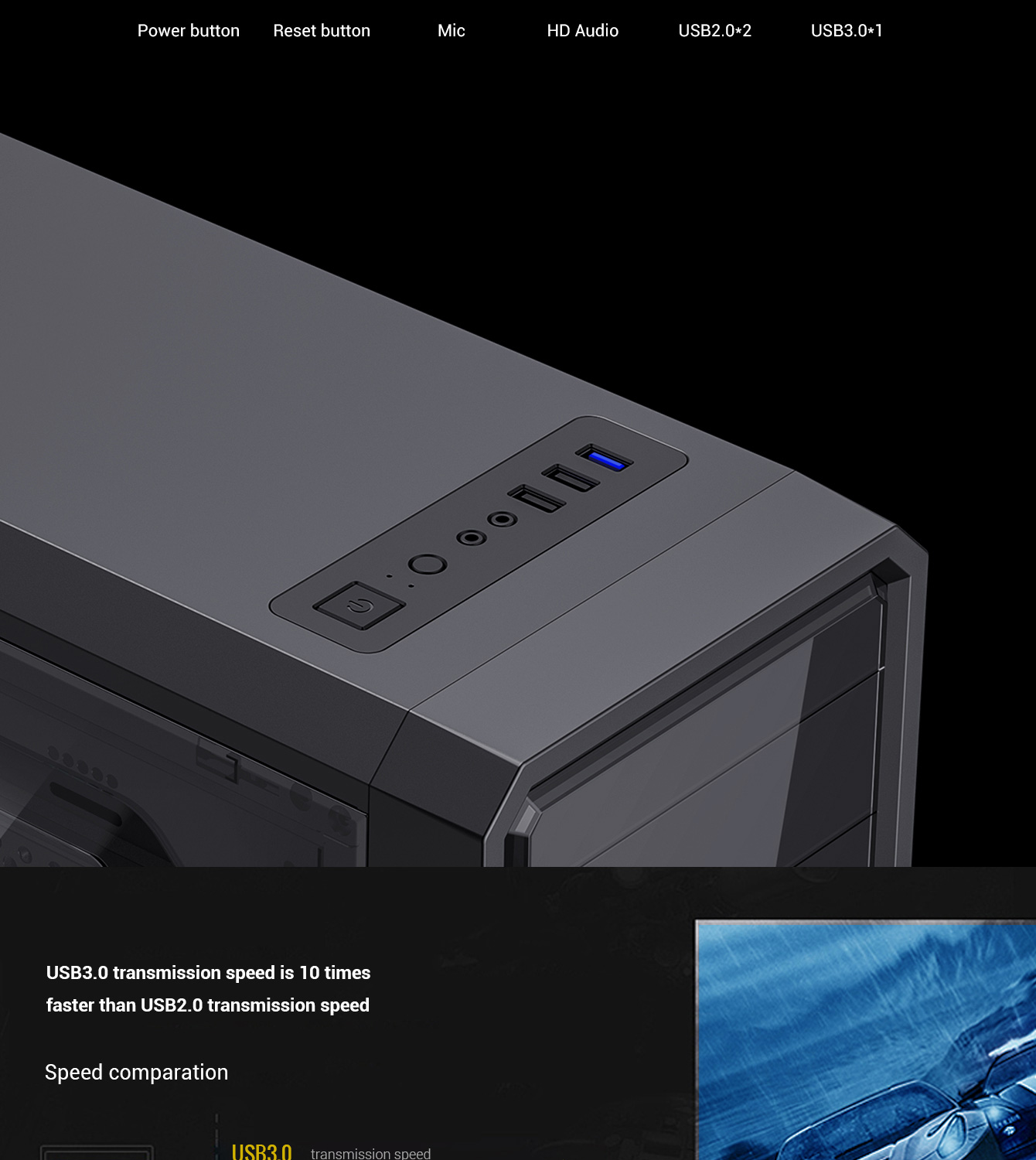

• It included 1x12cm Fixed colors LED fans, to appear colorful feeling and also top panel with high-speed USB3.0*1+USB2.0*2, HD_Audio Port
• Chassis is with rear handy Screw, HDD cage with Tool-less Kit
• to let user easy assembling PC
• addotopmal the side frameless Full Transparent panel on the left side
• Max.VGA Card (Length):370mm
• Max.CPU Cooler(Height):156 mm
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi | |
| Chassis | SPCC :0.5mm | |

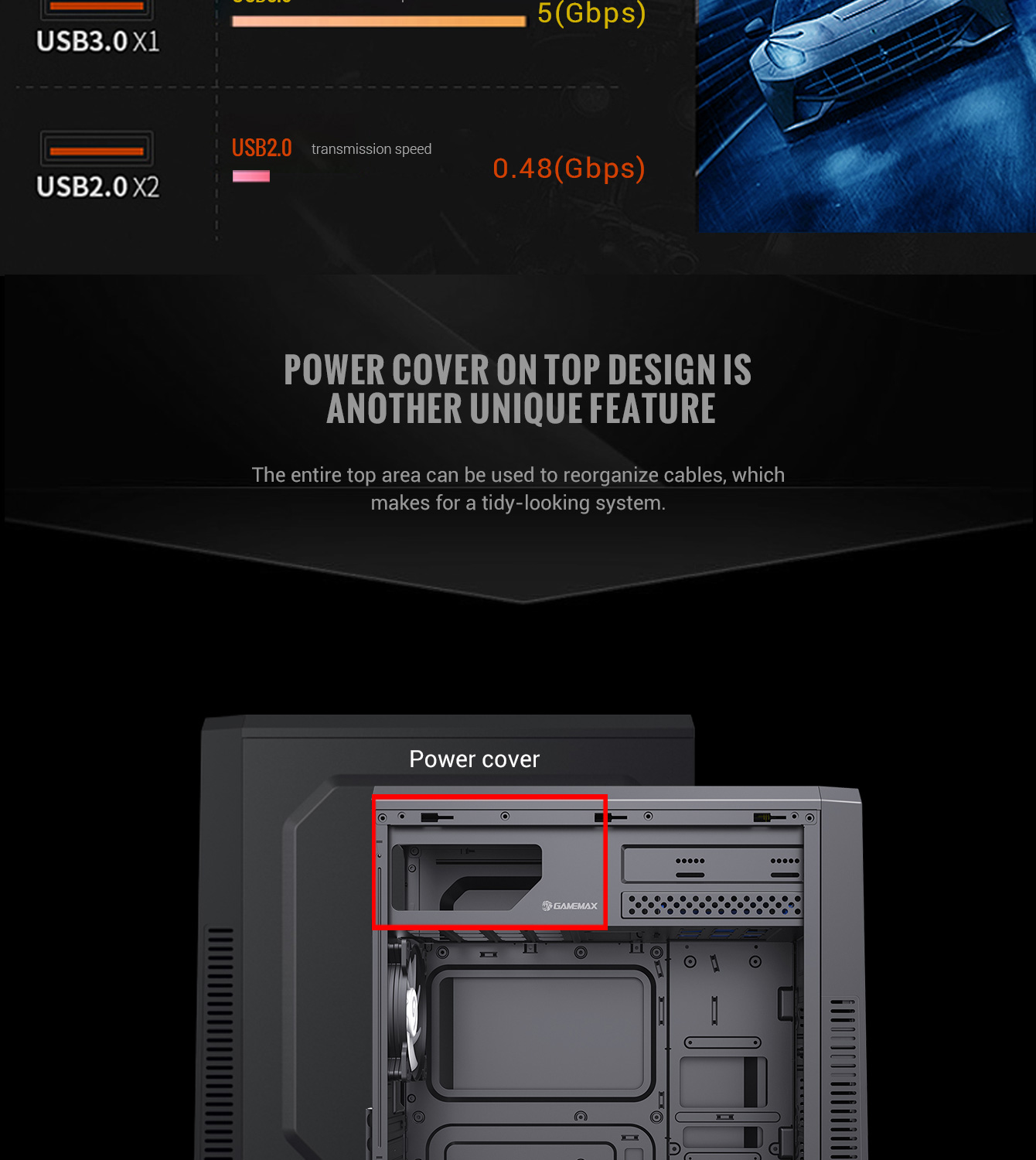

| PSU Form Factor | Top/ATX | |
| M/B Form Factor | ATX、M-ATX、MiNi ITX | |

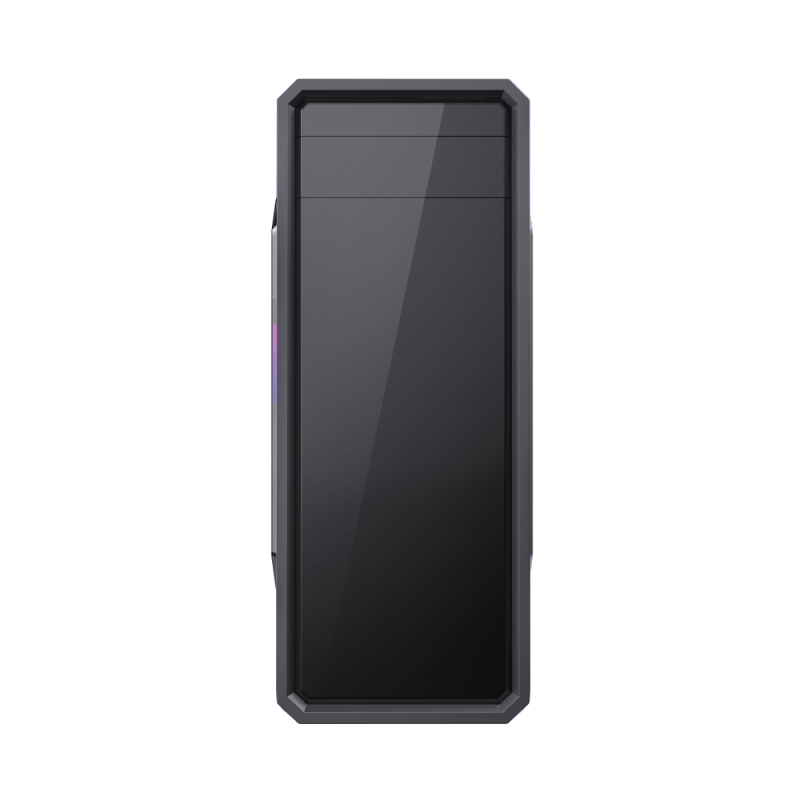

| Front Panel | Matte Black+transprant front | |
| Top Panel | metal cover | |

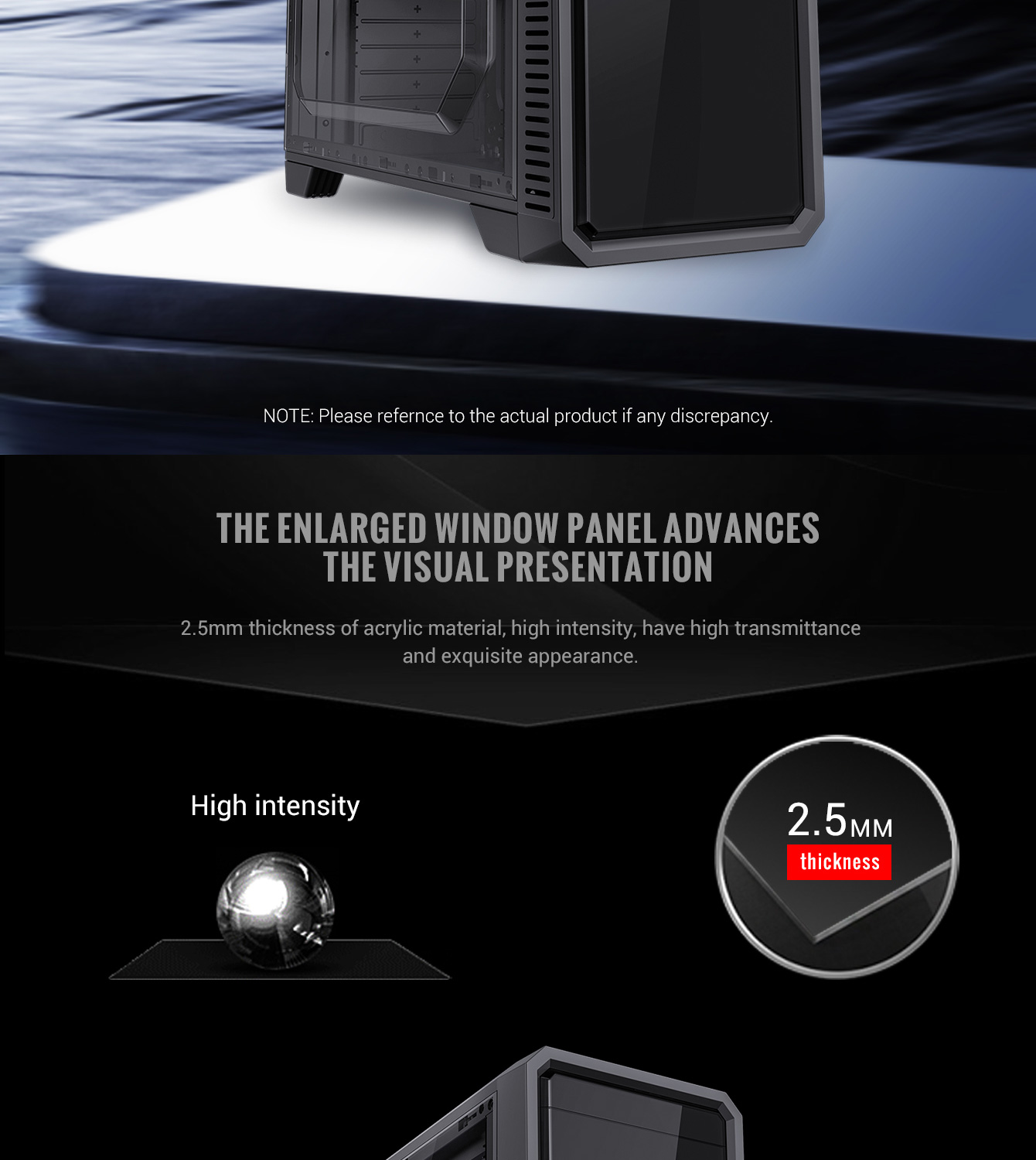

| Side Panel | Left | Acrylic Panel ( opthional -Tempered Glass ) |
| Right | metal cover | |

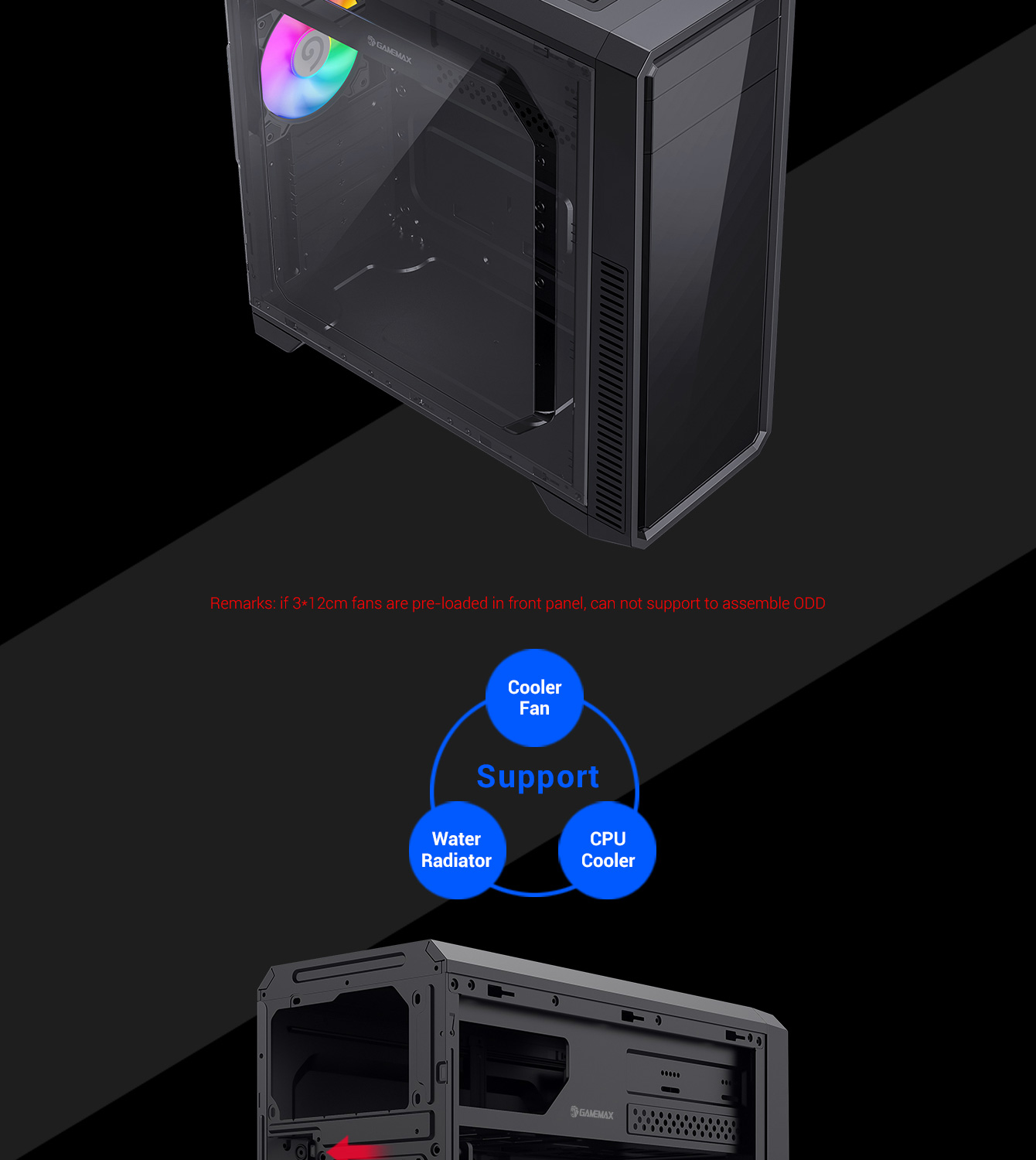

| External Drive Bay(s) | 5.25" (ODD) | *1 Exposed x1(if not fix 3x fan) |
| 3.5" | *0 | |

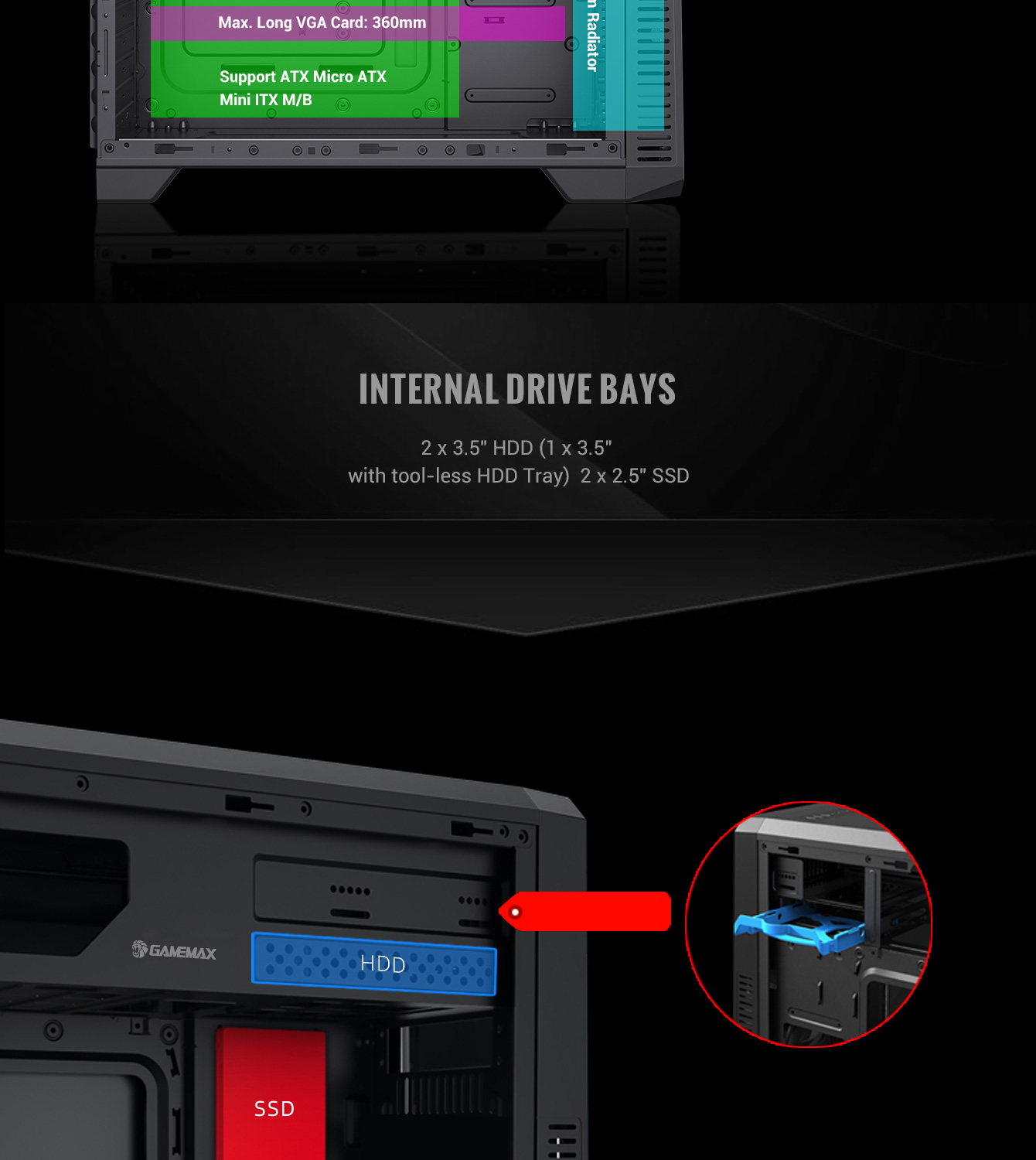

| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |
| I/O | Buttons | *2 |
| USB2.0 Port(s) | *2 | |
| USB3.0 Port(s) | *1 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | *1(Audio*1+Mic*1) | |
| Card Reader (Support) | *0 | |
| P-Lock | *0 | |
| Fan Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |

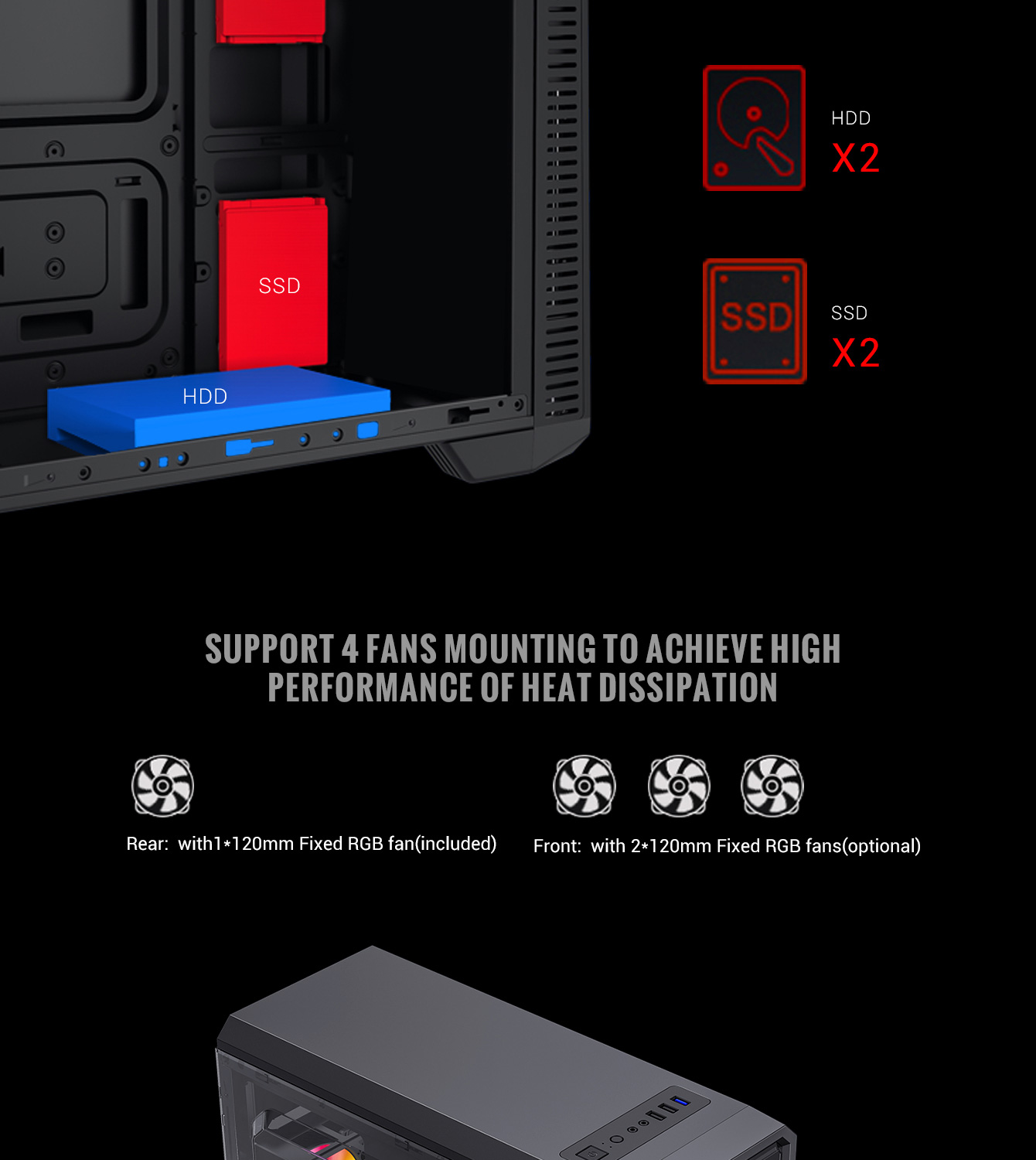

| Cooling Fan Support | Front | 2x120mm(Fan optional) |
| Top | 0 | |
| Rear | 1x120mm (nicluded) | |
| Left Side | 0 | |
| PSU Cover | 0 | |
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm |
| Top | 0 | |
| Rear | 120mm*1 | |
| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *7 | |
| Carton & Logo | GAMEMAX | |

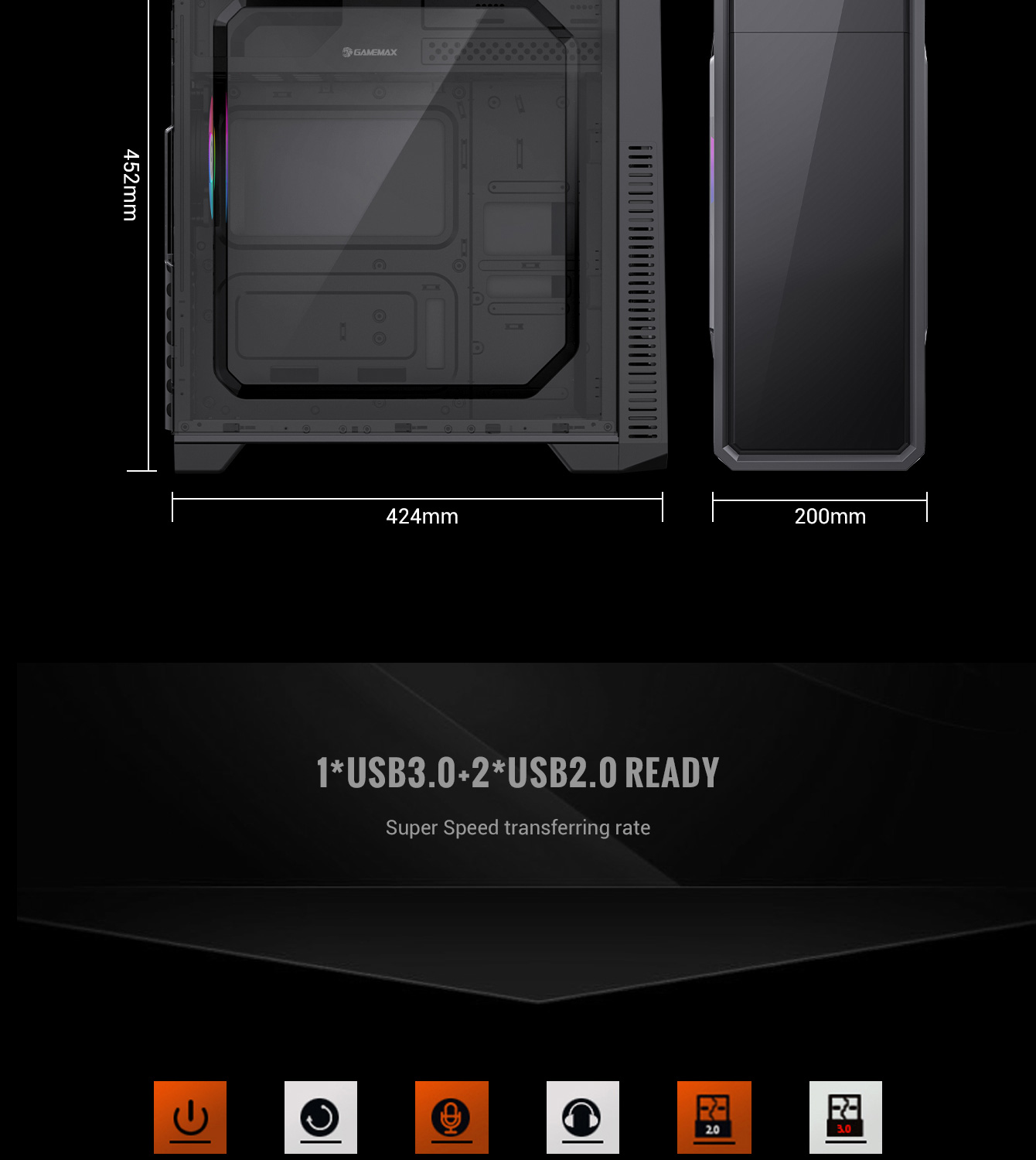

| Dimensions | Chassis | (L)370*(W)180*(H)427mm |
| Full Case (inc Fascia) | (L)424*(W)200*(H)452mm | |
| Carton | (L)494*(W)236*(H)468mm | |
| Net Weight (Kg) | 4.2kgs | |
| Gross Weight (Kg) | 5.0kgs | |

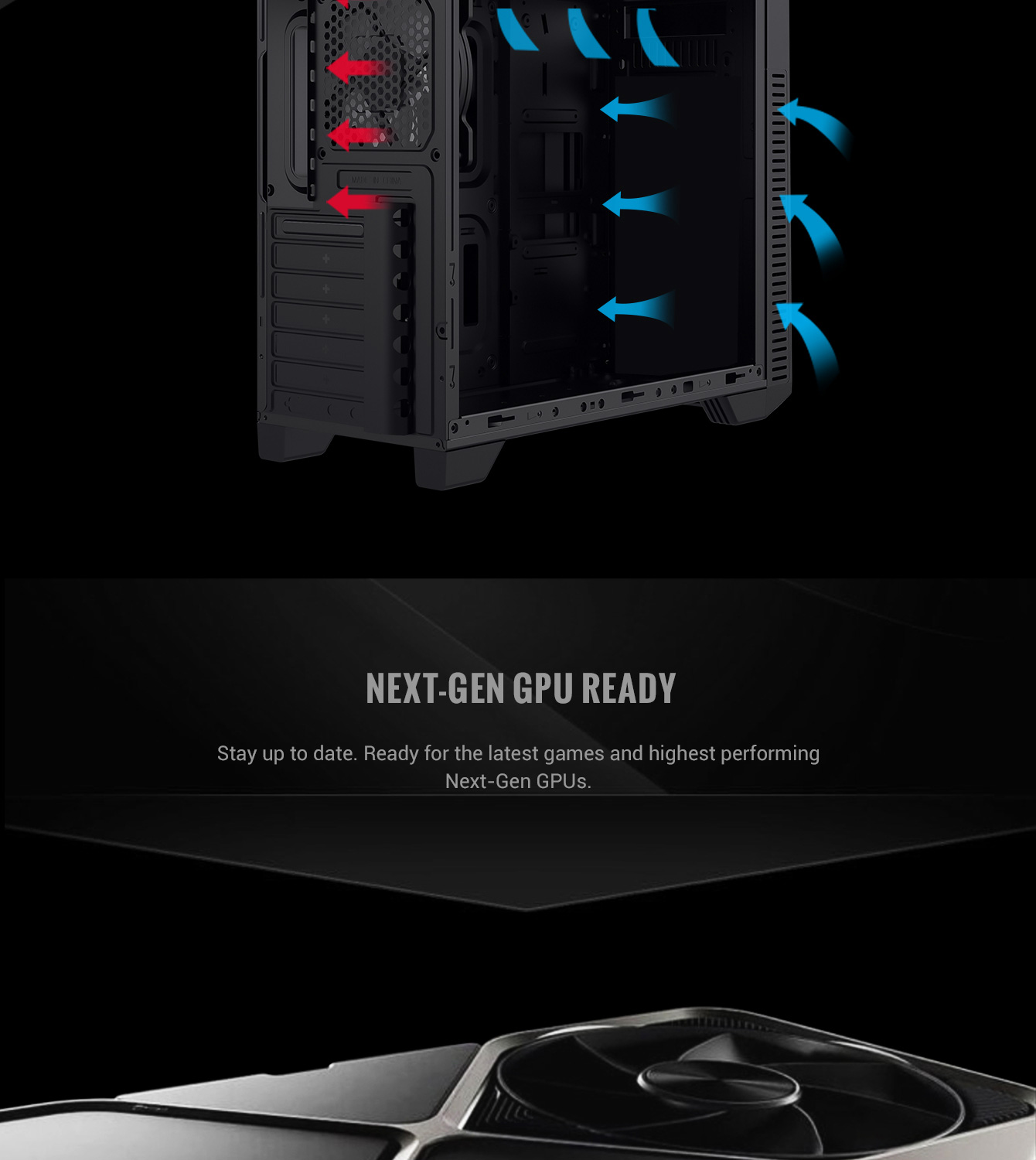

| VGA Card Length | up to 360mm | |
| CPU Cooler Height | 160mm | |
| Cable Management Depth | 22mm | |
