GM 700B WH-GM Power Supply

GM 700B WH

GAMEMAX GM White 700W 80+ Bronze Plus Efficient Power Supply with Smart Fan Control, Premium Capacitors, and EMI Protection
• 80 Plus Efficient Architecture: Enhances conversion efficiency for stable power delivery, preventing blue screens.
• Premium Taiwan Capacitors: Ensures temperature resistance, long lifespan, and reliable power output.
• 140mm Smart Fan Control: Automatically adjusts fan speed based on load, saving energy and maintaining low noise.
• Wireless Modular Design: Copper plate connection between back panel and PCB reduces errors and improves power quality.
• Level 2 EMI Protection: Filters stray waves and noise, ensuring reliable operation with integrated energy storage inductor for reduced EMI and heat.

Where to Buy

OVERVIEW TECH-SPECS REVIEW-DOC

...

GM 700B WH

80 PLUS Bronze

ATX MODULAR POWER SUPPLY

80 PLUS BRONZE CERTIFIED

GM 700B is 80 PLUS Bronze certifed and has a conversion efficiency of over 85%, making the power supply more efficient and energy saving.

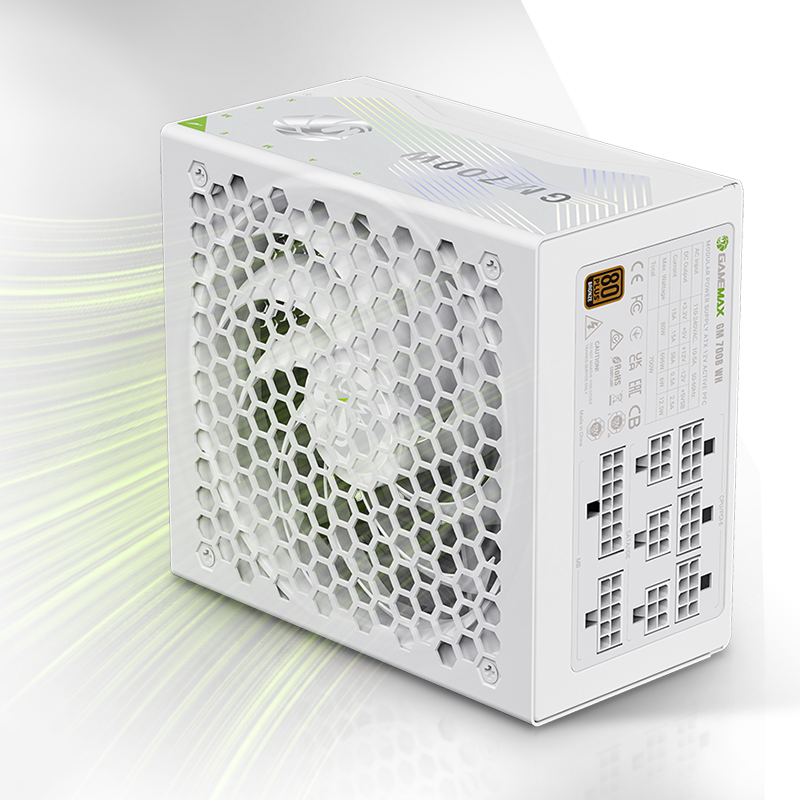

14CM SMART TEMPERATURE CONTROLFAN

The fan speed can be automatically adjusted according to the load, enabling the power supply to save energy while maintaining low noise operation.

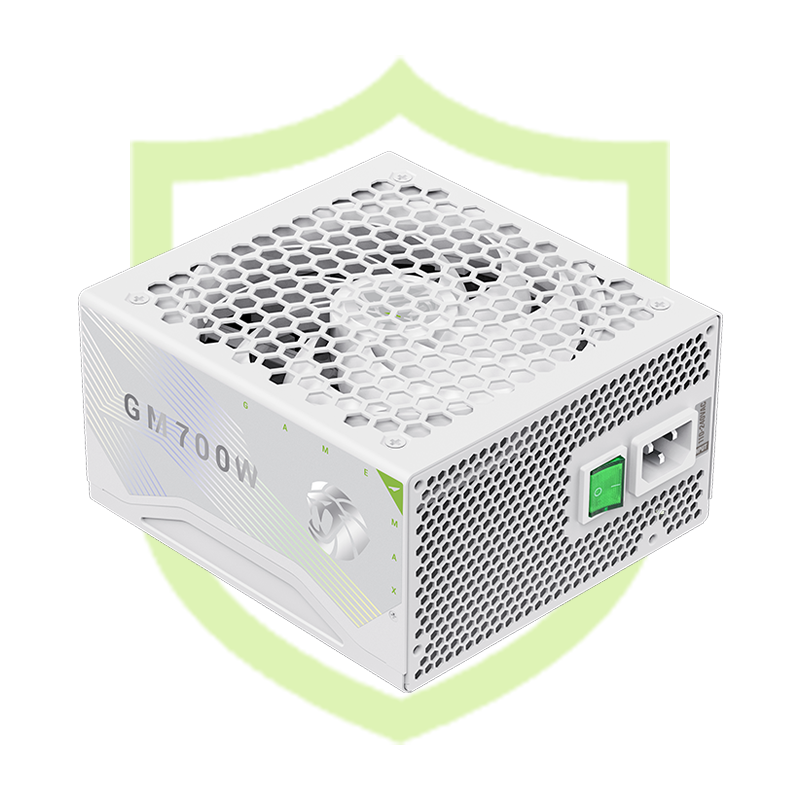

COMPREHENSIVE CIRCUIT PROTECTION

Provides safety measures with multiple protection technologies including overload, overvoltage, undervoltage, overcurrent, short circuit, over-temperature protection, and so on. Ensure the stabilityof computers and hardware while preventing damage and interference.

HIGHOUALITY TAIWANESE CAPACITOR

Adopting high-quality Taiwanese capacitors, temperature resistance and long life, stable and reliable quality, to ensure stable output of power supply and long-lasting durability.

3.3V/5V | DC/DC DESIGN

Better power dynamics and better system compatibility.

CE STANDARD | LEVEL 2 EMI SAFETY DEVICES

Filter out stray waves and noises for more reliable power supply operation.

WIRELESS TECHNOLOGY

The Back Modular Panel and PCB connected by a copper plate, Not only lowers production errors also lmproves output power quality.

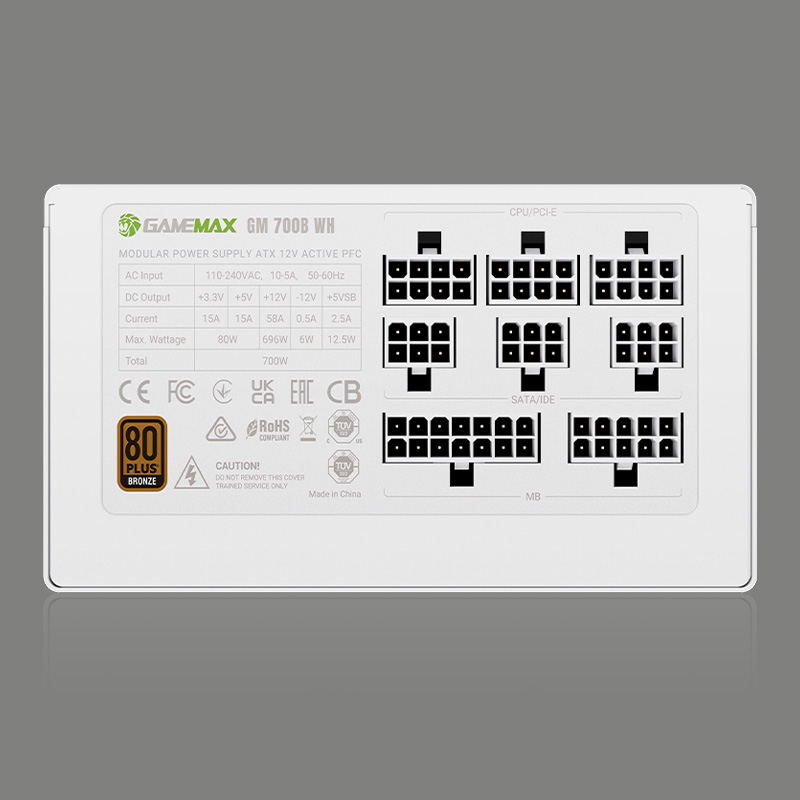

FULLY MODULAR DESIGN & EMBOSSED FLAT CABLES

GM series power supplies use embossed flat cables for easy routing, keeping the inside of the chassis clean and safe.

PSU DIMENSION

The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.

Detailed Specifications

Dimensions:	160mm x 85mm x 150mm (W x H x D)
Input Voltage:	110-240 VAC
Input Current:	10-5A
Input Frequency Range:	50-60Hz
PFC:	Active PFC (>.99)
Power Good Signal:	100-150 ms
Hold Up Time:	>10ms
Efficiency:	> 85% (87% max)
MTBF:	> 100,000 Hours
Protection:	OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO
Power:	700W
Operation Temperature:	0-40C
Safety:	CE / FCC / CB
Cooling:	140mm Ultra Silent Fan
Noise:	<25dBa
80 Plus Certified:	Yes - 80 Plus Bronze
