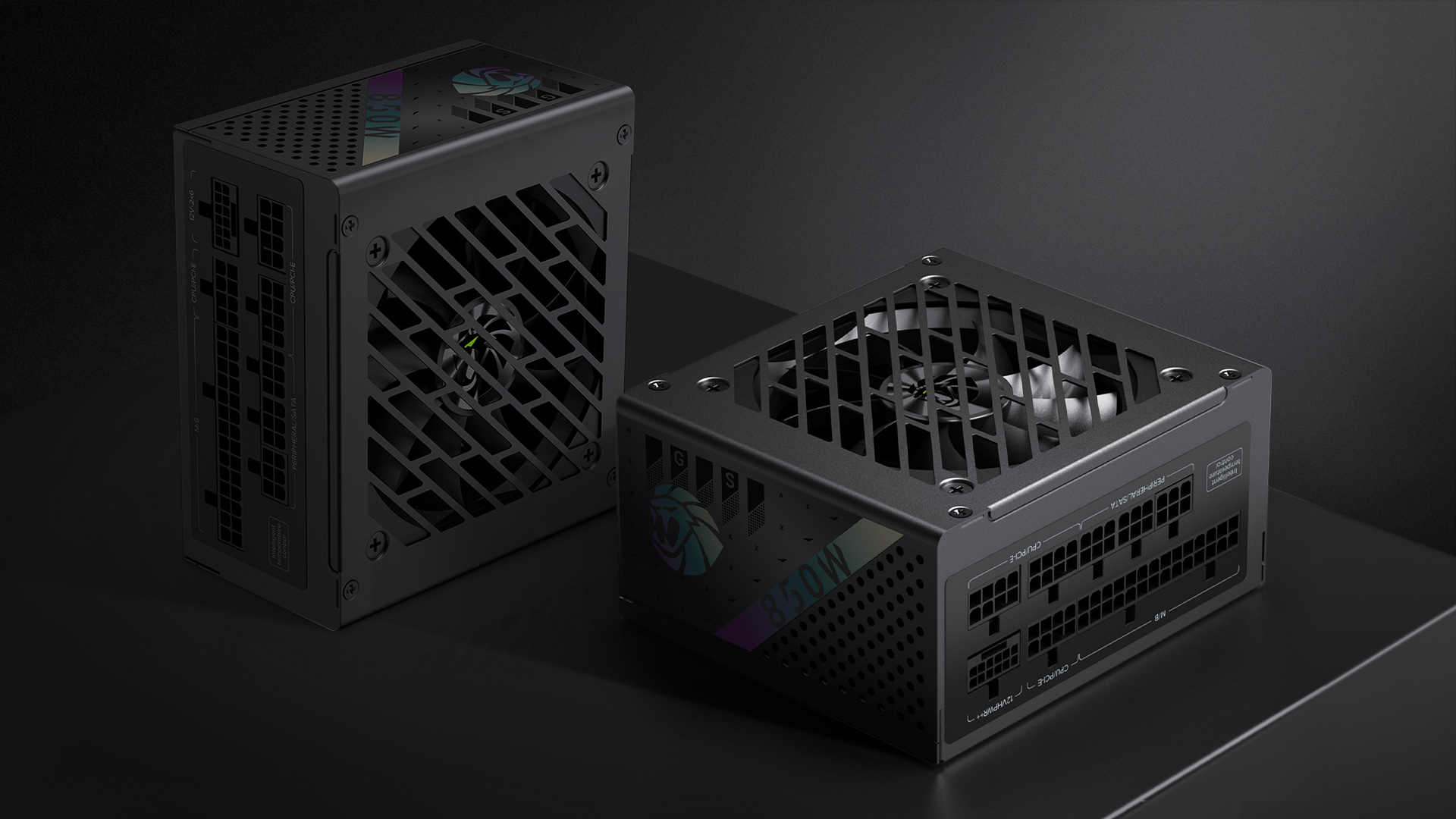

GS 850G V25

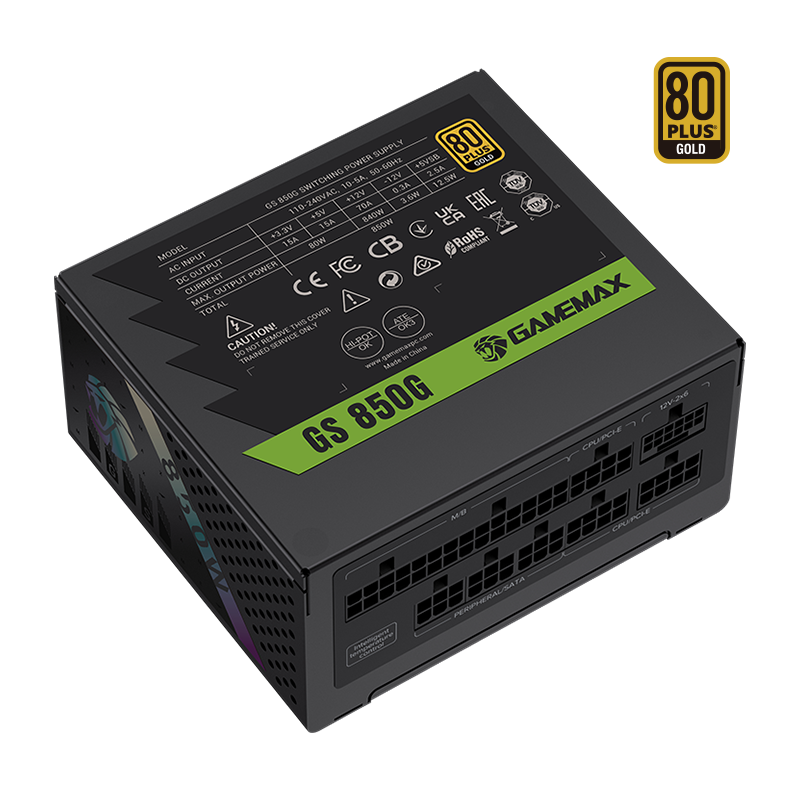

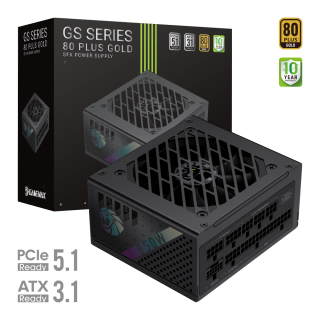

GS 850G 80 Plus Gold Certified SFX Power Supply with Intelligent Cooling, Japanese Capacitors, and Comprehensive Protection

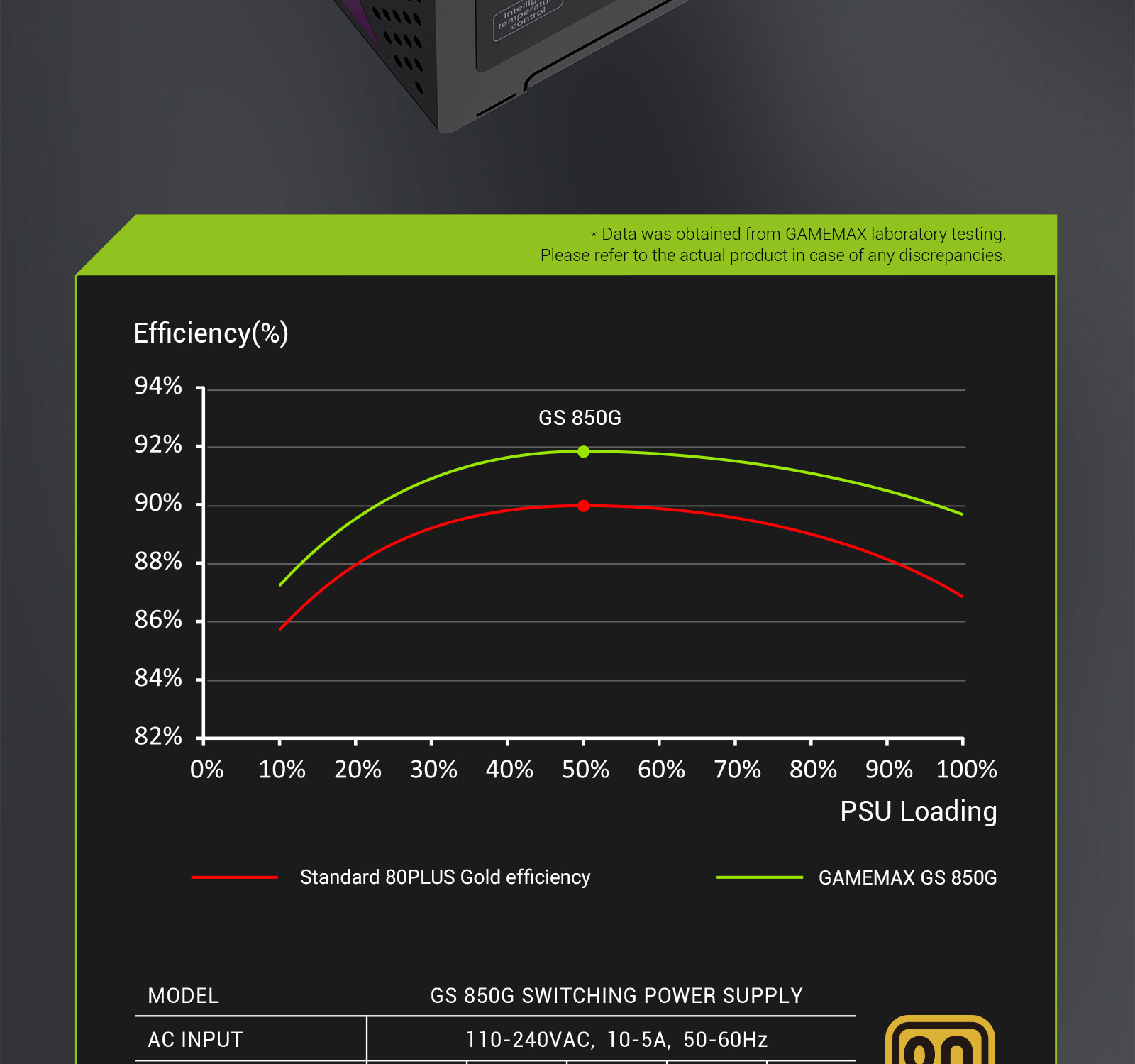

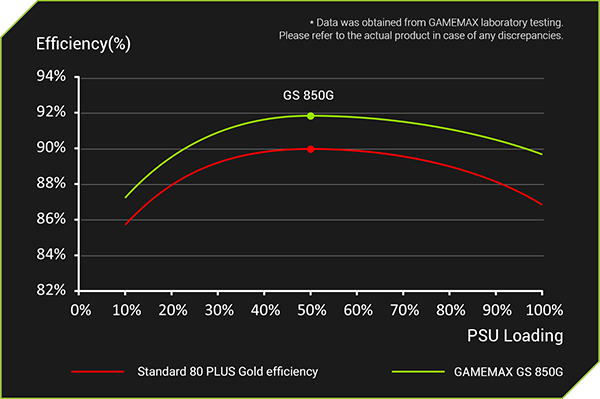

80 Plus Gold Certified Efficiency: Enhances power efficiency and stability, reducing the risk of system crashes.
High-Quality Japanese Capacitors: Ensures long-term reliability and stability with 105°C electrolytic and solid-state capacitors.

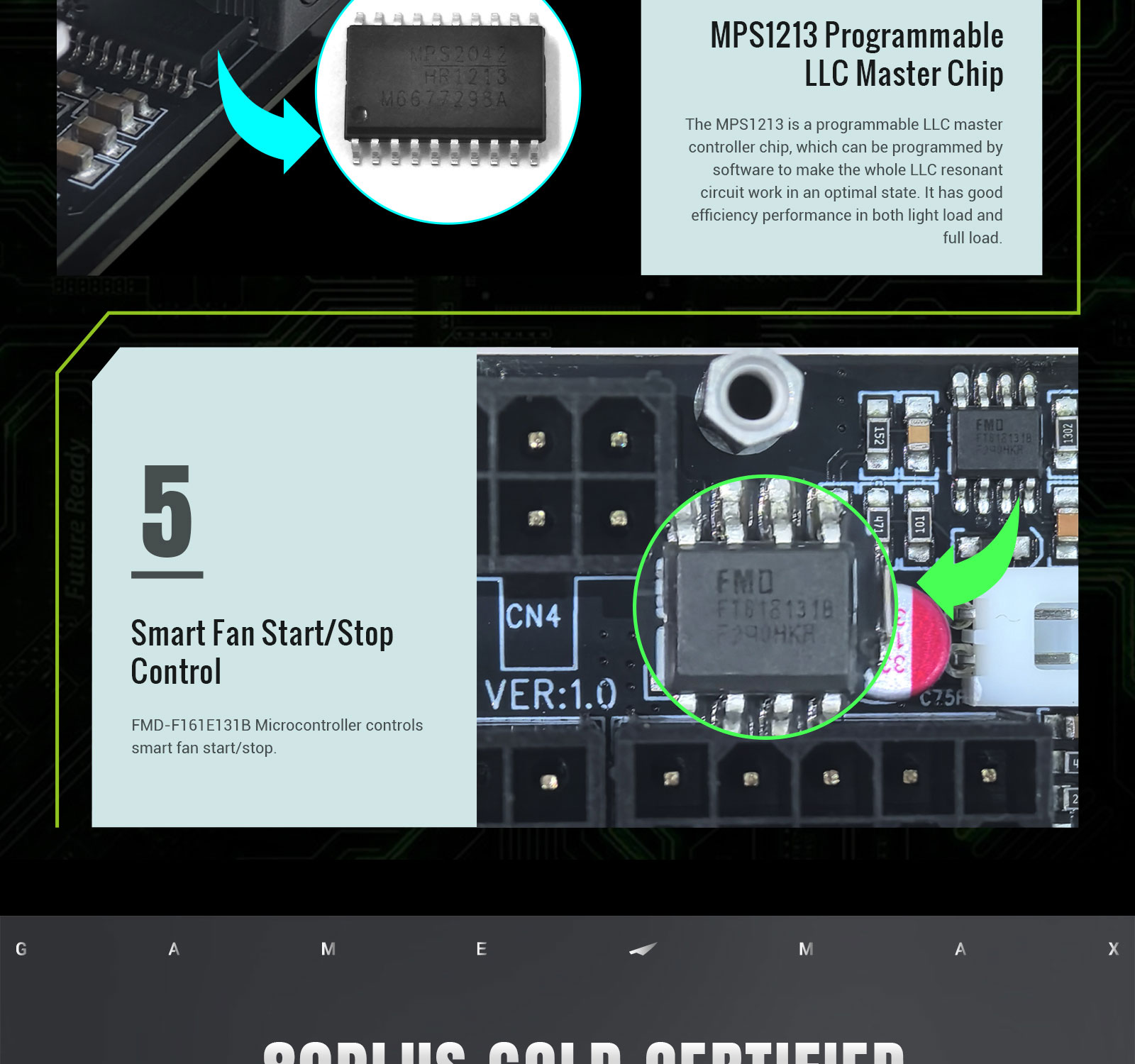

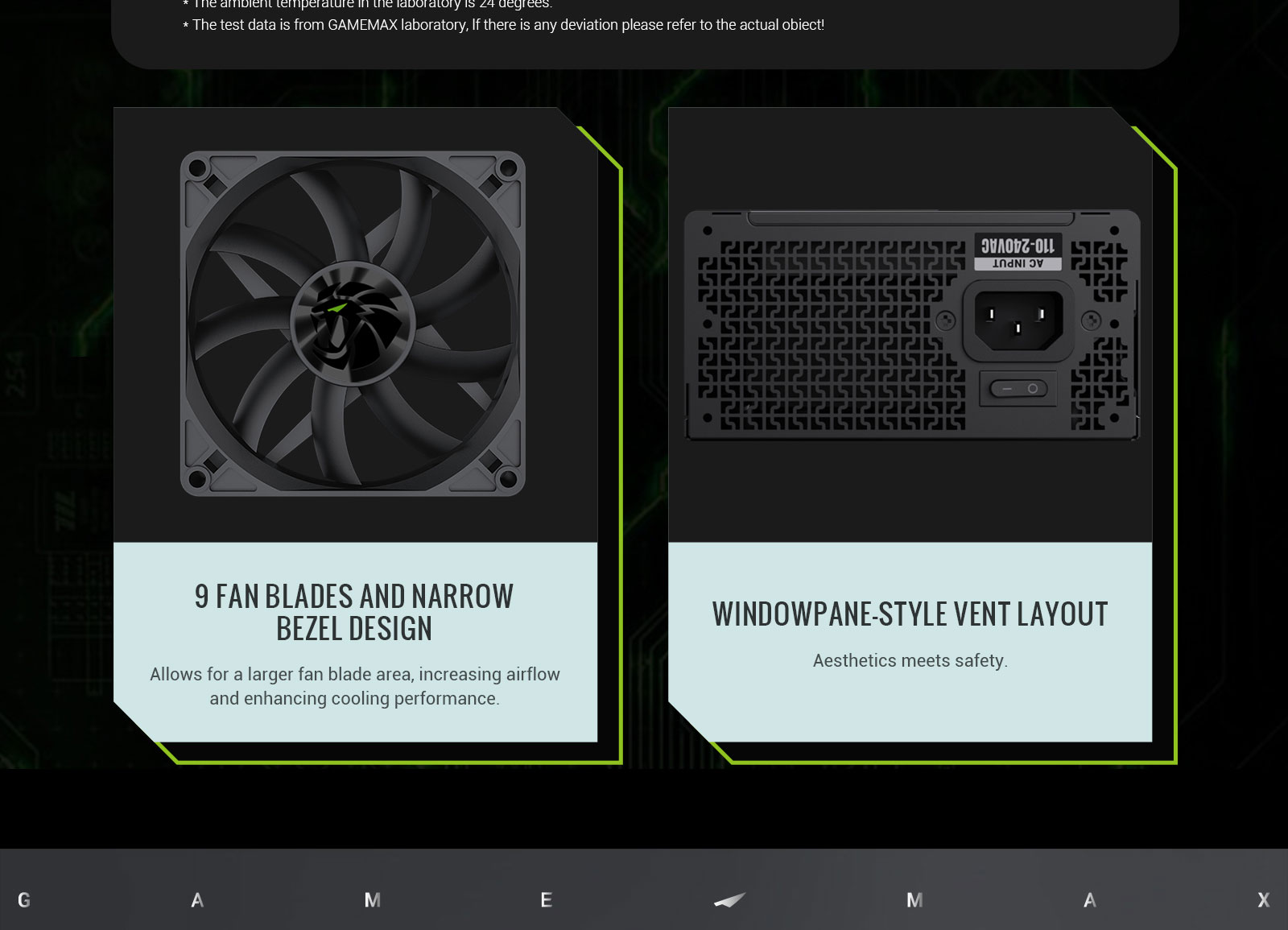

Intelligent Fan Control: 9.2cm hydraulic bearing fan with PWM automatic control starts and stops based on power consumption (above 20% and below), optimizing cooling and noise.

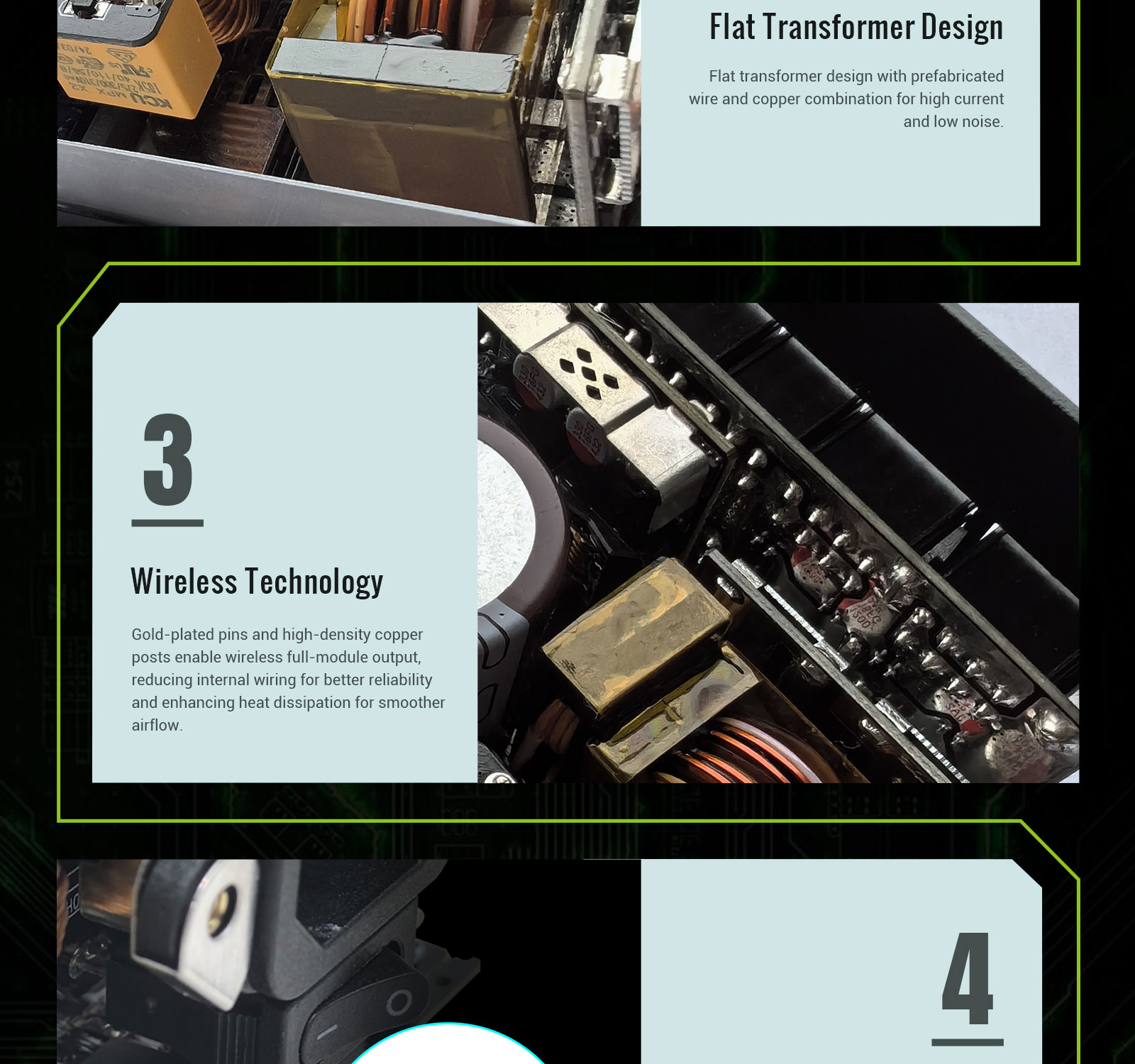

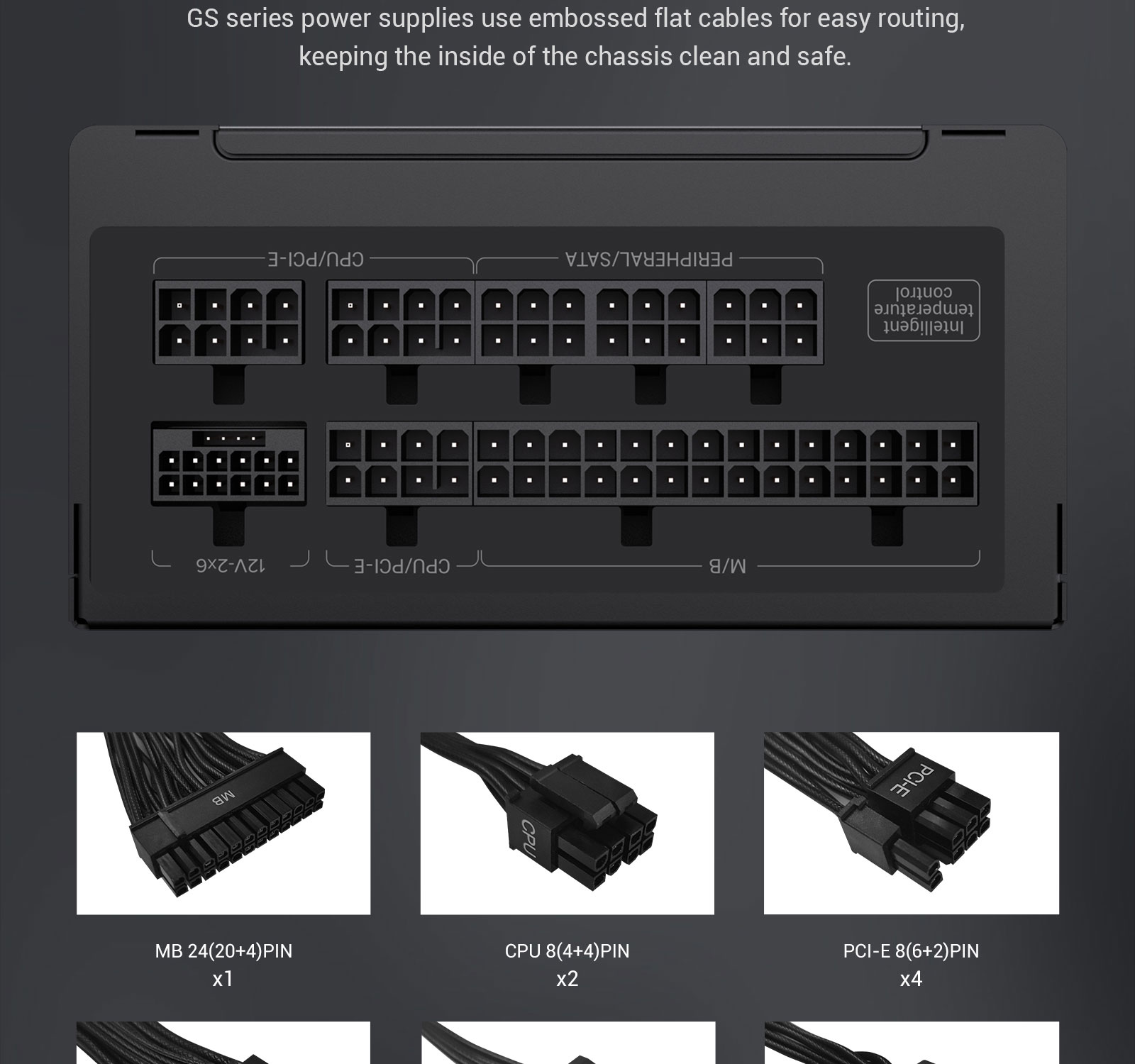

Advanced Wireless Output Design: Gold-plated pins and high-density copper posts enable efficient, reliable power output and improved heat dissipation.

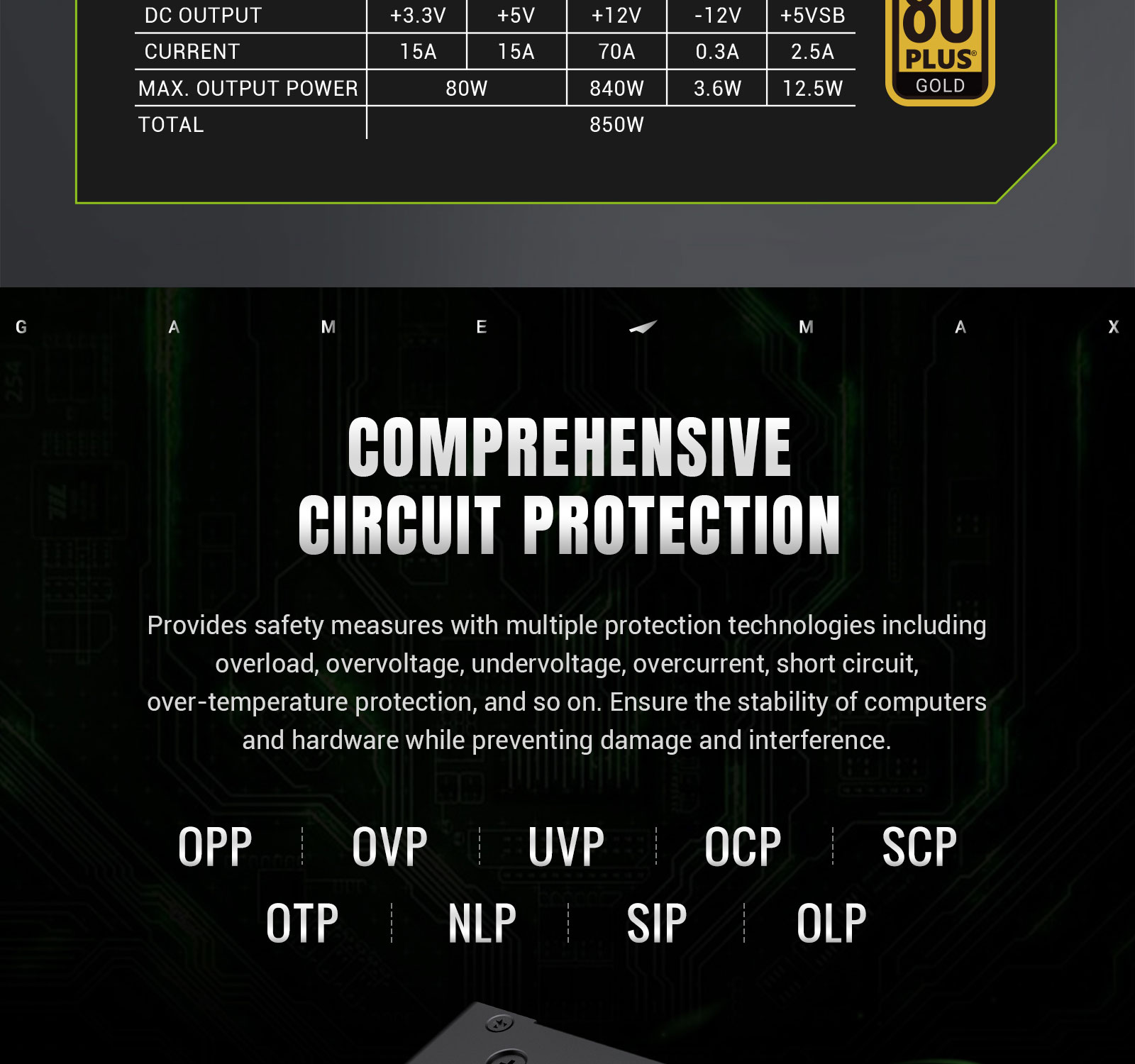

Comprehensive Circuit Protection: Provides multi-layered protection (OPP, OVP, UVP, OCP, SCP, OTP) to safeguard your PC and components from damage.

Color:


The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.

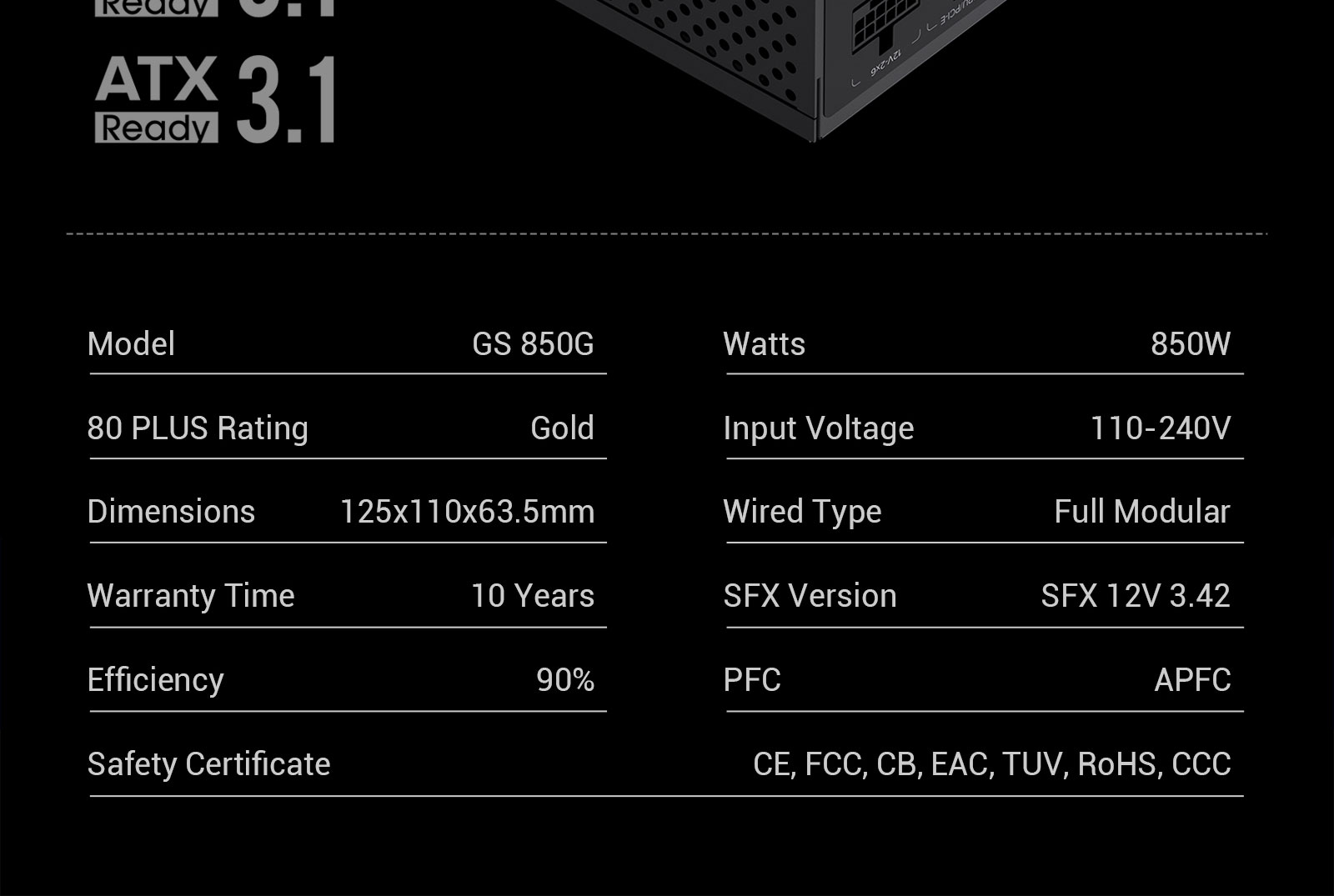

Detailed Specifications

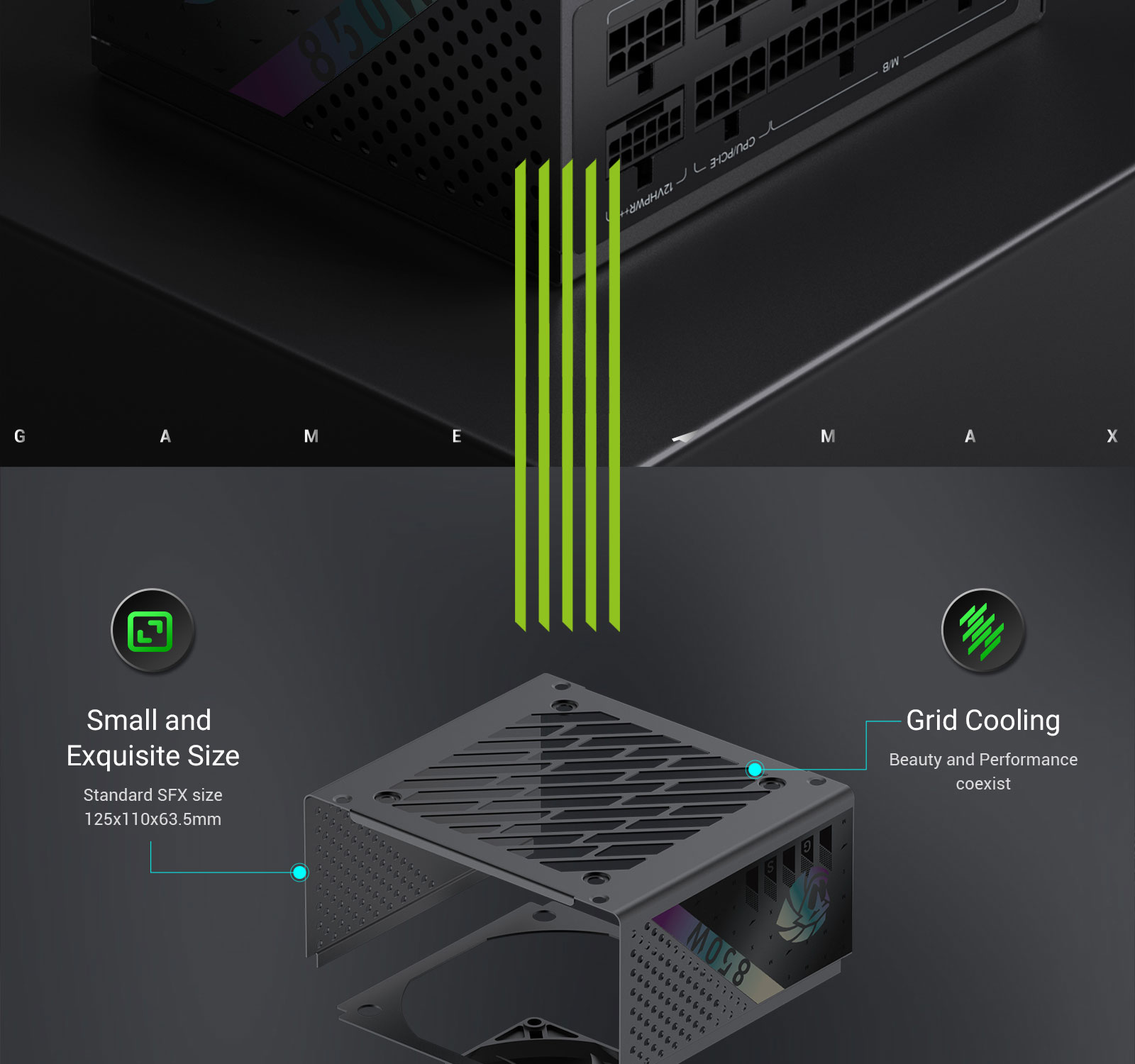

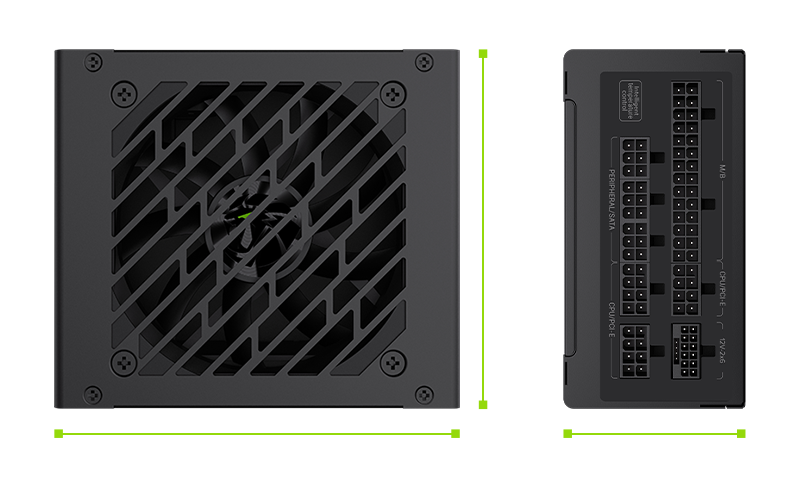

Dimensions:125mm x 63.5mm x 110mm (W x H x D)
Input Voltage:110-240 VAC
Input Current:10-5A
Input Frequency Range:50-60Hz
PFC:Active PFC (>.99)
Power Good Signal:100-150 ms
Hold Up Time:>10ms
Efficiency:> 87% (92% max)
MTBF:> 100,000 Hours
Protection:OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO
Power:850W
Operation Temperature:0-40C
Safety:CE / FCC / CB/ROHS/TUV/cTUVus
Cooling:90mm Ultra Silent Fan
Noise:<25dBa

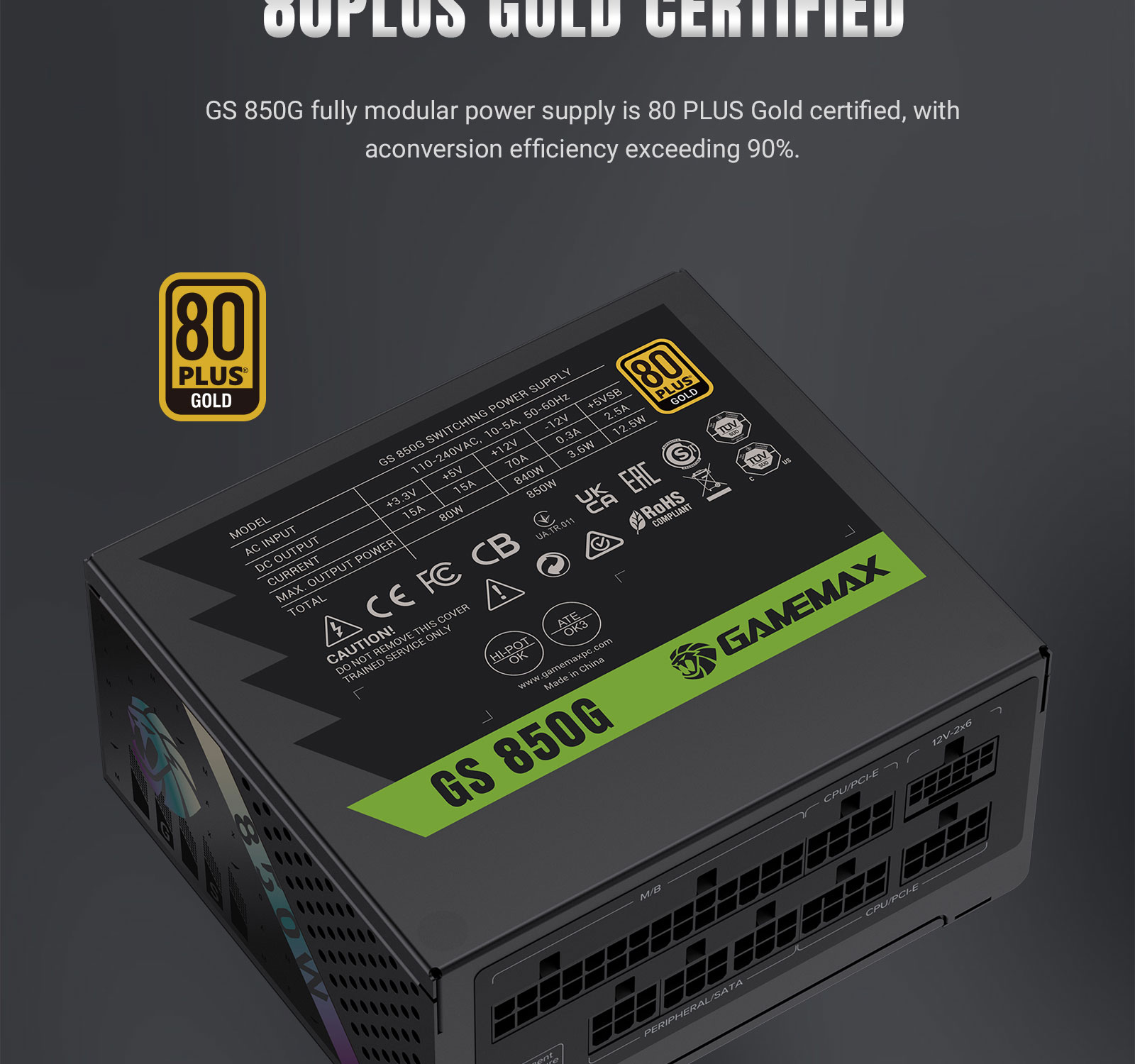

80 Plus Certified:Yes - 80 Plus Gold

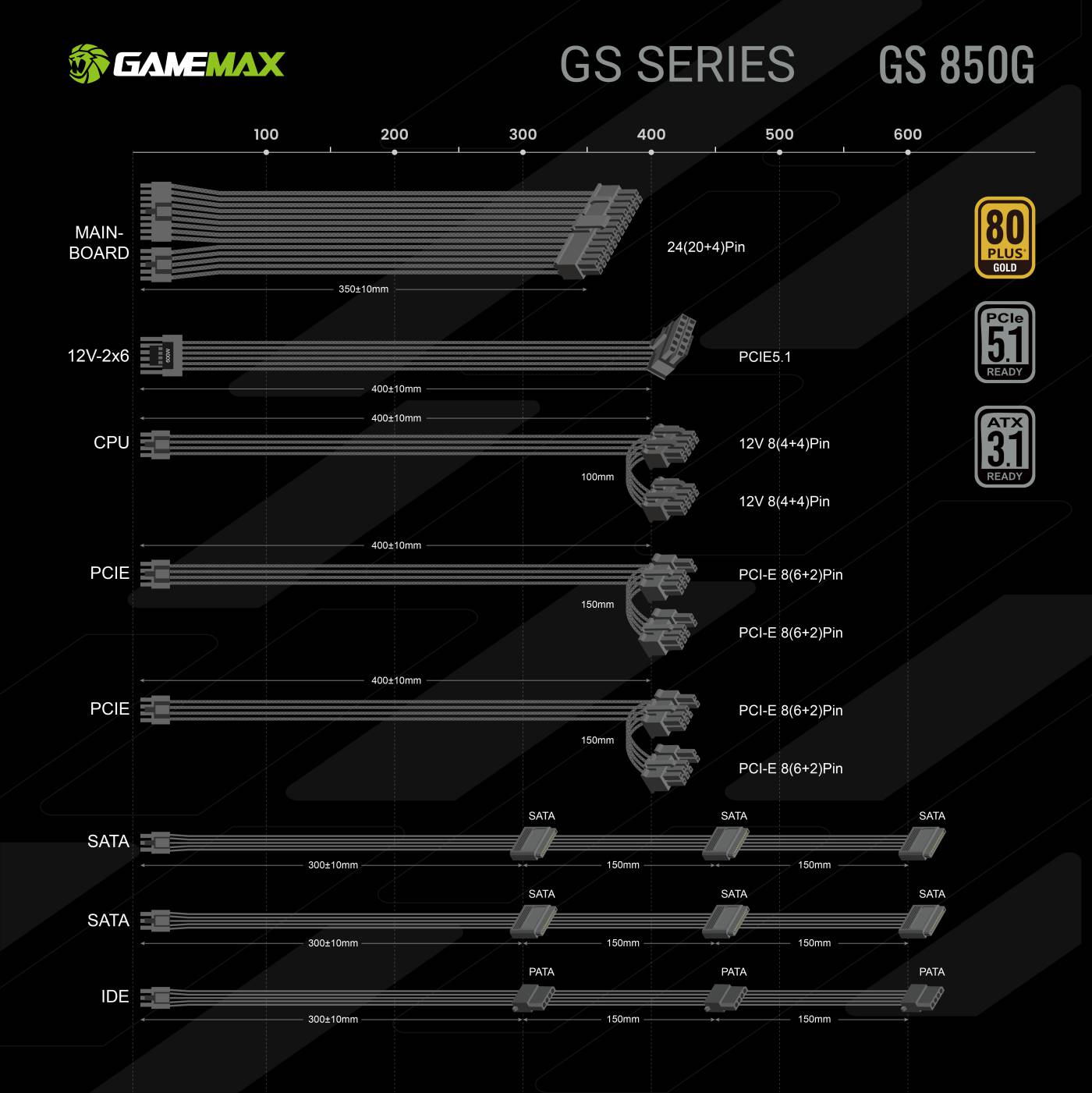

GS 850G 14.jpg
