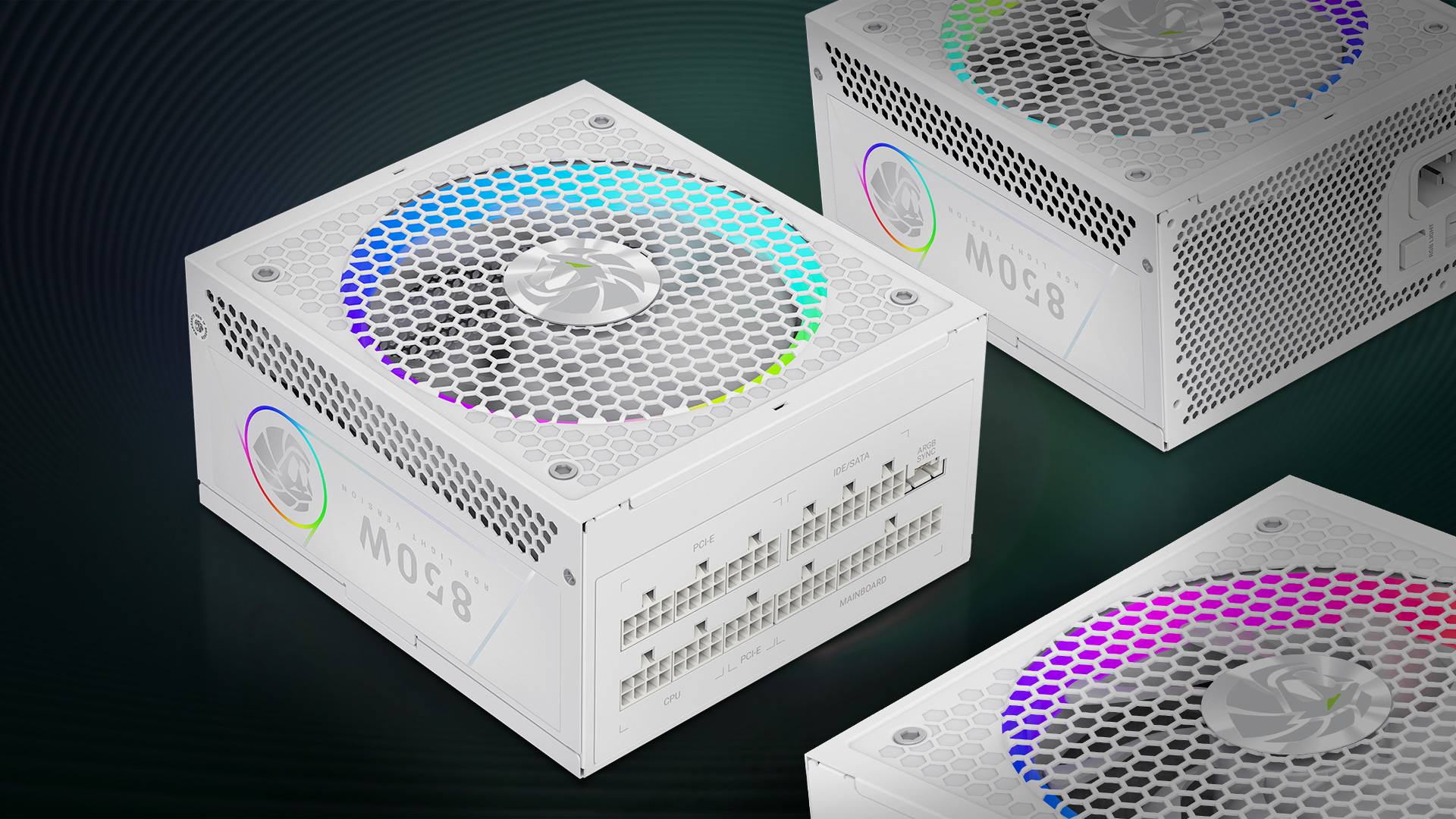

RGB 850G WH-Gaming RGB Power Supply - 80 Plus Gold, Fully Modular 5-Year Warranty

RGB 850G WH

GameMax RGB 850W White Fully Modular Power Supply, 80+ Gold Efficiency, 140mm ARGB Sync Fan, Japanese Capacitors, Ultra-Quiet Desktop Power Supply
• 80+ Gold Certified Efficiency: Achieves 90% efficiency or higher under typical loads, ensuring lower power consumption, reduced noise, and cooler operation.
• 140mm ARGB Fan with Sync: Delivers vibrant lighting effects and supports synchronization with ASUS, GIGABYTE, MSI, and ASRock RGB motherboards for customizable illumination.
• Fully Modular Design: 100% wireless internal PCB layout eliminates cable clutter for improved airflow and aesthetics.
• Enhanced Stability & Reliability: Powerful single +12V rail with high-quality Japanese capacitors ensures stable power delivery to graphics cards and PC components.
• Advanced Protection & Ultra-Quiet Operation: Includes OPP/OVP/UVP/SCP/OCP/SIP safeguards, paired with a whisper-quiet 140mm fan for optimal cooling and minimal noise.

Where to Buy

OVERVIEW TECH-SPECS REVIEW-DOC

...

RGB 850G WH

RGB PSU

80 PLUS GOLD POWER SUPPLY

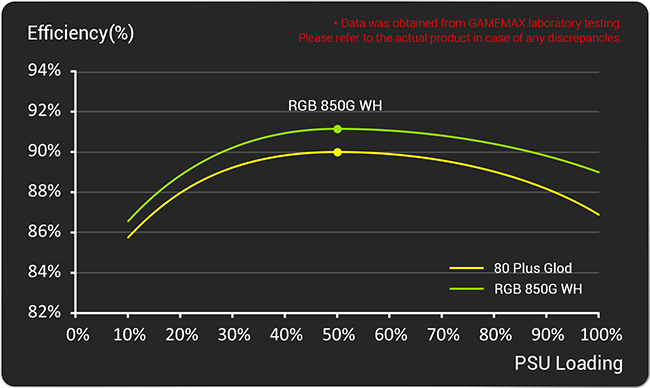

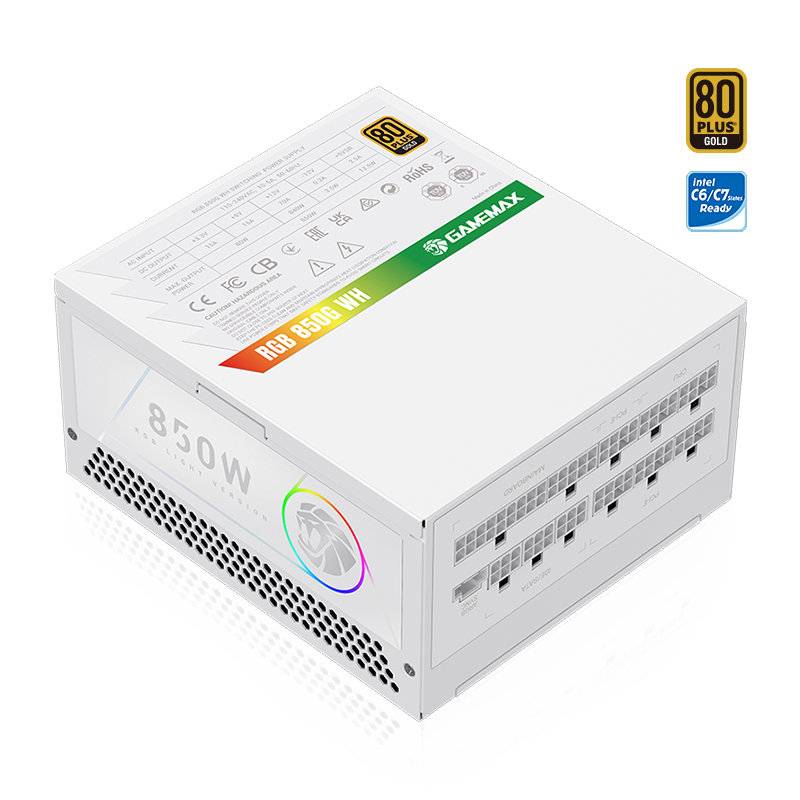

80+ GOLD CERTIFIED & INTEL C6/C7 READY

The RGB 850G fully modular power supply is 80 Plus Gold certified, offering over 90% conversion efficiency. lt also supports Intel processors C6/C7 power-saving states, providing a stable. efficient, and energy-saving solution.

STUNNING ARGB LIGHTING

The 14cm smart ARGB fan features temperature control and supports manual RGB modes or ARGB sync with motherboard control.

COMPREHENSIVE CIRCUIT PROTECTION

Provides safety measures with multiple protection technologiesin cluding overload, overvoltage, undervoltage, overcurrent, short circuit, over-temperature protection, and so on. Ensure the stability of computers and hardware while preventing damage and interference.

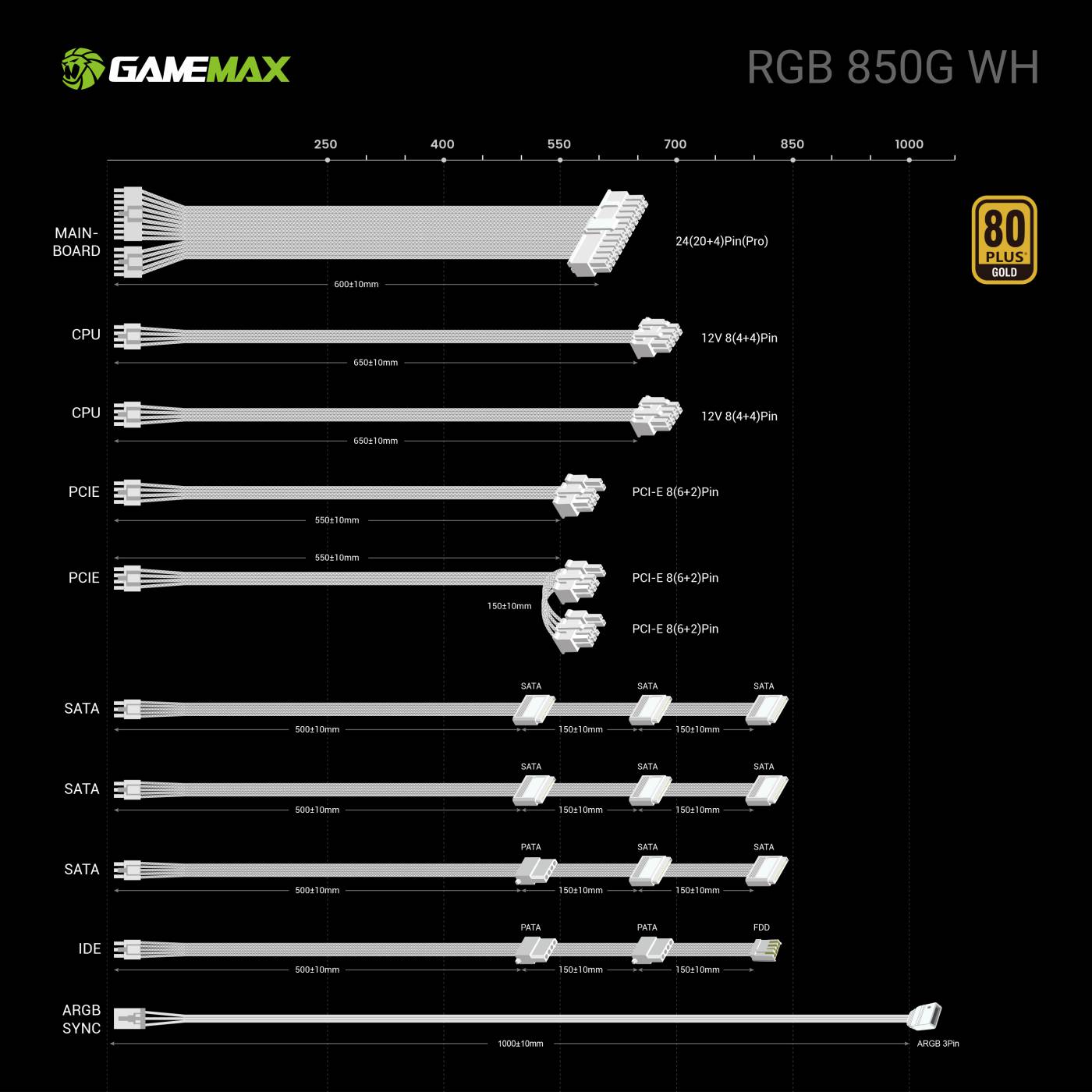

FULLY MODULAR DESIGN & EMBOSSED FLAT CABLES

Fully modular design with ample power connectors supports dual CPUs or three 8-pin connectors for flagship GPUs. Embossed flat cables ensure neat and aesthetically pleasing cable management.

HIGH-OUALTY JAPANESEMAIN CAPACITORS

The Japanese main capacitors withstand temperatures up to 105°C, the large energy storage inductors have a higher voltage carrying capacity, and the high-voltage rectifer lineup is powerful.

EMC PROTECTION & ANTI-BURN CIRCUIT

The frist and second filter circuits with solid materials can effectively resist the damage caused by peak pulses, surges, clutter, common mode or differential mode interference, etc.

WIRELESS TECHNOLOGY

Fully Modular Design Power Supply, where AC socket, and the back panel and the PCB are connected by a copper plate, This breakthrough solution not only lowers the chance of production errors druing manual insertion, lt also improves better heat dissipation and output power quality.

SMART SYNC WITH MOTHERBOARD

Connect the power supply's 5V ARGB SYNC socket to the motherboard's 5V 3-pin ARGB interface to achieve synchronized lighting with the motherboard.

PSU DIMENSION

The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.

Product Technical Specifications

80PLUS	Cetificate	GOLD
Form Factor	Power Supply	Intel ATX 12 V 2.53
Dimensions		165 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	140mm with ARGB LEDs
	Fan Control	Temperature control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Embossed cables
Electrical Features	Operating Temperature	0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF	100,000 Hours (@ 25 °C, Excl. fan)
	AC Input	110-240V
	Protection	OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO
Safety Ceritificate	Safety and EMC	cTUVus, TUV, CB, CCC, EAC, CE
Environmental	Compliance	RoHS
