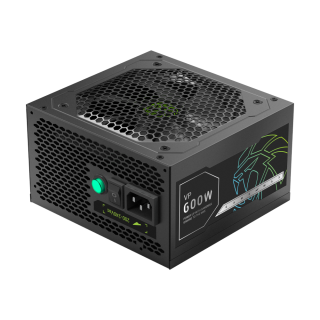

VP 600S New Design Power Supply - 80 PLUS Certified, 5-Year Warranty, High Efficiency & Reliability, Great Value for System Builders
• Comes with a 12V-2x6 connector to support the latest GPUs, including RTX™ 40 and 50 series, ensuring smooth and reliable power delivery for your next build.
• 80 PLUS certified to deliver consistent power while saving energy — a dependable choice for everyday PC use.
• A 12cm HDB fan with ECO Mode automatically adjusts for temperature and noise, staying silent when your system is idle or under light use.
• Meets ERP Lot 6 2013 standard with ultra-low standby power consumption below 0.5W — better for your system and the environment.
• Equipped with multiple safety features including OVP, OPP, UVP, SCP, OTP, and more — protecting your system from electrical damage during operation.
Model name | GAMEMAX VP 600 Standard Power Supply | |
General | ATX Version | ATX 12V Ver. 2.31 |
PFC | Active PFC | |
Input Voltage | 200-240V | |
Input Current | 5A | |
Input Frequency | 50-60Hz | |
Dimensions (L x W x H) | 140 x 150 x 86mm | |
Efficiency | ≥ 85% @ Typical Load | |
80 PLUS Rating | Standard | |
Protections | OPP, OVP, UVP, OCP, OTP, SCP, SIP, OLP | |
Safety Certificate | CE / cTUVus / TUV / CB / RoHS | |
Warranty | 5 Years | |
Fan | Size | 120mm |
Bearing | HDB | |
0dB Mode | Yes | |
Cables | Type | Embossed Flat |
Module | Non Modular | |
ATX 24 Pin | MB 24(20+4) Pin x 1 (500mm) | |
CPU 4+4 Pin | CPU 8(4+4) Pin x 1 (650+150mm) | |
PCI-e 12+4 Pin | 12V-2x6 (12+4) Pin x 1 (650mm) | |
PCI-e 6+2 Pin | PCIe 8(6+2) Pin x 1 (500+150mm) | |
SATA | SATA 4 Pin x 1 (400+150+150mm) | |
