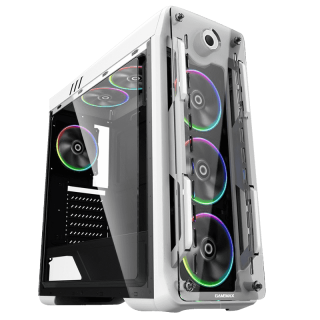

GameMax Optical Case Included 4x ARGB rainbow fans and USB3.0 port, front with perfect design by soft and optical streamline appearance design which creates a high-end and elegant atmospheres.
• Frameless full transparent acrylic side panels, which create a high transparency visual effect
• and let the internal case rainbow fan lights and other optional accessories show out the shining color without reservation.
| Model No.: | Optical (Factory # G510 WHITE) |
| Type: | ATX/MICRO ATX/ITX/MINI ITX |
| Front Panel: | Plastic transprant finish，Rainbow LEDs fan by controller |
| Side Panel: | Full transparent panel |
| Top Panel: | Top metal panel with filter |
| Fan controller : | x1 channel |
| Chassis: | 0.5mm , Black painting interior |
| Front USB Ports: | USB2.0x 2 (included) |
| USB3.0x 1 (included) | |
| Front Audio Jackets | HD_Audio |
| PSU Type | ATX Bottom loaded |
| Reserved Fan Ports: | Front: 3x120mm Dual ring rainbow fan Included |
| Side: Null | |
| Rear: 1x 120mm Ring rainbow fan included | |
| Top: 2x120mm fan position (Optional) | |
| Water-Cooling System: | Front: 120 or 240mm water cooling |
| Top: 120 or 240mm water cooling | |
| Drive Bays 5.25'' exposed | 0 |
| Drive Bay 3.5'' exposed | 0 |
| Drive Bay 3.5'' hidden | 2 |
| Drive Bay 2.5'' SSD | 2 |
| PCI Expansion Slots: | 7 |
| GPU card length | <380mm<> |
| CPU cooler height | <160mm<> |
| Chassis Size: | 400*185*470mm |
| Carton Size: | 545*237*505mm |
The Connection Demo:
