• Comprehensive Compatibility: Supports E-ATX motherboards, 425mm GPUs, 420mm radiators, 245mm PSUs, and 185mm air coolers for versatile hardware configurations.
• Advanced Cooling Matrix: Offers 9×120mm or 8×140mm fan mounts with 4 pre-installed 140mm ARGB PWM fans and a dedicated controller.
• Future-Proof Connectivity: Features Type-C Gen 2, dual USB 3.0 ports, and BTF motherboard compatibility for modern cable management.
• Effortless Building: Incorporates a tool-free design, vertical GPU support, and hidden cable routing with a detachable cover.
• Lion-Inspired Design: Showcases bold claw-mark mesh panels, a tempered glass side panel, and customizable ARGB lighting.
| Form Factor: | E-ATX | |
| Chassis: | SPCC :0.6-0.7mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor: | E-ATX、ATX、M-ATX、ITX | |
| ATX、M-ATX Support BTF | ||
| Front Panel: | metal Mesh(Tool-free) | |
| Top Panel: | metal Mesh(Tool-free) | |
| Side Panel: | Left: | Tempered Glass(Tool-free) |
| Right: | Metal cover(Tool-free) | |
| External Drive Bay(s): | 5.25”(ODD): | *0 |
| 3.5”: | *0 | |
| Internal Drive Bay(s): | 3.5" (HDD): | *2 |
| 2.5" (SSD): | *3 | |
| 2*3.5HDD+2*2.5SSD or 1*3.5HDD+3*2.5SSD | ||
| I/O: | Buttons: | *3 (POEWR, RESET, LED MODL) |
| USB 2.0 Port(s): | *0 | |
| USB 3.0 Port(s): | *2 | |
| Type C Port(s): | *1(TYPE-C GEN2) | |
| Audio Support: | *1(Combo AUDIO) | |
| Card Reader (Support): | *0 | |
| P-Lock： | *0 | |
| RGB Controller： | *1(V5.0 PWM ARGB HUB) | |
| Controller Max Fans: | *6 | |
| RGB Controller max. LED strips： | *6 | |
| Remote (IR or RF)： | *1 | |

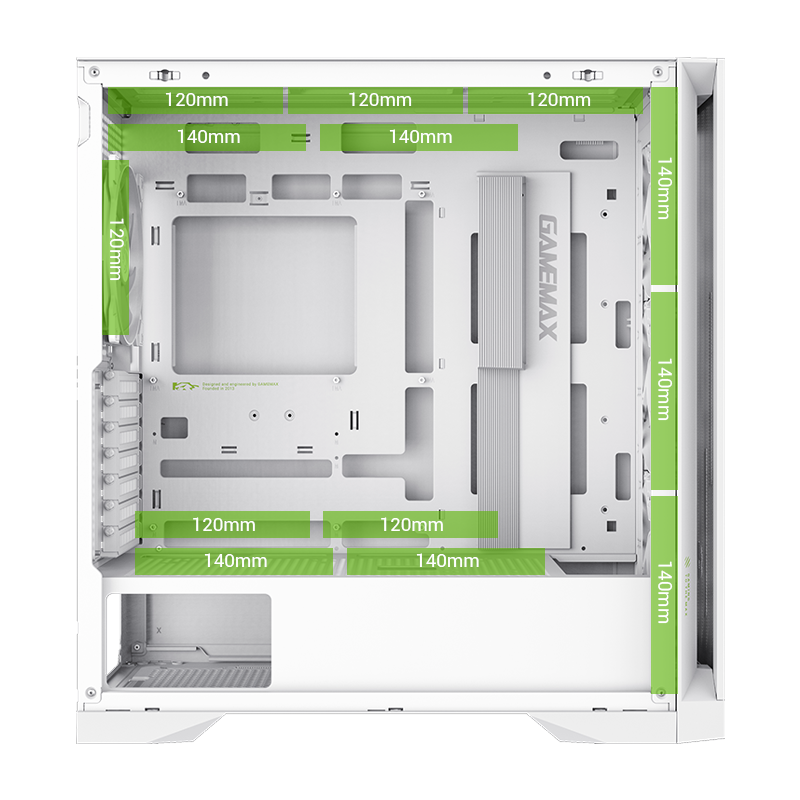

| Cooling Fan Support: | Front: | 3x140mm( FN14A-S5) |
| Top: | 3x120mm ,2x140mm (Fan optional) | |
| Rear: | 1x140mm( FN14A-S5) | |
| Bottom: | 0 | |
| M/B Cover： | 0 | |
| PSU Cover： | 2x120mm ,2x140mm (Fan optional | |

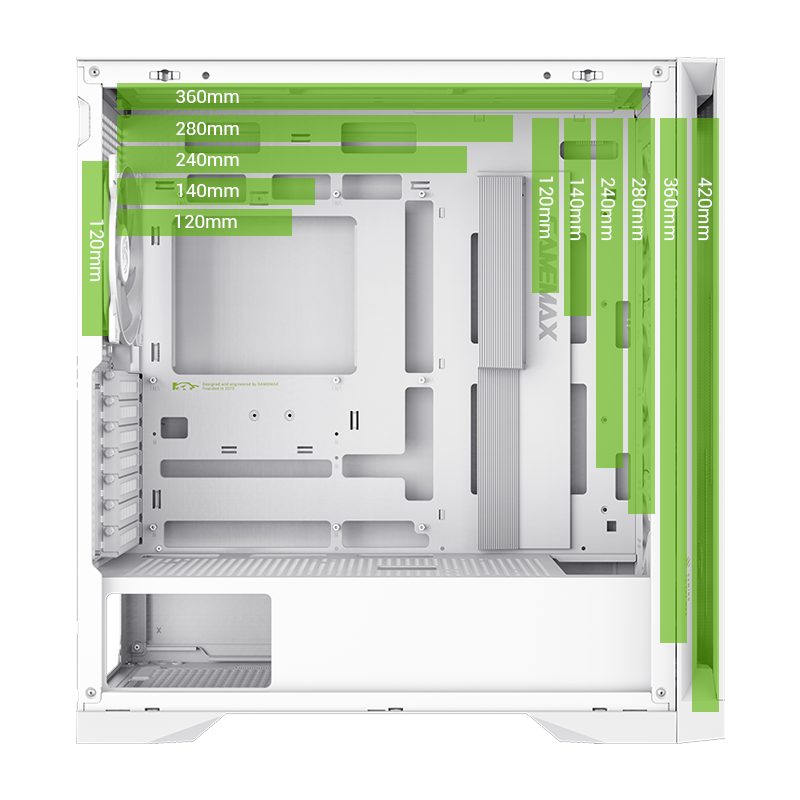

| Water Cooling Support | ||
| (Radiator Size): | Front: | 120mm, 140mm,240mm,280mm,360mm,420mm |
| Top: | 120mm, 140mm,240mm,280mm,360mm | |
| Rear: | 120mm, 140mm | |
| M/B Cover： | *0 | |

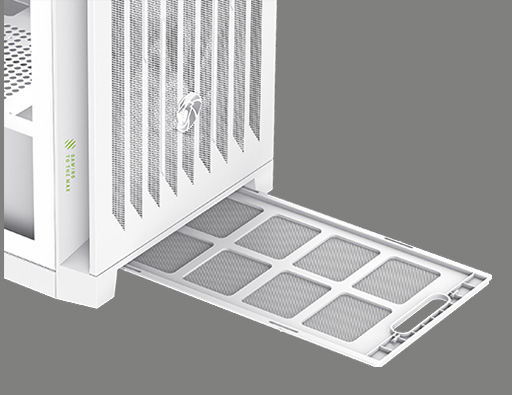

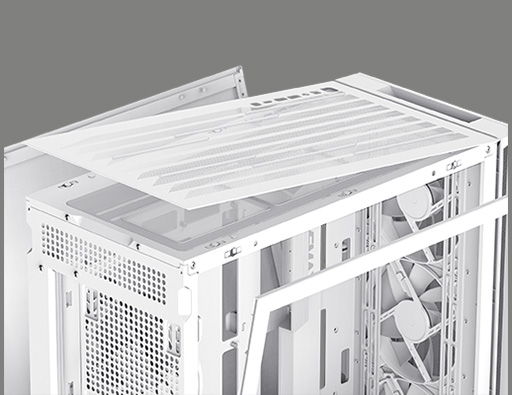

| Dust Cover: | Removable iron mesh on top, pull-out dust mesh on the bottom | |

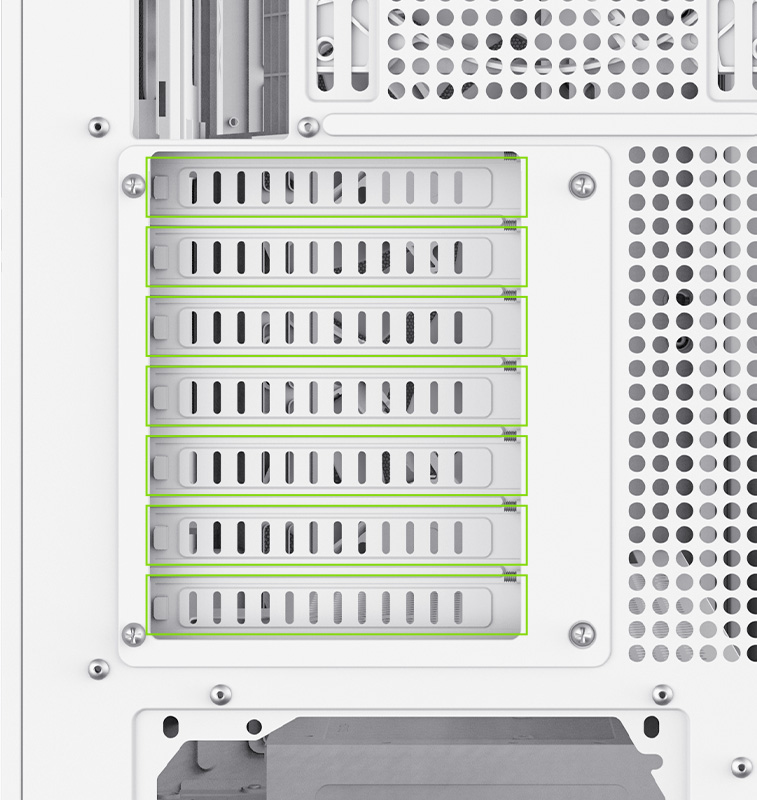

| Slots: | *7/5 | |
| Carton & Logo: | GAMEMAX | |

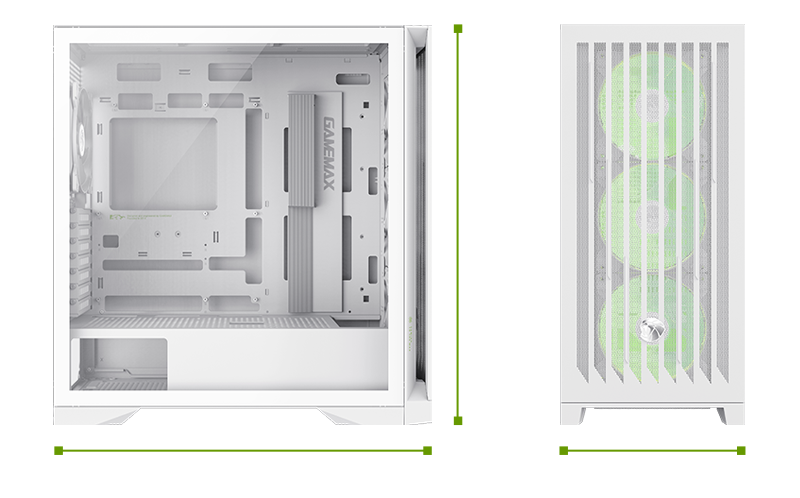

| Dimensions: | Chassis: | (L)440*(W)235*(H)480mm |
| Full Case (Inc Fascia): | (L)476*(W)235*(H)500mm | |
| Carton: | (L)558*(W)309*(H)565mm | |
| Net Weight(kg): | 9.2 | |
| Gross Weight(kg): | 10.6 | |
| VGA Support: | up to 425mm(inside the front cover w/o fan) | |

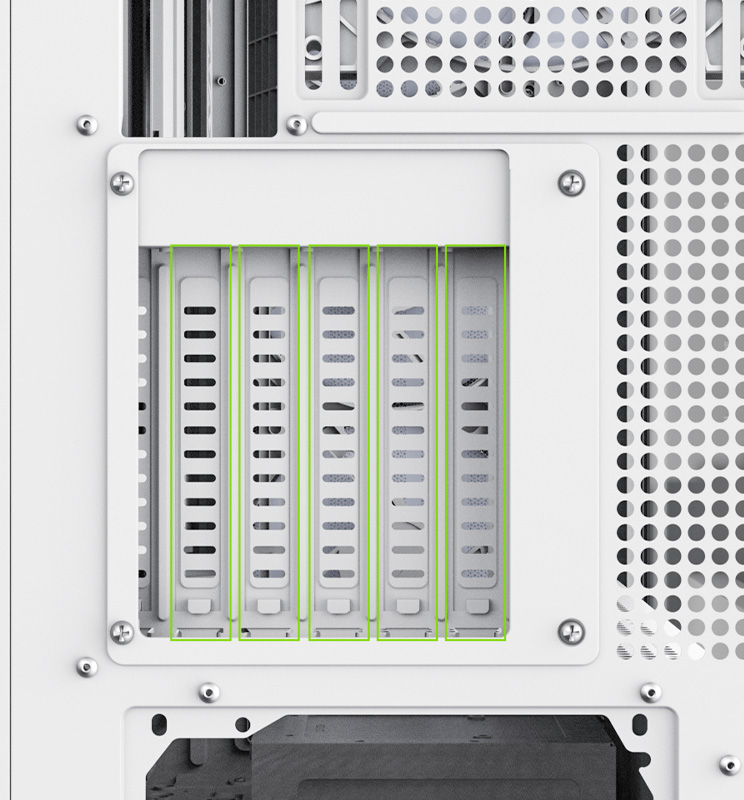

| Vertical Graphics Support | YES | |
| CPU Cooler Height: | up to 185mm | |
| SPS Length: | up to 245mm | |
| Cable Management Depth: | 32mm | |
