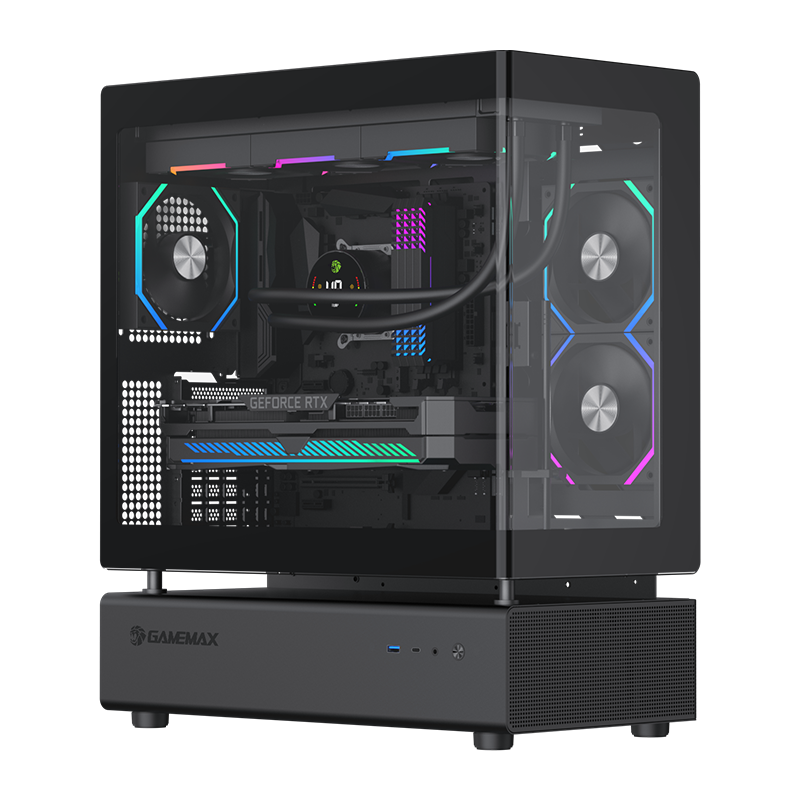

Gamemax N80 BK Gaming PC Case — Step into the future of gaming with the Gamemax N80 BK, a perfect fusion of modular design and sleek aesthetics.

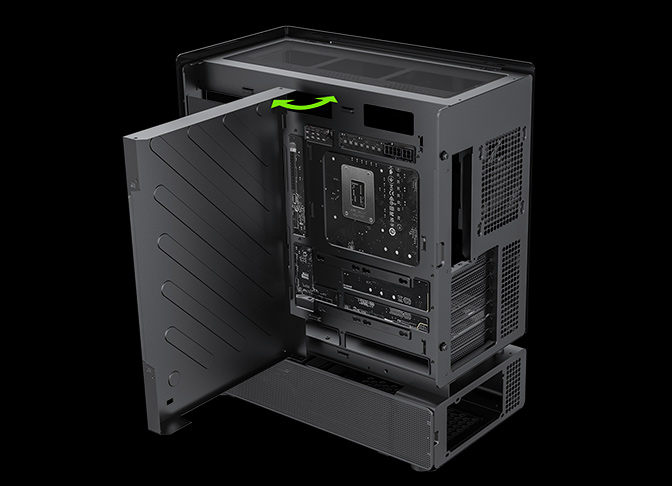

• Detachable Modular Design: Easily upgrade and customize your setup.
• Integrated Curved Glass: Showcase your components with a seamless,stylish front panel.

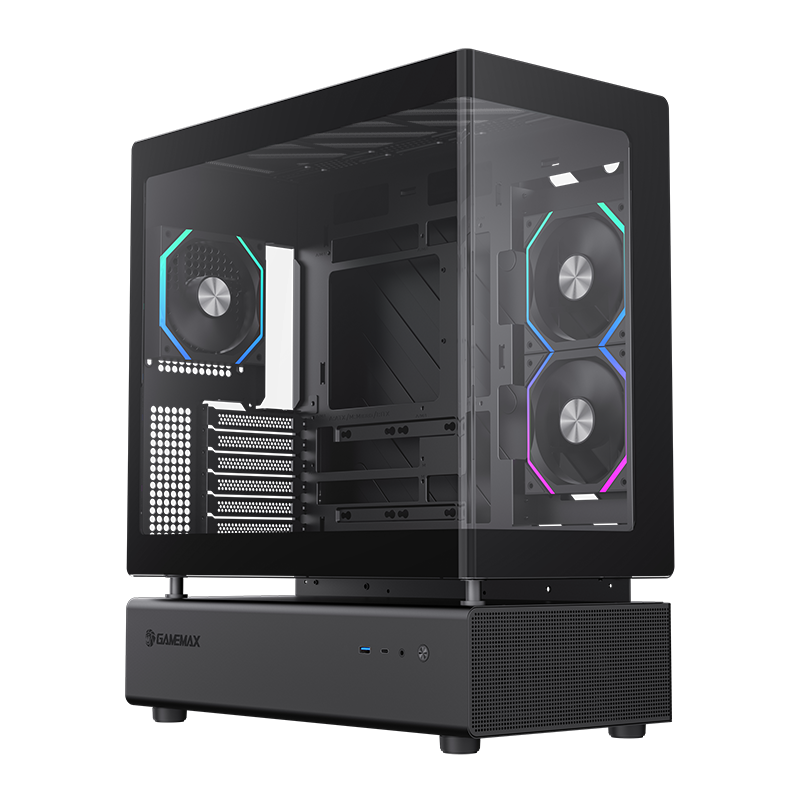

• Panoramic Interior View: Enjoy a full view of your hardware for a satisfying build experience.

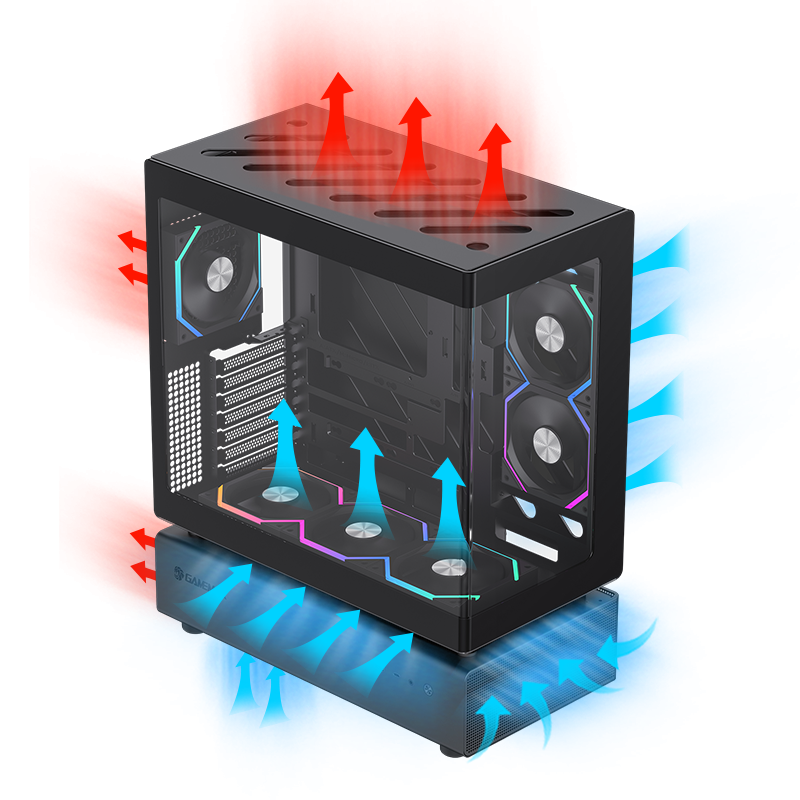

• Comprehensive Cooling: 270 coverage with 6 ARGB fans for optimal performance.
• ARGB Sync: Create custom lighting effects that match your gaming mood.
• Vertical GPU Mount: Showcase your graphics card with enhanced cooling and style.
• Innovative GameMax Design: Elevate your gaming setup with a bold, eye-catching case.
| Form Factor (Midi, Micro, Mini , Full) | Midi Tower | |
| Chassis | SPCC :0.8mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | ATX、M-ATX、ITX. (Support BTF) | |
| Front Panel | Tempered Glass | |
| Top Panel | metal | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||
| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |

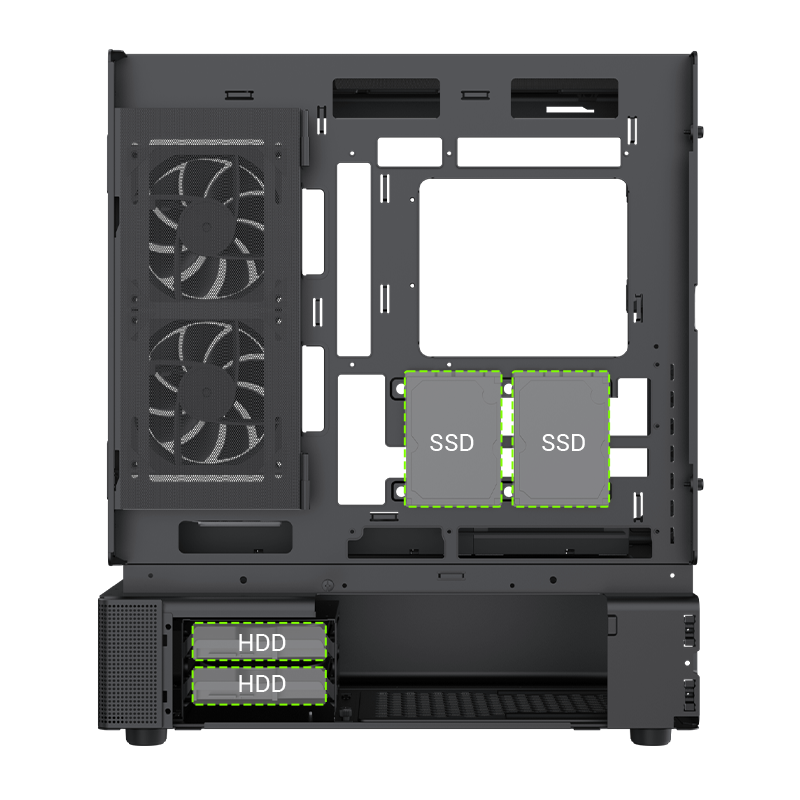

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+2*2.5SSD or 2*3.5HDD or 1*3.5HDD+1*2.5SSD |
| 2.5" (SSD) | ||

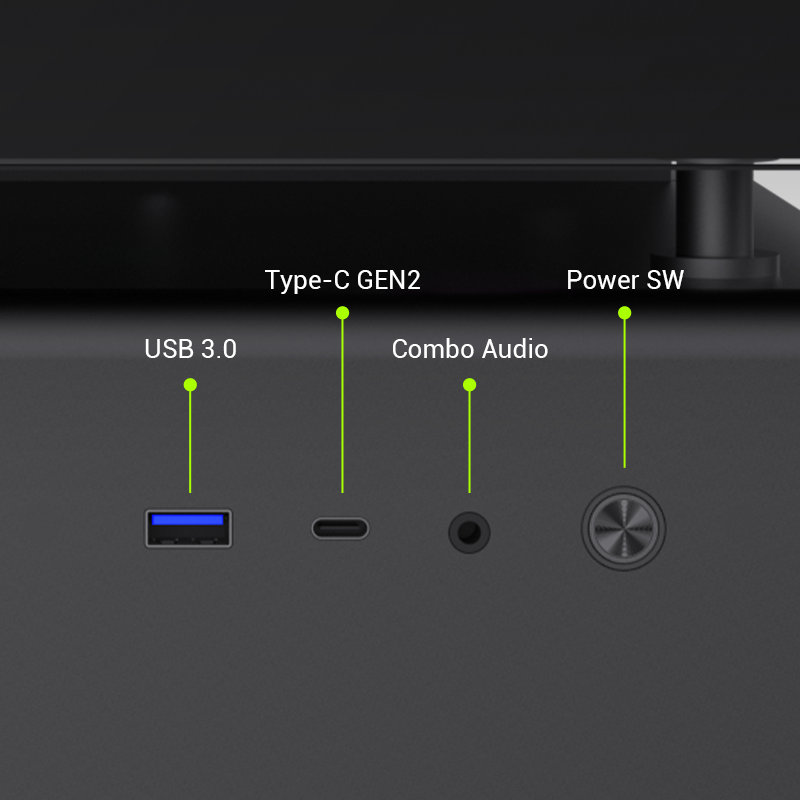

| I/O | Buttons | *1 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *2 | |
| USB3.1 Port(s) | *0 | |
| HD Audio Support | Combo Audio(CTIA)*1 | |
| Type C | *1(GEN2) | |
| P-Lock | *0 | |
| RGB Controller | *1(RMT-AP Controller) | |
| Controller max. fans | *10 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *1 | |

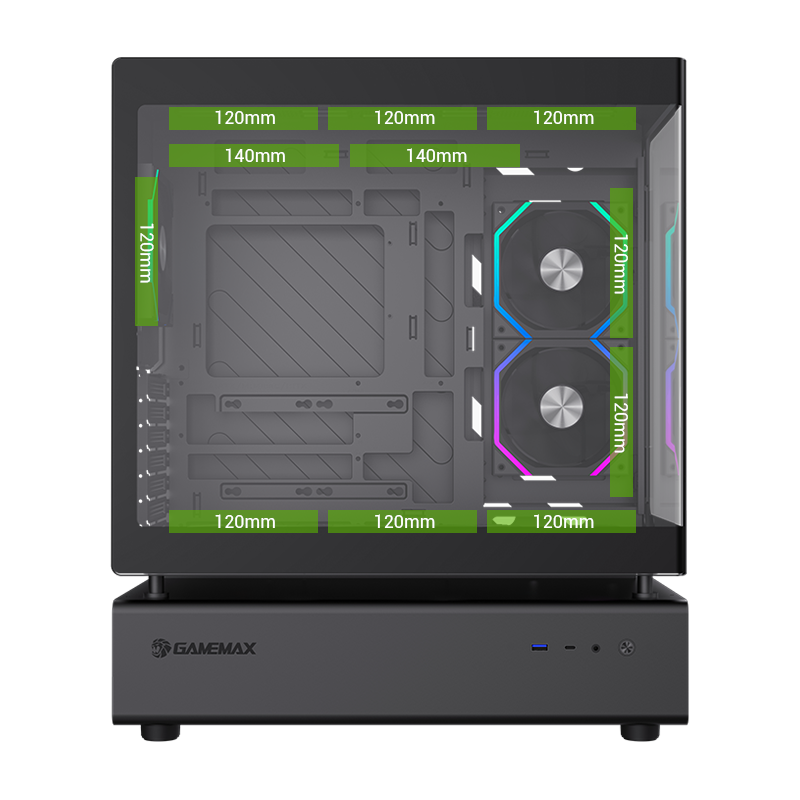

| Cooling Fan Support | Front | *0 |
| Top | 3x120mm,2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan include) | |
| M/B Side | 2x120mm (Fan include) | |

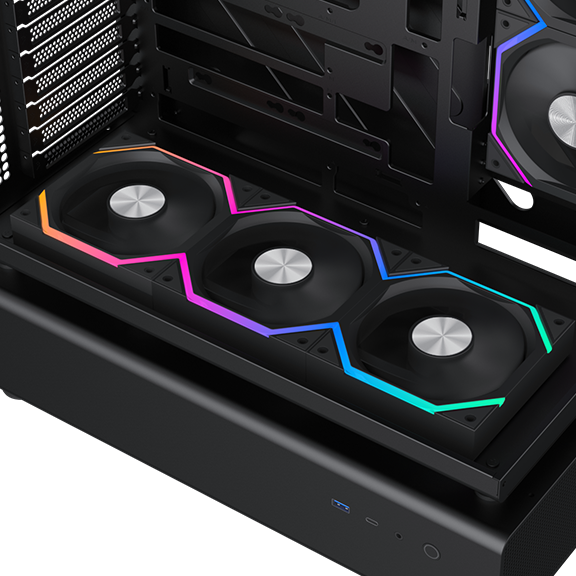

| PSU Cover | 3x120mm (Fan include) | |

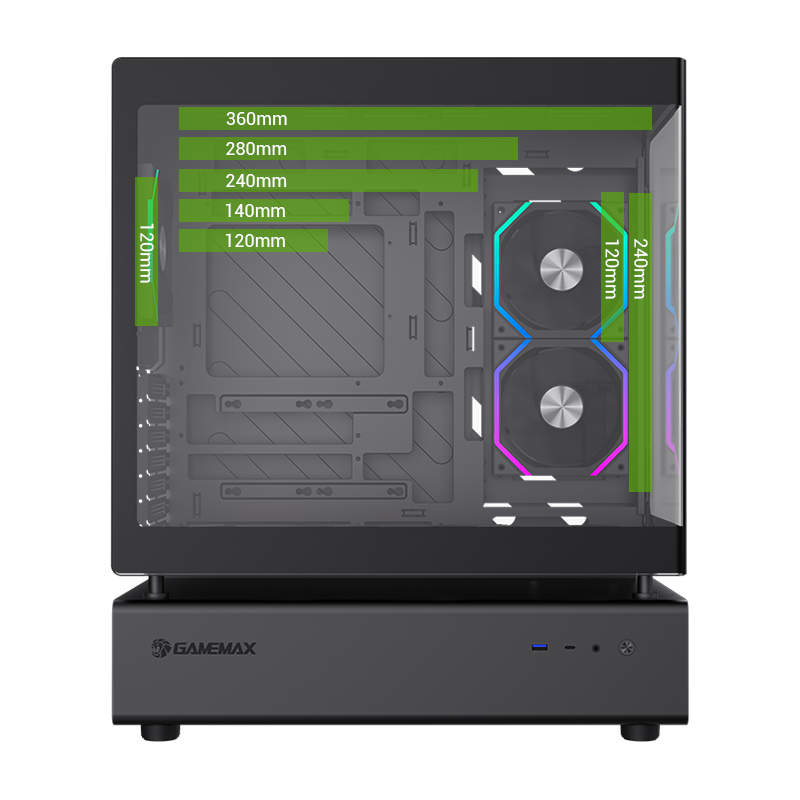

| Water Cooling Support (Radiator Size) | M/B Side | 120mm,240mm |
| Top | 120mm,140mm,240mm,280mm,360mm | |
| Rear | 120mm | |

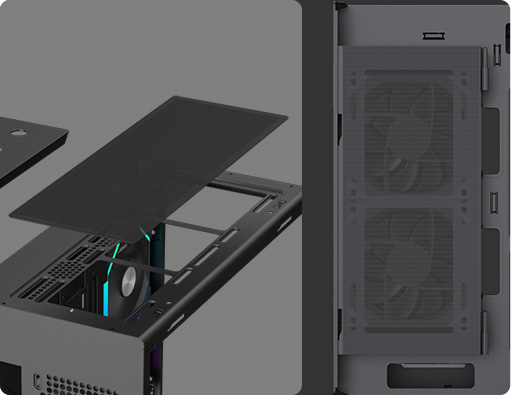

| Dust Cover | Top&Bottom with dust filter | |
| Slots | *7 | |
| Carton & Logo | GAMEMAX | |

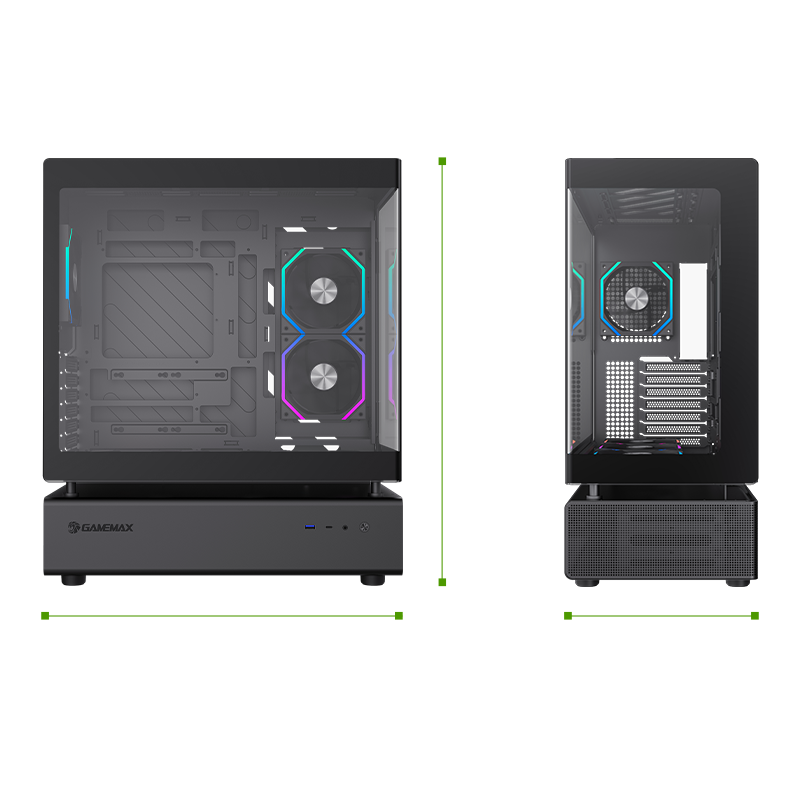

| Dimensions | Chassis | (L)439*(W)235*(H)511mm |
| Full Case (inc Fascia) | (L)439*(W)240.5*(H)530mm | |
| Carton | (L)512*(W)310*(H)601mm | |
| Net Weight (Kg) | 10.85kgs | |
| Gross Weight (Kg) | 13kgs | |

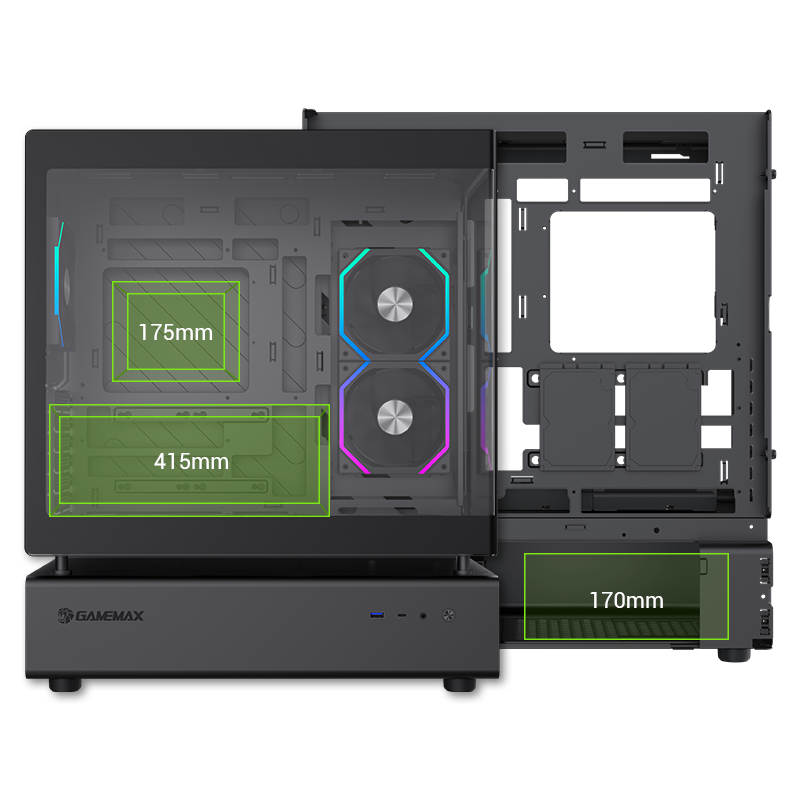

| VGA Card Length | up to 415mm | |
| CPU Cooler Height | 175mm | |

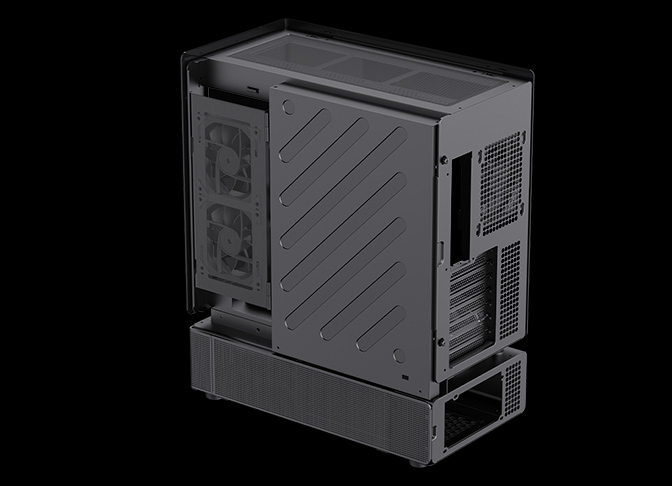

| Cable Management Depth | 32mm | |
