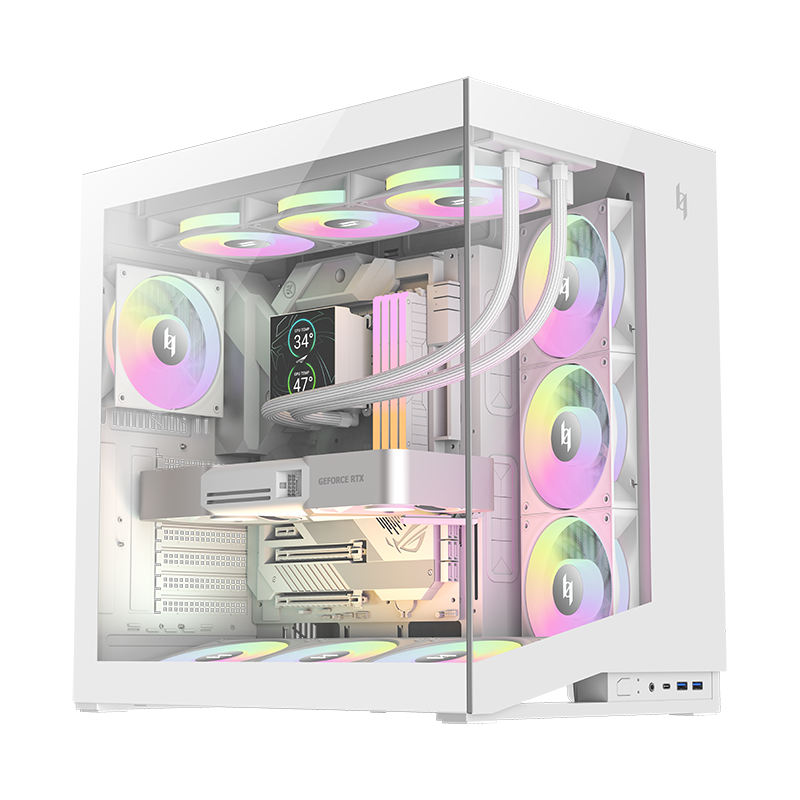

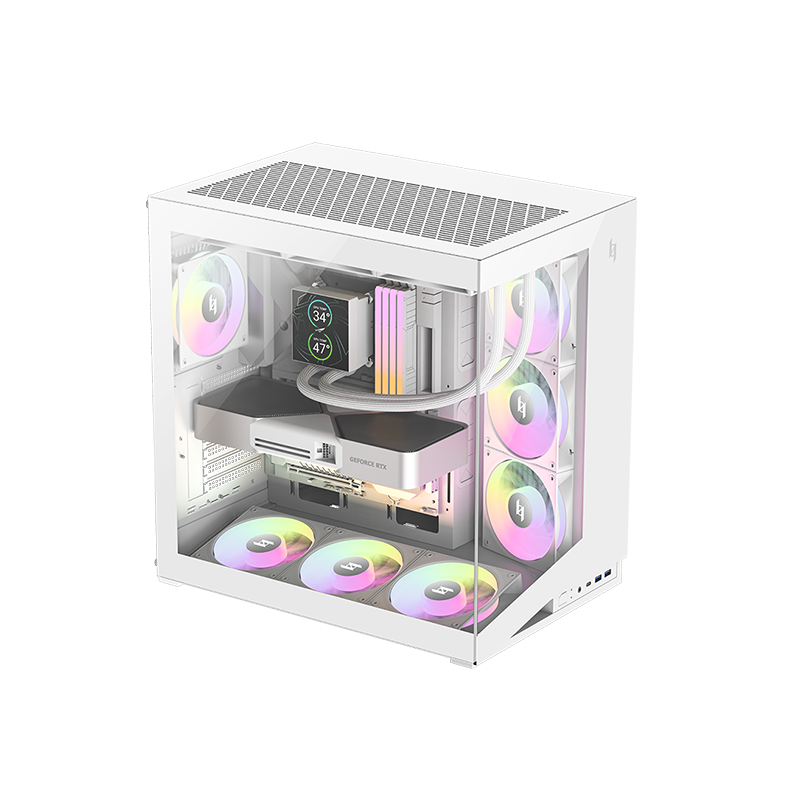

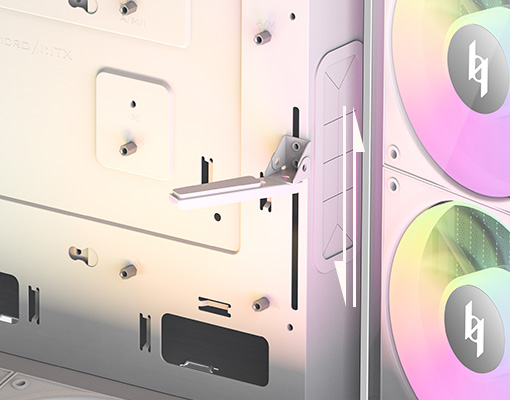

• 270° Panoramic View：Borderless design with 4mm front/side tempered glass, showcasing hardware and lighting effects unobstructed• 12° Inclined Airflow：Bottom/right intake fans angled at 12°, optimizing airflow channels for enhanced heat dissipation• Dual-Chamber Spacious Layout：Supports ATX motherboards, 425mm GPUs (NVIDIA 50 Series ready), dual 360mm radiators, and 2HDD+2SSD storage options• Powerful Cooling Support：Compatible with 10×120mm or 6×120+3×140mm fans; pre-installed with 4×ARGB/PWM fans + custom hub, balancing cooling and lighting• High-Speed I/O Ports：Equipped with USB 3.2 Gen2 Type-C + 2×USB 3.2 Gen1 Type-A for fast charging and data transfer• Vertical GPU Support：Enables vertical GPU installation without blocking bottom airflow, combining aesthetics and heat dissipation• Adjustable GPU Anti-Sag Bracket：Height-adjustable design prevents GPU sagging, protecting hardware during long-term use and transport• Full-Range Dust Protection：Removable magnetic dust filters on top, bottom, and right side for easy cleaning and reliable hardware protection
Form Factor: | Mid Tower | |
Chassis: | SPCC :0.6mm | |
PSU Form Factor | Bottom/ATX | |
M/B Form Factor: | E-ATX、ATX、M-ATX、ITX | |
Front Panel: | Tempered Glass | |
Top Panel: | Metal cover | |
Side Panel: | Left: | Tempered Glass |
Right: | Metal cover | |
External Drive Bay(s): | 5.25”(ODD): | *0 |
3.5”: | *0 | |
Internal Drive Bay(s): | 3.5" (HDD): | * 2 |
2.5" (SSD): | *2 | |
2*3.5HDD+2*2.5SSD | ||
I/O: | Buttons: | *1 (POEWR) |
USB 2.0 Port(s): | *0 | |
USB3.2 Gen1 Type A Port(s) | *2 | |
USB3.2 Gen2 Type C Port(s) | *1 | |
Audio Support: | *1(Combo AUDIO) | |
RGB Controller： | V4.5 ARGB PWM HUB | |
Controller Max Fans: | *9 | |
RGB Controller max. LED strips： | *10 | |
Remote (IR or RF)： | *1 | |

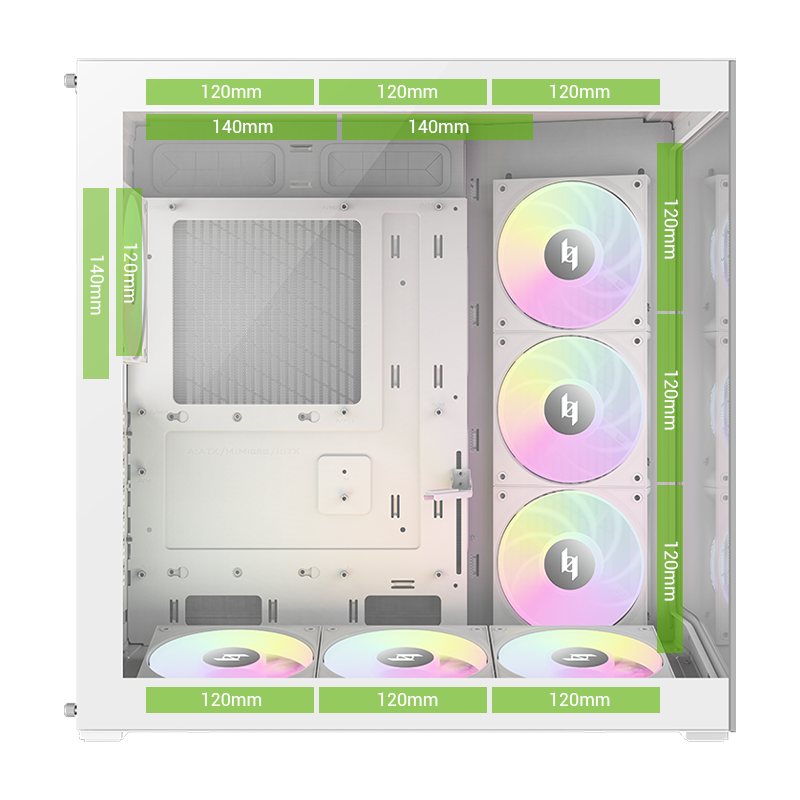

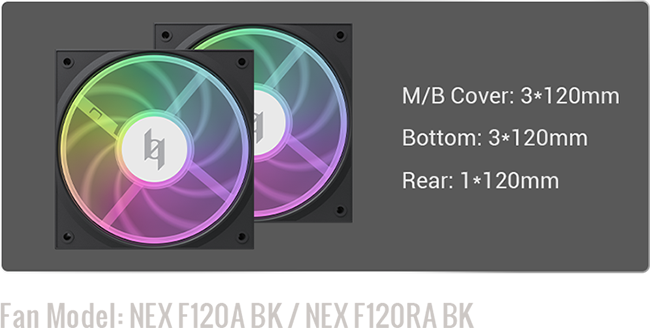

Cooling Fan Support: | Front: | N/A |
Top: | 3x120mm ,2x140mm (Fan optional) | |

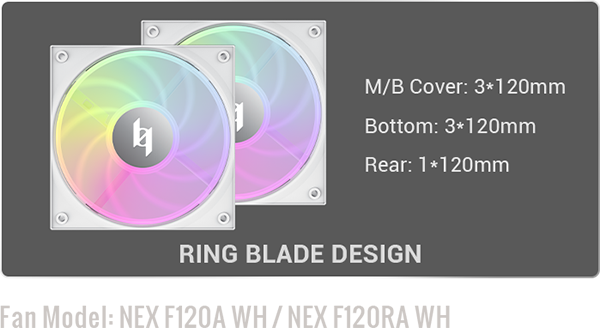

Rear: | 1x120mm (Tornado-T12 ARGB) | |
Bottom: | 3x120mm (Fan Optional) | |
M/B Cover： | *3x120mm (Tornado-T12-R ARGB) | |
Water Cooling Support (Radiator Size): | Front: | *0 |
Top: | 120mm, 140mm,240mm,280mm,360mm | |
Rear: | 120mm | |
Bottom: | 120mm, 240mm, 360mm | |
M/B Cover： | 120mm, 240mm, 360mm | |

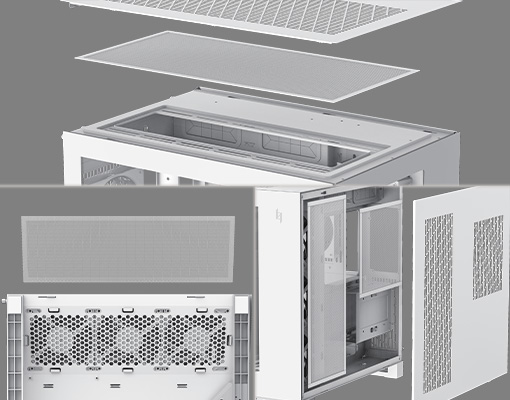

Dust Cover: | Dust mesh on the bottom/top/right side | |
Slots: | *7 | |
Carton & Logo: | GAMEMAX | |

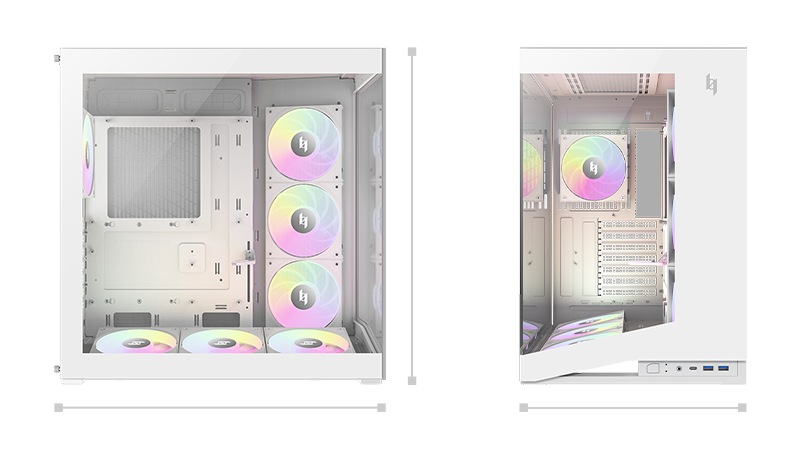

Dimensions: | Chassis: | (L)430*(W)300*(H)445mm |
Full Case (Inc Fascia): | (L)446*(W)300*(H)445mm | |
Carton: | (L)504*(W)373*(H)527mm | |
