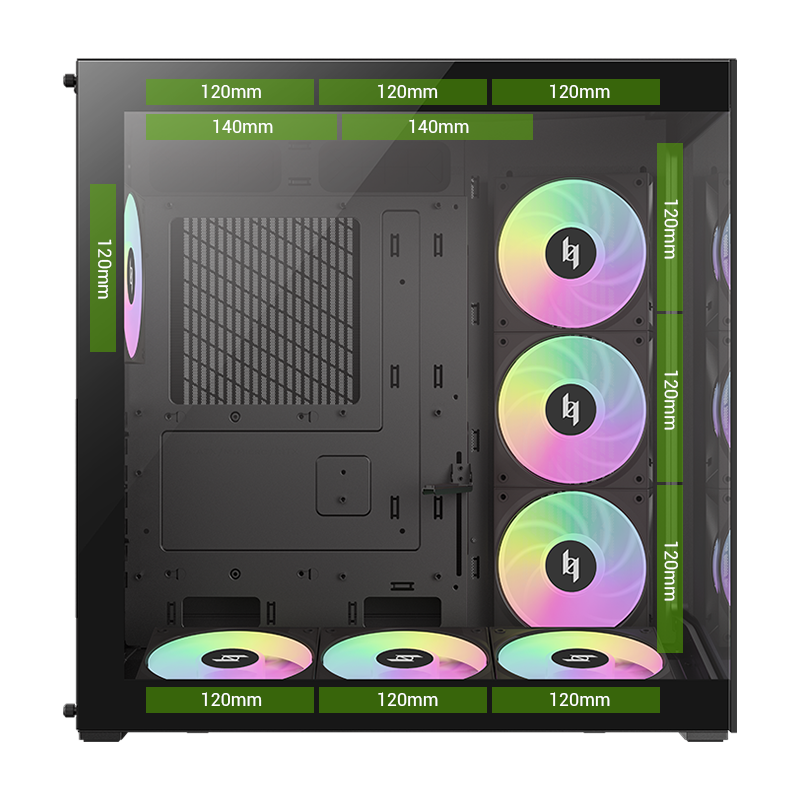

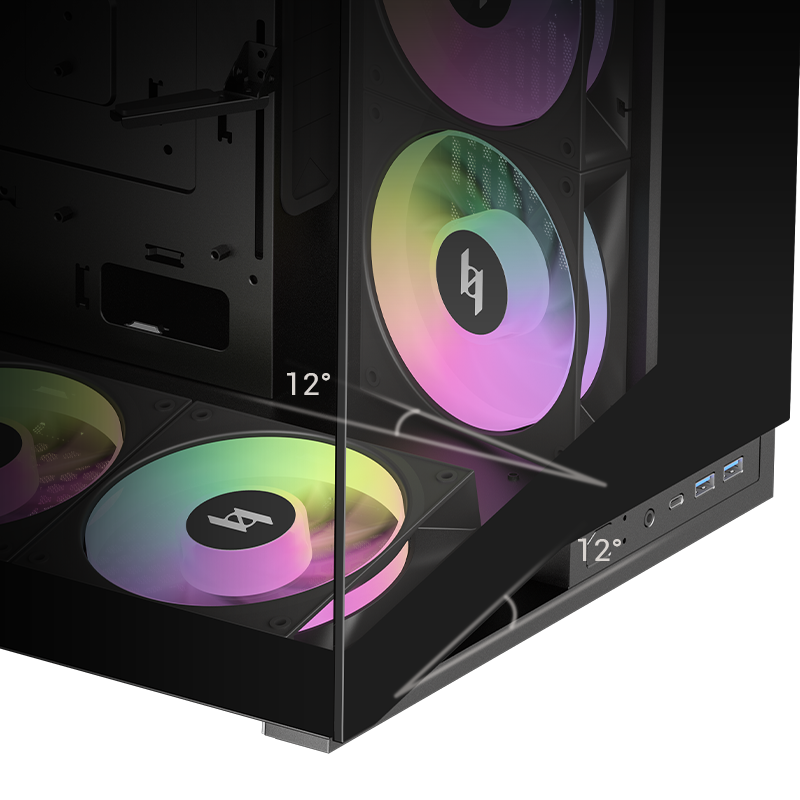

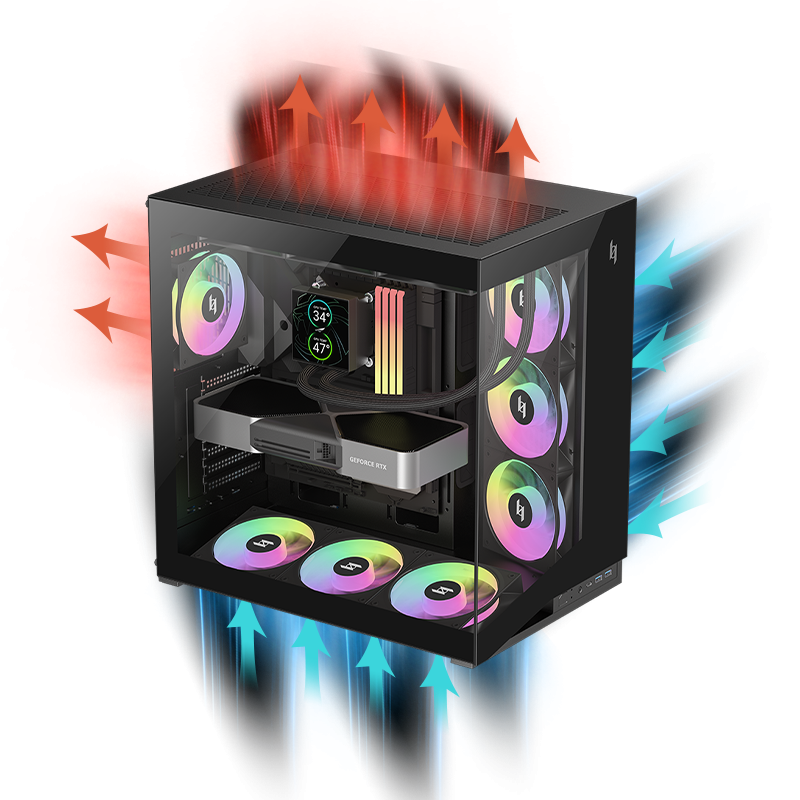

• 4mm tempered glass on front, side, and top delivering a panoramic view.• 12° inclined bottom and right-side intake fans for optimized airflow and faster heat dissipation.• Dual-chamber layout with support for ATX motherboards, 425mm GPUs, 182mm CPU coolers, 220mm PSUs, dual 360mm radiators, and 2×HDD + 2×SSD.• Cooling capacity:NEX C56 VC – up to 7×120mm or 3×120mm + 3×140mm; includes 4×120mm ARGB/PWM fans.• I/O panel with USB-C (USB 3.2 Gen2x2) and 2× USB-A (USB 3.2 Gen1).• Vertical GPU installation supported without blocking bottom airflow.• Included height-adjustable GPU support bracket to prevent sagging.• Magnetic dust filters on bottom, and right side.
Form Factor: | Mid Tower | |
Chassis: | SPCC :0.6mm | |
PSU Form Factor | Bottom/ATX | |
M/B Form Factor: | ATX、M-ATX、ITX | |
Front Panel: | Tempered Glass | |
Top Panel: | Tempered Glass | |
Side Panel: | Left: | Tempered Glass |
Right: | Metal cover | |
External Drive Bay(s): | 5.25”(ODD): | *0 |
3.5”: | *0 | |
Internal Drive Bay(s): | 3.5" (HDD): | * 2 |
2.5" (SSD): | *2 | |
2*3.5HDD+2*2.5SSD | ||
I/O: | Buttons: | *1 (POWER) |
USB 2.0 Port(s): | *0 | |
USB3.2 Gen1 Type A Port(s) | *2 | |
USB3.2 Gen2 Type C Port(s) | *1 | |
Audio Support: | *1(Combo AUDIO) | |
Cooling Fan Support: | Front: | N/A |
Top: | N/A | |
Rear: | 1x120mm (NEX F120A) | |
Bottom: | 3x120mm (NEX F120RA ) | |
M/B Cover： | *3x120mm （None） | |
Water Cooling Support (Radiator Size): | Front: | N/A |
Top: | N/A | |
Rear: | 120mm | |
Bottom: | 120mm, 240mm, 360mm | |
M/B Cover： | 120mm, 240mm, 360mm | |
Dust Cover: | Dust mesh on the bottom/right side | |
Slots: | *7 | |
Carton & Logo: | GAMEMAX | |
Dimensions: | Chassis: | (L)430*(W)300*(H)448mm |
Full Case (Inc Fascia): | (L)446*(W)300*(H)448mm | |
Carton: | (L)504*(W)373*(H)527mm | |
Net Weight(kg): | ||
Gross Weight(kg): | ||
VGA Support: | up to 425mm | |
Vertical Graphics Support | Yes | |
CPU Cooler Height: | up to 182mm | |
SPS Length: | up to 220mm | |
Cable Management Depth: | 95mm | |
