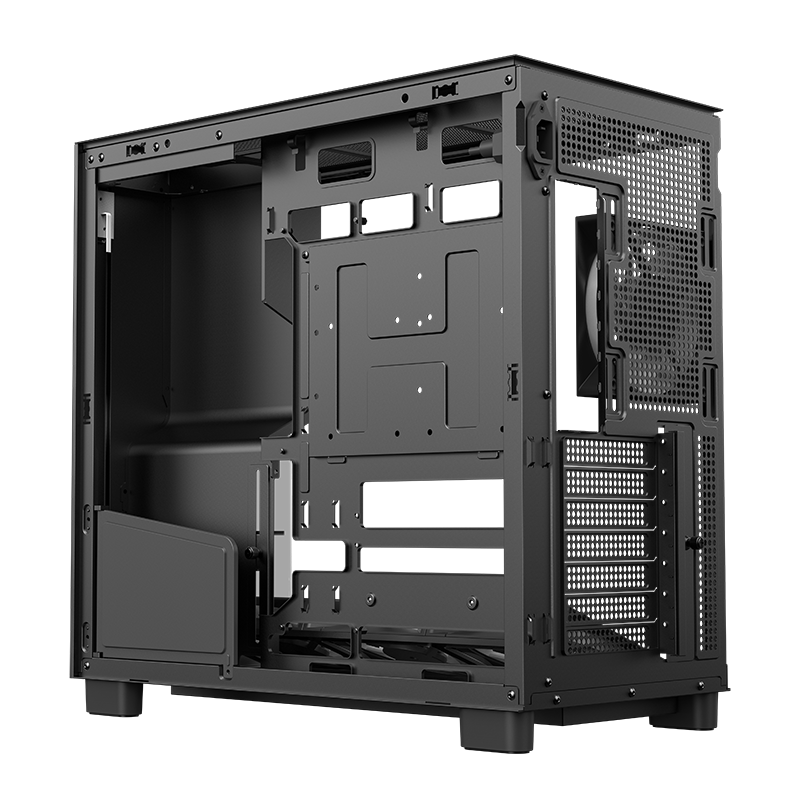

The GAMEMAX NEX C53 features a multi-angle fan bracket that allows precise airflow tuning for different system builds, delivering optimized cooling within a compact panoramic chassis.• Panoramic “sea-view” layout with optimized space usage.• Front-mounted PSU layout maximizes internal space and eliminates unused corners.• Supports 360mm radiators, 175 mm air coolers, 7×120 mm or 5×140 mm fans, 410mm GPUs and 160mm ATX PSUs.• Multi-angle fan bracket for flexible airflow tuning.• 4 pre-installed ARGB fans with ring blade design.• Supports BTF motherboards• Integrated GPU support bracket for long-term stability.• Front I/O with modern Type-C Gen2×2 and USB 3.0 ports.
| Product Dimensions | 435×235×435mm(L×W×H) |
| Carton Dimensions | 489×298×510mm(L×W×H) |
| Net Weight | Kg |
| Materials | ABS+SPCC+Tempered Glass |
| Motherboard Support | ITX / M-ATX / ATX / BTF |
| Front I/O Ports | USB3.0×2、Tpye-C×1、Audio×1 |
| 3.5" Drive Bays | 1 |
| 2.5" Drive Bays | 1+1 |
| Expansion Slots | 7 Slots |
| Pre-Installed Fans | Rear: 1×120mm Bottom：3×120mm |
| Fan Support | Top: 3×120mm Rear: 1×120 / 1×140mm Bottom: 3×120mm |
| Radiator Support | Top: 120/240/360mm Rear: 1×120mm |
| CPU Cooler Height Limit | 180mm |
| GPU Length Limit | 425mm |
| Power Supply Type | ATX PS2 （maximum length: 160mm） |
