• Flexible Connectivity: Supports both parallel and series connections.

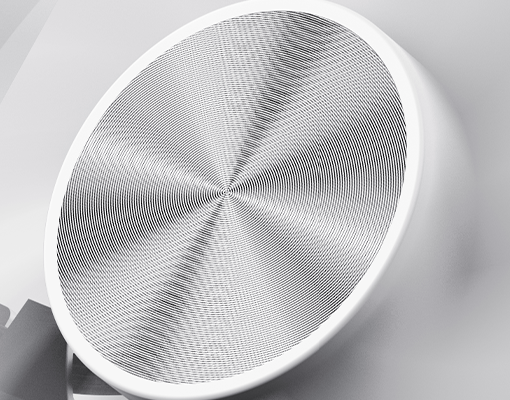

• Premium Aluminum Core: Features a metallic aluminum CD pattern for a sophisticated touch.

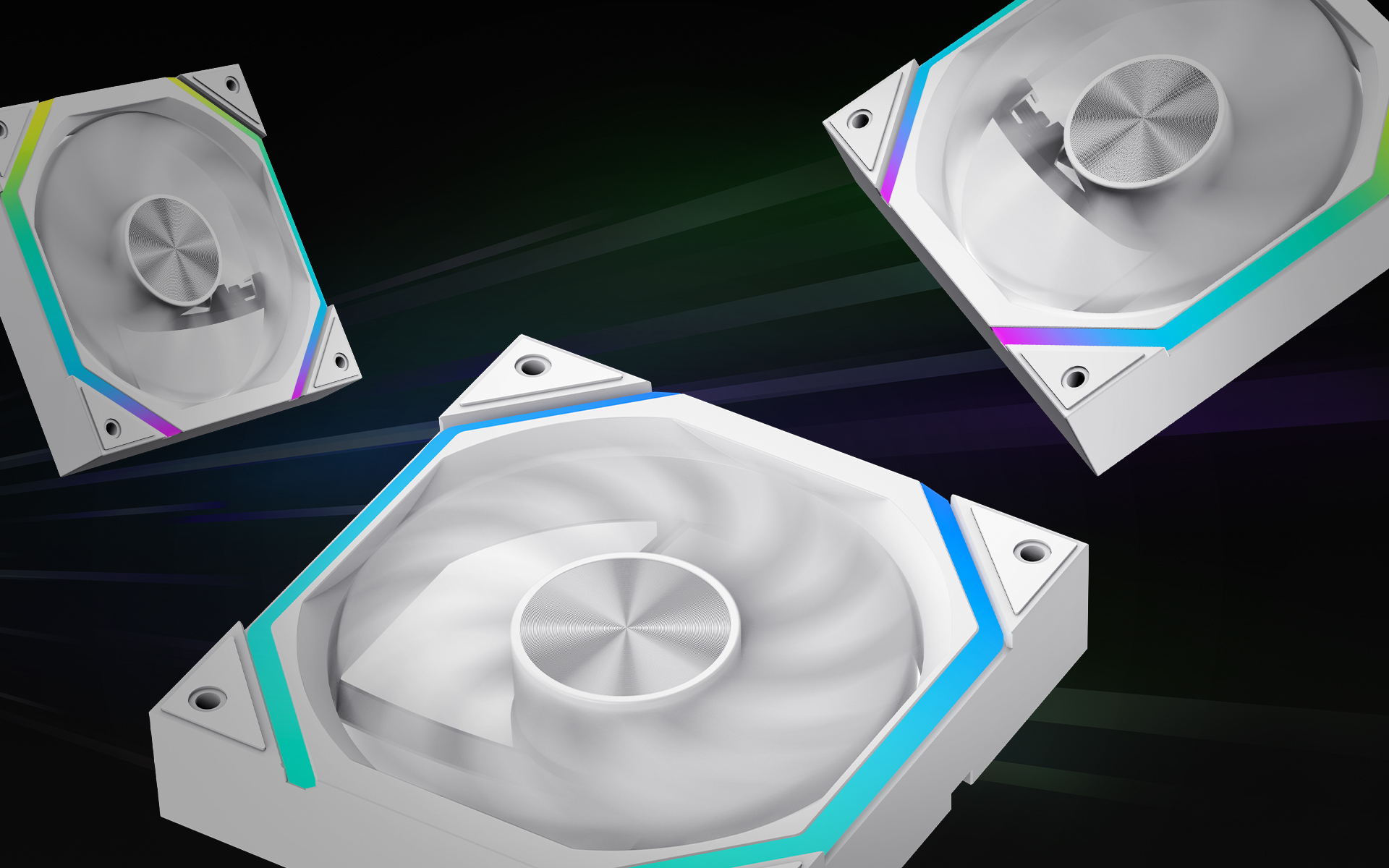

• Customizable Options: Available in black or white, with reversible fan blades.

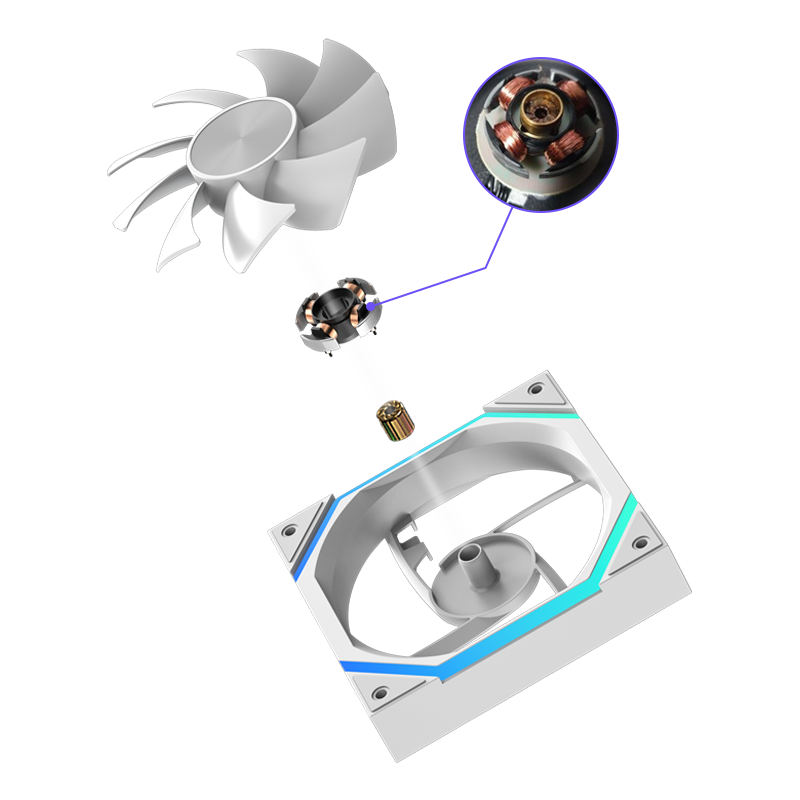

• Silent Performance: Hydraulic bearings ensure noise levels as low as 33.7dB(A), even under heavy loads.
• Optimal Air Pressure: Delivers up to 1.98mm H2O, providing efficient and reliable cooling for stable temperature control.
• Durable Performance: Offers a lifespan of up to 30,000 hours for reliable, long-term use
| FAN Specifications | FN12A-N2 |
| Dimensions: | 120 x 120 x 25mm |
| Fan Frame Colour: | Black |
| Fan Blades / Colour: | 9 / Black / Axial aluminum CD pattern |
| LED Qty / Type: | Outer ring 16PCS |
| Bearing Type: | Hydraulic Bearing |
| Fan Speed: | 800~2000 rpm ± 10% |
| Max. Air Flow : | 53.87 CFM MAX |
| Max. Static Air Pressure: | 1.98mm - H2O MAX |
| Noise Level (max.): | 33.7db(A) MAX |

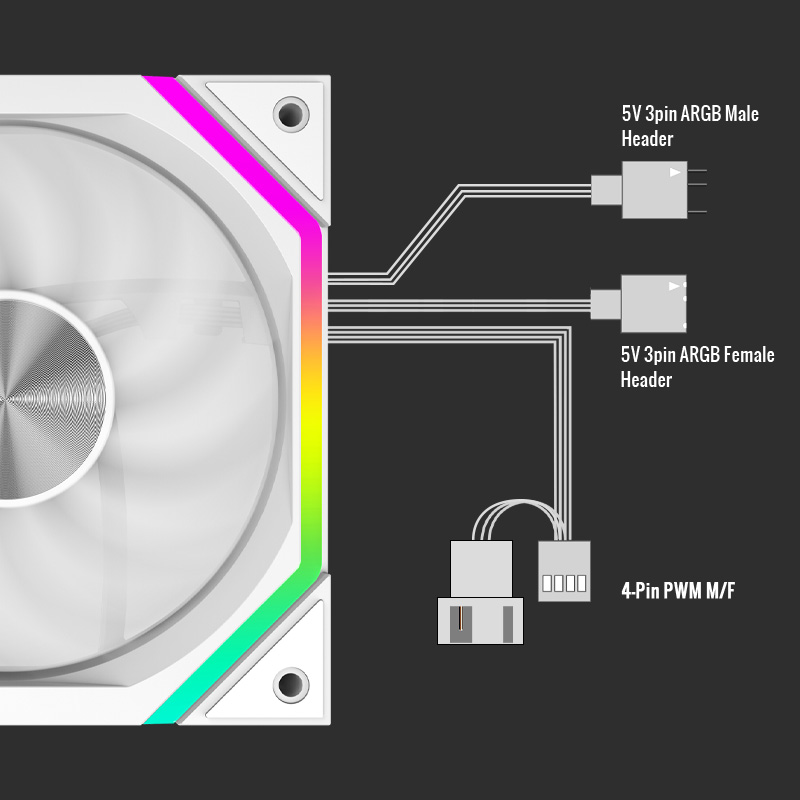

| Cable Length : | 4pin(M/F) PWM Power / 3pin Aura Male head / 3pin Aura Female head, 500/500/500mm |
| Accessories: | Screws |

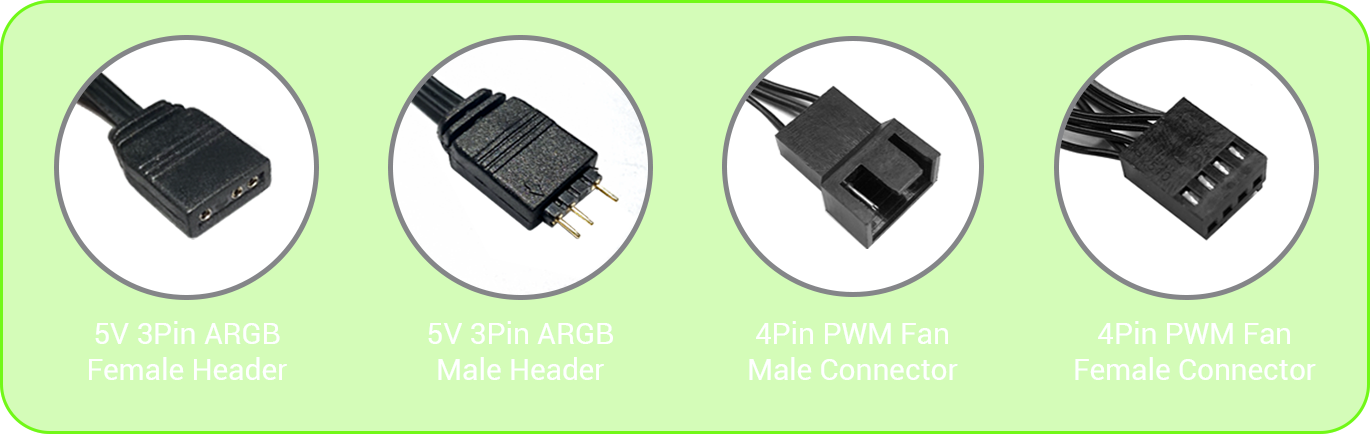

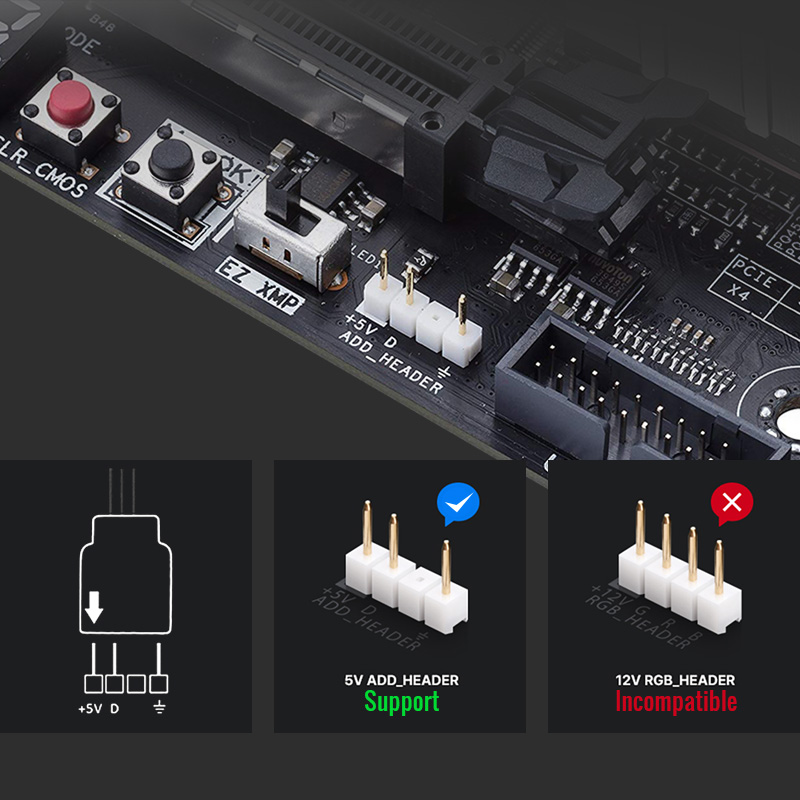

| Connectors: | 3pin AURA Male head & 3pin AURA Female head & 4pin PWM Power(M/F) |
| Rated Voltage: | 12V |
| Rated Current (max.): | 0.2A |
| Rated Input Power: | 2.4W |
| Test Voltage : | 12V |
| Start Voltage: | 5V |
| M.T.B.F.: | 30,000 hrs |
