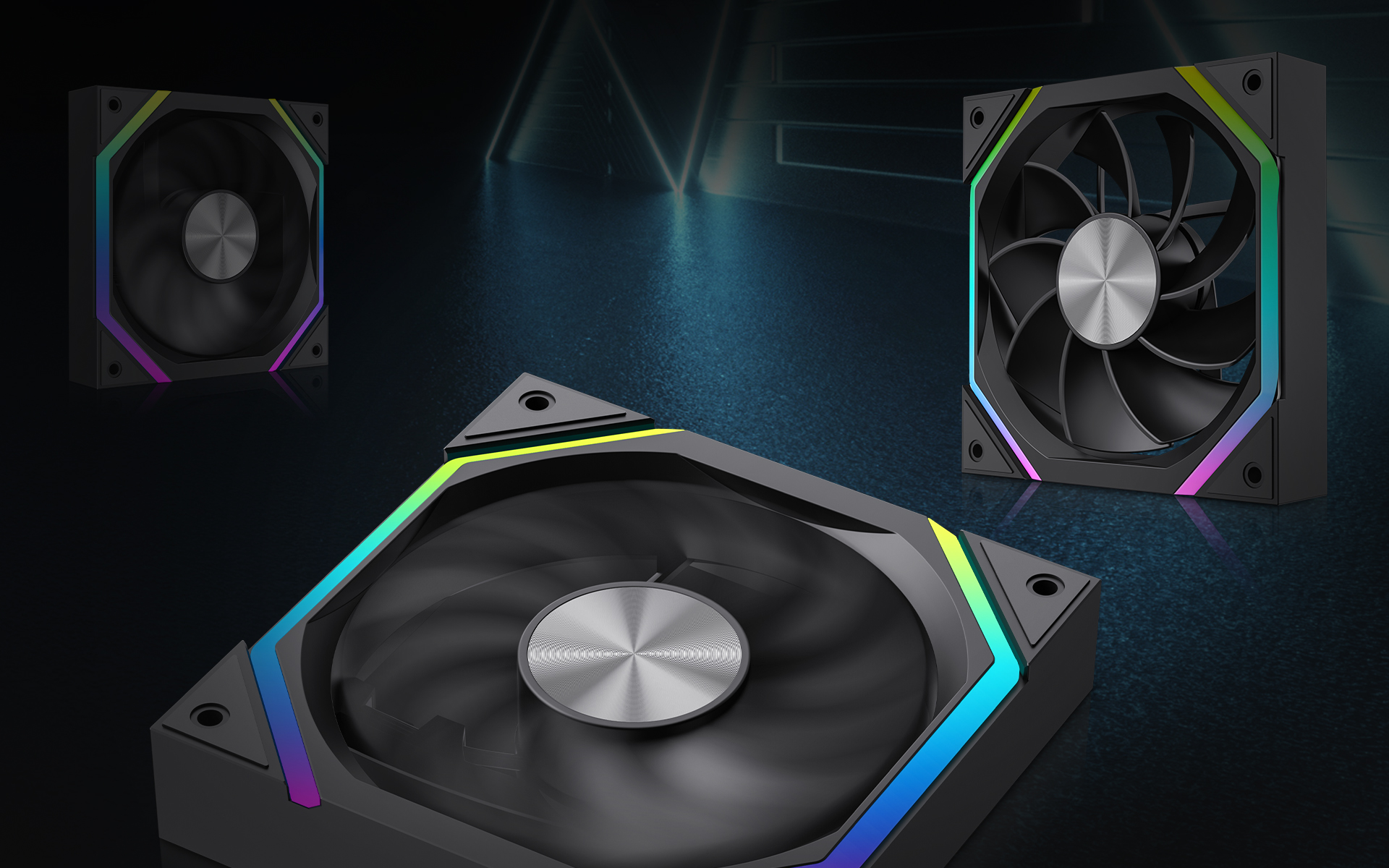

FN12A-N2-R 120mm High-Performance Cooling Fan | Hydraulic Bearing | RGB Lighting | Ultra-Quiet | Maximum 53.87 CFM Airflow | PWM Speed Control

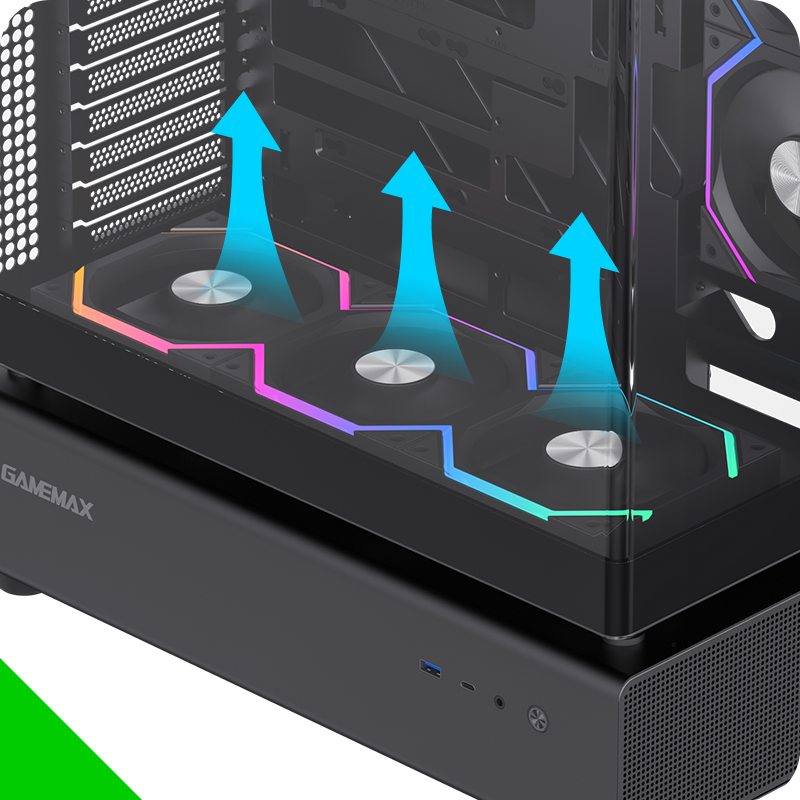

• Efficient Cooling: The FN12A-N2-R fan features a 9-blade reverse fan design and a black aluminum CD pattern outer ring, offering a maximum airflow of 53.87 CFM for superior cooling performance.

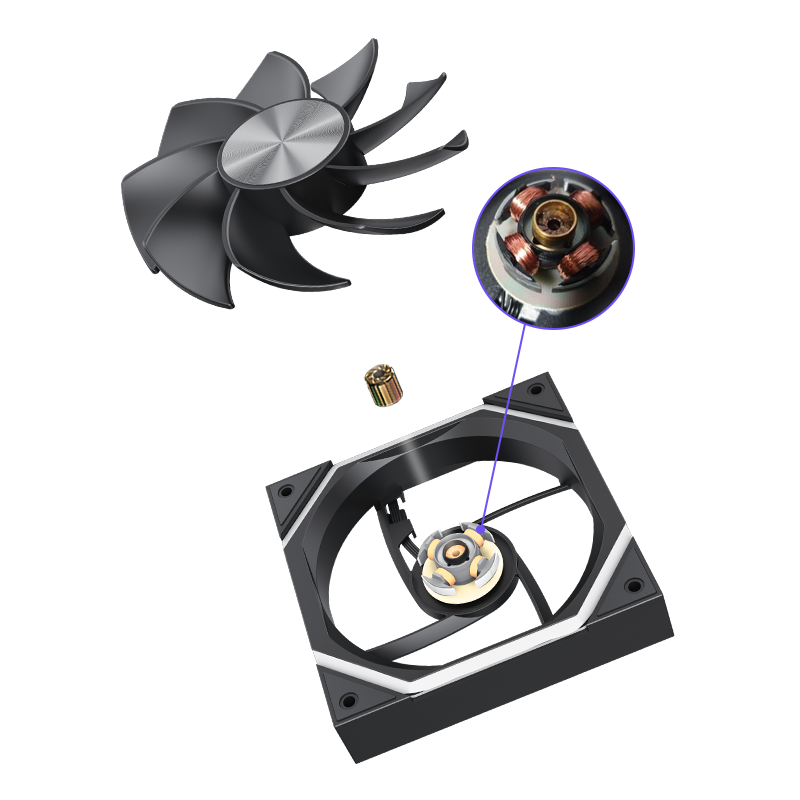

• Quiet Operation: With a hydraulic bearing design, the fan operates at a noise level as low as 33.7dB(A), maintaining a quiet environment even under heavy load.
• High Air Pressure: With a maximum air pressure of 1.98mm H2O, it is suitable for various cooling needs, ensuring stable component temperature control.
• PWM Smart Speed Control: The 4pin PWM interface allows for precise speed control, optimizing noise levels without compromising cooling performance.

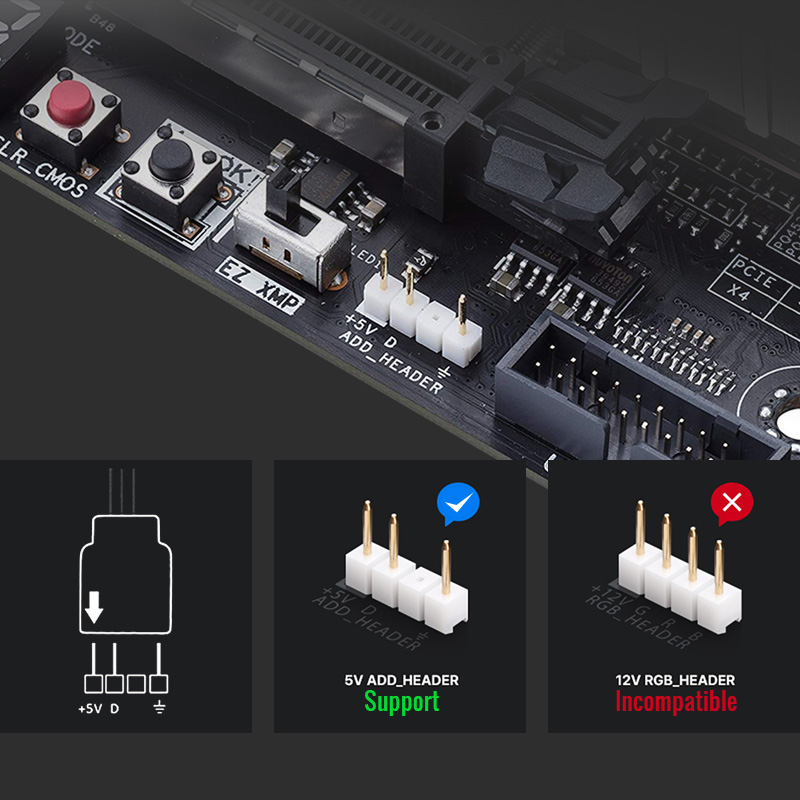

• RGB Compatibility: Equipped with a 3pin Aura interface, it supports RGB lighting synchronization, enhancing the visual appeal of your PC case and creating a stunning gaming atmosphere.
• Long Lifespan: With a lifespan of up to 30,000 hours, this fan offers long-term reliability.
• Multiple Interface Compatibility: Comes with various connectors, ensuring compatibility with different motherboards and power systems, offering flexible installation options.
FAN Specifications | FN12A-N2-R |
Dimensions: | 120 x 120 x 25mm |
Fan Frame Colour: | Black |
Fan Blades / Colour: | 9 Reverse Fan Blade / Black / Axial aluminum CD pattern |
LED Qty / Type: | Outer ring 16PCS |
Bearing Type: | Hydraulic Bearing |
Fan Speed: | 800~2000 rpm ± 10% |
Max. Air Flow : | 53.87 CFM MAX |
Max. Static Air Pressure: | 1.98mm - H2O MAX |
Noise Level (max.): | 33.7db(A) MAX |
Cable Length : | 4pin(M/F) PWM Power / 3pin Aura Male head / 3pin Aura Female head, 500/500/500mm |
Accessories: | Screws |

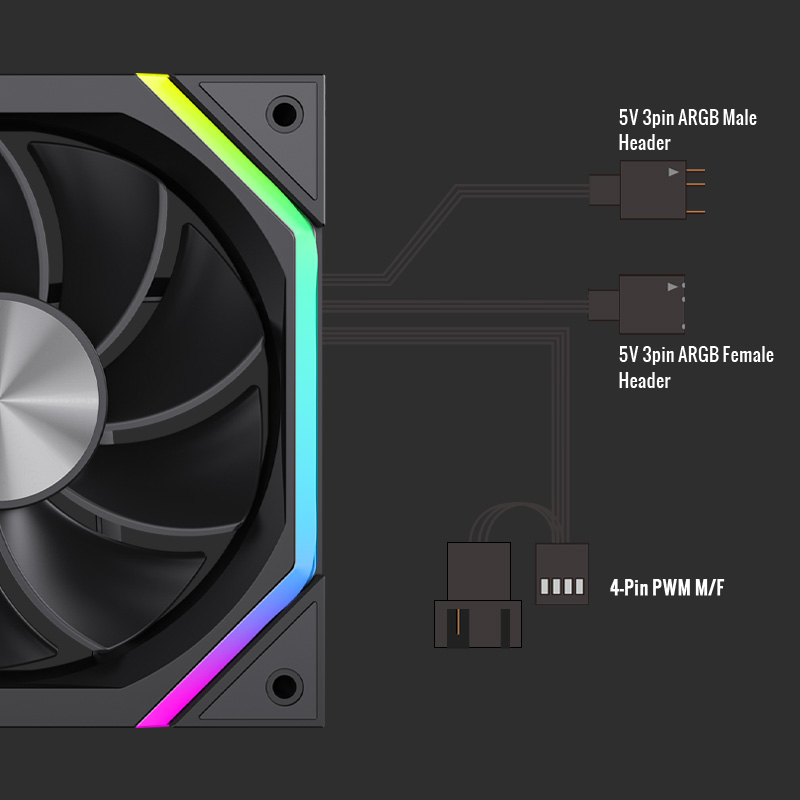

Connectors: | 3pin AURA Male head & 3pin AURA Female head & 4pin PWM Power(M/F) |
Rated Voltage: | 12V |
Rated Current (max.): | 0.2A |
Rated Input Power: | 2.4W |
Test Voltage : | 12V |
Start Voltage: | 5V |
M.T.B.F.: | 30,000 hrs |
