With the full-scale adoption of AMD’s AM5 platform, Zen 4 architecture processors deliver a leap in multi-core performance but also impose stricter demands on cooling systems. As a specialist in PC hardware cooling, GameMax has developed a comprehensive lineup of liquid and air coolers tailored to the AM5 platform’s characteristics, balancing cooling efficiency, compatibility, and personalized design. Drawing from GameMax’s official resources, this article provides a professional breakdown of optimal cooling solutions for AM5, guiding gamers and PC builders in making informed choices.
The AM5 platform uses the LGA 1718 socket, supports DDR5 memory and PCIe 5.0, and flagship processors like the Ryzen 9 7950X have a default TDP of 170W—with overclocked peak power often exceeding 200W. Compared to the previous AM4 platform, AM5 processors feature higher heat density and more compact motherboard VRM layouts, posing three core challenges for coolers:
Socket Compatibility: Precise alignment with AM5’s mounting bracket specifications to avoid thermal inefficiency from installation misalignment.
High Power Handling: TDP support ranging from 150W to 300W to accommodate different processor models.
Modular Design: Sizing options from 120mm to 360mm radiators/towers to fit both ITX small form factor and ATX full-tower cases.
Explore GameMax’s full AM5-compatible cooler range:
CPU Liquid Coolers | CPU Air Coolers
For users chasing extreme cooling and customizable lighting, GameMax’s AIO liquid cooler series offers multi-size, high-compatibility solutions—all standard with AM5 brackets for hassle-free installation.

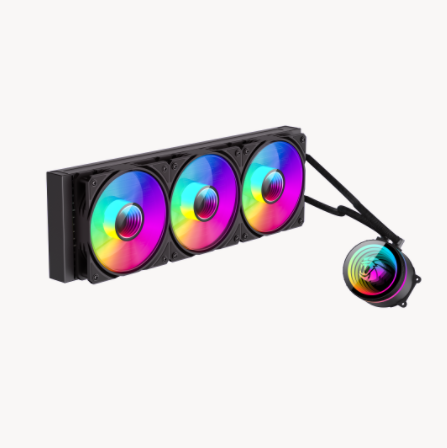

IceBurg 360 Infinity BK
Key Specs: 360mm radiator / 300W TDP / 5V 3pin ARGB sync / full-platform compatibility
The top-tier model features a massive 360mm radiator paired with three 120mm ARGB PWM fans (500–2000RPM), supporting intelligent temperature-controlled speed adjustment to handle overclocked Ryzen 9 processors. The pump integrates Addressable RGB lighting for 16 million color customization via motherboard sync, while its all-white design suits white-themed builds perfectly.
Ideal For: Flagship CPU overclocking, 4K rendering workstations, and high-end builds prioritizing extreme cooling and lighting effects.
IceBurg 360 Digital BK
Core Advantages: 290W TDP / all-white aesthetic / smart dynamic temperature control
Focused on minimalism, it uses a low-noise pump (≤25dB) and optimized flow channels for quiet operation under load. Compatible with Intel LGA 1700/1851 and AMD AM5/AM4, it’s perfect for content creators and esports gamers sensitive to noise.

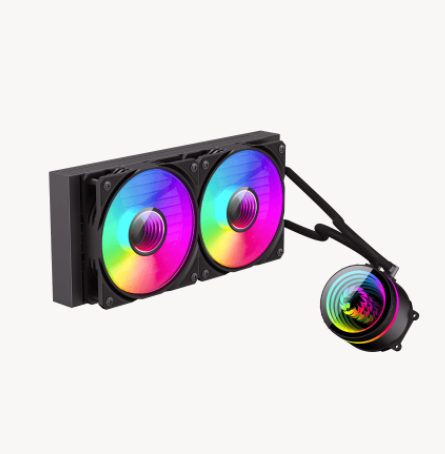

IceChill 240V BK
Best Value: 250W TDP / 5V ARGB sync / dual 120mm PWM fans
Optimized for Ryzen 7 and lower processors, the 240mm radiator balances cooling efficiency and case compatibility. It supports motherboard 5V 3pin ARGB sync and includes dedicated AM5 brackets for easy installation.
IceBurg 120 Infinity
ITX Case Champion: 180W TDP / 120mm compact radiator / AURA Ready certified
Designed for small form factor cases, its 27mm-thin radiator fits 90% of ITX motherboards. Rainbow addressable LED lighting works with ASUS AURA, MSI Mystic Light, and other major software, enabling “light pollution” in tiny builds.
For budget-conscious users or those preferring pump-free silent solutions, GameMax’s air coolers deliver reliability through heatpipe direct touch technology, fin array designs, and efficient fans—all tested for AM5 compatibility.
Sigma 550 Infinity BK
Flagship Air Cooler: 220W TDP / five 6mm heatpipes / 130mm high-pressure fan
Five heatpipes with soldered fin arrays (140×120×158mm) and direct-touch CPU base reduce thermal resistance. The 130mm PWM fan (800–1600RPM) provides strong airflow for mid-to-high-end CPUs like the Ryzen 7 7700X.

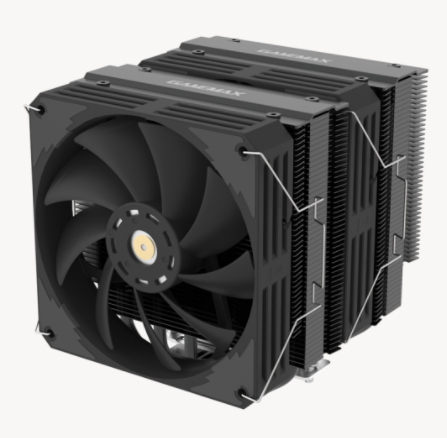

Twin 600 BK
Dual-Tower Dual-Fan: Six heatpipes / dual 120mm silent fans / no-RGB design
Using AGHP anti-gravity heatpipe technology and vertical airflow optimization, dual fans deliver 2×66.1CFM airflow. Fully compatible with Intel 1700/AMD AM5, it’s ideal for “clean, no-light” silent builds.
Gamma 90 Digital BK
Entry-Level Choice: 190W TDP / four heatpipes with ARGB / 120mm PWM fan
Four 6mm nickel-plated heatpipes and blackened fins support motherboard-synced ARGB lighting. The 120mm fan uses noise-reducing blades (≤30dB max), fitting MATX/ATX cases and suiting mainstream CPUs like Ryzen 5 7600X.
Ice Wind
Silent Champion: Four heatpipes / 120mm non-LED fan / 47mm ultra-thin fins
Built for HTPCs and silent builds, its pure copper base and low-RPM fan (600–1500RPM) keep noise below 20dB. At 47mm height, it fits 95% of mini cases and supports AM5/Intel 1700, ensuring universal compatibility.
Match TDP to Processor Model:
Ryzen 5 7600 and below: 180W–240W TDP air coolers (e.g., Gamma 90) or 120mm liquid (IceBurg 120).
Ryzen 7 7700X and above: 240mm liquid (IceChill 240V) or five-heatpipe air (Sigma 550).
Ryzen 9 7900X and overclockers: 360mm liquid (IceBurg 360 Infinity) or dual-tower air (Twin 600).
Select Size for Case Form Factor:
Prioritize 120mm liquid/ultra-thin air (≤50mm) for ITX; 240mm/360mm radiators or full-size towers for ATX.
Balance Priorities:
RGB enthusiasts: Choose ARGB-synced models (IceBurg series).
Silent users: Opt for non-LED fans (Ice Wind).
Budget buyers: Focus on four-heatpipe air coolers (Gamma 90).
From entry-level air to flagship liquid coolers, GameMax’s AM5 lineup caters to all user needs, with all models including the latest brackets for seamless AM5 compatibility. Whether you’re an overclocking enthusiast chasing extreme performance or a casual user prioritizing quiet efficiency, GameMax’s product matrix has the optimal solution. As AM5 gains momentum, choosing the right cooler isn’t just about performance—it’s about crafting a personalized PC. GameMax’s technical innovation and meticulous design ensure every AM5 processor unleashes its full potential, stable and stylish.
