Driven by the demands of high-performance computing and extreme overclocking, CPU water cooling kits have become the mainstream choice for high-end PC builds, offering precise temperature control, low noise, and customizable design. This article deeply dissects the core architecture of liquid cooling systems, analyzes configuration strategies for different scenarios, and provides a full-process guide from selection to installation, helping users create cooling systems that balance performance and aesthetics.
Compared to traditional air cooling, liquid cooling achieves more efficient heat transfer through a coolant loop, offering significant advantages in the following scenarios:
High-Power Processor Compatibility: Supports flagship CPUs with 300W+ TDP (e.g., Intel i9-14900K, AMD Ryzen 9 8950X), maintaining temperatures 10–15°C lower than air cooling during overclocking.
Sustained Stable Performance: The thermal capacity of liquid cooling is 3–5 times that of air cooling, with temperature fluctuations of less than 5°C under long-term load, preventing CPU throttling due to overheating.
Quiet Operation: Pump noise can be controlled below 25dB (vs. 40dB+ for high-end air coolers), enabling "zero-noise" office environments with low-speed fans.
Chassis Layout Freedom: Eliminates the height restrictions of tower air coolers; ITX cases can fit 120mm radiators, while ATX cases support 360mm oversized radiators.
RGB Lighting Ecosystem: ARGB-synced water blocks and pump covers, paired with addressable LED radiator fans, create immersive lighting setups.
DIY Flexibility for Enthusiasts: Transparent hard tubing, colored coolants, and custom water blocks cater to high-end modding needs.
A complete CPU water cooling kit consists of six core modules, each influencing heat dissipation performance:
Material Selection:
Pure copper base (thermal conductivity 401W/mK) for extreme overclocking; aluminum base (237W/mK) balances cost and lightness.
Surface Treatment: Micro-channel density (50–100μm) determines heat exchange efficiency; electroplating prevents oxidation.
Compatibility: Must fit mainstream sockets like LGA 1700/AM5; check for backplate-supported brackets.
Core Specifications:
Flow Rate (500–2000L/H): High flow suits large custom loops; AIO pumps are integrated into the water block.
Head Pressure (3–6 meters): Required for long tubing; noise ≤35dB for silent operation.
Installation Type: Independent pump reservoir (custom loops) vs. integrated pump (AIOs)—the former allows upgrades, the latter offers plug-and-play convenience.
Size Options:
120mm (single fan): For ITX cases, cooling capacity ~150W.

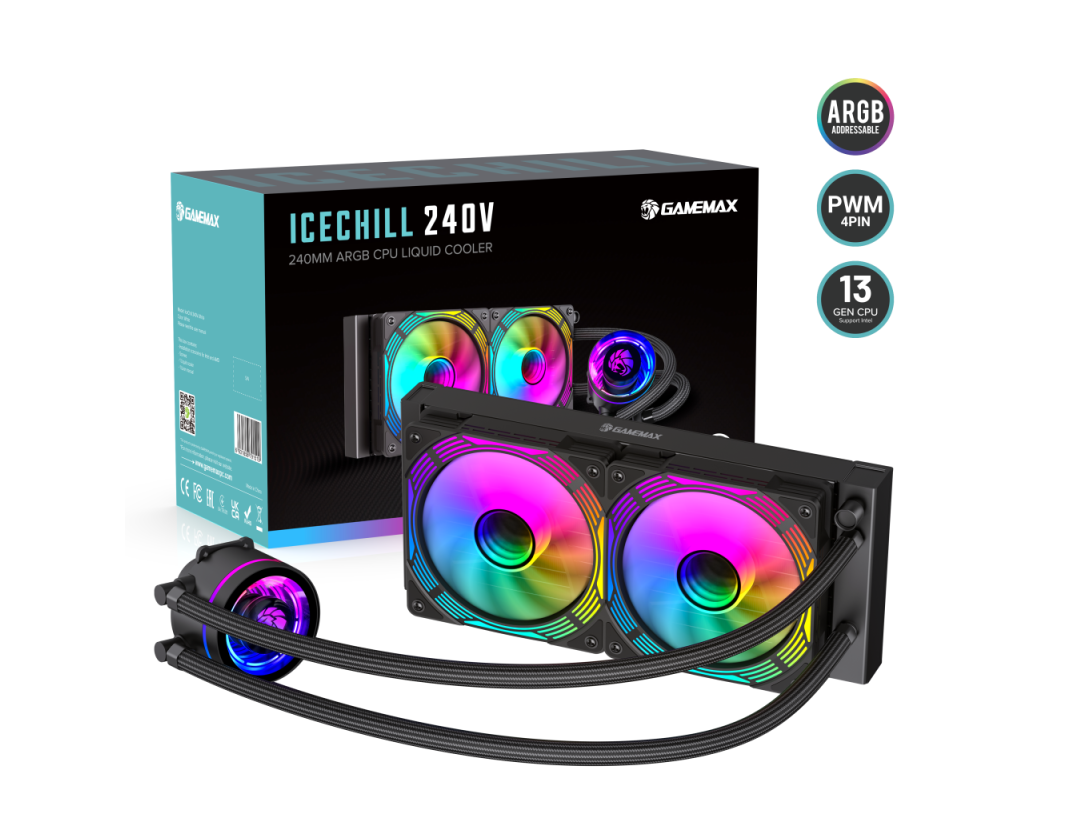

240mm (dual fans): Mainstream choice, supports 200–250W TDP.
360mm (triple fans): Flagship configuration, handles 300W+ overclocked CPUs.
Fin Density: High-density fins (20+ FPI) for high-speed fans; low-density fins (15 FPI 以下) for quiet fans.
Pressure vs. Airflow Balance:
Pressure-focused (2.5–3.5mm H₂O): For thick radiators (30mm+), e.g., Noctua NF-F12.
Airflow-focused (80–100 CFM): For thin radiators (25mm), e.g., Arctic P12.
Smart Control: PWM fans (500–2000RPM) auto-adjust speed based on CPU temperature.
Base Types:
Pure Water (freezing point 0°C): For temperate regions; add corrosion inhibitors.
Ethylene Glycol Solution (freezing point -40°C): Ideal for cold climates, slightly lower thermal conductivity than water.
Concentrated Coolant (dilute before use): Contains anti-corrosion formulas; choose trusted brands (e.g., EK-CryoFuel).
Additional Features: Fluorescent coolant for UV lighting; non-conductive coolant (conductivity <5μS/cm) for safety.
Tube Materials:
Soft Tubing (PVC/PU): Flexible, ideal for beginners; recommended inner diameter 12/16mm.
Hard Tubing (Acrylic/Glass): Stylish and durable, requires bending tools; wall thickness ≥3mm.
Sealing Design: Quick-disconnect fittings (tool-free installation) with O-ring seals; choose copper/nickel-plated materials to reduce electrolytic corrosion.
| Scenario | Processor Model | Recommended Setup |
|---|---|---|
| Entry-Level | i5-14600K/Ryzen 5 8600X | 120/240mm AIO |
| Mainstream | i7-14700K/Ryzen 7 8700X | 240/360mm AIO |
| Enthusiast | i9-14900K/Ryzen 9 8950X OC | Custom Hardline + Dual 360mm Radiators |
TDP Coverage: Rated cooling capacity should be ≥1.5x the processor’s full-load power (for overclocking headroom).
Case Compatibility: Measure available space for radiator installation; avoid GPU-length conflicts.
Lighting Ecosystem: Ensure compatibility with motherboard ARGB protocols (5V 3pin/12V 4pin) for syncing.
| Factor | AIO Water Cooling | Custom Loop Water Cooling |
|---|---|---|
| Installation | ★☆☆☆☆ (Plug-and-play) | ★★★★☆ (Manual tubing/filing) |
| Upgradability | Low (Fixed components) | High (Replaceable parts) |
| Cost-Effectiveness | High (Integrated design) | Low (Component-by-component) |
| Extreme Performance | Moderate (Pump limits) | High (Dual pumps/radiators) |
Tools Needed: Multimeter (leak detection), tubing bender (hardline), torque screwdriver, spill tray.
Assembly Order: Install CPU block first, then radiator fans, and finally tubing.
① Water Block Installation: Apply pea-sized thermal paste (0.3–0.5mm thickness); tighten bracket screws diagonally to specified torque (8–10N·m).
② Tubing Layout: For hardline, follow "vertical first, horizontal second" and leave 2–3cm expansion space; avoid 90° bends in soft tubing.
③ Filling & Degassing: Run the pump at low speed, tilt the case 15°, and purge air by switching the pump on/off until no bubbles remain.
Pre-Power Check: Wipe all fittings; run for 30 minutes to confirm no leaks.
Load Test: Use AIDA64 for CPU stress testing; monitor water temperature (normal delta ≤15°C) and fan speed curves.
Every 3 Months: Clean radiator dust with compressed air (blow from the intake side).
Every 6–12 Months: Replace coolant (prevent algae/corrosion); inspect O-ring wear.
Annually: Remove the water block to clean thermal paste residue; use CPU-specific cleaner for oxidation.
Pump Noise: Likely cavitation—power off and tap the pump to release air.
High Water Temperature: Check fan direction (intake should face the radiator); clean dust/hair from fins.
Leak Emergency: Power off immediately, absorb spills, replace faulty parts, and re-fill the loop.
Smart Integration: Pumps with built-in temperature sensors (e.g., EK-Quantum Reflection²) enable real-time software monitoring.
Eco-Friendly Materials: Biobased coolants (degradable formulas) and nickel-free water blocks reduce environmental impact.
Modular Design: AIOs with quick-release radiators (e.g., Corsair iCUE H150i Elite Capellix) cut installation time by 50%.
Micro-Channel Innovation: 3D-printed water blocks (e.g., Bykski Phantom) feature 0.2mm ultra-micro channels, reducing thermal resistance by 20%.
A CPU water cooling kit is more than a cooling tool; it’s a core component of personalized PC builds. From plug-and-play AIOs to fully customized hardline loops, users can choose based on their needs. Prioritize compatibility, cooling capacity, and sealing during installation, and maintain the system regularly to maximize its efficiency.
Whether you’re an overclocking enthusiast or a silent PC advocate, a quality water cooling kit elevates your PC experience. Opt for established brands, match components to your use case, and build a system that balances performance, aesthetics, and reliability.
