SIGMA 620 High-Performance CPU Cooler: Dual 120mm Fans + Six Heatpipes for Powerful Cooling, 245W TDP Support, Equipped with 2.8inch Customizable LCD Screen and ARGB Lighting

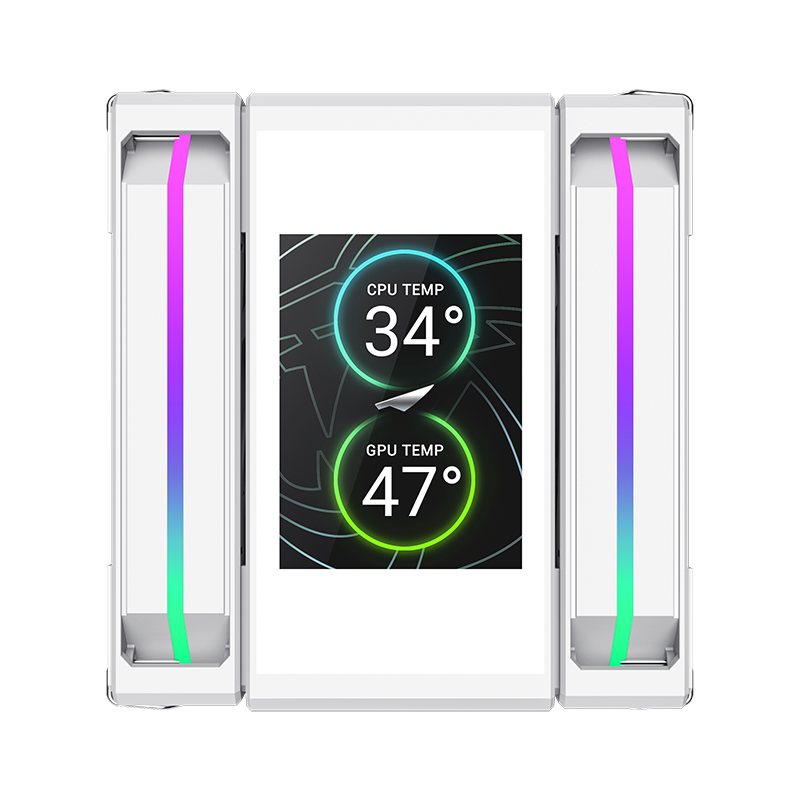

• 2.8inch Customizable LCD Display -Personalize real-time system stats or DIY thematic images and video content for a unique build experience.

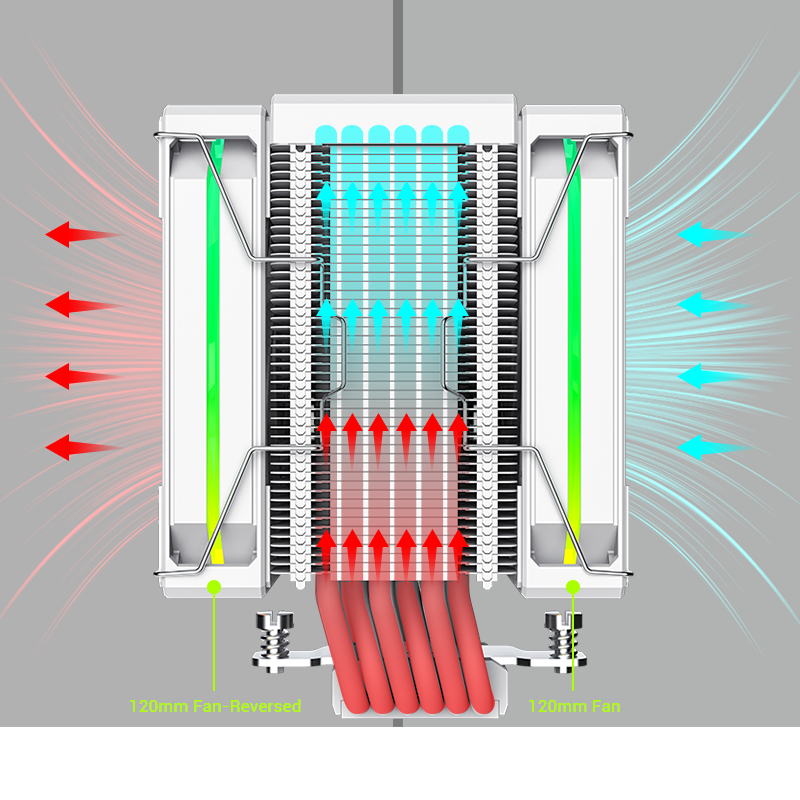

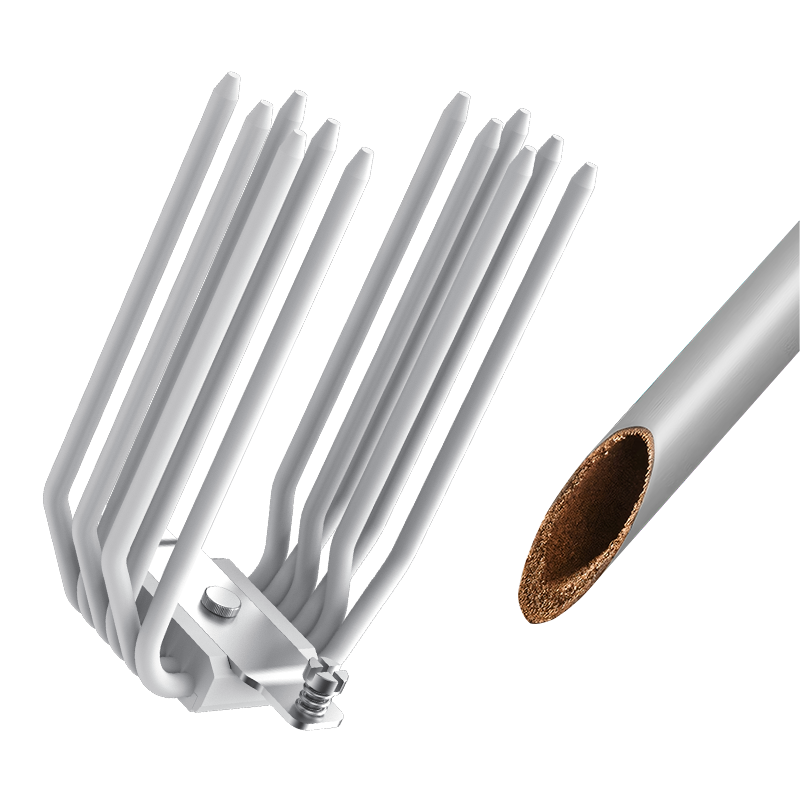

• High-Performance Dual Fan Tower-Equipped with 6 x 6mm heatpipes and dual 120mm fans for powerful, efficient heat dissipation.

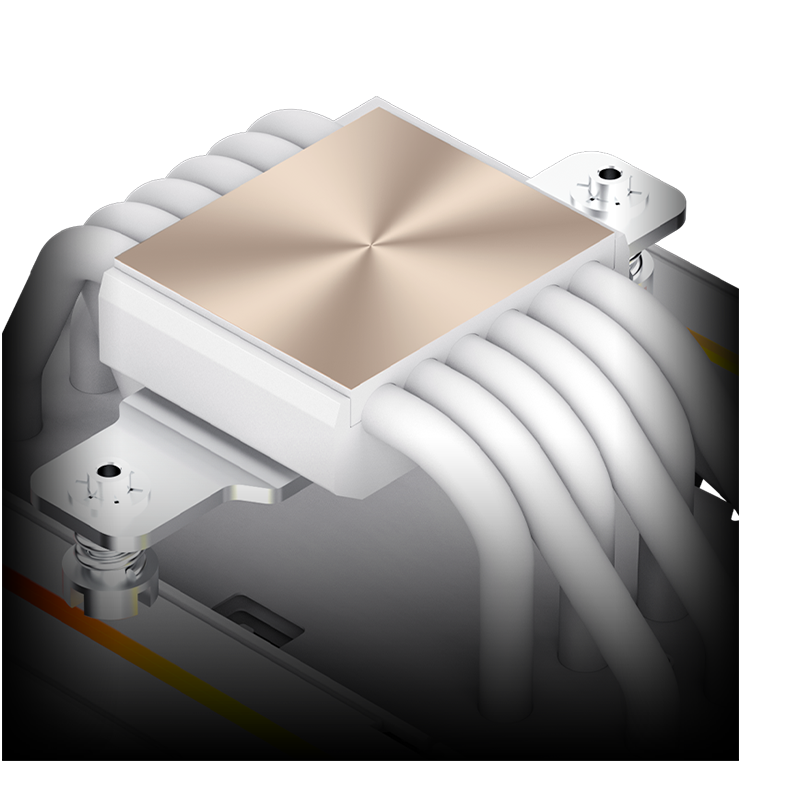

• Precision Soldered Copper Base-Maximizes thermal conductivity for faster heat transfer and superior cooling performance.

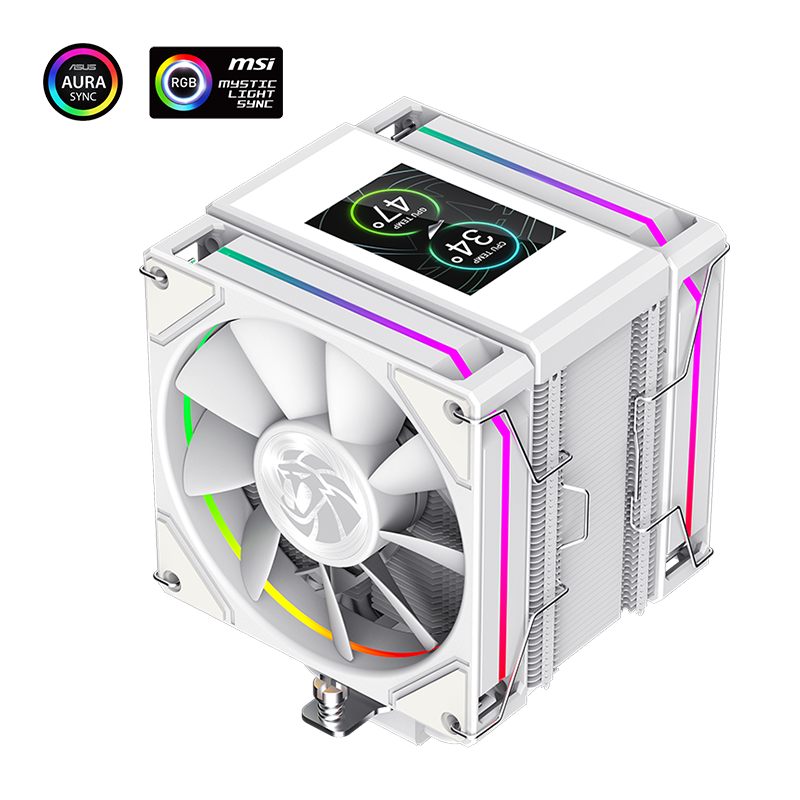

• Stunning ARGB Lighting-Elegant ring-style ARGB fan lighting with full motherboard sync support for personalized effects.
• High Airflow, High Pressure PWM Fans-Delivers strong airflow and static pressure for optimal thermal performance.
• Supports TDP up to 245W-Engineered to handle high-performance CPUs with confidence.
Manufacturer Part Number | SIGMA620 BK | |
Colour | Black | |
Overall Dimension | (L)120*(W)114.2*(H)158.8mm | |
TDP | 245W | |
Fins | 48 aluminum Fins | |
Heat Pipes | 6mm heatpipe x 6 units | |
Heat Base Material | Soldering copper bottoms | |
Top cover type | 2.8’’ LCD Monitor | |
CPU Compatibility | INTEL:LGA1851/1700/1200/115X AMD:AM5/AM4 | |
Fan Type | Main fan positive blade | Secondary Fan Reverse Blade |
Fan Dimensions | 120*120*25mm | 120*120*25mm |
Bearing Type | Rifle Bearing | Rifle Bearing |
Fan Frame Colour | Black | Black |
Fan Blades / Colour | 9 fan leaf/BLACK | 9 fan leaf/BLACK |
LED Qty / Type: | 28/ARGB | 28/ARGB |
Rated Voltage | 12V | 12V |
Start-up voltage | 5.0V | 5.0V |
Rated Current | 0.22A | 0.2A |
Rated power | 2.64W | 2.4W |
Fan Speed | 800-1800RPM±10% | 800-1800RPM±10% |
Air Flow | 71.66CFM（Max.） | 70.71CFM（Max.） |
Static Air Pressure | 2.54mm H2O（Max.） | 2.1mm H2O（Max.） |
Noise Level | 35.5dBA（Max.） | 42dBA（Max.） |
FAN Life | 30000 Hours | 30000 Hours |
Connector | 3pin AURA & 4pin PWM | |
Package Contents | Gift Box | |
Unit Packaging Dimensions | TBU | |
Net Weight | 154g | |
Gross Weight | 164g | |
Carton Packaging Dimensions | 12g | |
Q’TY Per box | TBU | |
Weight Per box | TBU | |
