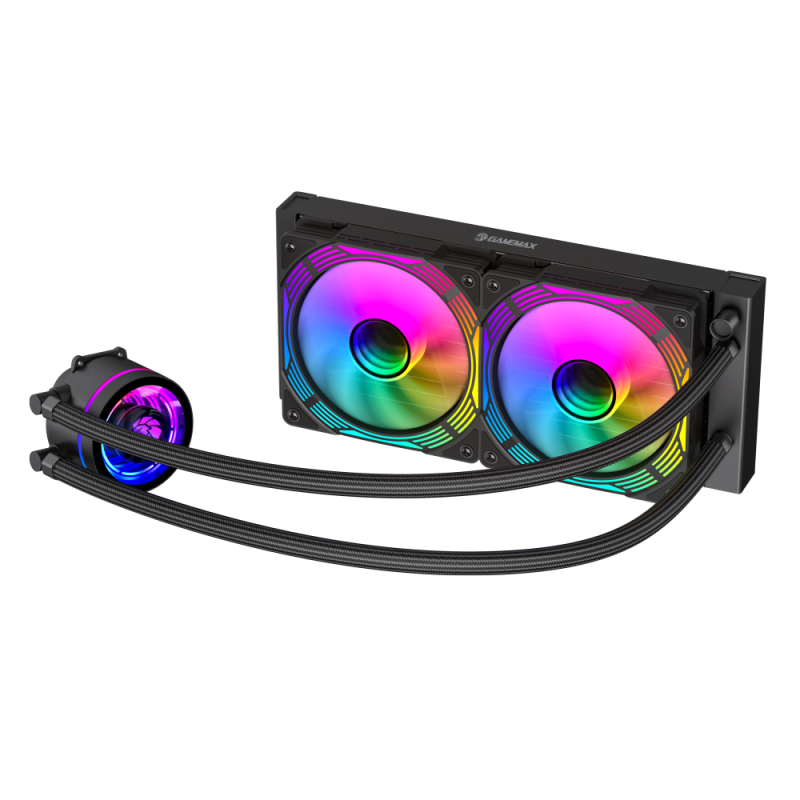

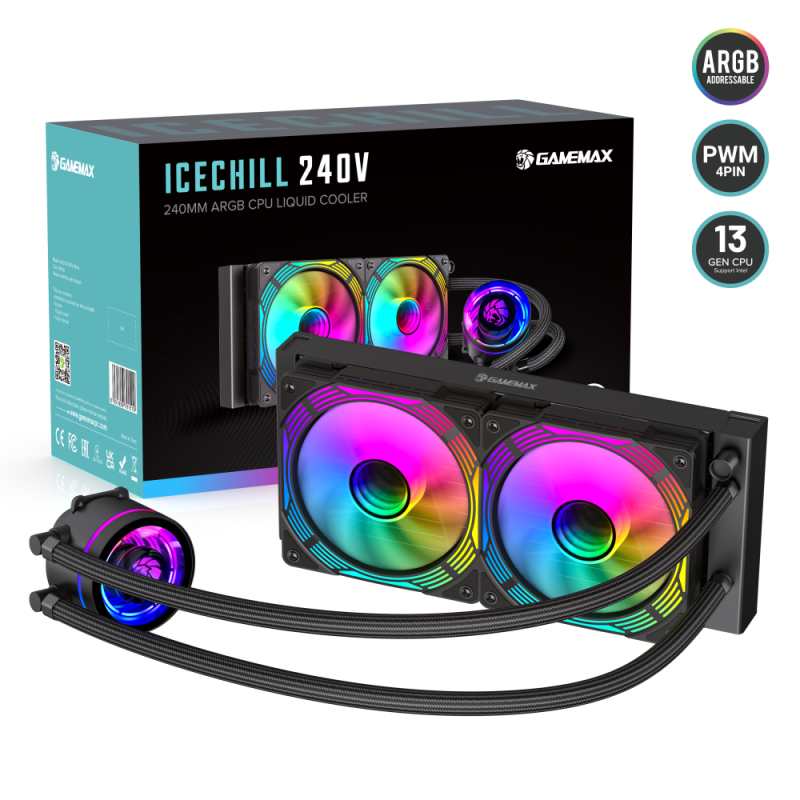

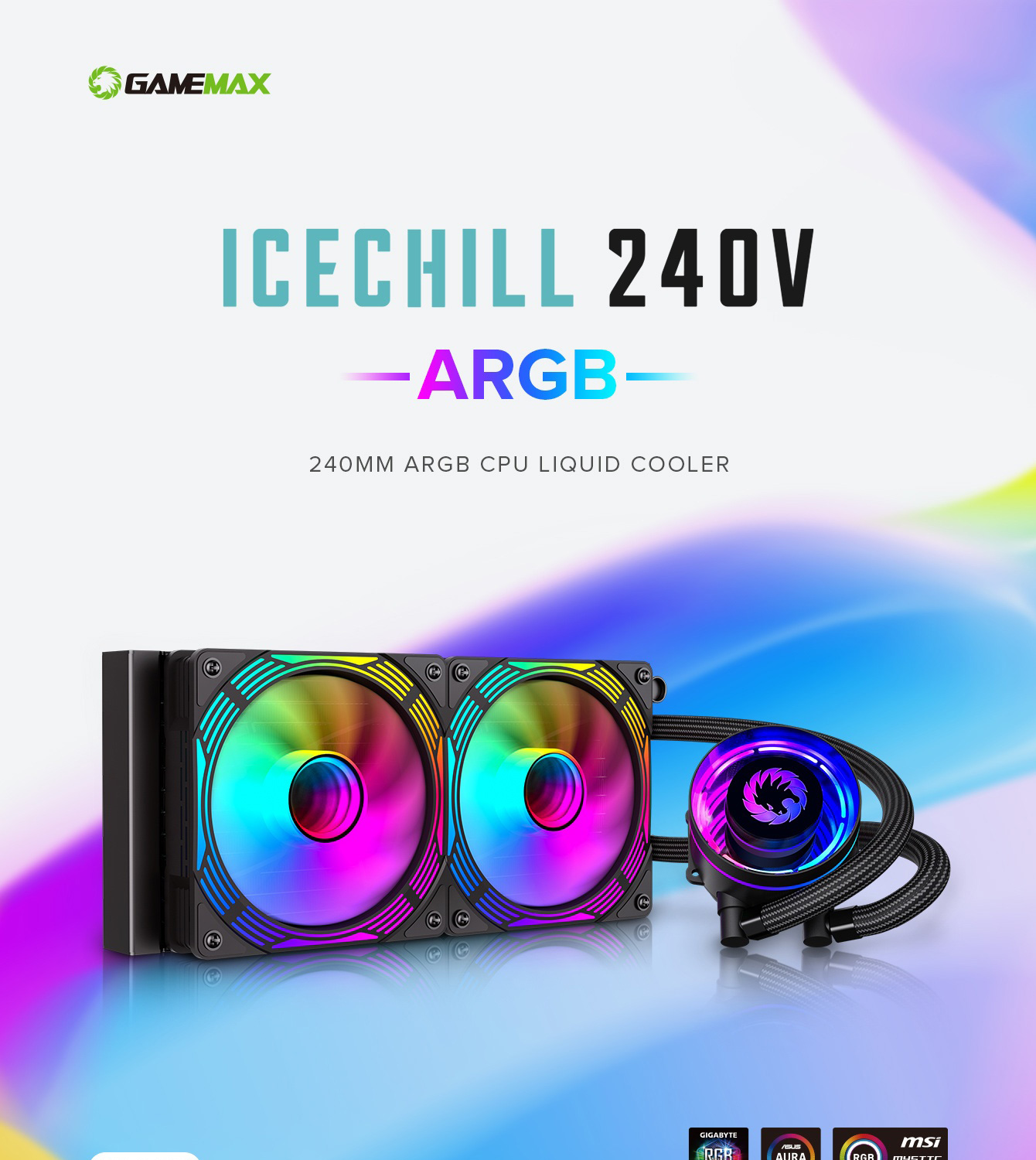

GameMax IceChill 240V, Liquid CPU Cooler 240mm Addressable RGB PWM Pump Fans 250W TDP AIO Water Cooler for Intel LGA1851/1700/1200/115X AMD AM5/AM4

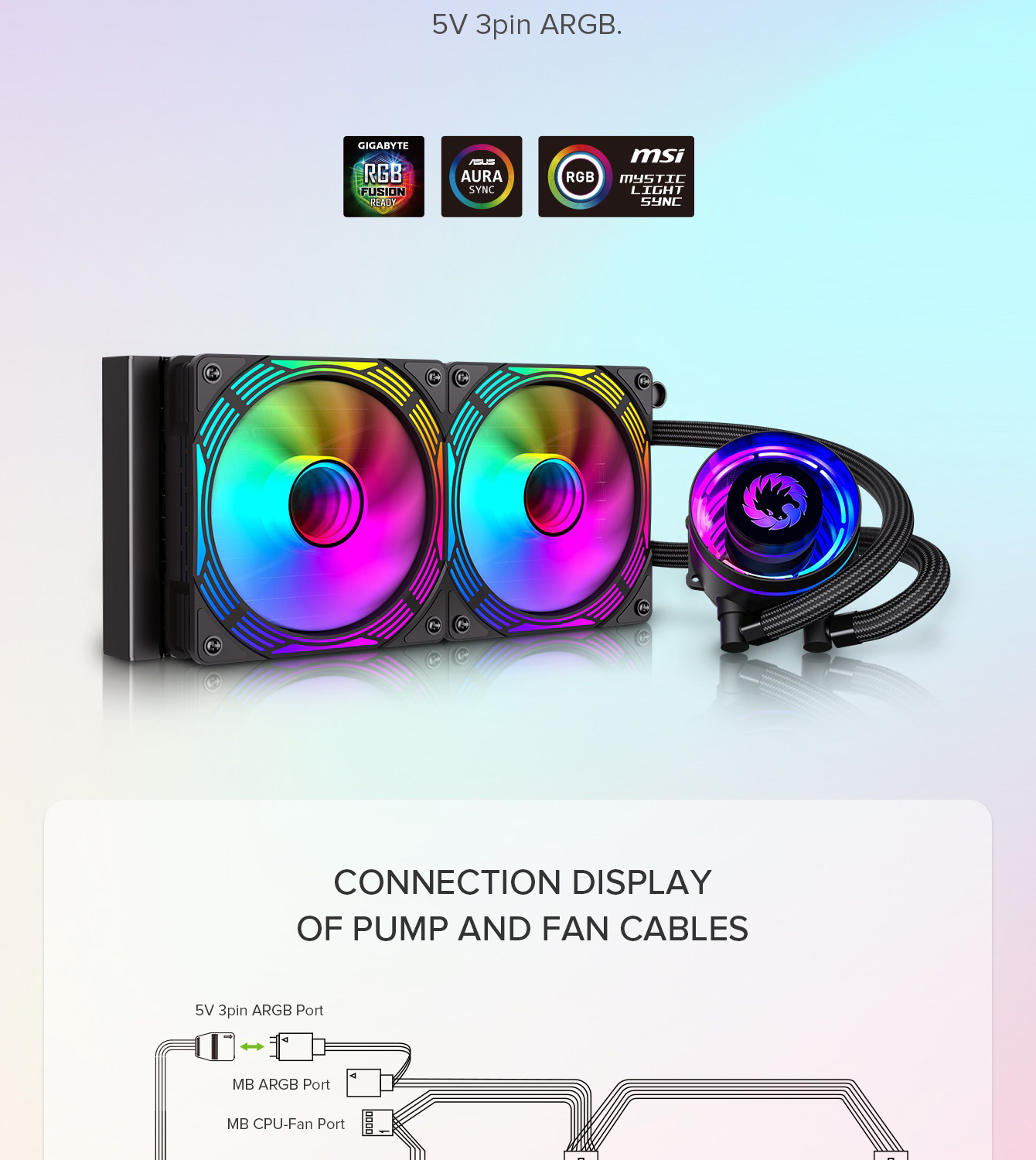

• Addressable RGB Sync: The Addressable RGB lighting on the fans and pump can sync with the motherboard via a 5V 3pin interface, providing even and rich illumination

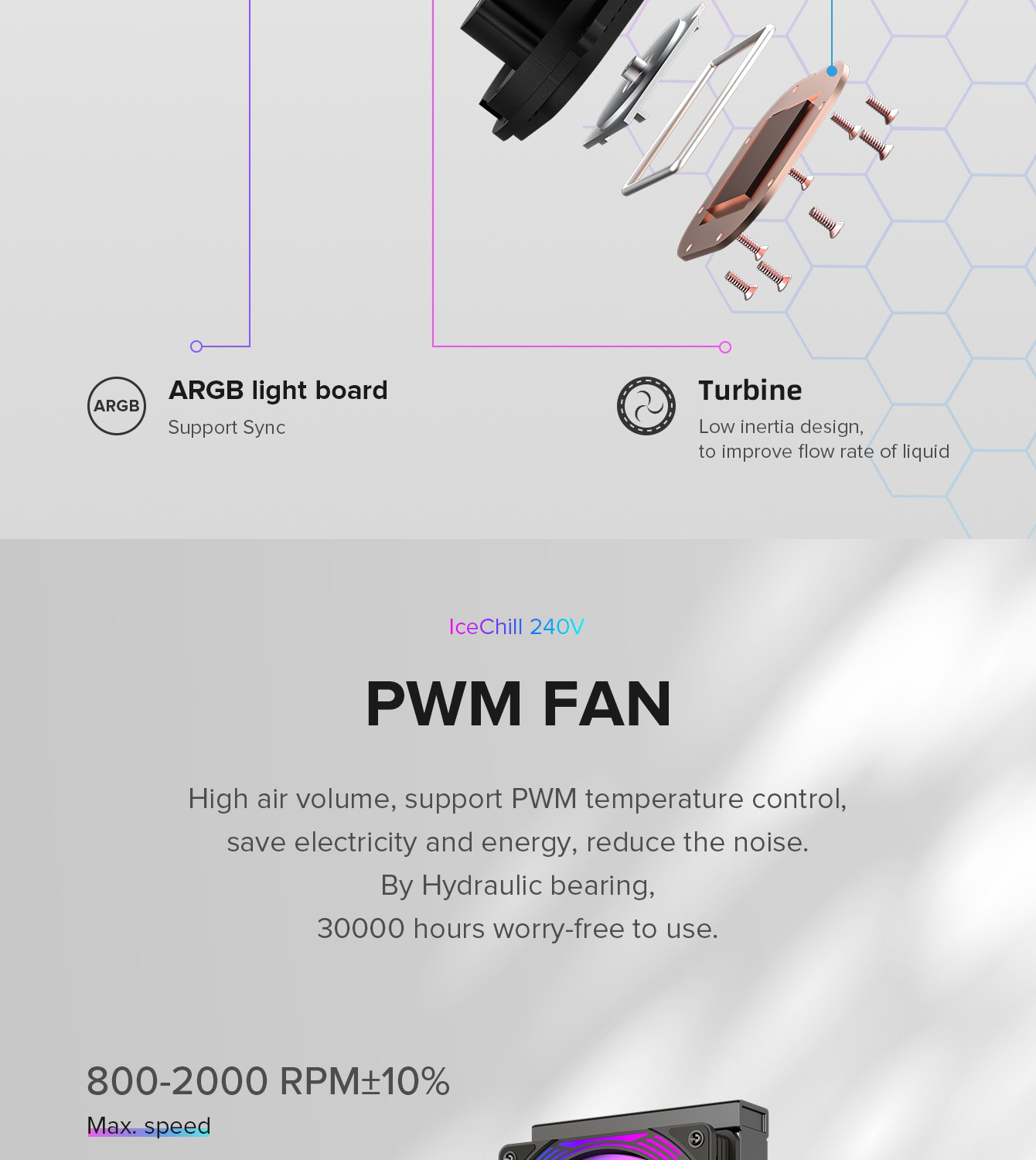

• Dual PWM Fans: The speed of dual PWM fans can be auto-adjusted according to the CPU temperature, providing better airflow and lower noise
• (Note: The PWM mode must be set in BOIS before liquid cooler operation, otherwise the fan will run at a fixed speed of full speed or low speed)

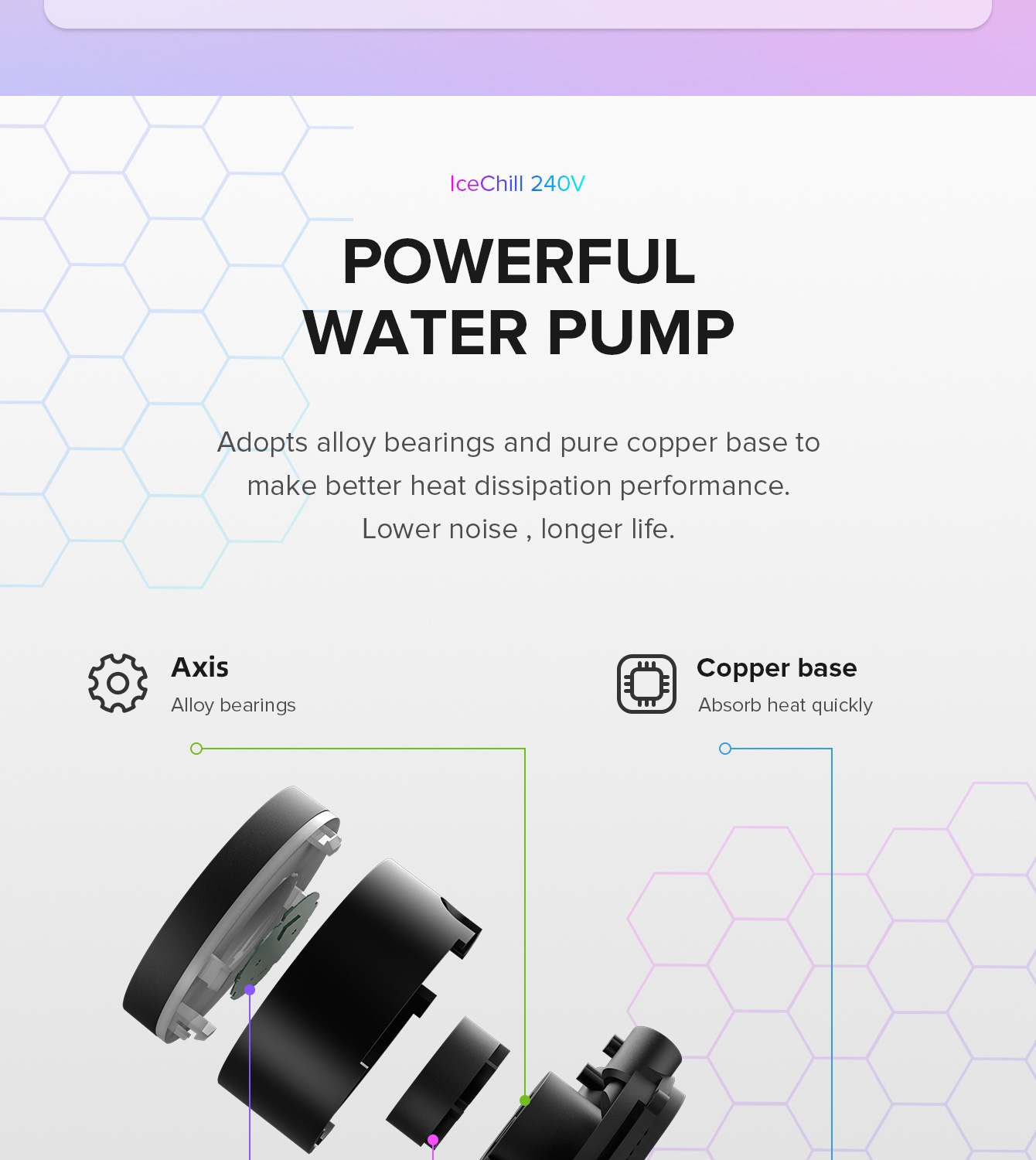

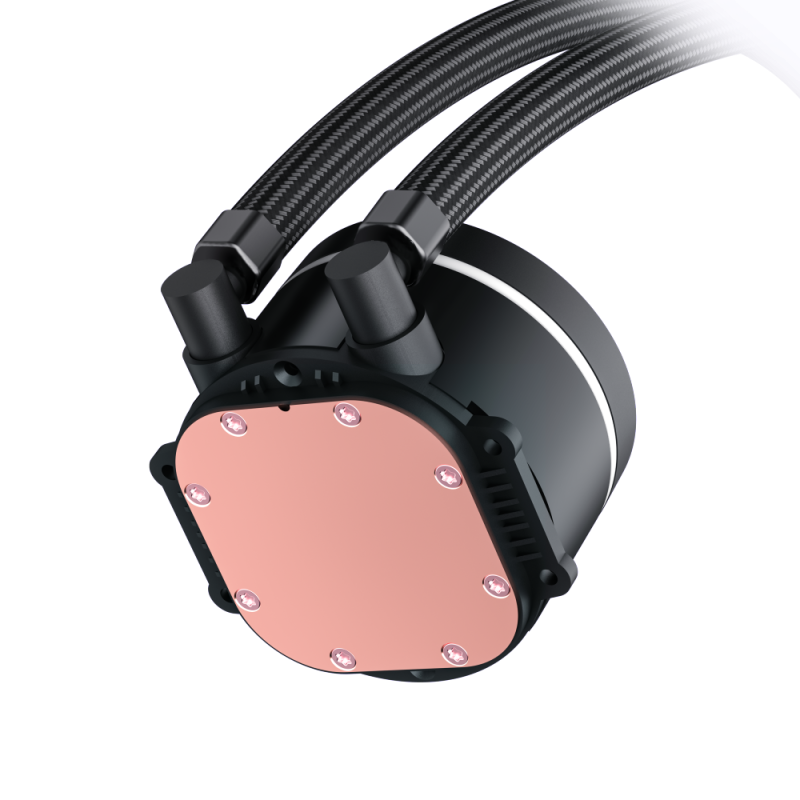

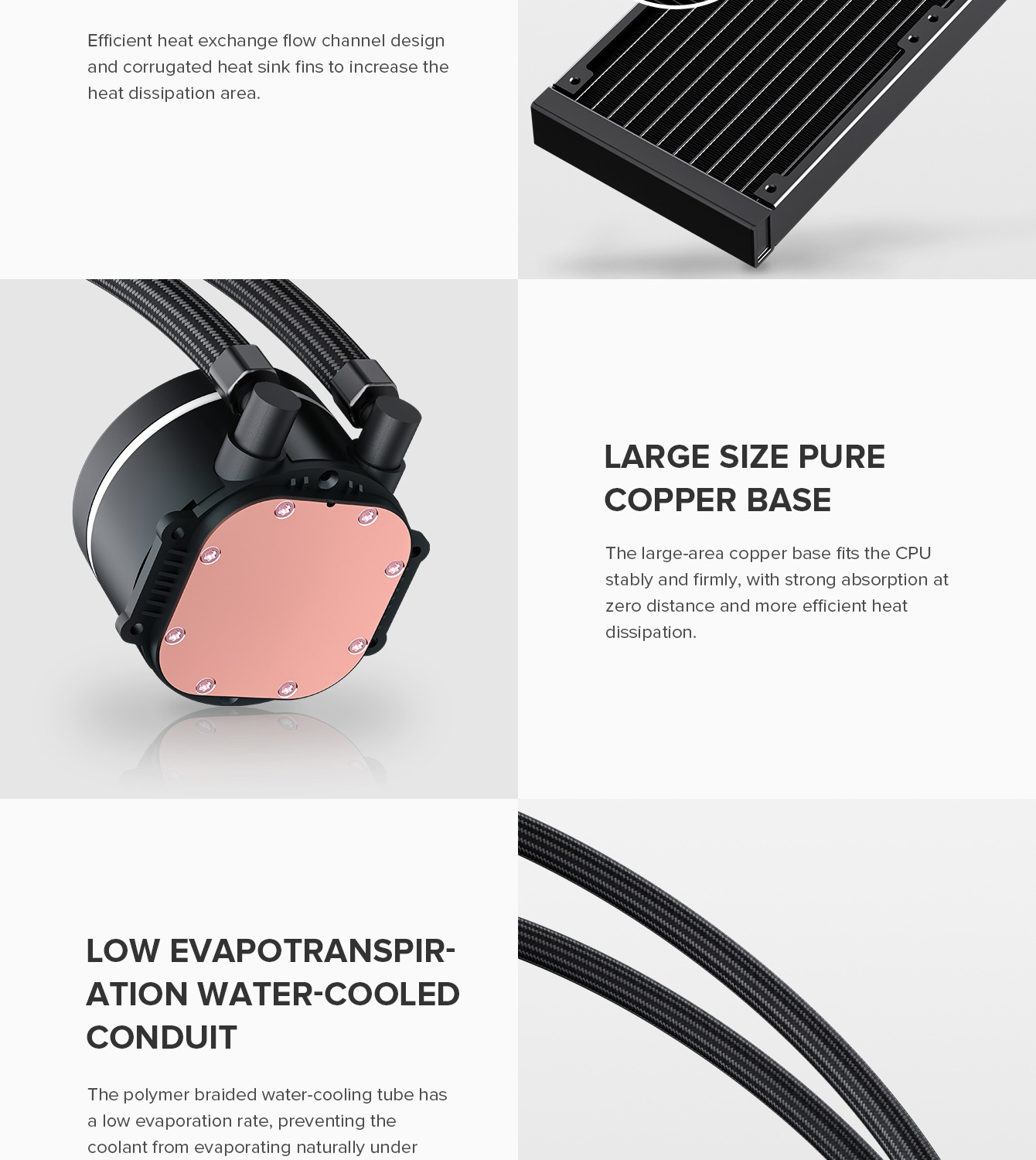

• Better Cooling Performance: With a more efficient cold plate, spraying copper bottom, proprietary pump, and fans optimized for static pressure to make sure excellent heat transfer from CPU
• Industrial Grade Seal High Industrial Grade EPDM material to strengthen the seal for improved longevity and Anti-Leaking

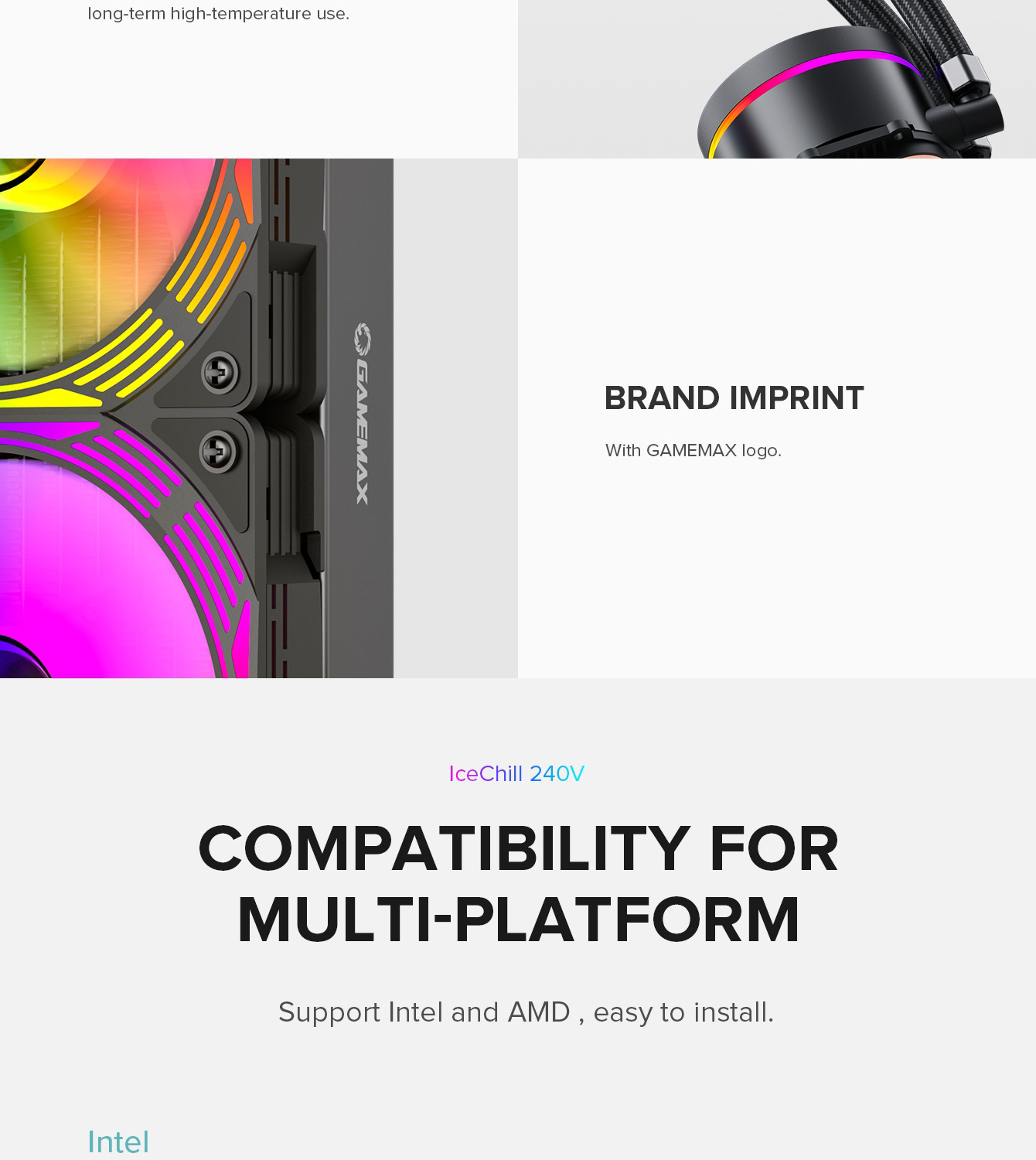

• ROTATABLE BLOCKHEAD - Features a 270° rotatable water block with the GameMax logo in ARGB as well as Addressable RGB fans for multiple lighting effects
• Wide Compatibility: Intel LGA 1851/1700/1200/2066/2011-3/2011/1156/1155/1151/1150, AMD AM5/AM4/AM3+/AM3/AM2+/FM2+/FM2
• (Note: No AMD backplate in the package, The AMD must be installed with the original bracket of the motherboard)
Fan Specification | |||||
Fan Dimensions | 120*120*25mm | Fan Blade Quantity | 7PCS | Rated Voltage | DC 12V |
Material | PBT B.RoHS 2.0 | Cable Length | 400mm | Working Voltage | DC 6-13.2V |
Bearing Type | Hydraulic bearing | Connector/PWM | FAN 4pin ARGB 3pin | Start Voltage | ≥6V |
RPM | 800-2000RPM | Lighting mode | ARGB internal 8PCS | Rated Current | Fan:0.25A LED 0.35A |

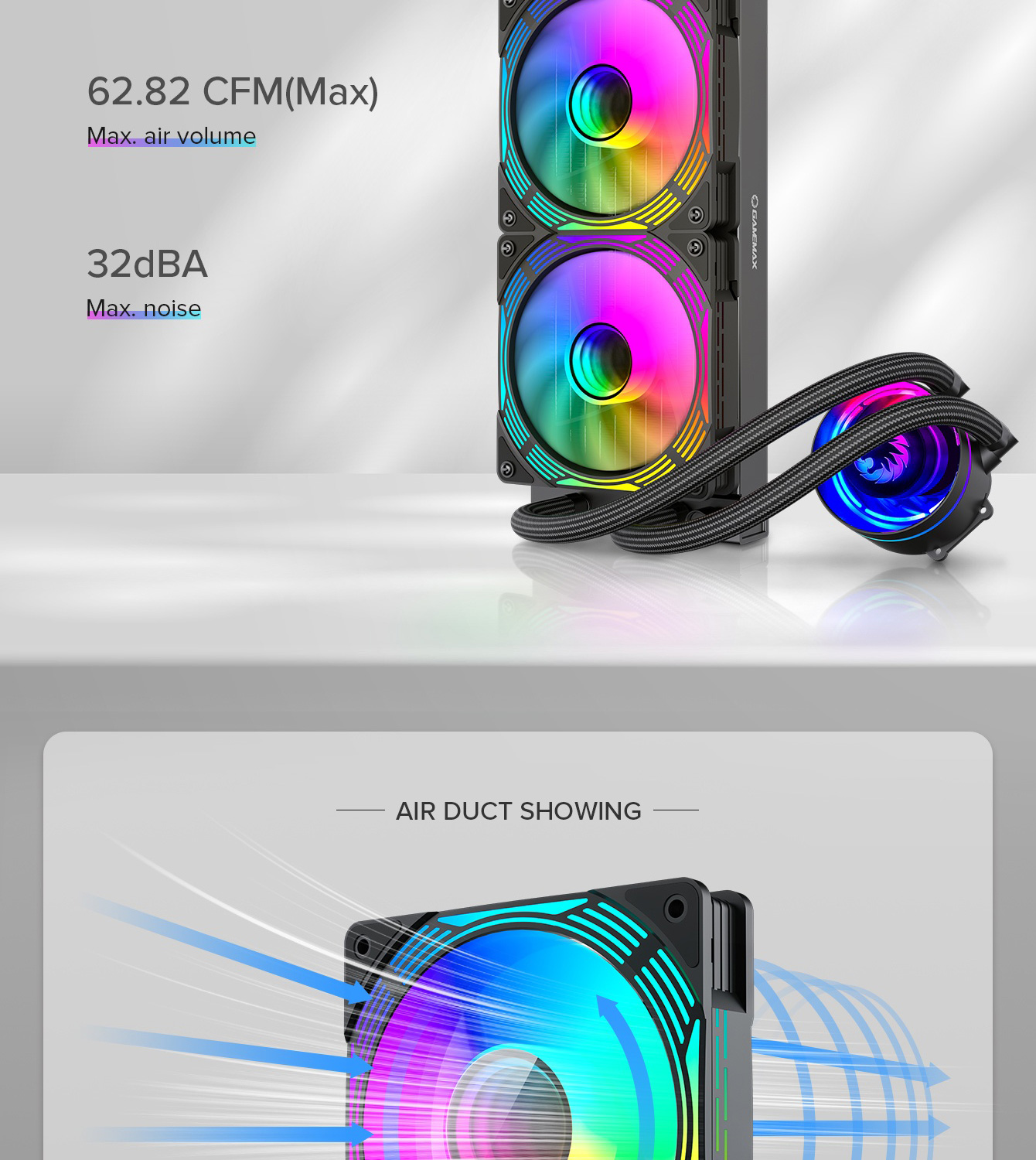

Air Flow | 62.82CFM | Quantity of fans | 2 PCS | Locked Current | / |
Air Pressure | 1.89 mmH2O | Noise | ≤32dBA | Fan Life | 30000H |
Radiator Specification | |||||
Water pump | Radiator | Water pipe | |||

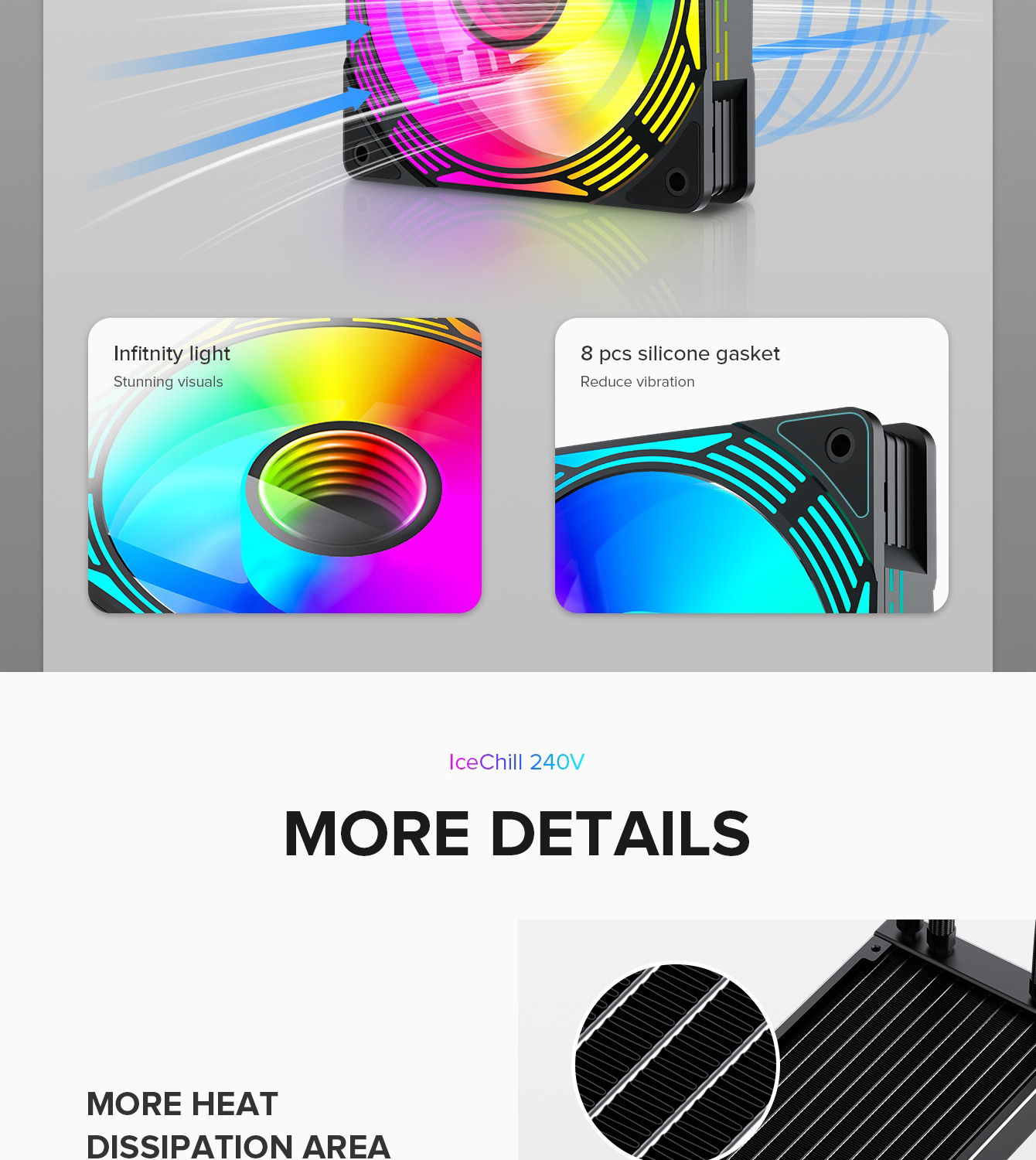

Dimensions | 70*83*53mm | Dimensions | 277*120*27mm | Tubing Length | 400±10mm |
Material | PPS | Material | aluminium | Material | rubber |
RPM | 2300RPM±10% | Water channel | 12PCS | Lighting | / |
Bearing Type | Sleeve bearing | Noise | ≤26.9dBA | ||

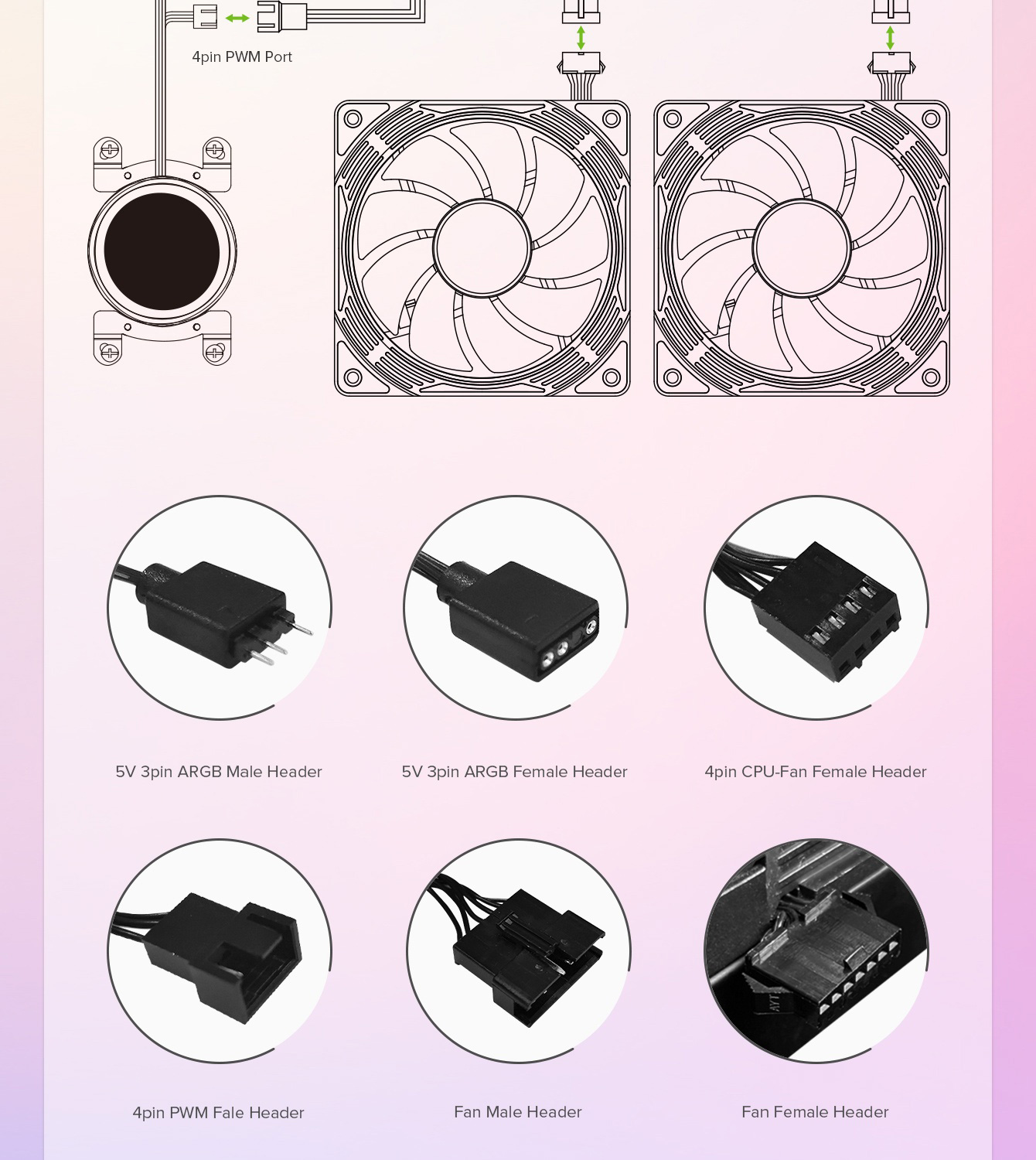

Connector | 2510 3-pin dual AURA 5V 3-pin | ||||
Product Secification | |||||
Compatibility | Intel | LGA1851/2011/1366/17xx/115x | |||
AMD | AM5/AM4/AM3/AM2/FM1/FM2/FM3 | ||||

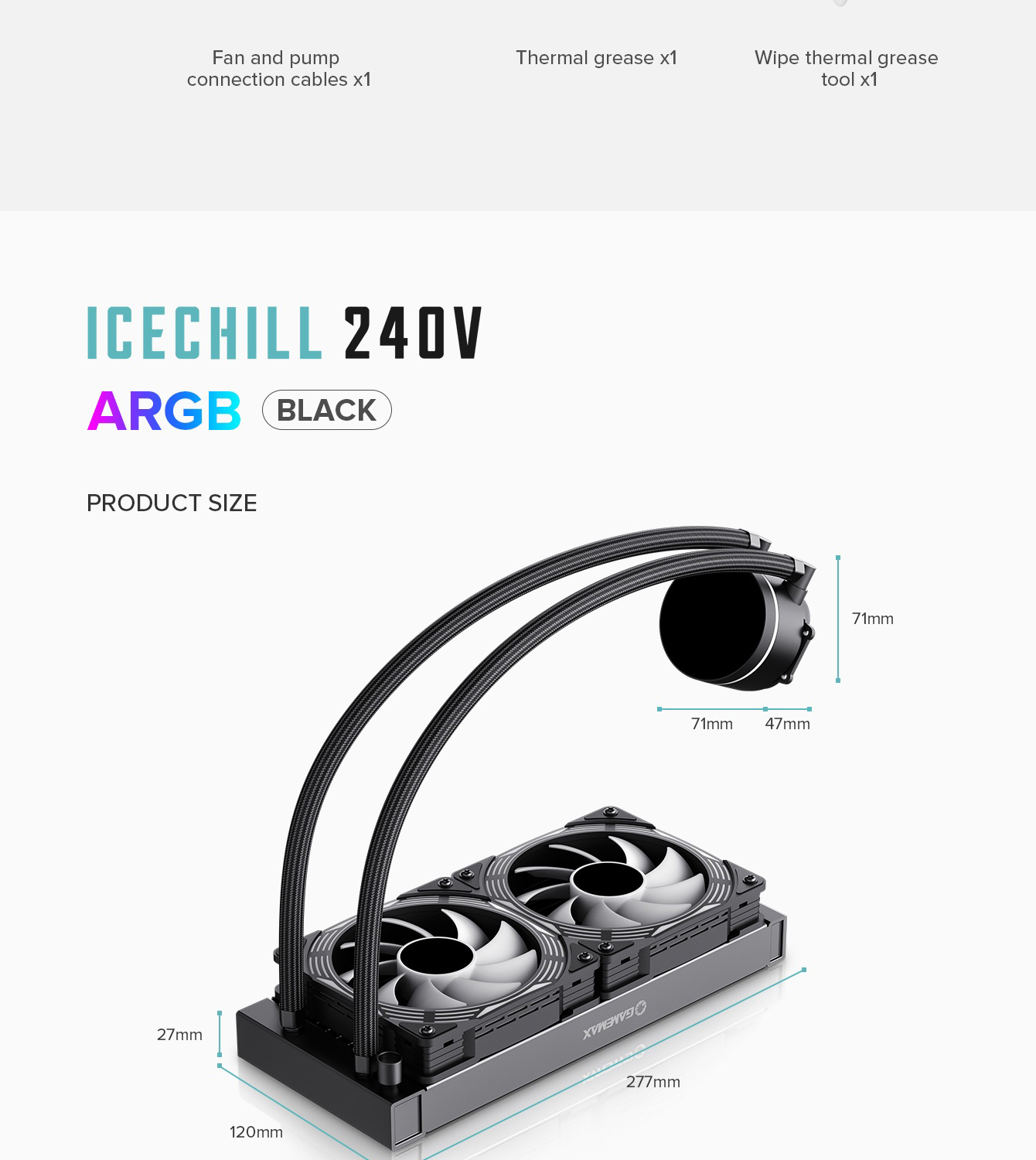

Single Product Dimension | 277*120*52mm | Retail Gross Weight | 1.74kg | Carton Box Dimension | 575*575*345mm |
Retail Color Box Dimensions | 325*276*144mm | Carton Gross Weight | 15.5kg | Qty/Carton | 8pcs |
