GameMax Brufen C3 COC Gaming Chassis, Born for Intel Gen 10th CPU cooling solution of system, COC is Cooling Over-Clocking, which means cooling overclocking.
• It is a new type of heat dissipation structure.

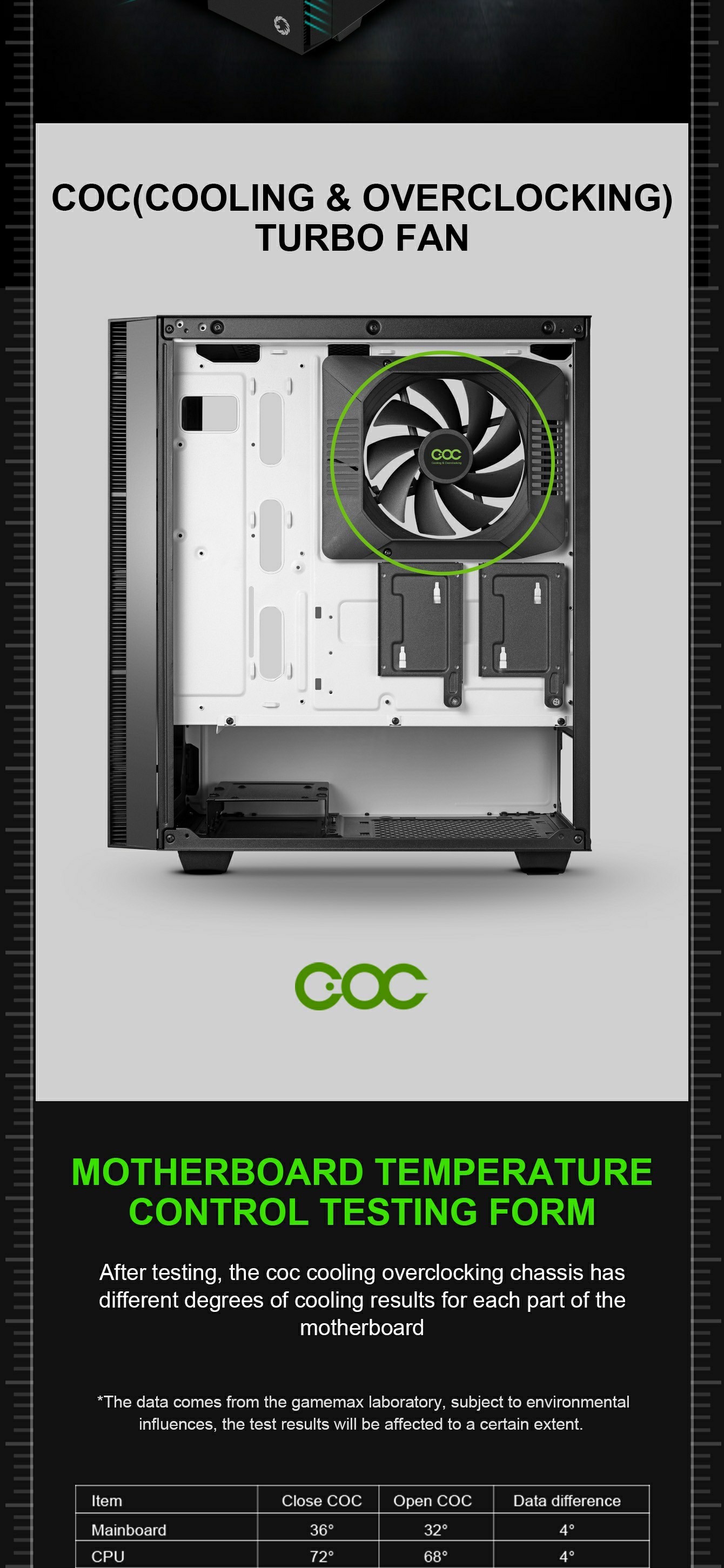

• A Turbo fan is added to the main board of the chassis to form a new T-type targeted air duct inside the PC system to help cool down various accessories in the PC system
• This COC technology has also obtained two invention patents and two structural patents, which is a new technology developed by GameMax brand after hundreds of times of research and development in combination with the demands of different consumer groups in many countries around the world.

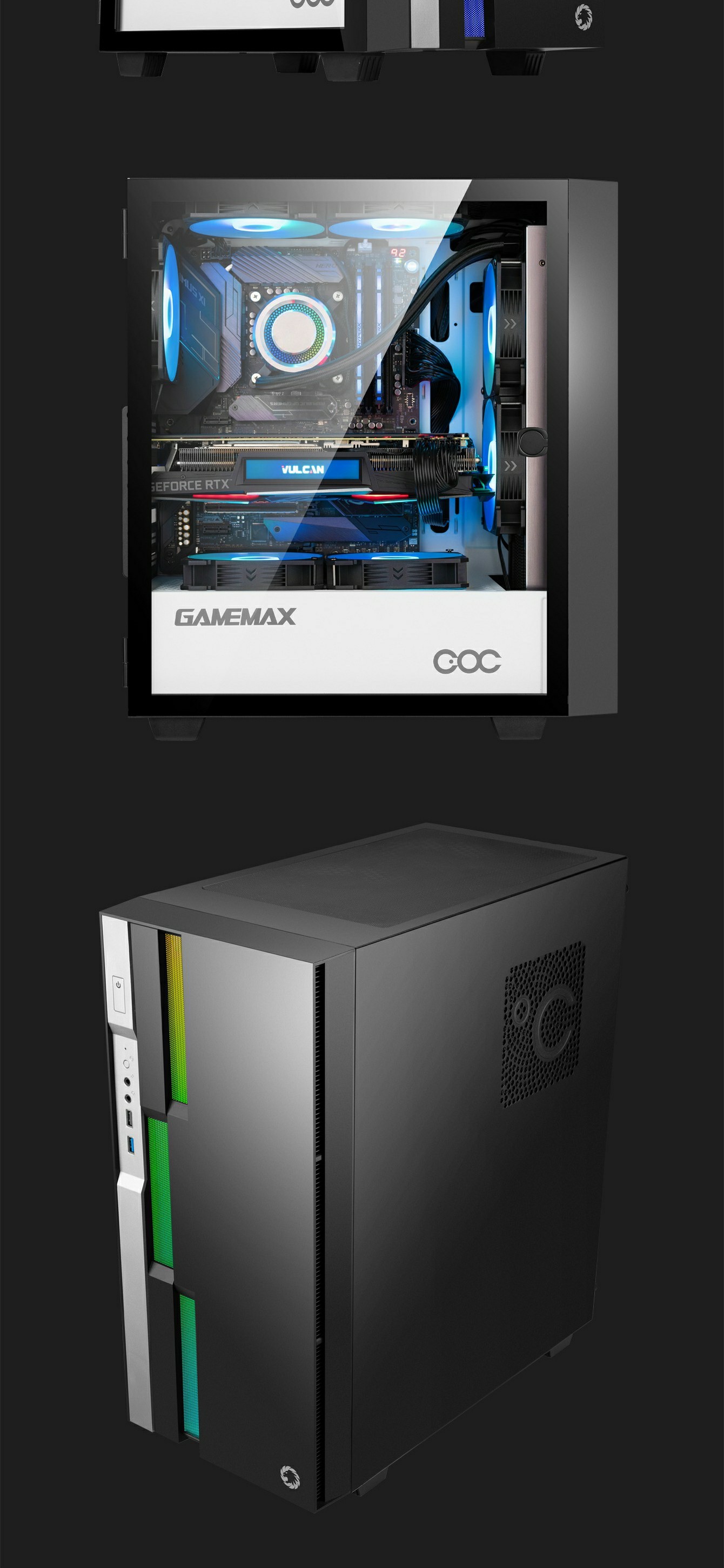

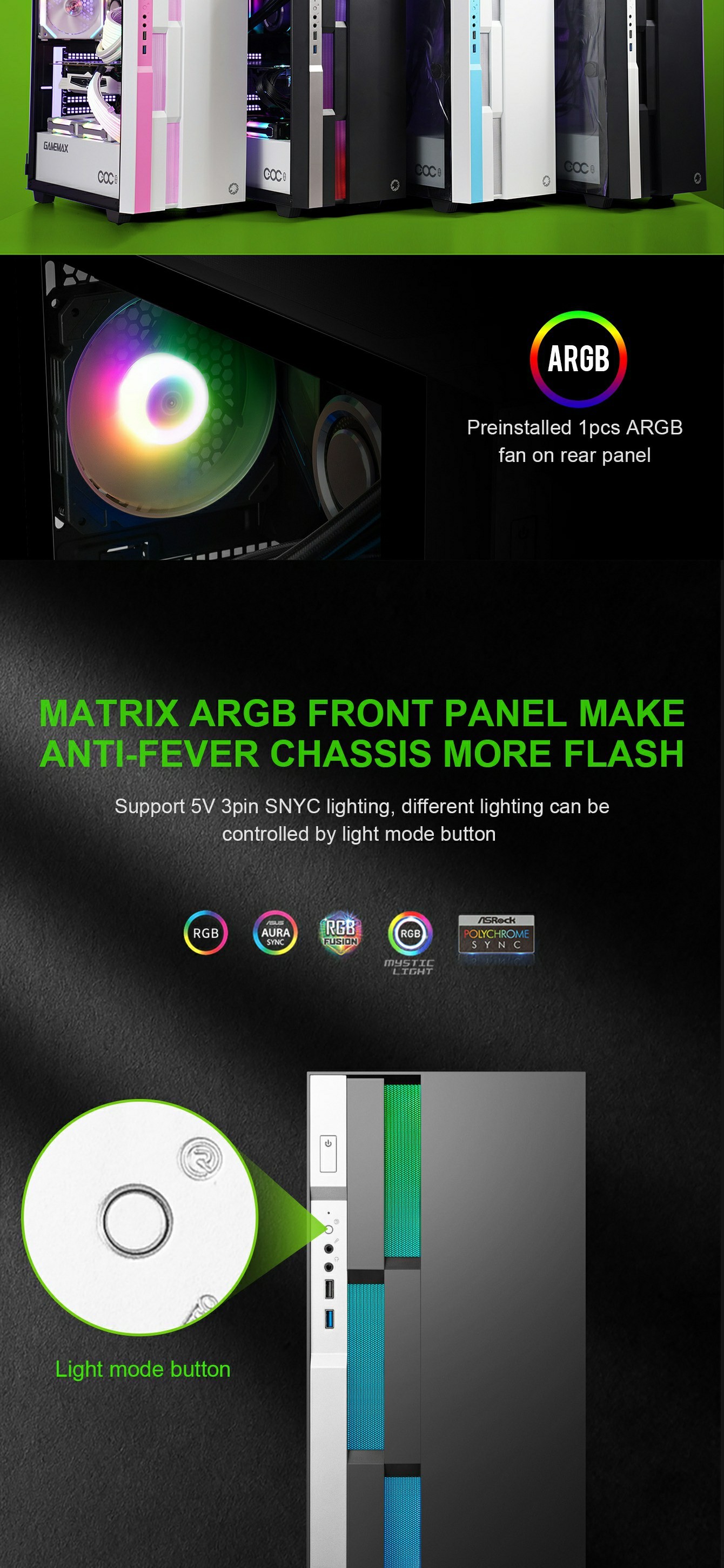

• The front panel with ARGB strip and light mode controlled via build-in HUB, It gives big air flow and excellent effect and the spectrum LED strip inlayed to give this case the perfect balance between style and RGB.
• The Brufen C3 can support up to 8 fans and comes with a spectrum RGB hub with a 3pin ARGB header to connect directly to your motherboard, allowing you to control your fans and LED strip via mobo provided software.

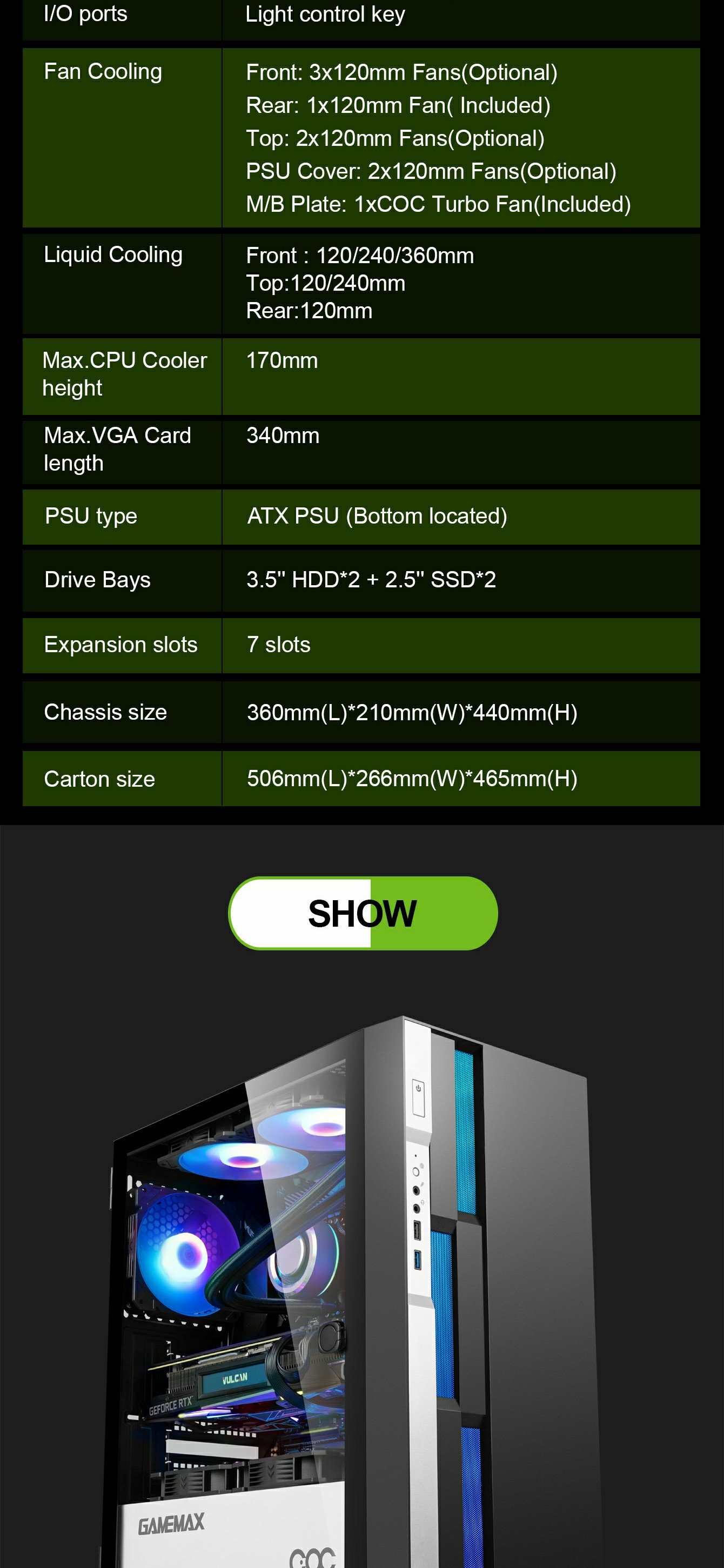

| Factory #3609 (Brufen C3) | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi ATX Tower | |
| Chassis | SPCC : 0.5mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | ATX、M-ATX、E-ATX (No fan on front) | |
| Front Panel | ABS | |
| Top Panel | Metal cover | |
| Branding | Box | GameMax standard |
| Unit | 1 | |
| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |

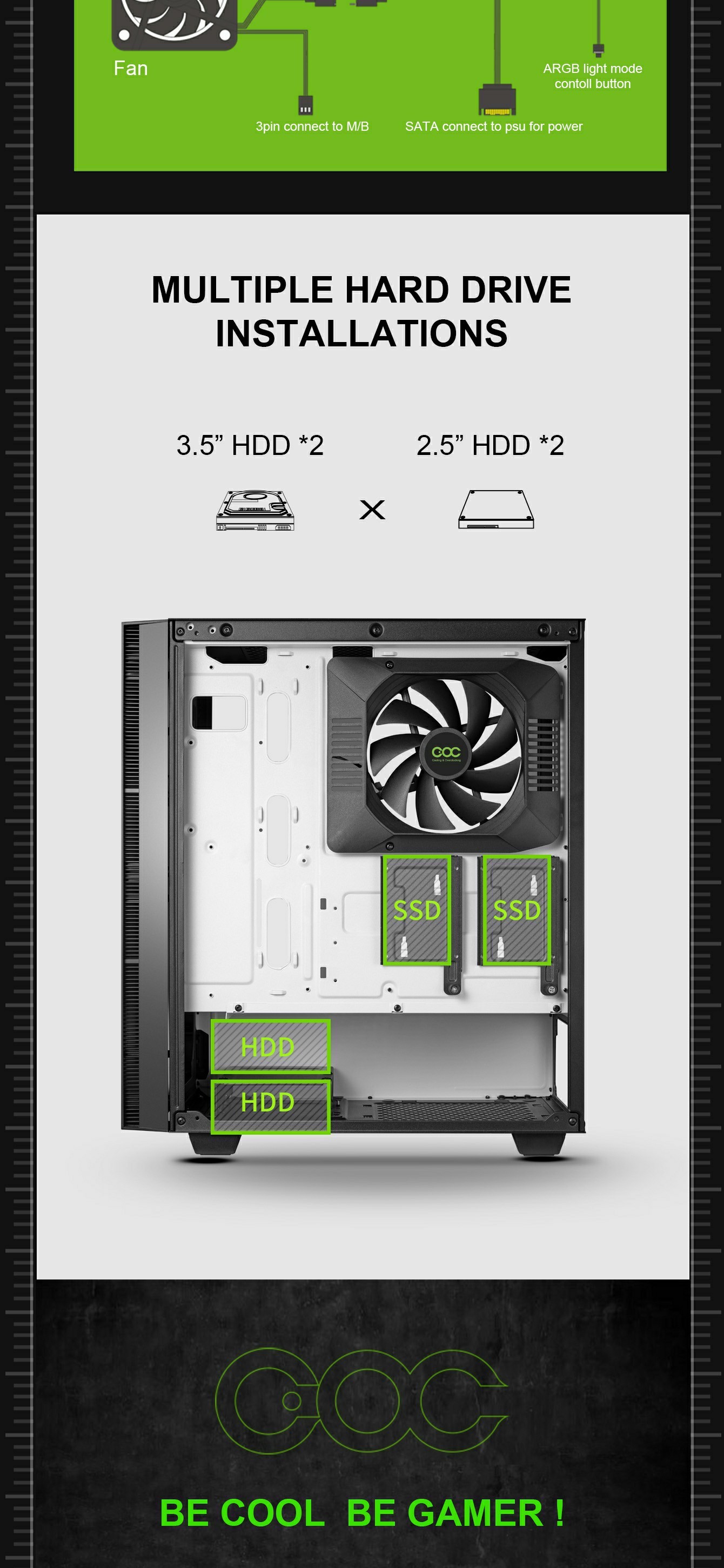

| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |

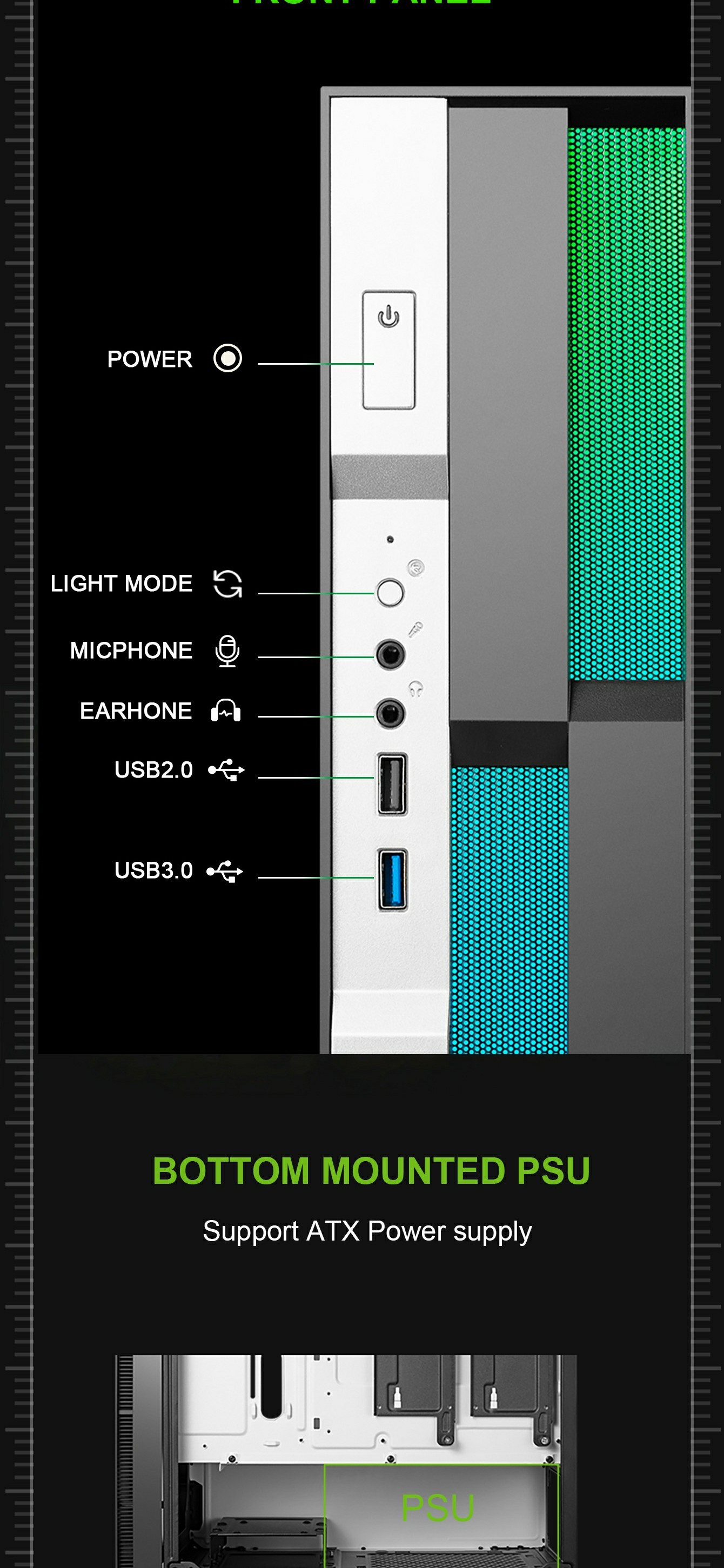

| I/O CONFIG | Buttons | *2 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) USB3.1 GEN1 | *1 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| P-Lock | *0 | |
| RGB Controller | *1 | |
| Controller max. fans | *5 | |
| RGB Controller max. LED strips | *2 | |
| Remote (IR or RF) | *Front 1x RGB switch | |

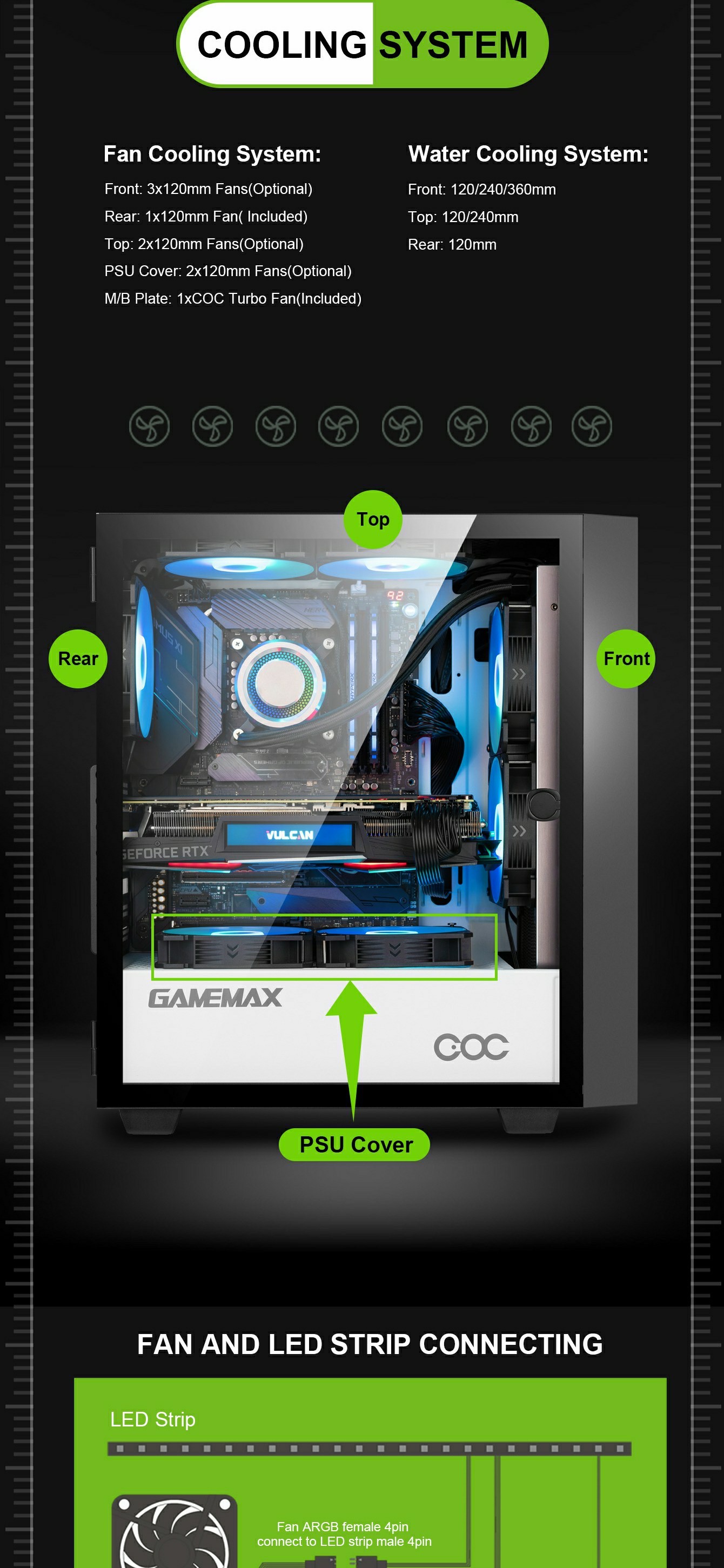

| Cooling Fan Support | Front | 3 x 120mm ARGB Fan(optional) |
| Top | 2x120mm Fans(Optional) | |
| Rear | 1x120mm ARGB (Included) | |

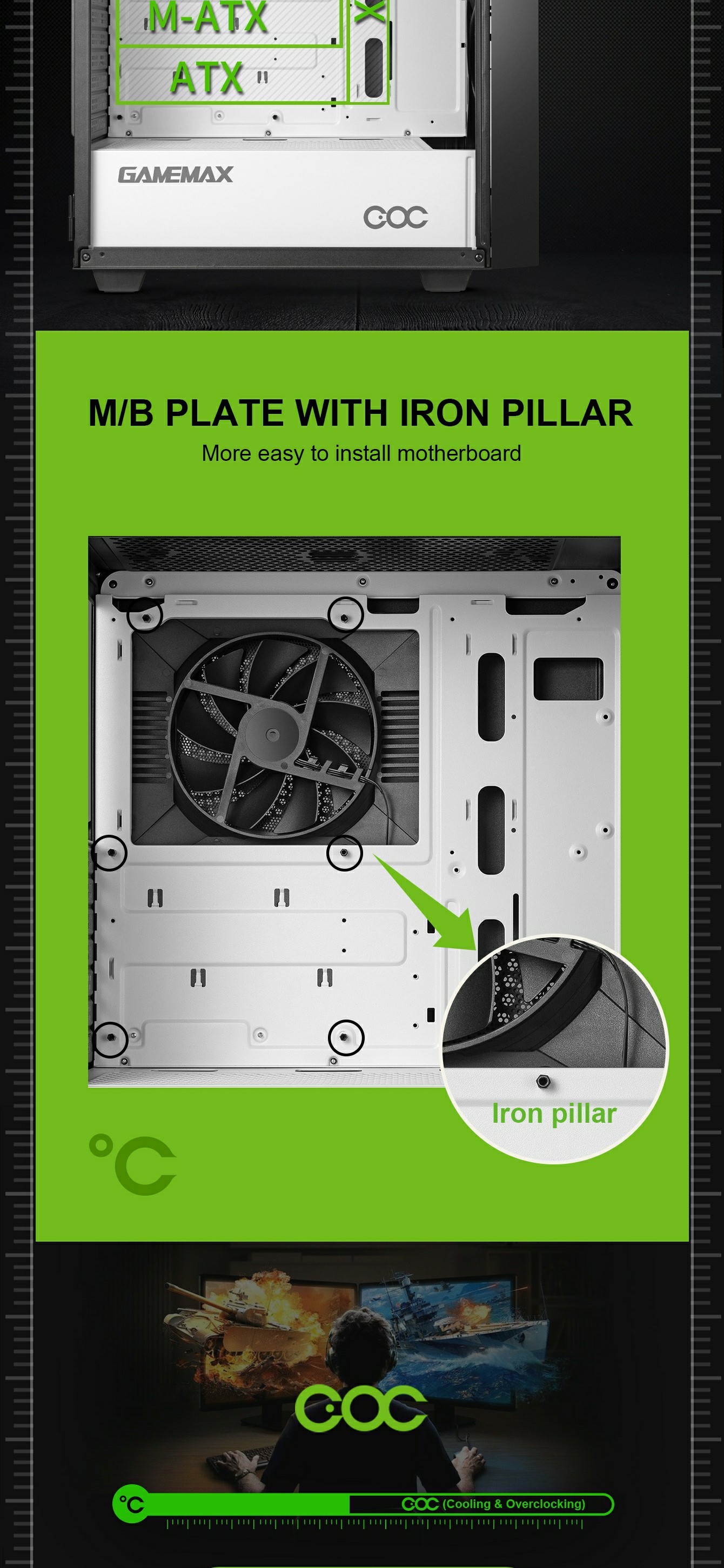

| M/B Plate | 1x COC Turbo Fan (Included) | |
| PSU Cover | 2x120mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm,240mm,360mm |
| Top | 120mm,240mm | |
| Rear | 120mm*1 | |

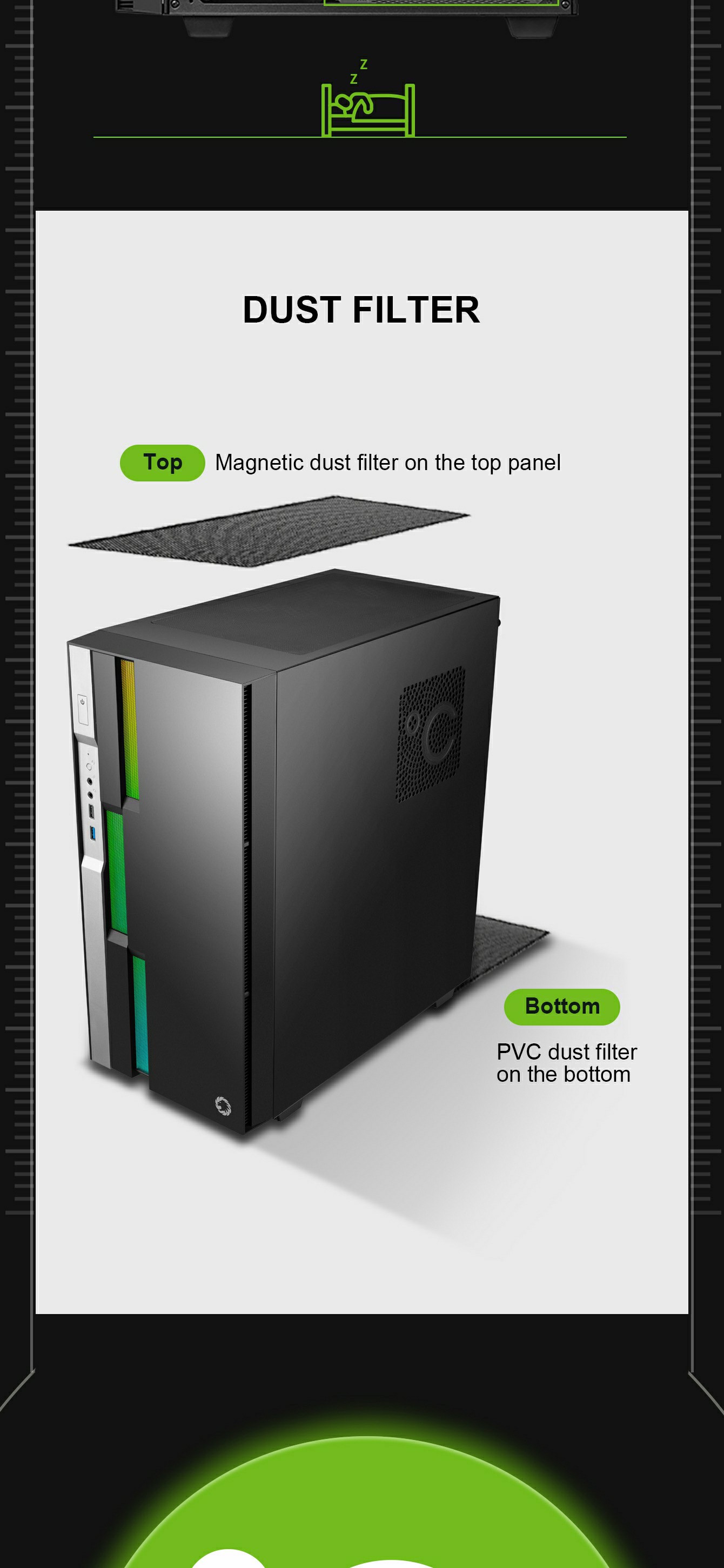

| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *7 | |
| Carton Logo | GAMEMAX | |

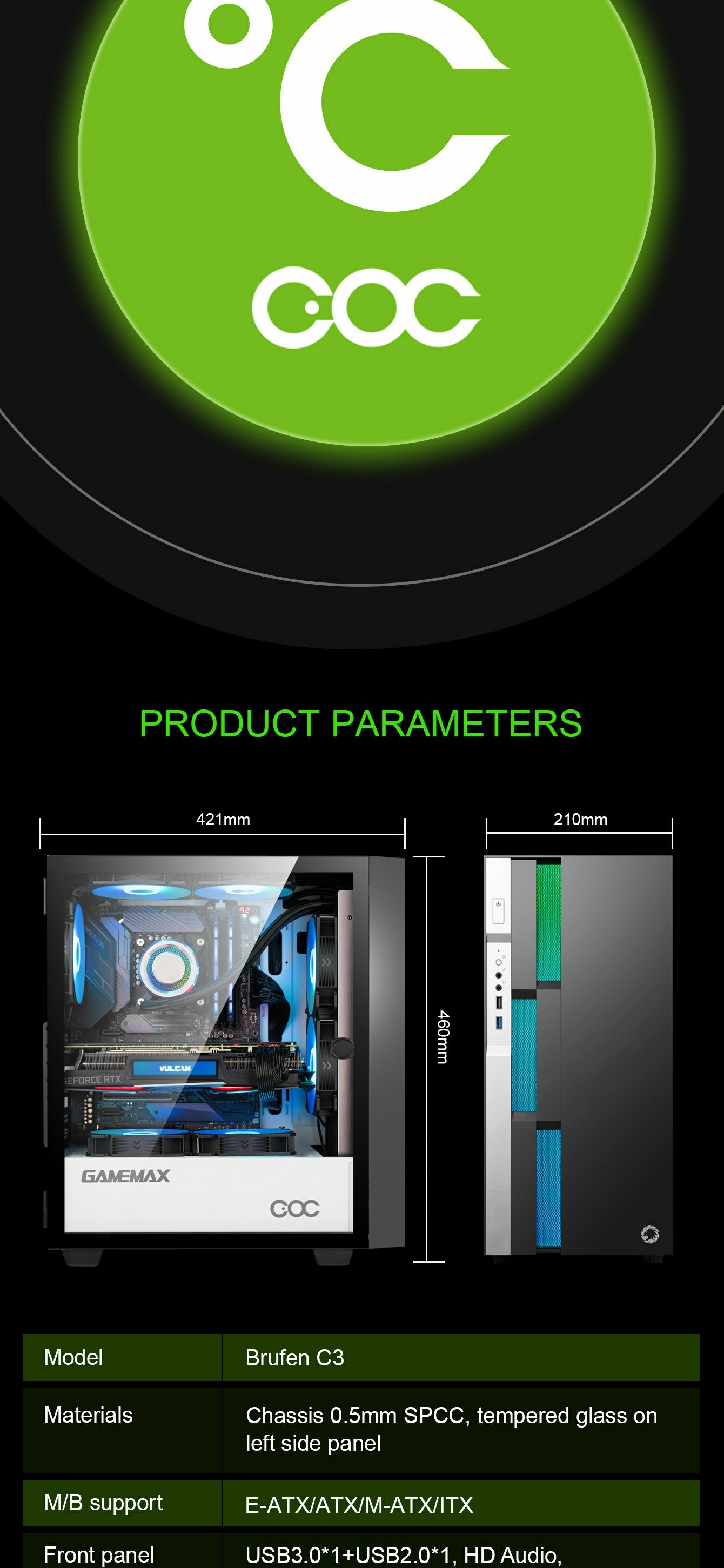

| Dimensions | Chassis | (L)360*(W)210*(H)440mm |
| Full Case (inc Fascia) | (L)436*(W)210*(H)461mm | |
| Carton | (L)506*(W)*266（H)465mm | |
| Net Weight (Kg) | 5.85kgs | |
| Gross Weight (Kg) | 6.75kgs | |
| VGA Card Length | up to 340mm | |
| CPU Cooler Height | 170mm | |
| Cable Management Depth | 22mm | |
