750W 80 Plus Gold ATX3.1 PCIe5.1 power supply with PCIe5.1 12V-2*6 connector for direct RTX™ 40 Series GPU connection, minimizing current loss.

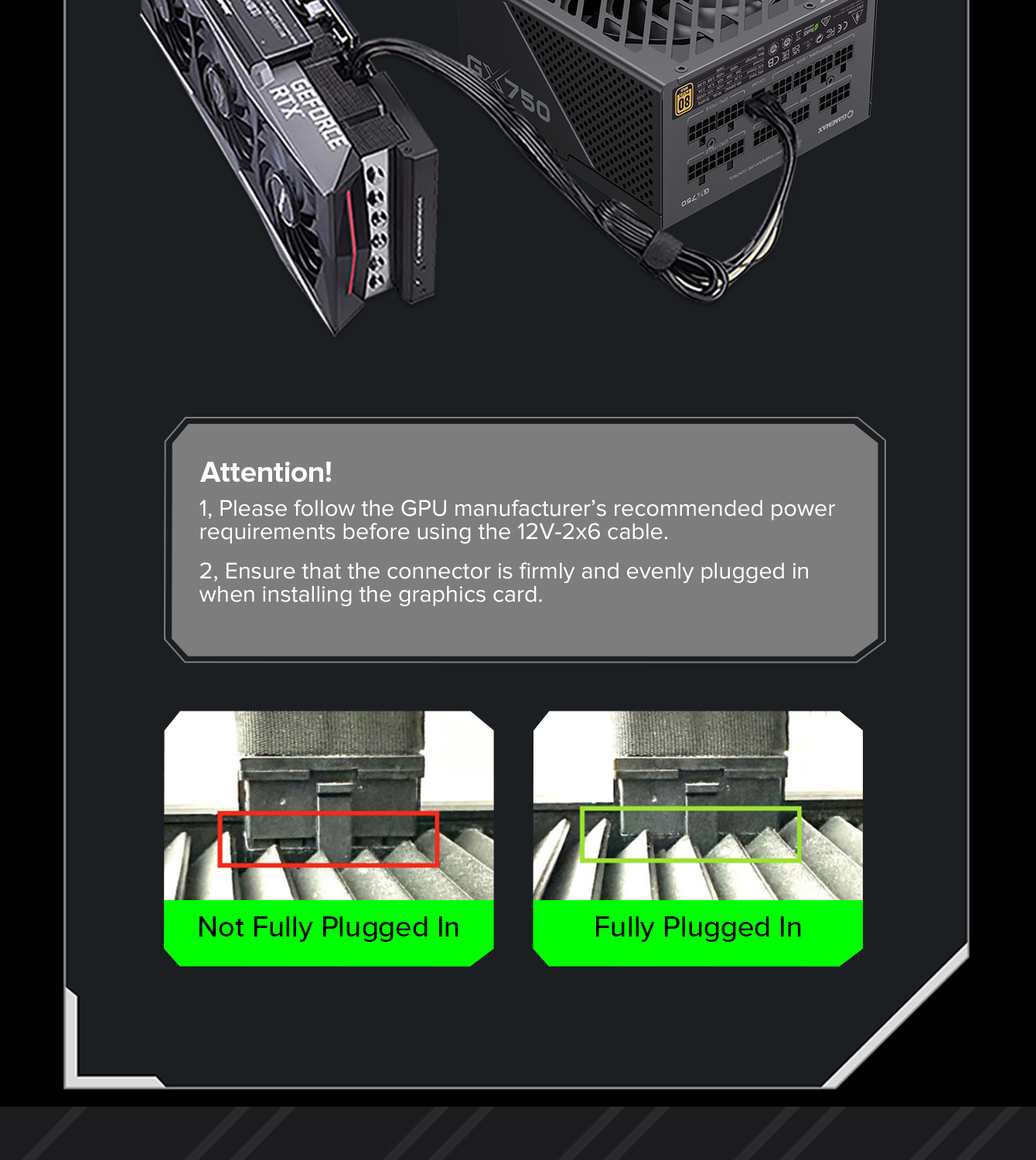

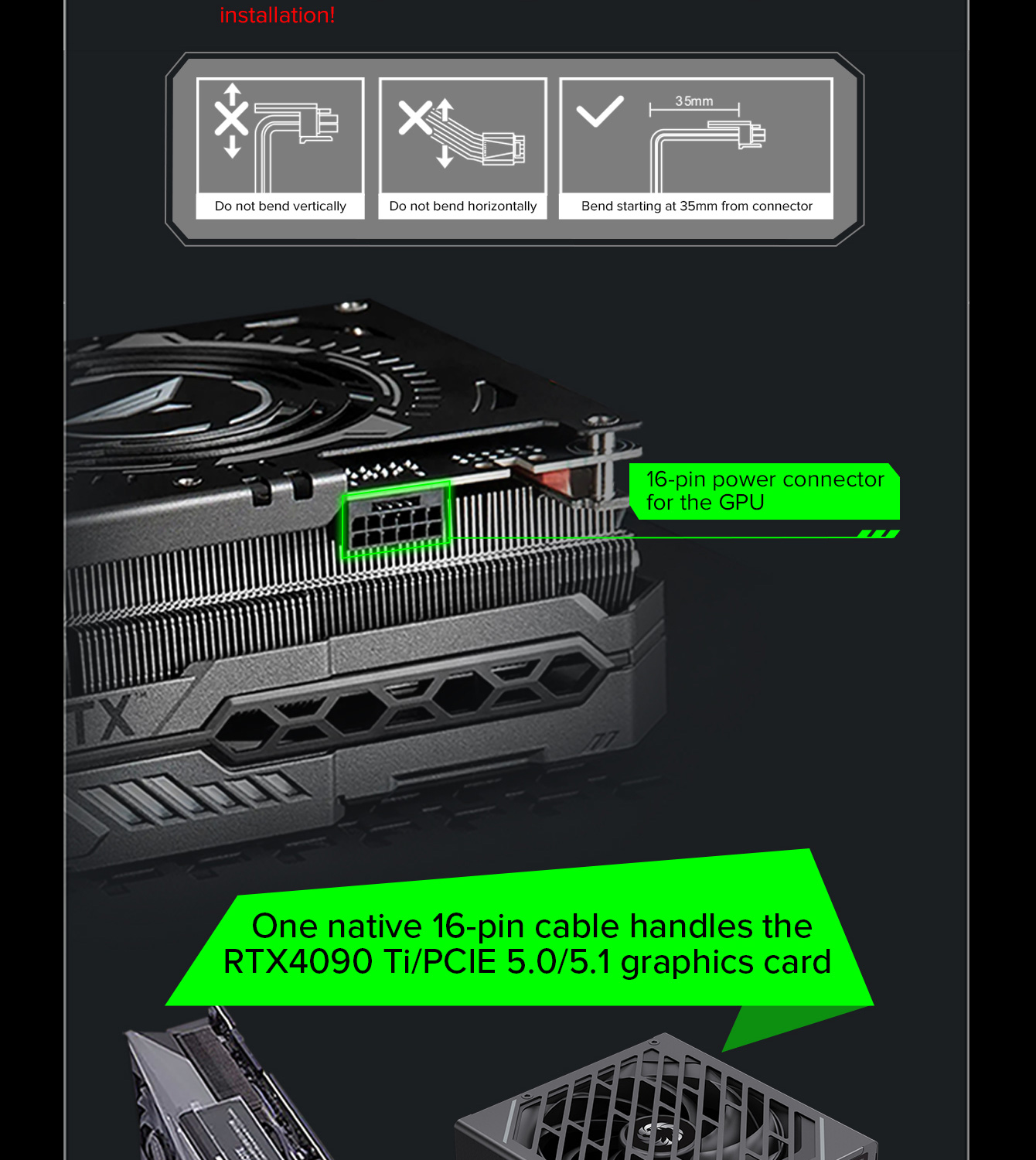

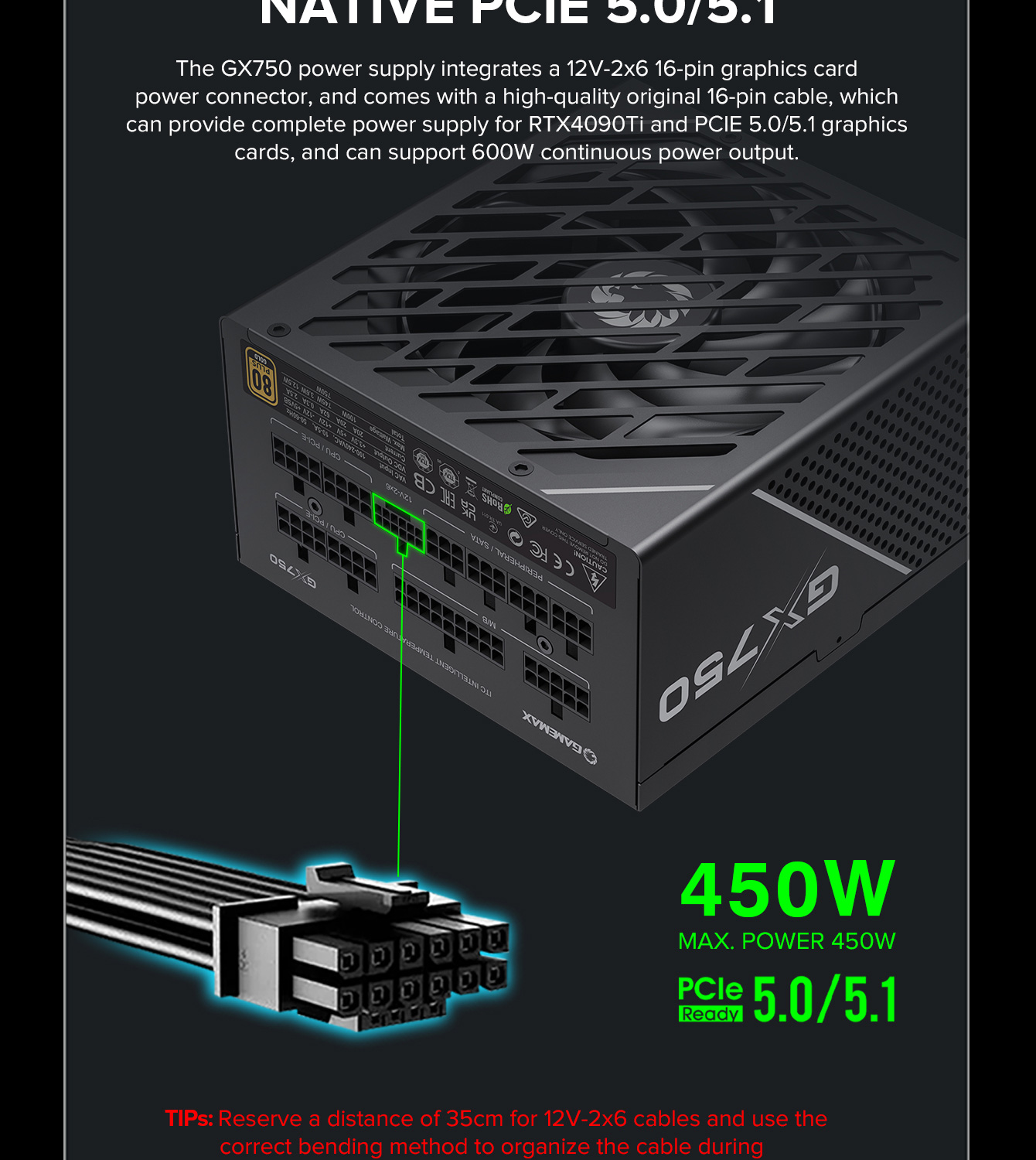

• ATX3.1 & PCIe5.1 ready with 12V-2*6 connector

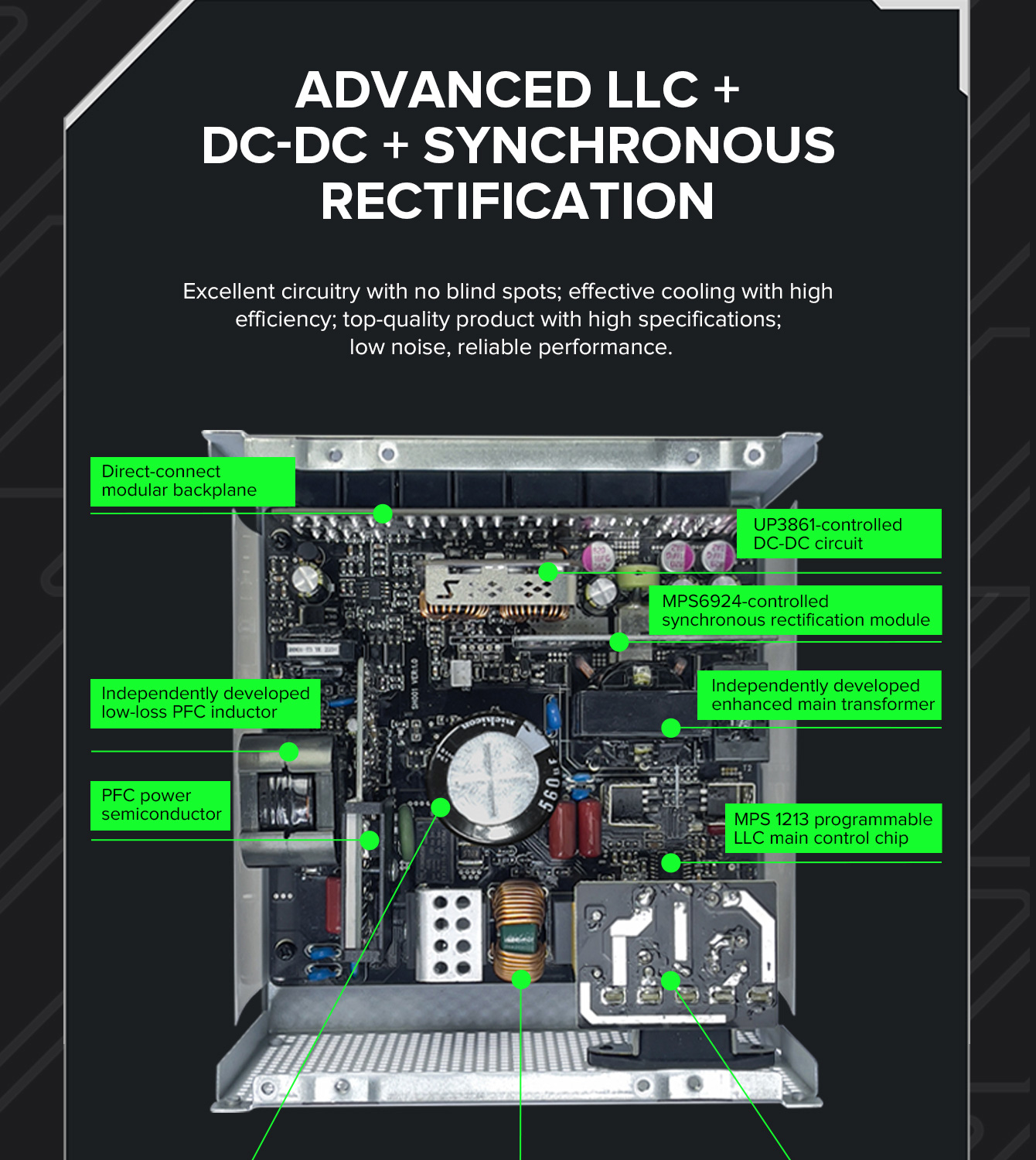

• LLC MPS1213 Chipset optimizes LLC resonant circuit for high efficiency at all loads

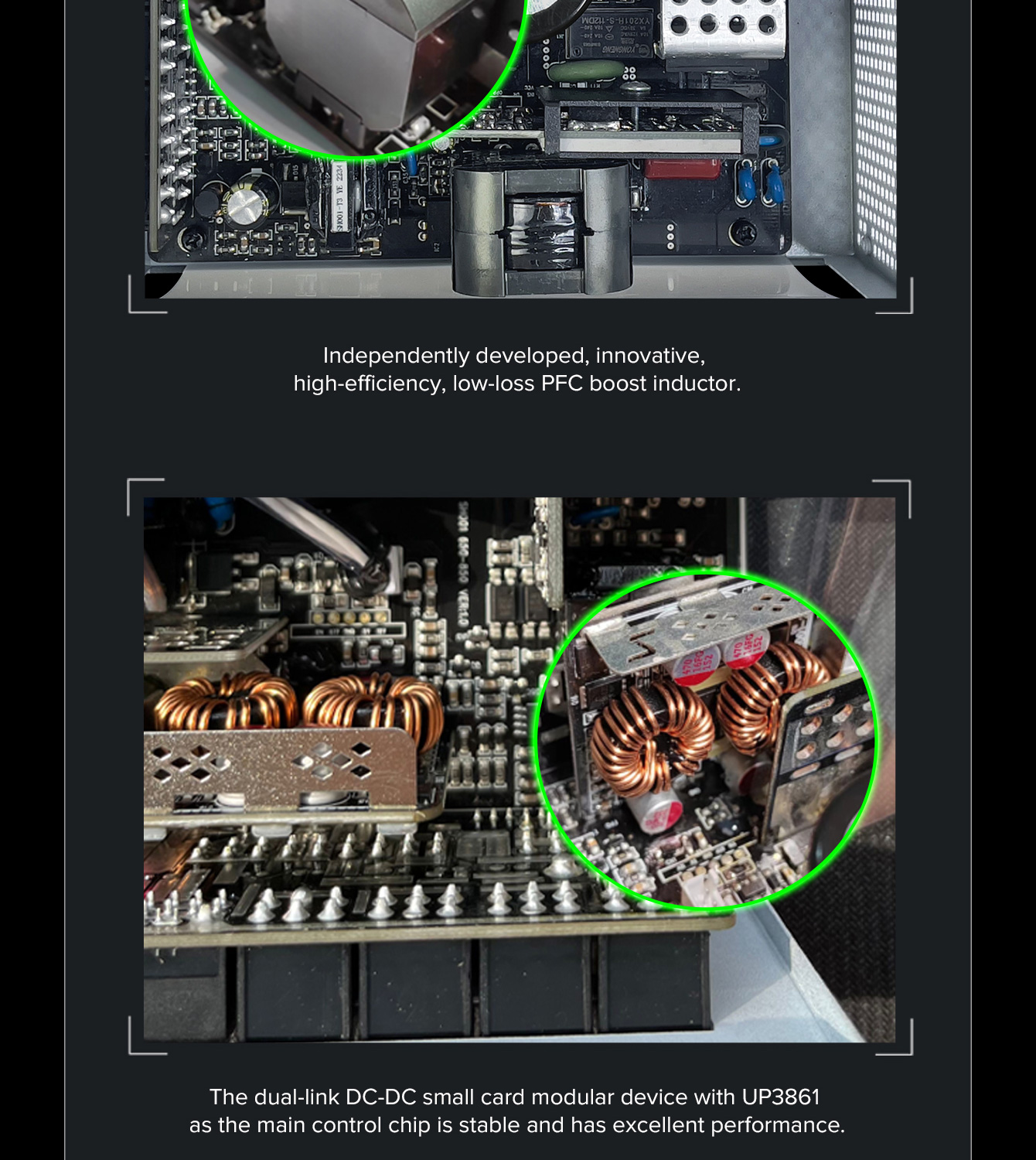

• UP3861 Chip ensures stable 3.3V and 5V outputs with reduced ripple noise
• MPS6924 Chip boosts efficiency via optimized synchronous rectification

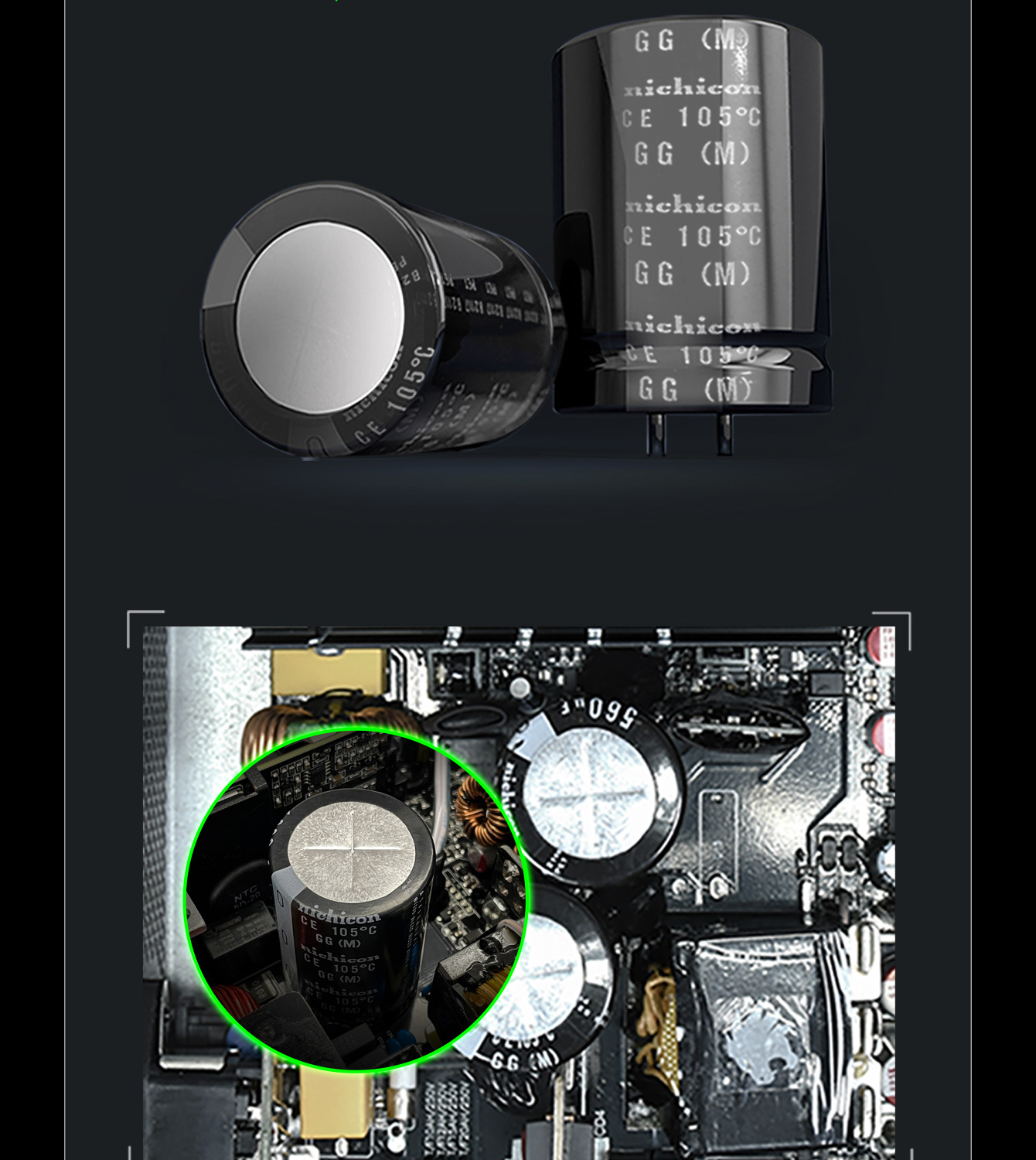

• 105℃ Japanese bulk capacitors ensure long life and stable output

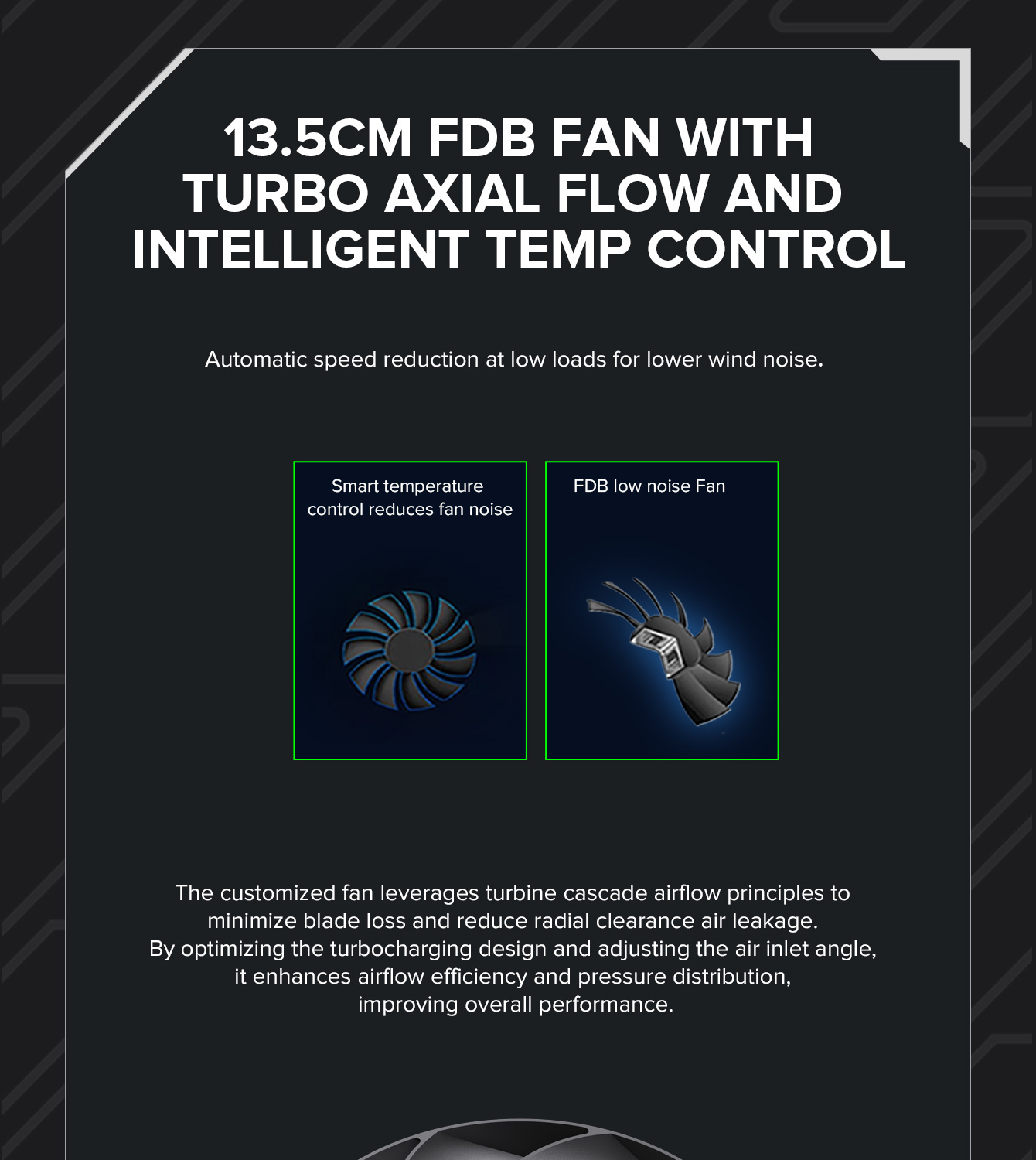

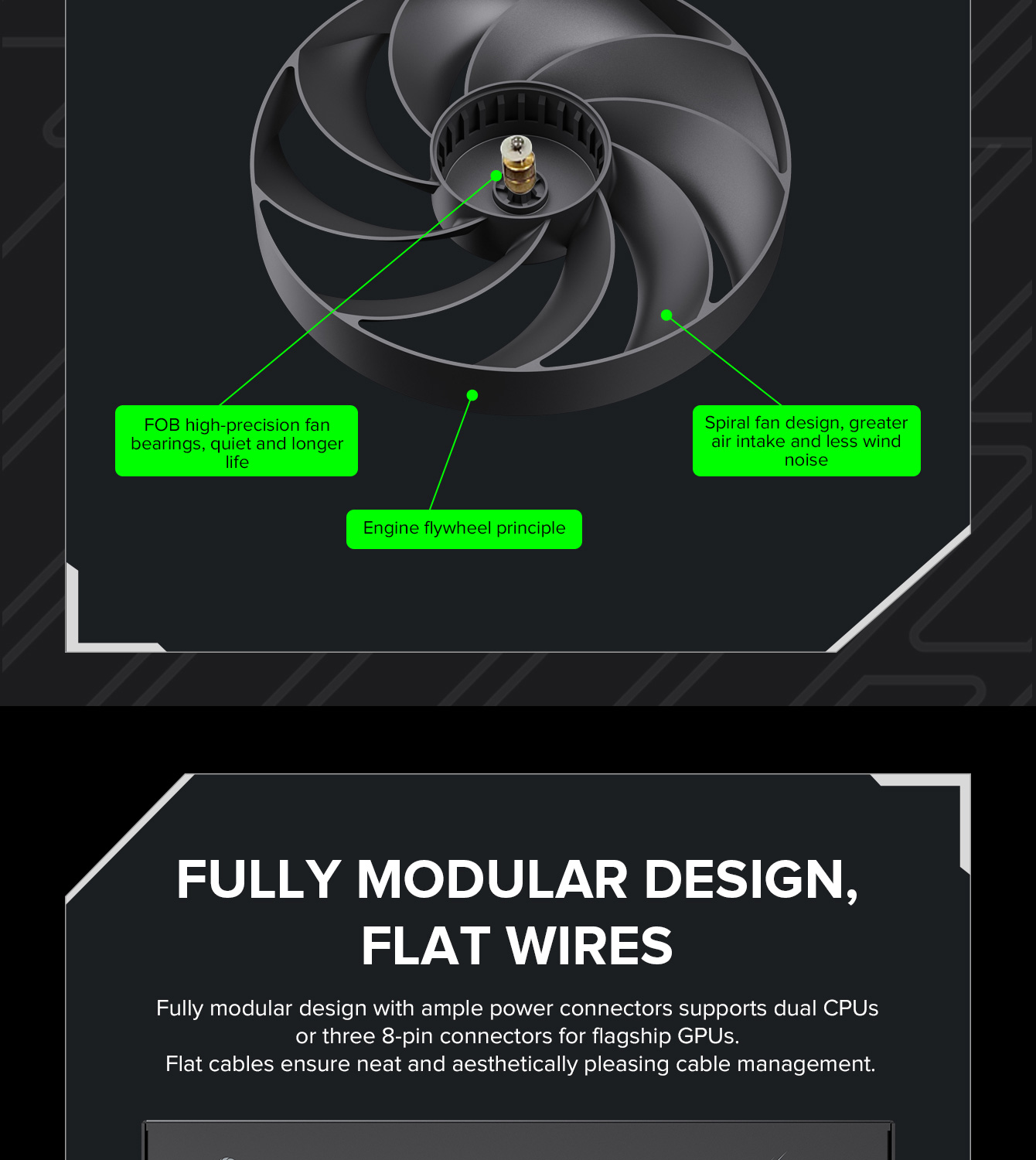

• Quiet, temperature-controlled axial fan for efficient cooling
• Seven protection levels: OTP, OCP, SCP, OVP, UVP, OPP, SIP

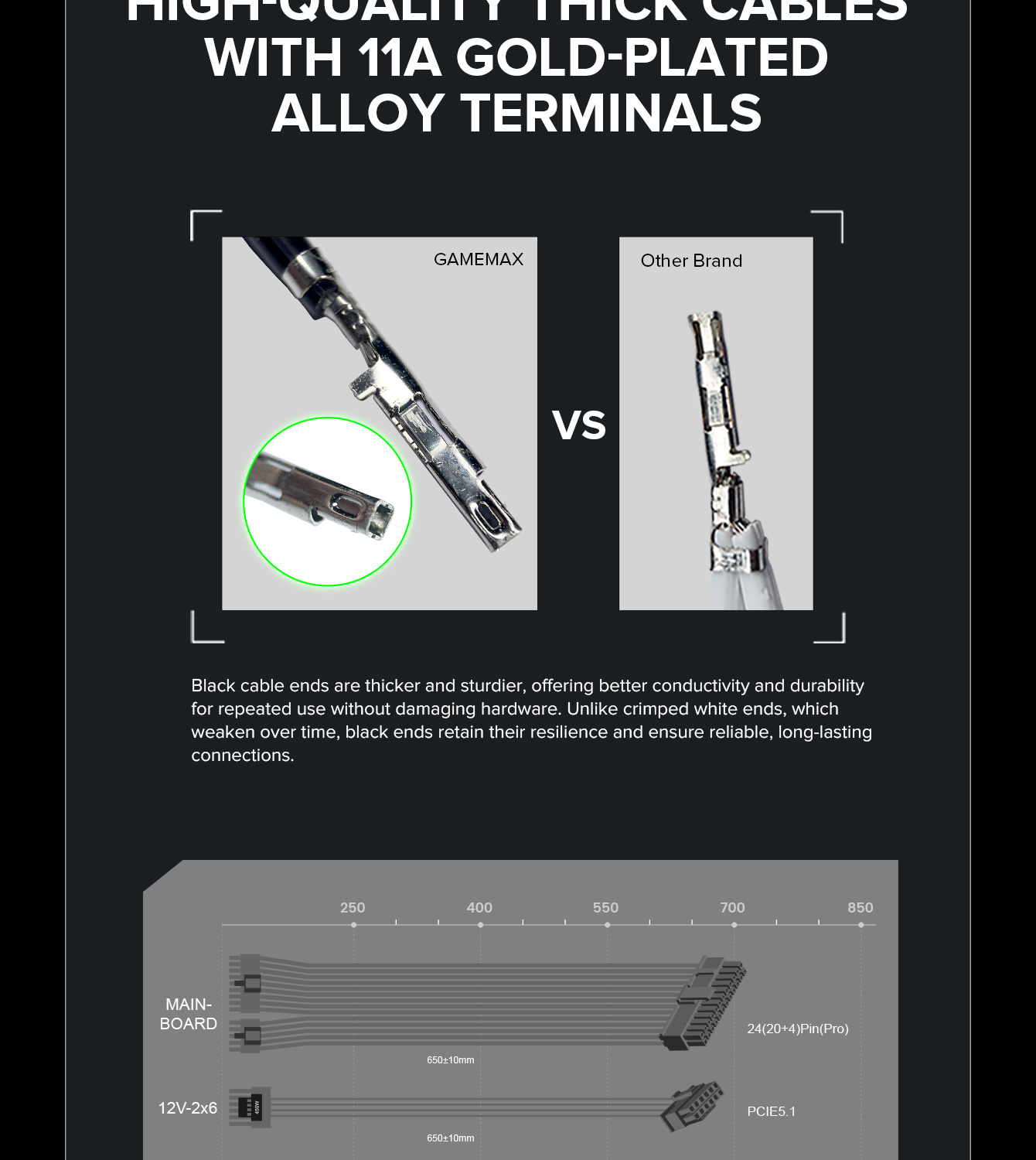

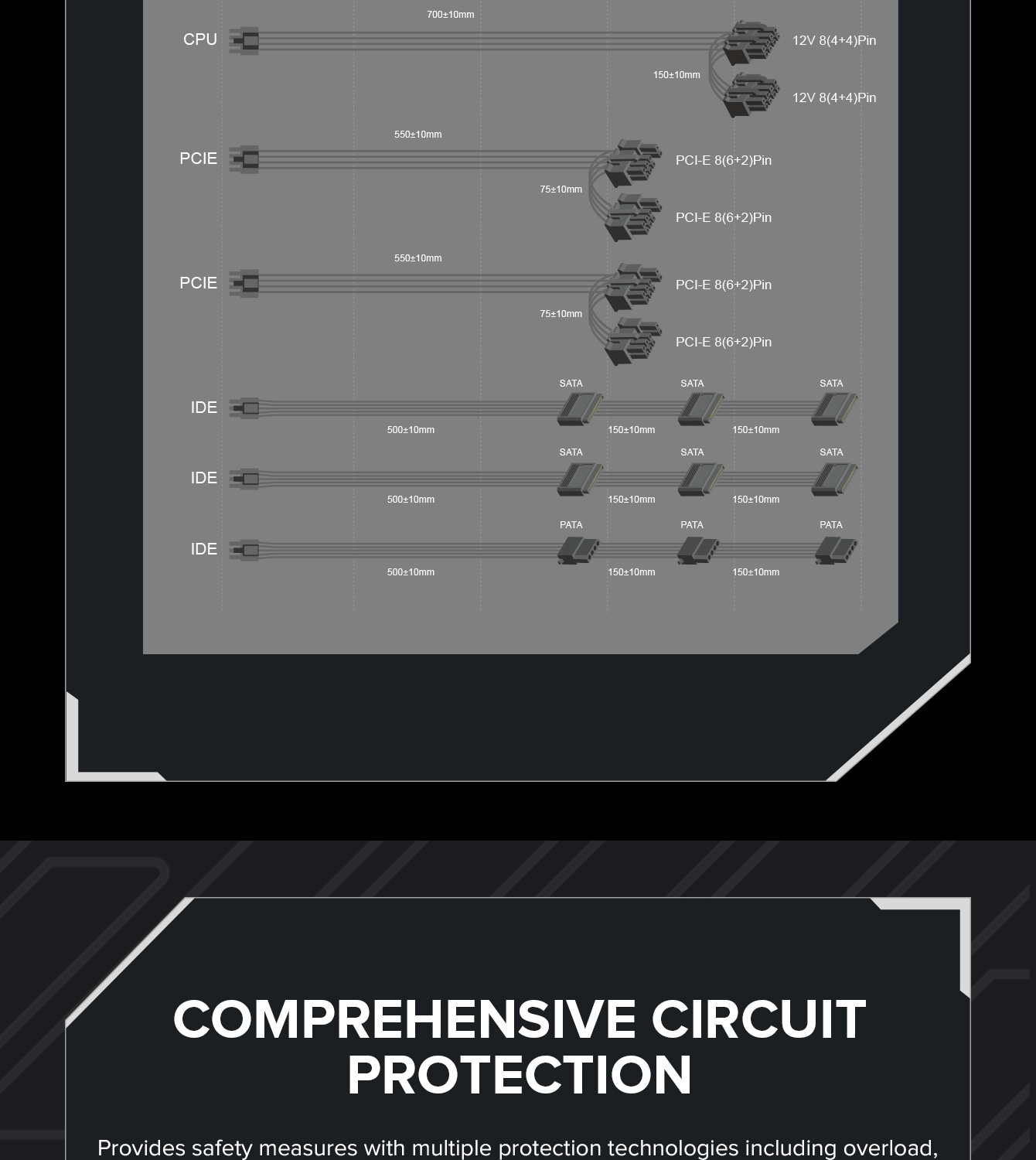

• Black flat copper output cables for efficient power delivery
• SMT-produced components for fast heat dissipation and stability

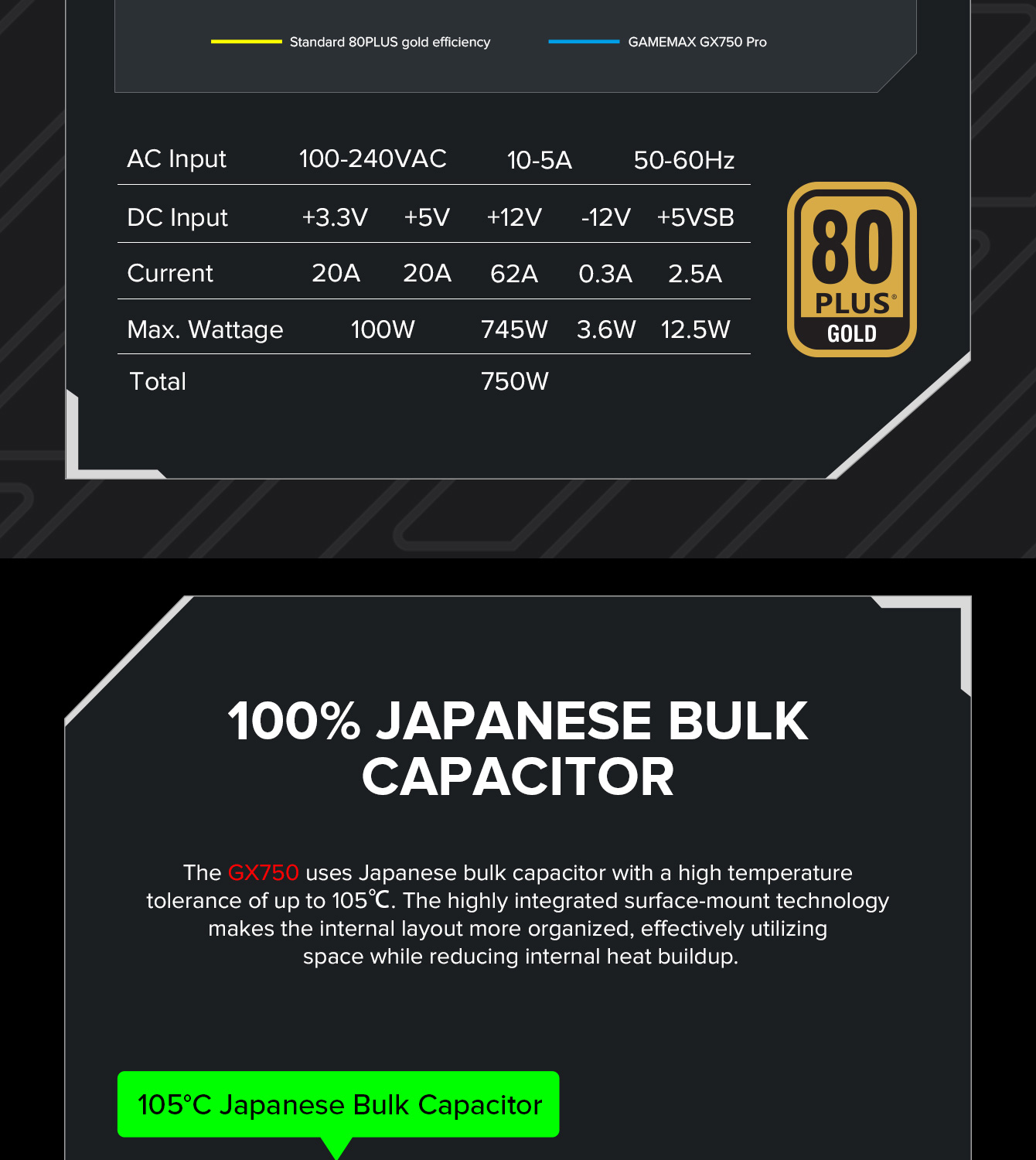

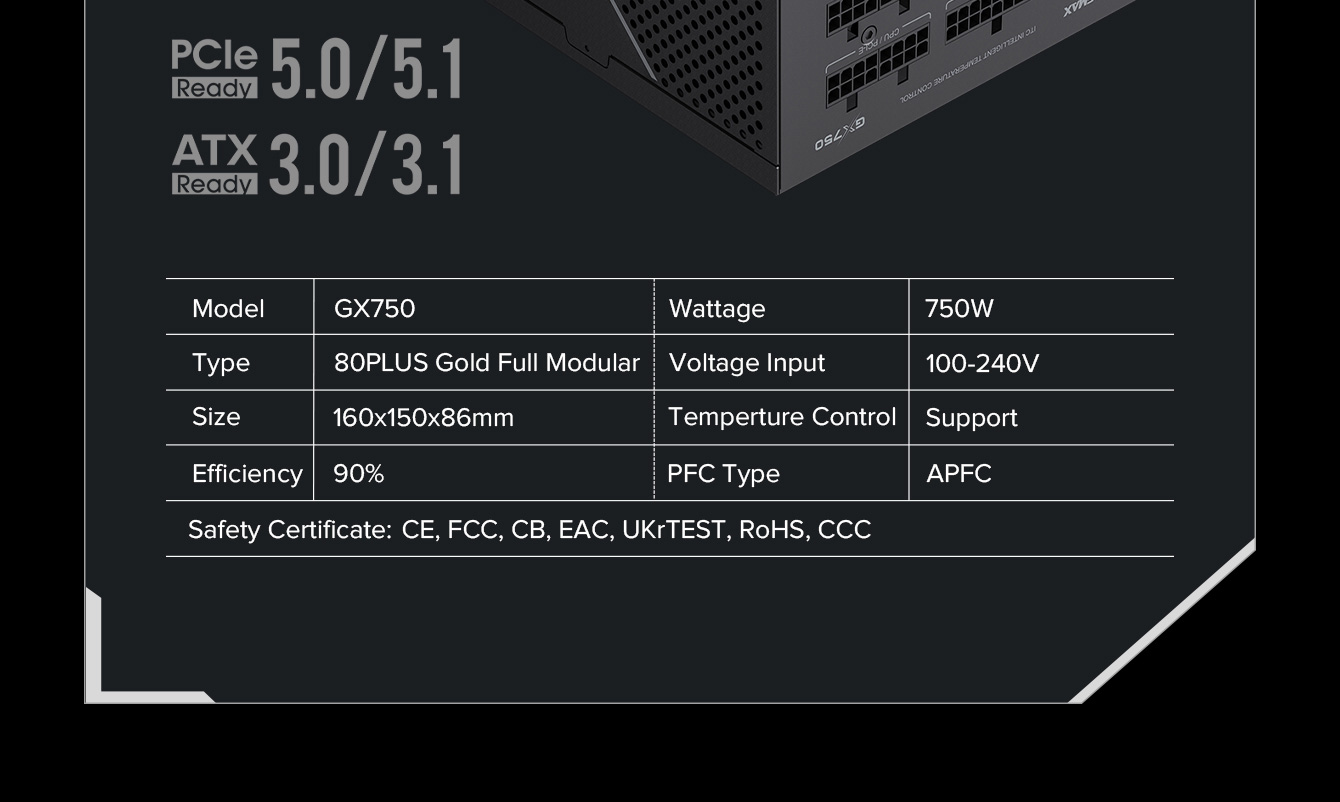

Detailed Specifications
| Dimensions: | 156mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |

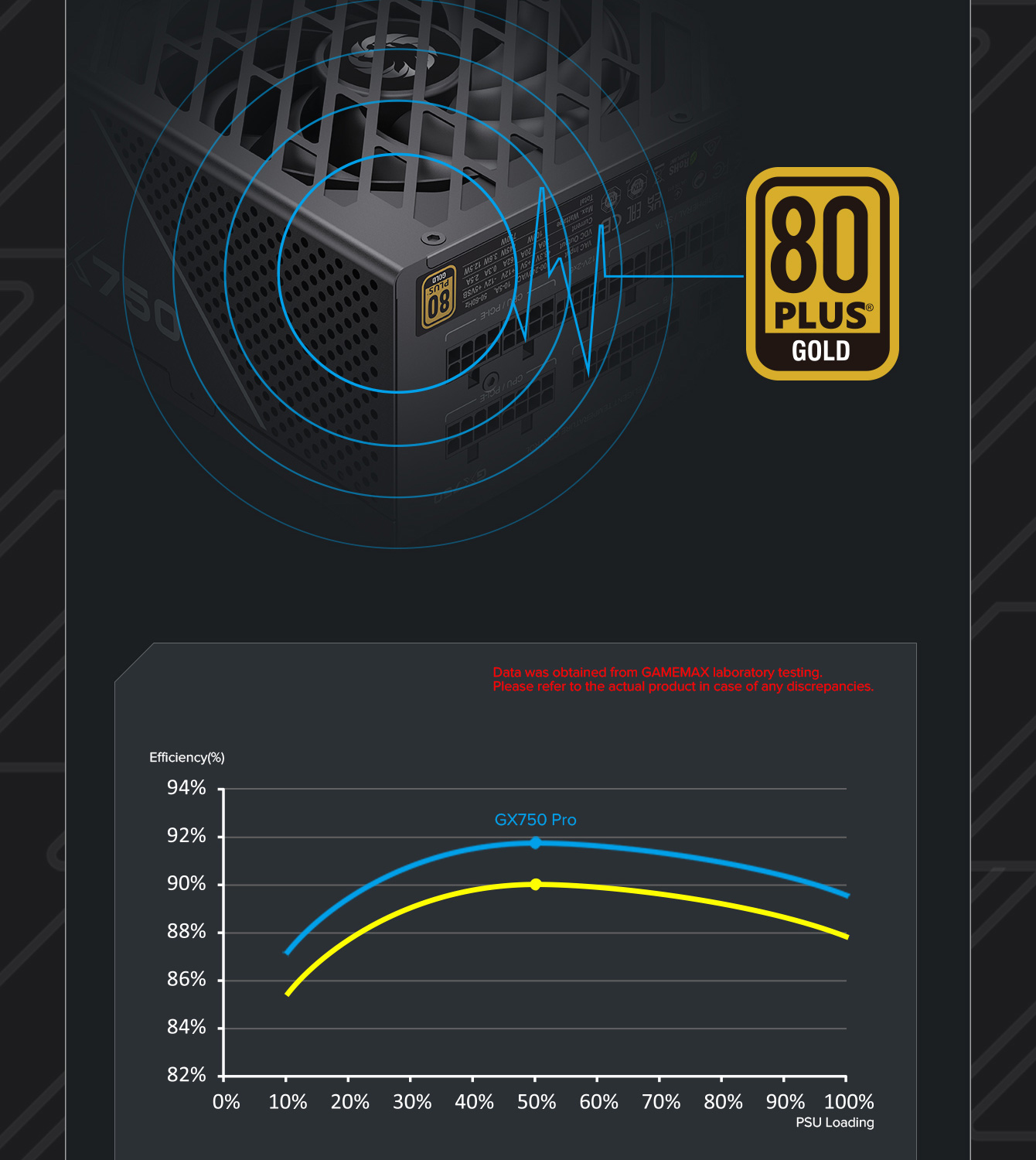

| Efficiency: | > 87% (90% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/OTP |
| Power: | 750W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB/TUV/cTUVus |
| Cooling: | 135mm Ultra Silent Fan |
| Noise: | <25dBa |

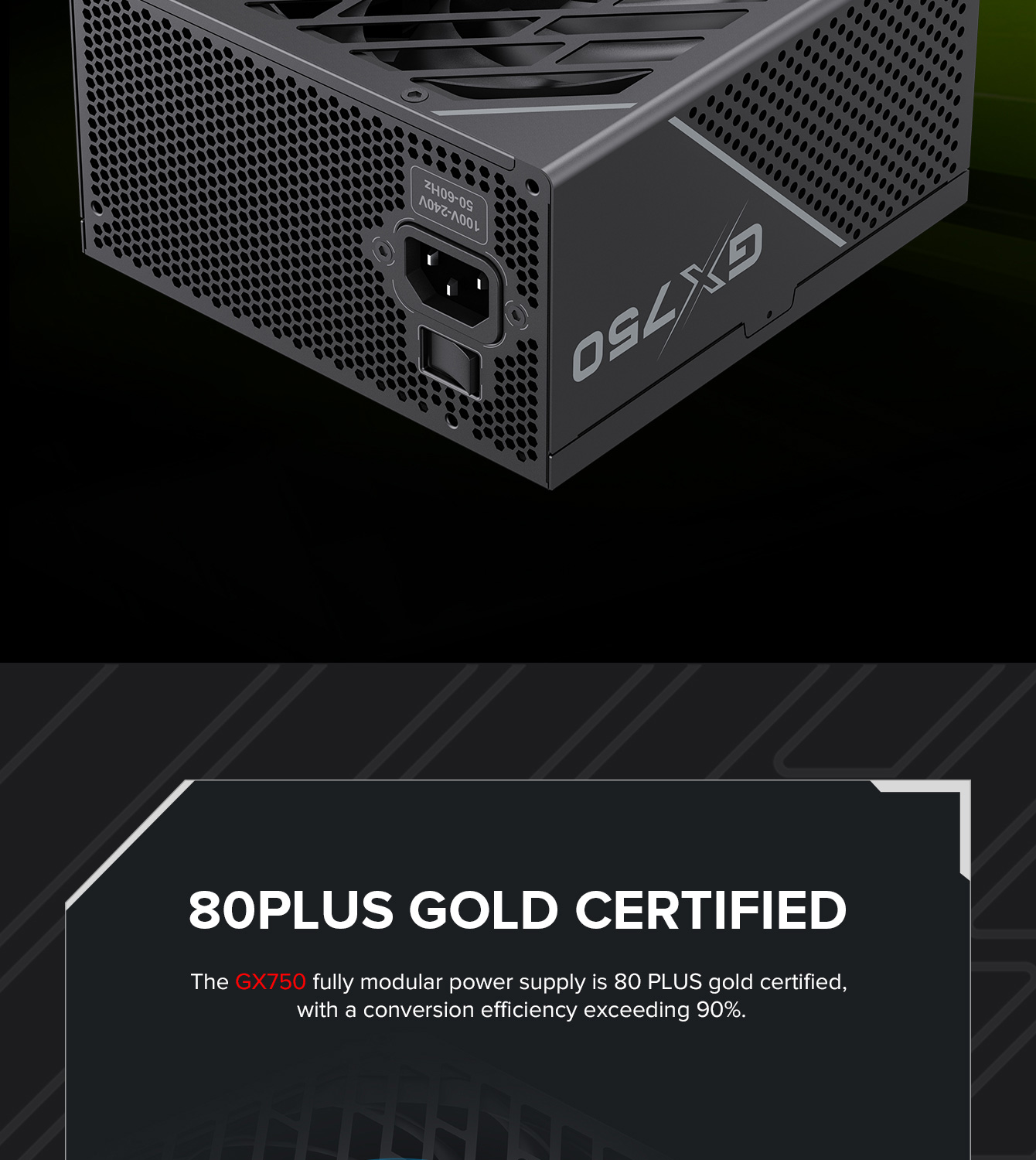

| 80 Plus Certified: | Yes - 80 Plus Gold |
