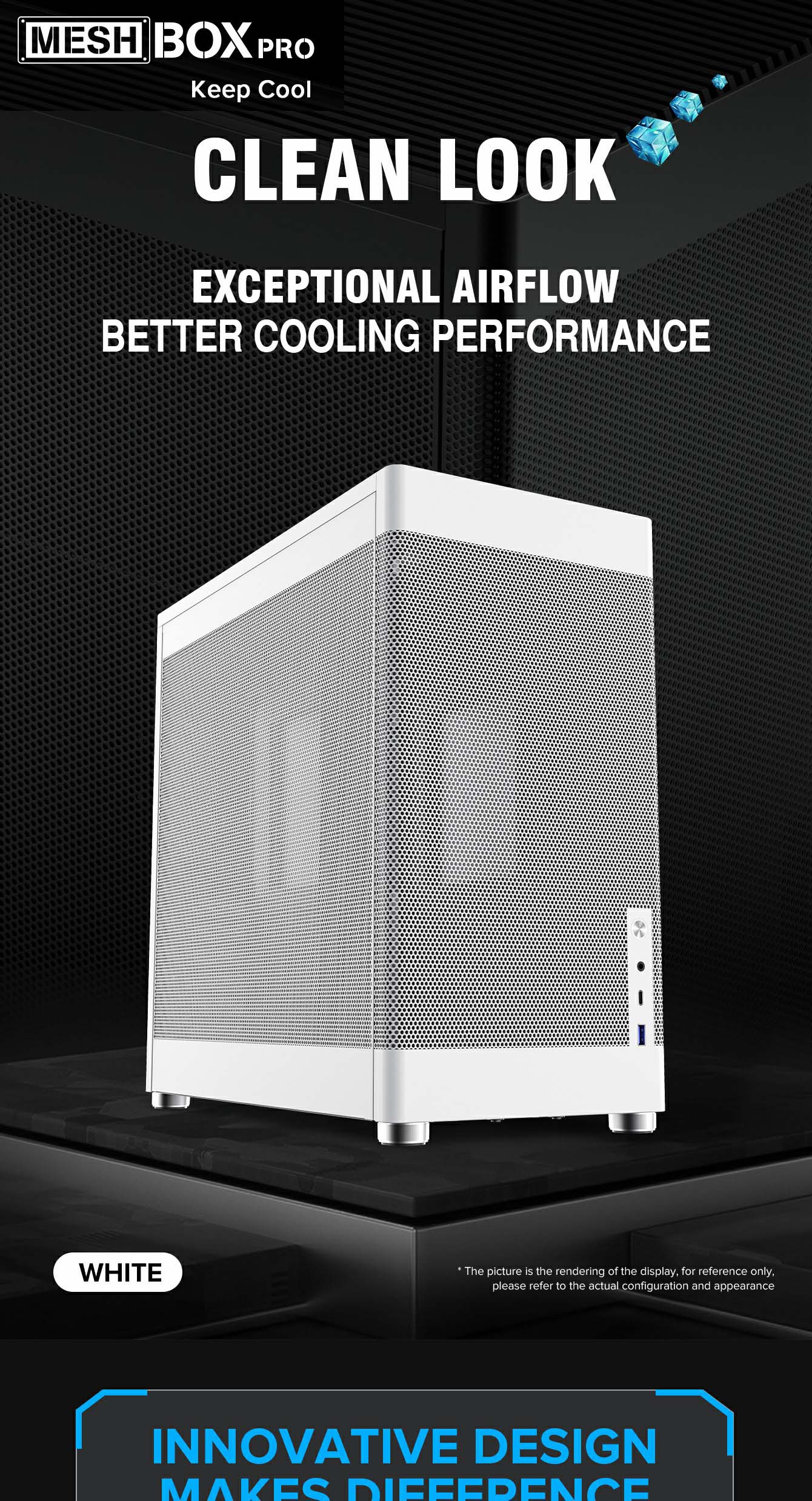

GameMax MeshBox PRO ATX Chassis, featured 3x full mesh side and front, which focused powerful airflow, along with vertical airflow designed game case, which makes complex into simple, blends in the home
• Vertical airflow channel, small size, high compatibility, basically suitable for installation of all mainstream accessories on the market
• The bottom fan position blows directly to the graphics card to optimize cooling performance to maximum

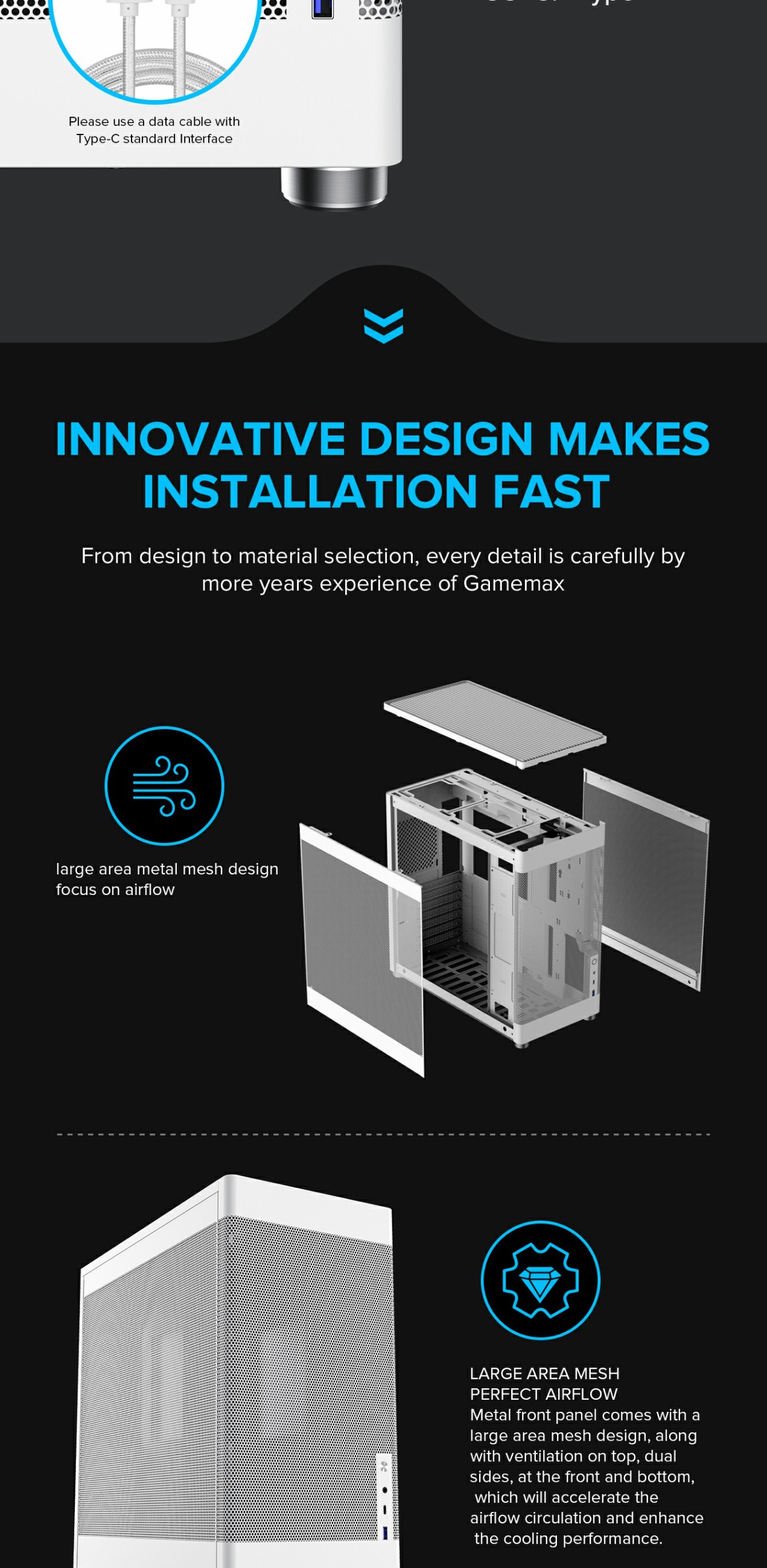

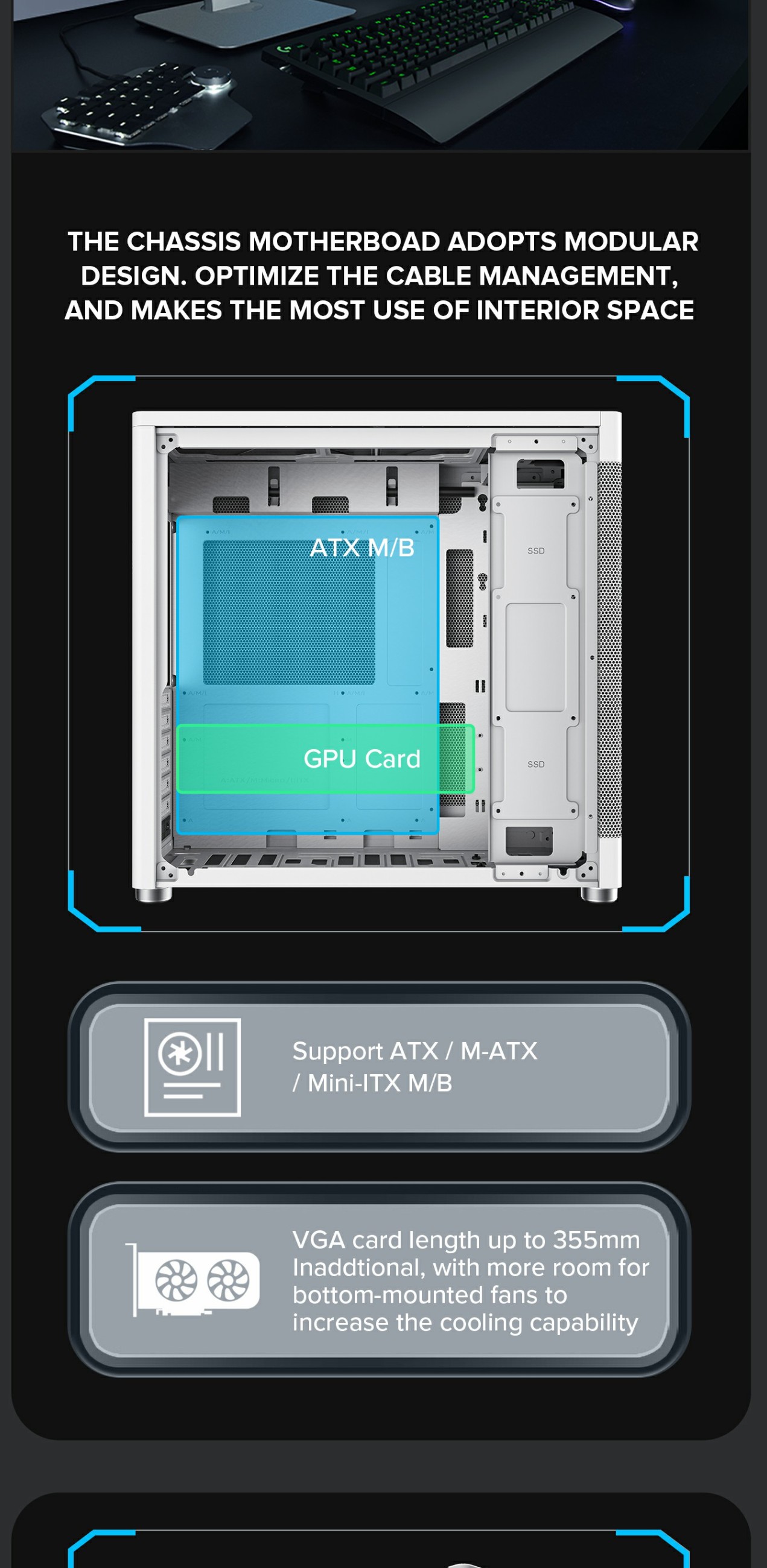

• The chassis is a modular design, optimizes wire management, and makes enough internal space.

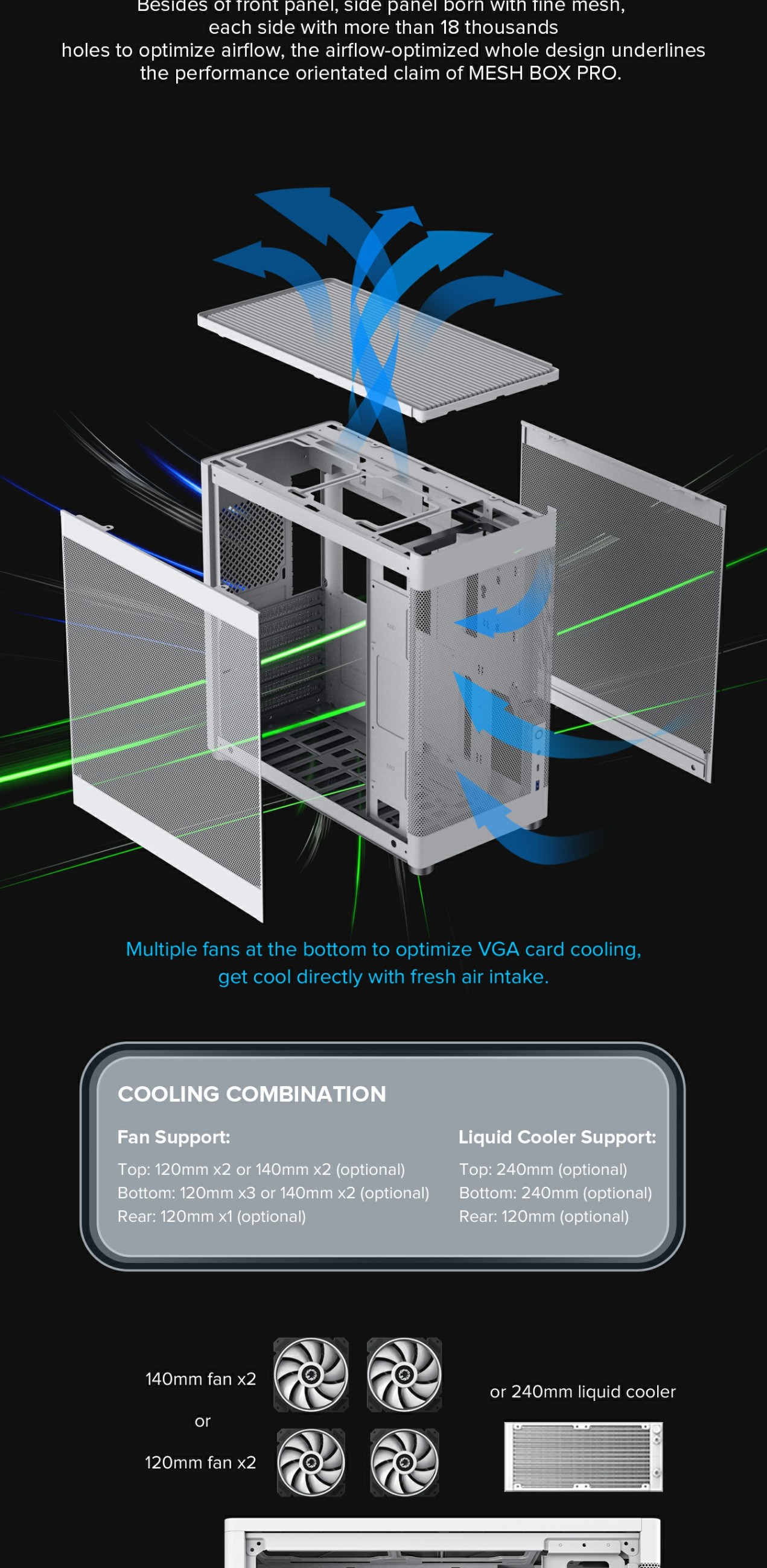

• Good vertical airflow design, cooling internal anywhere and anyplace.

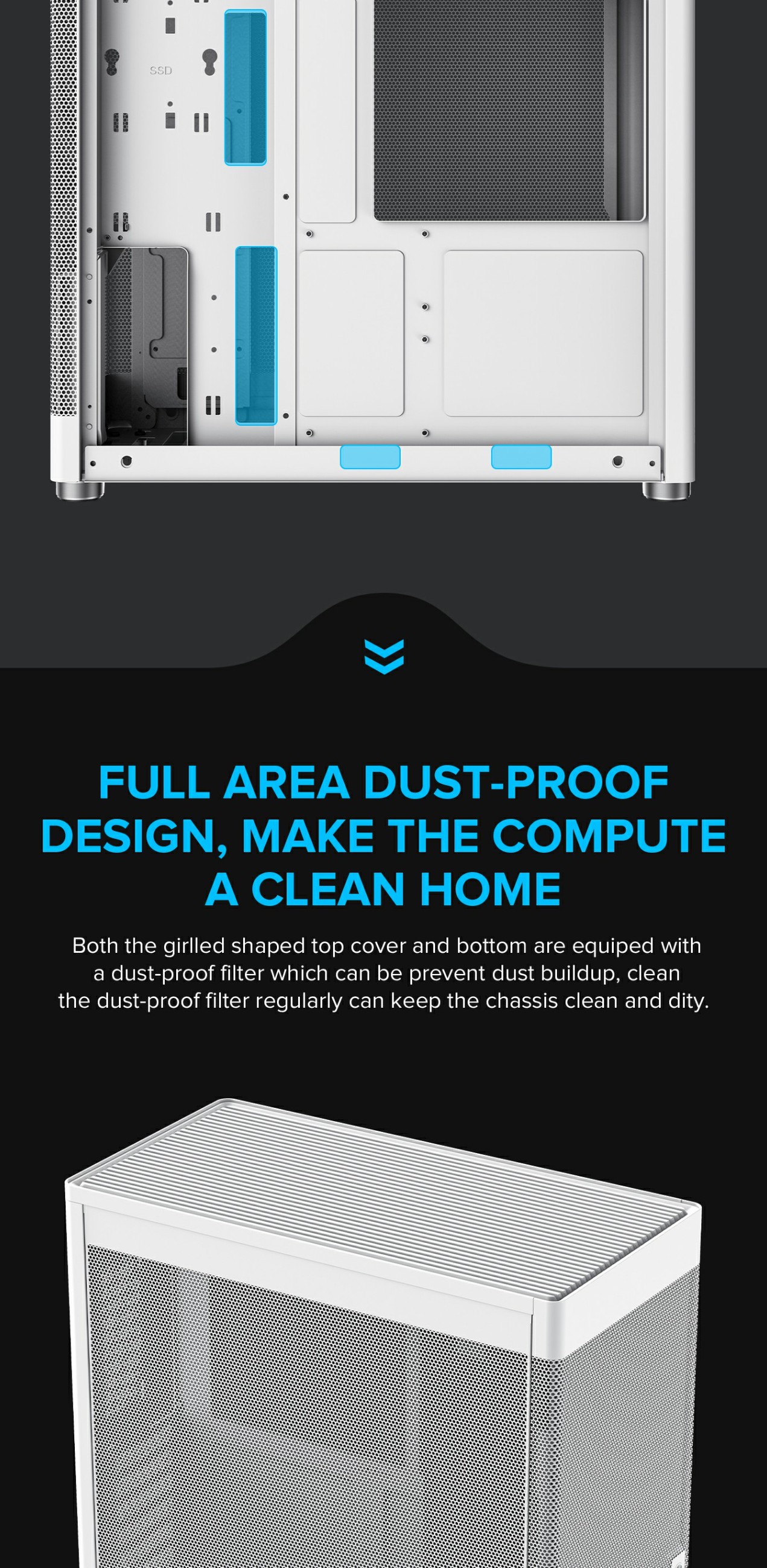

• Full area of dust-proof design, giving the computer a clean home
• Support 240 water cooling and up to 168mm air-cooling CPU cooler
• Support high-end popular graphics cards 305~355mm, unlimited games.
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi Tower | |
| Chassis | SPCC 0.8/0.6mm | |
| PSU Form Factor | Top/ATX | |
| M/B Form Factor | ATX、M-ATX、ITX | |
| Front Panel | Full Metal Mesh | |
| Top Panel | Removable grille | |
| Side Panel | Left | Full Metal Mesh |
| Right | Full Metal Mesh | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |

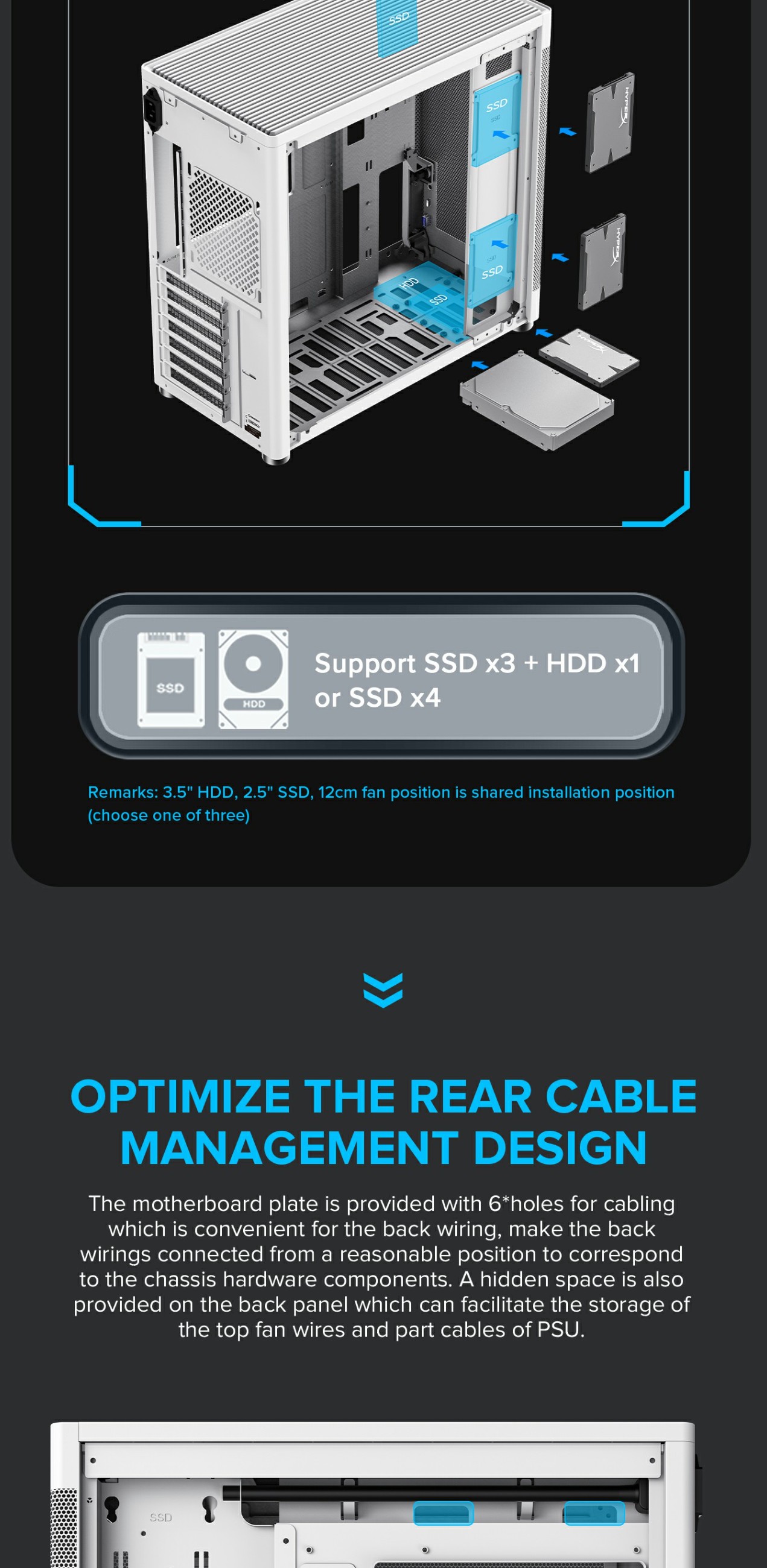

| Internal Drive Bay(s) | 3.5" (HDD) | SSD x3 + HDD X1 or SSD x4 |
| 2.5" (SSD) | ||

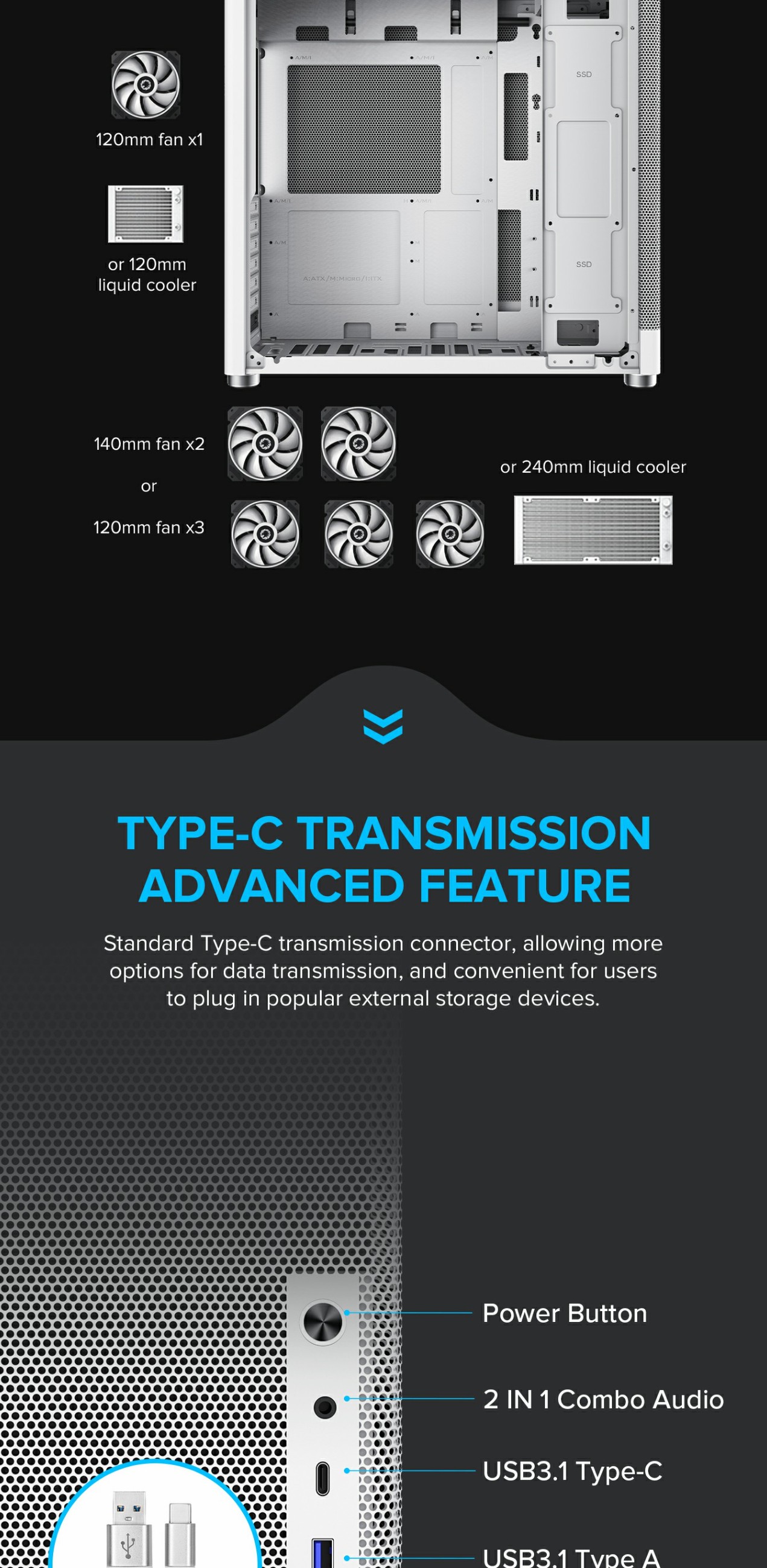

| I/O | Buttons | *1(Power SW) |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *0 | |
| USB3.1 Port(s) | *2 ( Type-C*1+Type-A*1) | |
| HD Audio Support | *1 2 IN1 Combo Audio | |
| Fan Controller | *0 | |
| Cooling Fan Support | Front | 0 |
| Top | 2x120mm/2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan optional) | |
| Left Side | 0 | |
| Bottom | 3x120mm/2x140mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 0 |
| Top | 240mm*1 | |
| Rear | 120mm*1 | |
| Bottom | 240mm*1 | |

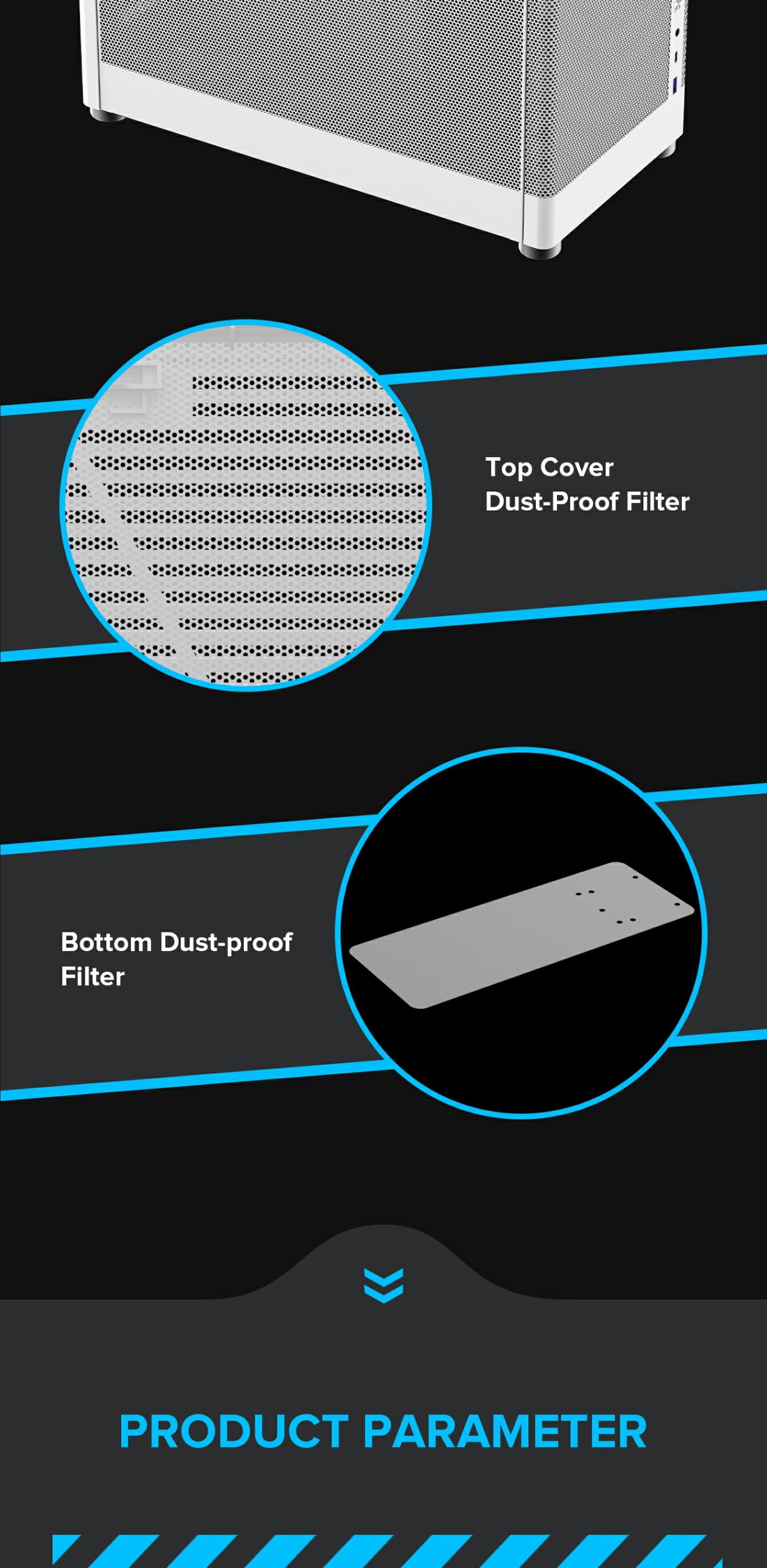

| Dust Cover | Bottom ,top cover with dust filter | |
| Slots | *7 | |
| Carton & Logo | GAMEMAX | |

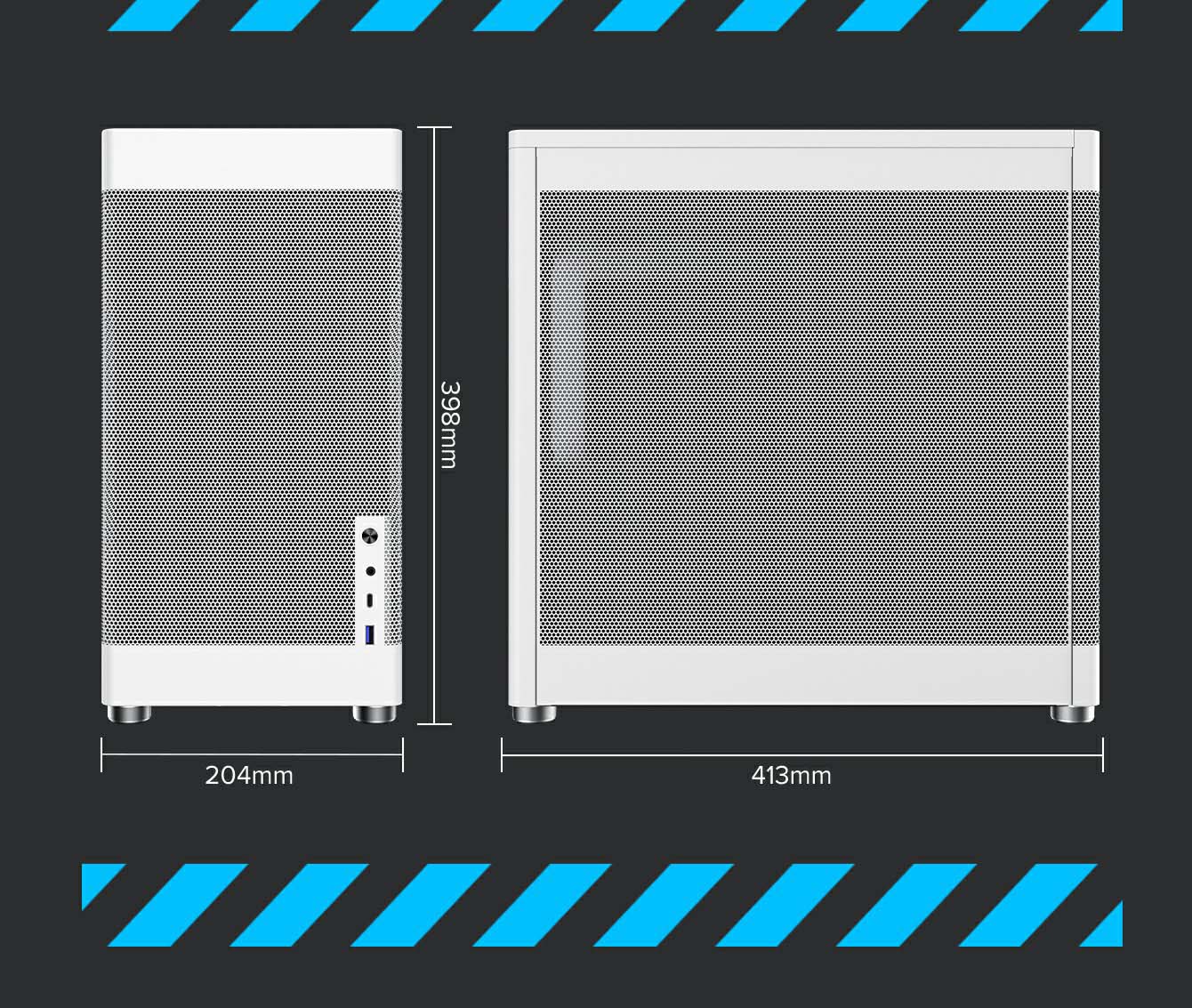

| Dimensions | Chassis | (L)401*(W)204*(H)386mm |
| Full Case (inc Fascia) | (L)413*(W)204*(H)398mm | |
| Carton | (L)475*(W)275*(H)473mm | |
| Net Weight (Kg) | 5.0kgs | |
| Gross Weight (Kg) | 6.3kgs | |
| VGA Card Length | 355mm | |
| CPU Cooler Height | 168mm | |
| Cable Management Depth | 20mm | |
