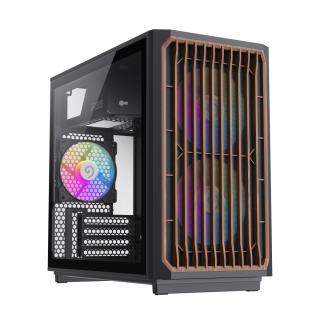

The GameMax F35 BW Mini Tower PC Case features natural materials and a home-style design with a hidden-connector aesthetic, offering top-tier airflow.
• Compact PC size: 386x216x367mm, perfect for space-saving setups.
• 4mm tempered glass panel to showcase your build.
• Fast I/O: 2x USB 3.0, 1x Type-C (GEN2) for modern connectivity.
• Supports up to 6 fans and a front 240mm radiator for advanced cooling.
• VGA compatibility: Fits GPUs up to 350mm, ideal for high-end gaming.
| Form Factor (Midi, Micro, Mini , Full) | Mini Tower | |
| Chassis | SPCC 0.8/0.6mm mixed | |
| PSU Form Factor | UP/ATX | |
| M/B Form Factor | M-ATX, ITX、BTF | |
| Front Panel | ABS/MESH，Woodgrain Decoration | |
| Top Panel | metal cover | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||
| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *3 | |
| I/O | Buttons | *1 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *2 | |
| USB3.1 Port(s) | *0 | |
| Combo Audio | *1 | |
| Type C | *1(GEN2) | |
| Fan Controller | *0 | |
| RGB Controller | V5.0 ARGB/PWM HUB | |
| Controller max. fans | *6 | |
| RGB Controller max. LED strips | *6 | |
| Remote (IR or RF) | ||
| Cooling Fan Support | Front | 2x120mm (optional),2x140mm(included) |
| Top | 0 | |
| Rear | 1x120mm (included) | |
| Left Side | 0 | |
| Bottom | 3x120mm,2x140mm(optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm*1, 240mm*1,280mm |
| Top | ||
| Rear | 120mm*1 | |
| Dust Cover | Bottom cover with dust filter | |
| Slots | *4 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)386*(W)216*(H)367mm |
| Full Case (inc Fascia) | (L)419*(W)216*(H)388mm | |
| Carton | (L)460*(W)274*(H)485mm | |
| Net Weight (Kg) | 6.95kgs | |
| Gross Weight (Kg) | 7.9kgs | |
| VGA Card Length | 350mm | |
| CPU Cooler Height | 169mm | |
| Cable Management Depth | 33mm | |
