• Lion's claw-shaped front panel + exclusive side panel ventilation holes, combining aesthetics and practicality
• Supports ATX motherboards, 420mm GPUs, 175mm air coolers, and 360mm liquid coolers
• Front steel mesh + vertical airflow design for more efficient basic cooling
• Pre-installed with 4 ARGB/PWM fans + controller
• Equipped with Type-C Gen2 + USB3.0
• Comes standard with an adjustable-height graphics card support bracket
Form Factor: | Mid-Tower | |
Chassis: | SPCC :0.5mm | |
PSU Form Factor | Bottom/ATX | |
M/B Form Factor: | ATX、M-ATX、ITX | |
Front Panel: | Plastic + Mesh | |
Top Panel: | Metal | |

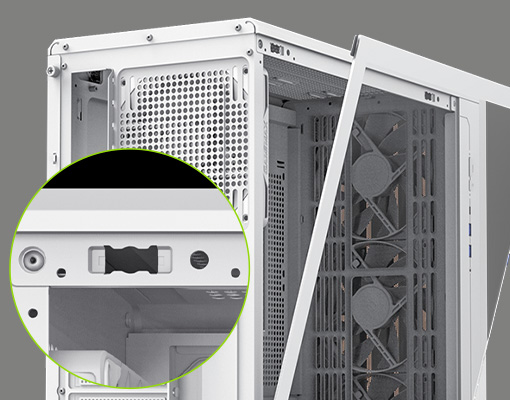

Side Panel: | Left: | Tempered Glass (Tool-free) |
Right: | Metal cover | |
Internal Drive Bay(s): | 3.5" (HDD): | *Up to 2 |
2.5" (SSD): | *Up to 2 | |
2*3.5HDD+1*2.5SSD or 1*3.5HDD+2*2.5SSD | ||
I/O: | Buttons: | *2 (POEWR, RESET, LED MODL) |
USB 2.0 Port(s): | *0 | |
USB 3.0 Port(s): | *2 | |
Type C Port(s): | *1(TYPE-C GEN2) | |
Audio Support: | *1(Combo AUDIO) | |
Cooling Fan Support: | Front: | 3x140mm (Tornado-T14) |
Top: | 3x120mm ,2x140mm (Fan optional) | |
Rear: | 1x120mm (Tornado-T12) | |
Bottom: | *0 | |
M/B Cover： | *2x120mm (Fan optional) | |
PSU Cover： | *3x120mm (Fan optional) | |
Water Cooling Support (Radiator Size): | Front: | *0 |
Top: | 120mm, 140mm,240mm,280mm,360mm | |
Rear: | 120mm | |
M/B Cover： | *0 | |

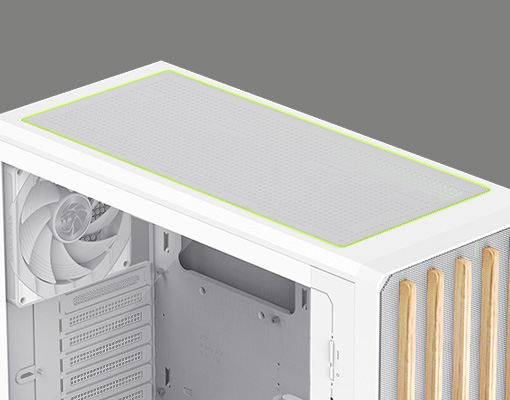

Dust Cover: | Dust mesh on the bottom and top | |
Slots: | *7 | |
Carton & Logo: | GAMEMAX | |

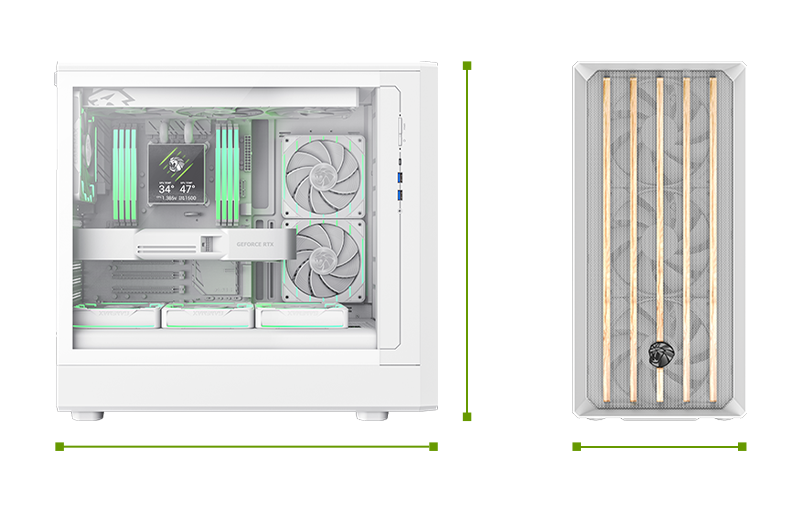

Dimensions: | Chassis: | (L)458*(W)220*(H)446mm |
Full Case (Inc Fascia): | (L)483*(W)220*(H)458mm | |
Carton: | (L)500*(W)277*(H)551mm | |
Net Weight(kg): | TBU | |
Gross Weight(kg): | TBU | |
VGA Support: | up to 420mm (inside the front cover w/o fan) | |
Vertical Graphics Support | No | |
CPU Cooler Height: | up to 175mm | |
SPS Length: | up to 240mm | |
Cable Management Depth: | 21mm |
