FN12A-S3I-W

GameMax FN12A-S3I-W, 120mm White frame ARGB Fan x3,120mm Computer case fan!
Revolutionized daisy-chain ARGB fan.
Infinity mirror look all around.
3 pcs 120mm full function ARGB PWM fans
The intelligent temperature controls the speed at 800~1600±10% RPM, by linking to the motherboard PWM 4pin socket, so the fan speed auto controlled and keeps the fans quiet.

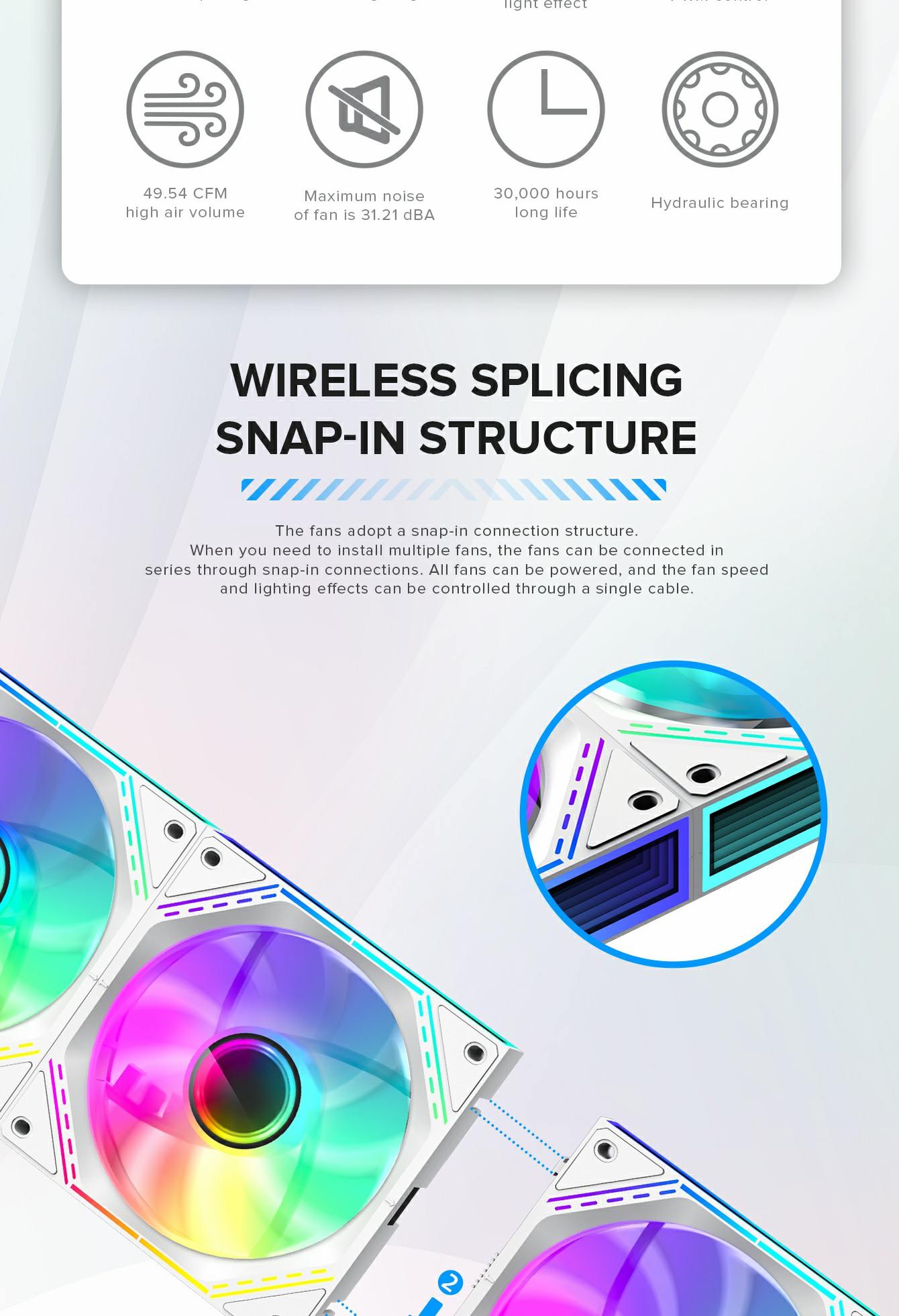

Only one cable is required for a cluster of fans.

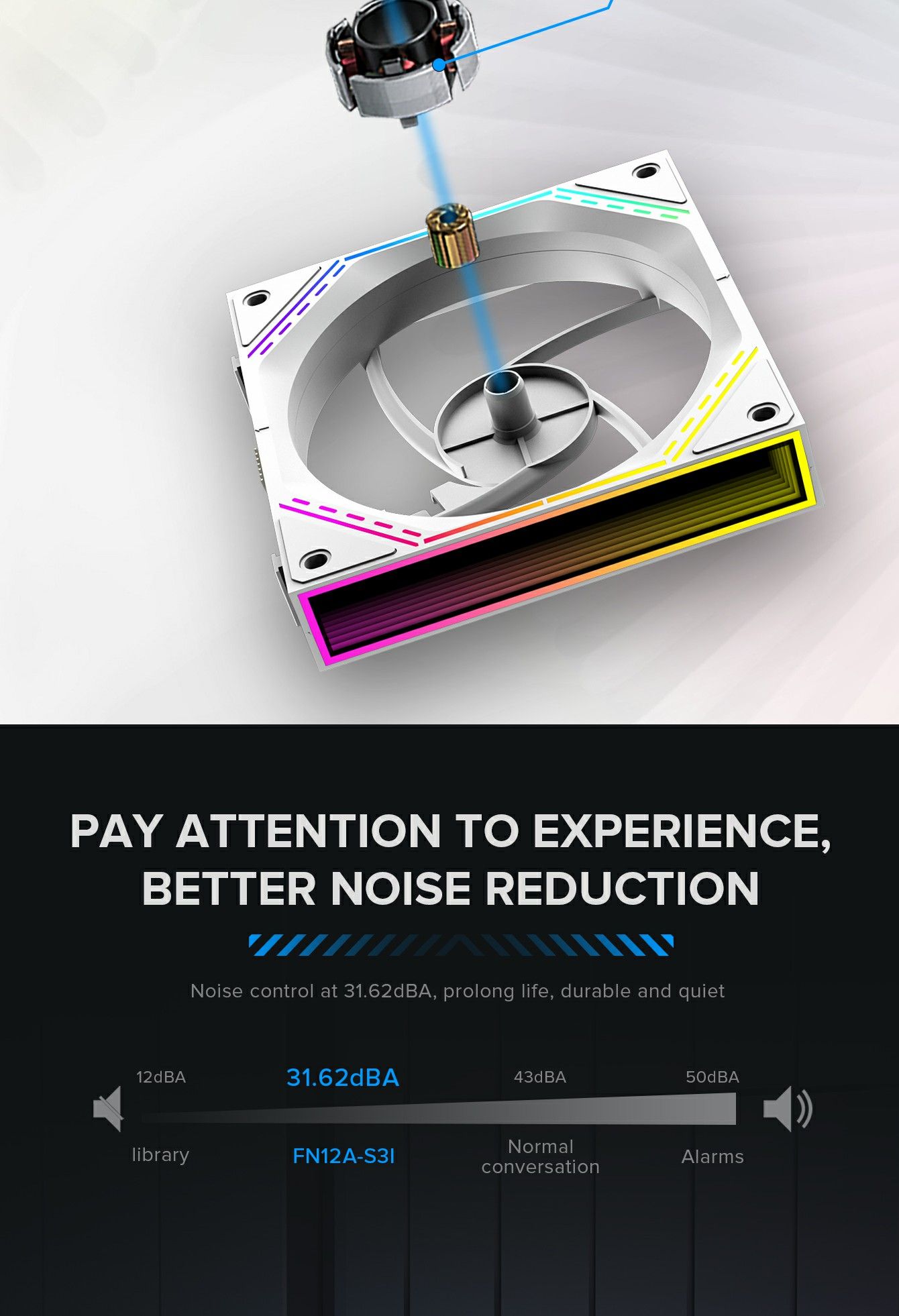

Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity.
26 LEDs in each fan,Center 8pcs, Outer ringg 18pcs.


ModelFN12A-S3I-W
Fan Blades / Colour9 / semi-transparent white
LED Qty / TypeCenter 8PCS,Outer ring 18PCS

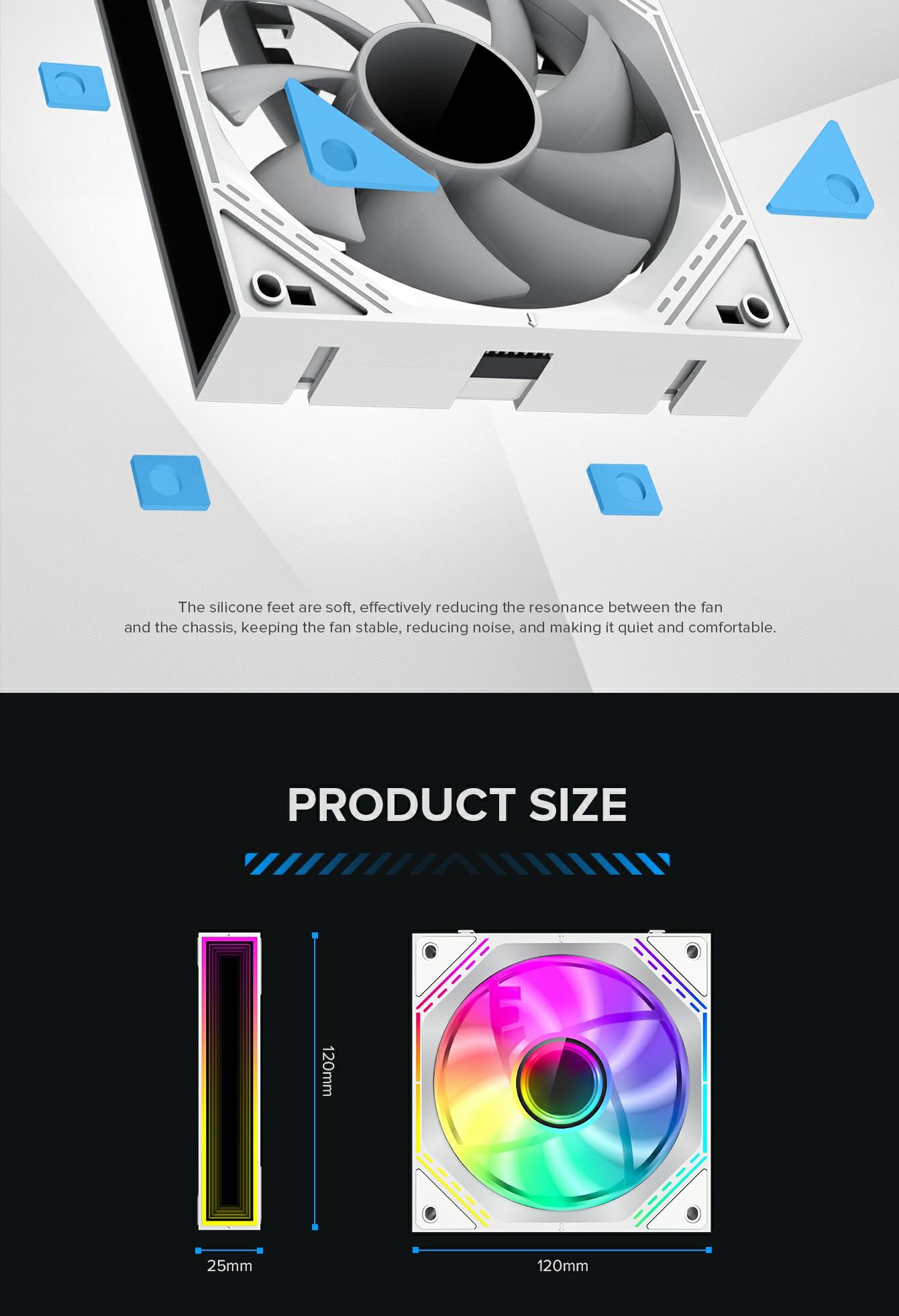

Dimensions120 x 120 x 25mm
Bearing TypeHydraulic Bearing
Fan Speed

800~1600 rpm ± 10%

Max. Air Flow49.54 CFM
Max. Static Air Pressure1.52mm - H2O
Noise Level (max.)

31.62db(A)

Cable Length

Three fans share a common set of wires,

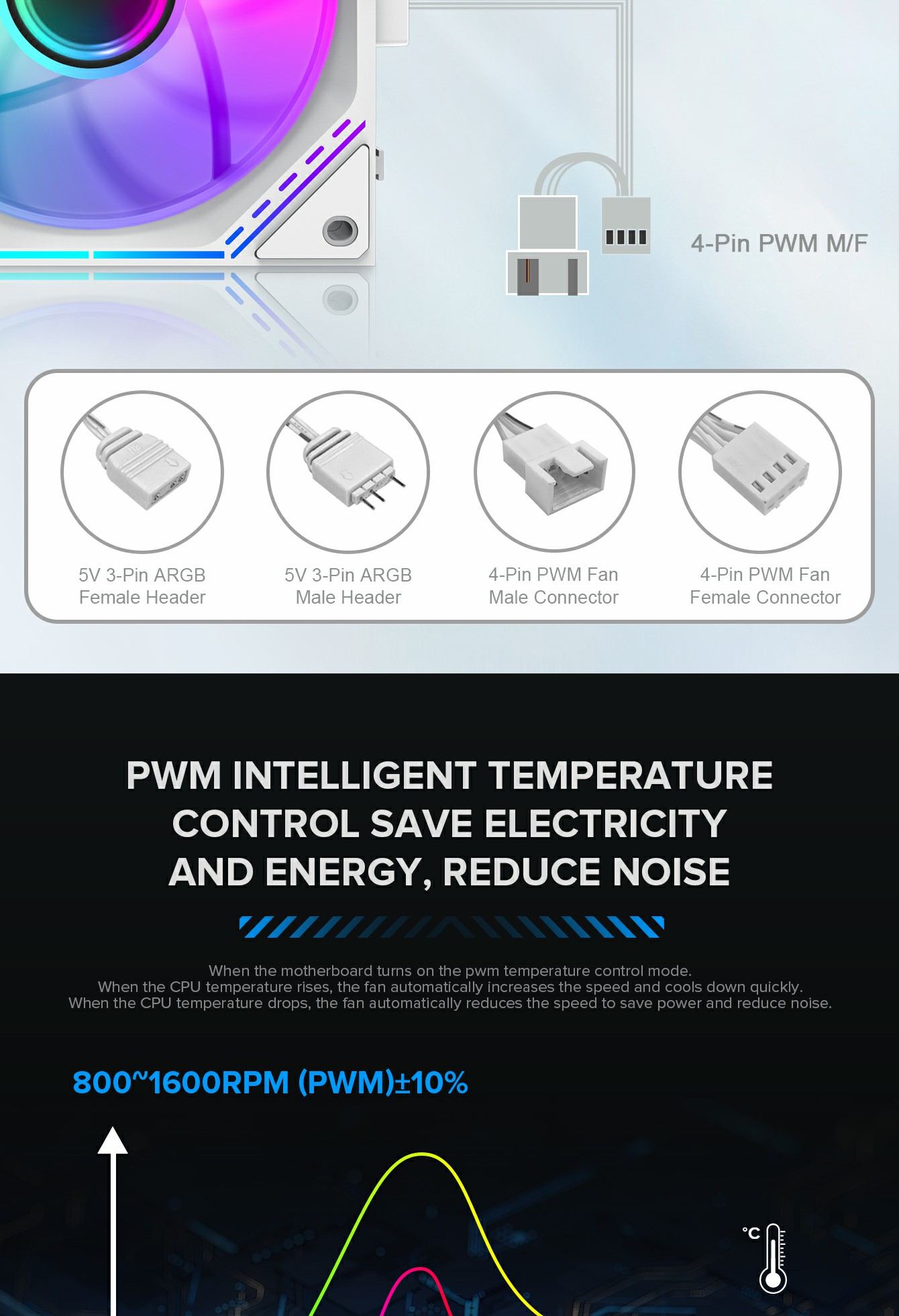

 4pin(M/F) PWM Power / 3pin Aura(M/F),600/600mm

Accessories
Screws x12
Connectors
4pin(M/F) PWM Power / 3pin Aura(M/F)
Rated Voltage12V
Rated Current (max.)0.15A (Max. 0.18A)
Rated Input Power1.8W(Max. 2.16W)
Voltage range15-13.8V
Start Voltage5V
M.T.B.F.30,000hrs
