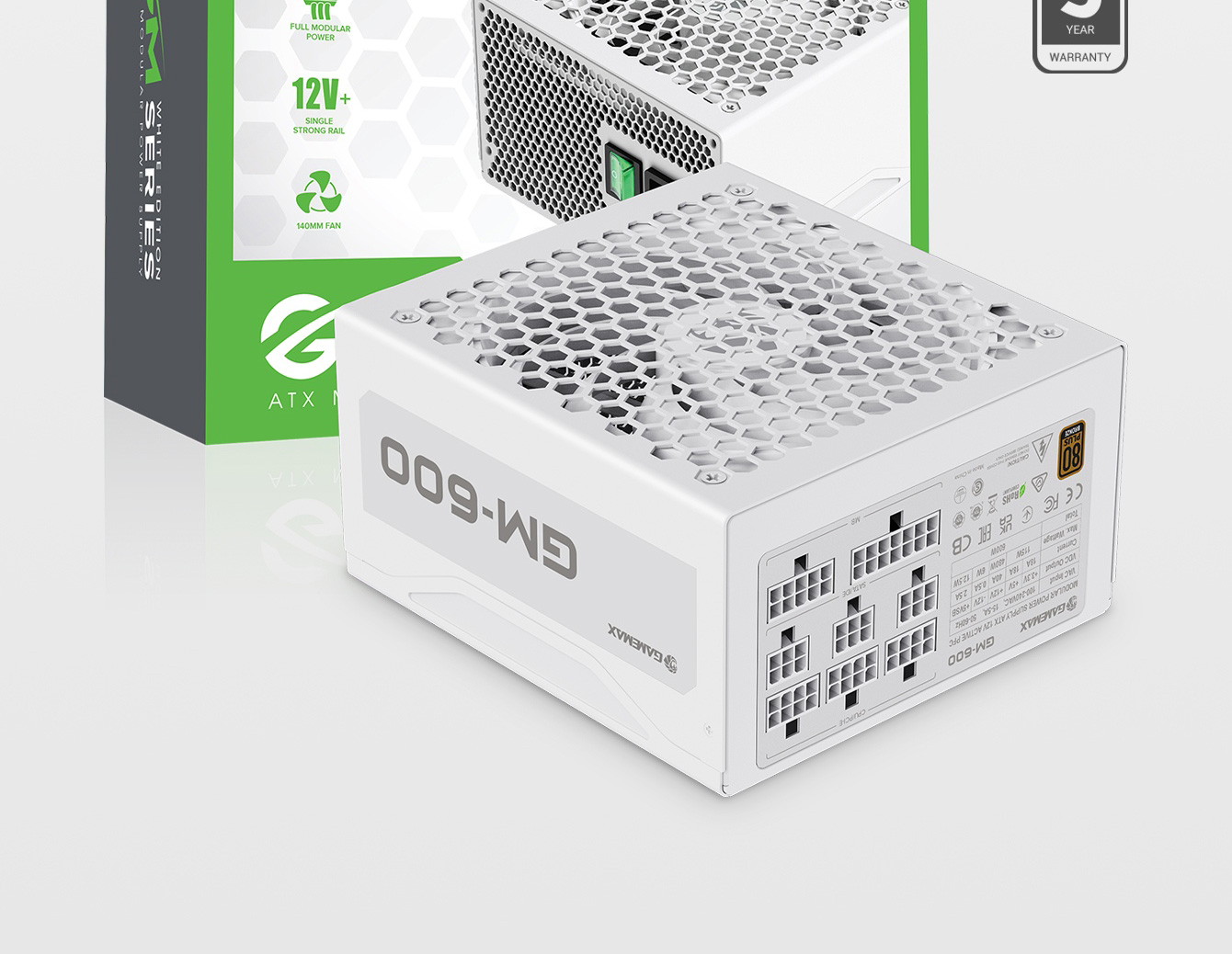

GM-Series power supply 2024 Edition, Fully-modular cables allowing you to only connect cables that your system needs.
• Fewer cables allow it to be tidy and better airflow inside your case.
• High efficiency with multi-protection gives the user durability and total confidence in your next system build.
• Built-in APFC (Active Power Factor Correction) rates.
• Smart semi-modular design offers easier cable management.

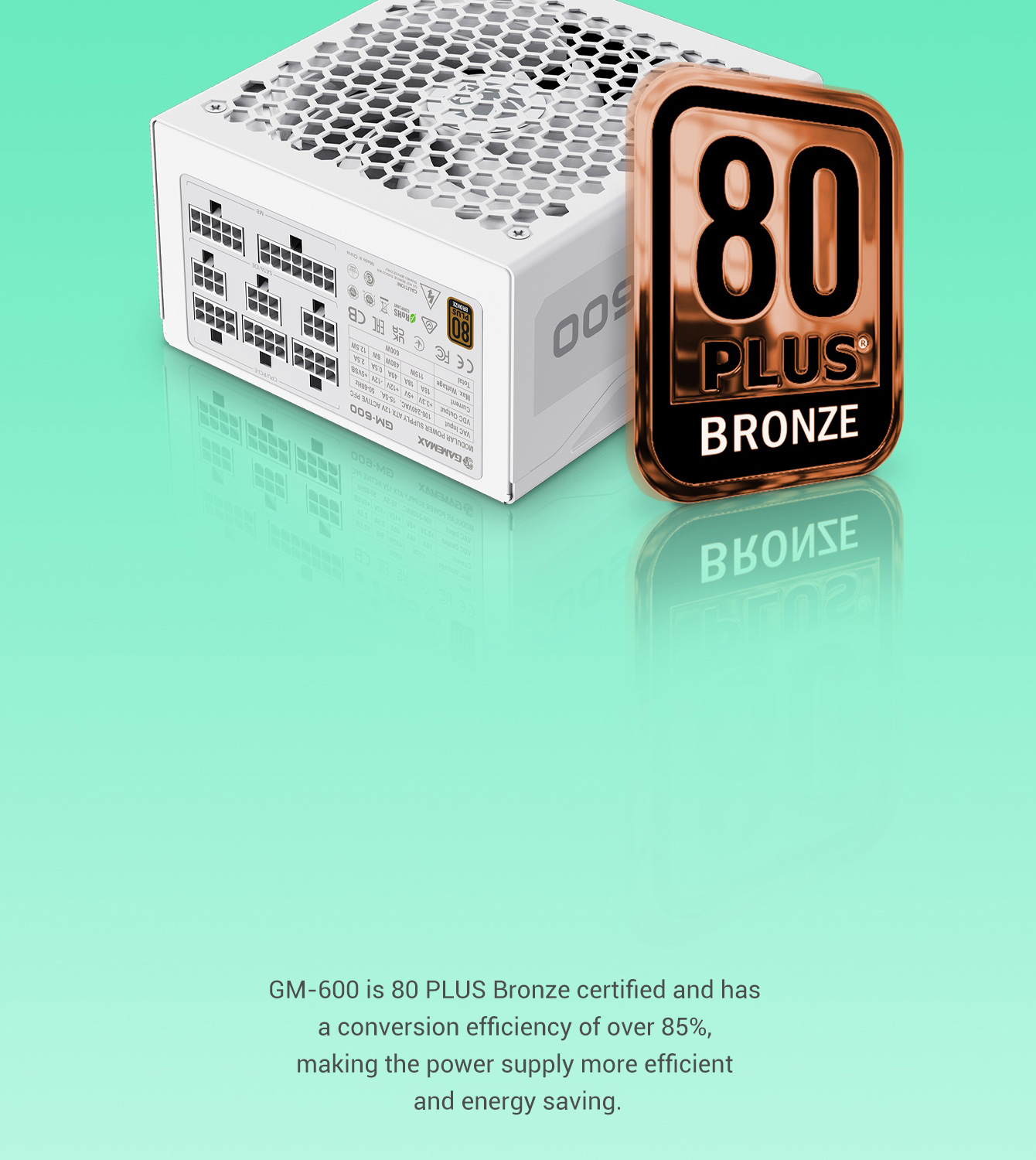

• Up to 85%+ efficiency with official 80Plus certificate.
• Mesh sleeves reduce the blockage of system air flow.

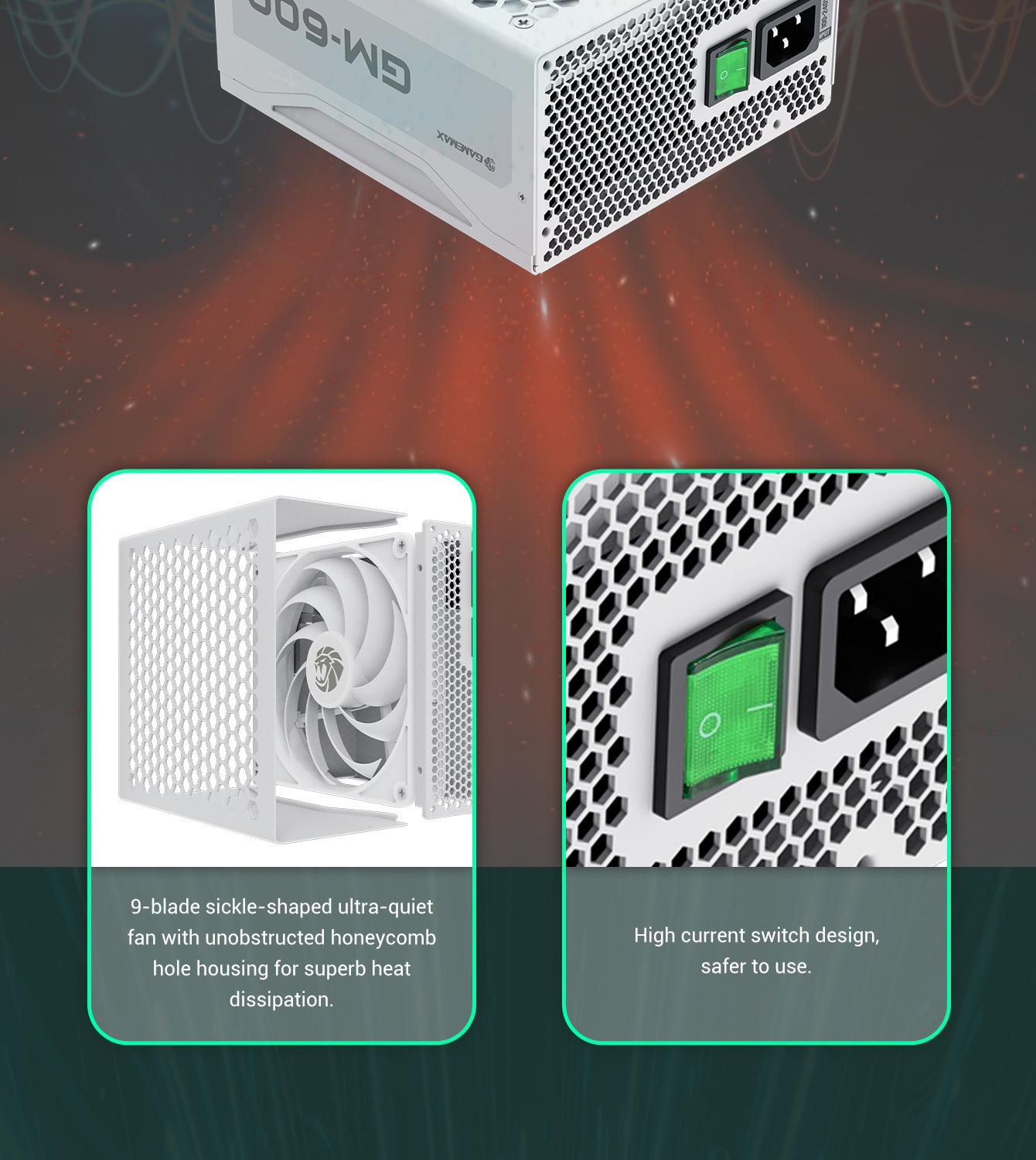

• Silent 14cm fan with optimized thermal fan speed control.

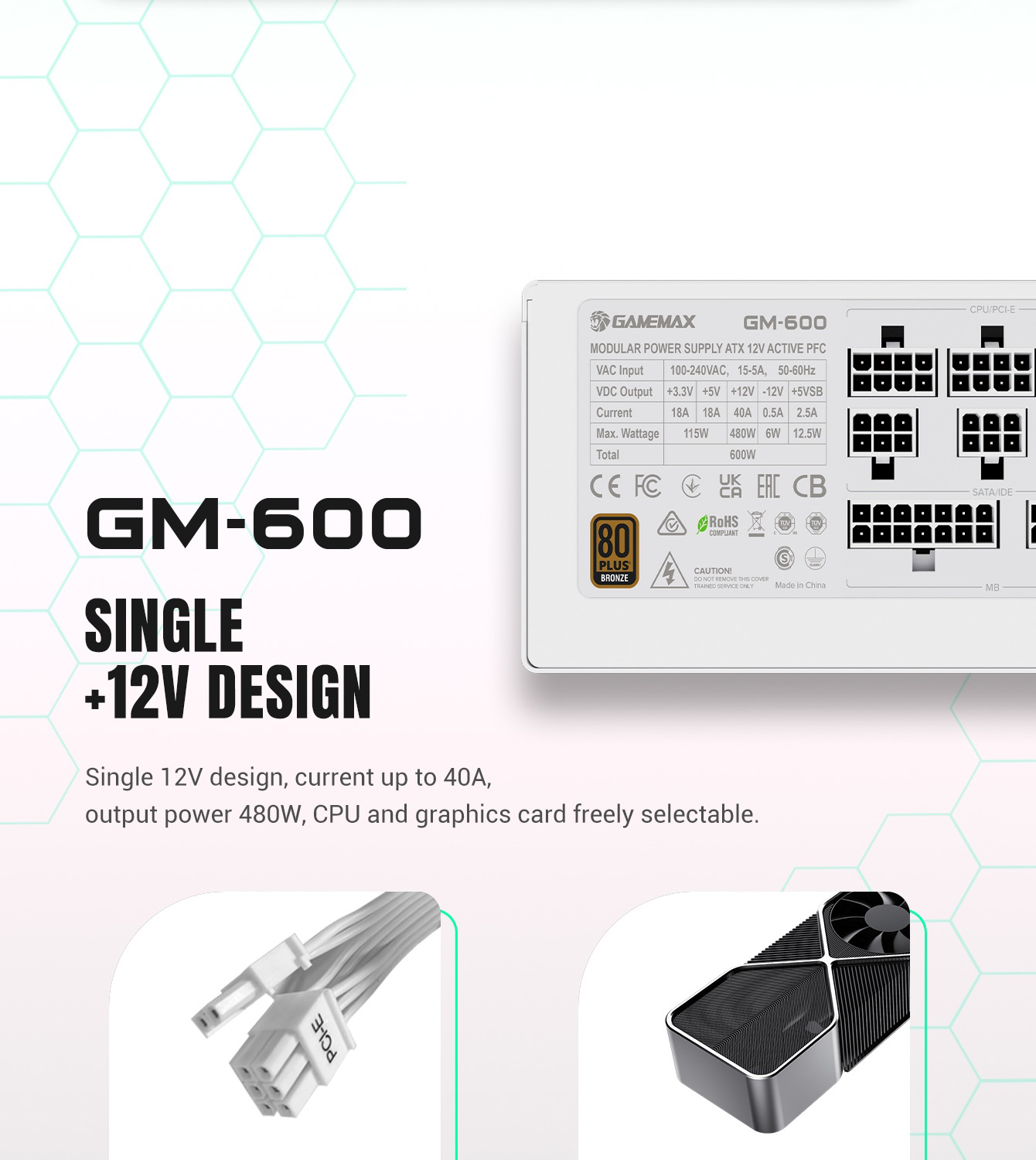

• Powerful single +12V rail offers compatible DC output.Specifications are subject to change without notice.
• Products and models may vary depending on your region.
• Contact your local retailer for more information.

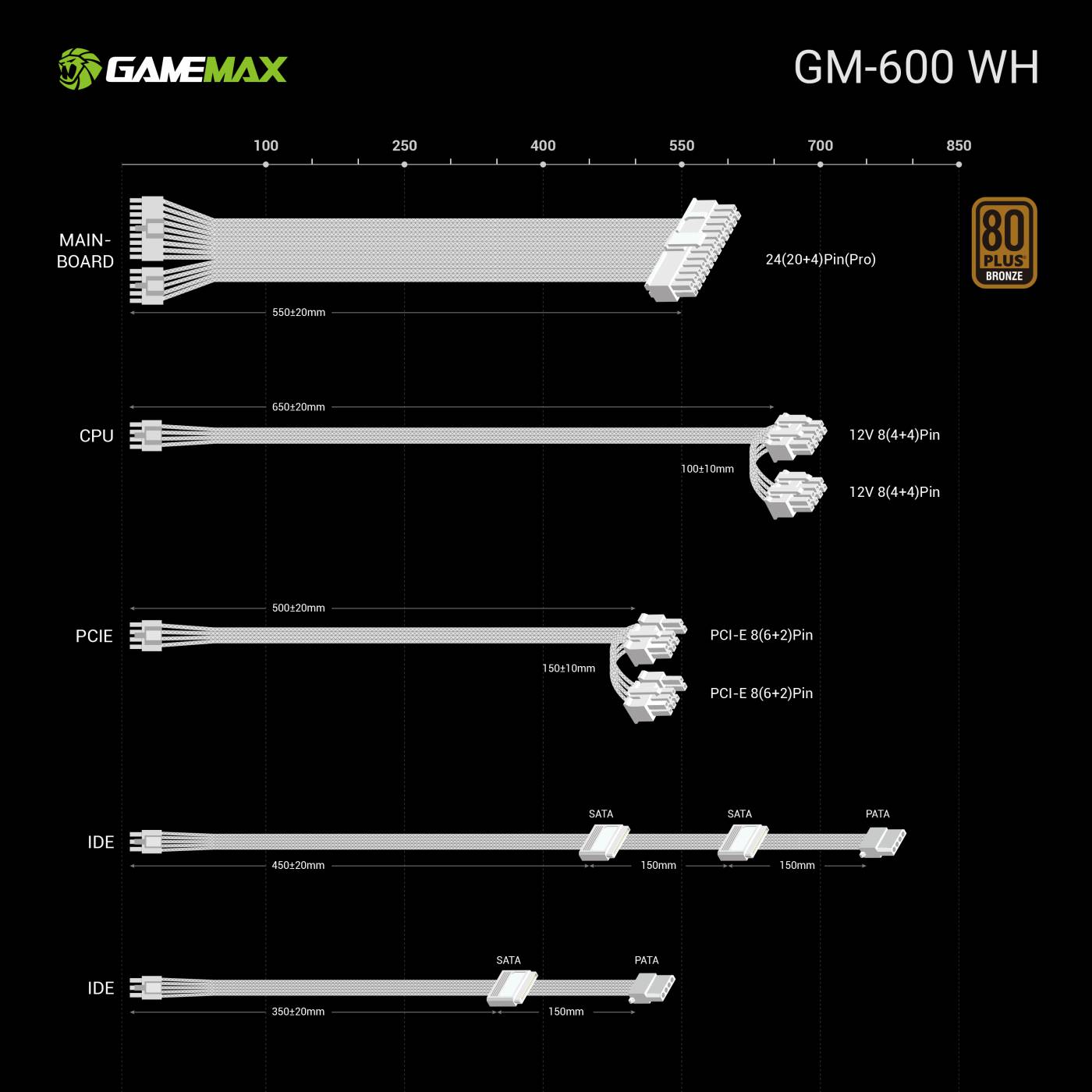

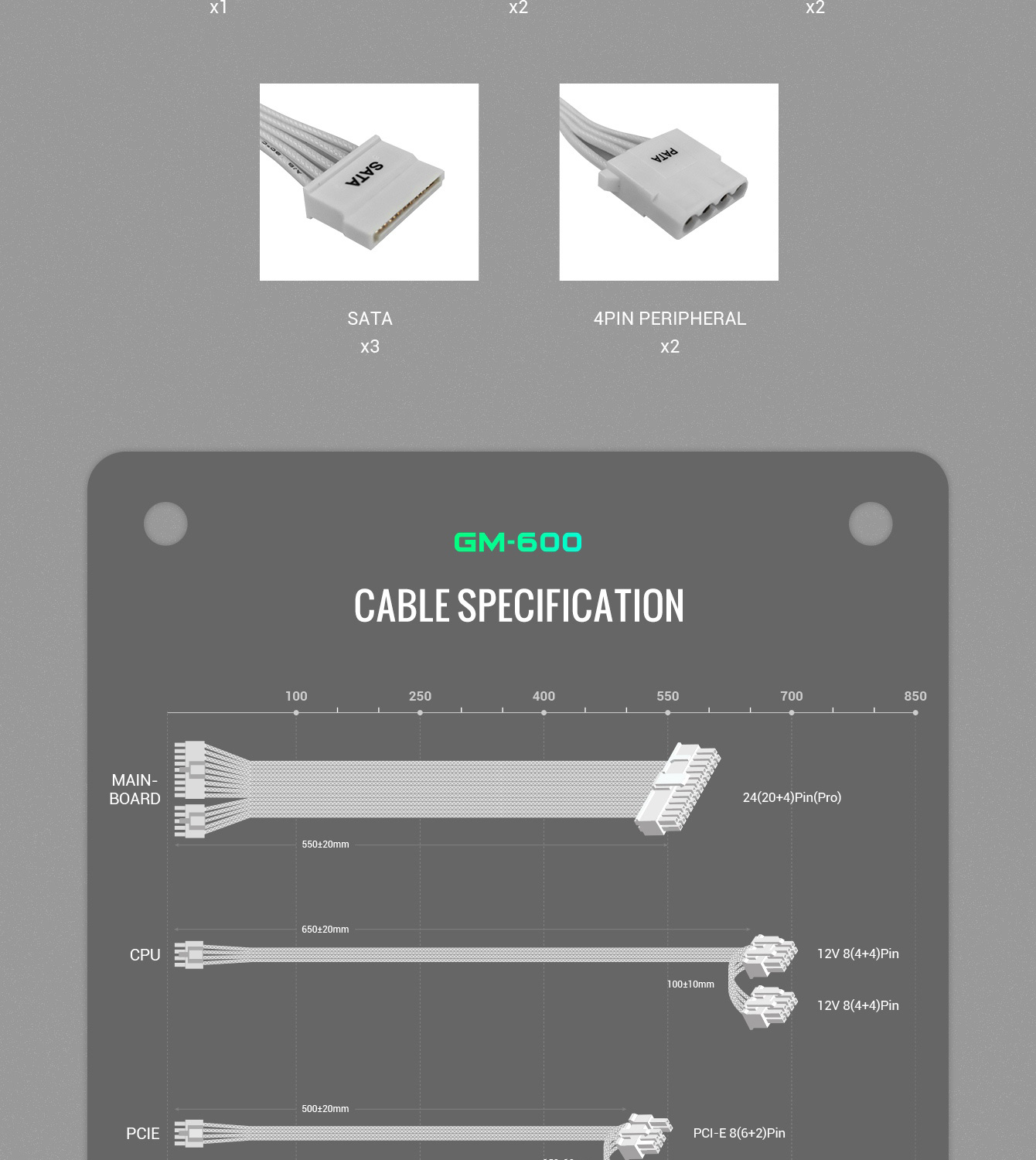

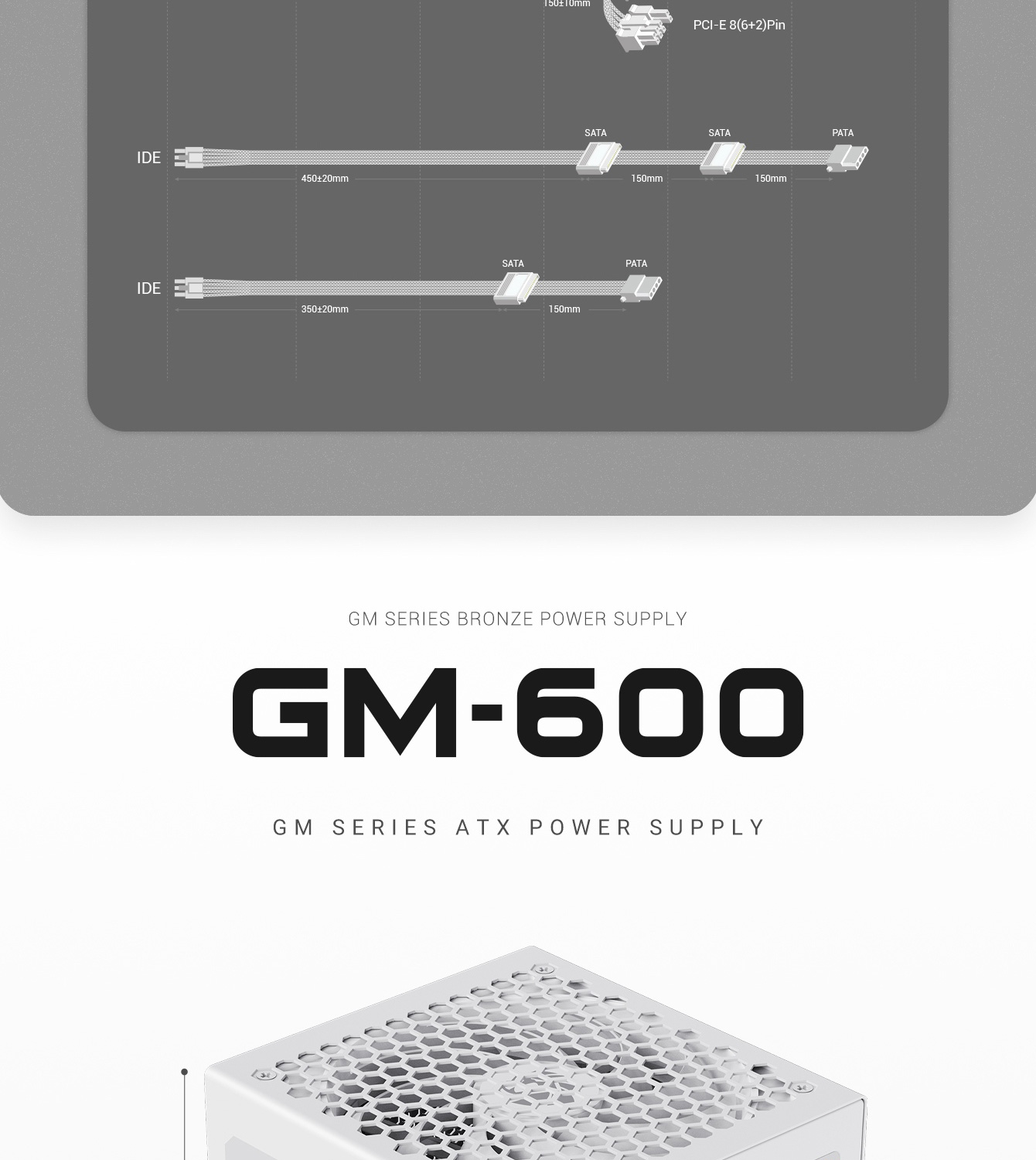

Connectors

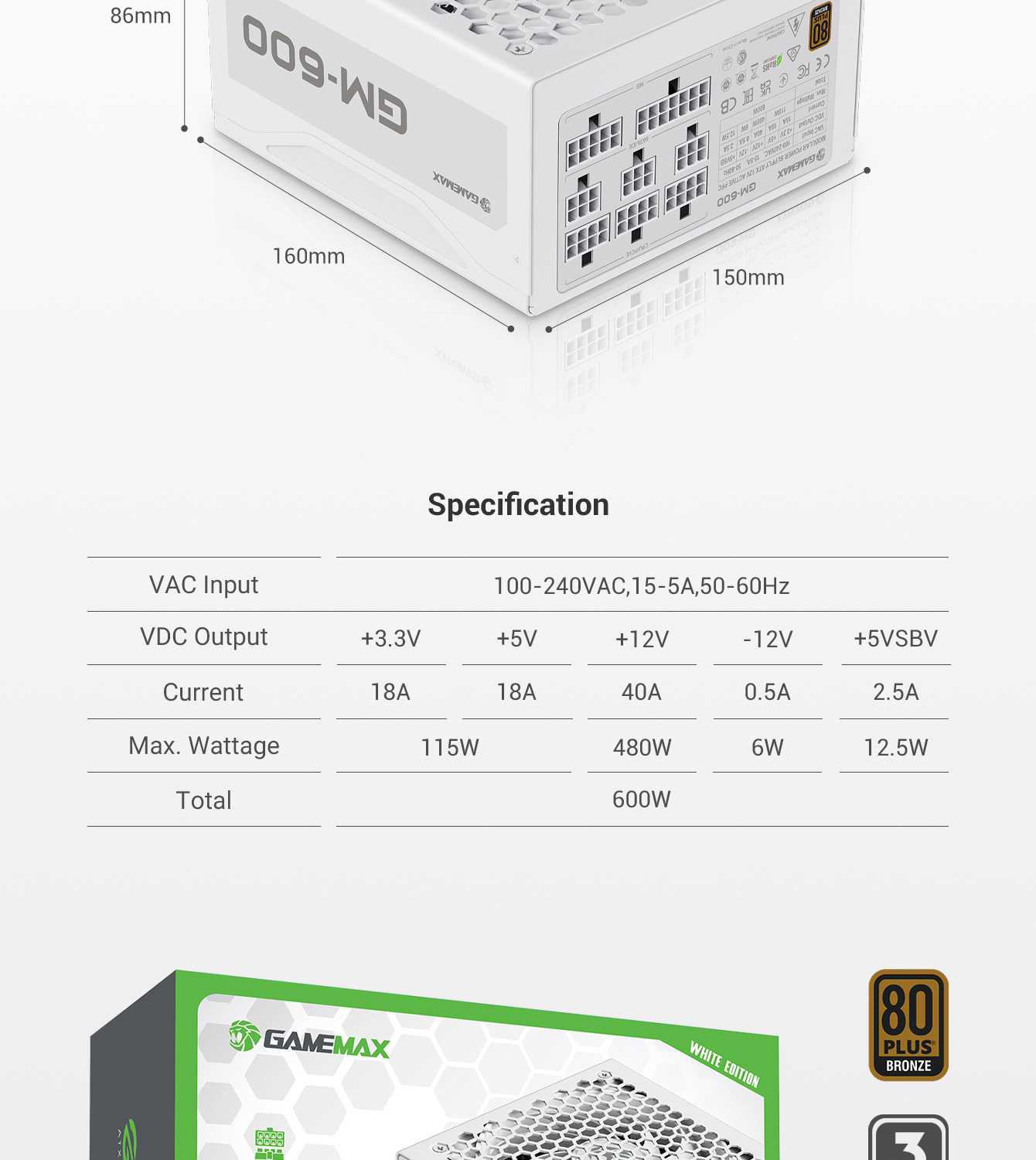

PSU Specifications
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 20A | 20A | 40A | 0.5A | 2.5A | |
| 600W | |||||
Detailed Specifications
| Dimensions: | 160mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >10ms |
| Efficiency: | ＞82%（85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 1050W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dba<> |

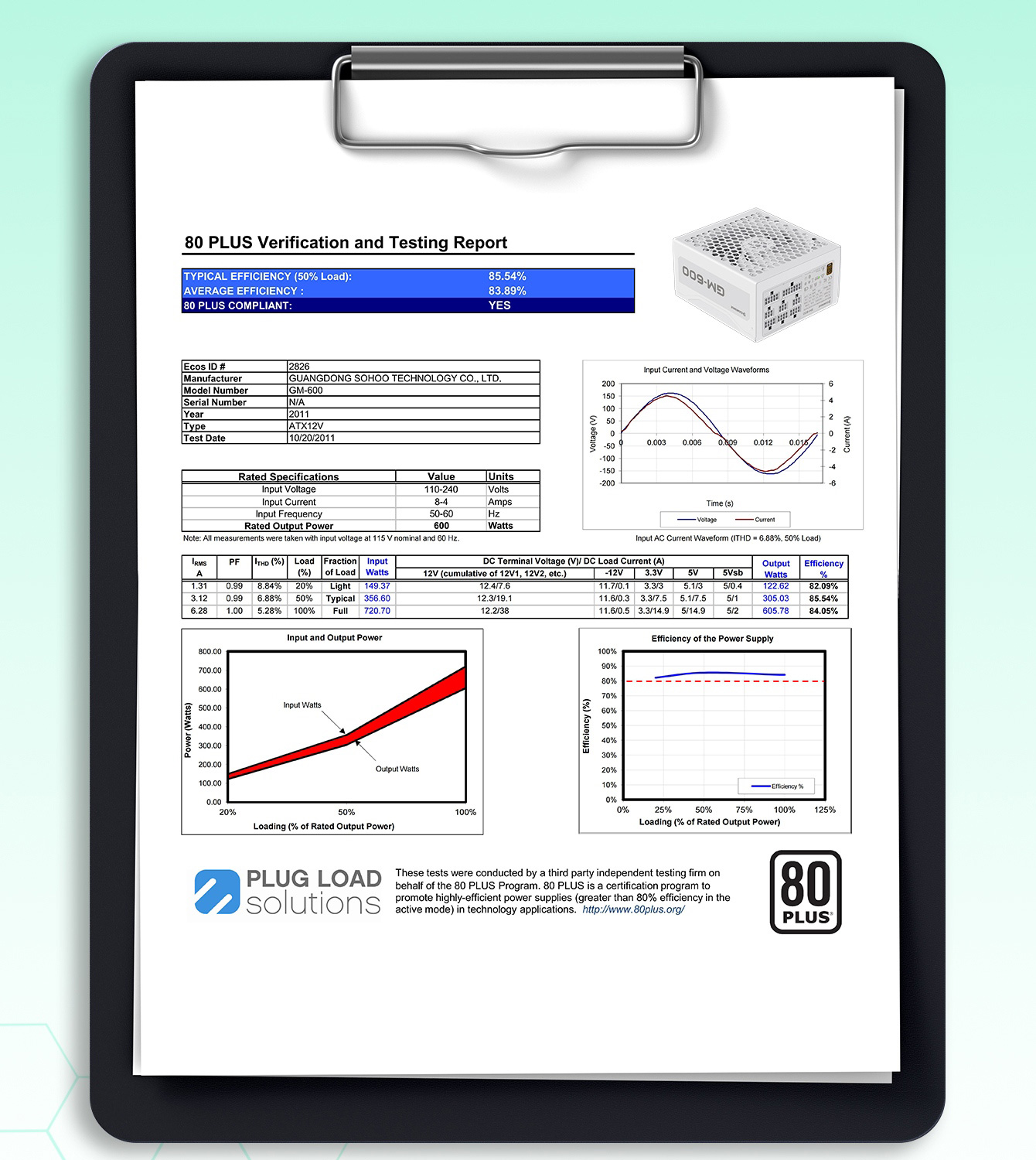

| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GM-600 WH |
| EAN Number: | 6931858740562 |
| Has Mains Plug: | No |
| Colour: | White |
| What's In The Box: | Power Supply Screws Manual 5 x Output Cables 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 160mm x 85mm x 150mm (W x H x D) |
| Packaging Dimensions (mm): | 335mm x 242mm x 122mm (W x H x D) |
