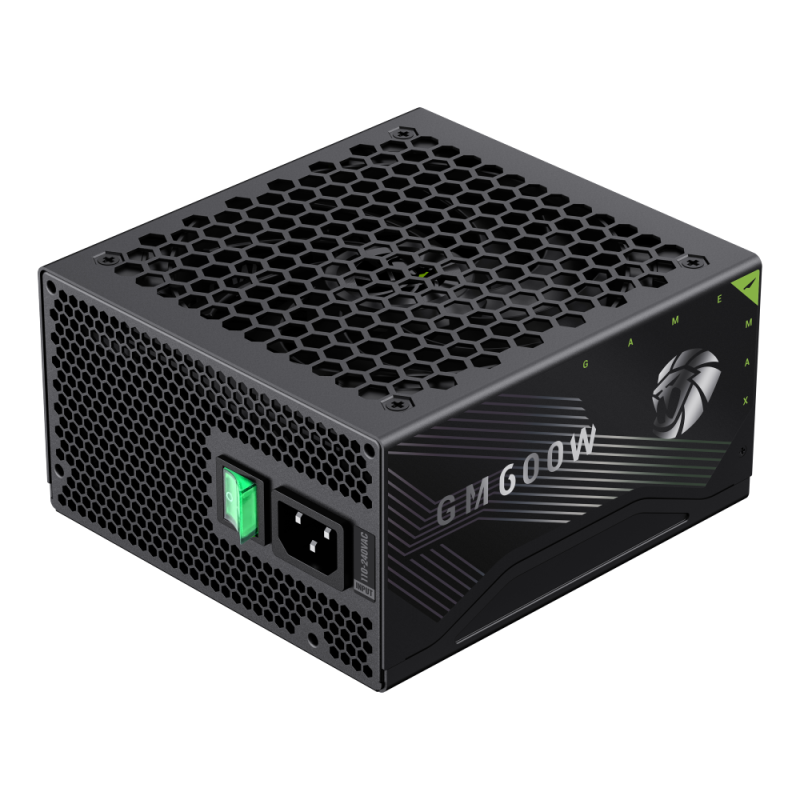

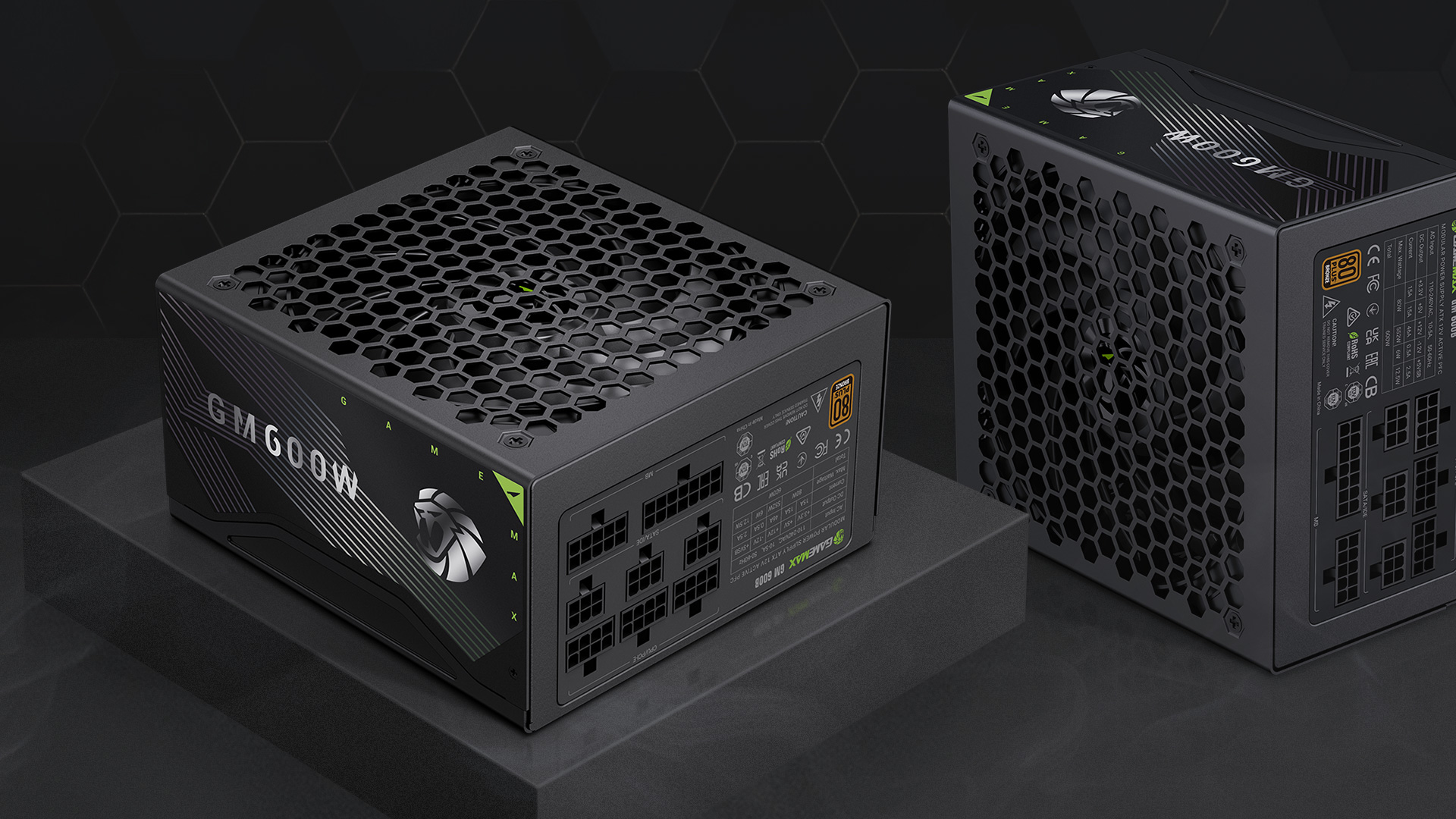

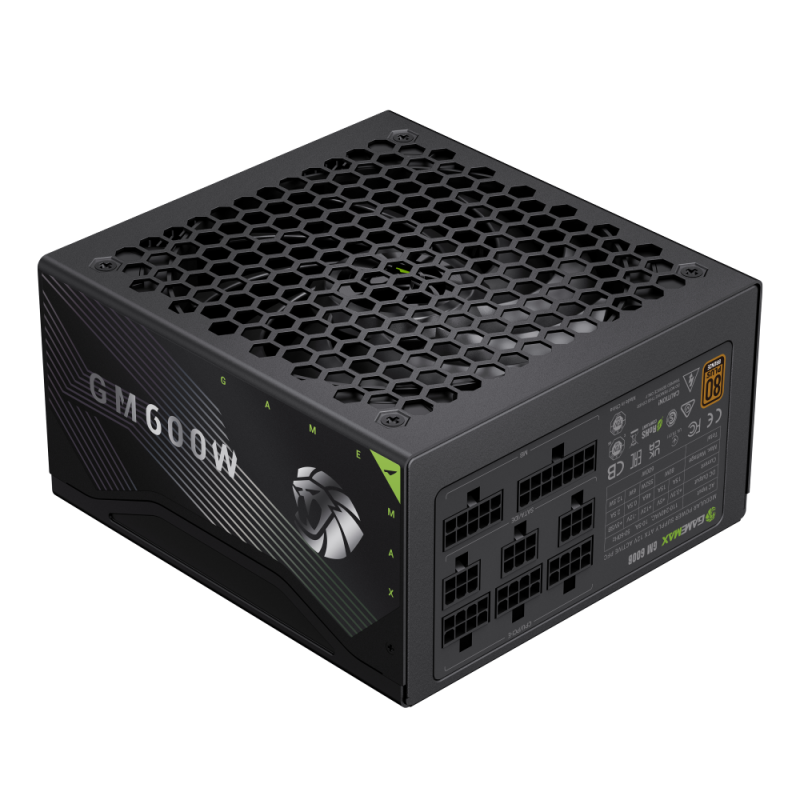

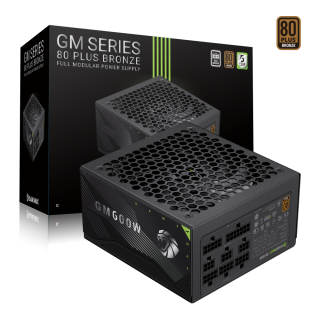

GAMEMAX GM 600W 80+ Bronze Plus Efficient Power Supply with Smart Fan Control, Premium Capacitors, and EMI Protection
• 80 Plus Efficient Architecture: Enhances conversion efficiency for stable power delivery, preventing blue screens.

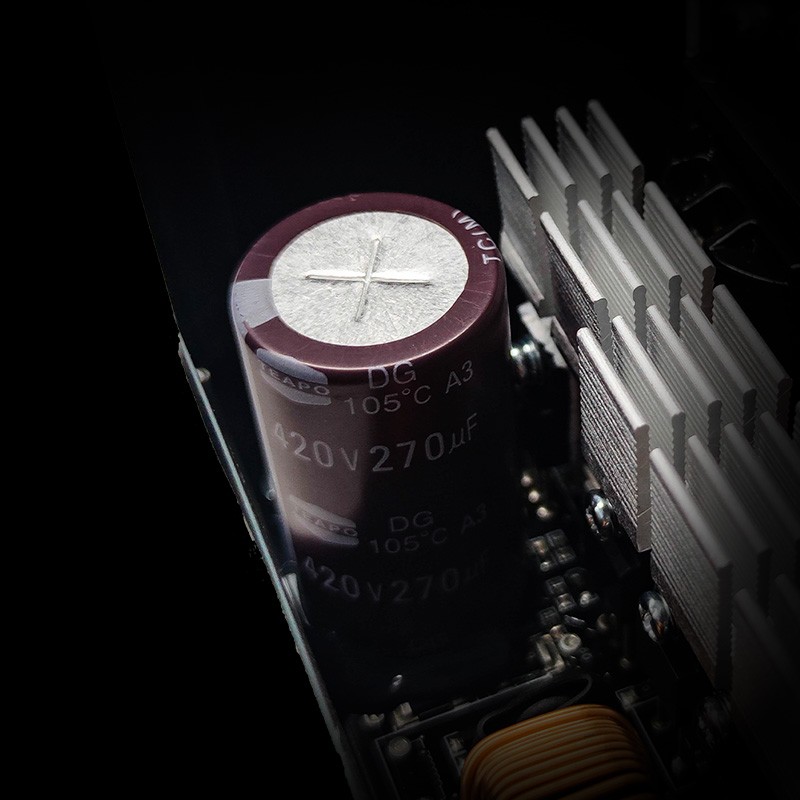

• Premium Taiwan Capacitors: Ensures temperature resistance, long lifespan, and reliable power output.
• 140mm Smart Fan Control: Automatically adjusts fan speed based on load, saving energy and maintaining low noise.

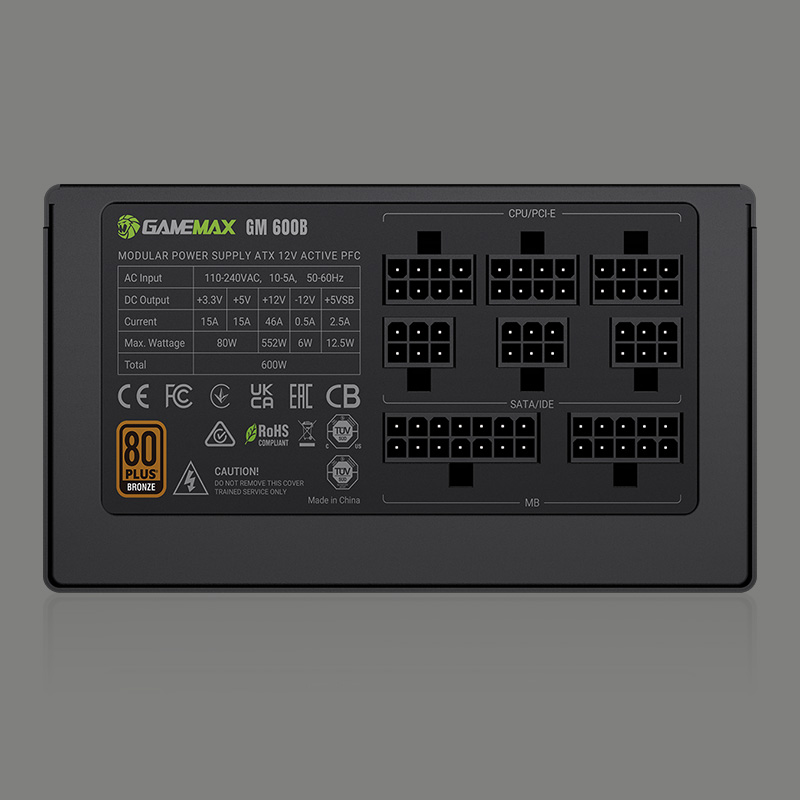

• Wireless Modular Design: Copper plate connection between back panel and PCB reduces errors and improves power quality.

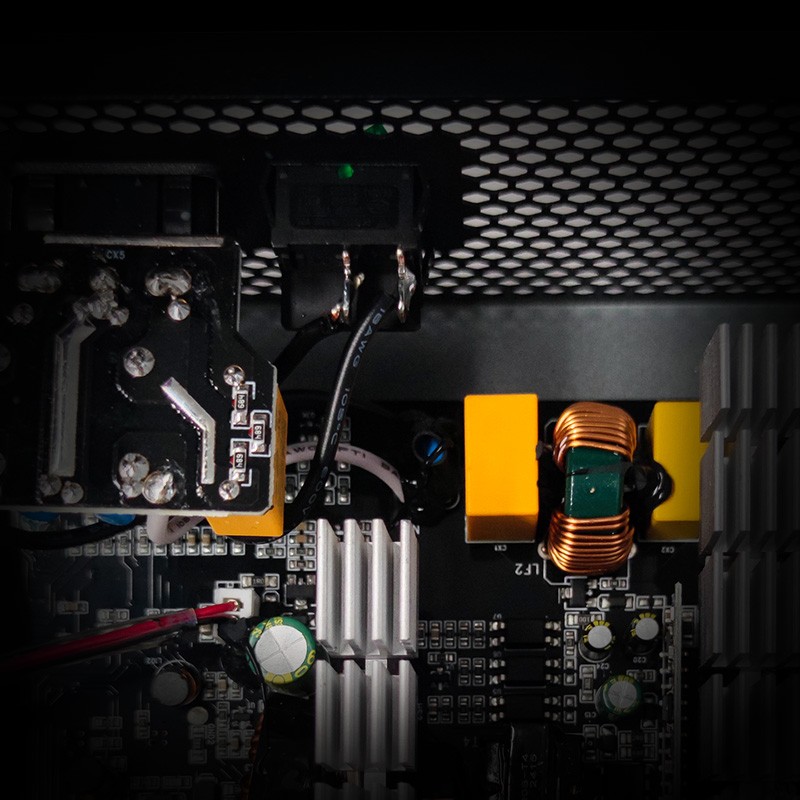

• Level 2 EMI Protection: Filters stray waves and noise, ensuring reliable operation with integrated energy storage inductor for reduced EMI and heat.
Detailed Specifications
| Dimensions: | 160mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 110-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |

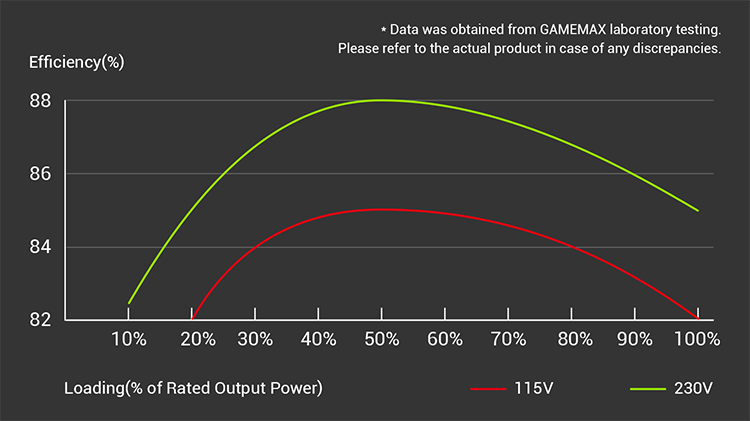

| Efficiency: | > 85% (87% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP |
| Power: | 600W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
