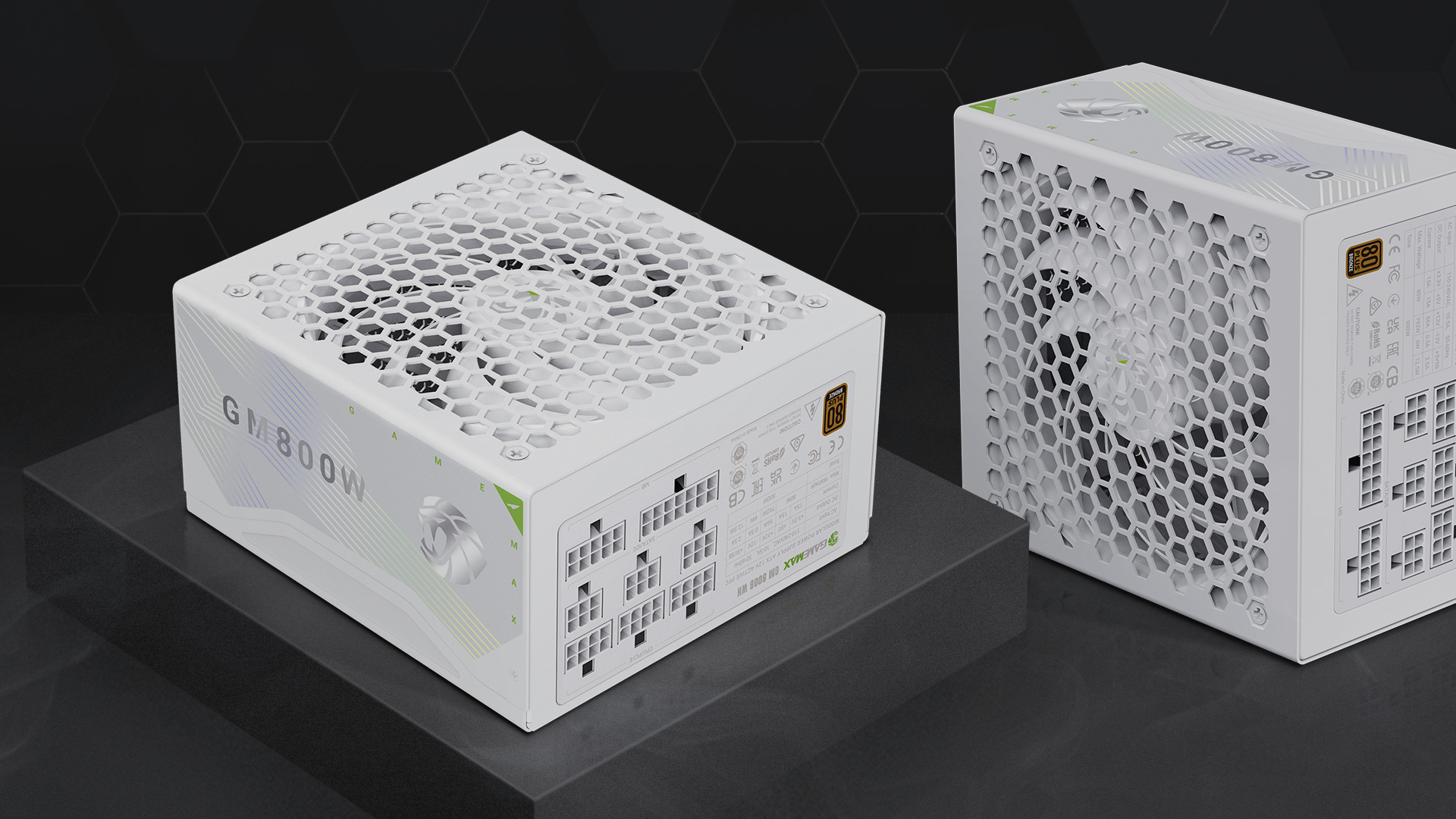

GAMEMAX GM White 800W 80+ Bronze Plus Efficient Power Supply with Smart Fan Control, Premium Capacitors, and EMI Protection
• 80 Plus Efficient Architecture: Enhances conversion efficiency for stable power delivery, preventing blue screens.
• Premium Taiwan Capacitors: Ensures temperature resistance, long lifespan, and reliable power output.
• 140mm Smart Fan Control: Automatically adjusts fan speed based on load, saving energy and maintaining low noise.

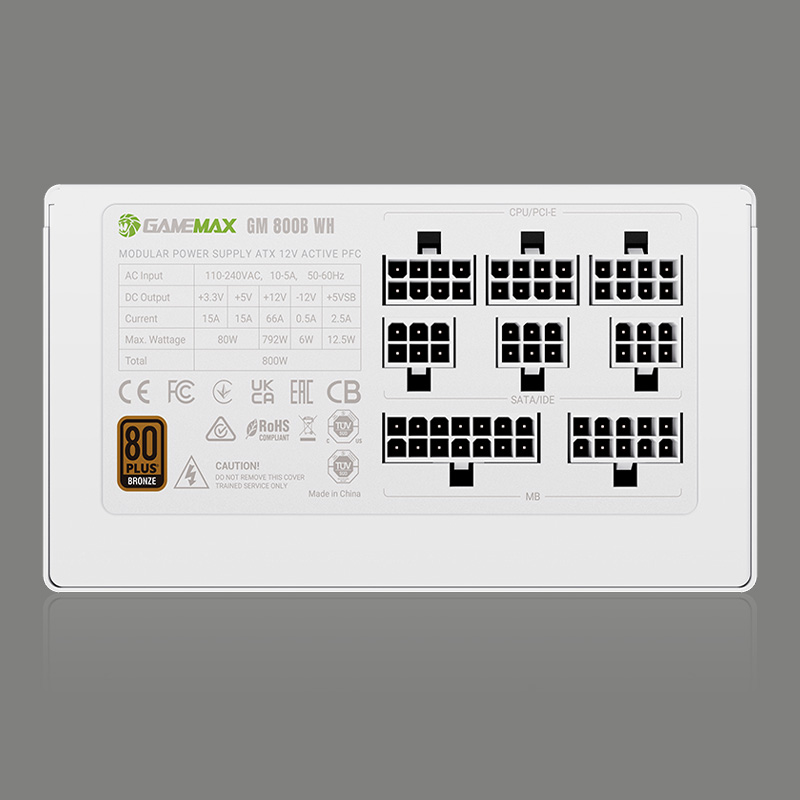

• Wireless Modular Design: Copper plate connection between back panel and PCB reduces errors and improves power quality.
• Level 2 EMI Protection: Filters stray waves and noise, ensuring reliable operation with integrated energy storage inductor for reduced EMI and heat.
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 20A | 20A | 60A | 0.5A | 2.5A | |
| 800W | |||||
Detailed Specifications
| Dimensions: | 160mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >9ms |
| Efficiency: | > 82% (88% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 800W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dba<> |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GM-800 WH |
| EAN Number: | 6931858740586 |
| Has Mains Plug: | No |
| Colour: | White |

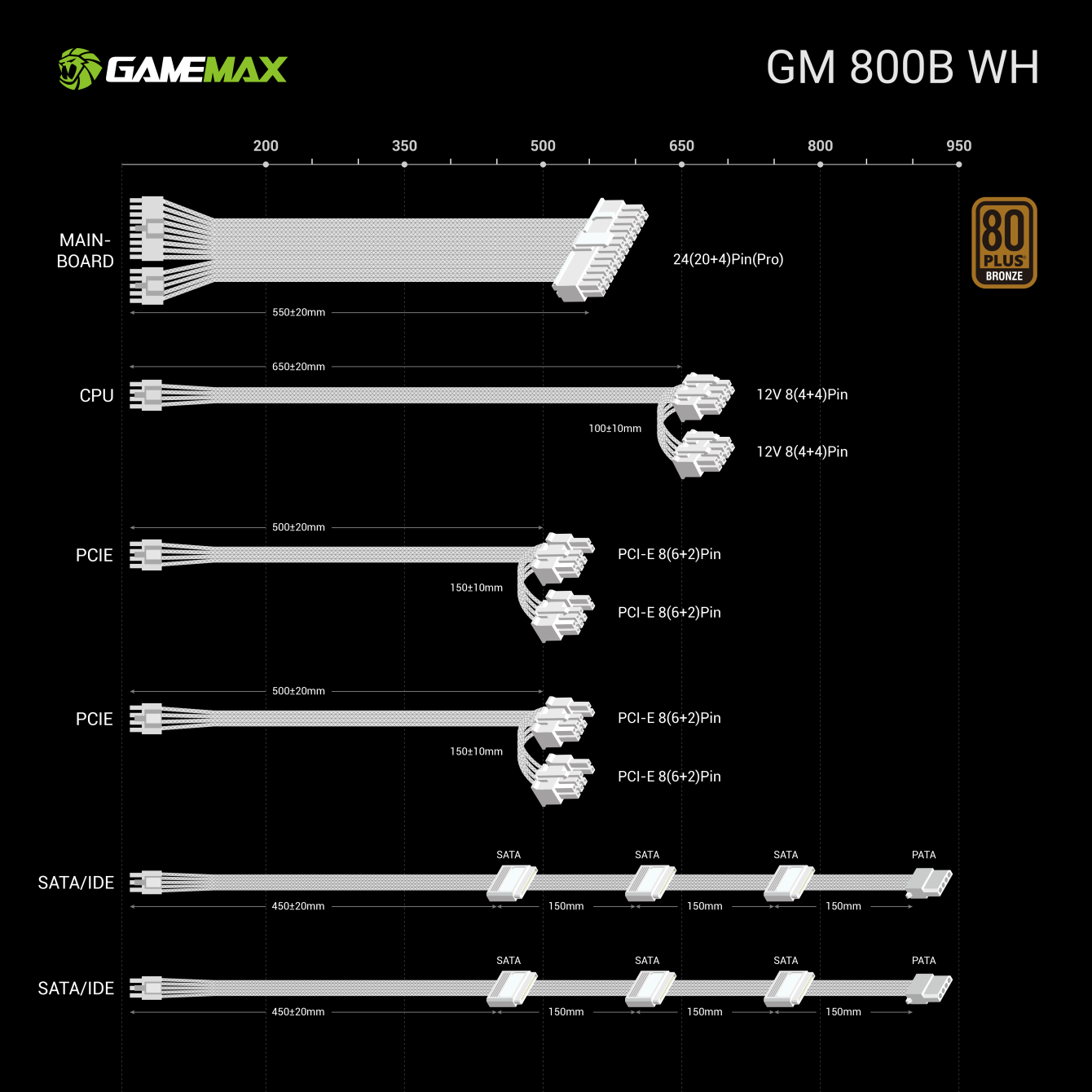

| What's In The Box: | Power Supply Screws Manual 5 x Output Cables 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 160mm x 85mm x 150mm (W x H x D) |
| Packaging Dimensions (mm): | 335mm x 242mm x 122mm (W x H x D) |
